STA-RITE TPEA Series User manual

SSTTAA––RRIITTEE
SPA PUMP
O W N E R’ S M A N U A L
INSTALLATION, OPERATION & PARTS
115/230V/60Hz/1Ph TPEA & TPRA Series MODELS
1 HP TPEAE-165L TPRAE3-165
1-1/2 HP TPEAF-166L TPRAF-174L 5TPRAYF-156 (50 Hz.)
1-1/2 HP TPRAYF-174S
2 HP TPEAG-167L TPRAG-175L TPEAYG-167LS
2 HP TPEAG-167LS TPEAYG-175L TPEAYG-175LS
2-1/2 HP TPEAAG-168L TPEAAYG-168L
2-1/2 HP TPEAAG-168LS TPEAAYG-168LS
Sta-Rite Pool/Spa Group
293 Wright Street, Delavan, WI 53115
International: 262-728-5551, FAX: [phone]
www.starite.com
Union City, TN • Delavan, WI • Mississauga, ON • Murrieta, CA
© 2006, Sta-Rite Industries S330 (Rev. 8/22/06)
This manual should be furnished to
the end user of this pump; its use will
reduce service calls and chance of
injury and will lengthen pump life.

2
STA-RITE SPA PUMP
To avoid unneeded service calls, prevent possible in-
juries, and get the most out of your pump, READ THIS
MANUAL CAREFULLY!
The Sta-Rite ‘TPEA’ Series pump:
• Is designed for use with spas.
• Is an excellent performer; durable, reliable.
Table of Contents
Safety Instructions ........................................................2
Installation.................................................................3-4
Electrical ...................................................................4-6
Operation.....................................................................6
Storage/Winterizing ...................................................6-7
Pump Service ............................................................7-8
Troubleshooting Guide .................................................9
Repair Parts List ..........................................................10
Warranty ....................................................................11
READ AND
FOLLOW SAFETY
INSTRUCTIONS!
This is the safety alert symbol. When you see this
symbol on your system or in this manual, look for
one of the following signal words and be alert to the po-
tential for personal injury.
warns about hazards that will cause death, se-
rious personal injury, or major property damage if ignored.
warns about hazards that can cause death, se-
rious personal injury, or major property damage if ignored.
warns about hazards that will or can cause
minor personal injury or property damage if ignored.
NOTICE indicates special instructions not related to hazards.
Carefully read and follow all safety instructions in this
manual and on equipment. Keep safety labels in good
condition; replace if missing or damaged.
Incorrectly installed or tested equipment
may fail, causing
severe injury or property damage.
Read and follow instructions in owner's manual when in-
stalling and operating equipment. Have a trained pool
professional perform all pressure tests.
1. Do not connect system to a high pressure or city water
system.
2. Use equipment only in a pool or spa installation.
3. Trapped air in system can cause explosion. BE SURE all
air is out of system before operating or testing equipment.
Before pressure testing, make the following safety
checks:
• Check all clamps, bolts, lids, and system accessories
before testing.
• Release all air in system before testing.
• Tighten Sta-Rite trap lids to 30 ft. lbs. (4.1 kg-m) torque
for testing.
•Water pressure for test must be less than 25 PSI (7.5
kg/cm2).
• Water Temperature for test must be less than 100oF.
(38oC).
• Limit test to 24 hours. After test, visually check system
to be sure it is ready for operation. Remove trap lid and
retighten hand tight only.
NOTICE: These parameters apply to Sta-Rite equipment
only. For non-Sta-Rite equipment, consult manufacturer.
IMPORTANT SAFETY
INSTRUCTIONS
Always follow basic safety precautions with this
equipment, including the following.
To reduce the risk of injury, do not permit
children to use this product unless they are closely su-
pervised at all times.
This pump is for use with permanently
installed pools and may also be used with hot tubs and
spas if so marked. Do not use with storable pools. A
permanently installed pool is constructed in or on the
ground or in a building such that it cannot be readily
disassembled for storage. A storable pool is constructed
so that it may be readily disassembled for storage and
reassembled to its original integrity.
SAVE THESE
INSTRUCTIONS

3
INSTALLATION
Only qualified, licensed personnel should install pump
and wiring.
Pump mount must:
Be solid - Level - Rigid - Vibration free. (To reduce vibra-
tion and pipe stress, bolt pump to mount.)
Install pump with suction port below water level (flooded
suction) only. Pump does not lift water.
Allow use of short, direct suction pipe (To reduce friction
losses).
Allow for gate valves in suction and discharge piping.
Have adequate floor drainage to prevent flooding.
Be protected from excess moisture.
Allow adequate access for servicing pump and piping.
NNOOTTIICCEE::When connecting threaded pipe directly to
pump, use Teflon tape or Plasto-Joint Stik1to seal connec-
tions. Do not use pipe dope; pipe dope causes cracking
in some plastics and may damage components in piping
system.
When connecting threaded pipe to pump with union
half, use Teflon tape or Plasto-Joint Stik between pipe and
union adapter. Union collar to pump should be assem-
bled dry and hand-tight. Make sure O-ring is seated in
groove.
NNOOTTIICCEE::Pump suction and discharge connections have
molded in thread stops. DO NOT try to screw pipe in be-
yond these stops.
Teflon Taping Instructions:
Use only new or clean PVC pipe fittings.
Wrap male pipe threads with one to two layers of Teflon
tape. Cover entire threaded portion of pipe.
DDoonnoottovertighten or tighten past thread stop in pump
port!
If leaks occur, remove pipe, clean off old tape, rewrap
with one to two additional layers of tape and remake the
connection.
NNOOTTIICCEE::Support all piping connected with pump!
Piping:
Use at least 1-1/2" (38mm) pipe (use 2"(51mm) pipe if
possible). Increase size if a long run is needed. When
using 1-1/2" pipe, connect to pump with 1-1/2" to 2" (38
to 51mm) reducing adapter.
To avoid strains on the pump, support both suction and
discharge pipes independently. Place these supports near
the pump.
To avoid a strain left by a gap at the last connection, start
all piping at the pump and run pipe aawwaayyfrom the pump.
To avoid airlocking, slope suction pipe slightly upward
toward the pump.
NNOOTTIICCEE::To prevent flooding when removing pump for
service, all flooded suction systems mmuusstthave gate valves
in suction and discharge pipes.
1Lake Chemical Co., Chicago, Illinois
PPoorrtttthhrreeaaddss::
Internal - 2" NPT for direct connection to pipe. External - 3"
Buttress. Fits Sta-Rite 38405 - 4094 Union Collar for quick
disconnect pipe connection.
Order: Union Kit #77703-0105 (1-1/2" and 2" Union
Halves).
Pump may be bolted to level
foundation or mounting bracket.
Suction
Port
Discharge
Port
Drain
Plug
791 0394
Figure 1

4
Fittings:
Fittings restrict flow; for best efficiency use fewest possi-
ble fittings.
Avoid fittings which could cause an air trap in suction
piping.
Pool and spa drains must conform to International
Association of Plumbing and Mechanical Officials
(IAPMO) standards.
Use only non-entrapping suction fittings and dual suction
outlets.
ELECTRICAL
Ground motor before
connecting to electrical
power supply. Failure to
ground motor can cause se-
vere or fatal electrical shock
hazard.
Do not ground to a gas
supply line.
To avoid dangerous or
fatal electrical shock,
turn OFF power to motor be-
fore working on electrical
connections.
Ground Fault Circuit
Interrupter (GFCI) trip-
ping indicates an electrical
problem. If GFCI trips and
will not reset, have a qualified electrician inspect and
repair electrical system.

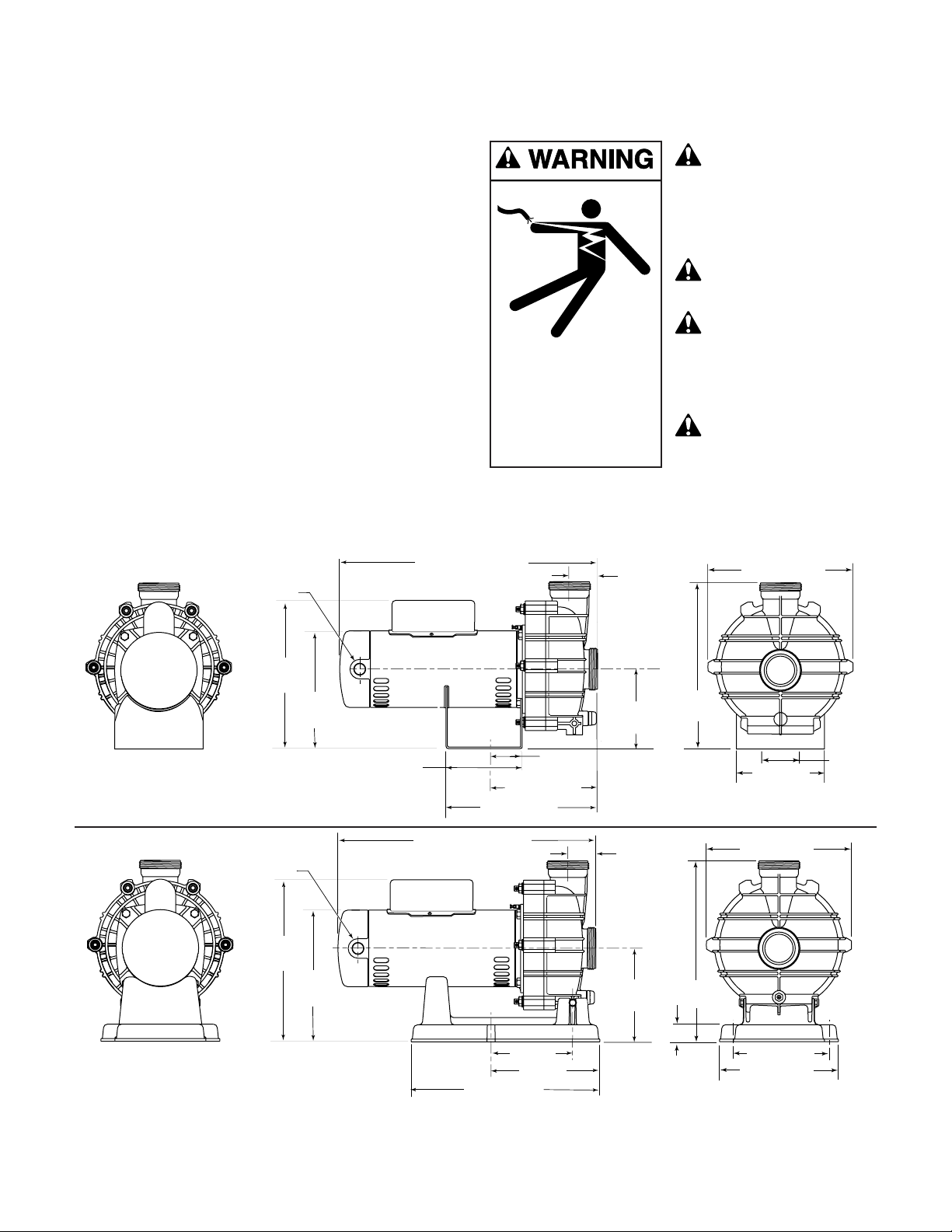

6-3/4 (171)
8-3/4 (222)
10-7/8 (276)
13-1/4
(337)
1-1/4
(32)
1/2-14 SPT
11-15/16
(303)
9-5/8
(244)
18-61/64 (481) Max
17-5/16 (440) Min 2-1/16 (52)
6-7/8
(175)
6 (152)
8 (203)
13-7/8 [phone]
FFiigguurree22––OOuuttlliinneeDDiimmeennssiioonnssiinnIInncchheess((mmmm))
2-3/4
(70)
6-1/2 (165)
10-11/16 (271)
12-1/4
(311)
1/2-14 SPT
10-7/8
(276)
8-9/16
(218)
18-61/64 (481) Max
2-1/16 (52)
5-13/16
(148)
1314 1094
2(51)
7-17/32 (191)
11-5/32 (283)
5-9/16
(143)
17-5/16 (440) Min
Steel Base Models
(LS Suffix)
Plastic Base Models
(L Suffix)
Hazardous voltage.
Can shock, burn,
or cause death.
Ground pump before
connecting to
power supply.

5
Exactly match supply voltage to motor nameplate
voltage. Incorrect voltage can cause fire or seri-
ously damage motor and voids warranty. If in doubt
consult a licensed electrician. See Figure 4.
Voltage
Voltage at motor must be not more than 10% above or
below motor nameplate rated voltage or motor may over-
heat, causing overload tripping and reduced component
life. If voltage is less than 90% or more than 110% of
rated voltage when motor is running at full load, consult
power company.
Grounding/Bonding
Install, ground, bond and wire motor according to local
or National Electrical Code requirements.
Permanently ground motor. Use green ground terminal
provided under motor canopy or access plate (See Fig. 3);
use size and type wire required by code. Connect motor
ground terminal to electrical service ground.
Bond motor to pool structure. Use a solid copper con-
ductor, size No. 8 AWG (8.4 sq.mm) or larger. Run wire
from external bonding lug (see Fig. 3) to reinforcing rod
or mesh.
Connect a No. 8 AWG (8.4 sq.mm) solid copper bonding
wire to the pressure wire connector provided on the
motor housing and to all metal parts of the swimming
pool, spa, or hot tub and to all electrical equipment,
metal piping or conduit within 5 feet (1.5 m) of the inside
walls of swimming pool, spa, or hot tub.
Wiring
Pump must be permanently connected to circuit (see Figure
4A and 4B); be sure no other lights or appliances are on the
same circuit. Match wire sizes to Table I (Pg. 6).
NNOOTTIICCEE::To prevent dirt, rain, bugs, etc., from entering
motor when not wiring with conduit, bbeessuurreeto seal wire
opening on end of motor.
Use Ground Fault Circuit Interrupter (GFCI) as master on-
off switch; it will sense a short circuit to ground and dis-
connect power before it becomes dangerous to pool
users. Test according to maker’s instructions.
In case of power outage, check GFCI for tripping (which
will prevent normal water circulation). Reset if necessary.
RRiisskkooffddaannggeerroouussoorrffaattaalleelleeccttrriiccaallsshhoocckk..
BBeessuurreetthhaattppoowweerrttootthheemmo
ottoorrcciirrccuuiittiissooffffbbeeffoorree
wwoorrkkiinnggoonnwwiirriinngg,,wwiirriinnggccoonnnneeccttiioonnss,,oorrmmoottoorr..RRee--iinn--
ssttaalllltthheemmoottoorreen
nddccoovveerraannddaallllootthheerrwwiirriinnggccoovveerrssbbee--
ffoorreettuurrnniinnggoonntthheeppoowweerr..
1. Turn off power.
2. Remove the motor end cover.
To Wire a Single Speed, Single Voltage Motor
There are two terminals labeled L1 and L2. Attach the
power leads to these terminals. Either wire may attach to
either terminal.
To Wire a Dual-Voltage Motor
Dual voltage motors have a plug to change from 230 volts
(factory setting) to 115 volts.
1. If you have 230 volts motor supply voltage, confirm
that the plug is set for 230 volts. The arrow on the plug
will point to the 230 volt position. Note that plug only
connects with one prong in this position.
2. If you have 115 volt supply, pull the plug straight up
and place it on the ttwwoobrass prongs as shown.
NNOOTTEE::Arrow is highlighted for clarity.
BONDING
LUG
GREEN
GROUND
SCREW
510 0993
Figure 3 – Typical ground screw and bonding lug
locations.
Figure 4B Voltage Change
Plug Set for 115 Volts
Figure 4A -Voltage Change
Plug Set for 230 Volts

6
To Wire a Two-Speed Motor
Wire the pump as shown in the diagram.
OPERATION
NNOOTTIICCEE::NEVER run pump dry. Running pump dry may
damage seals, causing leakage and flooding. Fill pump
with water before starting motor.
DDoonnoottbblloocckkppuummppssuucc--
ttiioonn..TTooddoossoowwiitthh
bbooddyymmaayyccaauusseesseevveerreeoorr
ffaattaalliinnjjuurryy..SSmmaallllcchhiillddrreenn
uussiinnggppoooollmmuussttAALLWWAAYYSS
hhaavveecclloosseeaadduullttssuuppeerrvviissiioonn..
Priming Pump
Release all air from filter and
piping system: see filter
owner’s manual.
In a flooded suction system
(water source higher than
pump), pump will prime itself
when suction and discharge
valves are opened.
Storage/Winterizing:
NNOOTTIICCEE::Allowing pump to freeze will damage pump
and void warranty!
NNOOTTIICCEE::DDoonnoottuse anti-freeze solutions (except propy-
lene glycol) in your pool/spa system. Propylene glycol is
non-toxic and will not damage plastic system compo-
nents; other anti-freezes are highly toxic and may dam-
age plastic components in the system.
TABLE I - RECOMMENDED FUSING AND WIRING DATA
NOTICE: Series TPEA and TPRA pumps use 60 Cycle current only.
Serv. to Motor - Dist. in Ft. (M)
Motor Branch Fuse Max Load Voltage/ 0-100' 101-200' 201-300'
HP Rating Amps* Amps Hz/Phase (0-30) (30-60) (60-90)
TTPPEEAAMMooddeellss::
1 20/15 12.6/6.3 115/230/60/1 12(3)/14(2) 10(5/14(2) 8(7)/14(2)
1-1/2 25/15 16.0/8.0 115/230/60/1 12(3)/14(2) 8(7)/14(2) 6(13)/14(2)
2 15 10.4 230/60/1 14(2) 14(2) 14(2)
2-1/2 15 11.2 230/60/1 14(2) 12(3) 12(3)
TTPPEEAAYYMMooddeellss((22--ssppeeeedd))::
2 15 10.1/3.7 230/60/1 14(2) 14(2) 14(2)
2-1/2 15 11.9/3.5 230/60/1 14(2) 12(3) 12(3)
TTPPRRAAMMooddeellss::
1 15 3.6/1.8 208-230/460/60/3 14(2) 14(2) 14(2)
1-1/2 25/15 19.2/9.6 115/230/60/1 10(5)/14(2) 8(7)/14(2) 6(13)/12(3)
2 15 12.0 230/60/1 14(2) 14(2) 12(3)
TTPPRRAAMMooddeellss((22--SSppeeeedd))::
1-1/2 15 9.2/2.5 230/60/1 14(2) 14(2) 12(3)
55TTPPRRAAYYMMooddeell((22--ssppeeeedd))::
1-1/2 15 8.3/3.0 230/50/1 14(2) 14(2) 12(3)
* Time delay fuses are recommended instead of standard fuses in any motor circuit.
AAWWGG
WWiirree
SSiizzee
((mmmm22))
}
Figure 4C - 2-Speed Motor Wiring Diagram
L2=COM
L1=HI
A=LOW
A
L2
L1
Power Supply for
Optional Timer.
Low Speed
High Speed Circuit
Protector
Remote
SPDT
Switch
Ground (Green)
Common
If using timer, Connect
Timer Motor to Low Speed Only
Minimum switch and timer amp rating must equal Branch Fuse
Rating given in "Recommended Fusing and Wiring Data" table.
230
Volt
Lines
Back of
motor
with
Terminal
Board
4558 0304
Hazardous suction.
Can trap hair or body
parts, causing severe
injury or death.
Do not block suction.
Do not operate system
with broken or missing
drain covers.

7
Drain all water from pump and piping when expecting
freezing temperatures or when storing pump for a long
time (see instructions below).
Keep motor dry and covered during storage.
To avoid condensation/corrosion problems, ddoonnoottcover
pump with plastic.
For outdoor/unprotected installations:
1. Enclose entire system in a weatherproof enclosure.
2. To avoid condensation/corrosion damage, allow venti-
lation; ddoonnoottwrap system in plastic.
3. Use a 40% propylene glycol/60% water solution to
protect pump to -50°F (-46°C).
Draining Pump
1. Pump down water level
below all inlets to the pool.
TTooaavvooiiddddaannggeerroouussoorr
ffaattaalleelleeccttrriiccaallsshhoocckk
hhaazzaarrdd,,ttuurrnnOOFFFFppoowweerrttoo
mmoottoorrbbeeffoorreeddrraaiinniinnggppuummpp..
2. Cap inlet piping after drain-
ing to keep water out of the
pipes.
3. To prevent pump from
freezing, drain the pump
body through the drain fit-
ting provided.
4. Be sure motor is kept dry
and covered.
Startup For Winterized Equipment
1. Remove any temporary weather protection placed
around system for shutdown.
2. Follow filter manufacturer’s instructions for reactiva-
tion of the filter.
3. Inspect all electrical wiring for damage or deterioration
over the shutdown period. Have a qualified service-
man repair wiring as needed.
4. Inspect and tighten all watertight connections.
5. Open all valves in suction and return piping.
6. Remove any winterizing plugs in piping system.
7. Drain all antifreeze from system.
8. Close all drain valves and replace all drain plugs in
piping system.
9. Prime pump according to instructions on Page 6.
PUMP SERVICE
Pump should only be serviced
by qualified personnel.
Be sure to prime pump (Pg. 6)
before starting.
11..SSTTOOPPPPUUMMPPbbeeffoorreepprroo--
cceeeeddiinngg..
22..CCLLOOSSEEGGAATTEEVVAALLVVEESSiinn
ssuuccttiioonnaannddddiisscchhaarrggeeppiippeess..
33..RREELLEEAASSEE
AALLLLPPRREESSSSUURREE
ffrroommppuummppaannddppiippiinnggssyysstteemm..
TTooaavvooiiddddaannggeerroouussoorr
ffaattaalleelleeccttrriiccaallsshhoocckk
hhaazzaarrdd,,ttuurrnn
OOFFFFppoowweerrttoo
mmoottoorrbbeeffoorreewwoorrkkiinnggoonn
ppuummppoorrmmoottoorr..
If shaft seal is worn or damaged, repair as follows:
Pump Dissasembly/Removing Old Seal
Disconnect power to pump motor.
BBeessuurreegate valves on suction and return piping are
closed before starting work.
Release all pressure by opening all vents before starting
work.
1. Drain pump through drain fitting on bottom of pump
body.
2. Remove 6 nuts, lockwashers and flat washers holding
seal plate to pump body. Pull seal plate and motor
away from pump body. (You may have to CARE-
FULLY use a screwdriver to separate body from seal
plate.)
3. Remove seven screws and washers holding diffuser to
seal plate. Remove diffuser.
4. Remove motor canopy. Being careful not to touch ca-
pacitor terminals, loosen capacitor clamp and move
capacitor to one side.
5. Hold shaft with 7/16" open-end wrench on motor
shaft flats.
6. Unscrew impeller from shaft (turn counterclockwise
when facing it).
NNOOTTIICCEE::On 2 and 2-1/2 HP models, remove im-
peller screw (left hand thread - turn cclloocckkwwiissee) and
gasket before removing impeller. Inspect gasket for
damage, cracks, etc. Replace if damaged.
Hazardous voltage.
Can shock, burn,
or cause death.
Disconnect power
before working
on pump or motor.
Hazardous voltage.
Can shock, burn,
or cause death.
Disconnect power
before working
on pump or motor.

8
7. Remove four screws holding seal plate to motor.

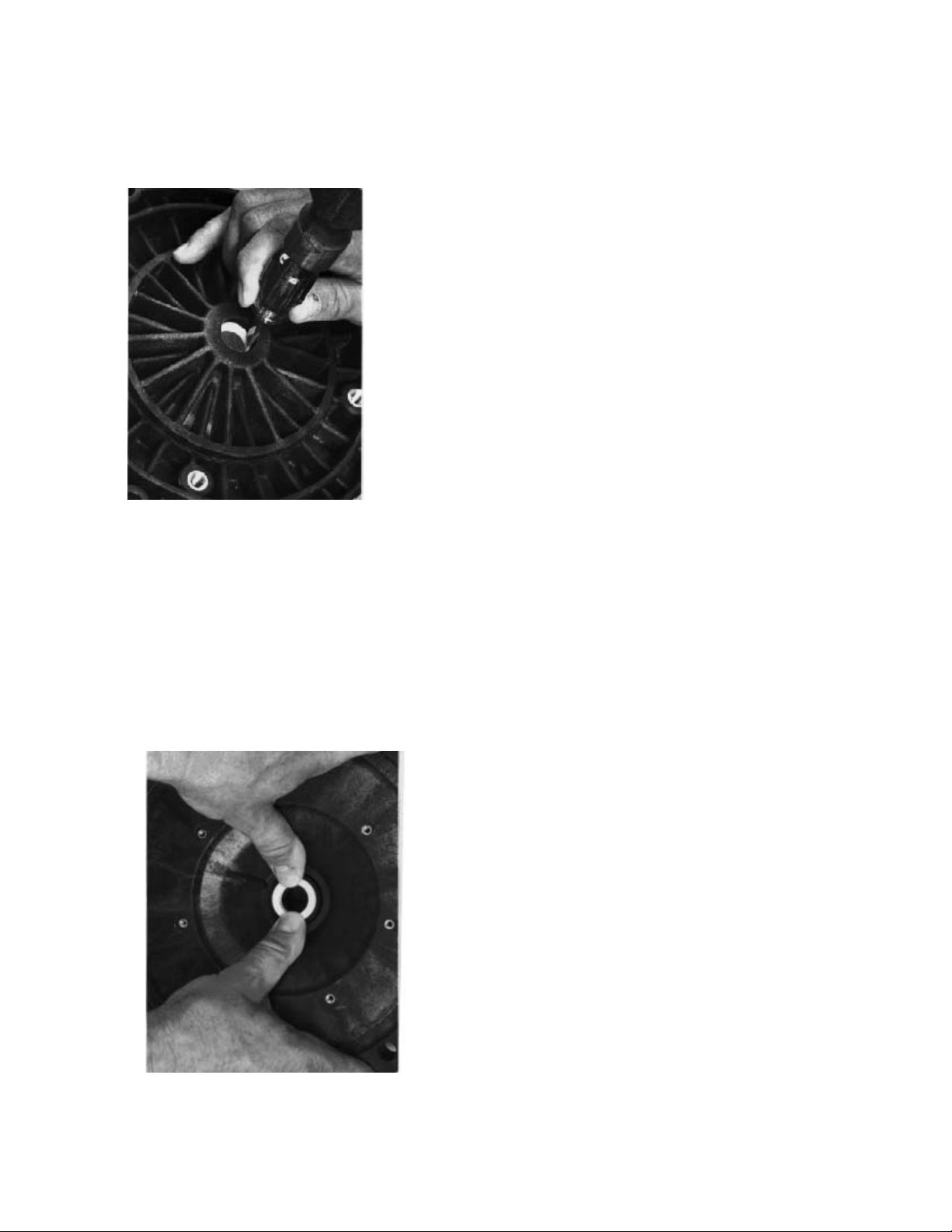

8. Place seal plate face down on flat surface and tap out
ceramic seat (Fig. 5).
9. Remove slinger from motor shaft and inspect for dam-
age or abrasion.
10. Clean seal cavity in seal plate and clean motor shaft.
Pump Reassembly/Installing New Seal
1. Ceramic seat must be clean and free of dirt, grease,
dust, etc. Wet outer edge with small amount of liquid
detergent; press ceramic seat into seal plate cavity
firmly and squarely with finger pressure (Fig. 6).
2. If ceramic seat will not locate properly, remove it,
place ffaacceeuuppon bench and reclean cavity. Ceramic
seat should now locate.
3. If seat still will not locate properly, place a cardboard
washer over the polished face and use a piece of 3/4"
(19mm) standard pipe for pressing purposes.
NNOOTTIICCEE::BBeessuurreenot to scratch or mar polished sur-
face or seal will leak.
4. Replace slinger on end of motor shaft so that impeller
sleeve will push it into position. If slinger shows signs
of wear or damage, replace it.
5. Remount seal plate on motor. Tighten bolts to 60-80
inch-lbs. (69-92 kg/cm) torque.
6. Apply a ssmmaallllamount of liquid detergent to inside di-
ameter of rotating half of seal.
7. Slide rotating seal member, polished carbon face out,
over impeller sleeve until rubber drive ring hits back
of impeller.
NNOOTTIICCEE::BBeessuurreenot to nick or scratch polished seal
face; seal will leak if face is damaged.
8. Screw impeller onto shaft (clockwise); this will auto-
matically locate seal in seal plate.
NNOOTTIICCEE::On 2 HP, 2-1/2 HP and 3-Phase models;
install impeller gasket and lock screw (left-hand
thread - turn counterclockwise). Torque lock screw to
50-55 inch-lbs. (57.6-63 kg/cm).
9. Mount diffuser on seal plate; tighten screws to 10-14
inch-lbs. (11.2-16.1 kg/cm) torque.
10. Assemble motor and seal plate to pump body with
nuts, flat washers and lock washers. Torque nuts to
120-130 in-lbs. (138-150 kg/cm).
11. Prime pump according to instructions on Page 6.
Figure 5
Figure 6

9
TROUBLESHOOTING
GUIDE
Read and understand safety and operating instruc-
tions in this manual before doing any work on
pump!
Only qualified personnel should electrically test
pump motor!
FAILURE TO PUMP; REDUCED CAPACITY OR DIS-
CHARGE PRESSURE
Suction leaks/lost prime:
1. Make sure there are no leaks in suction piping.
2. Make sure suction pipe inlet is well below the water
level to prevent pump from sucking air.
3. Make sure pump is not trying to lift water.
4. Make sure suction pipe is at least 2" (51mm) in diameter.
CCllooggggeeddppiippee//iimmppeelllleerr,,wwoorrnniimmppeelllleerr::
1. Make sure impeller is not clogged (follow steps 1
through 7 under “Removing Old Seal”, Page 7; check
impeller for clogging; follow steps 7 through 11 under
“Installing New Seal”, Page 8, for reassembly).
2. Impeller and diffuser may be worn. If so, order re-
placement parts from Repair Parts List, Page 10.
EElleeccttrriiccaall::
1. Pump may be running too
slowly; check voltage at
motor terminals and at
meter while pump is run-
ning. If low, see wiring in-
structions or consult power
company. Check for loose
connections.
2. Pump may be too hot.
A. Check line voltage; if
less than 90% or more
than 110% of rated volt-
age consult a licensed
electrician.
B. Increase ventilation.
C. Reduce ambient
temperature.
D. Tighten any loose connections.
MMEECCHHAANNIICCAALLTTRROOUUBBLLEESSAANNDDNNO
OIISSEE
1. If suction and discharge piping are not adequately
supported, pump assembly will be strained. See
“Installation”, Page 3.
2. Do not mount pump on a wooden platform!
Securely mount on concrete platform for quietest
performance.
Hazardous voltage.
Can shock, burn,
or cause death.
Disconnect power
before working
on pump or motor.

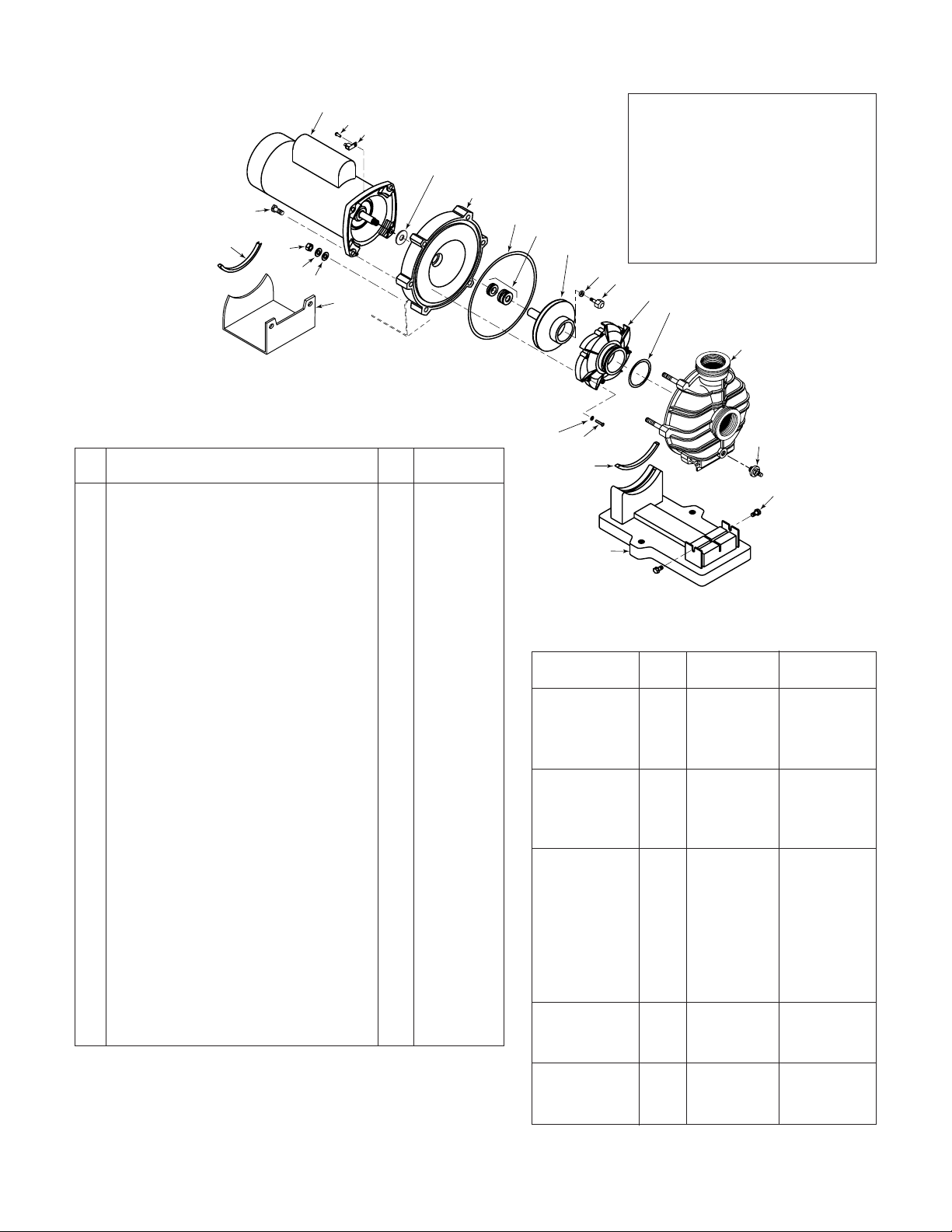

1
23
4
5
6
7
8
9A 9B
10 11
12
13
14
15A
16A
16B
15B
17
18
19
20
21
22
1313 1094
For quick disconnect pipe connec-
tions, purchase separately Part No.
77703-0105 (2" Slip and 1-1/2" Slip
Union Kit) .
Kit Includes:
2 #38405-4094 Union Collars
2 #35505-1244 O-Ring
1 #38405-4095 2" Slip Adapter
1 #38405-4096 1-1/2" Slip Adapter
REPAIR PARTS LIST
1 through 2-1/2 HP Spa Pumps
PPaarrttssaarreeccoommmmoonnttooaallllmmooddeellsseexxcceeppttaassnnootteedd::
Key Nos.1, Motor, and 8, Impeller, are listed below.
Key Part Part
No. Description Qty. Number
1 Motor 1 See Chart
2 Screw #10-32x1/2" 1 U30-692SS
3 Bonding Lug 1 U17-568
4 Slinger 1 C69-24
5 Seal Plate 1 C3-184P
6 Seal Plate Cord Ring 1 U9-373
7 Shaft Seal 1 17351-0101A
8 Impeller 1 See Chart
9A Impeller Lock Screw Gasket* 1 33455-1047
9B Impeller Lock Screw* 1 37337-6080
10 Diffuser** 1 C1-270P
11 Diffuser “O” Ring 1 U9-374
12 Pump Body (Only) 1 17303-0001
13 Drain Plug 1 U178-920P
14 Hi-Lo Screw 5/16-14x5/8" 2 U30-919SS
15A Base - Corrosion Resistant 1 C4-77P
15B Base - Steel*** 1 17303-0113
16A Motor Pad - for Corrosion Resistant Base 1 C35-45
16B Motor Pad - for Steel Base*** 1 C35-5
17 Screw #8-32x7/8" Rd. Hd. 7 U30-542SS
18 Lock Washer #8 Ext. Tooth 7 U43-21SS
19 Flat Washer 3/8" 6 U43-62SS
20 Lock Washer 3/8" 6 U43-12SS
21 Nut 3/8-16 Hex 6 071403
22 Cap Screws 3/8-16x1" Hex. 4 U30-74SS
• Nameplate 1 U33-174
• Tag, “Warning/Caution/Instruction” 1 C63-12
• Tag, "NOTICE: Do not use pipe dope..." 1 C63-13
• Decal, “Tested for use with spas…” 1 U27-635
• Voltage Sticker 115/230 Volts (1-1/2 HP only) 1 U27-153
• Voltage Sticker 230 Volts
(2, 2-1/2 HP and 3 Ph. only) 1 U27-68
MMoottoorrNNoo..IImmppeelllleerr
MMooddeellNNoo..HHPP((KKeeyyNNoo..11))((KKeeyyNNoo..88))
111155//223300//6600//11
TPEAE-165L 1 62003-2025 C105-236PB
TPEAF-166L 1-1/2 AE100FLL C105-236PC
TPRAF-174L 1-1/2 A100FLL C105-236PF
223300//6600//11
TPEAG-167LS 2 AE100GLL C105-236PDA
TPRAG-175L 2 A100GLL C105-236PGA
TPEAAG-168LS 2-1/2 AE100G5LL C105-236PEA
223300//6600//11
((22SSppeeeedd))
TPRAYF-174S 1-1/2 A100FLL-Y C105-236PF
TPEAYG-175L 2 AE100GLL-Y C105-236PGAB
TPEAYG-175LS 2 AE100GLL-Y C105-236PGAB
TPEAYG-167LS 2 AE100GLL-Y C105-236PDA
TPEAAYG-168L 2-1/2 AE100G5LL-Y C105-236PHA
TPEAAYG-168LS 2-1/2 AE100G5LL-Y C105-236PHA
223300//5500//11
((22SSppeeeedd))
5TPRAYF-156 1-1/2 J218-887A C105-236PE
220088--223300//446600//6600
33--PPhhaassee
TPRAE3-165 1 J218-562A C105-236PBA
• Not illustrated.
* Models TPEAG-167L, TPEAAG-168L, and TPRAG-167L only.
** Model TPEAE-165L and TPRAE3-165 use Part No. C1-270PC.
*** Models with LS suffix only.
10

CREATE A RECORD OF YOUR WARRANTY AT STA-RITE:
• Complete a warranty registration at www.staritepool.com by clicking on “Register Products” and selecting Sta-Rite Pool OR
• Complete bottom portion completely and mail within 10 days of installation to Sta-Rite, Attn.: Pool Warranty Dept., 293 Wright St., Delavan , WI 53115
Warranty Registration Card
Name
Address
City State Zip
Installation (or Purchase) Date
Product Purchased
Model Number
■■New installation ■■Replacement
Years pool has been in service ■■less than 1 ■■1-3 ■■3-5 ■■5-10
This product was purchased from:
Company name
Address
City State Zip
STA-RITE LIMITED WARRANTY
For technical information about this product, contact the installer or call Sta-Rite at 262-728-9181.
Visit www.staritepool.com
• for more information about Sta-Rite products listed above
• to locate a Sta-Rite dealer near you
Product Specific Warranties (from date of installation)
Product Limited
Family Warranty Exceptions
Filters 1 Year System 3 Tank Bodies - 10 Yrs
Filter Valves 1 Year
Pumps 1 Year
Heaters 2 Years *Commercial Application - 1 Yr
Controls 1 Year
Above Ground Systems 1 Year
Lights and Niches 1 Year Lamps and Bulbs - 90 Days
White Goods 1 Year
Maintenance Equipment 90 Days
Drainer/Utility Pumps 90 Days
Replacement Parts 90 Days
Cleaners: Lil Shark 1 Year
Cleaners: Calypso 1 Year
Cleaners: Pool Shark 2 Years Footpad and Seal Flaps - 1 Yr
Cleaners: Great White 2 Years
* Commercial and multi-family application.
Retain this warranty certificate in a
safe and convenient location for your records.
Pumps, filters, skimmers, underwater lights (excluding bulbs), ac-
cessories and fittings manufactured by Sta-Rite are warranted to
be free of defects in material and/or workmanship for one (1) year
from the original date of installation.
The foregoing warranties relate to the original consumer purchaser
(“Purchaser”) only. Sta-Rite Industries shall have the option to re-
pair or replace the defective product, at its sole discretion.
Purchasers must pay all labor and shipping charges necessary to
replace the product covered by this warranty. Requests for war-
ranty service must be made through the installing dealer. This war-
ranty shall not apply to any product that has been subject to
negligence, misapplication, improper installation or maintenance,
or other circumstances which are not in Sta-Rite’s direct control.
Failure to have product installed by a professional in compliance
with local codes will void any and all manufacturers warranty.
This warranty sets forth Sta-Rite’s obligation and Purchaser’s ex-
clusive remedy for defective products.
STA-RITE SHALL NOT BE LIABLE FOR ANY CONSEQUENTIAL,
INCIDENTAL OR CONTINGENT DAMAGES WHATSOEVER.
THE FOREGOING WARRANTIES ARE EXCLUSIVE AND IN
LIEU OF ALL OTHER EXPRESS WARRANTIES. IMPLIED WAR-
RANTIES, INCLUDING BUT NOT LIMITED TO THE IMPLIED
WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE, SHALL NOT EXTEND BEYOND THE
DURATION OF THE APPLICABLE EXPRESS WARRANTIES
PROVIDED HEREIN.
Some states do not allow the exclusion or limitation of incidental or
consequential damages or limitations on how long an implied war-
ranty lasts, so the above limitations or exclusion may not apply to
you. This warranty gives you specific legal rights and you may also
have other rights which vary from state to state.
Supersedes all previous publications.
S4877PS (Rev. 7/21/04)
