Stage right 625892 User manual
Mini USB MIDI Keyboard Controller with Pads
P/N 625892
User's Manual
2
CONTENTS
SAFETY WARNINGS AND GUIDELINES.......................................................................................................................................3
FEATURES..............................................................................................................................................................................................................4
CUSTOMER SERVICE....................................................................................................................................................................................4
PACKAGE CONTENTS.................................................................................................................................................................................4
SYSTEM REQUIREMENTS.........................................................................................................................................................................5
Windows®.......................................................................................................................................................................................................5
Mac® OS X®....................................................................................................................................................................................................5
PRODUCT OVERVIEW.................................................................................................................................................................................6
DETAILED SETTINGS .................................................................................................................................................................................... 7
Common Controls................................................................................................................................................................................... 7
Trigger Pads ..................................................................................................................................................................................................9
Knobs................................................................................................................................................................................................................10
Sliders................................................................................................................................................................................................................11
Keys in CC Mode ....................................................................................................................................................................................12
TECHNICAL SUPPORT............................................................................................................................................................................... 13
REGULATORY COMPLIANCE.............................................................................................................................................................. 13
Notice for FCC ..........................................................................................................................................................................................13
Notice for Industry Canada...........................................................................................................................................................14
3
SAFETY WARNINGS AND GUIDELINES
Please read this entire manual before using this device, paying extra attention to these
safety warnings and guidelines. Please keep this manual in a safe place for future reference.
•This device is intended for indoor use only.
•Do not expose this device to water or moisture of any kind. Do not place drinks or
other containers with moisture on or near the device. If moisture does get in or on
the device, immediately unplug it from the power source and allow it to fully dry
before reapplying power.
•Do not touch the device, the power cord, or any other connected cables with wet
hands.
•Do not expose this device to excessive vibration.
•Do not subject the product to extreme force, shock, or fluctuations in temperature
or humidity.
•Do not expose this device to excessively high temperatures. Do not place it in, on,
or near a heat source, such as a fireplace, stove, radiator, etc. Do not leave it in
direct sunlight.
•Clean using a soft, dry cloth only. Do not use chemical cleaners, solvents, or
detergents. For stubborn deposits, moisten the cloth with warm water.
•This device has no user serviceable parts. Do not attempt to open, service, or
modify this device.
4
FEATURES
•8 assignable, velocity and pressure sensitive pads with RGB backlighting
•25 assignable velocity sensitive keys with three velocity curves and one constant
velocity
•4 assignable control knobs
•4 assignable control sliders
•4 banks for different settings
•Easy to use control software with graphical interface
•USB powered
•Driver free compatibility with Mac® OS X® and Windows®
CUSTOMER SERVICE
The Monoprice Customer Service department is dedicated to ensuring that your ordering,
purchasing, and delivery experience is second to none. If you have any problem with your
order, please give us an opportunity to make it right. You can contact a Monoprice
Customer Service representative through the Live Chat link on our website
support times and links.
PACKAGE CONTENTS
Please take an inventory of the package contents to ensure you have all the items listed
below. If anything is missing or damaged, please contact Monoprice Customer Service for a
replacement.
1x Mini USB MIDI Keyboard Controller
1x USB Cable
5
SYSTEM REQUIREMENTS
If using this keyboard with a computer, ensure that the computer has the following
minimum capabilities. Note that USB hubs are not supported.
Windows®
•Pentium® 800 MHz or higher (CPU requirement may be higher for laptops)
•256MB RAM
•DirectX® 9.0b or later
•Windows® XP (SP2) or later
Mac® OS X®
•Mac G3 800 MHz or G4 733 MHz or higher (G3/G4 accelerator cards not supported)
•OS X 10.3.9 with 256MB RAM or OS X 10.4.2 or later with 512MB RAM
6
PRODUCT OVERVIEW
1. CC MODE: Press the CC MODE button to activate CC Mode, which causes the 25
piano keys to send Control Change messages instead of Note messages.
2. BANK: Press the BANK button to turn Bank Mode on or off. When Bank Mode is on,
use the ◄and ►buttons to switch the active bank. There are four banks, which
can have different sets of parameters for the controllers. One of the four LEDS
beneath the buttons illuminates to indicate the active bank.
3. PITCH DOWN: Press the PITCH DOWN button to decrease the pitch by a single cent
(1% of a semitone).
4. ◄: When in normal operating mode, press the ◄button to decrease the pitch by a
whole octave.
5. MOD: Press the MOD button to introduce a vibrato effect.
6. PROG: Press the PROG button to turn Prog Mode on or off. When Prog Mode is on,
use the ◄and ►buttons to change the current program/voice.
7. PITCH UP: Press the PITCH UP button to increase the pitch by a single cent (1% of a
semitone).
7
8. ►: When in normal operating mode, press the ►button to increase the pitch by a
whole octave.
9. LEDS: One of the LEDs illuminates to indicate which bank is currently selected.
10. MIDI CONTROL GROUPS: Each MIDI CONTROL GROUP is composed of a knob and a
slider, which can send Control Change messages. There are four MIDI CONTROL
GROUPS.
11. PADS: These 8 RGB backlit PADS can be assigned to send MIDI Note messages or
Control Change messages.
12. PIANO KEYS: These 25 velocity sensitive PIANO KEYS can be assigned to send MIDI
Note messages. When CC Mode is enabled, they send Control Change messages.
DETAILED SETTINGS
The Mini USB MIDI Keyboard Controller has many features and settings that cannot be
accessed using the physical controls. To control these settings, download the Mac® or
Windows® control editor from the Monoprice website.
Common Controls
•Global MIDI Ch: This setting controls which MIDI channel the keyboard will use to
transmit note messages. This should be set to the same channel as the MIDI
application you will be using.
•Piano Key CC# Ch: This setting controls which MIDI channel the keyboard will use
to transmit control messages.
8
•Pitch Bend Speed: This setting determines the speed of pitch bends. The range of
values is 1 ~ 4.
•Key Transpose: This setting can be used to change the pitch up or down by a
semitone. The range of values is -12 ~ +12.
•Key Velocity Curve: There are three key velocity curves (LIGHT, MEDIUM, and
HEAVY) that can be selected, as well as a CONST setting, which uses the value
specified by the Key Const Velocity setting.
•Key Const Velocity: This setting determines the constant velocity to use when the
Key Velocity Curve is set to CONST.
•Pad Velocity Curve: There are three pad velocity curves (LIGHT, MEDIUM, and
HEAVY) that can be selected, as well as a CONST setting, which uses the value
specified by the Key Const Velocity setting.
•Pad Const Velocity: This setting determines the constant velocity to use when the
Pad Velocity Curve is set to CONST.
9
Trigger Pads
•Assign Type: You can set the Pad to transmit Note messages or Control Change
messages. You can also select No Assign to disable the pad.
•CC/Note Number: Specifies the Note or Control Change number, depending on the
selected Assign Type. Note values are in the range C1 ~ G9, while Control Change
values are in the range 0 ~ 127.
•ON Value: Specifies the value to be transmitted when the Pad is pressed with a
range of 0 ~ 127.
•OFF Value: Specifies the value to be transmitted when the Pad is released with a
range of 0 ~ 127.
•Pad Behavior: When the behavior of the pad is set to Momentary, it will transmit
the Note On (Assign Type = Note) message or the ON Value (Assign Type = Control
Change) when the Pad is pressed and transmits the Note Off message or the OFF
Value when the pad is released. When the behavior of the Pad is set to Toggle, it
10
will transmit the Note On message or ON Value when the Pad is pressed and will
transmit the Note Off message or OFF Value the next time the Pad is pressed.
•MIDI Channel: This setting determines which MIDI channel will be used to transmit
the pad messages.

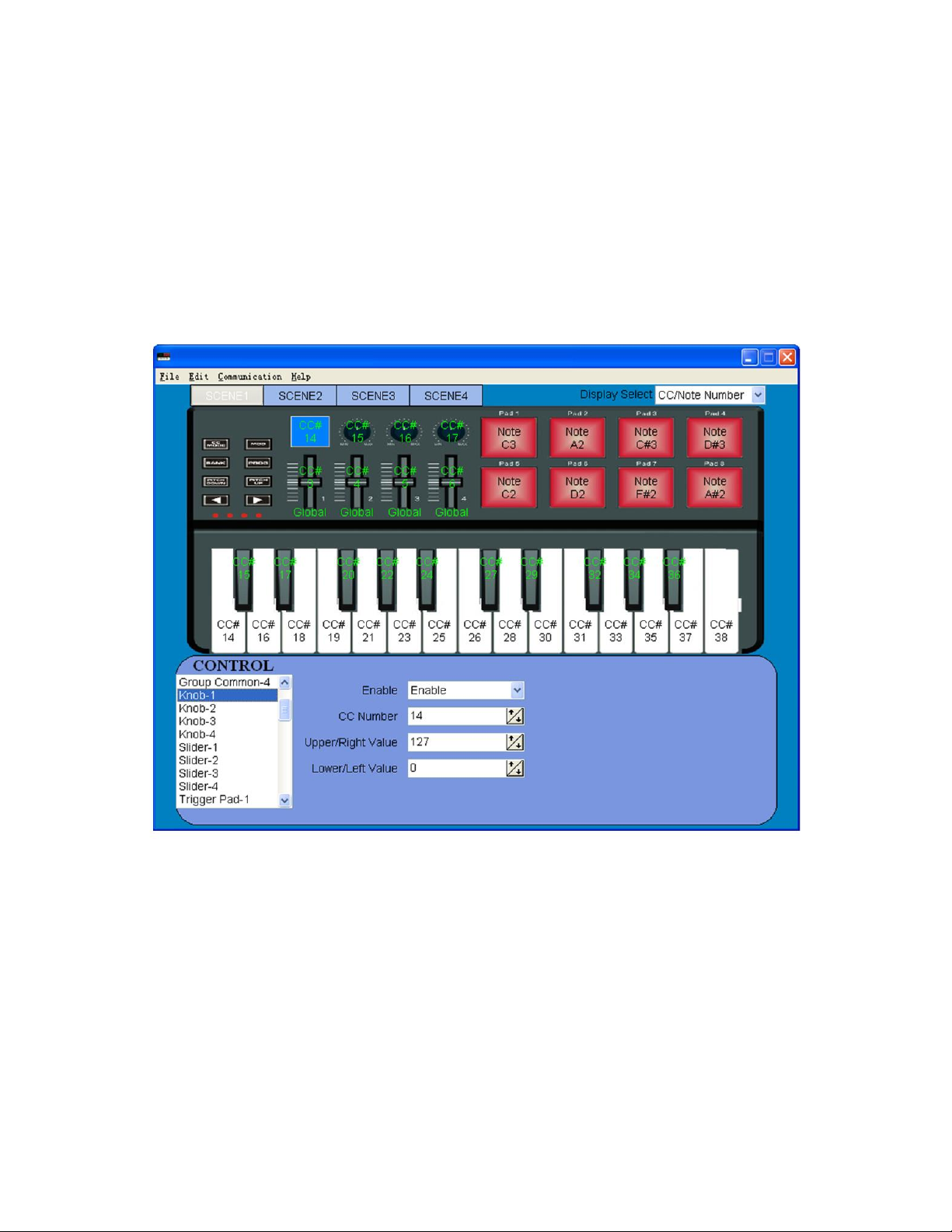

Knobs
The Knobs are used to send Control Change messages.
•Enable: You can Enable or Disable the selected Knob.
•CC Number: Specifies the number of the Control Change message to send with the
Knob. The range of values is 0 ~ 127.
•Upper/Right Value: Specifies the value of the Control Change message that is sent
when the Knob is fully clockwise. The range of values is 0 ~ 127.
11
•Lower/Left Value: Specifies the value of the Control Change message that is sent
when the Knob is fully counterclockwise. The range of values is 0 ~ 127.
Sliders
The Sliders are used to send Control Change messages.
•Enable: You can Enable or Disable the selected Slider.
•CC Number: Specifies the number of the Control Change message to send with the
Slider. The range of values is 0 ~ 127.
•Upper/Right Value: Specifies the value of the Control Change message that is sent
when the Slider is pushed fully forward. The range of values is 0 ~ 127.
•Lower/Left Value: Specifies the value of the Control Change message that is sent
when the Slider is pulled fully back. The range of values is 0 ~ 127.
12

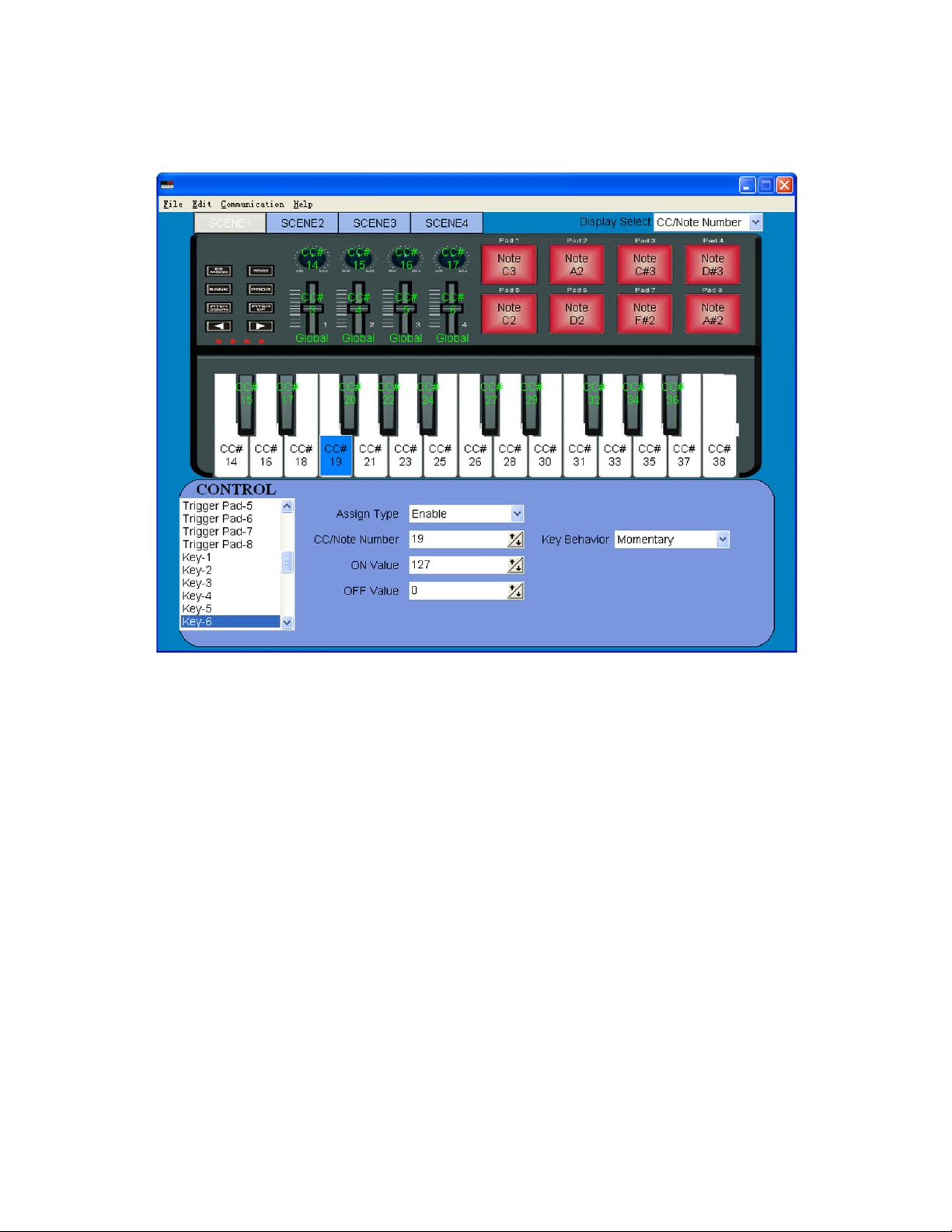

Keys in CC Mode
The Keys normally send MIDI Note messages when press, but when CC Mode is enabled,
they transmit Control Change messages. This screen allows you to configure the Control
Change messages to send when the Key is pressed.
•Assign Type: Allows you to Enable or Disable the selected Key.
•CC/Note Number: Specifies the number of the Control Change message to send
when the Key is pressed. The range of values is 0~127.
•ON Value: Specifies the value of the Control Change message sent when the Key is
pressed. The range of values is 0 ~ 127
•OFF Value: Specifies the value of the Control Change message sent when the Key is
released. The range of values is 0 ~ 127
•Key Behavior: When the behavior of the Key is set to Momentary, it will transmit
the ON Value (Assign Type = Control Change) when the Key is pressed and
transmits the OFF Value when the Key is released. When the behavior of the Key is
13
set to Toggle, it will transmit the ON Value when the Key is pressed and will
transmit the OFF Value the next time the Key is pressed.
TECHNICAL SUPPORT
Monoprice is pleased to provide free, live, online technical support to assist you with any
questions you may have about installation, setup, troubleshooting, or product
recommendations. If you ever need assistance with your new product, please come online
to talk to one of our friendly and knowledgeable Tech Support Associates. Technical
support is available through the online chat button on our website www.monoprice.com
support times and links.
REGULATORY COMPLIANCE
Notice for FCC
This device complies with Part 15 of the FCC rules. Operation is subject to the following
two conditions: (1) this device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause undesired
operation.
Modifying the equipment without Monoprice's authorization may result in the equipment
no longer complying with FCC requirements for Class B digital devices. In that event, your
right to use the equipment may be limited by FCC regulations, and you may be required to
correct any interference to radio or television communications at your own expense.
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio
14
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following
measures:
•Reorient or relocate the receiving antenna.
•Increase the separation between the equipment and receiver.
•Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
•Consult the dealer or an experienced radio/TV technician for help.
Notice for Industry Canada
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.
Monoprice™, Stage Right™, the Stage Right logo, and all Monoprice logos are trademarks
of Monoprice Inc.
Apple®, Mac®, and OS X® are trademarks of Apple Inc., registered in the U.S. and other
countries.
Microsoft®, Windows®, Vista®, and DirectX® are either registered trademarks or trademarks
of Microsoft Corporation in the United States and/or other countries.
Pentium® is a trademark of Intel Corporation or its subsidiaries in the U.S. and/or other
countries.
Table of contents
Other Stage right Recording Equipment manuals
