Stahl IDM164 User manual

Operating Instructions
Barcode scanner
Handheld scanner IDM164 / IDM264
Bluetooth scanner IDM164-BT / IDM264-BT
Operating Instructions Version: 01.04.00
Issue: 30.06.2023

Operating Instructions Scanner IDM Table of contents
Page 2 of 64 R. STAHL HMI Systems GmbH / OI_Scanner_IDM_en_V_01_04_00.docx / 30.06.2023
Table of contents
Description Page
Table of contents 2
1General information 5
1.1 Manufacturer 5
1.2 Legal notice 5
1.2.1 Trademark 5
1.2.2 Disclaimer 5
1.3 About these operating instructions 6
1.3.1 Target group 6
1.3.2 How to use this manual 6
1.3.3 Application 6
1.4 Further documents 7
1.5 Conformity with standards and regulations 8
1.5.1 Certificates 8
1.5.2 Approvals 8
Europe (CE / ATEX) 8
Global (IECEx) 8
1.5.3 Summary of applied standards 8
1.5.3.1 Handheld barcode scanner 8
1.5.3.2 Bluetooth barcode scanner and charging station 9
2Explanation of symbols 10
2.1 Symbols used in these Operating Instructions 10
2.2 Warning notes 10
2.3 Symbols on the device 10
3Safety 11
3.1 Intended use 11
3.2 Predictable improper use 11
3.3 Personnel qualification 12
3.4 Residual risks 12
3.4.1 Explosion hazard 12
3.4.2 Mechanical damage 12
3.4.3 Excessive heating or electrostatic charge 13
3.4.4 Improper mounting, installation, commissioning, maintenance
or cleaning 13
3.4.5 Electric shock 14
3.4.6 Laser radiation hazard 14
3.4.7 Device damage 15
4Function and device design 16
4.1 Features and versions 16
4.1.1 Standard components 16
4.1.2 Overview scanner versions 16
4.1.3 Overview charging stations 17
4.1.4 Overview supply modules 17

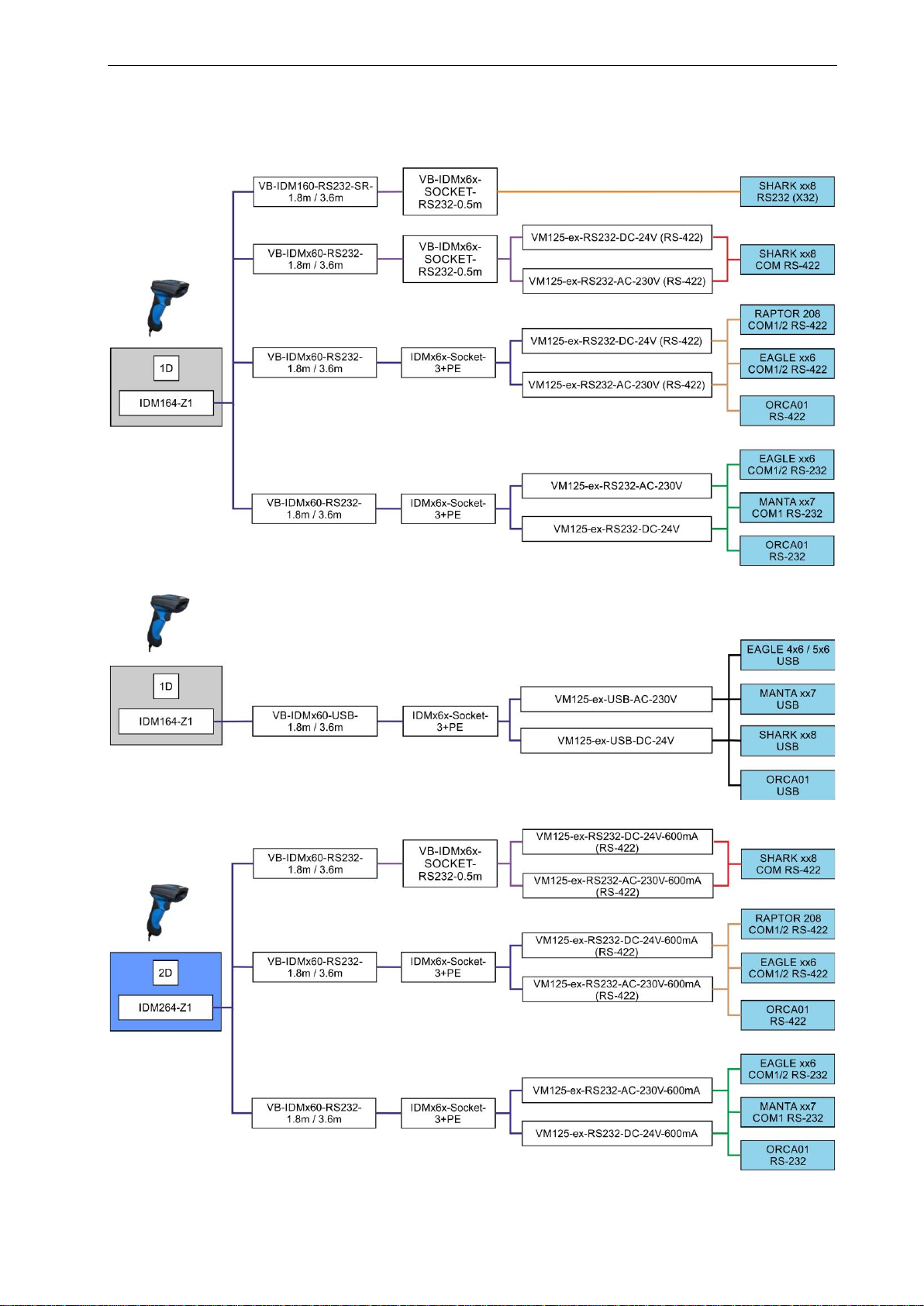

4.1.5 Connection overview handheld barcode scanner 18
4.1.5.1 Version IDM164-Z1 connection RS-xxx 18

Table of contents Operating Instructions Scanner IDM
R. STAHL HMI Systems GmbH / OI_Scanner_IDM_en_V_01_04_00.docx / 30.06.2023 Page 3 of 64
4.1.5.2 Version IDM164-Z1 connection USB 18
4.1.5.3 Version IDM264-Z1 connection RS-xxx 18
4.1.5.4 Version IDM264-Z1 connection USB 19
4.1.6 Connection overview Bluetooth barcode scanner 19
4.1.7 Compatibility matrix Bluetooth scanner, charging stations 20
4.1.7.1 Use of Pair Code 20
4.1.7.2 Use of IDM setup tool 21
4.2 Device design 22
4.2.1 Handheld barcode scanner 22
4.2.2 Bluetooth barcode scanner 23
4.2.3 Charging station 24
4.2.4 Colour coding of connection cable for handheld barcode
scanner 24
4.2.5 Mechanical dimensions 24
4.3 LEDs and acoustic signals 25
4.3.1 Handheld barcode scanner 25
4.3.2 Bluetooth barcode scanner 25
4.3.3 Charging station 26
4.4 Markings on the device 26
4.4.1 Position 26
4.4.2 Design of a type label 26
4.4.3 Ex classification ATEX / IECEx 27
4.4.3.1 Handheld barcode scanner 27
4.4.3.2 Bluetooth barcode scanner 27
4.4.3.3 Charging station 27
5Transport and storage 28
6Unpacking 28
7Mounting and installation 29
7.1 Note on mounting and installation 29
7.2 Requirements for site of installation 29
7.3 Handheld barcode scanner 30
7.3.1 Connection to field enclosure. 30
7.4 Bluetooth barcode scanner 31
7.4.1 Connection of charging station to the supply module
(field enclosure) 31
7.4.2 Mounting charging station at field enclosure 32
7.4.3 Connection of non-Ex charging station 33
8Commissioning 34
8.1 Handheld barcode scanner 34
8.2 Bluetooth barcode scanner 34
8.2.1 PAIR mode 35
8.2.1.1 Quick PAIR code 35
9Operation 36
9.1 Switching on device 36
9.2 Switching off the device 36
9.3 Scanning barcode 36
9.4 Charging Bluetooth barcode scanner 37

Operating Instructions Scanner IDM Table of contents
Page 4 of 64 R. STAHL HMI Systems GmbH / OI_Scanner_IDM_en_V_01_04_00.docx / 30.06.2023
10 Maintenance, servicing and repair 38
10.1 Servicing 38
10.1.1 Replacing battery of Bluetooth barcode scanner 38
10.1.2 Charging Bluetooth barcode scanner 39
10.2 Maintenance 40
10.3 Repair 40
11 Returning the device 41
12 Cleaning 41
13 Accessories 42
14 Appendix A 44
14.1 Technical data 44
14.1.1 Handheld barcode scanner 44
14.1.1.1 Electrical data 45
14.1.2 Bluetooth barcode scanner 45
14.1.2.1 Electrical data 46
14.1.2.2 Charging station 47
15 Appendix B 48
15.1 Safety data 48
15.1.1 Handheld barcode scanner 48
15.1.1.1 IDM164-Z1 48
15.1.1.2 IDM264-Z1 49
15.1.2 Charging station IDMx64-BT-Base-Z1 49
16 Appendix C 50
16.1 Proof of intrinsic safety 50
16.1.1 General information 50
16.1.2 Connections 51
16.1.2.1 Handheld barcode scanner 51
16.1.2.2 Bluetooth barcode scanner 53
17 Appendix D 55
17.1 Disposal / Restricted substances 55
17.1.1 Declaration of substances and restricted substances 55
17.1.1.1 Declarable substance groups 55
17.1.1.2 RoHS directive 2011/65/EC 55
18 Appendix H 56
18.1 Declarations of conformity 56
18.1.1 EU 56
18.1.1.1 Handheld barcode scanner IDMx64-Z1 56
18.1.1.2 Bluetooth barcode scanner IDMx64-BT-Z1 57
18.1.1.3 Charging station IDMx61-BT-Base-A (Non-Ex) 58
18.1.1.4 Charging station IDMx64-BT-Base (Non-Ex) 59
19 Appendix I 60
19.1 Release notes 60

General information Operating Instructions Scanner IDM
R. STAHL HMI Systems GmbH / OI_Scanner_IDM_en_V_01_04_00.docx / 30.06.2023 Page 5 of 64
1 General information
1.1 Manufacturer
R. STAHL HMI Systems GmbH
Adolf-Grimme-Allee 8
50829 Köln
Germany
Sales Support
Tel.:
[phone]
E-mail:
[e-mail]
Technical Support
Tel.:
[phone]
E-mail:
[e-mail]
General
Fax:
[phone]
Internet:
r-stahl.com
1.2 Legal notice
1.2.1 Trademark
The terms and names used in this document are registered trademarks and/or products of the
companies in question.
1.2.2 Disclaimer
All rights reserved.
This document may not be reproduced in whole or in part except with the written consent
of the publisher.
This document may be subject to change without notice.
Any warranty claims are limited to the right to demand amendments. Liability for any damage that
might result from the contents of these instructions or all other documentation is limited to clear
cases of premeditation.
We reserve the right to amend our products and their specifications at any time, provided it is in
the interest of technical progress. The information in the current manual (online or on CD / DVD /
USB-stick) or in the operating instructions included in the delivery applies.

Operating Instructions Scanner IDM General information
Page 6 of 64 R. STAHL HMI Systems GmbH / OI_Scanner_IDM_en_V_01_04_00.docx / 30.06.2023
1.3 About these operating instructions
This document contains safety-relevant information. It may be changed anywhere provided the
contents and meaning of the safety-relevant information remain unaltered.
All data relevant to explosion protection has been copied to these Instructions from the EC type
examination certificate.
1.3.1 Target group
These operating instructions are intended for the following groups of people:
Project engnineers
Electricians and installers
Operators
Operating staff
Maintenance staff
1.3.2 How to use this manual
Read these operating instructions, especially the safety notes, carefully before use.
Take note of all other applicable documents (see also chapter 1.4 Further documents).
Keep the operating instructions throughout the service life of the device.
Make the operating instructions accessible to operating and maintenance staff at all times.
Pass the operating instructions on to each subsequent owner or user of the device.
Update the operating instructions every time R. STAHL issues an amendment.
1.3.3 Application
Operating Instructions
version:
01.04.00
The following operating instructions apply to the following devices:
Handheld barcode scanner
IDM164-Z1
IDM264-Z1
Bluetooth barcode scanner
IDM164-BT-Z1
IDM264-BT-Z1
Charging station
IDMx64-BT-Base-Z1
The original instructions are the German edition.
They are legally binding in all legal matters.

General information Operating Instructions Scanner IDM
R. STAHL HMI Systems GmbH / OI_Scanner_IDM_en_V_01_04_00.docx / 30.06.2023 Page 7 of 64
1.4 Further documents
Operating Instructions VM125-ex (OI_VM125-ex)
Certificate compilation scanner (CE_IDM)
Certificate compilation VM125-ex (CE-VM125-ex)
Quick start instructions IDM Bluetooth issued by Sick AG
Operating instructions handheld scanner issued by Sick AG
For documents in other languages, see r-stahl.com.

Operating Instructions Scanner IDM General information
Page 8 of 64 R. STAHL HMI Systems GmbH / OI_Scanner_IDM_en_V_01_04_00.docx / 30.06.2023
1.5 Conformity with standards and regulations
1.5.1 Certificates
Certificates: r-stahl.com
The devices have IECEx approval. See IECEx homepage:
https://www.iecex-certs.com/#/home to view the certificate.
1.5.2 Approvals
The following approvals are valid for all devices:
Synonym
Scope of validity
Device
Valid until
Certificate number
CE / ATEX
Europe
Handheld
barcode
scanner
unlimited
IBExU16ATEX1002
Bluetooth
barcode
scanner
IBExU16ATEX1003
IECEx
Global
Handheld
barcode
scanner
unlimited
IECEx IBE 16.0002
Bluetooth
barcode
scanner
IECEx IBE 16.0003
1.5.3 Summary of applied standards
1.5.3.1 Handheld barcode scanner
Standard
Classification
IEC 60079-0 : 2018
General requirements
IEC 60079-11 : 2012
Protection by intrinsic safety "i"
IEC 60079-28 : 2015
Optical radiation “op is”
1.5.3.1.1 EMC Directive 2014/30/EU
Standard
Classification
EN 61000-6-2 : 2019
Immunity
EN 61000-6-4 : 2020
Emitted interference
1.5.3.1.2 RoHS Directive 2011/65/EU
Standard
Classification
EN IEC 63000 : 2018
Technical documentation for the assessment
of electrical and electronic equipment with
regard to the restriction of hazardous
substances

General information Operating Instructions Scanner IDM
R. STAHL HMI Systems GmbH / OI_Scanner_IDM_en_V_01_04_00.docx / 30.06.2023 Page 9 of 64
1.5.3.2 Bluetooth barcode scanner and charging station
Standard
Classification
IEC 60079-0 : 2018
General requirements
IEC 60079-11 : 2012
Protection by intrinsic safety "i"
IEC 60079-28 : 2015
Optical radiation “op is”
1.5.3.2.1 EMC Directive 2014/30/EU
Standard
Classification
EN 61000-6-2 : 2005 + AC : 2005
Immunity
EN 61000-6-4 : 2007 + A1 : 2011
Emitted interference
1.5.3.2.2 Radio equipment directive 2014/53/EU
Standard
Classification
EN 60950-1 : 2006 + A1 : 2010 + A2 : 2013 +
A11 : 2009 + A12 : 2011
Information technology devices –Safety
(General Requirements)
EN 300328 V2.1.1 : 2016
Electromagnetic compatibility and radio
spectrum matters (ERM) - broadband
transmission systems - data transmission
systems
EN 301489-1 V2.2.0 : 2017
Electromagnetic compatibility and radio
spectrum matters (ERM)
Compatibility for radio equipment and radio
services
Joint technical requirements
EN 301489-17 V3.2.0 : 2017
Electromagnetic compatibility and radio
spectrum matters (ERM)
Electromagnetic compatibility -
Special conditions for broadband
transmission systems
EMC and low voltage directive are included
1.5.3.2.3 RoHS Directive 2011/65/EU
Standard
Classification
EN IEC 63000 : 2018
Technical documentation for the assessment
of electrical and electronic equipment with
regard to the restriction of hazardous
substances

Operating Instructions Scanner IDM Explanation of symbols
Page 10 of 64 R. STAHL HMI Systems GmbH / OI_Scanner_IDM_en_V_01_04_00.docx / 30.06.2023
2 Explanation of symbols
2.1 Symbols used in these Operating Instructions
Symbol
Meaning
Useful hint for making work easier, important note
Reference to another chapter, another section, another documentation or another
web page.
2.2 Warning notes
Hazardous situation which can result in fatal or severe, life-changing
injuries if the safety measures are not complied with.
Hazardous situation which can result in severe injuries if the safety
measures are not complied with.
Hazardous situation which can result in minor injuries if the safety
measures are not complied with.
Hazardous situation which can result in material damage if the safety
measures are not complied with.
Symbol
Meaning
Heat hazard
Laser radiation hazard
2.3 Symbols on the device
Symbol
Meaning
Device certified for hazardous areas according to ATEX directive.
Device marking according to EU directive
0158
ID number of monitoring body
DANGER
WARNING
CAUTION
NOTE
