Operating Instructions
IDM160 / IDM260 barcode handheld scanner
IDM161-BT / IDM261-BT barcode bluetooth scanner
R. STAHL HMI Systems GmbH
Adolf-Grimme-Allee 8
D 50829 Köln
Version 01.01.01
Issue date: 03.04.2018

Operating Instructions Scanner IDM Publisher
Page 2 of 30 R. STAHL HMI Systems GmbH / OI_Scanner_IDM_en_V_01_01_01.docx / 03.04.2018
Publisher
Publisher and copyright holder:
R. STAHL HMI Systems GmbH
Adolf-Grimme-Allee 8
D 50829 Köln
Registered place of business: Cologne
Court of registration: District court Cologne, HRB 30512
VAT number: DE 812 454 820
Phone: (switchboard) [phone] - 1000
(hotline) - 5000
Fax: - 4100
E-mail: (switchboard) [email protected]
(hotline) [e-mail]
All rights reserved.
This document may not be reproduced in whole or in part except with the written
consent of the publisher.
Subject to alterations.
Any warranty claims are limited to the right to demand amendments. Liability for any damage
that might result from the contents of these instructions or all other documentation is limited to
clear cases of premeditation.
We reserve the right to change our products and their specifications at any time, provided it is in
the interest of technical progress. The information in the current manual (online or on CD / DVD/
USB stick) or in the operating instructions included with the equipment applies.
Trademarks
The terms and names used in this document are registered trademarks and / or products of the
companies in question.
Copyright © 2018 by R. STAHL HMI Systems GmbH. Subject to alterations

Operating Instructions Scanner IDM Formatting conventions
R. STAHL HMI Systems GmbH / OI_Scanner_IDM_en_V_01_01_01.docx / 03.04.2018 Page 3 of 30
Formatting conventions
The markings in these operating instructions refer to specific features that must be noted.
In detail, these are:
This sign alerts users to hazards that will result in death or serious
injury if ignored.
This sign alerts users to hazards that may result in death or serious
injury if ignored.
This sign alerts users to hazards that may damage machinery or
equipment or result in injury if ignored.
Information highlighted by this symbol indicates measures for the
prevention of damage to machinery or equipment.
Information highlighted by this symbol indicates important
information of which particular note should be taken.
Information highlighted by this symbol refers to a different
chapter or section in this manual or other documentation
or a web-page.
Warnings
Caution !
In ambient temperatures exceeding +45 °C the surface of the devices may heat
up. Caution when touching !
DANGER
WARNING
CAUTION
DOCUMENTATION
NOTICE
ATTENTION

Operating Instructions Scanner IDM Table of contents
Page 4 of 30 R. STAHL HMI Systems GmbH / OI_Scanner_IDM_en_V_01_01_01.docx / 03.04.2018
Table of contents
Description Page
Publisher 2
Formatting conventions 3
Warnings 3
Table of contents 4
1Preface 6
2Function 6
2.1 Standard components 7
2.2 Overview scanner variants 7
2.3 Overview base loading station 7
2.4 Overview supply modules 8
2.5 Possible combinations base loading station bluetooth scanner 8
2.6 Connection overview wired handheld scanner 9
2.7 Connection overview bluetooth scanner 10
3Technical data 11
3.1 IDM barcode handheld scanner 11
3.2 IDM barcode bluetooth scanner 11
3.3 Base loading station 12
4Conformity to standards 12
4.1 IDM barcode handheld scanner 12
4.2 IDM barcode bluetooth scanner and base loading station 13
5Certificates 14
5.1 IDM barcode handheld scanner 14
5.1.1 ATEX 14
5.1.2 IECEx 14
5.2 IDM barcode bluetooth scanner 14
5.2.1 ATEX 14
5.2.2 IECEx 14
6Marking 15
6.1 IDM barcode handheld scanner 15
6.2 IDM barcode bluetooth scanner 15
6.3 IDM base loading station 15
7Safety data 16
7.1 IDM barcode handheld scanner 16
7.1.1 IDM160-ex-* 16
7.1.2 IDM260-ex-* 16
7.2 IDM base loading station 16
8Safety Advice 17
8.1 Installation and operation 17
8.1.1 IDM barcode handheld scanner 18
9Assembly and disassembly 19
9.1 General information 19
9.2 Mechanical dimensions 19
9.2.1 Views 19
9.3 Wired handheld scanner 20

Operating Instructions Scanner IDM Table of contents
R. STAHL HMI Systems GmbH / OI_Scanner_IDM_en_V_01_01_01.docx / 03.04.2018 Page 5 of 30
9.4 Base loading station 20
10 Operation 21
10.1 General information 21
10.2 Bluetooth scanner IDMx61-BT.* 22
10.2.1 Battery 22
10.2.2 Base loading station 23
11 Maintenance, service 24
11.1 Servicing 24
12 Troubleshooting 24
13 Disposal 24
13.1 RoHS directive 2011/65/EC 24
14 Acessories 25
15 Declaration of EC conformity 26
15.1 IDM barcode handheld scanner 26
15.2 IDM barcode bluetooth scanner 27
16 Release notes 28

Operating Instructions Scanner IDM Preface
Page 6 of 30 R. STAHL HMI Systems GmbH / OI_Scanner_IDM_en_V_01_01_01.docx / 03.04.2018
1 Preface
These operating instructions are intended for the safe installation of the IDM barcode scanner
and accessories and cover all Ex-relevant aspects. Furthermore, these operating instructions
contain all necessary information for assembly and connection of these devices.
All data relevant to explosion protection was copied to these
operating instructions from the EC type examination certificate.
For the correct operation of all associated components please note,
in addition to these operating instructions, all other operating
instructions enclosed in this delivery as well as the operating
instructions of the additional equipment to be connected.
All certificates for the devices listed in these operating
instructions are contained in the document entitled
CE_IDM, which is not part of the delivery of these
devices.
You can find this document online at www.stahl-hmi.de
or request a copy from R. STAHL HMI Systems GmbH.
2 Function
The type IDM barcode scanners are used to capture data and transmit them to PCs and similar
devices in hazardous areas.
They are explosion-protected equipment for installation in hazardous areas of zones 1, 21, 2
and 22.
The ReaderBox-054-* or VM125-ex-* supply module is used for the scanner's power supply and
data communication. Use cables type VB-IDM to connect the supply module to the barcode
scanner. An RS-232, RS-422 or USB connection can be used for the data connection to a PC
or similar devices.
There are several types of this barcode scanner, differing in their design (wired / Bluetooth) and
their function (scannable barcode data) - see overview scanner variants.
Separate operating instructions are available for the
ReaderBox-054-* or VM125-ex-* supply module.
For further information on the commission of the IDM
barcode scanner you may also wish to refer to the
manual issued by SICK AG (www.SICK.com) !
DOCUMENTATION
NOTICE
DOCUMENTATION

Operating Instructions Scanner IDM Function
R. STAHL HMI Systems GmbH / OI_Scanner_IDM_en_V_01_01_01.docx / 03.04.2018 Page 7 of 30
2.1 Standard components
The following components are the standards to be used together
with the IDM barcode scanners:
Wired handheld scanner
Bluetooth scanner
IDM160-ex-b
IDM161-BT-ex
-
Base loading station
IDMx61-BT-Base-Z1
ReaderBox-054-DC-RS232
ReaderBox-054-DC-RS232
VB-IDM160-RS232-SR-*
VB-IDMx6x-Base-RS232-SR-
1.8m-Z1
2.2 Overview scanner variants
Scanner type
wired
Bluetooth
1D
PDF
2D
IDM160-ex-b
IDM160-PDF-ex-b
IDM260-ex
IDM161-BT-ex
IDM161-BT-PDF-ex
IDM261-BT-ex
2.3 Overview base loading station
Base loading station
without
cable
Bluetooth
Ex zone 1
Non-Ex
IDM161
IDM261
IDMx61-BT-Base-Z1
IDM261-BT-Base-Z1
IDMx61-BT-Base
IDM261-BT-Base
IDMx61-Base
IDM261-Base
NOTICE

Operating Instructions Scanner IDM Function
Page 8 of 30 R. STAHL HMI Systems GmbH / OI_Scanner_IDM_en_V_01_01_01.docx / 03.04.2018

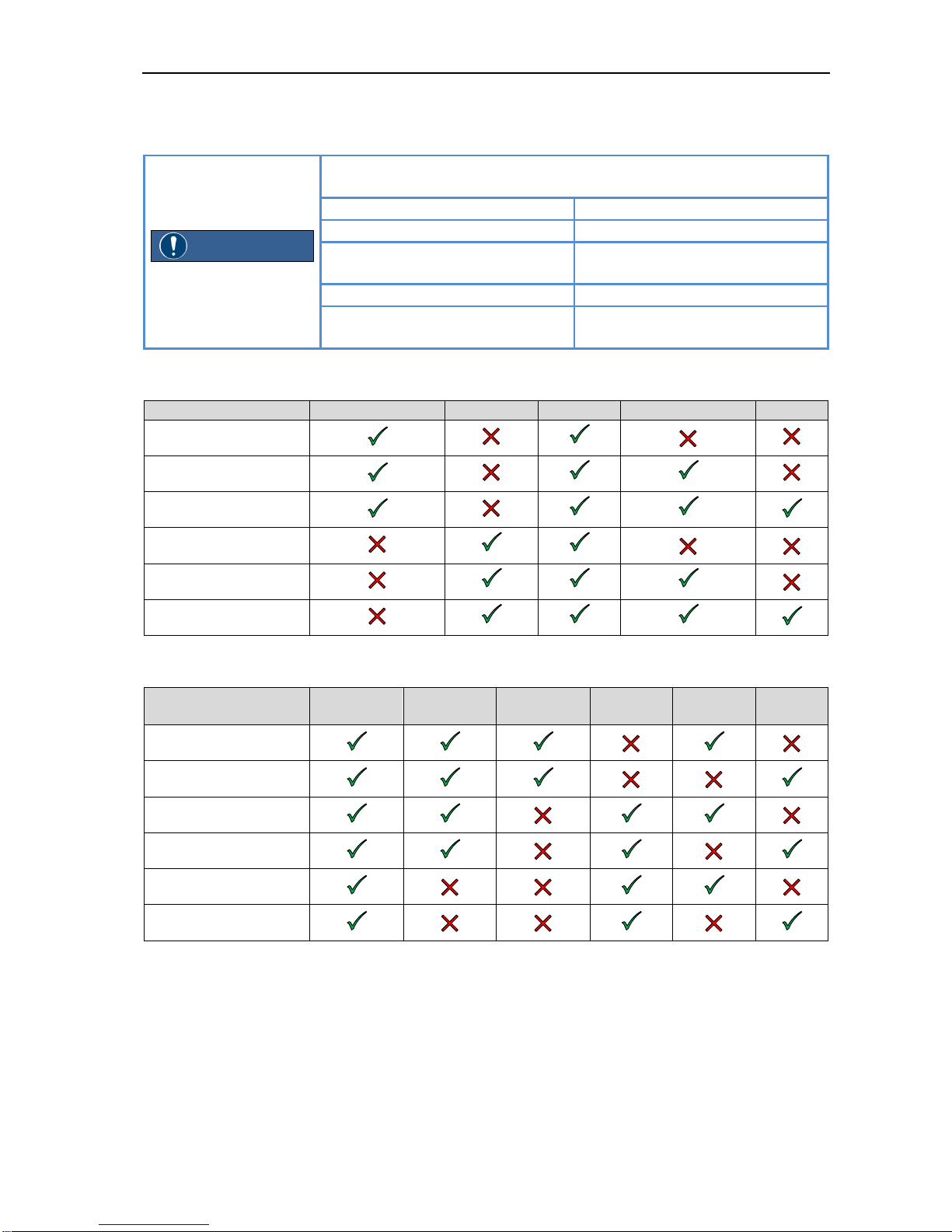

2.4 Overview supply modules
Separate operating instructions are available for the
ReaderBox-054-* or VM125-ex-* supply module.
Interface
Power supply
Supply modules
Suitable wired
handheld
scanner
RS-232
RS-422
USB
AC
DC
ReaderBox-054-AC-
RS422
IDM160-ex-b
IDM160-PDF-ex-b
ReaderBox-054-DC-
RS422
IDM160-ex-b
IDM160-PDF-ex-b
ReaderBox-054-AC-
RS232
IDM160-ex-b
IDM160-PDF-ex-b
ReaderBox-054-DC-
RS232
IDM160-ex-b
IDM160-PDF-ex-b
VM125-ex-RS232-AC
IDM160-ex-b
IDM160-PDF-ex-b
VM125-ex-RS232-DC
IDM160-ex-b
IDM160-PDF-ex-b
VM125-ex-USB-AC
IDM160-ex-b
IDM160-PDF-ex-b
VM125-ex-USB-DC
IDM160-ex-b
IDM160-PDF-ex-b
VM125-ex-RS232-AC-2D
IDM260-ex
VM125-ex-RS232-DC-2D
IDM260-ex
2.5 Possible combinations base loading station bluetooth scanner
Base loading station
Bluetooth scanner
IDM160-BT-Base-Z1
IDMx61-BT-Base-Z1
IDM261-BT-Base-Z1
IDM160-BT-ex
IDM160-BT-PDF-ex
IDM161-BT-ex
IDM161-BT-PDF-ex
IDM261-BT-ex
can be combined
can not be combined
is not supported
DOCUMENTATION

Operating Instructions Scanner IDM Function
R. STAHL HMI Systems GmbH / OI_Scanner_IDM_en_V_01_01_01.docx / 03.04.2018 Page 9 of 30

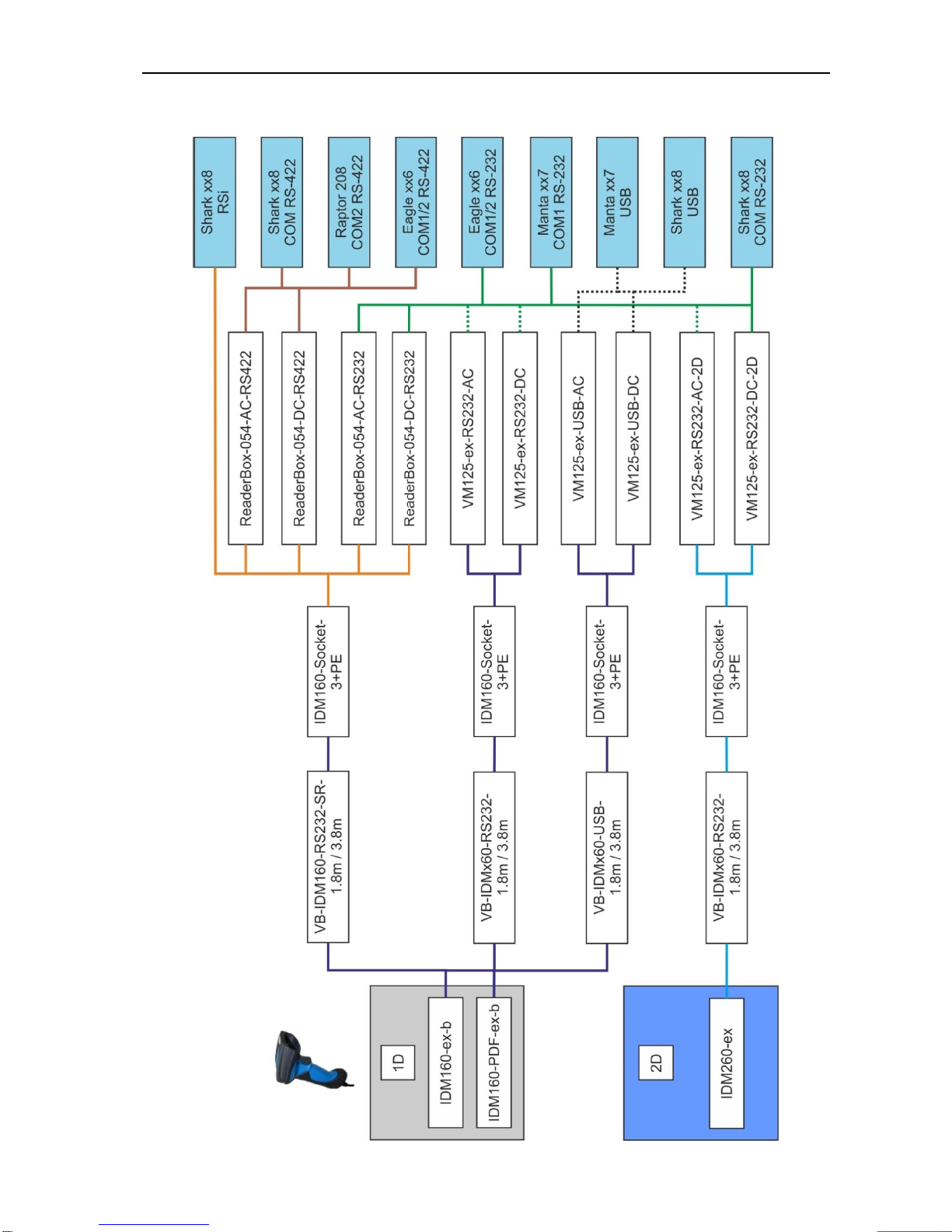

2.6 Connection overview wired handheld scanner

Operating Instructions Scanner IDM Function
Page 10 of 30 R. STAHL HMI Systems GmbH / OI_Scanner_IDM_en_V_01_01_01.docx / 03.04.2018

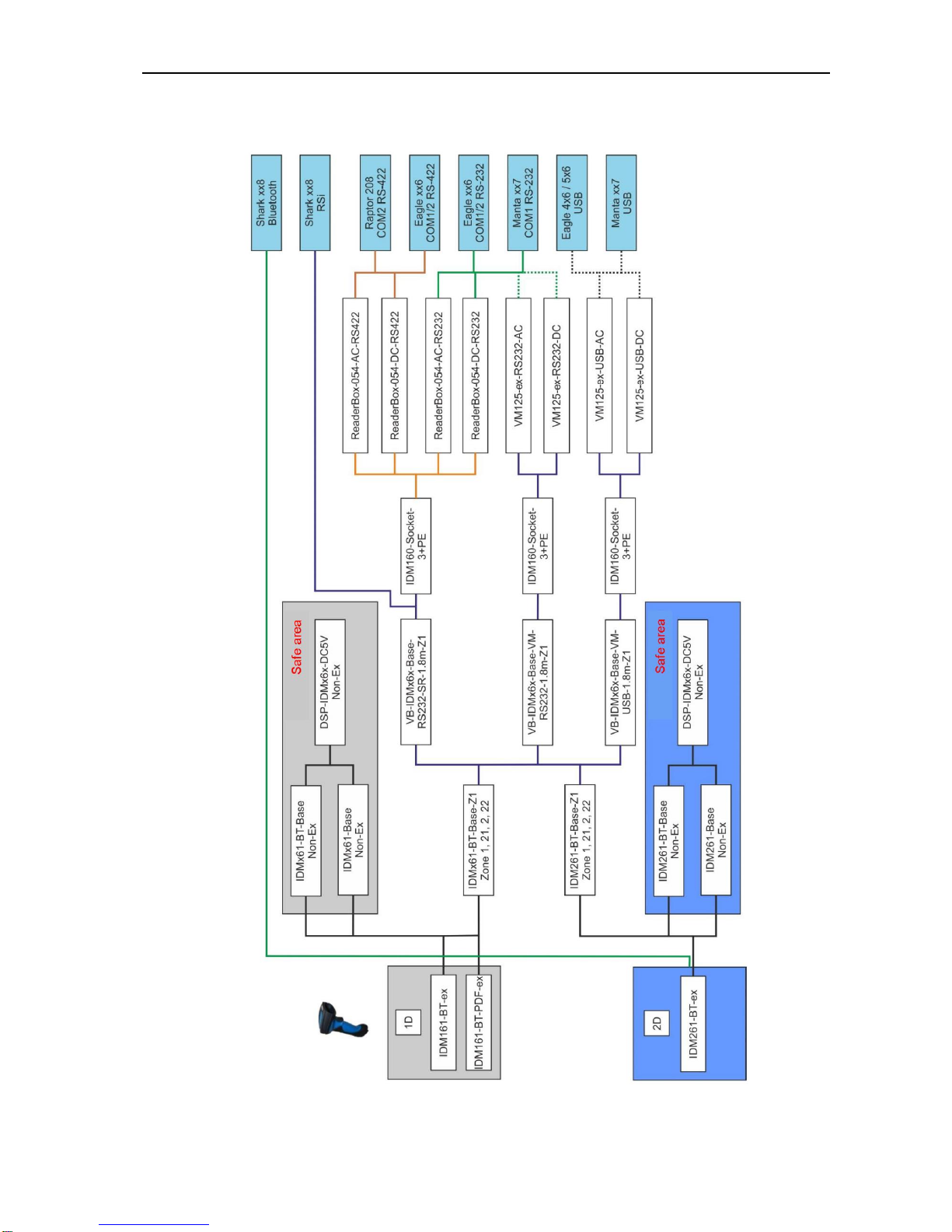

2.7 Connection overview bluetooth scanner

Operating Instructions Scanner IDM Technical data
R. STAHL HMI Systems GmbH / OI_Scanner_IDM_en_V_01_01_01.docx / 03.04.2018 Page 11 of 30
3 Technical data
3.1 IDM barcode handheld scanner
Handheld scanner
IDM160-ex-b
IDM160-PDF-ex-b
IDM260-ex
Version
Wired handheld scanner
Design
Linear imager scanner
Two-dimensional imager
Barcode types (scannable)
One-dimensional 1D
(barcode)
One-dimensional 1D
(barcode - and stacked
code) (PDF417)
One-dimensional 1D and two-
dimensional 2D (barcode - and
stacked code) (PDF417)
Operating voltage
4.9 V DC
Light source
Visible red light 630 nm
Scan frequency
500 Hz
60 Hz
Reader distance
20 … 850 mm / (0.79" … 33.46")
30 … 160 mm / (1.18" … 6.3")
Code resolution (depending from
code)
approx. ≥ 0,076 mm / (0.003")
approx. ≥ 0,13 mm / (0.005")
Resistance to outside light
interference
100,000 lx
Signals
optical
2x LED (operating status / read confirmation)
acoustic
Beeper / buzzer (can be switched off)
Connection cable
at ReaderBox-054-*
VB-IDM160-RS232-SR-*.8m
-
at VM125-ex-RS232-*
VB-IDMx60-RS232-*.8m
at VM125-ex-USB-*
VB-IDMx60-USB-*.8m
Interface support
(via power supply module)
RS-232 / RS-422 / USB
RS-232
Shock resistance
50 drops from a height of 2 m / (78.74") onto a concrete surface
Ambient temperature
-20 °C to +50 °C / -4 °F to +122 °F
Storage temperature
-30 °C to +70 °C / -22 °F to +158 °F
-40 °C to +70 °C /
-40 °F to +158 °F
Permissible humidity
±95 % , without condensation
Type of protection
IP65
Dimensions (W x H x D)
104 mm x 185 mm x 76 mm / (4.09" x 7.28" x 2.99")
Weight
200 g (without cable) / (7.05 oz)
3.2 IDM barcode bluetooth scanner
Bluetooth scanner
IDM161-BT-ex
IDM161-BT-PDF-ex
IDM261-BT-ex
Version
Bluetooth scanner
Design
Linear imager scanner
Two-dimensional imager
Barcode types (scannable)
One-dimensional 1D
(barcode)
One-dimensional 1D
(barcode - and stacked
code) (PDF417)
One-dimensional 1D and two-
dimensional 2D (barcode - and
stacked code) (PDF417)
Base loading station
IDMx61-BT-Base-Z1
IDMx61-BT-Base
IDMx61-Base
IDM261-BT-Base-Z1
IDM261-BT-Base
IDM261-Base
Current consumption
330 mA (standby 80 / 130 mA; peak 500 mA)
Battery
Lithium ions 3.6 V; 2250 mAh or 1500 mAh
Battery perfomance
approx. 60,000 scans at full charge
Bluetooth
Function
Bluetooth V4.0 EDR, Class 1
Range
approx. 30 m / (98.43 ft)
Frequency range
2.4 … 2.4835 GHz (ISM band)
Light source
Visible red light 630 nm
Scan frequency
500 Hz
60 Hz
Reader distance
20 … 850 mm / (0.79" … 33.46")
30 … 160 mm / (1.18" … 6.3")
Code resolution (depending from
code)
approx. ≥ 0,076 mm / (0.003")
approx. ≥ 0,13 mm / (0.005")
Resistance to outside light
interference
100,000 lx
Signals
optical
2x LED (operating status / read confirmation)
acoustic
Beeper / buzzer (can be switched off)

Operating Instructions Scanner IDM Conformity to standards
Page 12 of 30 R. STAHL HMI Systems GmbH / OI_Scanner_IDM_en_V_01_01_01.docx / 03.04.2018
Bluetooth scanner
IDM161-BT-ex
IDM161-BT-PDF-ex
IDM261-BT-ex
Connection cable
at ReaderBox-054-*
VB-IDMx6x-Base-RS232-SR-1.8m-Z1-
at VM125-ex-RS232-*
VB-IDMx6x-Base-VM-RS232-1.8m-Z1
at VM125-ex-USB-*
VB-IDMx6x-Base-VM-USB-1.8m-Z1
Interface support
(via power supply module)
RS-232 / RS-422 / USB
RS-232
Shock resistance
50 drops from a height of 2 m / (78.74") onto a concrete surface
Ambient temperature
-20 °C to +50 °C / -4 °F to +122 °F
Storage temperature
-30 °C to +70 °C / -22 °F to +158 °F
-40 °C to +70 °C /
-40 °F to +158 °F
Type of protection
IP65
Dimensions (W x H x D)
104 mm x 185 mm x 76 mm / (4.09" x 7.28" x 2.99")
Weight
260 g (without cable) / (9.17 oz)
3.3 Base loading station
Base loading station
IDMx61-BT-Base-Z1
IDM261-BT-Base-Z1
IDMx61-BT-Base
IDM261-BT-Base
IDMx61-Base
IDM261-Base
Design
Explosion-protected zone 1
without cable
Non-Ex, without cable
Non-Ex, without cable
no Bluetooth
Operating voltage
4.9 V DC
5 V DC
Interfaces
RS-232 or USB
Bluetooth
Function
Bluetooth TM V4.0 EDR, Class 1
Frequency range
2.4 ... 2.4835 GHz (ISM band)
Ambient temperature
-20 °C to +50 °C / -4 °F to +122 °F
Storage temperature
-30 °C to +70 °C / -22 °F to +158 °F
4 Conformity to standards
4.1 IDM barcode handheld scanner
The IDM barcode handheld scanners comply with the following standards and directive:
Standard
Classification
Initial certification
ATEX directive 2014/34/EU
EN 60079-0 : 2012 + A11 : 2013
General requirements
EN 60079-11 : 2012
Intrinsic safety "i"
Electromagnetic compatibility
EMC directive
2014/30/EU
Classification
EN 61000-6-2 : 2005 + AC : 2005
Immunity
EN 61000-6-4 : 2007 + A1 : 2011
Interference emission
RoHS directive
2011/65/EU
Classification
EN 50581 : 2012
Technical documentation for the
assessment of electrical and electronic
products with respect to the restriction of
hazardous substances

Operating Instructions Scanner IDM Conformity to standards
R. STAHL HMI Systems GmbH / OI_Scanner_IDM_en_V_01_01_01.docx / 03.04.2018 Page 13 of 30
4.2 IDM barcode bluetooth scanner and base loading station
The IDM barcode bluetooth scanner and base loading station comply with the following
standards and directive:
Standard
Classification
Initial certification
ATEX directive 2014/34/EU
EN 60079-0 : 2012 + A11 : 2013
General requirements
EN 60079-11 : 2012
Intrinsic safety "i"
Electromagnetic compatibility
EMC directive
2014/30/EU
Classification
EN 61000-6-2 : 2005 + AC : 2005
Immunity
EN 61000-6-4 : 2007 + A1 : 2011
Interference emission
Radio and Telecommunications Terminal Equipment
Radio equipment directive 2014/53/EU
Classification
EN 60950-1 : 2006 + A1 : 2010 + A2 : 2013 +
A11 : 2009 + A12 : 2011
Information technology equipment –Safety
(General requirements)
EN 300328 V2.1.1 : 2016
Electromagnetic compatibility and radio
spectrum matters (ERM) -
Wideband-transmission systems -
Data transmission equipment operating
EN 301489-1 V2.2.0 : 2017
Electromagnetic compatibility and radio
spectrum matters (ERM) -
Standard for radio equipment and services -
Common technical requirements
EN 301489-17 V3.2.0 : 2017
Electromagnetic compatibility and radio
spectrum matters (ERM) -
Electromagnetic compatibility -
Special conditions for broadband data
transmission systems
EMC and Low Voltage directive are included
RoHS directive
2011/65/EU
Classification
EN 50581 : 2012
Technical documentation for the
assessment of electrical and electronic
products with respect to the restriction of
hazardous substances

Operating Instructions Scanner IDM Certificates
Page 14 of 30 R. STAHL HMI Systems GmbH / OI_Scanner_IDM_en_V_01_01_01.docx / 03.04.2018
5 Certificates
The IDM barcode scanners are certified for installation in the following areas:
Europe:
according to ATEX Directive
for installation in zones 1, 21, 2 and 22.
International / Australia:
IECEx (International Electrotechnical Commission System for Certification to
Standards for Electrical Equipment for Explosive Atmospheres)
5.1 IDM barcode handheld scanner
5.1.1 ATEX
The ATEX certificate is listed under the following certification number:
Certificate number: IBExU16ATEX1002
5.1.2 IECEx
The readers IECEx certification has the following number:
Certificate number: IECEx IBE 16.0002
5.2 IDM barcode bluetooth scanner
5.2.1 ATEX
The ATEX certificate is listed under the following certification number:
Certificate number: IBExU16ATEX1003
5.2.2 IECEx
The readers IECEx certification has the following number:
Certificate number: IECEx IBE 16.0003

Operating Instructions Scanner IDM Marking
R. STAHL HMI Systems GmbH / OI_Scanner_IDM_en_V_01_01_01.docx / 03.04.2018 Page 15 of 30
6 Marking
6.1 IDM barcode handheld scanner
Manufacturer
R. STAHL HMI Systems GmbH
Type code
IDM160-ex-b
IDM160-PDF-ex-b
IDM260-ex
CE classification:
c0158
Testing authority and certificate number:
IBExU16ATEX1002
IECEx IBE 16.0002
Ex classification IDM160-*:
ATEX
e
II 2 G Ex ib IIC T4 Gb
II 2 D Ex ib IIIC T135°C Db
IECEx
Ex ib IIC T4 Gb
Ex ib IIIC T135°C Db
Ex classification IDM260-*:
ATEX
e
II 2 G Ex ib IIB T4 Gb
II 2 D Ex ib IIIC T135°C Db
IECEx
Ex ib IIB T4 Gb
Ex ib IIIC T135°C Db
6.2 IDM barcode bluetooth scanner
Manufacturer
R. STAHL HMI Systems GmbH
Type code
IDM161-BT-ex
IDM161-BT-PDF-ex
IDM261-BT-ex
CE classification:
c0158
Testing authority and certificate number:
IBExU16ATEX1003
IECEx IBE 16.0003
Ex classification:
ATEX
e
II 2 G Ex ib IIB T4 Gb
II 2 D Ex ib IIIC T135°C Db
IECEx
Ex ib IIB T4 Gb
Ex ib IIIC T135°C Db
6.3 IDM base loading station
Manufacturer
R. STAHL HMI Systems GmbH
Type code
IDMx61-BT-Base-Z1
IDM261-BT-Base-Z1
CE classification:
c0158
Testing authority and certificate
number:
IBExU16ATEX1003
IECEx IBE 16.0003
Ex classification:
ATEX
e
II 2 G Ex ib IIC T4 Gb
II 2 D Ex ib IIIC T135°C Db
IECEx
Ex ib IIC T4 Gb
Ex ib IIIC T135°C Db

Operating Instructions Scanner IDM Safety data
Page 16 of 30 R. STAHL HMI Systems GmbH / OI_Scanner_IDM_en_V_01_01_01.docx / 03.04.2018
7 Safety data
7.1 IDM barcode handheld scanner
7.1.1 IDM160-ex-*
with associated connecting cable VB-IDM160-RS232-SR-*
max. input voltage
Ui
=
5.6 V
max. input current
Ii
=
480 mA
max. input power
Pi
=
1.25 W
max. internal inductance
Li

negligible
max. internal capacitance
Ci

46 µF
with associated connecting cable VB-IDMx60-RS232-*
max. input voltage
Ui
=
4.9 V
max. input current
Ii
=
480 mA
max. input power
Pi
=
1.25 W
max. internal inductance
Li

negligible
max. internal capacitance
Ci

112.4 µF
with associated connecting cable VB-IDMx60-USB-*
max. input voltage
Ui
=
4.9 V
max. input current
Ii
=
480 mA
max. input power
Pi
=
1.25 W
max. internal inductance
Li

negligible
max. internal capacitance
Ci

112.4 µF
7.1.2 IDM260-ex-*
with associated connecting cable VB-IDMx60-RS232-*
max. input voltage
Ui
=
4.9 V
max. input current
Ii
=
750 mA
max. input power
Pi
=
2 W
max. internal inductance
Li

negligible
max. internal capacitance
Ci

202 µF
with associated connecting cable VB-IDMx60-USB-*
max. input voltage
Ui
=
4.9 V
max. input current
Ii
=
780 mA
max. input power
Pi
=
2 W
max. internal inductance
Li

negligible
max. internal capacitance
Ci

202 µF
7.2 IDM base loading station
max. input voltage
Ui
=
4.9 V
max. input current
Ii
=
480 mA
max. input power
Pi
=
1.25 W
max. internal inductance
Li

negligible
max. internal capacitance
Ci

112 µF
with associated connecting cable VB-IDMx6x-Base-RS232-SR-*-Z1
max. input voltage
Ui
=
5.6 V
max. input current
Ii
=
480 mA
max. input power
Pi
=
1.25 W
max. internal inductance
Li

negligible
max. internal capacitance
Ci

46 µF

Operating Instructions Scanner IDM Safety Advice
R. STAHL HMI Systems GmbH / OI_Scanner_IDM_en_V_01_01_01.docx / 03.04.2018 Page 17 of 30
8 Safety Advice
This chapter is a summary of the key safety measures. The
summary is supplementary to existing rules which staff also have to
study.
The safety of persons and equipment in hazardous areas depends
on compliance with all relevant safety regulations. Thus, the
installation and maintenance staff carry a particular responsibility,
requiring precise knowledge of the applicable regulations and
conditions. requiring precise knowledge of the applicable regulations
and conditions.
The notes listed below in section 8.1 must be heeded to avoid injury
and damage to equipment!
8.1 Installation and operation
Please note the following when installing and operating the device:
Electrical plants are subject to certain regulations concerning installation and operation
(e.g. RL 99/92/EG, RL 2014/34/EU, or the national rules such as IEC/EN 60 079-14 and
VDE 0100).
In the hazardous area it is the operator's responsibility to carry out any repair and
maintenance in compliance with applicable rules.
The handheld scanners and the IDMx61-BT-Base-Z1 base loading station may be
installed and operated in zones 1, 21, 2 and 22.
The devices must only be operated when they are fully assembled.
Users must not open the devices.
If the enclosure is in any way damaged the device must be removed from the hazardous
area immediately.
The device must be switched off immediately if it is likely that as a consequence of
damaging impact or general peculiarities the device can no longer be safely operated (e.g.
ingress of water, fluids, impact of temperatures beyond the specified range).
Do not insert any sharp objects into the enclosure or any other openings of the devices.
Any openings at the device must not be covered or blocked.
The intrinsically safe circuits must be installed according to applicable regulations.
The handheld scanners / IDMx61-BT-Base-Z1 base loading station must be connected to
intrinsically safe circuits.
The safety values of the handheld scanners / IDMx61-BT-Base-Z1 base loading station
must match those of the device to which it is connected.
Interconnecting several devices in a single intrinsically safe circuit can result in different
safety characteristic values. This could compromise intrinsic safety !
National safety and accident prevention rules.
Generally accepted technical rules.
Safety instructions contained in these operating instructions.
Any damage may compromise the explosion protection.
NOTICE
CAUTION

Operating Instructions Scanner IDM Safety Advice
Page 18 of 30 R. STAHL HMI Systems GmbH / OI_Scanner_IDM_en_V_01_01_01.docx / 03.04.2018
Use the devices for their intended purpose only (see "Function").
Incorrect or unauthorized use and non-compliance with the instructions in this manual will void
any warranty on our part.
No changes to the devices are permitted !
The operator interfaces may only be installed and operated in an undamaged, dry and clean
condition.
8.1.1 IDM barcode handheld scanner
For the IDM barcode handheld scanners the points listed below apply in addition to those listed
under "Installation and operation".
In hazardous areas the devices may not be wiped or cleaned with a dry cloth !
Ensure safe handling with firm footing and sufficient room for movement.
Devices fitted with laser fall under standards US 21 CFR 1040.10 and EN 60825-1.
The laser's classification is stated on a plate affixed to the device.
Class 1 lasers are deemed inherently safe during normal use, but users must not look
directly into the light source. The following statement is statutory under American and
international law.
Usage of control elements, adaptations or the use of procedures that differ from these
instructions may result in a dangerous exposure to rays.
Class 2 lasers use a visible low-voltage LED. As with any source of bright light, such as
the sun, the user should avoid looking directly into the light. Brief exposure to a Class 2
laser is considered not dangerous.

Operating Instructions Scanner IDM Assembly and disassembly
R. STAHL HMI Systems GmbH / OI_Scanner_IDM_en_V_01_01_01.docx / 03.04.2018 Page 19 of 30
9 Assembly and disassembly
9.1 General information
Assembly and disassembly are subject to general technical rules.
Additional, specific safety regulations apply to electronic and
pneumatic installations. In Germany, for example, these include the
BGI 547 (Information on and principles of workplace safety and
health issued by the Government Safety Association) and the
BetrSichVer (Betriebsicherheitsverodnung - Occupational Safety and
Health).
Usually, all components are installed inside an R. STAHL HMI
Systems GmbH field enclosure and fully (functionally) wired unless
agreed otherwise.
9.2 Mechanical dimensions
Dimensions in mm / ft.
Device
Width
Height
Depth / length
IDM handheld scanner
104 / 0.34
185 / 0.607
76 / 0.25
Base loading station
100 / 0.33
225 / 0.74
90 / 0.295

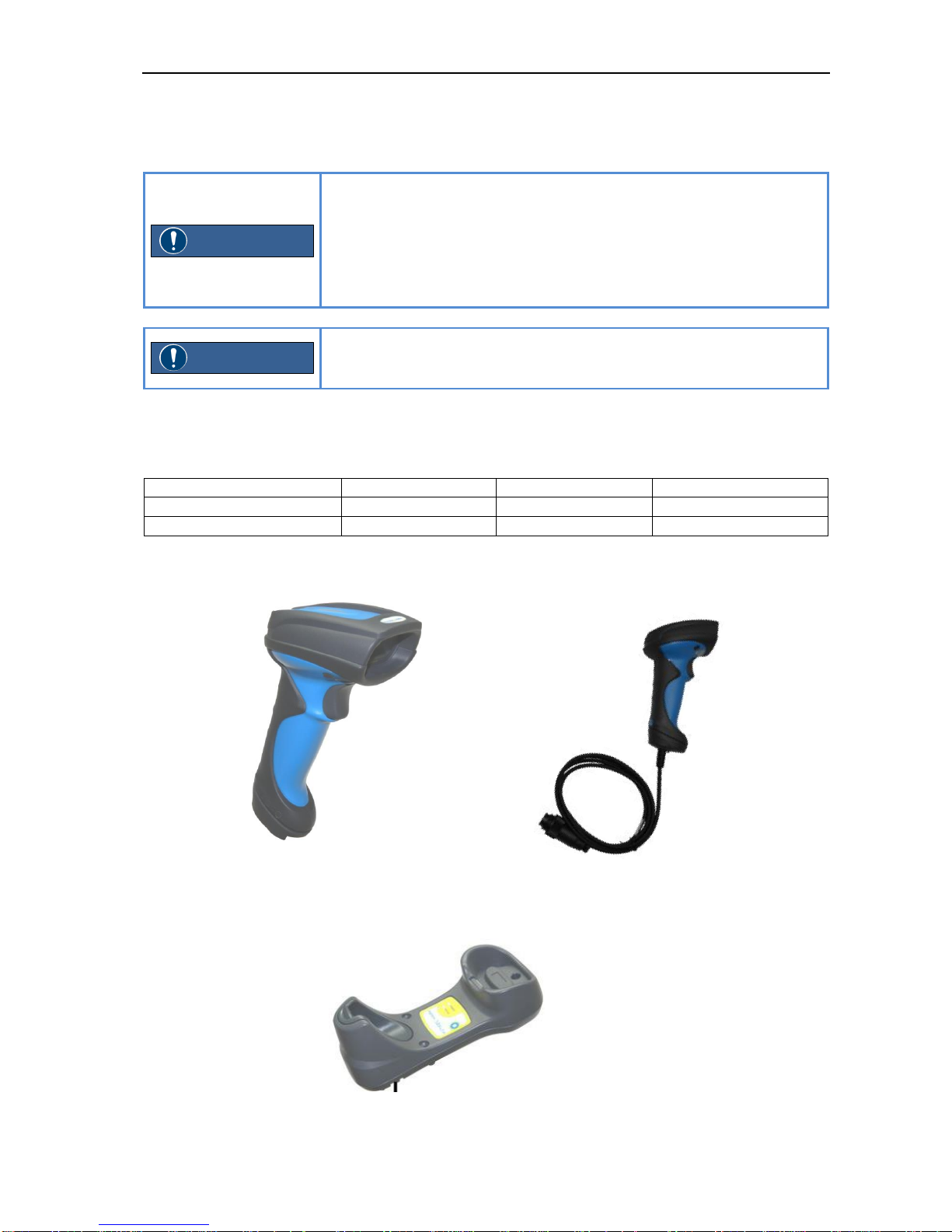

9.2.1 Views
Bluetooth
scanner
Wired handheld
scanner
Base loading
station
NOTICE
NOTICE

Operating Instructions Scanner IDM Assembly and disassembly
Page 20 of 30 R. STAHL HMI Systems GmbH / OI_Scanner_IDM_en_V_01_01_01.docx / 03.04.2018
9.3 Wired handheld scanner
The wired handheld scanner is connected with the associated connection cable by inserting the
RJ45 plug into the corresponding socket until you can hear a "click". Then check that the cable
is firmly connected.
Then connect the scanner cable with the fixed socket and insert the scanner into the
corresponding bracket at the field enclosure.
9.4 Base loading station
Before screwing the base loading station onto the field enclosure, the associated connection
cable must be inserted into the opening on the underside of the base loading station.
For this, insert the cable fully into the socket until you can hear a "click". Then check that the
cable is firmly connected.
The base loading station is connected to the field enclosure by means of three screws
(1x M4x30 mm; 2x M4x40 mm).
Then insert the connection cable into the fixed socket.
Screw holes
