Stahl KBD-USB-TB50 Series User manual

Operating instructions
KBD-USB-* keyboards
KBD-USB-TB50-*
KBD-USB-M-*
KBD-USB-P-*
KBD-USB-J-*
R. STAHL HMI Systems GmbH
Adolf-Grimme-Allee 8
D 50829 Köln
Operating Instructions Version: 01.00.02
Issue date: 24.08.2018

Operating Instructions KBDi Keyboards Disclaimer
Page 2 of 16 R. STAHL HMI Systems GmbH / OI_KBD_USB_en_V_01_00_02.doc / 24.08.2018
Disclaimer
Publisher and copyright holder:
R. STAHL HMI Systems GmbH
Adolf-Grimme-Allee 8
D 50829 Köln
Registered place of business: Cologne
Court of registration: District court Cologne, HRB 30512
VAT number: DE 812 454 820
Phone: (switchboard) [phone] - 1000
(hotline) - 5000
Fax: - 4100
E-mail: (switchboard) [email protected]
(hotline) [e-mail]
All rights reserved.
This document may not be reproduced in whole or in part except with the written
consent of the publisher.
This document may be subject to change without notice.
Any warranty claims are limited to the right to demand amendments. Liability for any damage
that might result from the content of this description or all other documentation is limited to clear
cases of premeditation.
We reserve the right to change our products and their specifications at any time, provided it is in
the interest of technical progress. The information in the current manual (in the internet and on
CD / DVD / USB stick) or in the operating instructions included with the keyboard applies.
Trademarks
The terms and names used in this document are registered trademarks and / or products of the
companies in question.
Copyright © 2018 R. STAHL HMI Systems GmbH. Subject to alterations.

Operating Instructions KBDi Keyboards Specific markings
R. STAHL HMI Systems GmbH / OI_KBD_USB_en_V_01_00_02.doc / 24.08.2018 Page 3 of 16
Specific markings
The markings in these operating instructions refer to specific features that must be noted.
In detail, these are:
This sign alerts users to hazards that will result in death or serious
injury if ignored !
This sign alerts users to hazards that mayresult in death or serious
injury if ignored !
This sign alerts users to hazards that may damage machinery or
equipment or result in injury if ignored !
Information highlighted by this symbol indicates measures for the
prevention of damage to machinery or equipment !
Information highlighted by this symbol indicates important
information of which particular note should be taken !
Information highlighted by this symbol refers to a different
chapter or section in this manual or other documentation
or a web-page !
Warnings
Caution !
In ambient temperatures exceeding +45 °C the surface of the devices may heat up.
Caution when touching !
DANGER
WARNING
CAUTION
DOCUMENTATION
NOTICE
ATTENTION

Operating Instructions KBDi Keyboards Table of contents
Page 4 of 16 R. STAHL HMI Systems GmbH / OI_KBD_USB_en_V_01_00_02.doc / 24.08.2018
Table of contents
Description Page
Disclaimer 2
Specific markings 3
Warnings 3
Table of contents 4
1Preface 5
2Keyboard function 5
3Type allocation 6
3.1 Type marking 6
4Technical Data 6
5Conformity to standards 7
6Marking 7
7Type code 7
8Safety information 8
8.1 General Safety Information 8
8.2 Cautionary note 8
8.3 Installation safety information 8
8.4 Safety information for operation 8
8.5 Special conditions 8
9Mechanical dimensions 9
9.1 Cut-out 9
10 Connections 10
11 Maintenance 11
12 Troubleshooting 11
12.1 Repairs / hazardous substances 11
13 Disposal 11
13.1 RoHS directive 2011/65/EC 11
14 Declaration of EC conformity 12
15 Release Notes 13

Operating Instructions KBDi Keyboards Preface
R. STAHL HMI Systems GmbH / OI_KBD_USB_en_V_01_00_02.doc / 24.08.2018 Page 5 of 16
1 Preface
These operating instructions are intended for the safe installation of the KBD-USB-*.
Furthermore, these operating instructions contain all necessary information for assembly and
connection of the keyboards.
For the correct operation of all associated components please note,
in addition to these operating instructions, all other operating
instructions enclosed in this delivery as well as the operating
instructions of the additional equipment to be connected !
For more information on the HMIs please also refer to the
Manual (available as online manual on www.r-stahl.com).
2 Keyboard function
The type KBD-USB-* keyboards are used to enter data, commands etc. on PCs and similar
devices. In particular, they were designed for connection to HMI devices of the IT-xx7 series.
Power supply and data communication takes place via the USB interface. The keyboards are
connected with a fixed cable.
Various keyboard versions are available that differ in their layout (German, US English, French,
etc.) and in their design (PC keyboard with mouse, trackball, touchpad or with joystick).
The touchpad uses resistive technology and can therefore be operated with a touch pen or with
gloved fingers.
The keyboards can be mounted inside a front panel or a desktop housing.
NOTICE
DOCUMENTATION

Operating Instructions KBDi Keyboards Type allocation
Page 6 of 16 R. STAHL HMI Systems GmbH / OI_KBD_USB_en_V_01_00_02.doc / 24.08.2018
3 Type allocation
Since the beginning of 2013, the T-series devices have been allocated new type names
according to the following pattern:
To avoid having to re-write certifications, the names in the certificates remain the same, but the
devices receive new names.
In the interest of a clear link between device type and certificate, both device names are listed
on the type plate from 01.04.2013 onwards.
3.1 Type marking
Old (certificate)
New
T-Ind-KB-TB*
KBD-USB-TB50*
T-Ind-KB-M*
KBD-USB-M*
T-Ind-KB-P*
KBD-USB-P*
T-Ind-KB-J*
KBD-USB-J*
* = alphanumeric or symbolic characters
For the exact new device name and model please refer to the type
code.
4 Technical Data
Function / Equipment
KBD-USB-*
Power supply
via USB interface
MTBF
typically 50,000 h at 20 °C [68 °F]
Interfaces
1x USB for keyboard
1x USB for mouse, touch pad, trackball, joystick
Cable type
standard USB-A
Cable lengths
usually 1.8 m / [5.91 ft]
Enclosure
Steel / aluminium, installation enclosure
Enclosure protection type
Front
IP65
Front with trackball module
statically IP65, dynamically IP54
Back
IP20
Keyboard foil
Polyester
Operating temperature range
Operation
-30 °C … +60 °C / [-22 °F …+140 °F]
Storage temperature range
-30 °C … +70 °C / [-22 °F …+158 °F]
Relative humidity
10 to 90% at +40 °C / [104 °F], non-condensing
Dimensions (W x H x D) [mm] / [ft]
581 x 186 x 50 / [1.91] x [0.61] x [0.16]
Weight [kg] / [lbs]
3.0 / [6.6]
NOTICE

Operating Instructions KBDi Keyboards Conformity to standards
R. STAHL HMI Systems GmbH / OI_KBD_USB_en_V_01_00_02.doc / 24.08.2018 Page 7 of 16
5 Conformity to standards
The KBD-USB-* keyboards comply with the following standards and directives:
Electromagnetic compatibility
Directive 2014/30/EU
IEC 61000-6-2 : 2005
Immunity
IEC 61000-6-4 : 2011
Emission
Low Voltage Directive
Directive 2014/35/EU
EN 60950-1 : 2006 + A11 : 2009
+ A12 : 2011 + A1 : 2010
General requirements
RoHS directive
2011/65/EU
Classification
EN 50581 : 2012
Technical documentation for the assessment
of electrical and electronic products with
respect to the restriction of hazardous
substances
6 Marking
Manufacturer
R. STAHL HMI Systems GmbH
Type code
KBD-USB-TB50* / KBD-USB-M* / KBD-USB-P* /
KBD-USB-J*
CE classification:
c0158
Testing authority and certificate
number:
BVS 11 ATEX E 102 X
7 Type code
KBD-USB-aa-bb
Language layout
Pointer device
Interface
Product type:
Product key structure
Description
Version
KBD-USB-TB50-bb
Keyboard with integrated trackball
KBD-USB-TB50-VA-bb
Keyboard with integrated stainless steel trackball
KBD-USB-M-bb
Keyboard with integrated mouse
KBD-USB-P-bb
Keyboard with integrated touch pad
KBD-USB-J-bb
Keyboard with integrated joystick
KBD-USB-aa-DE
Lanugage: German (QWERTZ)
KBD-USB-aa-US
Language: American (QUERTY)
KBD-USB-aa-FR
Language: French (AZERTY)
KBD-USB-aa-FR-BE
Language: French, Belgian version (AZERTY)
KBD-USB-aa-CH
Lanugage: German, Swiss layout
KBD-USB-aa-ES
Language: Spanish

Operating Instructions KBDi Keyboards Safety information
Page 8 of 16 R. STAHL HMI Systems GmbH / OI_KBD_USB_en_V_01_00_02.doc / 24.08.2018
8 Safety information
8.1 General Safety Information
All relevant accident prevention regulations and the rules for electric installations have to
be observed during installation, maintenace and operations. All persons involved in
installation, commission, maintenance and repairs of this device and its accessories must
be qualified accordingly and must have familiarised themselves with this manual and any
associated documentation.
National safety and accident prevention rules apply.
Use the device for its intended purpose only.
No changes to the device are permitted. The enclosure may only be opened by R. STAHL
HMI Systems GmbH.
The first four digits of the serial number on the type plate stand for the year of
manufacture.
8.2 Cautionary note
This is an EN 55022 Class A product.
In a domestic environment this product may cause radio interference
in which case the user may be required to take adequate measures.
8.3 Installation safety information
The national assembly and installation rules and the generally accepted technical rules
must be observed. The device and its accessories must be connected and operated
according to applicable standards, directives and installation guidelines. Only qualified
personnel or personnel that has been instructed accordingly are allowed to install the
device.
Only appropriate tools must be used for the installation.
The keyboards must be earthed via the bolt at the back of the device.
We recommend you use screened cables with the keyboards. Routing of the cable may
reduce performance.
Before operating the keyboard you must ensure that it has been installed according to
regulations and that its cables are undamaged.
8.4 Safety information for operation
Operate the keyboard only if it is clean and undamaged. If the keyboard is in any way
damaged, do not touch it to avoid injury. In the case of any damage that may compromise
ingress protection (e.g. cracks, holes or broken components) the keyboard must be taken
out of commission immediately. Before the device is recommissioned the damaged
components must be replaced.
8.5 Special conditions
Equipotential bonding must be established for the external circuits of the accessories to be
connected, e.g. display, keyboard or pointer device.
ATTENTION

Operating Instructions KBDi Keyboards Mechanical dimensions
R. STAHL HMI Systems GmbH / OI_KBD_USB_en_V_01_00_02.doc / 24.08.2018 Page 9 of 16

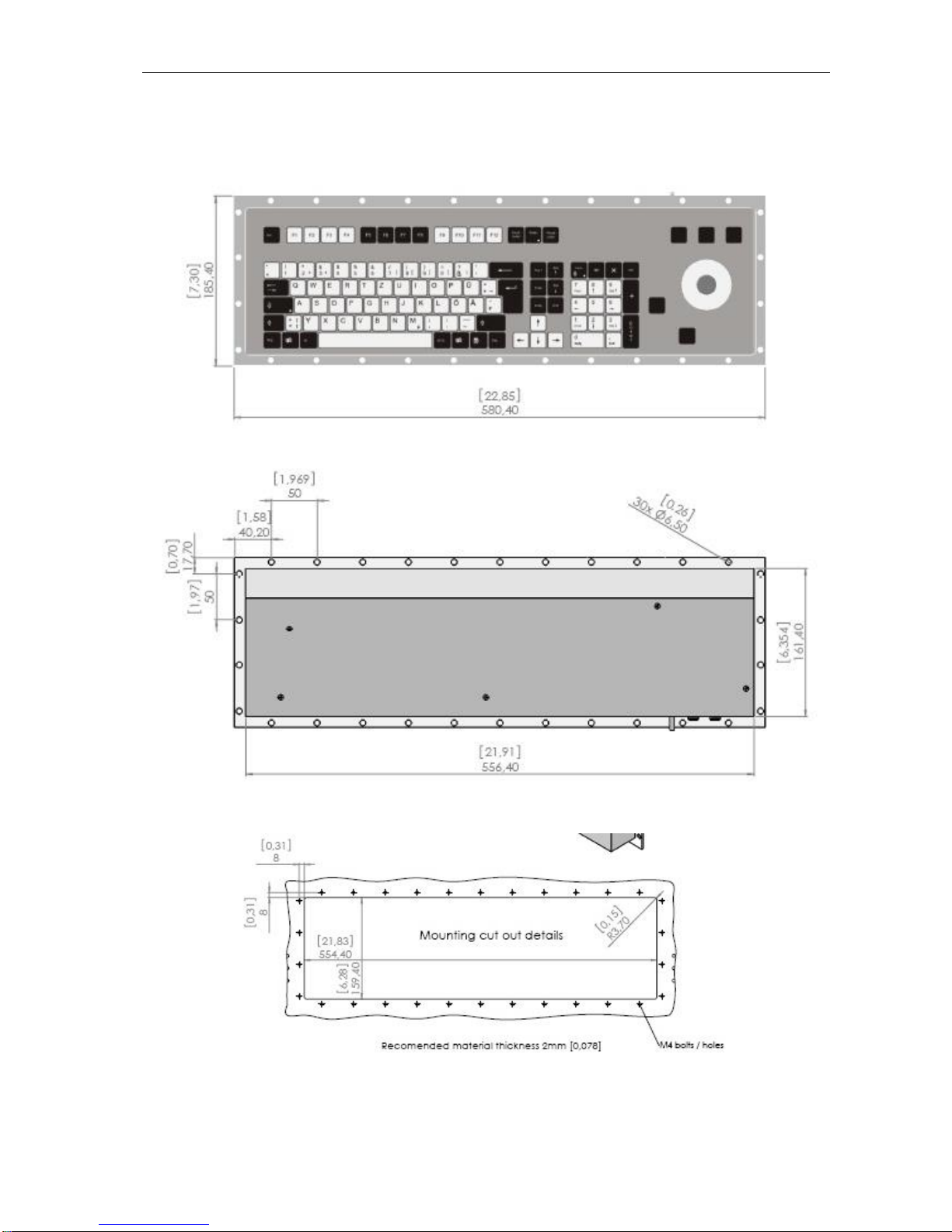

9 Mechanical dimensions
Dimensions in mm, [inch]
9.1 Cut-out

Operating Instructions KBDi Keyboards Connections
Page 10 of 16 R. STAHL HMI Systems GmbH / OI_KBD_USB_en_V_01_00_02.doc / 24.08.2018
10 Connections
Keyboard X72
Cable
Colour
Signal name
Definition
1
Red
+ UB
Power supply +UB
2
White
D-
Data cable D-
3
Green
D+
Data cable D+
4
Black
GND
Power supply GND
Trackball X73, mouse X94, touchpad X95, joystick X96:
Cable
Colour
Signal name
Definition
1
Red
+ UB
Power supply +UB
2
White
D-
Data cable D-
3
Green
D+
Data cable D+
4
Black
GND
Power supply GND

Operating Instructions KBDi Keyboards Maintenance
R. STAHL HMI Systems GmbH / OI_KBD_USB_en_V_01_00_02.doc / 24.08.2018 Page 11 of 16
11 Maintenance
Because the transmission of the keyboards remains reliable and stable over long periods of
time, regular adjustments are not required.
System maintenance should focus on the following:
a. Housing damage
b. Front membrane damage
c. All cables and lines are properly connected and undamaged
12 Troubleshooting
Repairs may only be carried out by specially trained staff who are
familiar with all basic conditions of the applicable user regulations
and –if requested –have been authorized by the manufacturer.
12.1 Repairs / hazardous substances
An error description must be enclosed with any units returned to R. STAHL HMI Systems GmbH
for repairs.
Remove all material residues. Please pay particular attention to the seal grooves and slits
where material residues may be lodged. We have to ask you not to return a unit if you are
unable to completely remove any hazardous substances. We shall bill you for any costs arising
from insufficiently cleaned keyboards, such as disposal or damage to persons (chemical burns,
etc.).
13 Disposal
Disposal of old electric and electronic devices, packaging and used parts is subject to
regulations valid in whichever country the device has been installed.
For countries under the jurisdiction of the EU the corresponding WEEE directive applies.
The keyboards are classified according to the table below:
old
new
Directive
WEEE I Directive 2002/96/EC
WEEE II Directive 2012/19/EU
Valid
until 14.08.2018
from 15.08.2018
Category
9
Monitoring and control devices
SG5
Small equipment <50 cm
We shall take back our devices according to our General Terms and Conditions.
13.1 RoHS directive 2011/65/EC
The revised version of the RoHS (restriction of hazardous substances) 2002/95/EC directive,
directive 2011/65/EC, extends its area of application to all electric and electronic products.
The keyboards are conform with the requirements from RoHS directive 2011/65/EU, dated
03.01.2013.
NOTICE

Operating Instructions KBDi Keyboards Declaration of EC conformity
Page 12 of 16 R. STAHL HMI Systems GmbH / OI_KBD_USB_en_V_01_00_02.doc / 24.08.2018
14 Declaration of EC conformity

Operating Instructions KBDi Keyboards Release Notes
R. STAHL HMI Systems GmbH / OI_KBD_USB_en_V_01_00_02.doc / 24.08.2018 Page 13 of 16
15 Release Notes
The chapter entitled "Release Notes" contains all the changes made in every version of the
operating instructions.
Version 01.00.00
Original version of the operating instructions
Version 01.00.01
Revision of "Disclaimer"
Change of address and telephone numbers
Addition of warning re. surface temperature
Revision of "Conformity to standards"
Adaption section "RoHS directive" with device conformity
Replacement of Declaration of EC Conformity
Text and layout corrections
Version 01.00.02
Inclusion of chapter "specific markings"
Changing of all markings according to the new definition
Changing warning "surface temperature", moved into section "Specific markings"
Addition of values of the imperial measurement systems
Addition of RoHS directive in "Conformity to standards"
Adaption of section "Disposal" according to the current WEEE directive
Deletion of chapter "Front panel resistance"
Formal changes

R. STAHL HMI Systems GmbH
Adolf-Grimme-Allee 8
D 50829 Köln
Phone: (switchboard) [phone] - 1000
(hotline) - 5000
Fax: - 4100
E-mail: (switchboard) [email protected]
(hotline) [e-mail]
www.r-stahl.com
www.stahl-hmi.de
