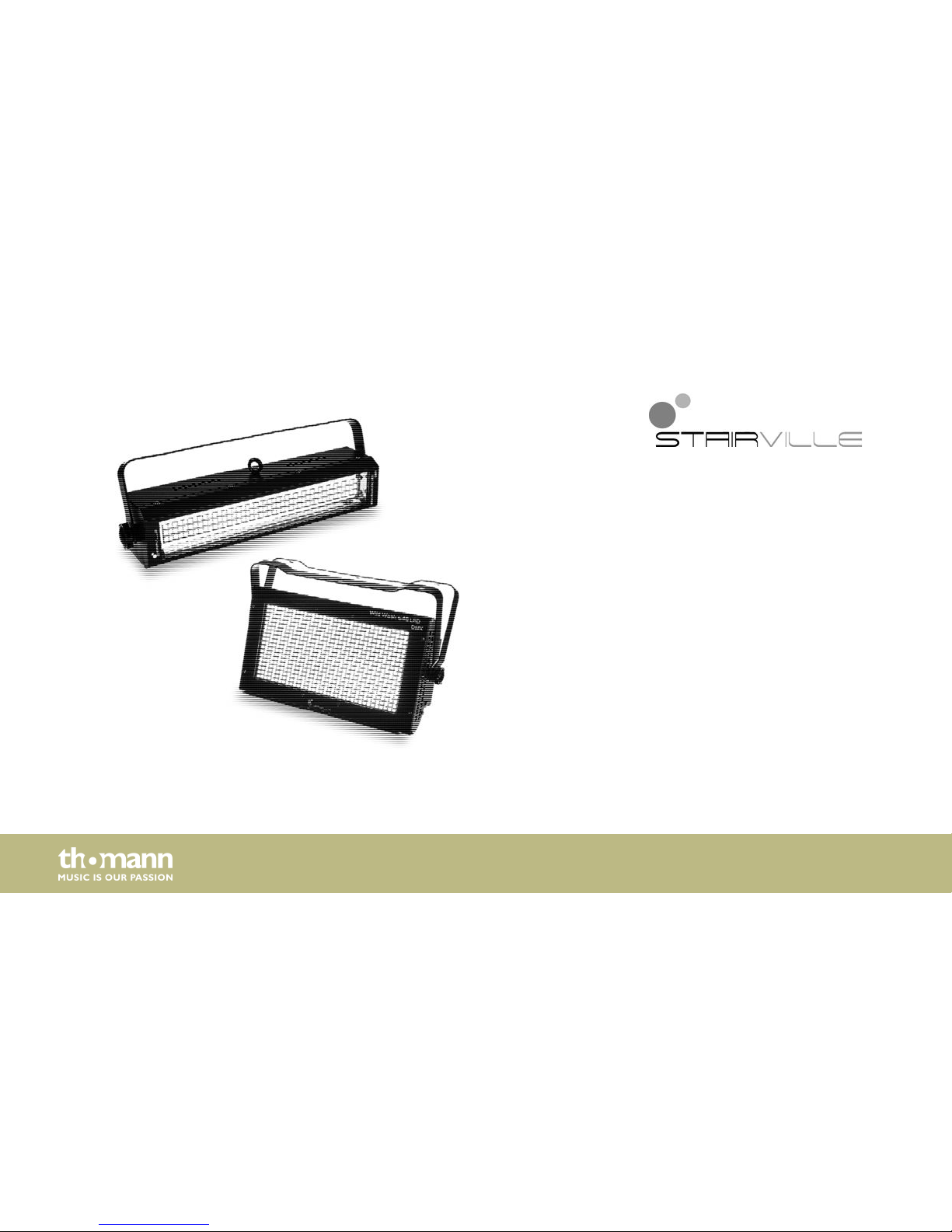

Stairville Wild Wash 132 LED RGB DMX User manual

Wild Wash
132 LED RGB DMX,
132 LED White DMX,
648 LED RGB DMX,
648 LED White DMX
LED floodlight
user manual

Musikhaus Thomann
Thomann GmbH
Hans-Thomann-Straße 1
96138 Burgebrach
Germany
Telephone: [phone]
E-mail: [email protected]
Internet: www.thomann.de
20.01.2017, ID: 399664, 399663, 399658, 399662

Table of contents
1 General notes............................................................................................................................................... 5
1.1 Further information........................................................................................................................... 6
1.2 Notational conventions.................................................................................................................... 7
1.3 Symbols and signal words............................................................................................................... 8
2 Safety instructions.................................................................................................................................. 10
3 Features....................................................................................................................................................... 15
4 Installation.................................................................................................................................................. 16
5 Starting up.................................................................................................................................................. 19
6 Connections and controls................................................................................................................... 22
7 Operating.................................................................................................................................................... 27
7.1 Starting the device........................................................................................................................... 27
7.2 Main menu.......................................................................................................................................... 28
7.3 Menu overview................................................................................................................................. 38
7.4 Functions in DMX mode 1ch........................................................................................................ 41
7.5 Functions in DMX mode 2Ch (model versions with white LEDs)................................... 41
Table of contents
Wild Wash 132 LED RGB DMX, 132 LED White DMX, 648 LED RGB DMX,
648 LED White DMX
3

7.6 Functions in DMX mode 2Ch1 (model versions with RGB LEDs).................................... 42
7.7 Functions in DMX mode 2Ch2..................................................................................................... 44
7.8 Functions in DMX mode 3Ch1 .................................................................................................... 45
7.9 Functions in DMX mode 3Ch2 (model versions with RGB LEDs).................................... 46
7.10 Functions in DMX mode 3Ch2 (model versions with white LEDs)............................... 48
7.11 Functions in DMX mode 3Ch3 (model versions with RGB LEDs).................................. 50
7.12 Functions in DMX mode 4Ch (model versions with RGB LEDs).................................... 50
7.13 Functions in DMX mode 5Ch (model versions with white LEDs)................................. 53
7.14 Functions in DMX mode 6Ch (model versions with RGB LEDs).................................... 55
7.15 Functions in DMX mode 7Ch (model version with 648 white LEDs).......................... 57
8 Technical specifications....................................................................................................................... 59
9 Plug and connection assignments.................................................................................................. 63
10 Troubleshooting...................................................................................................................................... 64
11 Cleaning....................................................................................................................................................... 66
12 Protecting the environment.............................................................................................................. 67
Table of contents
LED floodlight
4

1 General notes
This manual contains important instructions for the safe operation of the unit. Read and follow
the safety instructions and all other instructions. Keep the manual for future reference. Make
sure that it is available to all those using the device. If you sell the unit please make sure that
the buyer also receives this manual.
Our products are subject to a process of continuous development. Thus, they are subject to
change.
General notes
Wild Wash 132 LED RGB DMX, 132 LED White DMX, 648 LED RGB DMX,
648 LED White DMX
5

1.1 Further information
On our website (www.thomann.de) you will find lots of further information and details on the
following points:
Download This manual is also available as PDF file for you to download.
Keyword search Use the search function in the electronic version to find the topics of
interest for you quickly.
Online guides Our online guides provide detailed information on technical basics
and terms.
Personal consultation For personal consultation please contact our technical hotline.
Service If you have any problems with the device the customer service will
gladly assist you.
General notes
LED floodlight
6

1.2 Notational conventions
This manual uses the following notational conventions:
The letterings for connectors and controls are marked by square brackets and italics.
Examples: [VOLUME] control, [Mono] button.
Texts and values displayed on the device are marked by quotation marks and italics.
Examples: ‘24ch’, ‘OFF’.
References to other locations in this manual are identified by an arrow and the specified page
number. In the electronic version of the manual, you can click the cross-reference to jump to
the specified location.
Example: See
Ä ‘Cross-references’ on page 7.
Letterings
Displays
Cross-references
General notes
Wild Wash 132 LED RGB DMX, 132 LED White DMX, 648 LED RGB DMX,
648 LED White DMX
7

1.3 Symbols and signal words
In this section you will find an overview of the meaning of symbols and signal words that are
used in this manual.
Signal word Meaning
DANGER! This combination of symbol and signal word indicates an
immediate dangerous situation that will result in death or
serious injury if it is not avoided.
WARNING! This combination of symbol and signal word indicates a pos‐
sible dangerous situation that can result in death or serious
injury if it is not avoided.
NOTICE! This combination of symbol and signal word indicates a pos‐
sible dangerous situation that can result in material and
environmental damage if it is not avoided.
General notes
LED floodlight
8

Warning signs Type of danger
Warning – high-voltage.
Warning – suspended load.
Warning – danger zone.
General notes
Wild Wash 132 LED RGB DMX, 132 LED White DMX, 648 LED RGB DMX,
648 LED White DMX
9

2 Safety instructions
This device is intended to be used as an electronic illumination effect using LED technics. The
device is designed for professional use and is not suitable for use in households. Use the
device only as described in this user manual. Any other use or use under other operating con‐
ditions is considered to be improper and may result in personal injury or property damage. No
liability will be assumed for damages resulting from improper use.
This device may be used only by persons with sufficient physical, sensorial, and intellectual
abilities and having corresponding knowledge and experience. Other persons may use this
device only if they are supervised or instructed by a person who is responsible for their safety.
Intended use
Safety instructions
LED floodlight
10

DANGER!
Danger for children
Ensure that plastic bags, packaging, etc. are disposed of properly and are not
within reach of babies and young children. Choking hazard!
Ensure that children do not detach any small parts (e.g. knobs or the like) from
the unit. They could swallow the pieces and choke!
Never let children unattended use electrical devices.
DANGER!
Electric shock caused by high voltages inside
Within the device there are areas where high voltages may be present. Never
remove any covers.
There are no user-serviceable parts inside.
Do not use the device if covers, protectors or optical components are missing or
damaged.
Safety
Safety instructions
Wild Wash 132 LED RGB DMX, 132 LED White DMX, 648 LED RGB DMX,
648 LED White DMX
11

DANGER!
Electric shock caused by short-circuit
Always use proper ready-made insulated mains cabling (power cord) with a pro‐
tective contact plug. Do not modify the mains cable or the plug. Failure to do so
could result in electric shock/death or fire. If in doubt, seek advice from a regis‐
tered electrician.
WARNING!
Eye damage caused by high light intensity
Never look directly into the light source.
WARNING!
Risk of epileptic shock
Strobe lighting can trigger seizures in photosensitive epilepsy. Sensitive persons
should avoid looking at strobe lights.
Safety instructions
LED floodlight
12

NOTICE!
Risk of fire
Do not block areas of ventilation. Do not install the device near any direct heat
source. Keep the device away from naked flames.
NOTICE!
Operating conditions
This device has been designed for indoor use only. To prevent damage, never
expose the device to any liquid or moisture. Avoid direct sunlight, heavy dirt, and
strong vibrations.
Safety instructions
Wild Wash 132 LED RGB DMX, 132 LED White DMX, 648 LED RGB DMX,
648 LED White DMX
13

NOTICE!
Power supply
Before connecting the device, ensure that the input voltage (AC outlet) matches
the voltage rating of the device and that the AC outlet is protected by a residual
current circuit breaker. Failure to do so could result in damage to the device and
possibly injure the user.
Unplug the device before electrical storms occur and when it is unused for long
periods of time to reduce the risk of electric shock or fire.
NOTICE!
Possible staining
The plasticiser contained in the rubber feet of this product may possibly react
with the coating of your parquet, linoleum, laminate or PVC floor and after some
time cause permanent dark stains.
In case of doubt, do not put the rubber feet directly on the floor, but use felt-pad
floor protectors or a carpet.
Safety instructions
LED floodlight
14

3 Features
The LED floodlight is particularly suitable for lighting applications in clubs and discotheques,
on rock stages, in theatres and musicals. It can also be used for effect lighting of stage back‐
grounds and as blinder.
Special features of the device:
nEquipped with SMD LEDs with 0.2 W power consumption each, depending on the model
version:
– Stairville Wild Wash 132 LED RGB DMX (item no. 399664): 132 tricolour LEDs (RGB)
– Stairville Wild Wash 132 LED White DMX (item no. 399663): 132 cold white LEDs
– Stairville Wild Wash 648 LED RGB DMX (item no. 399658): 648 tricolour LEDs (RGB)
– Stairville Wild Wash 648 LED White DMX (item no. 399662): 648 cold white LEDs
nControl via DMX (different modes depending on the model version) and via buttons and
display on the unit
nBuilt-in automatic show programmes
nSound control
nMaster / Slave mode
nRobust metal housing with compact design
nVersatile installation and mounting options with the included two-piece mounting bracket
Features
Wild Wash 132 LED RGB DMX, 132 LED White DMX, 648 LED RGB DMX,
648 LED White DMX
15

4 Installation
Unpack and carefully check that there is no transportation damage before using the unit. Keep
the equipment packaging. To fully protect the device against vibration, dust and moisture
during transportation or storage use the original packaging or your own packaging material
suitable for transport or storage, respectively.
You can install the device standing or hanging. When in use, the device must be mounted at a
solid surface or clamped to an approved truss.
Work from a stable platform whenever you install or move the device or when you perform
any kind of maintenance. Block access under the work area.
WARNING!
Risk of injury caused by falling objects
Make sure that the installation complies with the standards and rules that apply
in your country. Always secure the device with a secondary safety attachment,
such as a safety cable or a safety chain.
Installation
LED floodlight
16

NOTICE!
Risk of overheating
Always ensure sufficient ventilation.
The ambient temperature must always be below 40 °C (104 °F).
NOTICE!
Possible data transmission errors
For error-free operation make use of dedicated DMX cables and do not use ordi‐
nary microphone cables.
Never connect the DMX input or output to audio devices such as mixers or ampli‐
fiers.
Installation
Wild Wash 132 LED RGB DMX, 132 LED White DMX, 648 LED RGB DMX,
648 LED White DMX
17

Please note that this device must not be connected to a dimmer.
Installation
LED floodlight
18

5 Starting up
Create all connections while the device is off. Use the shortest possible high-quality cables for
all connections. Take care when running the cables to prevent tripping hazards.
Starting up
Wild Wash 132 LED RGB DMX, 132 LED White DMX, 648 LED RGB DMX,
648 LED White DMX
19

Connect the DMX input of the device to the DMX output of a DMX controller or another DMX
device. Connect the output of the first DMX device to the input of the second one, and so on
to form a daisy chain. Always ensure that the output of the last DMX device in the daisy chain
is terminated with a resistor (110 Ω, ¼W).
Connections in DMX mode
Starting up
LED floodlight
20
