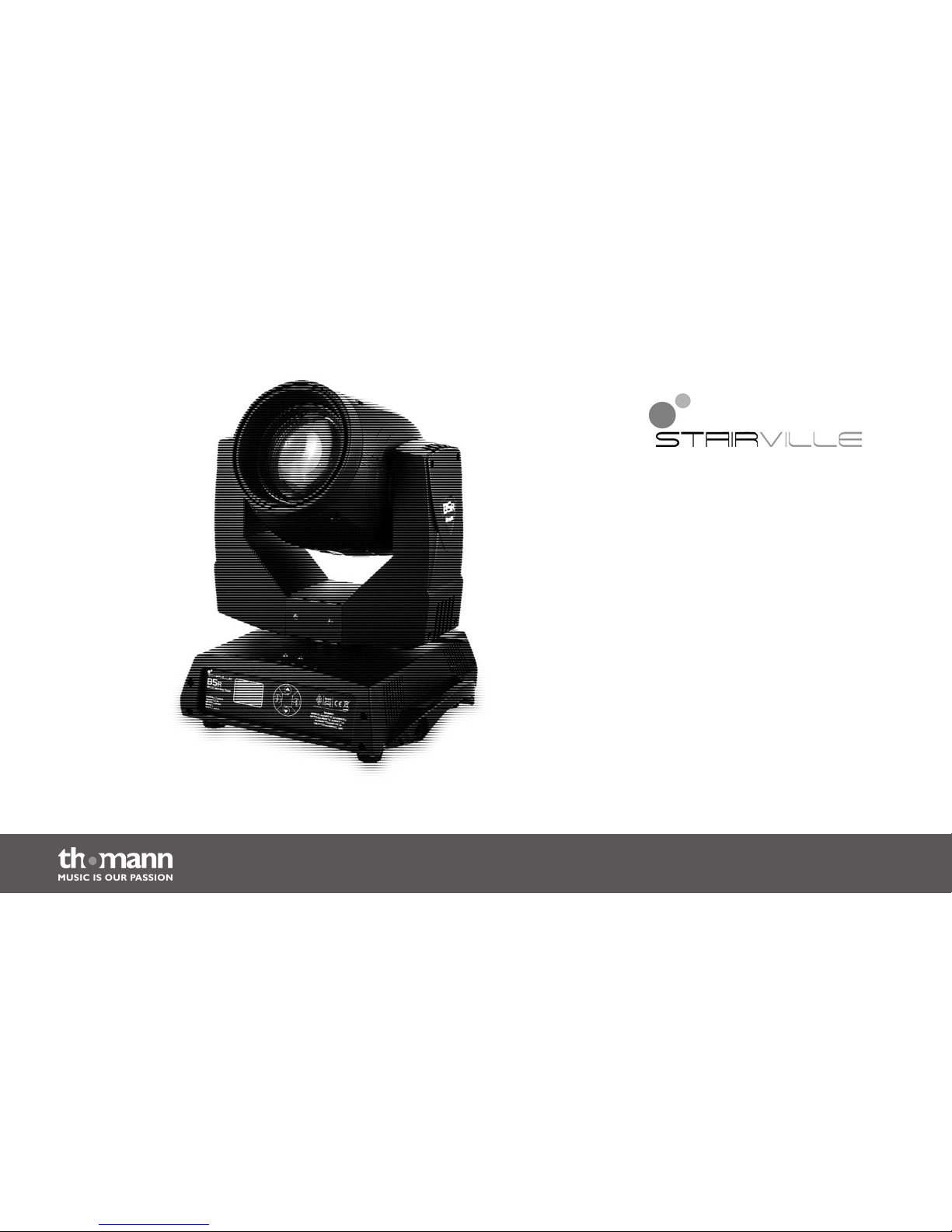

Stairville B5R User manual

Beam Moving Head
B5R
moving head
user manual

Musikhaus Thomann
Treppendorf 30
96138 Burgebrach
Germany
Telephone: [phone]
E-mail: [email protected]
Internet: www.thomann.de
21.01.2015, ID: 347665

Table of contents
1 General notes............................................................................................................................................... 5
1.1 Further information........................................................................................................................... 6
1.2 Notational conventions.................................................................................................................... 7
1.3 Symbols and signal words............................................................................................................... 8
2 Safety instructions.................................................................................................................................. 11
3 Features....................................................................................................................................................... 19
4 Installation.................................................................................................................................................. 20
5 Starting up.................................................................................................................................................. 26
6 Connections and operating elements........................................................................................... 29
7 Operating.................................................................................................................................................... 32
7.1 Starting the device........................................................................................................................... 32
7.2 Main menu.......................................................................................................................................... 33
7.3 Gobos................................................................................................................................................... 44
7.4 Menu overview................................................................................................................................. 46
7.5 Functions in 16-channel DMX mode........................................................................................ 47
Table of contents
Beam Moving Head B5R
3

7.6 Functions in 17-channel DMX mode........................................................................................ 56
8 Maintenance.............................................................................................................................................. 66
8.1 Installing / replacing the illuminant.......................................................................................... 66
8.2 Lamp hour counter reset............................................................................................................... 80
9 Technical specifications....................................................................................................................... 81
10 Plug and connection assignment.................................................................................................... 82
11 Troubleshooting...................................................................................................................................... 83
12 Cleaning....................................................................................................................................................... 85
13 Protecting the environment.............................................................................................................. 86
Table of contents
moving head
4

1 General notes
This manual contains important instructions for the safe operation of the unit. Read and follow
the safety instructions and all other instructions. Keep the manual for future reference. Make
sure that it is available to all those using the device. If you sell the unit please make sure that
the buyer also receives this manual.
Our products are subject to a process of continuous development. Thus, they are subject to
change.
General notes
Beam Moving Head B5R
5

1.1 Further information
On our website (www.thomann.de) you will find lots of further information and details on the
following points:
Download This manual is also available as PDF file for you to download.
Keyword search Use the search function in the electronic version to find the topics of
interest for you quickly.
Online guides Our online guides provide detailed information on technical basics
and terms.
Personal consultation For personal consultation please contact our technical hotline.
Service If you have any problems with the device the
customer service will gladly assist you.
General notes
moving head
6

1.2 Notational conventions
This manual uses the following notational conventions:
The letterings for connectors and controls are marked by square brackets and italics.
Examples: [VOLUME] control, [Mono] button.
Texts and values displayed on the device are marked by quotation marks and italics.
Examples: ‘24ch’, ‘OFF’.
References to other locations in this manual are identified by an arrow and the specified page
number. In the electronic version of the manual, you can click the cross-reference to jump to
the specified location.
Example: See Ä ‘Cross-references’ on page 7.
Letterings
Displays
Cross-references
General notes
Beam Moving Head B5R
7

1.3 Symbols and signal words
In this section you will find an overview of the meaning of symbols and signal words that are
used in this manual.
Signal word Meaning
DANGER! This combination of symbol and signal word indicates an
immediate dangerous situation that will result in death or
serious injury if it is not avoided.
WARNING! This combination of symbol and signal word indicates a pos‐
sible dangerous situation that can result in death or serious
injury if it is not avoided.
CAUTION! This combination of symbol and signal word indicates a pos‐
sible dangerous situation that can result in minor injury if it
is not avoided.
NOTICE! This combination of symbol and signal word indicates a pos‐
sible dangerous situation that can result in material and
environmental damage if it is not avoided.
General notes
moving head
8

Warning signs Type of danger
Warning – high-voltage.
Warning – hot surface.
Warning – dangerous optical radiation.
Warning – suspended load.
Warning – toxic substances.
General notes
Beam Moving Head B5R
9

Warning signs Type of danger
Warning – danger zone.
General notes
moving head
10

2 Safety instructions
This device is intended to be used as moving-head spotlight. Use the device only as described
in this user manual. Any other use or use under other operating conditions is considered to be
improper and may result in personal injury or property damage. No liability will be assumed for
damages resulting from improper use.
This device may be used only by persons with sufficient physical, sensorial, and intellectual
abilities and having corresponding knowledge and experience. Other persons may use this
device only if they are supervised or instructed by a person who is responsible for their safety.
DANGER!
Danger for children
Ensure that plastic bags, packaging, etc. are disposed of properly and are not
within reach of babies and young children. Choking hazard!
Ensure that children do not detach any small parts (e.g. knobs or the like) from
the unit. They could swallow the pieces and choke!
Never let children unattended use electrical devices.
Intended use
Safety
Safety instructions
Beam Moving Head B5R
11

DANGER!
Electric shock caused by high voltages inside
Within the device there are areas where high voltages may be present.
Completely disconnect the device from the power supply before you open or
remove covers. Mount all covers and attach them firmly before connecting the
device again.
DANGER!
Electric shock caused by short-circuit
Always use proper ready-made insulated mains cabling (power cord) with a pro‐
tective contact plug. Do not modify the mains cable or the plug. Failure to do so
could result in electric shock/death or fire. If in doubt, seek advice from a regis‐
tered electrician.
Safety instructions
moving head
12

WARNING!
Risk of epileptic shock
Strobe lighting can trigger seizures in photosensitive epilepsy. Sensitive persons
should avoid looking at strobe lights.
WARNING!
Danger of burns and eye injuries caused by high light intensity
The light source used in this device produces visible and invisible light beams of
high intensity.
Never look directly into the light source.
Do not use the device when covers, shieldings, lenses or other optical compo‐
nents are missing or damaged. In particular, avoid prolonged direct exposure of
the skin during maintenance without adequate cover of the light source.
Safety instructions
Beam Moving Head B5R
13

WARNING!
Risk of burns
The surface of the device can become very hot during operation.
Do not touch the device with bare hands during operation, and after switching
off wait for at least 15 minutes.
WARNING!
Danger of burns in case of inappropriate handling of the illuminant
The light source used in this device is under high pressure, especially when
heated, and can explode if handled inappropriately.
Allow the illuminant to cool down for at least two hours before starting any main‐
tenance or replacement. Always wear suitable protective gloves and safety
glasses when handling the illuminant.
Safety instructions
moving head
14

WARNING!
Danger of poisoning on lamp breakage
When discharge lamps break, small amounts of harmful substances (e.g. mercury)
are released.
When a discharge lamp breaks within a closed room: Vacate the room immedi‐
ately and ventilate adequately.
To remove the remnants of broken discharge lamps wear Nitrile protective
gloves, breathing and mouth protection.
Dispose of broken or worn discharge lamps as hazardous waste according to legal
regulations in a tightly closed container.
WARNING!
Risk of injury caused by falling objects
Make sure that the installation complies with the standards and rules that apply
in your country. Always secure the device with a secondary safety attachment,
such as a safety cable or a safety chain.
Safety instructions
Beam Moving Head B5R
15

CAUTION!
Risk of injury due to movements of the device
The head of the device can move quickly (pan, tilt) and can produce very bright
light. This is also valid immediately after you turn on the device, when the device
operates in automatic mode or under remote control and when you turn off a
DMX controller that is connected to the device. Persons staying near the device
could be injured or frightened.
Before you turn on the device and during the operation, always ensure that
nobody stays close to the device. If work has to be performed in the area of move‐
ment or in the near vicinity of the device, it must remain turned off.
Safety instructions
moving head
16

CAUTION!
Danger of injury in case of inappropriate handling of the illuminant
After the specified lifetime of the used illuminant there is an increased risk of
explosion.
Replace the illuminant in time, latest at the end of rated average lifetime.
When replacing the illuminant, all safety instructions for handling light sources
must be observed and wear suitable protective gloves and safety glasses.
NOTICE!
Risk of fire
Do not cover the device nor any ventilation slots. Do not place the device near
any direct heat source. Keep the device away from naked flames.
Safety instructions
Beam Moving Head B5R
17

NOTICE!
Operating conditions
This device has been designed for indoor use only. To prevent damage, never
expose the device to any liquid or moisture. Avoid direct sunlight, heavy dirt, and
strong vibrations.
The device must not be moved while it is in use.
NOTICE!
Power supply
Before connecting the device, ensure that the input voltage (AC outlet) matches
the voltage rating of the device and that the AC outlet is protected by a residual
current circuit breaker. Failure to do so could result in damage to the device and
possibly injure the user.
Unplug the device before electrical storms occur and when it is unused for long
periods of time to reduce the risk of electric shock or fire.
Safety instructions
moving head
18

3 Features
The moving head is particularly suitable for professional lighting tasks, for example at events,
on rock stages, in theatres and musicals or in discotheques.
Special features of the device:
nControl via DMX (17 channels) and via buttons and display on the unit
nPAN movement: 540°
nTILT movement: 270°
nPAN / TILT speed adjustable
nUltra-high-speed stepper motors with 16 bit resolution
nAutomatic position correction
nColour wheel with 14 colours plus white
nGobo wheel with 17 static gobos plus open
nEffects wheel with rotatable eightfold prism
nMotorized fine adjustable zoom / focus
nShutter with programmed strobe effects
nTwo Omega brackets with quick release fastener, two C-hooks and a safety cable included
Features
Beam Moving Head B5R
19

4 Installation
Unpack and carefully check that there is no transportation damage before using the unit. Keep
the equipment packaging. To fully protect the device against vibration, dust and moisture
during transportation or storage use the original packaging or your own packaging material
suitable for transport or storage, respectively.
Lift the device only at the base. When lifted at the rotatable mounting, the device may be dam‐
aged.
You can install the device standing or hanging upside down. When in use, the device must be
mounted at a solid surface or clamped to an approved truss.
Work from a stable platform whenever you install or move the device or when you perform
any kind of maintenance. Block access under the work area.
Installation
moving head
20
