Standard Horizon RP150 User manual

RP150
NMEA Repeater
Owner’s Manual
Marine Division of Vertex Standard

RP150 User Manual2
LIMITED WARRANTY
STANDARD HORIZON MARINE DIVISION OF VERTEX STANDARD warrants to the original purchaser
that each new Marine Product manufactured and/or supplied by STANDARD HORIZON will be free from
defects in materials and workmanship under conditions of normal use and service for a period of one
(1) year from the date of delivery to the Purchaser. STANDARD HORIZON’s liability under this
warranty shall be limited to repair or replacement of the defective product, at STANDARD HORIZON’s
option, under no circumstances shall STANDARD HORIZON be liable for consequential, incidental, or
other damages arising out of or in any way connected with a failure of the product to perform as set forth
herein.
In the event of a defect, malfunction, or failure of the product to conform to specifications during the
one-year warranty period, STANDARD HORIZON will repair or replace, at its option and without charge
to the Purchaser, the product which upon examination by STANDARD HORIZON shall appear to be
defective or not up to factory specifications. To obtain warranty service, the defective product must be
returned to STANDARD HORIZON together with proof of the date of purchase. The Purchaser must pay
any transportation expenses in returning the product to STANDARD HORIZON. STANDARD HORIZON
will examine the product and respond to the Purchaser in approximately four (4) weeks from date of
receipt of the product claimed to be defective.
This limited warranty does not extend to any product which has been subjected to misuse, neglect,
accident, improper installation, or subject to use in violation of the maintenance or operating instructions,
if any, furnished by STANDARD HORIZON, nor does this warranty extend to products on which the
serial number has been removed, defaced, or changed. STANDARD HORIZON reserves the right to
make changes or improvements to its products without notice during subsequent production without
incurring the obligation to install such changes or improvements on previously manufactured or sold
products.
To receive warranty service, the Purchaser must deliver the product, transportation and insurance
prepaid, to STANDARD HORIZON Marine Division of Vertex Standard, 115 North Wright Brothers
Dr. Salt Lake City, Utah 84116-2838. Include proof of purchase and date of purchase. STANDARD
HORIZON will return the Product to the Purchaser freight prepaid.
Some states do not allow limitations on the duration of the warranty or exclusions or limitations of
incidental or consequential damages so these limitations or exclusions may not apply to you. This
warranty gives you specific legal rights, which may vary from state to state.
Lifetime Flat Rate Service Program: For the original Purchaser only, for the lifetime of the unit,
STANDARD HORIZON will repair the unit to original specifications.
Note: The flat rate amount is payable by the Purchaser only if STANDARD HORIZON determines that
a repair is needed. After the repair, a 90-day warranty will be in effect from the date of return of the unit
to the Purchaser.
Owner’s Records
Model Serial number
Purchase date Dealer

RP150 User Manual 3
Contents
1 General information ............................................................................................ 4
1.1 Introduction ................................................................................................. 4
2 Controls and connectors .................................................................................... 4
3 Accessories ........................................................................................................ 4
3.1 Replacement Parts ................................................................................................ 4
4 Installation ........................................................................................................... 5
4.1 Location ................................................................................................................. 5
4.3 Wiring Connection ................................................................................................. 5
4.2 Mounting ................................................................................................................ 5
4.4 Multiple Repeaters ................................................................................................. 6
4.5 Multiple Instruments............................................................................................... 6
4.6 Setup ..................................................................................................................... 7
4.6.1 Data Search Mode .................................................................................. 7
4.7 NMEA Functions .................................................................................................... 7
4.8 RP150 NMEA Data ................................................................................................. 8
5 Operation ............................................................................................................ 9
5.1 Changing Functions .............................................................................................. 9
5.1.1 Backlighting On / Off ............................................................................... 9
5.2 Displaying NMEA Functions ................................................................................ 10
5.3 Simulation Mode .................................................................................................. 10
5.4 Microprocessor reset ......................................................................................... 10
6 Maintenance ...................................................................................................... 11
7 Specifications ................................................................................................... 11
8 Troubleshooting ............................................................................................... 11

RP150 User Manual4
1 General information
1.1 Introduction
The RP150 is a high-quality digital NMEA repeater. It
mounts into a 1¼" (32mm) diameter instrument hole
Features include:
• Connection for up to 4 separate NMEA
instruments
• Display of information from a wide range of
instruments:
- Speed (SL150)
- Depth (DS150)
- Wind (WS150)
- Compass (Digital Compass Sensor)
- Specific GPS Sentences (see section 5 for
details)
- or any NMEA compatible instrument
Note: Please familiarize yourself with the entire manual and transducer installation guide before
attempting installation.
2 Controls and connectors
Display is backlit for
Night Operation
Multi-function display
(When connected to
DS150 & SL150)
Sea temperature
Depth/speed trend indicator
Alarm
Depth/speed trend indicator
3 Accessories
3.1 Replacement Parts
The following parts may be ordered from the Standard Horizon Parts Department.
To order, call: 562-404-2700 Ext 351
Part ........................................................................................................................................... Part Number
Dust Cover .......................................................................................................................................... DC150
Panel Gasket .............................................................................................................................. 108013023A

RP150 User Manual 5
4 Installation
4.1 Location
The RP150 is designed for above or below deck
installation. Select a position that is:
At least 12 inches (300mm) from a compass
At least 20 inches (500mm) from any radio
Easy to read by the helmsman and crew
Protected from physical damage
Accessible to electrical cable connections
4.2 Mounting
The mounting surface must be flat. Use the template
to set the center of the fixing hole.
1 Drill a 1¼" (32mm) diameter mounting hole
through the bulkhead.
2 Remove the nut. Peel the protective paper
off the foam gasket and attach the gasket to
the rear of the instrument.
3 Insert the instrument through the bulkhead.
Hand tighten the nut and then finally tighten
with a spanner. Do not over tighten so that the
water sealing ability of the gasket is damaged.
4.3 Wiring Connection
Note: An external switch is required to turn
the instrument on and off.
1 Keep electrical and transducer cables away
from alternator or other noise generating
electrical cables. Avoid connecting the
instrument to power circuits that share loads
with ignition, alternators, inverters and radio
transmitters. Electrical power supply
connections should always be as short as
possible.
2 Connect the red wire to the positive supply
via a 1 amp fuse or a 1 amp circuit breaker.
Connect the black wire to the electrical
ground. A 1 amp fuse will provide protection
for up to five 150 series instruments.
3 The RP150 repeater is intended to be
connected with a number of other 150 series
instruments or to other instruments that
output NMEA 0183 data.
Red
Black
Yellow
Blue
Green
White
+12 VDC
Ground / - NMEA
+ NMEA Input
+ NMEA Input
+ NMEA Input
+ NMEA Input
2.2" (56mm)
1.75"
(45mm)
4.4" (112mm)
1" (24mm)
1.4" (35mm)
1.2"
(30mm)
4.4" (112mm)

RP150 User Manual6
4.4 Multiple Repeaters
Multiple repeaters may be connected so that repeaters can be placed in different locations or to allow the
simultaneous display of a greater number of functions.
4.5 Multiple Instruments
Output wire from Wind,
Speed & Depth can
connect to Repeater
inputs in any order
Note: Wire colors refer
to solid wires only
Spare NMEA Input for GPS. etc.
Blue
Green
Black
Red Red
Black
Blue
Red
Black
Blue
Red
Black
Blue
Green
Yellow
White
1A Fuse +12 VDC
Ground
+12 VDC
Ground
1A Fuse
Red
Black
Green
Yellow
Blue
White
Red
Black
Green
Yellow
Blue
White
1
2
3
4

RP150 User Manual 7
4.6 Setup
4.6.1 Data Search Mode
The RP150 has four individual data inputs. After
making the initial connection to the RP150, or after
making any additional connections, it will be
necessary to place the RP150 into data search
mode.
Note: This operation must be completed
when first installing the RP150.
Press and hold the NMEA and keys for 7
seconds to enter data search mode. The instrument
automatically searches for inputs from up to 4
attached devices.
4.7 NMEA Functions
Data can be displayed from other NMEA instruments.
After connecting an NMEA instrument and completing
“Data Search Mode”, it is necessary to place the
RP150 into “NMEA Setup Mode”.
Press and hold the NMEA and keys for 7
seconds to enter NMEA Setup Mode.
Input
Channel
Number
Function No. (See
RP150 NMEA
Setup Table)
Current
Display
Status
To turn function on or off press the NMEA key.
To step to the next function, press the key. To
step to the previous function, press the key.
To exit turn off the power to the instrument.
7 SEC
7 SEC
SEARCHES
AUTO RETURN TO
LAST FUNCTION

RP150 User Manual8
Number Function NMEA Sentence
110 Boat Speed, Knots $VHW
120 Boat Speed, km/hr $VHW
130 Distance since reset, nautical miles $VLW
140 Total cumulative distance, nautical miles $VLW
150 Depth, meters (below transducer) $DPT
200 Depth, feet (Below keel) $DBK
210 Depth, meters (Below keel) $DBK
220 Depth, fathoms (Below keel) $DBK
230 Depth, feet (Below surface) $DBS
240 Depth, meters (Below surface) $DBS
250 Depth, fathoms (Below surface) $DBS
260 Depth, feet (Below transducer) $DBT
270 Depth, meters (Below transducer $DBT
280 Depth, fathoms (below transducer) $DBT
290 Temperature, degrees C) $MTW
300 Wind speed $MWV
310 Wind angle $MWV
320 Speed parallel to wind, knots $VPW
330 Speed parallel to wind, m/s $VPW
340 Heading, degrees magnetic $HDG
350 Heading, degrees true $HDT
400 Bearing to waypoint, degrees $APB
410 Bearing to waypoint, degrees true $BWC
420 Bearing to waypoint, degrees magnetic $BWC
430 Bearing to waypoint, degrees true $RMB
440 Distance to waypoint, nautical miles $BWC
450 Distance to waypoint, nautical miles $RMB
460 Speed over ground, knots $RMA
470 Speed over ground, knots $RMC
480 Speed over ground, knots $VTG
490 Speed over ground, hm/hr $VTG
500 Course over ground, degrees true $RMA
510 Course over ground, degrees true $RMC
520 Course over ground, degrees true $VTG
530 Course over ground, degrees magnetic $VTG
540 Crosstrack error, nautical miles $APB
550 Crosstrack error, nautical miles $RMB
600 Crosstrack error, nautical miles $XTE
4.8 RP150 NMEA Data

RP150 User Manual 9
5.1.1 Backlighting On / Off
Simultaneously press the and keys to turn
the backlight on. Repeat this procedure to turn the
lighting off.
The key selects functions dedicated to the
lower display. The selection remains in memory
after power down.
Note: The upper and lower display functions
will only be active when the DS150 and/or the
SL150 instruments are connected.
5 Operation
5.1 Changing Functions
The upper and lower display sections can be
configured to display depth or speed readings. The
remaining functions are dedicated to either the upper
or lower display.
The key selects functions dedicated to the
upper display. The selection remains in memory
after power down.
DEPTH
TRIP
DISTANCE
SPEED
TRIP
DISTANCE
AVERAGE
SPEED
TRIP
DISTANCE
AVERAGE
SPEED
TRIP
DISTANCE
AVERAGE
SPEED
TOTAL
DISTANCE
AVERAGE
SPEED
DEPTH
AVERAGE
SPEED
SPEED

RP150 User Manual10
COMPASS
DATA
BEARING TO
WAYPOINT
DISTANCE TO
WAYPOINT
SPEED OVER
GROUND
COURSE OVER
GROUND CROSS TRACK
ERROR
TEMPERATURE
WIND SPEED
WIND
DIRECTION
VELOCITY
MADE GOOD

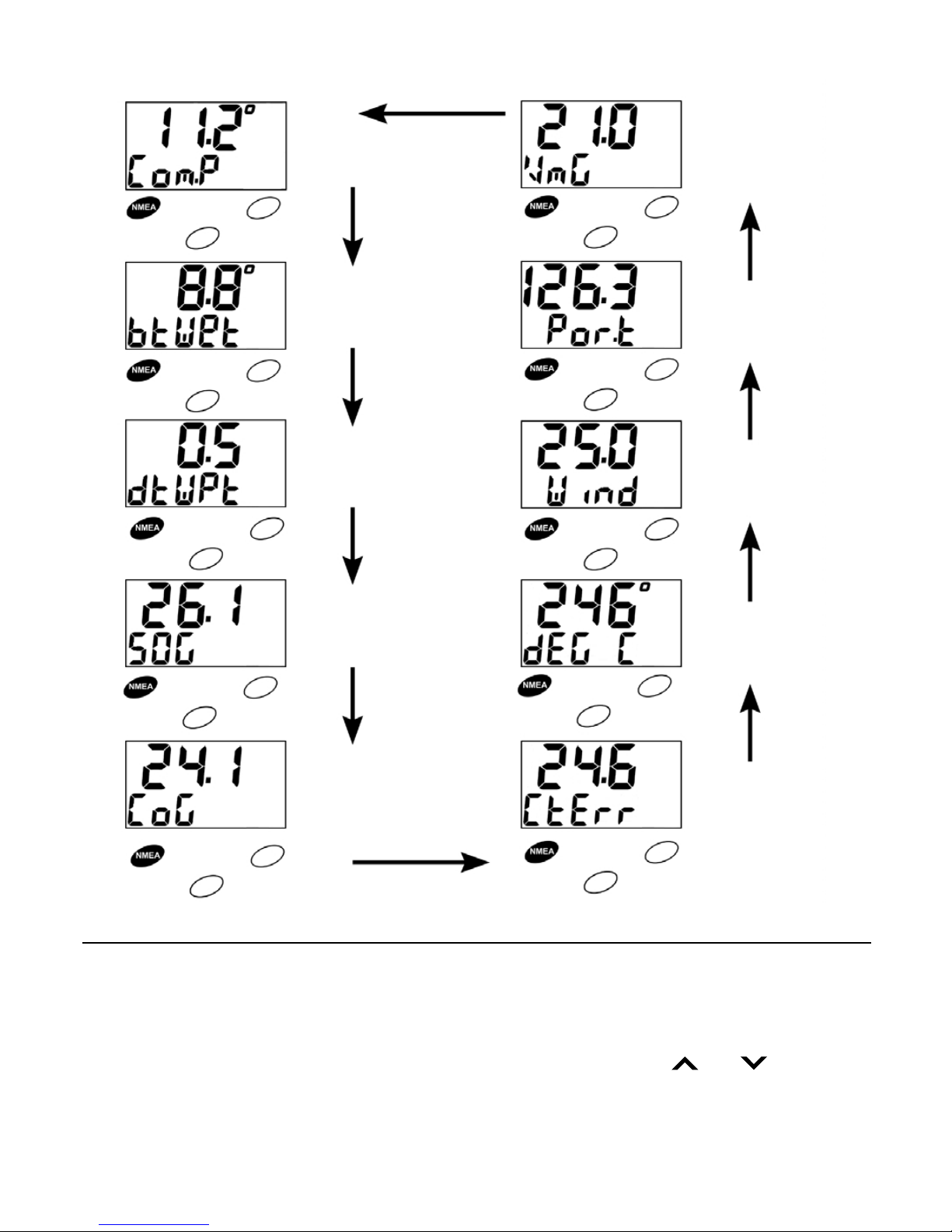

5.2 Displaying NMEA Functions
To scroll through the different functions that are on, press the NMEA key.
5.3 Simulation Mode
The RP150 has a simulation mode.
1 To enter this mode hold down the NMEA key
and then switch on the power. The instrument
will remain in this mode even when power is
switched off.
2 Repeat this procedure to exit simulation mode.
Note: At power up, if all the segments
display for 5 seconds then the instrument is
in simulation mode.
Note: If a depth, speed, or wind instrument other than the 150 series is connected, the data will
be shown by using the NMEA key.
5.4 Microprocessor reset
When instrument is not functioning properly, the
microprocessor can be reset as follows:
1 Turn off the instrument power.
2 Press and hold the and keys then
turn the power back on.
3 All calibration settings will be reset to
factory-set defaults.
