Star Progetti Brezza 70 User manual

EVAPORATIVE AIR COOLER
INSTRUCTION MANUAL
NEW WITH UV DEVICE
FOR WATER STERILIZATION

Informazione importante per lo smaltimento ambientalmente compatibile
IN ALCUNI PAESI DELL'UNIONE EUROPEA QUESTO PRODOTTO NON RICADE NEL CAMPO DI
APPLICAZIONE DELLA LEGGE NAZIONALE DI RECEPIMENTO DELLA DIRETTIVA RAEE E QUINDI NON
È IN ESSI VIGENTE ALCUN OBBLIGO DI RACCOLTA DIFFERENZIATA A FINE VITA.
Questo prodotto è conforme alla Direttiva 2012/19/UE. Il simbolo del bidone barrato riportato
sull’apparecchio indica che il prodotto, alla fine della propria vita utile, dovendo essere trattato
separatamente dai rifiuti domestici, deve essere conferito in un centro di raccolta differenziata per
apparecchiature elettriche ed elettroniche oppure riconsegnato al rivenditore al momento
dell’acquisto di una nuova apparecchiatura equivalente. L’utente è responsabile del conferimento
dell’apparecchio a fine vita alle appropriate strutture di raccolta, pena le sanzioni previste dalla
vigente legislazione sui rifiuti. L’adeguata raccolta differenziata per l’avvio successivo
dell’apparecchio dismesso al riciclaggio, al trattamento e allo smaltimento ambientalmente
compatibile contribuisce ad evitare possibili effetti negativi sull’ambiente e sulla salute e favorisce il
riciclo dei materiali di cui è composto il prodotto. Per informazioni più dettagliate inerenti i sistemi
di raccolta disponibili, rivolgersi al servizio locale di smaltimento rifiuti o al negozio in cui è stato
effettuato l’acquisto. I produttori e gli importatori ottemperano alla loro responsabilità per il
riciclaggio, il trattamento e lo smaltimento ambientalmente compatibile sia direttamente sia
partecipando ad un sistema collettivo.
Information importante pour une élimination compatible avec l’environnement.
DANS CERTAINS PAYS DE L’UNION EUROPÉENNE, CE PRODUIT NE TOMBE PAS SOUS LE COUP DE
L’APPLICATION DE LA LOI NATIONALE D’ACCEPTATION DE LA DIRECTIVE RAEE ET N’EST DONC
SOUMIS A AUCUNE OBLIGATION DE TRI SÉLECTIF EN FIN DE VIE.
Ce produit est conforme à la Directive 2012/19/UE. Le symbole de la poubelle barrée reporté sur
l’appareil indique que le produit, arrivé en fin de vie, doit faire l’objet d’un traitement spécial et doit
donc être confié à un centre de tri pour appareillages électriques et électroniques, ou bien ramené
au vendeur à l’achat d’un nouvel appareil équivalent. L’utilisateur est responsable du transfert de
l’appareil en fin de vie aux structures de tri appropriées, sous peine des sanctions prévues par la
législation en vigueur sur les déchets. Le tri prévu pour l’envoi de l’appareil démantelé à la phase de
recyclage, de traitement et d’élimination compatible avec l’environnement contribue à éviter
d’éventuels effets négatifs sur l’environnement et sur la santé et favorise le recyclage des matériaux
dont le produit se compose. Pour des informations plus détaillées concernant les systèmes de
collecte disponibles, s’adresser au service local d’élimination des déchets ou au magasin où l’achat
a été effectué. Les producteurs et les importateurs assument leurs responsabilités quant au
recyclage, au traitement et à l’élimination compatible avec l’environnement soit directement, soit
en participant à un système collectif.
Important information for environmentally friendly disposal
IN SOME EU COUNTRIES THIS PRODUCT DOES NOT FALL INTO THE SCOPE OF APPLICATION OF THE
ITALIAN DOMESTIC LAW ACKNOWLEDGING THE RAEE DIRECTIVE AND THEREFORE THERE IS NO
OBLIGATION IN FORCE TO SEPARATE MATERIALS AT THE END OF THEIR USEFUL LIFE.
This product complies with Directive 2012/19/UE. The symbol of a dustbin with a cross, which is
shown on the appliance, indicates that the product, because it must be treated separately from
household waste, must be taken, at the end of its useful life, to a collection center for electrical and
electronic equipment or redelivered to the retailer on purchase of a new equivalent appliance. The
user is responsible for delivering the appliance to the appropriate collection structure at the end of
its life, on penalty of the measures provided for by current legislation on waste. The proper separate
collection for subsequent transfer of the appliance for recycling, treatment and environmentally
friendly disposal contributes to avoiding any possible harmful effects on the environment and health
and promotes recycling of the materials that make up the product. For more detailed information
on the available collection systems, contact the local refuse disposal service or the shop where the
purchase was made. The producers and importers meet their responsibilities for recycling,
treatment and environmentally friendly disposal either directly or through participating in a
collective system.
2

Warning
This appliance can be used by children aged from 8 years and above and
persons with reduced physical, sensory or mental capabilities or lack of
experience and knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe way and understand
the hazards involved. Children shall not play with the appliance. Cleaning
and user maintenance shall not be made by children without supervision
If the supply cord is damaged, it must be replaced by the manufacturer,
its service agent or similarly qualified persons in order to avoid a hazard.
The ultraviolet ray from the UV lamp is harmful to human eyes and skin.
USER IS NOT ALLOWED TO OPEN THE MACHINE AND THE UV LAMP
COVER.
Thank you for purchasing our air cooler. Please read all the instructions
in detail before first time use, to ensure proper use of the unit. Also,
please keep the manual for future reference.
ANTIBACTERIAL UV WATER STERILISATION DEVICE
The BREZZA cooler you have purchased has a distinctive feature to aid personal health.
It is equipped with a UV lamp to sterilise water and prevent the formation of bacteria
(such as legionella, for instance) and mould.
When in use, our BREZZA cooler prevents the development of pathogens caused by
stagnant or contaminated water.
Star Progetti is the first to adopt this solution, which is part of our corporate strategy
aimed at offering customers the best possible product with a full guarantee of well-being
and health.
The UV lamp lasts for an average of 7000 hours, equivalent to several years of use during
the summer.
If the UV lamp needs replacing, contact Rubisolis.
ENGLISH
3

PRODUCT FEATURES
 Cool
It cycles the water to blow cool air. It can lower the surrounding temperature and provide you a
comfortable environment in hot summer.
 Energy saving, high-efficiency, friendly environment
The input power is 200W.
Wide range of air output, 100 angle wide range of air output. The outlet will colse when the power
supply is off. 3 fan speeds: HIGH-MID-LOW
 Remote Control
6 meters remote control, 120 angle wide range receiver
Beep sound reminder
It has beep sound reminder function, convenient to use.
High grade computer control system.
 1 to 24 hours timer setting
Outlet air temperature
Indication of the outlet air temperature on the display.
CONSTRUCTION DRAWING
4

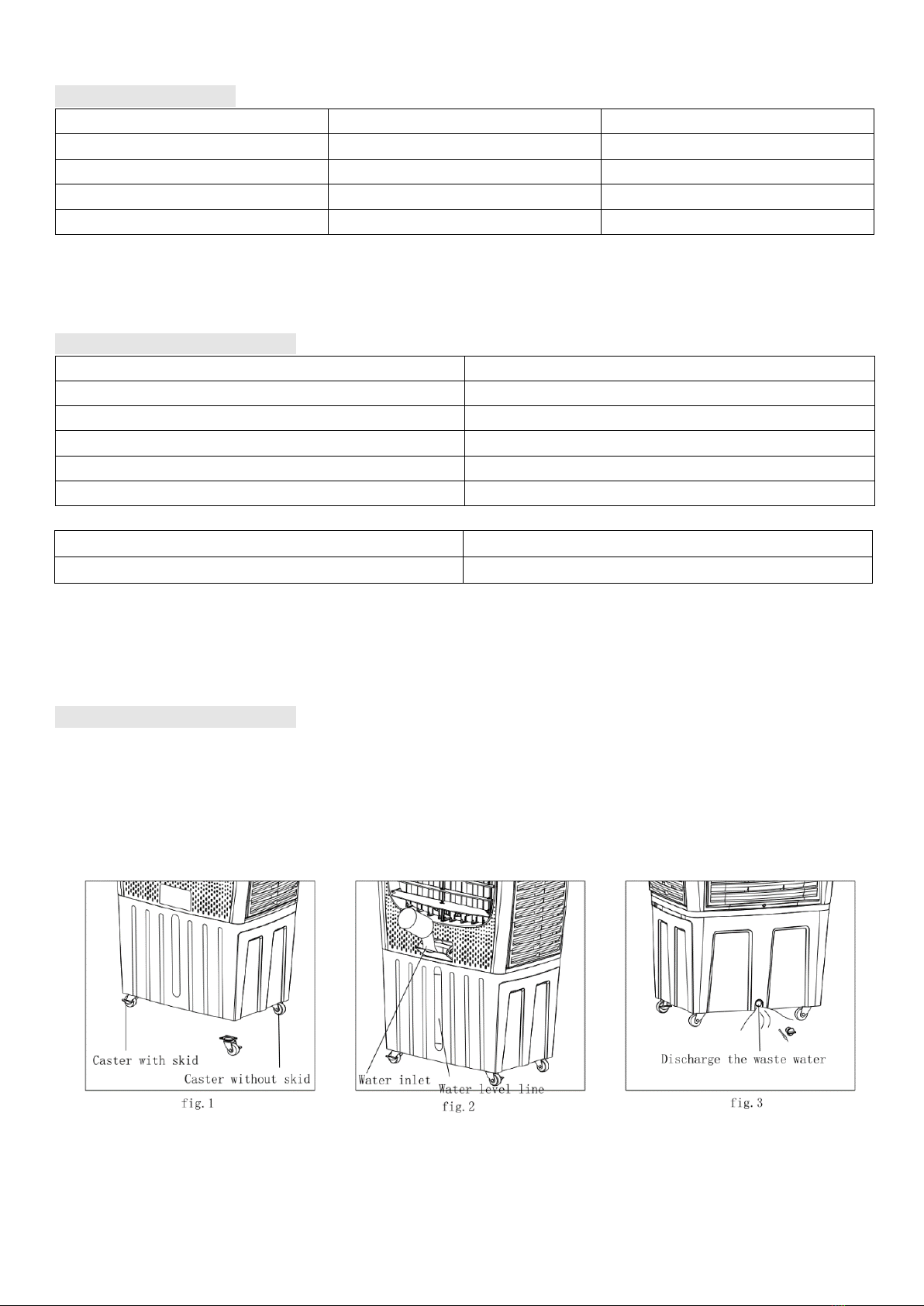

ACCESSORIES LIST
sequence
Accessory name
Quantity(pcs)
1
remote controller
1
2
instruction manual
1
3
caster with skid
2
4
caster without skid
2
TECHNICAL PARAMETERS
BREZZA MODEL
FRE70
Ratings
220-240 V / 50 Hz 200 W
MAX Air Flow Consumption
5000 m3/h
MAX Water Volume
40 l
Net Weight
12 kg
Measurements
581x371x1059 mm
UV BULB MODEL
E17-3W Mini UV bulb
Ratings
AC 10V 3W
Note: Due to constant development of our products in regards to specification and design,
we take reservation for changes without prior notice.
OPERATION INSTRUCTION
1. Pull the unit outwards from the carton and place it on a solid hot-proof horizontal surface.
2. Check if the accessories are complete, same as the accessories list.
3. Place the unit on a solid hot-proof horizontal surface. Take out the casters and caster wrench to
assemble.
Note: Casters with skid are for the two front holes and casters without skid are for the two
back holes at the bottom of the unit.(shown as fig.1)
4. Add water from the water inlet on the front cabinet.(shown as fig.2)
Note:
a) Water level must be between the MIN and MAX line.(shown as fig.2)
b) After some time operation, dust and dirt may occur in water tank. It is recommended
5

5.Only use the unit with correct AC outlet.
6.Insert the plug pin into a wall socket.
A small beep sound can be heard and the power indicator will be on.
Note:
A. To protect against electric shock, do not remove plug from wall outlet by wet hand.
B. Unplug from outlet while moving the unit.
C. Insert the plug pin into the wall socket and make sure it is connected well.
7.Press “ON” button to make the unit ready for working Press “COOL” button to
improve the air damp, avoid skin dry and spall in winter. When press “COOL”, the
built-in UV lamp start working, the ultraviolet ray can sterilize the water flowing
through the UV lamp cover(shown as fig.4).
SAFETY WARNINGS
BEFORE ANY MANUAL WATER FILLING OPERATION, CLEANING AND
MAINTENANCE, TURN OFF THE DEVICE AND REMOVE THE PLUG FROM THE
ELECTRIC SOCKET.
6

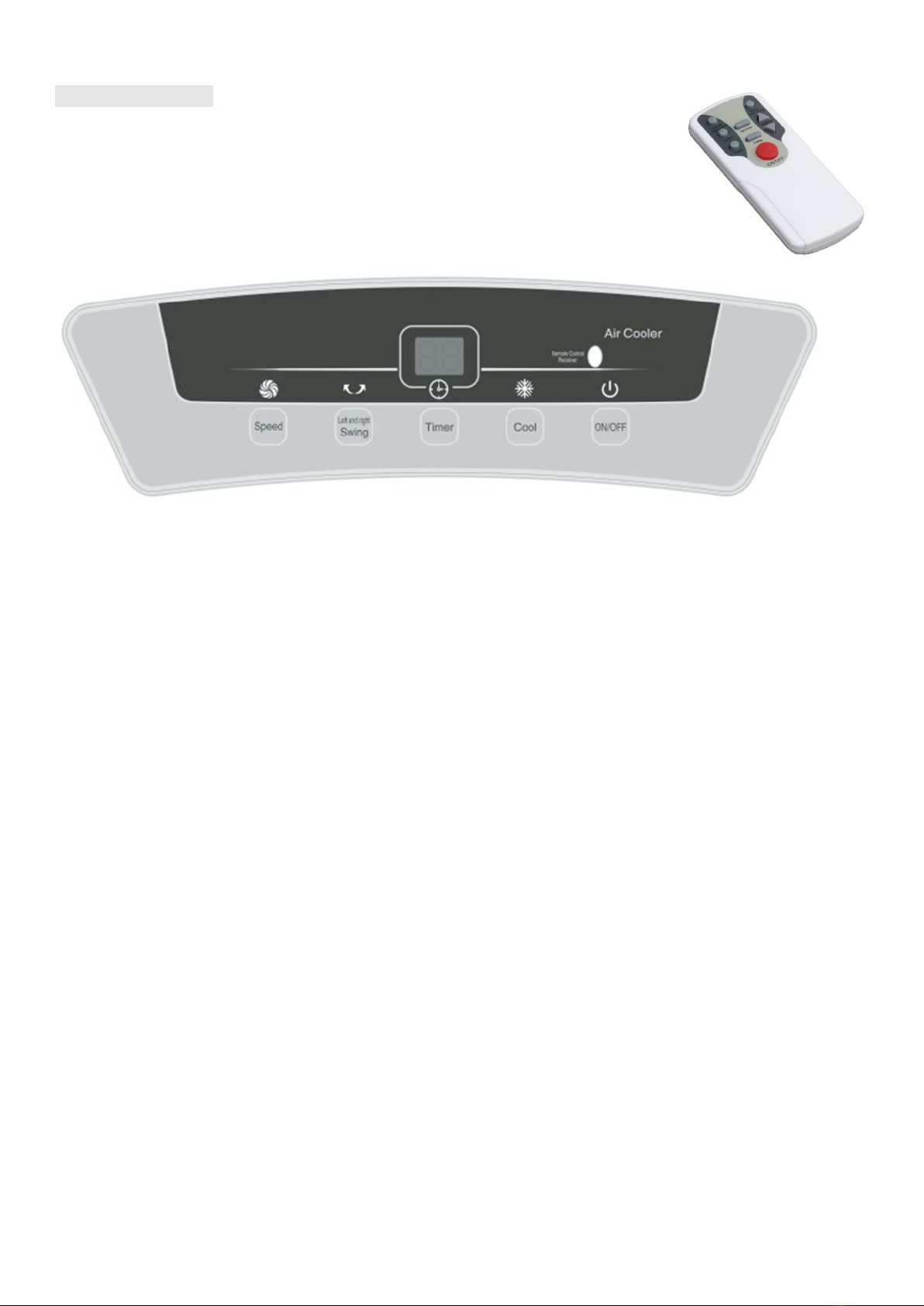

CONTROL PANEL
(Remote controller control panel with the same function as the unit
control panel)
ON/OFF: Press once this button to make the unit ready for working. It will start up with
MID in 3 seconds and then revert to work under the memorized status. If for first time use, it will start
up with MID in 3 seconds and then work with LOW.
Press again this button to turn OFF.
SPEED: Press this button to select desired fan speed, LOW→MID→HIGH→LOW, in turn. At the
same time can digital display 1.2.3.
SWING: Press once this button to make horizontal swing of vertical louvers, the SWING indicator
will be displayed. Press again for fixed air direction. To directing vertical airflow, adjust the horizontal
louvers manually.
COOL: During operation, press this button to start the evaporative cooling function, the water pump
and the UV lamp start working; When press this button again, the water pump and the UV lamp stop
working (first ON, second OFF). And both of water pump and UV lamp stop working when water
shortage.
When press “COOL”, the motor stop for 20 seconds, and it will resume to work after 20 seconds,
the design is in order to avoid water splashing
TIMER: It can be set between 24 hours, increased by 1 hours intervals.
WATER SHORTAGE DETECTOR.
After 5 seconds from pressing the "Cool" button, the water shortage detector activates. In case of
lack of water, the water pump will stop working, the "COOL" indication light will start to flash and will
cause the "Beep" to sound, for 30 seconds per cycle.
At this point, fill the water tank. The flashing light and the "Beep" sound will stop. Press the "Cool"
button again to restart the cooler.
If you do not fill the tank with water, the light will continue to flash, while the "Beep" sound will stop
after 5 minutes.
7

IMPORTANT PRECAUTIONS
1. READ ALL INSTRUCTIONS BEFORE USE.
2. DO NOT open and repair the appliance by unqualified personnel.
3. To avoid electric shocks, keep the appliance dry. Do not use with
wet hands.
4. Remove the plug from the socket when filling the water tank,
cleaning, maintenance or moving the appliance.
5. Remove the plug when not using the appliance.
6. Do not insert other objects into the air port while the appliance is
operating.
7. Do not cover the unit with paper, cardboard, plastic, aluminum foil
or other flammable materials while it is operating. Otherwise, fire
may occur. Keep the appliance away from any heat sources.
8. Lay the appliance on the floor.
9. This product is not intended for use in wet or damp locations.
10. The water level must be between the MIN and MAX lines.
11. After filling the water tank, do not tilt the appliance or move it to
prevent water from leaking from the sides of the tank and outside
the appliance. If you need to move the appliance slightly, slowly push
it to one side.
12. Do not tip the appliance on its side after filling the tank.
13. Do not place objects on the appliance or cover the door while the
appliance is in operation.
14. Do not use gasoline, toluene etc. to clean the body of the
appliance. To remove a light layer of dirt, remove it with a soft damp
cloth. To remove traces of grease, squeeze a little toothpaste or mild
detergent onto a soft, damp cloth and remove the dirt.
15. Do not hit or shake the appliance during operation.
16. After a few days of use, dirt and dirt may accumulate in the water
tank. It is recommended to change the water and clean the tank
frequently.
17. Do not place the appliance under an electrical outlet.
18. Empty the water tank to prevent the formation of unpleasant
odors when the appliance is not in use.
19. Do not use in case of malfunction. Send to the repair center.
20. Do not use the appliance for purposes other than those
established.
8

21. Do not use the appliance if the electric cable is damaged. Send to
the repair center. If the power cord is damaged, it must be replaced
with a cable or other specific piece provided by the manufacturer or
his service representative.
22. Make sure that children do not touch the airflow port while the
appliance is operating.
23. Keep the cord away from sharp or hot objects.
24. Do not clean with metal-containing cloths, which could scratch
the surface or cause electric shocks.
25. Do not clean with flammable liquids.
26. Do not connect the appliance to the same outlet as any other
electrical devices.
27. To disconnect the appliance, deactivate all functions, press the
OFF button and remove the plug from the wall socket.
28. Do not insert new and exhausted batteries into the remote
control at the same time.
29. Remove the batteries from the remote control when not using it.
30. The product can not be used by people (including children) with
physical, sensory or mental impairments, or by personnel without
adequate experience and knowledge (including children), if not in
the presence of a person with the necessary skills, responsible for
the safety of the previously listed categories and providing
supervision and guidance on the use of the products and ensuring
safe use.
31. Make sure that children do not play with the product and do not
touch the air port while the appliance is plugged in or operating.
32. Do not cover the door when the appliance is operating.
33. When open the UV lamp cover for repairing or testing, operators
should wear UVC anti-penetration glasses and protective masks, to
protect the eyes and exposed parts of the human body from being
hurt by ultraviolet radiation.
9

MAINTENANCE AND CLEANING
Note:
After long time operation, the filtration mesh becomes clogged with dust and dirt, which
will greatly affect the unit’s performance. It is recommended to clean the filtration mesh
frequently.

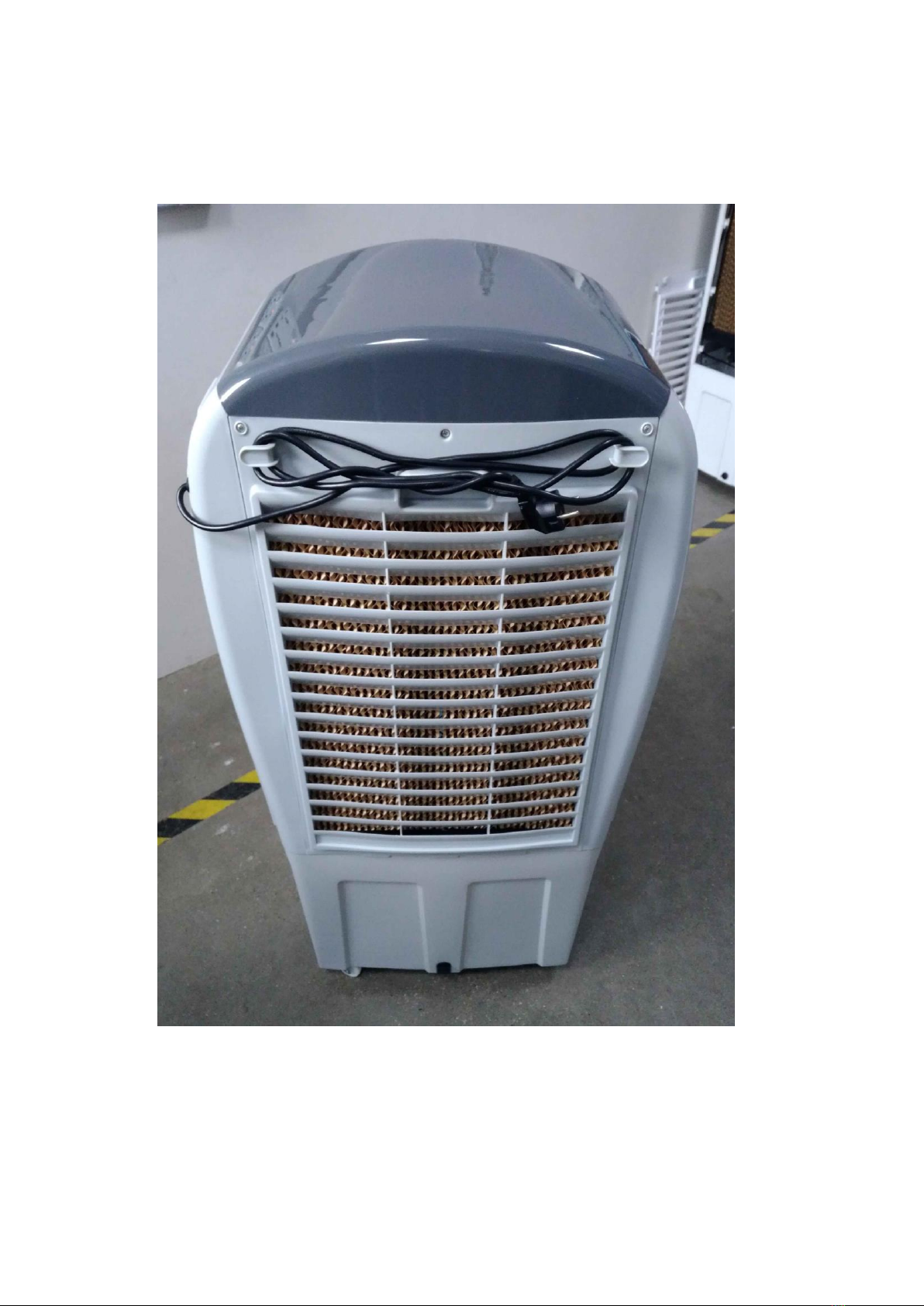

Cleaning the filtration mesh
1. Remove plug from power.
2. Loose screw, catch the filtration mesh handle and pull
upwards.
3. Clean filtration mesh with mild detergent and soft brush.
4. Make sure filtration mesh is completely dry before installing.

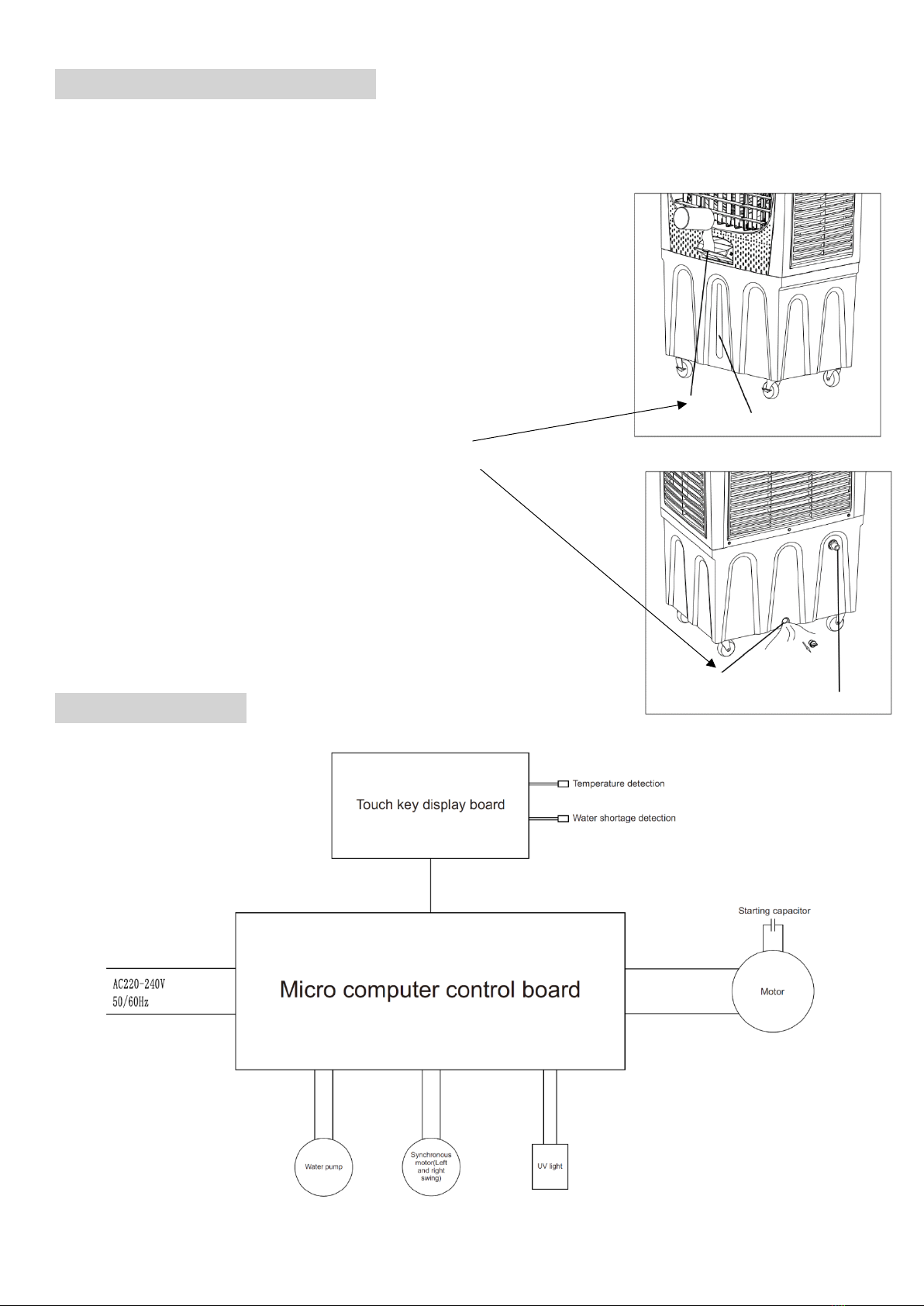

Cleaning the water tank
1. Remove plug power.
2. Add water from the water inlet in front side
3. Throw out the dirty water from the back
water outlet
Cleaning the body
Clean the body with a little mild detergent on a
cotton cloth.
Note:
 Unplug from outlet before cleaning.
 No water on the control panel.
CIRCUIT DIAGRAM
10

TROUBLE SHOOTING
If there is something wrong during operation, it may not be the unit’s problem. You may check against
the following list before send for repair.
Problems
Possible reasons
Solutions
Not working
1. The plug is not
securely inserted into the
socket or not connected
well.
2. The “ON/OFF” button
is not pressed.
1. Insert the plug pin into
the wall socket and
make sure it is
connected well.
2. Press “ON/OFF”
button after plugged.
Cool effect not good
1. Water tank not
enough water
2. Water pump is
obstructed.
1. Add water to ensure
there is enough water for
pumping
2. Clean water tank
discharge impurities.
NOTE:
THIS INSTRUCTIONAL CHART IS FOR REFERENCE PURPOSES ONLY, IF ANY TECHNICAL
ASSISTANCE IS NEEDED, PLAESE CALL STAR PROGETTI'S OFFICES FOR SERVICE/REPAIR AT
NO. 02/90639261 ext. 2
11

RECOMMENDATIONS FOR USE
• In order to avoid any water sprays to come out from the fan, the cooler, under normal working
conditions, should be placed on a flat surface, and its cellulose panels perpendicular to the floor.
• When it is first switched on, it is recommended to fill the tank as per instructions and run one-hour
cycle at least with the COOL function ON and the fan operating speed set to the minimum.
If the appliance is operated at the maximum air flow from the very start, it may cause the passage of water
from the cellulose panel to the fan, causing water sprays from the front of the cooler and possible damages
to the bearing of the fans themselves.
• The first time it is switched on, you might feel an unpleasant smell of the cooled air, caused by the new
cellulose panel. We suggest you should complete at least one cooling cycle outdoors in an open space (fill
a water tank, start the COOL function and let the appliance work until it finishes water completely), before
positioning and using it at the final place.
• You can also add ice to water, to maximise the appliance performance in the hottest weather, as well
as scented essences (to distribute cooled and scented air in the zone of use). Be however sure to use water-
based essences so as to avoid clogging the filter by oils or soaps, which may affect the effectiveness and
proper functioning of the cooler.
• It is suggested to run a lime washing cycle at least once in a year, by adding one litre of white vinegar
in the water tank and activating the COOL function until the tank is completely exhausted. Once the cycle
with vinegar is ended, fill again the tank by water only and repeat the procedure.
12

13

CERTIFICATE OF GUARANTEE
We congratulate you on the purchase of our FRE70 Validity 12 months from date of purchase of the appliance: the guarantee
expires after this period. The invoice, receipt or hire purchase agreement shall prove the duration of the guarantee period.
Replacements and repairs caused by faulty materials or manufacture are guaranteed. Replacements and repairs to those parts of
the appliance subject to normal wear are excluded form this guarantee. The guarantee shall immediately cease and become void
should the appliance be dismantled or repaired by unauthorized people, or in case of negligence, or accidental damage during
transport or elsewhere, or in case of misuse, failure to comply with the instructions for use, maintenance carried out by
unauthorized people, faulty installation not in conformity with the laws in force. Replacement of the appliance is excluded from
this guarantee. The eventual repairs recognized in guarantee will be carried out free of charge for those appliances returned free
STAR PROGETTI’s factory or to one of the authorized distributor. All transport costs are to be paid by the customer.
N. SERIE / N. SERIE / APPLIANCE No.
DATA ACQUISTO / DATE D'ACHAT / DATA OF PURCHASE
FATTURA N. / FACTURE N. / INVOICE No.
RIVENDITORE / REVENDEUR / DEALER
14

02/2020
ID 1419065734
15
