Stardom iTANK ZT1-B31BP User manual

iTANK
User Manual
ZT1-B31BP

» ZT1-B31BP User Manual ..................................1
1. Environmental Requirements..................................................1
2. Product Appearance and Packaging Content......................1
3. Hardware Requirements and Precautions ............................2
4. Description of HDD Indicators ................................................3
5. Hardware Installation................................................................3
6. Power Select Switch ................................................................4

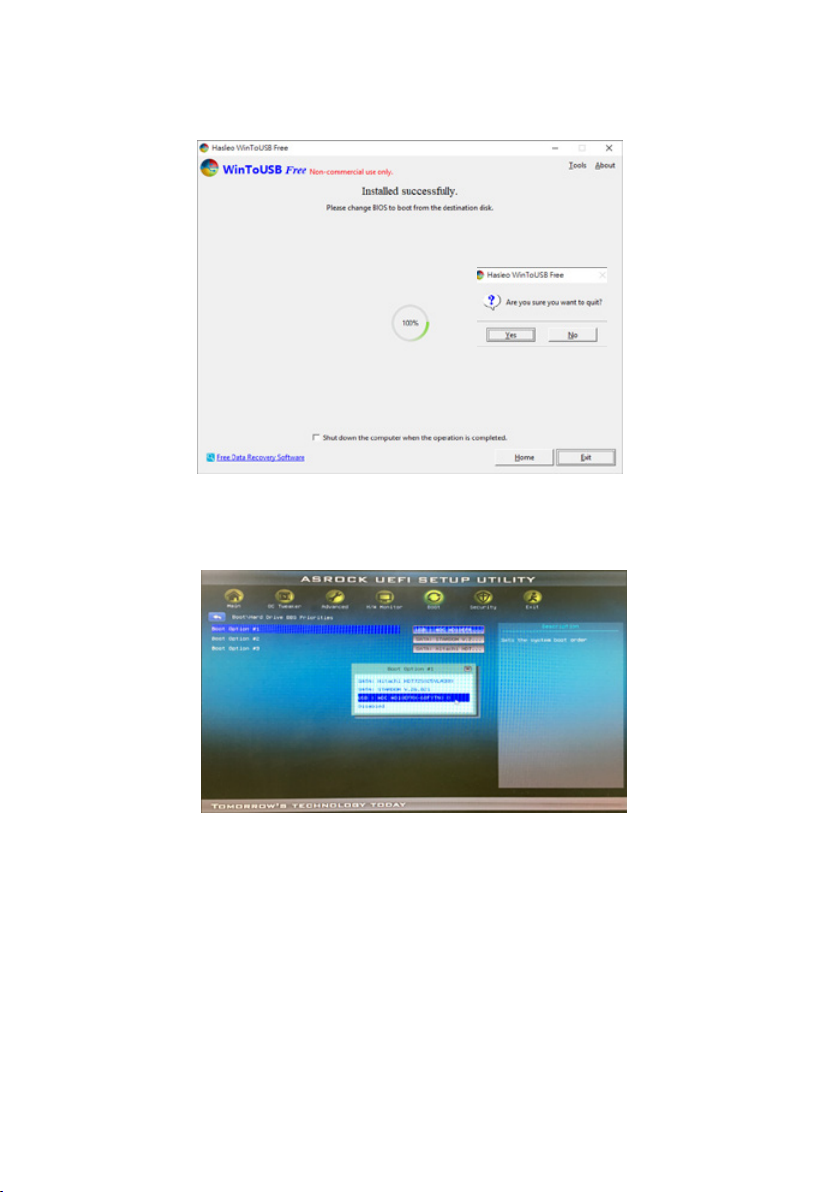

7. Install The Operation System Into This Device .............5
» ZT1-B31BP 產品使用說明 .................................10
1. 環境需求.....................................................................................10
2. 產品外觀及包裝內容.................................................................10
3. 硬體需求與注意事項.................................................................11
4. 燈號說明.....................................................................................12
5. 硬體安裝.....................................................................................12
6. 供電選擇開關.............................................................................13
7. 外接磁碟安裝作業系統.............................................................14
iTANK ZT1-B31BP User Manual
v1.0

iTANK ZT1-B31BP User Manual
1
1. Environmental Requirements
About this Manual
Thank you for choosing the STARDOM product. This manual will familiarize you with the STARDOM
ZT1-B31BP product. We recommend reading through this manual before using the STARDOM ZT1-
B31BP product. The information provided in this manual was checked before publication, but the actual
product specifications may have changed before shipping; Latest product specifications and updates
can be found at www.STARDOM.com.tw. No separate notifications will be provided by our company. If
you would like to receive the latest STARDOM product information, manuals, and firmware, or have any
questions regarding STARDOM products, please contact your local supplier or visit www.STARDOM.
com.tw for more information.
All product-related content in this manual are copyrighted by RAIDON TECHNOLOGY, INC.
Operating temperature: 0 ～40 ℃(32 ～104 ℉)
Storage temperature : -20 ～47℃(-4 ～116 ℉)
Operating voltage: 100 ～240V AC
» ZT1-B31BP User Manual
2. Product Appearance and Packaging Content
The following items should be inside the package upon opening:
ZT1-B31BP
ZT1-B31BP product x1 (containing HDD enclosure x1)
USB 3.2 cable x1
Quick setup guide x1
Ejector pins
• Please check the product and accessories for any defect or missing parts. If you have any questions,
please contact your product supplier.
• Please visit the official website - Download page (http://www.stardom.com.tw/STARDOM2016/
download.php) to download other related resources.

iTANK ZT1-B31BP User Manual
2
Front and rear view
3. Hardware Requirements and Precautions
1. The usable storage capacity of the hard disk after formatting will be less than the capacity
indicated on the hard disk.
2. To prevent data loss, do not remove ZT1-B31BP while the system is running.
3. Please always connect the USB cable to the computer to ensure the energy saving function
operating normally.
4. If the ZT1-B31BP needs to be shut down or disconnected, please ensure the HDD is safely
removed through your operating system before turning off the power.
5. The USB Type-C for Power Input only functions as a power input and cannot be used for data
transfer.
6. If you are using a USB 3.2 C to A cable, the Type-A on the host side must be USB 3.2 Gen2 for
best access performance.
7. We strongly recommend backing up important data stored on the ZT1-B31BP to another storage
device or a remote site. STARDOM will not be held liable for the damage or loss of data you stored
on the ZT1-B31BP.
A. HDD access light
B. HDD tray handle
C. HDD tray ejection hole
D. USB Type-C for Power Input (Power input only)
E. USB 3.2 Gen2 Type-C port (10Gbps)
F. Power select switch
Front View
Rear View
NOTE:
Please make sure that the product is connected to the host (power on status)
before turning on the power, otherwise the product will be on the sleep mode.

iTANK ZT1-B31BP User Manual
3
5. Hardware Installation
Please follow the instructions below to complete the hardware installation.
1. Place the system on a stable surface. Ensure that the vent is not blocked and that it is installed in
a well-ventilated area. (Please keep the product away from moisture and other environment that
might be harmful to the product)
2. Use the ejector pin included in the accessory kit to eject the HDD enclosure handle, and then pull
tray handle to remove it.
4. Description of HDD Indicators
Status HDD SATA access light
No M.2 OFF
Data access Blue light always on
M.2 idle Blue light always on
3. Remove the screws of the upper cover of
the tray, and then use the ejector pin to pry
open the upper cover and remove it.
4. Remove the screws holding the M.2.

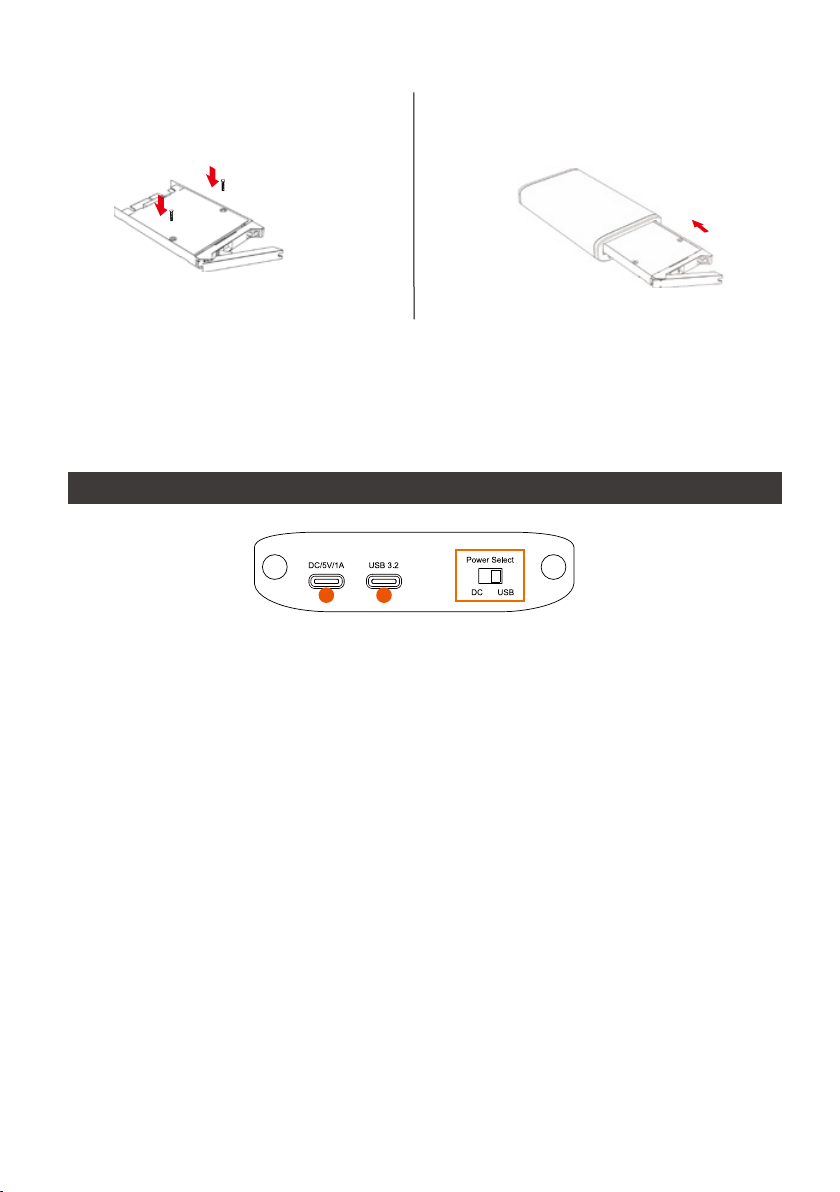

5. Insert M.2 and fix the screw. 6. Remove the paper from the heat sink
in the upper cover and put the upper
cover back.
