Starview SC-2K User manual

Copyright © 2022 Starview International Private Limited. All rights reserved.
Singapore Headquarters: 60 Kaki Bukit Place, #05-19 Eunos Techpark, Singapore 415979
Website: www.starviewint.com | Email: [email protected] | Tell: [phone]
1
OVERVIEW
The SC-2K is an all-in-one controller that integrates sending card functions with video processing.
Designed with powerful video processing capability, it supports 7 video inputs and 6 Gigabit Ether-
net outputs.
Based on the powerful FPGA processing platform, the SC-2K supports multiple transition effects,
such as quick seamless switching and fade, providing flexible display controlling and outstanding
video presentations.

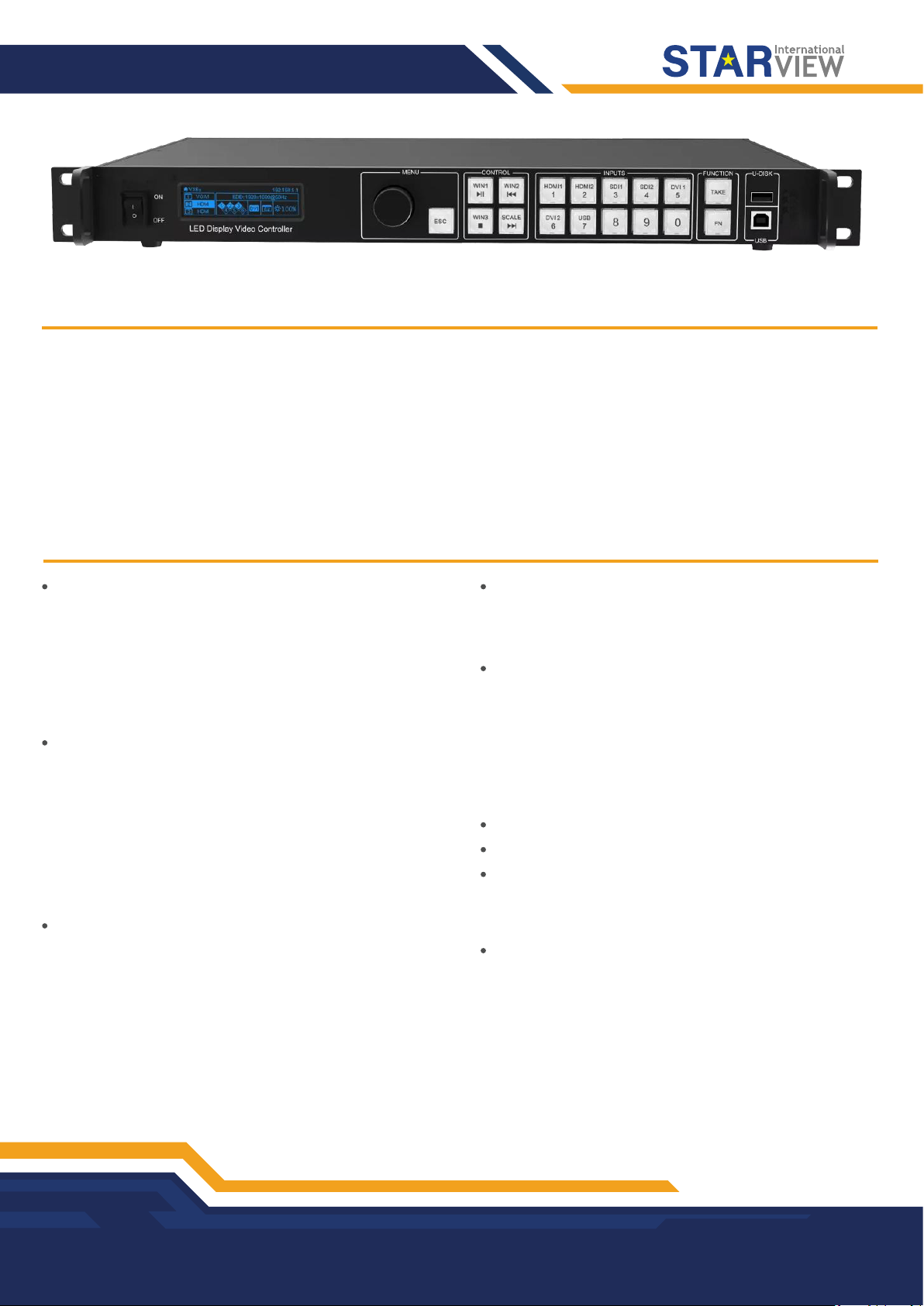

FEATURES
STARVIEW SC-2K VIDEO PROCESSOR
- 2x 3G-SDI
- 2x HDMI 1.3
- 1x DVI
- 1x DVI (IN+LOOP)
- 1x USB
7x inputs
- Quick screen configuration
- Advanced screen configuration
2x screen configuration methods
Screen brightness adjustment
Multi SC-2K units can be cascaded
16x user presets saved as templates and
conveniently recalled by pressing the number
buttons on the front panel
Lock to the HDMI, SDI or DVI input source to
achieve vertical synchronization between
outputs of multiple SC-2K units.
- Direct mode
Support display content monitoring.
- Switcher mode
Switch the PVW to PGM by pressing only the
TAKE button.
2x system modes
- 6x Gigabit Ethernet ports
Video output capacity up to 3,900,000 pixels,
with the width or height up to 4096 pixels
- 1x DVI for monitoring
Support PVW or PGM monitoring, and the moni-
toring resolution is adjustable.
2x types of output connectors
- Adjustable window position and size
- Z-order sorting
- 3 scaling modes for window output:
Full screen (Auto fit)
Pixel to pixel
Custom
3x windows

STARVIEW SIP-FASTARVIEW SC-2K VIDEO PROCESSOR
APPEARANCE

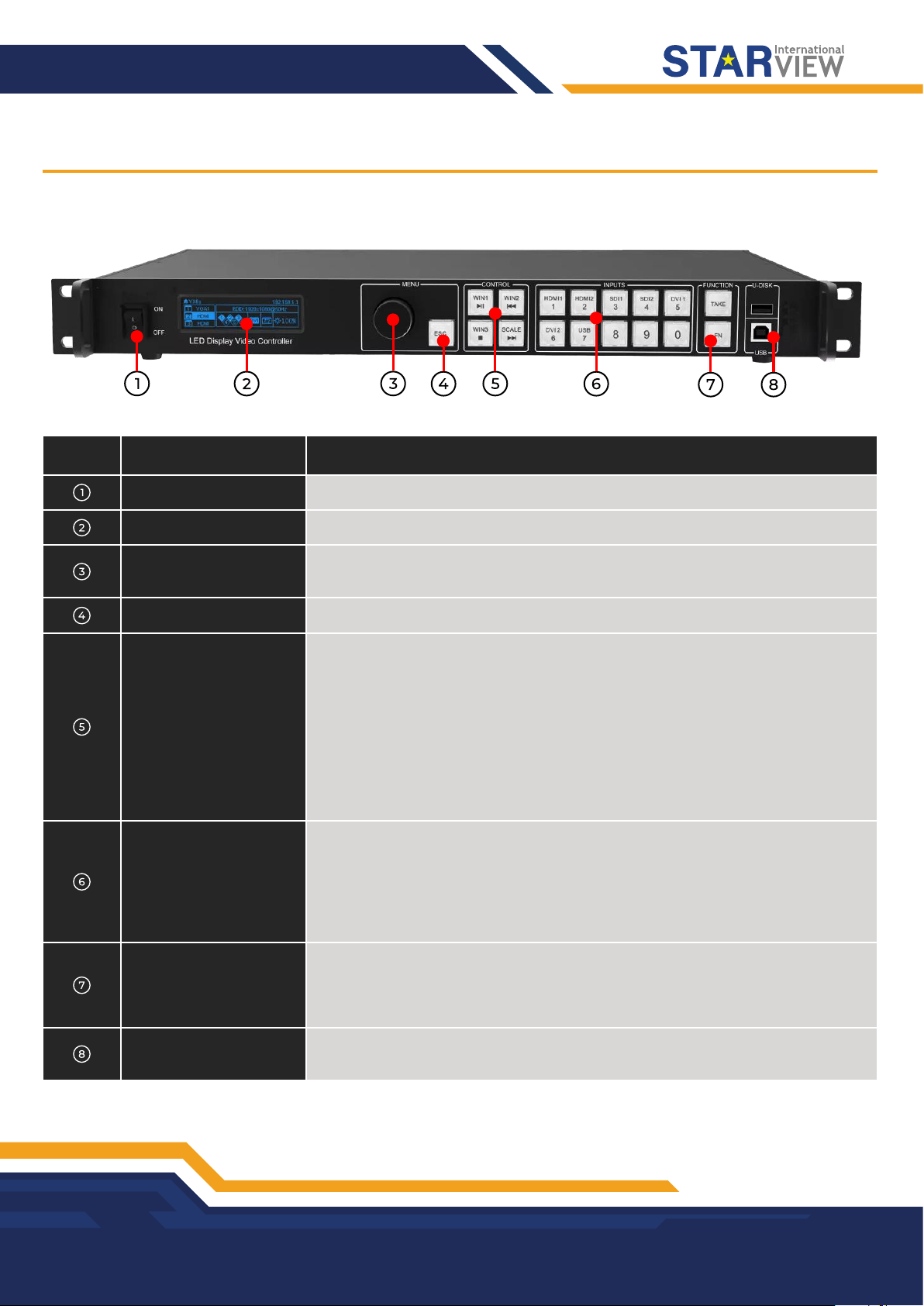

Front Panel
ON/OFF button Power button
OLED screen Displays the current status and setting menu of the device
Copyright © 2022 Starview International Private Limited. All rights reserved.
Singapore Headquarters: 60 Kaki Bukit Place, #05-19 Eunos Techpark, Singapore 415979
Website: www.starviewint.com | Email: [email protected] | Tell: [phone]
2
No. Button Function
ESC button Pressing the button exits the current menu or operation.
- Rotate the knob to scroll through the menu items, or adjust aparameter value.
- Press the knob to confirm the selection or settings.
Knob
Pressing a button enters the corresponding window property menu.
Statuses of button indicators:
- On: The window is open.
- Off: The window is closed.
- Flashing: The window is being edited.
- When a window is open, holding down the window button can close the window.
In the USB playback mode, you can play, pause, play previous, play next orstop current
playback.
- SCALE: This is a shortcut button for auto fit function. You can press this button to make
the window of the lowest priority fit the screen.
Window control buttons
Pressing the button switches the input source for the window. The button indicators
indicate the statuses of the input source.
Button indicator descriptions:
- Always on: The signal source is accessed.
- Flashing: The input source is in use, but no signal source is accessed.
- Off: The input source is not in use and no signal source is accessed.
Input source buttons
- TAKE: In the switcher mode, pressing the TAKE button can switch the PVW to PGM
seamlessly with the transition effect set previously.
- FN: A custom menu button. In USB playback mode, press the button to play the media
files in USB drive.
Function buttons
- USB (Type-B): Connects to the upper computer.
- USB (Type-A): A reserved port
USB

STARVIEW SIP-FASTARVIEW SC-2K VIDEO PROCESSOR
Copyright © 2022 Starview International Private Limited. All rights reserved.
Singapore Headquarters: 60 Kaki Bukit Place, #05-19 Eunos Techpark, Singapore 415979
Website: www.starviewint.com | Email: [email protected] | Tell: [phone]
3

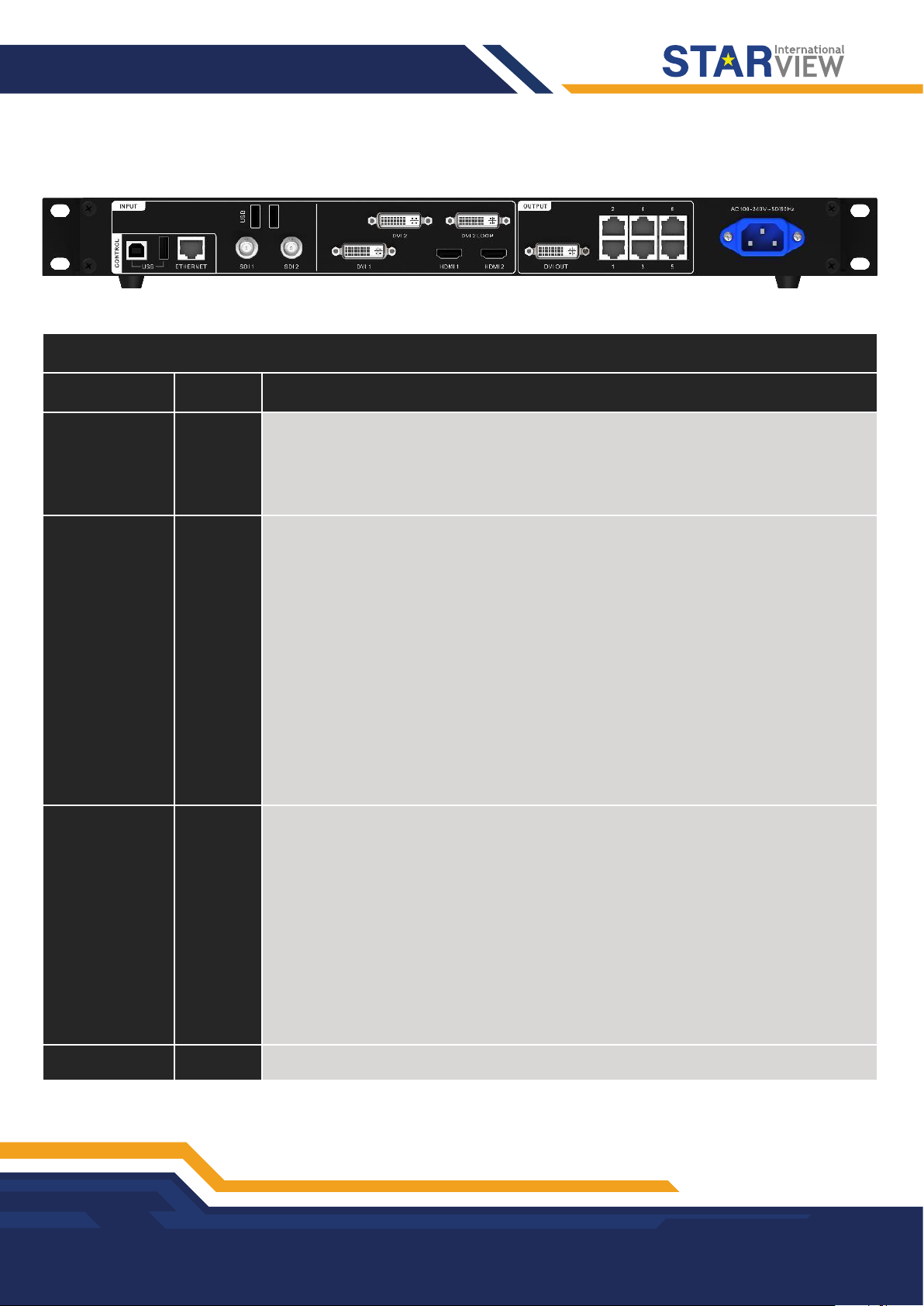

Rear Panel
- Supports input resolutions up to 1920 x 1080@60Hz and downward compatibility.
- Supports both progressive and interlaced signals.
- SDI1 supports de-interlacing.
Note:
SDI does not support input resolution and bit depth settings.
Connector Quantity
3G-SDI 2
DVI loop output connector
DVI LOOP 1
Connects to a mouse/ keyboard, or connects to a USB drive to play media files stored in the
drive. The supported USB drives and the formats of the media files in it are described as follows.
- USB drive: FAT/ FAT32
The USB drive cannot be a partitioned one or used as the system startup disk.
- Picture file format: JPG, JPEG, BMP, PNG and WEBP
- Video file format: MP4, AVI, MKV, MOV, 3GP, FLV and MPG
Video coding: MPEG-1/2, MPEG-4, H.264/ AVC, MVC, H.265/ HEVC, H.263, GOOGLE VP8, VC-1 and
MOTION JPEG
- Audio file format: MP3, WMA, WAV and 3GP
Audio coding:
+ MPEG Audio: MPEG1/ 2/ 2.5 Audio Layer 1/ 2/ 3
+ Windows Media Audio: WMA Version4/ 4.1/ 7/ 8/ 9, wmapro
+ WAV Audio: MS-ADPCM, IMA-ADPCM, PCM
+ FLAC Audio: Compress Level 0-8
+ AAC Audio: ADIF, ATDS Header AAC-LC and AAC-HE, AAC-ELD
+ AMR Audio: AMR-NB,AMR-WB
USB 2.0 2
VESA standard, input resolutions up to 1920 x 1200@60Hz
- Support for custom resolutions:
+ Direct mode: Width up to 3,840 pixels (3840 x 648@60Hz)
+ Switcher mode: Width up to 2,048 pixels (2048 x 1200@60Hz)
+ Height up to 1,600 pixels (1510 x 1600@60Hz)
- HDCP 1.4 compliant
- DOES NOT support interlaced signal input.
The frame rate of the DVI connector is 60 Hz by default and the supported frequently
used standard resolutions are as follows:
+ 800 x 600
+ 1024 x 768
+ 1280 x 720
+ 1280 x 768
+ 1280 x 800
+ 1280 x 1024
+ 1366 x 768
+ 1440 x 900
+ 1600 x 1200
+ 1680 x 1050
+ 1920 x 1080
+ 1920 x 1200
DVI 2
Description
Input

STARVIEW SIP-FASTARVIEW SC-2K VIDEO PROCESSOR
Copyright © 2022 Starview International Private Limited. All rights reserved.
Singapore Headquarters: 60 Kaki Bukit Place, #05-19 Eunos Techpark, Singapore 415979
Website: www.starviewint.com | Email: [email protected] | Tell: [phone]
4
- VESA standard, input resolutions up to 1920 x 1200@60Hz
- Support for custom resolutions:
+ Direct mode: Width up to 3,840 pixels (3840 x 648@60Hz)
+ Switcher mode: Width up to 2,048 pixels (2048 x 1200@60Hz)
+ Height up to 1,600 pixels (1510 x 1600@60Hz)
- HDCP 1.4 compliant
- DOES NOT support interlaced signal input.
The frame rate of the DVI connector is 60 Hz by default and the supported frequently used
standard resolutions are as follows:
+ 800 x 600
+ 1024 x 768
+ 1280 x 720
+ 1280 x 768
+ 1280 x 800
+ 1280 x 1024
+ 1366 x 768
+ 1440 x 900
+ 1600 x 1200
+ 1680 x 1050
+ 1920 x 1080
+ 1920 x 1200
HDMI 2
A monitoring connector, which can be set to preview the editing image or monitor the PGM
The frame rate of the monitor output is 60 Hz and the supported standard resolutions are as
follows:
+ 800 x 600
+ 1024 x 768
+ 1280 x 720
+ 1280 x 768
+ 1280 x 800
+ 1280 x 1024
+ 1366 x 768
+ 1440 x 900
+ 1600 x 1200
+ 1680 x 1050
+ 1920 x 1080
+ 1920 x 1200
DVI 1
6 Ethernet outputs
Ethernet 6
Connector Quantity Description
Output
-1 x USB (Type-B)
+ Connects to the PC for device control.
+ Used as the input connector for cascading devices
-1 x USB (Type-A)
+ Used as the output connector for cascading devices
USB 1
Connects to the PC for communication, or to the network
Ethernet 1
Connector Quantity Description
Control
65 W
Power Consumption
Electrical
Parameters AC 100V-240V ~ 50/60Hz
Power Supply
0°C to +45°C
Temperature
Operating
Environment 20% RH to 90% RH non-condensing
Humidity
Overall Specifications
SPECIFICATIONS

STARVIEW SIP-FASTARVIEW SC-2K VIDEO PROCESSOR
Copyright © 2022 Starview International Private Limited. All rights reserved.
Singapore Headquarters: 60 Kaki Bukit Place, #05-19 Eunos Techpark, Singapore 415979
Website: www.starviewint.com | Email: [email protected] | Tell: [phone]
5
Video Source Features
10% RH to 95% RH non-condensing
Humidity
Storage
Environment
483.6 mm x 276.4 mm x 51.4 mm
Dimensions
Physical
Specifications 2.71 kg
Net Weight
5.9 kg
Total Weight
540 mm x 370 mm x 140 mm
Carrying Case
Packing
Information
1 x power cable
1 x USB cable
1 x DVI cable
1 x HDMI cable
1 x Ethernet cable
1 x Quick Start Guide
1 x Certificate of Approval
Accessory Box
555 mm x 405 mm x 180 mm
Packing Box
CE, RoHS, FCC, IC, RCM, CB, KC, UL, EAC
Certifications
40 dB(A)
8 bit
RGB 4:4:4
YCbCr 4:4:4
YCbCr 4:2:2
YCbCr 4:2:0
1920 x 1200@60Hz (Standard)
2046 x 1600@60Hz (Custom)
Not supported
10 bit
RGB 4:4:4
YCbCr 4:4:4
YCbCr 4:2:2
YCbCr 4:2:0
1920 x 1200@60Hz (Standard)
2046 x 1600@60Hz (Custom)
Not supported
12 bit _ Not supported
8 bit
RGB 4:4:4 1920 x 1200@60Hz (Standard)
2046 x 1600@60Hz (Custom)
Noise Level (Typical 25ºC/77ºF)
Max. Input ResolutionColor DepthInput Connector
HDMI 1.3
SL-DVI
- Max. input resolution: 1920 x 1080@60Hz
- DOES NOT support input resolution and bit depth settings.
- Support ST-424 (3G) and ST-292 (HD) standard video inputs.
3G-SDI

STARVIEW SIP-FASTARVIEW SC-2K VIDEO PROCESSOR
For the most current specification information, please visit http://www.starviewint.com
Copyright 2022 STARVIEW INTERNATIONAL PTE LTD. All rights reserved. All brand names and product names
are trademarks, registered trademarks or tradenames of their respective holders. STARVIEW INTERNATIONAL
PTE LTD management system is registered to ISO 9001 and ISO 45001. Performance specifications are typical.
Due to constant research, specifications are subject to change without notice.
Corporate offices Worldwide offices Representatives
STARVIEW INTERNATIONAL PTE LTD
Singapore Headquarters
60 Kaki Bukit Place
#05-19 Eunos Techpark
Singapore 415979
Tel: [phone]
Fax: [phone]
Brazil
Tel: [phone]
Germany
Tel: [phone]
France - Benelux - Africa
Tel: [phone]
Southern, Eastern Europe
& Middle East Operations
Tel: [phone]
Vietnam
Hanoi Office
R10, 33th Floor,C2 Building, D'Capitale,
119 Tran Duy Hung Street,
Trung Hoa – Cau Giay, Hanoi
Ho Chi Minh Office
#C9-16, Block A, Sky Center Building,
#10 Pho Quang Street - Tan Binh District,
Ho Chi Minh City
Tel: [phone]
Hotline: [phone]
Sale Contact: 0866.207.855

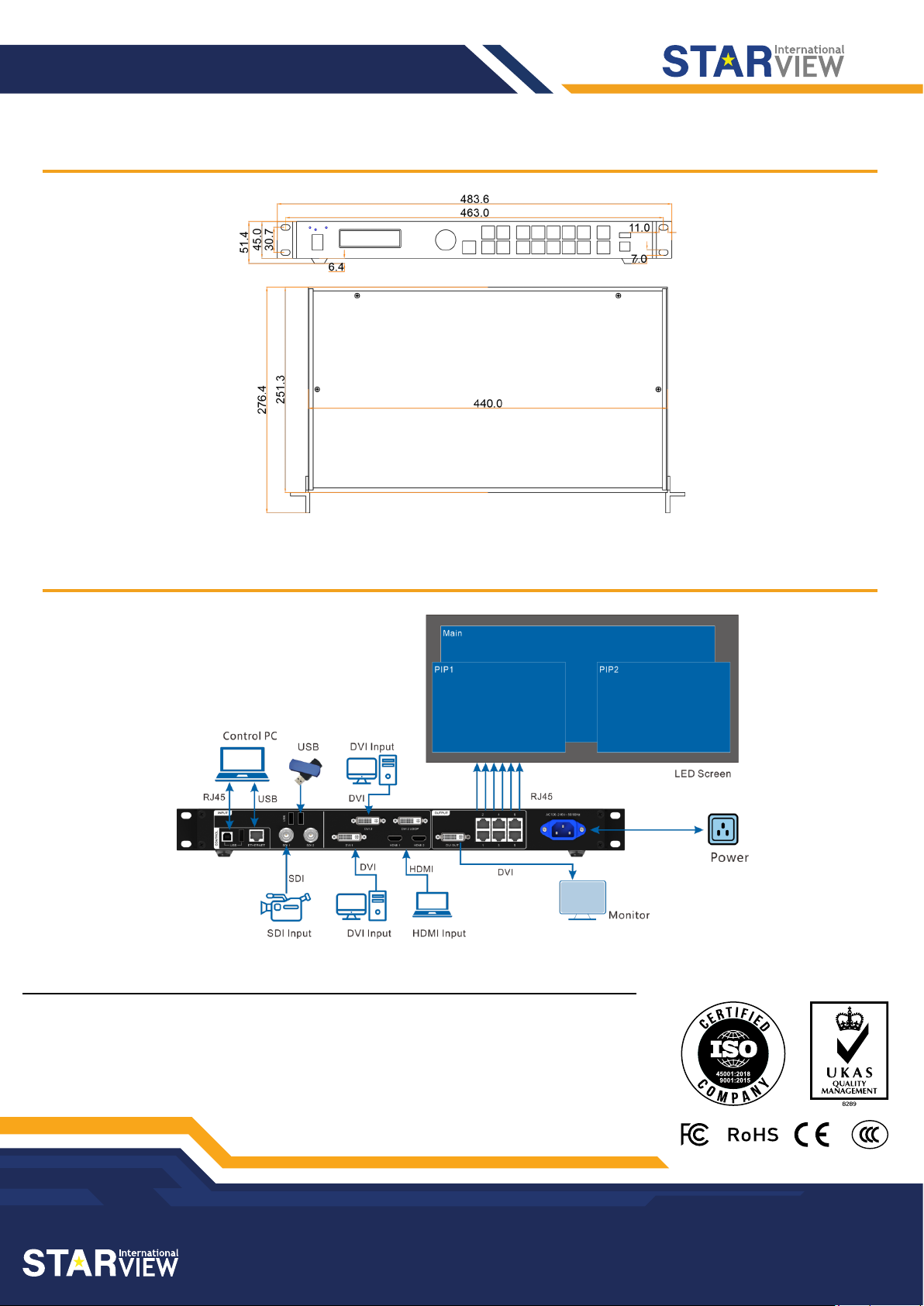

DIMENSIONS
