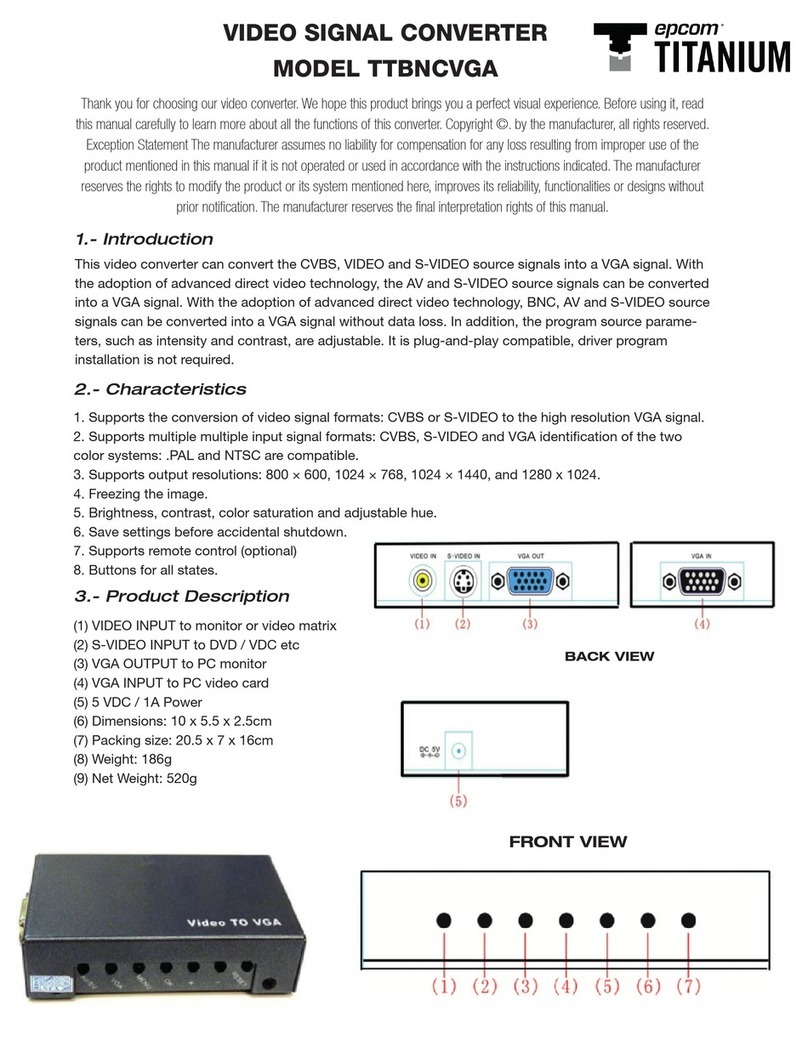

epcom TITANIUM TTBNCVGA User manual

VIDEO SIGNAL CONVERTER
TTBNCVGA
3.- Product Description
Parts NameNotes
(1)VIDEO INto monitor camera or video matrix
(2)S-VIDEO INto DVD/VCD etc
(3)VGA OUTto PC monitor
(4)VGA INto PC graphic card
(5)Power 5V/1Ato 5V/1A power supply
(6)Dimension 10X5.5X2.5cm
(7)Package size20.5X7X16cm
(8)Net weight186g
(9)Gross weight520g
Thank you for choosing our video converter. We hope this product could bring you a perfect visual experiences. Before using it, please read this manual carefully for
your better knowledge of all the functionalities of this converter . Copyright©. by the manufacturer, all rights Reserved Exeption Declaration Manufacturer bears no
any compensation responsibility for any loss resulted form any misuse of the product mentioned in this manual if he fails to operate or use in accordance with the
instructions stated below. The manufacturer reservers the rights to modify the product or its system mentioned here in from time to time improve its reliability,
functionalities or designs without prior notification The manufacturer reserves the rights of final interpretation of this manual
1.- Introduction
This video converter can convert the source signals of CVBS, VIDEO and S-VIDEO into VGA signal. With adoption of advanced video straight-through technology,
the source signals of AV and S-VIDEO can be converted into VGA signal. With adoption of advanced video straight-through technology, the source signals of BNC,
AV and S-VIDEO can be converted into VGA signal without any data loss. What’s more, the parameters of the program source such asbrigheness and contrast are
adjustable. It supports plug -and -play, no driver program installation is needed.
2.-Performance Features
1.Support conversion of video signal formats: from CVBS or S-VIDEO signal into frequency multiplication processed high-resolution VGA signal.
2.Multiple input signal formats are supported: CVBS, S-VIDEO and VGA identification of the two color system :.PAL and NTSC is supported.
3.Supported output resolutions: 800×600, 1024×768，1024×1440，1280X1024
4.Image freeze.
5.Adjustable brightness, contrast, color saturation and hue.
6.Current working status can be saved on accidental power-off.
7.Remote control supported (remote controller optional)
8.Caption prompts function for all operation and status.
.Product Description
REAR VIEW
FRONT VIEW

Part name notes :
( 1 ) AV/S- VIDEO Video input selection choose between CVBS and S-VIDEO
( 2 ) VGA Swith input selection VGA switch
( 3 ) Menu key :swith for adjusments between menu items Brightness, Contrast, Color saturation and Hue
( 4 ) OK Confirmed
( 5 ) +
( 6 ) – When BRI is displayed, press + to increase of image and – to decrease.
When CON propt is displayed, press the + to increase the contract degree of image and press – to decrease.
When COL prompt is displayed, press the + to increase the color saturation of image and press – to decrease
Whe HUE prompt is displayed, press the + to increase the image hue and press – to decrease
( 7 ) RESET Hardware reset
5.- Packaging Content
1 Converter VGA
1 VGA cable
1 Power supply 5 Vdc
1 User manual
SCHEMATIC DIAGRAM
6.- Packaging Content
Dimension : 10 x 5.5 x 2.5 cm
Package size : 20 x 16 x 7 cm
Net weight : 186 g
Gross weight : 530 g
VIDEO SIGNAL CONVERTER
TTBNCVGA
