Stat-X SDRP User manual

Stat-X®Dual Release Panel
(SDRP)
Installation, Operation, and Owner’s Manual

Fireaway Inc. Version 1
5852 Baker Road 10/2017
Minnetonka, MN 55345 P/N 19112
2
Table of Contents
1. Introduction
2. Quick Installation Overview
3. Component Description
a. Control Panel
b. Cable Harness
c. Alarm Test Module
d. Detection Wiring
e. Actuation Wiring
4. System Design and Installation
5. Inspection and Maintenance
6. System Alarms and Troubleshooting
7. System Parts List and Replacement Parts List
8. Miscellaneous Notes
a. Battery Storage
b. Actuation Wiring
9. Warranty

Fireaway Inc. Version 1
5852 Baker Road 10/2017
Minnetonka, MN 55345 P/N 19112
3
1. Introduction to the Stat-X Dual Release Control Panel (SDRP)
The SDRP Part No. 830001 provides automatic fire detection and releasing capability for up to
four (4) Stat-X generators without the need for direct power connection. Replaceable internal
lithium batteries supply power to the control panel for up to three (3) years in service, even after
storage. Dual detection and release zones are provided for both automatic and manual
actuation of the fire suppression system, as well as a manual release for both zones
simultaneously. The SDRP is specifically designed for rugged commercial and military on and
off-road vehicle use.
A fully potted, lightweight aluminum enclosure surrounds the military qualified electronic
components. The SDRP provides electrical supervision of fire detection, release, manual
activation as well as battery condition. The SDRP includes a maintenance/transport guarded
toggle switch that can be secured in the "Disarm System" position to disable the system. This
feature is used to extend storage life as well as prevent unwanted discharge during transport or
vehicle maintenance.
A second momentary action guarded toggle switch is provided to perform an on-command
system test of circuit integrity and battery condition. When commanded, the test switch
initiates a built-in test of the fire suppression system and the panel indicates system status
by illuminating either a green “System OK”LED or a yellow “System Trouble”LED.
Batteries must be replaced as follows …
- Every three (3) years or ...
- If a system trouble condition persists or …
- Following a system discharge event.

Fireaway Inc. Version 1
5852 Baker Road 10/2017
Minnetonka, MN 55345 P/N 19112
4
2. Quick Installation Overview
Perform a Fire Hazard Analysis
- A detailed Fire Hazard Analysis is beyond the scope of this manual. However, a Fire
Hazard Analysis must be conducted by a trained individual familiar with the process
being protected prior to system installation. At a minimum, the Hazard Analysis must
define potential flammable materials (fuel) and potential process failure which could
result in combustion (heat source).
- A reliable automatic fire detection system must be located to provide fast and accurate
fire detection. The method of detection should also provide for ease of testing and
maintenance without interfering with normal process operation and maintenance.
- Actuation wiring must be located away and protected from potential hazard areas. All
wiring must be installed using quality materials and must be protected from corrosion
and other possible damage to circuits.
Determine Control Panel Location
- The SDRP must be located where periodic testing and maintenance can be performed.
The toggle switches and LED display must be accessible and visible. While the SDRP
contains certain protection from the elements, it’s always good practice to keep
electronics away from water, oil, and other conductive materials.
- Ensure the SDRP is not located in the hazard area and is protected in some manner
against high temperatures.
- Mount the SDRP to a flat, stable surface
- Battery replacement is periodically required. The SDRP panel must be installed
such that access to mounting hardware is available.
Determine Manual Release Switch Location
- If the Manual Release Switch PN 830003 is to be installed, ensure the switch is located
in an accessible location in the path of egress between 42” and 48” above the floor.
While the Manual Switch is designed to be protected against the elements, it’s always
good practice to keep electronics away from water, oil and other conductive materials.
Thermal Detection Methods and Field Wiring
- The SDRP operates using class B detection as defined by NFPA 72 National Fire Alarm
and Signaling Code. Normally open sensors wired in parallel are used to provide
thermal detection. Electrical Supervision of the detectors and detection circuit wiring is
provided by the SDRP through a 470k ohm end of line resistor.
- If the SDRP senses a wiring break, a Trouble condition is displayed when the “Test”
toggle switch is operated via a yellow LED at the SDRP.
- If the SDRP senses a wiring or thermal detector closure, the SDRP will automatically
actuate the connected Stat-X generators.

Fireaway Inc. Version 1
5852 Baker Road 10/2017
Minnetonka, MN 55345 P/N 19112
5
- Do not route field wiring over objects which may damage the wiring due to vibration, high
temperature, or sharp edges or corners.
- Add drip loops as needed
Figure 1 - Drip Loop Example (use for detectors and generators as needed)
Stat-X Generator Location and Operation
- Stat-X generators must be securely mounted and aimed per the Hazard Analysis.
- Field wiring from the SDRP to each generator may be wired in series or in parallel.
- Only two generators may be wired to each actuation zone.
- Ensure the wiring connection from the SDRP field wiring to each generator is tight, clean
and environmentally sealed. Corrosion and poor electrical connections will add electrical
resistance to the actuation circuit. Clean and tight electrical connections reduce the
opportunity for problems.

Fireaway Inc. Version 1
5852 Baker Road 10/2017
Minnetonka, MN 55345 P/N 19112
6
3. Component Description
a. SDRP PN 830001
Figure 2 - SDRP Controls and Indications
Figure 3 - SDRP Labeling
The SDRP panel includes two detection zones and two releasing zones. The SDRP can
be ordered in one of two programming configurations.
Serial number with
Year-Month and
unique serial
number
Installer to document
date of installation and
battery replacement
date

Fireaway Inc. Version 1
5852 Baker Road 10/2017
Minnetonka, MN 55345 P/N 19112
7
PN 830001 –Dual Detection Zones and Dual Releasing Zones. Either detection zone
will actuation both actuation zones. A single dedicated Manual Input Switch will also
actuate both actuation zones.
PN 830001-01 –Dual Detection Zones and Dual Releasing Zones. Each detection zone
will actuate individual separate actuation zones. A single dedicated Manual Input Switch
will also actuate both actuation zones.
Detection Zones and Actuation zones cables are identified at the SDRP primary cable
with a white label and colored ty-wraps.
Figure 4 - SDRP mounting hole pattern

Fireaway Inc. Version 1
5852 Baker Road 10/2017
Minnetonka, MN 55345 P/N 19112
8
b. SDRP Cable Harness Assembly
The SDRP Cable Harness PN 830006 provides the connection between the SDRP and
field wiring. The SDRP Cable Harness is available in two separate configurations –pre-
terminated and unterminated. The pre-terminated version PN 830006 uses Deutsch
DTM series connectors and a single MIL-Std circular connector. The unterminated
version is provided with unstripped output cables. Both cable versions use color coded
ty wraps along with labels which indicate the cable/wire function.
Note: It’s important to note that while the Stat-X generators are not polarized, the Alarm
Test Module PN 830002 which connects to the actuation circuits is polarized.
Figure 5 - Terminated Cable Assy part no. 830006
Figure 6 - Unterminated Cable Assy PN. 830006-01
Circuit
Ty Wrap
Color
Black
Wire
White
Wire
Mating
Deutsch/ITT
Terminal
Mating
Deutsch/ITT
Connector
Mating
Deutsch
Wedgelock
Actuator #1
Qty 1 Yellow
(+)
(-)
0462-201-2031
DTM06-2S-E007
WM2S
Actuator #2
Qty 2 Yellow
(+)
(-)
“
“
“
Detection #1
Qty 1 Green
(+)
(-)
0460-202-2031
DTM04-2P-E007
WM-2PB
Detection #2
Qty 2 Green
(+)
(-)
“
“
“
Manual
Release Switch
Qty 3 Green
(+)
(-)
430-8560-411
KPTC2E8-4PA206
n/a

Fireaway Inc. Version 1
5852 Baker Road 10/2017
Minnetonka, MN 55345 P/N 19112
9
c. Alarm Test Module PN 830002
The Field Test Alarm Module provides the ability to field load test actuation circuits using
a resettable device. The Alarm Module is installed in the actuation circuitry and provides
a simulated Stat-X generator without the danger of false discharge. The Alarm Module
gives the system installer the ability to place a resettable simulator in place while
installing and commissioning a system. The Alarm Module also provides the field service
technician the ability to “live test” the SDRP panel and detection circuitry. When a
detection circuit “closes” in Alarm, the Alarm Module senses the electrical load and
simulates a system actuation. A red LED in the Alarm Module verifies an actuation signal
was sent by the SDRP panel. When the Alarm condition (detection circuit closure) is
repaired or reset, the push to reset button on the front of the Alarm Module is used to
clear the alarm condition. Multiple Alarm Modules may be used to verify the operation of
separate actuation circuits
Figure 7 - PN. 830002 Alarm Test Module Figure 8 - Alarm Test Module dimensions
The Alarm Module is polarized as positive #2, negative #1. The connector is a Deutsch
DTM06-2S connector which mates to a Deutsch DTM04-2P at the SDRP Actuation
Cable.

Fireaway Inc. Version 1
5852 Baker Road 10/2017
Minnetonka, MN 55345 P/N 19112
10
d. Manual Release Toggle Switch part no. 830003
The Manual Release Switch PN 830003 provides a manual means of actuating the
SDRP control panel. Both Automatic Fire Detection and an NFPA recommended manual
means of system actuation are provided by the SDRP panel. The Manual Release
Switch uses a rugged, proven MIL-26482 metal shell connector to link the manual switch
to the SDRP panel manual release input circuit. The normally open toggle switch used
with the Manual Release Switch is protected by a labeled and latching toggle guard and
stainless steel protective bracket. The powder coated aluminum enclosure is fully potted
and environmentally sealed against water intrusion to IP67 standards. The Manual
Release Switch is electrically supervised by the SDRP panel for Normal, Trouble and
Fire conditions.
Figure 10 PN. 830002 Dimensions
Figure 9 - PN. 830002 Manual Release Toggle Switch

Fireaway Inc. Version 1
5852 Baker Road 10/2017
Minnetonka, MN 55345 P/N 19112
11
e. Linear Thermal Detection (various part numbers)
Figure 11 - Linear Thermal Wire
Linear thermal wire allows for continuous thermal monitoring of wide coverage areas.
Field wiring connecting the SDRP to linear thermal wire allows an electrical current to
flow through the detection circuit, through an End of Line device completing a loop back
to the SDRP. If a Fire occurs, the outer and inner insulating jackets of the linear thermal
wire melt allowing the individual conductors of the linear thermal wire to electrically “short”
together. This change in electrical resistance is interpreted by the SDRP as a Fire
condition. The SDRP sends an electrical signal to the Stat-X generator(s) automatically
discharging the system. Linear thermal wire is available with alarm temperature ratings
of 135oF, 155oF, 190oF, 220oF, 280oF and 356oF and must be terminated with PN 830007
EOL.

Fireaway Inc. Version 1
5852 Baker Road 10/2017
Minnetonka, MN 55345 P/N 19112
12
f. Spot Thermal Detection (various part numbers)
Figure 12 - Spot Thermal Sensor
Spot thermal detectors allow for continuous thermal monitoring of limited coverage
areas. Field wiring connecting the SDRP to spot thermal sensors wired in parallel allow
an electrical current to flow through the detection circuit, through an end of line device
completing a loop back to the SDRP. If a fire occurs, the normally open contacts in the
spot thermal close. This change in electrical resistance is interpreted by the SDRP as a
fire condition. The SDRP sends an electrical signal to the Stat-X generator(s) which
causes a system discharge. Spot thermal detectors are available with alarm temperature
ratings of 135oF and 194oF and must be terminated with PN 830007 EOL. The spot
thermal detectors are rated for a variety of environments including Vertical Interior,
Vertical All Weather, Vertical ½” Conduit and Explosion Proof.

Fireaway Inc. Version 1
5852 Baker Road 10/2017
Minnetonka, MN 55345 P/N 19112
13
g. Detection End of Line (EOL) device PN 830007
Figure 13 –470k ohm End of Line device
Class B detection circuits require a resistor to be placed in series in the circuit. The end
of line device (EOL) PN 830007 provides a series resistance of 470k ohms. The EOL
consists of a two position Deutsch connector with an over molded 470k ohm resistor.
The EOL provides a high resistance closed loop to each of the SDRP panel’s two
detection circuits. A break or open in the circuit indicates a Trouble condition to the
SDRP. A detection circuit closure of approximately 100 ohms indicates a fire or over
heat condition to the SDRP.

Fireaway Inc. Version 1
5852 Baker Road 10/2017
Minnetonka, MN 55345 P/N 19112
14
h. Detection Zone Field Wiring
Field wiring used to connect between the SDRP and each spot thermal detector must be at
a minimum UL Listed Plenum wire, 18 awg. Parallel field wiring is used between detectors.
Detection field wiring must be protected in emt/conduit between each detector.
A terminal strip connection may be used if the connection is made inside of a
watertight/mechanically protected housing or enclosure.

Fireaway Inc. Version 1
5852 Baker Road 10/2017
Minnetonka, MN 55345 P/N 19112
15
i. Actuation Zone Field Wiring
Figure 14 - Sample Actuation Circuit Wiring

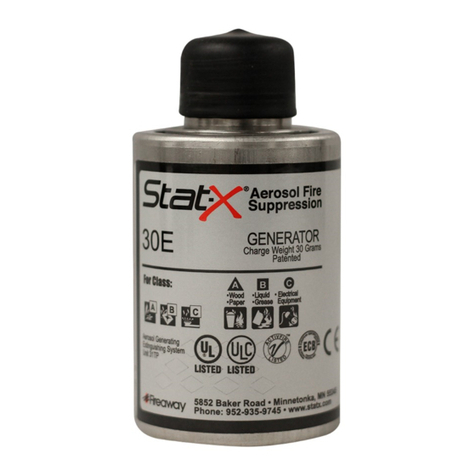

•Field wiring used to connect between the SDRP and each Stat-X generator must be at a
minimum UL Listed Plenum wire, 18 awg. series field wiring is used between generators
which is easily supervised by the SDRP. Parallel field wiring is acceptable but must be
protected in emt/conduit as individual Stat-X generators are not supervised by the
SDRP.
•Wiring connections must be secure to deliver electrical energy to each Stat-X generator.
The ideal connection is a soldered connection using a no clean, non-corrosive solder,
and flux. Wire surfaces must be clean prior to soldering.
•A terminal strip connection may be used if the connection is made inside of a
watertight/mechanically protected housing or enclosure.

Fireaway Inc. Version 1
5852 Baker Road 10/2017
Minnetonka, MN 55345 P/N 19112
16
4. Hazard Analysis
Refer to the current Stat-X owner’s manual PN19001 for generator installation requirements.
5. Inspection and Maintenance
The SDRP panel is designed to be simple and reliable. Inspection and maintenance consists of
the following:
Daily Inspection if possible
With the SDRP panel in “Armed” mode, flip the test toggle switch up or down.
- The “System OK”LED should appear green …
- If the “System OK”LED does NOT appear green and the yellow “System Trouble”
LED appears Yellow Go to system trouble shooting …
- If NO LED’s are ON Go to system trouble shooting …
Monthly Inspection
Visually inspect field wiring …
- Check Automatic Detection circuit for any damage or other changes.
- Verify spot thermal detectors or linear thermal wire has not been painted, damaged or
blocked from thermal sensing
- Check Stat-X actuation wiring for any damage, contact corrosion or changes which
might affect proper operation.
- Check detection circuit end of line device for any damage or other changes.
- Check Manual Release Switch for any damage or other changes.
Annual Inspection
1. Before performing any detection circuit tests, attach alarm module PN 830002 to both
SDRP actuation circuits.
2. Flip the “test”toggle switch on the SDRP to verify “System OK”operation.
3. Spot thermal detection test
a. Use a heat gun to heat each spot thermal sensor to its alarm set point. Use a
thermocouple to verify proper temperature.
b. Each alarm module will latch in a “fire”condition when the spot thermal sensor
reaches its alarm set point.
c. Allow each spot thermal sensor to cool below its alarm set point.
d. Press the “System Reset”button on the alarm module to clear the “alarm”
condition.
e. Continue testing the remaining spot thermal sensors.
4. Linear thermal detection test
a. Linear thermal detection wiring cannot be tested using a heat gun!!
b. Remove the PN 830007 end of line device from the detection circuit.
c. Replace the end of line with a PN 830003 manual test switch.
d. Flip the Manual Test Switch toggle to simulate a linear thermal “alarm”condition.
e. Each alarm module will latch in a “fire”condition when the Manual Test Switch is
activated. Return the manual test switch to normal operation.
f. Press the “System Reset”button on each alarm module to clear the “Alarm”
condition.

Fireaway Inc. Version 1
5852 Baker Road 10/2017
Minnetonka, MN 55345 P/N 19112
17
g. Continue testing the remaining linear detection circuits.
5. Replace internal batteries every three years at a minimum or following any system
discharge.
6. Remove alarm modules.
7. Reconnect Stat-X generators.
8. Prior to re-commissioning the system, perform a final test by toggling the “TEST”switch.
The “System OK” LED should appear green.
-- The SDRP System is now operational –
SDRP Internal Battery Replacement Procedure
The batteries used with the SDRP are a lithium thionyl chloride chemistry. They cannot
be recharged. Only use our PN 830009 as a replacement.
1. See figures #10 & #11 below.
2. Remove panel from mounting position.
3. Remove pull pin and flip toggle switch to “Disable System”position
4. Replace pull pin.
5. Disconnect circular connector and wiring harness from SDRP.
6. Remove qty. four (4) #6-32 x 5/8” screws from mounting plate.
7. Remove gasket from mounting plate.
8. Remove and replace two (2) batteries and replace with new batteries PN 830009
9. Reinstall new gasket.
10. Replace mounting plate and screws. Torque to approximately six (6) to nine (9) in-lbs.
11. Replace SDRP panel at original mounting position.
12. Remove pull pin and flip toggle switch to “Arm System”position.
13. Replace pull pin.
14. Record replacement date on supplied label and attach label to control panel
Figure 15 - Internal Battery Replacement Diagram

Fireaway Inc. Version 1
5852 Baker Road 10/2017
Minnetonka, MN 55345 P/N 19112
18
Figure 16 - SDRP battery replacement data to be completed annually when batteries are replaced

Fireaway Inc. Version 1
5852 Baker Road 10/2017
Minnetonka, MN 55345 P/N 19112
19
6. System Alarms and Troubleshooting
Normal Operating Condition
Flip the TEST toggle Switch to Test the SDRP system …
Front Panel Display
System OK –Green LED ON
System Trouble –Yellow LED OFF
Indicates
Status
Detection Field Wiring
Continuous circuit with correct resistance
Actuation Field Wiring
Continuous circuit with correct resistance
Manual Release Switch
Continuous circuit with correct resistance
Disable Switch Position
In “Arm System”position
Internal Batteries
In place with correct voltage
Trouble Condition

Fireaway Inc. Version 1
5852 Baker Road 10/2017
Minnetonka, MN 55345 P/N 19112
20
Front Panel Display
System OK –Green OFF
System Trouble –Yellow ON
Indicates
Status
Detection Field Wiring Problem
Possible Open Condition
•Check to see if SDRP to field wiring circular
connector is tight and connected
•Check to see if end of line device is in place
•Check all sensors and wiring
•Check for any wiring damage or breaks
Actuation Field Wiring Problem
Possible Open Condition
•Check to see if SDRP to field wiring circular
connector is tight and connected
•Check Stat-X generator to field wiring connection
is intact
•Check for corrosion at Stat-X generator to field
wiring connection
•Check actuation circuit for any breaks or damage
•Verify Stat-X generator has not discharged
Manual Release Switch Problem
Possible Open Condition
•Check to see if SDRP to field wiring circular
connector is tight and connected
•Check field wiring to Manual Release Switch
circular connector is tight and connected
•Check field wiring to manual release switch for any
breaks or damage
Disable Switch Position
Disable Switch Position
•Check the “Arm System-Disable System”toggle
switch is in the proper position
Internal Battery Problem
Possible Low Voltage Condition
•Check replacement date for batteries, if more than
three (3) years, replace batteries
