State Water Heaters T-H3M-DV User manual

Gas Tankless Water HeaterTM
Suitable for potable water heating and space-heating
Please refer to local codes for space-heating compliance.
If you have any questions, please
call or write to:
500 Tennessee Waltz Parkway
Ashland City, TN 37015
Toll Free: 1-877-737-2840
WARNING
- Do not store or use gasoline or other
flammable vapors and liquids in the vicinity
of this or any other appliance.
- WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electric switch, do not
use any phone in your building.
• Immediately call your gas supplier from
a neighbor's phone. Follow the gas
supplier's instructions.
• If you cannot reach your gas supplier, call
the fire department.
- Installation and service must be performed
by a qualified installer, service agency or the
gas supplier.
On-Demand Water Heater
Installation Manual and Owner’s Guide
ANSI Z21.10.3 and CSA 4.3
If the information in these
instructions is not followed
exactly, a fire or explosion may
result causing property damage,
personal injury or death.
FEATURING
• ENDLESS HOT WATER
• ON-DEMAND USAGE
• COMPACT, SPACE SAVING
• ENERGY CONSERVATION
• COMPUTERIZED SAFETY
• NO PILOT LIGHT
• Satisfies the 2012 SCAQMD Rule
1146.2 for Ultra-Low NOx
Emissions
Model
• 140 Outdoor (T-H3M-OS)
• 140 Indoor (T-H3M-DV)

2 Page
Installation Manual
Contents
CONTENTS
Installation Manual
SPECIFICATIONS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
INTRODUCTION. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
SAFETY GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
General . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Included accessories. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Clearances . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Venting instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Gas supply and gas pipe sizing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Water connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Condensate drain . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Electrical connections. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Temperature remote controller. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
High-altitude installations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
APPLICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
INITIAL OPERATION. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
OPTIONAL ITEMS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Owner's Guide
OPERATING SAFETY. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
NORMAL OPERATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Display of controller . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
General . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Temperature table of controller . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Temperature settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Additional features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Flow . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Freeze protection system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Maintenance and service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Unit draining and filter cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Descaling the unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
General . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Error codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
COMPONENTS DIAGRAM. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
PARTS LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
OUTPUT TEMPERATURE CHART . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
LIMITED WARRANTY. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
• ThisinstallationmanualisapprovedforinstallationintheUnitedStates.
NOTICE

3 Page
Installaon Manual
Installation Manual
CONGRATULATIONS
Congratulations and thank you for choosing our tankless water heater.
Before use, we recommend that you read through this safety manual
carefully. Please refer to the back of the manual for details about the
warranty. Keep this manual for future reference.
If you lose the manual, contact the manufacturer or your local
distributor. When you call, please tell us the model number and the
serial number of your unit written on the rating plate of the water
heater.

4 Page
Installation Manual
Specifications
SPECIFICATIONS
*40 psi (0.27 MPa) or above is recommended for maximum flow.
** The Manifold Pressure is the factory setting and shouldnotneedadjustment.
NOTE:
• Check the rating plate to ensure this product matches your specifications.
• In accordance with ANSI Z21.10.3, CO emission does not exceed 400 PPM for normal input.
• Themanufacturerreservestherighttodiscontinue,orchangeatanytime,specificationsordesigns
withoutnoticeandwithoutincurringobligation.
Model 140
Indoor
(T-H3M-DV)
140
Outdoor
(T-H3M-OS)
NaturalGasInput
(Operating Range) BTU/h Min.: 15,000 Max.: 120,000
PropaneInput
(Operating Range) BTU/h Min.: 15,000 Max.: 120,000
GasConnection 1/2" NPT
WaterConnection 3/4" NPT
WaterPressure* psi
(MPa) 15 - 150 (0.1 - 1.0)
Naturalgas
InletPressure
inch W.C.
(kPa)
Min. 5.0 (1.2)
Max. 10.5 (2.6)
Propane
InletPressure
inch W.C.
(kPa)
Min. 8.0 (2.0)
Max. 14.0 (3.5)
Manifold
Pressure**
Natural
Gas
inch W.C.
(Pa)
3.30
(820)
2.00
(500)
Propane inch W.C.
(Pa)
3.00
(750)
1.60
(400)
Weight lbs. (kg) 50 (22.5) 50 (22.5)
Dimension
inch H 21-3/4 x W 14 x D 9-1/4
H 552 x W 352 x D 236
mm
Ignition Electric Ignition
Electric
Supply VAC / Hz 120 / 60
Consumption
Operation W / A 53.9 / 0.7
Standby W / A 3.2 / 0.05
Freeze-
Protection W / A 223.9 / 1.94

5 Page
Introduction
Installation Manual
INTRODUCTION
• This manual provides information necessary for the installation, operation, and maintenance
of the water heater.
• The model description is listed on the rating plate which is attached to the side panel of the
water heater.
• Please read all installation instructions completely before installing this product.
• If you have any problems or questions regarding this equipment, consult the manufacturer or
its local representative.
• This equipment is an on-demand, tankless water heater designed to efficiently supply endless
hot water for your needs.
• These highefficiency models have a built-in secondary heat exchanger that absorbs latent
heat from the exhaust gas.
• The 140 Indoor (T-H3M-DV) model is only to be installed indoors. The 140 Outdoor (T-H3M-
OS) model is only to be installed outdoors.
• The principle behind tankless water heaters is simple:
*This diagram illustrates tankless water heater design concepts only and does not accurately
represent the water heater’s physical description.
1. A hot water tap is turned on.
2. Water enters the heater.
3. The water flow sensor detects the water flow.
4. The computer initiates the fan motor and sends a signal to the igniter to create an ignition
spark.
5. The gas ignites and flames appear within the burner chamber.
6. Water circulates through the heat exchanger and then gets hot.
7. Using thermistors to measure temperatures throughout the water heater, the computer
modulates the gas and water valves to ensure proper output water temperature.
8. When the tap is turned off, the unit shuts down.
Burners
Exhaust
Secondary
heat exchanger
Primary
heat exchanger
Igniter
Gas valve
Fan motor
Flow sensor
Condensate
drain port
Gas inlet
Cold water inlet
Thermistor
Hot water outlet
Thermistor
Intake port
Exhaust
Thermistor
Water control
valve
Computer
board

6 Page
SAFETY GUIDELINES
SAFETY DEFINITION
Indicates an imminently hazardous situation which, if not avoided, will result in
death or serious injury.
DANGER
WARNING
Indicates an imminently hazardous situation which, if not avoided, could result
in death or serious injury.
CAUTION
Indicates an imminently hazardous situation which, if not avoided, could result
in minor or moderate injury.
GENERAL
1. Follow all local codes, or in the absence of local codes, follow the most recent edition of the National
Fuel Gas Code: ANSI Z223.1/NFPA 54 in the USA or CAN/CSA B149.1 Natural Gas, Propane Installation
Code in Canada.
2. Properly ground the water heater in accordance with all local codes or in the absence of local codes,
with the National Electrical Codes: ANSI/NFPA 70 in the USA or CSA standard C22.1 Canada Electrical
Code Part 1 in Canada.
3. Carefully plan where you intend to install the water heater. Please ensure:
• Your water heater will have enough combustible air and proper ventilation.
• Locate your heater where water leakage will not damage surrounding areas (please refer to p. 8).
4. Check the rating plate for the correct GASTYPE,GASPRESSURE,WATERPRESSUREandELECTRIC
RATING.
*If this water heater does not match your requirements, donotinstallandconsultwiththemanufac-
turer.
5. If any problem should occur, turn off all hot water taps and turn off the gas. Then call a trained
technician or the Gas Company or the manufacturer.
WARNING
• Water temperatures over 125 °F (52 °C) can cause severe burns instantly or
death from scalding. The water temperature is set at 120 °F (50 °C) from the
factory to minimize any scalding risk. Before bathing or showering always
check the water temperature.
• Do not store or use gasoline or other flammables, vapors, or liquids in the
vicinity of this appliance.
• Do not reverse the water and/or gas connections as this will damage the gas
valves and can cause severe injury or death. Follow the diagram on p. 22
when installing your water heater.
• Do not use this water heater if any part has been in contact with or been
immersed in water. Immediately call a licensed plumber, a licensed gas fitter,
or a professional service technician to inspect and/or service the water heater
if necessary.
• Do not disconnect the electrical supply if the ambient temperature will drop
below freezing. The Freeze Protection System only works if the water heater
has electrical power. The heat exchanger will not be covered under warranty
if it is damaged due to freezing. Refer to the section on the Freeze Protection
System on p. 40 for more information.
Installation Manual
Safety Guidelines

7 Page
Installation Manual
INSTALLATION
GENERAL
1. Follow all local codes, or in the absence of local codes, follow the most recent edition of the National
Fuel Gas Code: ANSI Z223.1/NFPA 54 in the USA or CAN/CSA B149.1 Natural Gas, Propane Installation
Code in Canada.
2. All gas water heaters require careful and correct installation to ensure safe and efficient operation.
This manual must be followed exactly. Read the “Safety Guidelines” section.
3. The manifold gas pressure is preset at the factory. It is computer controlled and should not need
adjustment.
4. Maintain proper space for servicing. Install the water heater so that it can be connected or removed

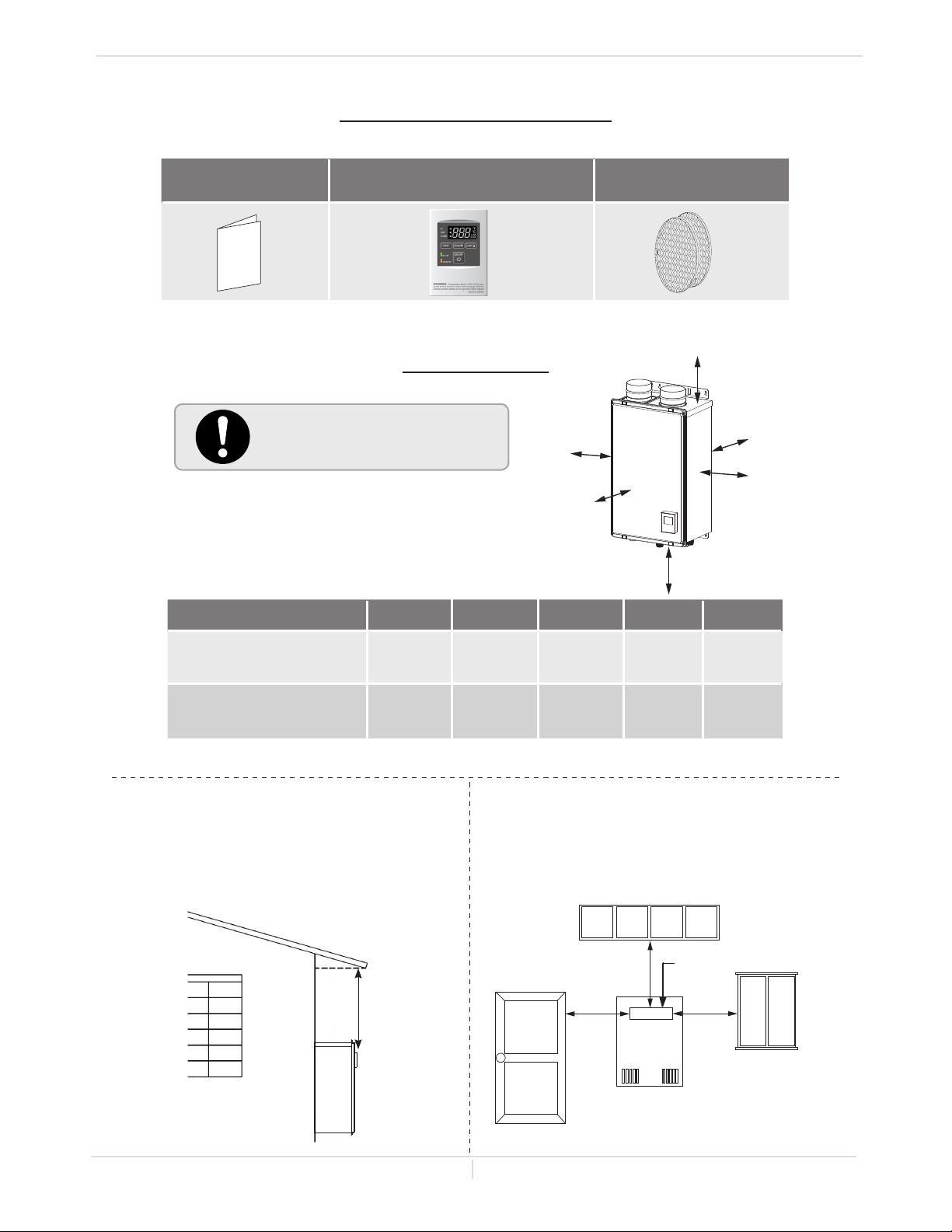

easily. Refer to the "Clearances" section on p. 9 for proper clearances.
5. The water heater must be installed in a location where the proper amount of combustible air will be
available to it at all times without obstructions.
6. The electrical connection requires a means of disconnection, to terminate power to the water heater
for servicing and safety purposes.

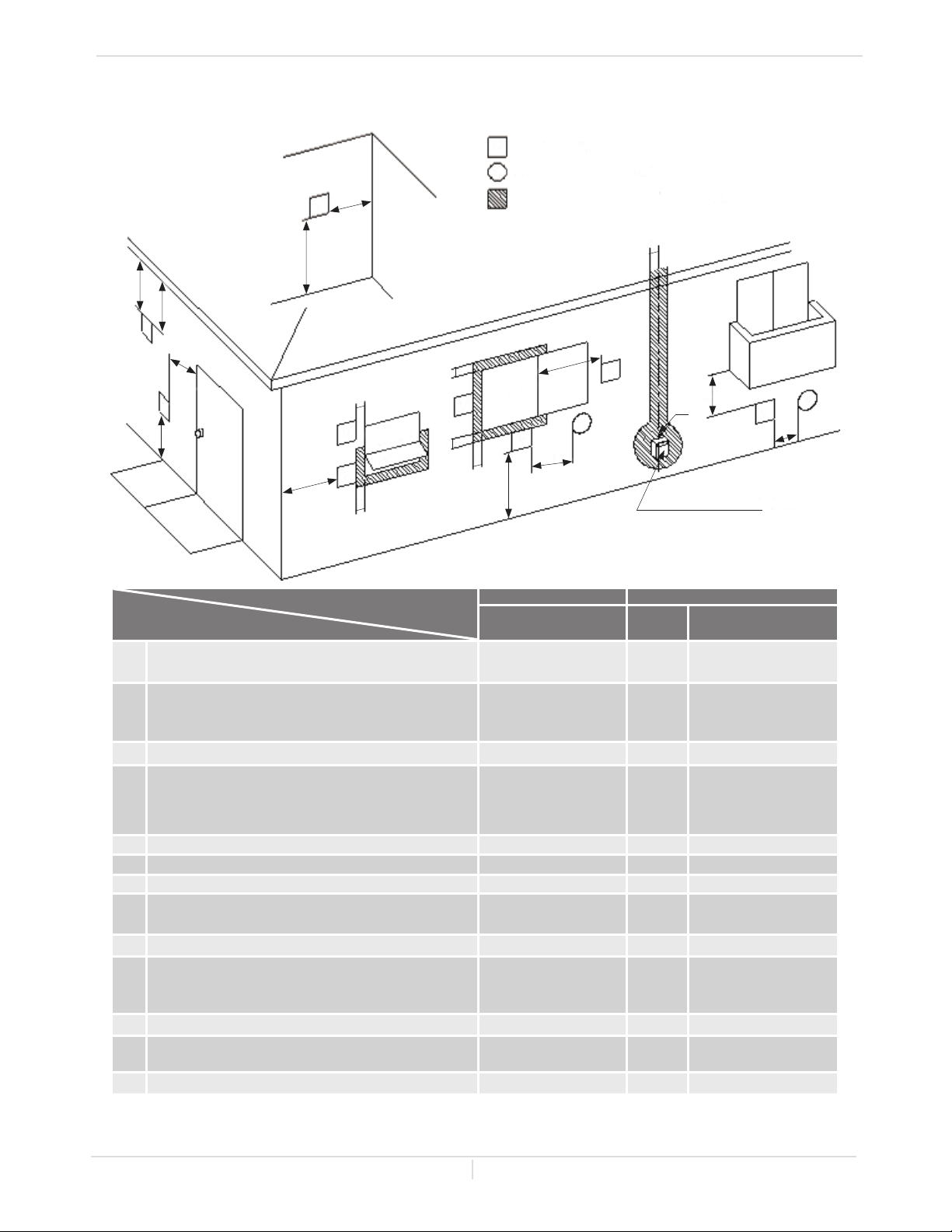

7. Do not install the water heater where the exhaust vent is pointing into any opening in a building or
where the noise may disturb your neighbors. Make sure the vent termination meets the required
distance by local code from any doorway or opening to prevent exhaust from entering a building (refer
to p. 17 to 19).
8. Particles from flour, aerosols, clothes dryers and other airborne contaminants may clog the air vent,
build up and reduce the functions of the rotating fan, cause improper burning of the gas, or cause
damage to the water heater. Regularly ensure that the area around the water heater is dust- or debris-
free. Regular maintenance is recommended for these types of environments. Sealed combustion is
recommended too.
9. The 140 Indoor (T-H3M-DV) model is to be installed indoors only. The model is equipped with a
thermistor and hi-limit switch for the exhaust gas, detecting excess temperatures within the flue and
enabling the water heater to safely stop operation if needed. These components are always monitoring
exhaust gas conditions in order to prevent heat damage to ABS, PVC, CPVC, or Polypropylene (Plastic)
venting if ABS, PVC, CPVC, or Polypropylene is used. If the exhaust gas temperature exceeds 140 °F
(60 °C) these components will enable the water heater to safely stop operation. (These components
are not installed on the outdoor model since the exhaust vent is built-in.)
• The Indoor model requires 3 inch, or 4 inch diameter intake air supply pipe. The intake pipe must
be sealed airtight.
• Air supply pipe can be made of aluminum flexible tube, ABS, PVC, CPVC, Polypropylene,
corrugated stainless steel, or Category lll / IV stainless steel. Regarding exhaust pipe, please refer
to p.11 for detailed information.
• Sidewall venting is recommended for the Indoor model. Vertical venting (roof termination) is
acceptable.
• The manufacturer recommends running the exhaust vent and the intake pipe as parallel as possible.
10.The 140 Outdoor (T-H3M-OS) model is only to be installed outdoors and only in the area with mild,
temperate climates.
The Outdoor model shall be wall-mounted or mounted on a stand. Locate the Outdoor model in an
open, unroofed area and maintain the minimum clearances. (Refer to p.9.)
Installaon

8 Page
Installaon
Installaon Manual
• Installationandservicemustbeperformedbyaqualifiedinstaller(forexample,a
licensedplumberorgasfitter),otherwisethewarrantywillbevoid.
• The installer (licensedprofessional)is responsible for the correct installationof
thewaterheaterandforcompliancewithallnational,state/provincial,andlocal
codes.
• The manufacturer does not recommend installing the water heater in a pit or
locationwheregasandwatercanaccumulate.
• Do not have the vent terminal pointing toward any operating window, door, or
opening into a building.
• Do not install the water heater next to any source of airborne debris, such as a
clothes dryer and a vent that can cause debris to be trapped inside the combustion
chamber, unless the system is direct-vented.
• Themanufacturerdoesnotrecommendinstallingthewaterheaterinanatticdue
tosafetyissues. If you install the water heater in an attic:
• Make sure the water heater will have enough combustion air and proper
ventilation.
• Keep the area around the water heater clean. When dust collects on the flame
sensor, the water heater will shut down on an error code.
• Place the water heater in a location that provides easy access for service and
maintenance.
• A drain pan, or other means of protection against water damage, is required to
be installed under the water heater in case of leaks.
• It is recommended to direct vent the heater.
WARNING
• Damagecausedbywaterqualityisnotcoveredbythewarranty.
• Only potable water or potable water / glycol mixtures can be used with this
water heater. Do not introduce pool or spa water, or any chemically treated
water into the water heater.
• Water hardness levels must not exceed 7 grains per gallon (120 ppm) for single
family domestic applications or more than 4 grains per gallon (70 ppm) for
all other types of applications. Water hardness leads to scale formation and
may affect / damage the water heater. Hard water scaling must be avoided or
controlled by proper water treatment.
• Water pH levels must be between 6.5 and 8.5
• Well water must be treated.
• Do not install the water heater where water, debris, or flammable vapors may get
into the flue terminal.
• Although the water heater is designed to operate with minimal sound, the
manufacturerdoesnotrecommendinstallingthewaterheateronawalladjacent
toabedroom,oraroomthatisintendedforquietstudyormeditation,etc.
• Locate your heater close to a drain where water leakage will not do damage to
surrounding areas. As with any water heating appliance, the potential for leakage
at some time in the life of the product does exist. The manufacturer will not be
responsible for any water damage that may occur. If you install a drain pan under the
water heater, ensure that it will not restrict the combustion air flow.
CAUTION

9 Page
Installaon
Installaon Manual
INCLUDED ACCESSORIES
Check that these items below are included with the water heater.
InstallationManual
andOwner’sGuide
TemperatureRemoteControllerkit*
Outdoormodelonly
BirdScreen
Indoormodelonly
Qty: 1 Qty: 2
Qty: 1
*For more information on optional items, please refer to p.32 to 33.
CLEARANCES
Maintain all clearances around
the water heater.
Model Top Bottom Front Back Sides
140 Indoor
(T-H3M-DV)
12 in.
(305 mm)
12 in.
(305 mm)
4 in.*
(102 mm)
1 in.
(25 mm)
3 in.
(76 mm)
140 Outdoor
(T-H3M-OS)
36 in.
(914 mm)
12 in.
(305 mm)
24 in.
(610 mm)
1 in.
(25 mm)
3 in.
(76 mm)
*24 inches recommended for maintenance
Top
Back
Side
Side
Front
Boom
Do not install this water heater under an
overhang less than 3 ft. (914 mm) from its top,
top of exhaust part, or eaves. The area under
an overhang must be open to three sides.
(Outdoor models only)
Do not install the water heater exhaust port
within 1 ft. (305 mm), in the USA, of any air
intake or building opening, and within 3 ft. (914
mm), in Canada, of any air intake or building
opening. (Outdoor models only) (Refer to p.17).
3 ft.
(914 mm)
exhaust port
A
A: 1 ft. (305 mm) USA/3 ft. (914 mm) Canada
AA

10 Page
Installaon
Installaon Manual
VENTING INSTRUCTIONS
For the 140 Indoor (T-H3M-DV) model
-General-
• Improper venting of this appliance can result in excessive levels of carbon
monoxide which can result in severe personal injury or death.
• Improper installation can cause nausea or asphyxiation, severe injury or death
from carbon monoxide and flue gases poisoning. Improper installation will
void product warranty.
DANGER
When installing the vent system, all applicable national and local codes must be
followed. If you install thimbles, fire stops or other protective devices and they
penetrate any combustible or noncombustible construction, be sure to follow all
applicable national and local codes.
CAUTION
The Indoor model must be vented in accordance with the section “Venting of Equipment" of the latest
edition of the National Fuel Gas Code: ANSI Z223.1/NFPA 54 in the United States and/or Section 7 of the
CAN/CSA B149.1 Natural Gas and Propane Installation Code in Canada, as well as applicable local building
codes.
The use of venting materials approved for Category III/IV appliances is recommended whenever possible.
However, the Indoor model may also be vented with plastic pipe materials such as ABS, PVC, CPVC, or
Polypropylene. Fordetails,pleaserefertotheExhaustVent(ABS,PVC,CPVC,orPolypropyleneVent)
sectiononp.11. Vent installations in Canada which utilize plastic vent systems must use venting that
complies with ULC S636.
Generalrulesforventingwaterheatersare:
• Place the water heater as close as possible to the vent termination.
• The vent collar of the water heater must be fastened directly to an unobstructed vent pipe.
• Do not weld the vent pipe to the water heater’s vent collar.
• Do not cut or alter the vent collar of the water heater.
• The vent must be easily removable from the top of the water heater for normal service and
inspection of the unit.
• The water heater vent must not be connected to any other gas appliance or vent stack.
• Avoid using an oversized vent pipe or using extremely long runs of the pipe.
• For rooftop venting, a rain cap or other form of termination that prevents rain water from
entering into the water heater must be installed.
• Do not terminate the vent into a chimney. If the vent must go through the chimney, the vent
must run all the way through the chimney with approved vent pipe.
Generalrulesforventterminations:
• Avoid locating the water heater vent termination near anyairintakedevices. These fans can
pick up the exhaust flue products from the water heater and return them to the building. This
can create a health hazard.
• Locate the vent termination so that it cannot be blocked by any debris, at any time. Most codes
require that the termination be at least 12 inches (305 mm) above grade, but the installer may
determine if it should be higher depending on the job site condition and applicable codes.
• A proper sidewall termination is recommended when the water heater is vented through a
sidewall.
• Regarding the clearances from the exhaust termination to the air inlet or opening, refer to p. 17
to 19.

11 Page
Installaon
Installaon Manual
-Exhaust vent (ABS, PVC, CPVC, or polypropylene vent)-
The Indoor model can be vented with ABS, PVC, CPVC, or polypropylene (temperature rated up to at
least 149 °F). Vent material certified to ULC S636 standards is recommended in the USA. In Canada,
plastic venting must be certified to ULC S636 standards.
• The maximum length of exhaust vent piping must not exceed 70 ft. (21.3 m) for 3” venting, which
depends on the elevation where the water heater is installed, and 100 ft. (30.5 m) for 4” venting
(deducting 5 ft. (1.5 m) for each elbow used in the venting system). Do not use more than 5
elbows. See the table below.
• When the horizontal vent run exceeds 5 ft. (1.5 m), support the vent run at 3 ft. (0.9 m) intervals
with overhead hangers.
Item Material UnitedStates Canada
Exhaust pipe and
Fittings
Schedule 40 PVC ANSI/ASTM D1785
ULC S636 Certified
Materials Only
PVC-DWV ANSI/ASTM D2665
Schedule 40 CPVC ANSI/ASTM F441
Schedule 40 ABS-DWV ANSI/ASTM D2661
Polypropylene UL-1738
Pipe Cement/Primer
PVC ANSI/ASTM D2564
CPVC ANSI/ASTM F493
ABS ANSI/ASTM D2235
NOTE: Do NOT Use Cellular Foam Core Pipe
*Foreachelbowadded,deduct5ft.(1.5m)frommax.ventlength.
For details on the vent connection, refer to p. 13 to 16.
No.of
Elbow
2"venting 3"venting 4"venting
Upto3,000ft Upto3,000ft Upto6,000ft Upto10,100ft Upto10,100ft
06.5 ft. (2.0 m) 70 ft. (21.3 m) 40 ft. (12.2 m) 25 ft. (7.6 m) 100 ft. (30.5 m)
11.5 ft. (0.5 m) 65 ft. (19.8 m) 35 ft. (10.7 m) 20 ft. (6.1 m) 95 ft. (29.0 m)
2N/A 60 ft. (18.3 m) 30 ft. (9.1 m) 15 ft. (4.6 m) 90 ft. (27.4 m)
3N/A 55 ft. (16.8 m) 25 ft. (7.6 m) 10 ft. (3.0 m) 85 ft. (25.9 m)
4N/A 50 ft. (15.2 m) 20 ft. (6.1 m) N/A 80 ft. (24.4 m)
5N/A 45 ft. (13.7 m) N/A N/A 75 ft. (22.9 m)
Excludes vent terminators, termination elbows, or rain caps.
Max.VerticalorHorizontal(Total)VentLengh

12 Page
Installaon
Installaon Manual

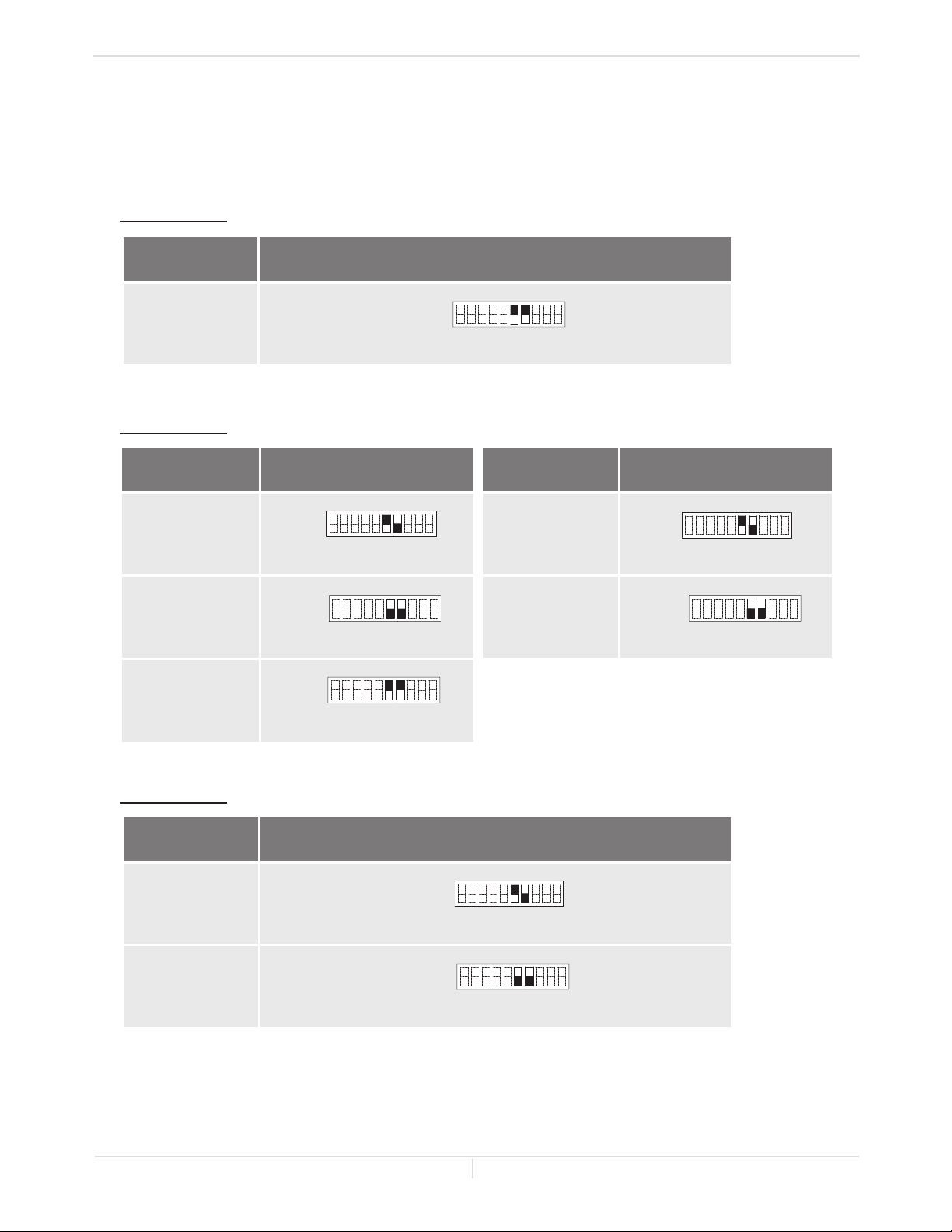

-DIPswitch settings for Vent length-
Ventlength Two-pipeandSinglepipe
5to50ft.
(DEFAULT) No. 6 : ON
No. 7 : OFF
51to100ft.
No. 6 : OFF
No. 7 : OFF
OFF
ON
1 2 3 4 5 6 7 8 9 10
OFF
ON
1 2 3 4 5 6 7 8 9 10
Ventlength Two-pipe
5to20ft.
(DEFAULT) No. 6 : ON
No. 7 : OFF
21to40ft.
No. 6 : OFF
No. 7 : OFF
41to70ft.
No. 6 : ON
No. 7 : ON
OFF
ON
1 2 3 4 5 6 7 8 9 10
OFF
ON
1 2 3 4 5 6 7 8 9 10
OFF
ON
1 2 3 4 5 6 7 8 9 10
Set DIPswitches shown in the tables below depending on the vent length. Only adjust switches with a black
square. Black squares indicate the position of the switch.
Ventlength Singlepipe
5to45ft.
(DEFAULT) No. 6 : ON
No. 7 : OFF
46to70ft.
No. 6 : OFF
No. 7 : OFF
OFF
ON
1 2 3 4 5 6 7 8 9 10
OFF
ON
1 2 3 4 5 6 7 8 9 10
Ventlength Singlepipe
5to6.5ft.
No. 6 : ON
No. 7 : ON
OFF
ON
1 2 3 4 5 6 7 8 9 10
2 inch venting
3 inch venting
4 inch venting

13 Page
Installaon
Installaon Manual

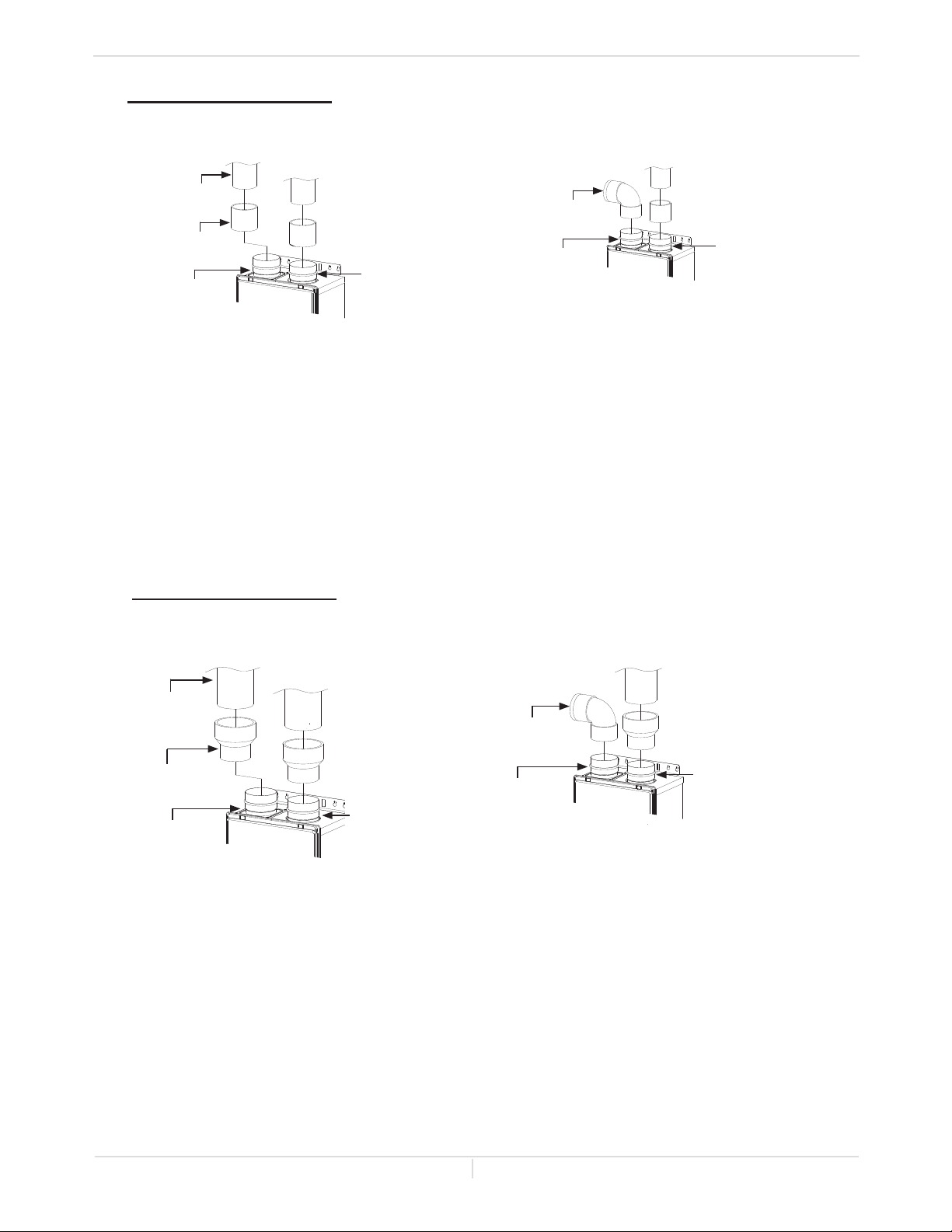

-Intake and Exhaust Venng Illustraons-
TypicalinstallaonsusingABS,PVC,CPVC,orpolypropylenevent
2inchventinstallaon
For details of the optional items, refer to the Installation manual for each optional item.
Singlepipewithroom-airintake
Termination
Hanger
1. Connecta3"elbowdirectlyonthe
intake vent collar of the water heater.
2. Connecta3"x2"reducerdirectlyon
the exhaust vent collar of the water
heater.
Make sure the couplings engage
the o-rings installed in the intake
and exhaust vent collars
3. Connecta2"straightpipeto
the reducer.
Ventconnectionsforsinglepipe
*The water heater came with a metal screen
that will fit into a 3 inch elbow.
*3"elbowwithbird
screen
Intake vent
collar
(Female)
3"x2" reducer
2" straight pipe
Exhaust vent
collar (Female)
Refertopages17and19forclearanceinformation

14 Page
Installaon
Installaon Manual
3inchventinstallaon
1. Connecta3"elbowdirectlyonthe
intake vent collar of the water heater.
2. Connecta3"coupling directly on the
exhaust vent collar of the water heater.
Make sure the couplings engage
the o-rings installed in the intake
and exhaust vent collars
3. Connecta3"straightpipeto
the coupling.
3"coupling
Exhaust
vent collar
(Female)
3" straight pipe
3" coupling
Intake vent
collar
(Female)
3" straight pipe
1. Connect3"couplingsdirectlyon
the exhaust and intake vent collar
of the water heater.
Make sure the couplings engage
the o-rings installed in the intake
and exhaust vent collars
2. Connect3"straightpipestothe
couplings.
For details of the optional items, refer to the Installation manual for each optional item.
Ventconnectionsfortwo-pipe Ventconnectionsforsinglepipe
3" coupling
3" straight pipe
Exhaust
vent collar
(Female)
*3"elbowwith
birdscreen
Intake vent
collar
(Female)
*The water heater came with a metal screen
that will fit into a 3 inch elbow.
For details of the optional items, refer to the Installation manual for each optional item.
1. Connect3"x4"increasers
directly on the exhaust and intake
vent collar of the water heater.
Make sure the couplings engage
the o-rings installed in the intake
and exhaust vent collars
2. Connect4"straightpipesto
the increasers.
4" straight
pipe
3"x4" increaser
Exhaust
vent
collar
(Female)
Intake vent
collar
(Female)
4" straight
pipe
3"x4"
increaser
4" straight pipe
3"x4" increaser
Exhaust vent
collar (Female)
*3"elbowwith
birdscreen
Intake vent
collar
(Female)
1. Connecta3"elbowdirectlyonthe
intake vent collar of the water heater.
2. Connecta3"x4"increaser directly on
the exhaust vent collar of the water
heater.
Make sure the couplings engage
the o-rings installed in the intake
and exhaust vent collars
3. Connecta4"straightpipeto
the increaser.
Ventconnectionsfortwo-pipe Ventconnectionsforsinglepipe
*The water heater came with a metal screen
that will fit into a 3 inch elbow.
4inchventinstallaon

15 Page
Installaon
Installaon Manual
Two-pipe,direct-vent Singlepipewithroom-airintake
Terminations
Wall
Hanger
Hanger
Roof
Roof flashing
Fire stop
Termination
Wall
Hanger
Roof flashing
Fire stop
Roof
Refertopages17and19forclearanceinformation
Examplesofinstallaonof3inch&4inchvent

16 Page
Installaon
Installaon Manual

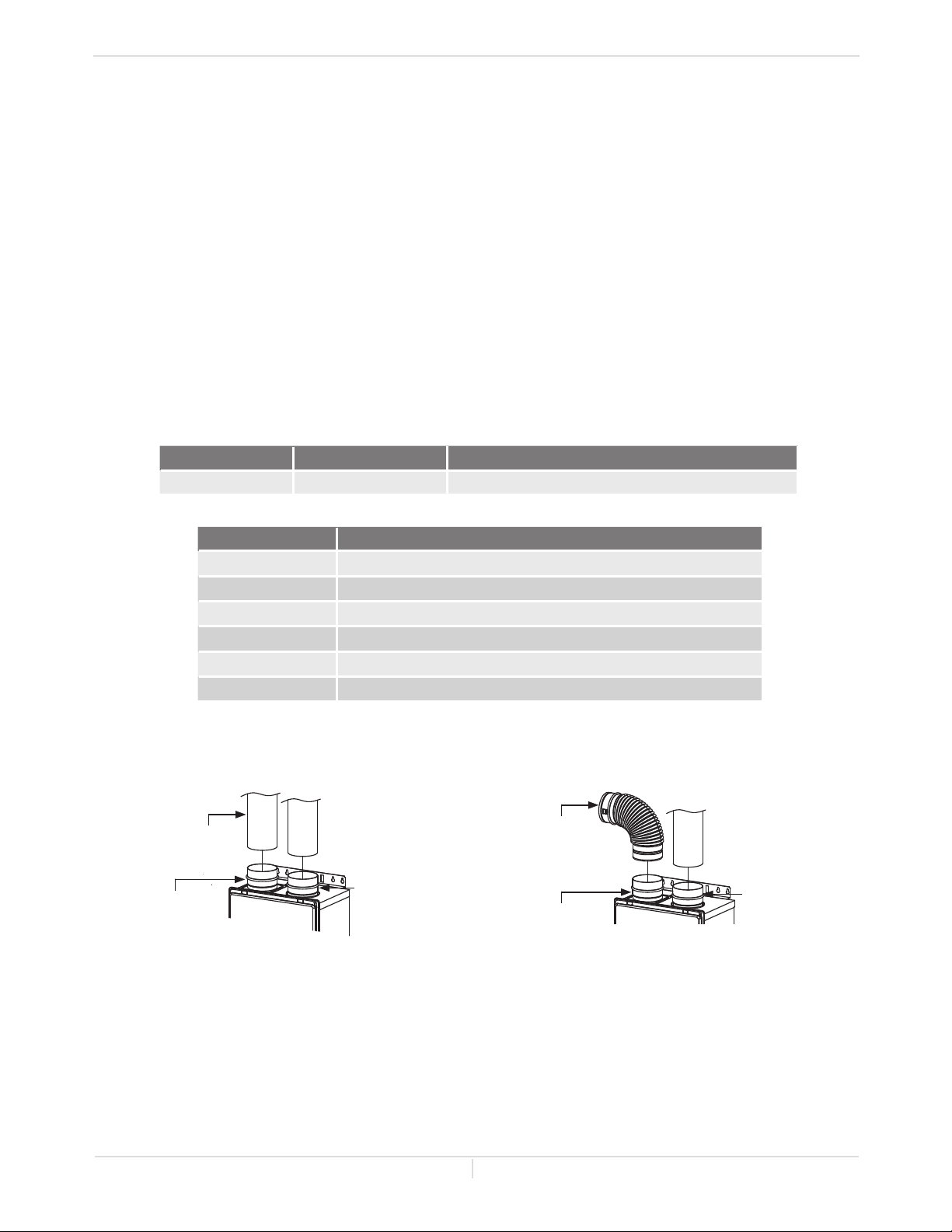

Ventconneconsfortwo-pipe
4" stainless
steel vent
straight pipe
Exhaust vent
collar (Female)
Intake vent collar
(Female)
4" stainless
steel vent
straight pipe
Exhaust vent
collar (Female)
4" stainless
steel vent
straight pipe
Intake vent
collar
(Female)
4"elbow
withbird
screen
1. Connecta4"stainlesssteelvent
straight pipes directly on the
exhaust vent collar of the
water heater.
2. Connecta4"elbowdirectly
on the intake vent collar of the
water heater.
1. Connect4"stainlesssteelvent
straight pipes directly on the
exhaust/intake vent collar of the
water heater.
For details of the optional items, refer to the Installation manual for each Optional item.
-Exhaust vent (Stainless steel vent)-
This is a Category IV appliance and must be vented accordingly. The vent system must be sealed airtight.
All seams and joints withoutgaskets must be sealed with high heat resistant silicone sealant or UL listed
aluminum adhesive tape having a minimum temperature rating of 160 °F. For best results, a vent system
should be as short and straight as possible.
• The Indoor model is a Category IV appliance and must be vented accordingly with any 4 inch vent
approved for use with Category III/IV or Special BH type gas vent.
• ThemanufacturerrecommendstheNovaVent(Z-Vent)line. However, the following are also UL
listed manufacturers: ProTech Systems Inc. (FasNSeal), Metal-Fab Inc., and Heat-Fab Inc. (Saf-T
Vent).
• Followtheventpipemanufacturer’sinstructionswheninstallingtheventpipe.
• The maximum length of exhaust vent piping must not exceed 100 ft. (30.5 m) (deducting 5 ft. (1.5
m) for each elbow used in the venting system). Do not use more than 5 elbows.
• When the horizontal vent run exceeds 5 ft. (1.5 m), support the vent run at 3 ft. (0.9 m) intervals
with overhead hangers.
Diameter Max.No.ofElbows Max.VerticalandHorizontal(Total)VentLength
4 in. (102 mm) 5100 ft. (30.5 m )
*Foreachelbowadded,deduct5ft.(1.5m)frommax.ventlength.
No.ofElbows Max.VerticalorHorizontalVentLength
0100 ft. (30.5 m)
195 ft. (29.0 m)
290 ft. (27.4 m)
385 ft. (25.9 m)
480 ft. (24.4 m)
575 ft. (22.9 m)
Excludes vent terminators, termination elbows, or rain caps.
Ventconneconsforsinglepipe

17 Page
Installaon
Installaon Manual
-Vent terminaon clearances-
Canada U.S.A
Direct-vent and other
than Direct-vent
Direct-
vent
Other than
Direct-vent
AClearance above grade, veranda, porch, deck, or
balcony 1 foot 1 foot 1 foot
B Clearance to window or door that may be opened 3 feet 1 foot
4 feet from below or
side opening. 1 foot
from above opening
CClearance to permanently closed window * * *
D
Vertical clearance to ventilated soffit located above
the vent terminator within a horizontal distance
of 2 feet (61cm) from the center line of the
terminator
* * *
EClearance to unventilated soffit * * *
FClearance to outside corner * * *
GClearance to inside corner * * *
HClearance to each side of center line extended
above meter/regulator assembly 3 feet * *
IClearance to service regulator vent outlet 3 feet * *
J
Clearance to non-mechanical air supply inlet to
building or the combustion air inlet to any other
application
3 feet 1 foot
4 feet from below or
side opening. 1 foot
from above opening
KClearance to mechanical air supply inlet 6 feet 3 feet 3 feet
LClearance above paved sidewalk or paved driveway
located on public property 7 feet *7 feet
MClearance under veranda, porch deck, or balcony 1 foot * *
*For clearances not specified in ANSI Z223.1 / NFPA 54 or CAN/CSA-B149.1, please use clearances in accordance
with local installation codes and the requirements of the gas supplier.
INSIDE CORNER DETAIL
V
Gas meter / regulator
V
V
V
V
V
V
V
V
V
X
X
X
Vent terminal
Air supply inlet
Area where is not permitted
G
A
E
D
B
L
C
F
B
B
B
BA
J
OPERABLE FIXED
CLOSED
B
H
M
K
OPERABLE
FIXED
CLOSED
I

18 Page
Installaon
Installaon Manual
For multiple sidewall exhaust terminations, an exhaust
termination must be at least 1 ft. (305mm) away from
another exhaust termination. An exhaust termination
must also be at least 2 ft. (610 mm) away from an inside
corner. (If the adjacent wall is less than 2 ft. (610 mm) of
length, the minimum required distance away from the
inside corner will be equal to the length of that adjacent
wall.)
Exhaust
termination
Inside
corner
1 ft.
(305 mm) min.
2 ft.
(610 mm) min.
1 ft. (305 mm)
min.
For multiple, direct-vent sidewall terminations that
combine the intake and exhaust into a single penetration,
space each direct-vent termination at least 1 ft. (305 mm)
away from each other, no matter the orientation. A direct-
vent termination must also be at least 2 ft. (610 mm) away
from an inside corner. (If the adjacent wall is less than 2 ft.
(610 mm) of length, the minimum required distance away
from the inside corner will be equal to the length of that
adjacent wall.)
Combined
intake and
exhaust
termination
Inside
corner
1 ft.
(305 mm) min.
2 ft.
(610 mm) min.
1 ft. (305 mm)
min.
For direct-vent sidewall
terminations that use two
separate penetrations for
the intake and exhaust,
keep the termination
clearances shown in the
diagrams on the right.
Exhaust
Intake
1 .
(305 mm)
min.
Exhaust
Intake
A
A
<Case2>
Exhaust
Intake
1. (305 mm)
min.
Exhaust Intake
A
<Case1>
A
A:0.5ft.(159mm)
The clearance of A is recommended on the basis of the structure of the water heater.
*3inchand4inchventinstallationsonly

19 Page
Installaon
Installaon Manual
<Forrooopterminaons>
Exhaust and/or direct-vent sidewall terminations should
be at least 2 ft. (610 mm) away from an opposite surface/
wall. Do not place the termination directly in front of an
opening into a building.
Intake air Exhaust gas
3  (914 mm) min.
BA
2  (610 mm) min.
Intake air
BB
A
Exhaust
Gas
A:Exhaust terminations must be at least 1 ft. (305 mm) away from any obstructions.
B:Intake terminations must be at least 1 ft. (305 mm) away from any obstructions.
Exhaust
termination
2 ft. (610 mm)
min.
Please follow all local and national codes in regards to proper termination
clearances. In the absence of such codes, the clearances above can be used as
guidelines. Local codes supersede these guidelines.
CAUTION

20 Page
Installaon
Installaon Manual
GAS SUPPLY AND GAS PIPE SIZING
-General-
• The minimum and maximum inlet gas pressures are:
• Inlet gas pressures that fall outside the range of values listed above may adversely affect the
performance of the water heater. These pressures are measured when the water heater is in full
operation.
• Inlet gas pressure must not exceed the above maximum values; gas pressure above the specified range
will cause dangerous operating conditions and damage to the water heater.
• Until testing of the main gas line supply pressure is completed, ensure the gas line to the water heater
is disconnected to avoid any damage to the water heater.
-Gas connecons-
1. Install a manual gas shutoff valve between the water heater and the gas supply line. The gas supply
line shall be checked for leaks using code approved methods.
2. When the gas connections are completed, it is necessary to perform a gas leak test either by applying
soapy water to all gas fittings and observing for bubbles or by using a gas leak detection device.
• The water heater and its individual shutoff valve must be disconnected from the gas supply
piping system during any pressure testing of that system at test pressures in excess of 1/2 psi
(3.5 kPa).
• The water heater must be isolated from the gas supply piping system by closing its individual
manual shutoff valve during any pressure testing of the gas supply piping system at test
pressures equal to or less than 1/2 psi (3.5 kPa).
3. Always purge the gas line of any debris and/or water before connecting to the gas inlet.
Size the gas pipe appropriately to supply the necessary volume of gas required
for the water heater using ANSI Z223.1/NFPA 54 in the USA or CAN/CSA B149.1 in
Canada or local codes. Otherwise, flow capabilities and output temperatures will
be limited.
NOTICE
Gastype Inletgaspressure
Natural Gas Min. 5.0” W.C. (1.24 kPa) – Max. 10.5” W.C. (2.61 kPa)
Propane Min. 8.0” W.C. (1.99 kPa) – Max. 14.0” W.C. (3.48 kPa)
• Checkthatthetypeofgasmatchestheratingplatefirst.
• Ensure that any and all gas regulators used are operating properly and
providinggaspressureswithinthespecifiedrangeshownbelow.Excessgas
inletpressuremaycauseseriousaccidents.
• Conversion of this water heater from natural gas to propane or vice versa will
void all warranty. Contact your local distributor to get the correct unit for your
gas type. The manufacturer is not liable for any property and/or personal
damageresultingfromgasconversions.
CAUTION
