Steamtec TOLO-30 User manual

________________________________________________________________________________
TOLO SAUNA [e-mail] www.tolosauna.com
1
Steamtec AIO
Steam Generator Manual
DO NOT use locking pliers to over tight the
DRAIN PIPE connection
Please read the manual carefully before installation
and keep the manual for further reference

________________________________________________________________________________
TOLO SAUNA [e-mail] www.tolosauna.com
2

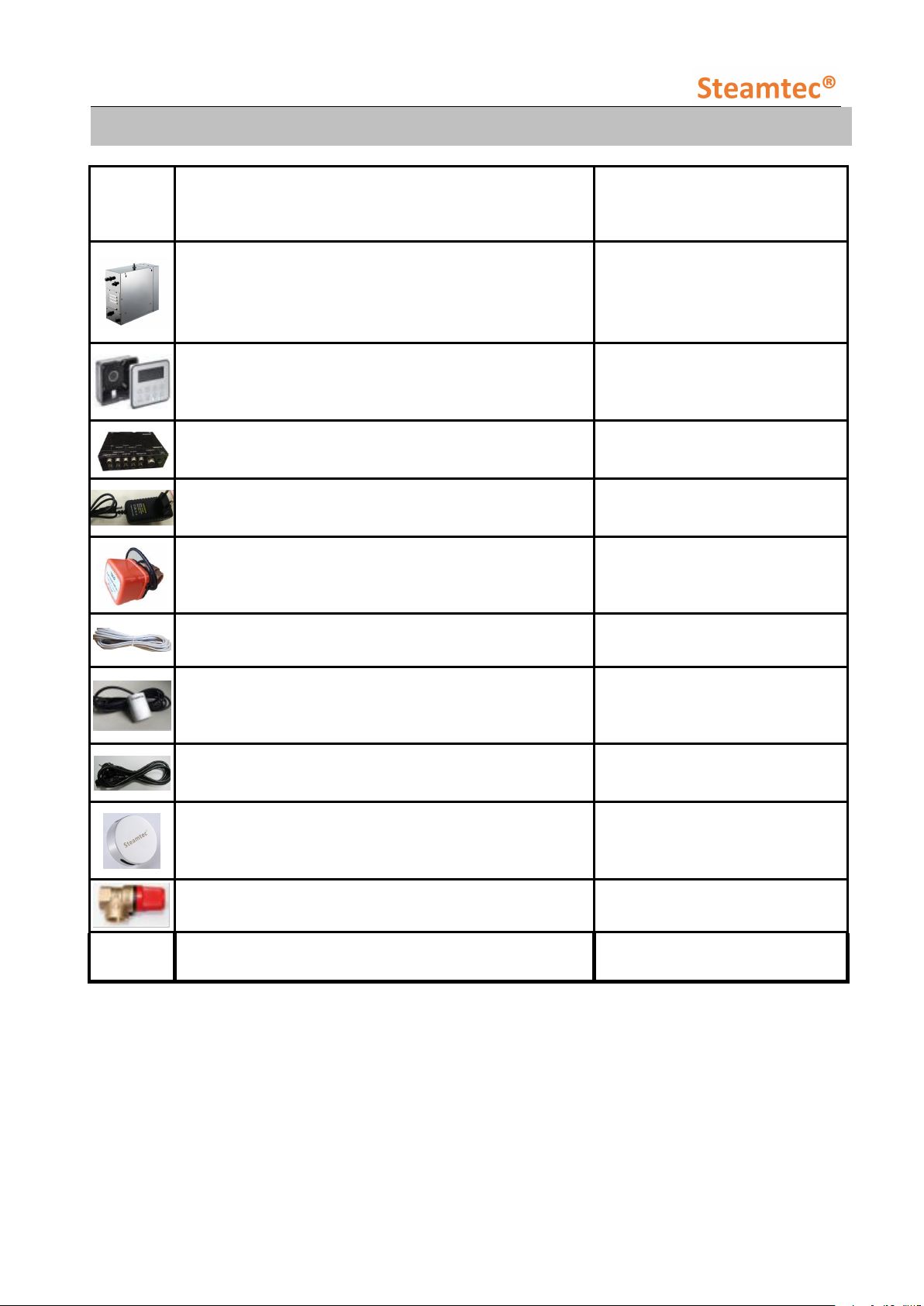

1. Configuration List
Table 1
Photos
Item name
Quantity
Steam generator in stainless steel housing
1pc
Controller+housing box, waterproof touch screen
1set
Central function box
1pc
Central function box power cord
1pc
3/4" Full-bore straight auto drain valve
1pc
Control cable, length 5 m (central function box ->
controller)
1pc
Temp sensor with box, length 5 m (central function
box -> sensor end position)
1pc
Central function box cable (steam generator -> central
function box)
1pc
Stainless steel#304 steam nozzle
1pc for 3kw~13.5kw;
2pcs for 15kw~24kw
Safety valve
1pc
English User Manual
1pc

________________________________________________________________________________
TOLO SAUNA [e-mail] www.tolosauna.com
3
2. Parameters
2.1. EU Type Models, parameters and dimension
(Only apply to European style voltage and phase)
Model
Power
Phase
Heating elements
Voltage / Current
Power wire
Breaker
Room
volume
Dimension
(L*W*H)
kW
N
N*KW
V/A
N*mm2
A
m3
mm
TOLO-30
3.0
1
2*1.5
215-240/13.6
3*2.5
16
2～3
425*160*315
TOLO-40
4.0
1
2*2.0
215-240/18.2
3*2.5
25
3～5
TOLO-45
4.5
1
3*1.5
215-240/20.5
3*2.5
25
3.5～
5.5
3
380-415/6.8
5*1.5
16
TOLO-50
5.0
1
2*1.5+1*2.0
215-240/22.7
3*2.5
32
4～6
3
380-415/7.6
5*1.5
16
TOLO-60
6.0
1
3*2.0
215-240/27.3
3*4.0
40
5～7
3
380-415/9.1
5*1.5
16
TOLO-70
7.0
1
2*2.5+1*2.0
215-240/31.8
3*6.0
40
5.5～8
475*185*450
3
380-415/10.6
5*2.5
16
TOLO-75
7.5
1
3*2.5
215-240/33.75
3*6.0
60
6.5～9
3
380-415/11.25
5*2.5
16
TOLO-90
9.0
3
6*1.5
380-415/13.6
5*2.5
16
8～11
TOLO-105
10.5
3
3*1.5+3*2.0
380-415/15.9
5*2.5
25
9～12
TOLO-120
12.0
3
6*2.0
380-415/18.2
5*2.5
25
11～14
TOLO-135
13.5
3
3*2.0+3*2.5
380-415/20.25
5*2.5
32
12～15
TOLO-150
15.0
3
6*2.5
380-415/22.7
5*2.5
32
13～18
510*185*460
TOLO-165
16.5
3
6*2.0+3*1.5
380-415/24.75
5*4.0
40
14～20
TOLO-180
18.0
3
9*2.0
380-415/27.3
5*4.0
40
16～22
TOLO-225
22.5
3
9*2.5
380-415/34.1
5*6.0
60
19～26
TOLO-240
24.0
3
6*2.5+3*3.0
380-415/36.4
5*6.0
60
22～30
Table 2

________________________________________________________________________________
TOLO SAUNA [e-mail] www.tolosauna.com
4
2.2. USA Type Models, parameters and dimension
( Below Only apply to American style voltage and phase)
Model
Power
(kW)
Phase
Voltage(V)/
Currency(A)
Heating
elements
(N*kW)
Power
wire
(N*AWG)
Room
volume
(m3)
Dimension
(L*W*H)
(mm)
TOLO-30
3.0
1(2L)
230/13.1
2*1.5
2*10
2～3
425*160*315
TOLO-40
4.0
1(2L)
230/17.4
2*2.0
2*10
3～5
TOLO-45
4.5
1(2L)
230/19.6
3*1.5
2*10
3.5～5.5
TOLO-50
5.0
1(2L)
230/21.8
2*1.5+1*2.0
2*10
4～6
TOLO-60
6.0
1(2L)
230/26.1
3*2.0
2*8
5～7
TOLO-75
7.5
1(2L)
230/32.6
3*2.5
2*8
5.5～8
475*185*450
TOLO-90
9.0
1(2L)
230/39.2
6*1.5
2*8
8～11
3(3L)
230/22.6
3*8
TOLO-105
10.5
1(2L)
230/45.7
3*1.5+3*2.0
2*6
9～12
3(3L)
230/26.4
3*8
TOLO-120
12.0
1(2L)
230/52.2
6*2.0
2*4
11～14
3(3L)
230/30.2
3*8
TOLO-150
15.0
3(3L)
230/37.7
6*2.5
3*8
13～18
510*185*460
TOLO-165
16.5
3(3L)
230/41.5
6*2.0+3*1.5
3*8
14～20
TOLO-180
18.0
3(3L)
230/45.2
9*2.0
3*6
16～22
TOLO-195
19.5
3(3L)
230/49
6*2.0+3*2.5
3*6
17～23
TOLO-210
21.0
3(3L)
230/52.8
6*2.5+3*2.0
3*4
18～24
TOLO-225
22.5
3(3L)
230/56.5
9*2.5
3*4
19～26

________________________________________________________________________________
TOLO SAUNA [e-mail] www.tolosauna.com
5
2.3. Controller parameters and dimension
Controller
model
Controlling time
range (minutes)
Temperature
showing range
Temperature
controlling range
Dimension
(mm)
AIO
1~60 or long-term
(CH)
6～60℃
(43℉～140℉)
35～60°C
(95℉～140℉)
103*103*4.5
Table 3
3. Installation
Install in the roof
Install in
the closet
Install in the basement
Install under the
washing basin
Suitable
for installation

________________________________________________________________________________
TOLO SAUNA [e-mail] www.tolosauna.com
6
3KW- 13.5KW AIO Pipe Connection
15KW- 24KW AIO Pipe Connection
3kw ~ 13.5kw
①Service hole 1/2’’
②Steam outlet
3kw~6kw: 1/2’’
7kw~13.5kw:3/4’’
③Safety valve 1/2’’
④Water inlet 1/2’’
⑤Drain outlet 3/4’’
⑥Power supply for
drain valve
15kw ~ 24kw
①Service hole 1/2’’
②Steam outlet 3/4’’
③Safety valve 1/2’’
④Water inlet 1/2’’
⑤Drain outlet 3/4’’
⑥Power supply for
drain valve
②
