XB-4300/4500/4900

1
SAFETY TIPS
IMPORTANT SAFETY INSTRUCTIONS SAVE THESE INSTRUCTIONS
When using an electrical product, basic precautions should always be
followed, including the following:
Read all instructions before using this exercise product.
Your Steelflex Bike is self-generating (requiring no external power
source) and in this mode must be pedaled to power-up the console.
Alternatively, the Bike can instead be plugged into an outlet using the
included power supply.
WARNING!
To reduce the risk of burns, fire, electrical shock or injury to persons:
Use this exercise product for its intended use as described in this Owner's
Guide. Do not use attachments not recommended by the manufacturer.
Never drop or insert any object into any opening.
Do not remove the Bike side covers. Only an authorized Steelflex
retailer should perform Service.
Never operate this Bike if it has a damaged cord or plug, if it is not
working properly, if it has been damaged, or immersed in water. Return
the Bike to a retailer for examination and repair.
Do not use outdoors.
CHILDREN
Keep children off your Steelflex Bike at all times.
When the Steelflex bike is in use, young children and pets should
be kept at least 10 feet away.
XB-4300/4500/4900

OTHER SAFETY TIPS FOR YOUR STEELFLEX BIKE
CAUTION!
If you experience chest pains, nausea, dizziness or shortness of breath,
stop exercising immediately and consult your physician before continuing.
ï Do not wear clothing that might catch on any part of the Bike.
ï Read this Owner's Guide before operating this Bike.
CLEANING
ï Clean with soap and slightly damp cloth only; never use solvents.
2
XB-4300/4500/4900

MOVING

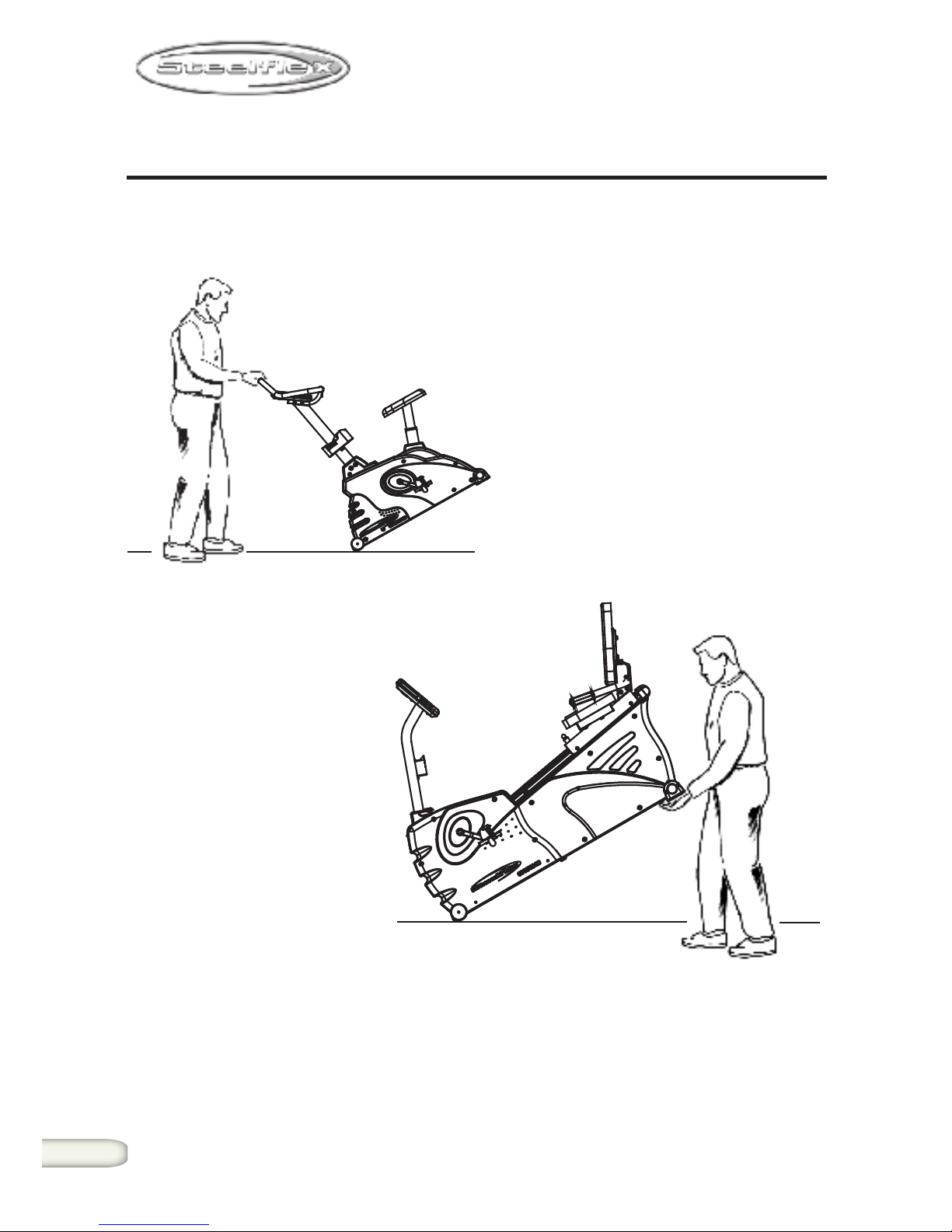

Your Steelflex bike has a pair of transport wheels built into the front
legs.To move the,
Steelflex upright cycle,
firmly grasp the handlebars,
carefully tip toward you and roll
on the transport wheels.
To move the Steelflex
recumbent cycle, firmly
grasp the rear foot
assembly, carefully lift and
roll on the transport wheels.
Caution: Our Bikes are wellbuilt and heavy. Take caution and use additional
help if necessary.
3
XB-4300/4500/4900

LEVELING
The Bike should be level for optimum use. If your
Bike wobbles when you have placed it where
you intend to use it, raise or lower one or
both of the adjustable levelers located
on the bottom of the rear foot support.
Once you have leveled the Bike, lock
the levelers in place by tightening the
wing nuts against the rear foot support.
as well as the one located in the
middle frame
SEAT ADJUSTMENTS
SEAT POSITIONING
The seat is at the proper position when your
knee is slightly bent when the pedal is in
the furthest position, with the ball of
your foot centered on the pedal.
4
XB-4300/4500/4900

SEAT ADJUSTMENTS
SEAT POSITIONING
The seat is at the proper position when your
knee is slightly bent when the pedal is in the
furthest position.
5
XB-4300/4500/4900

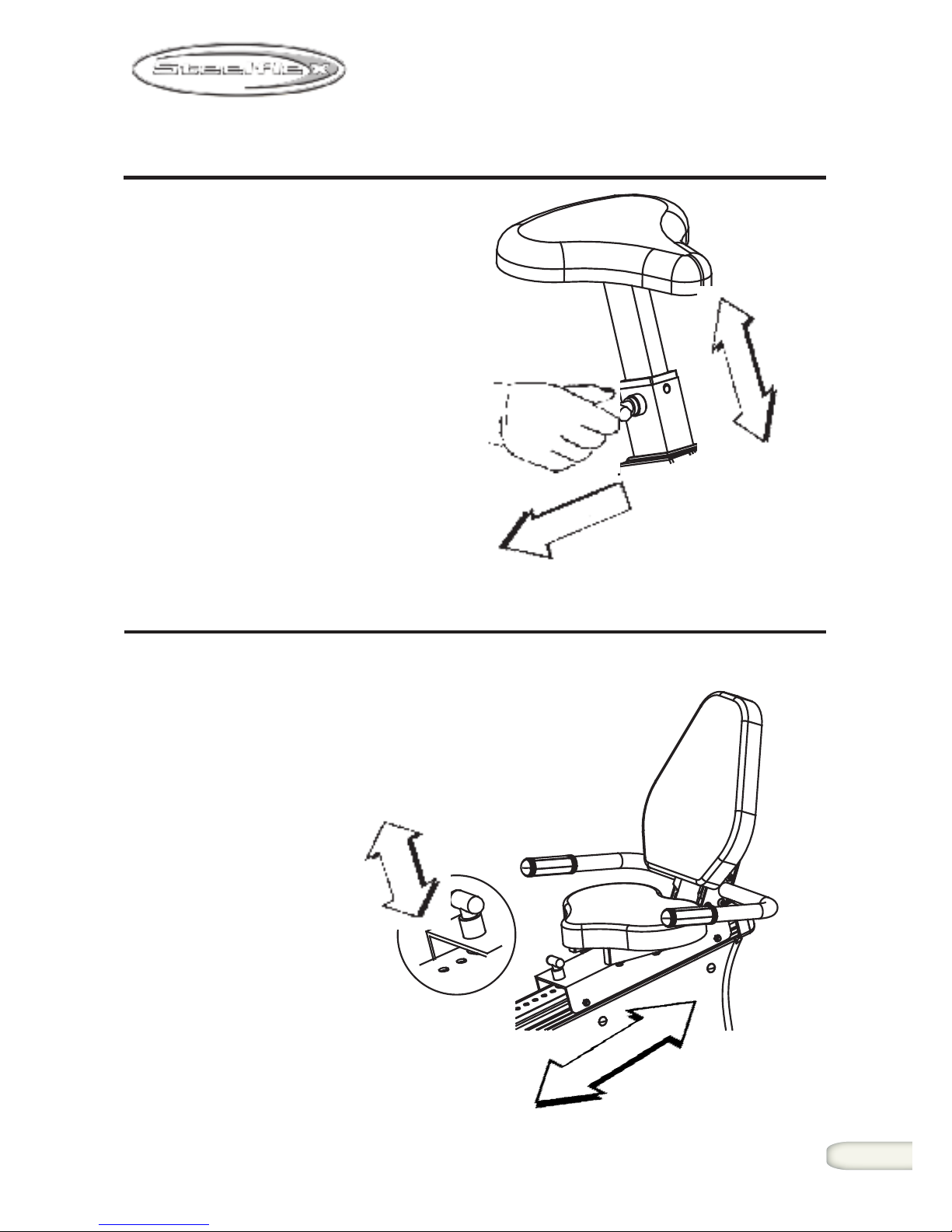

SEAT ADJUSTMENT

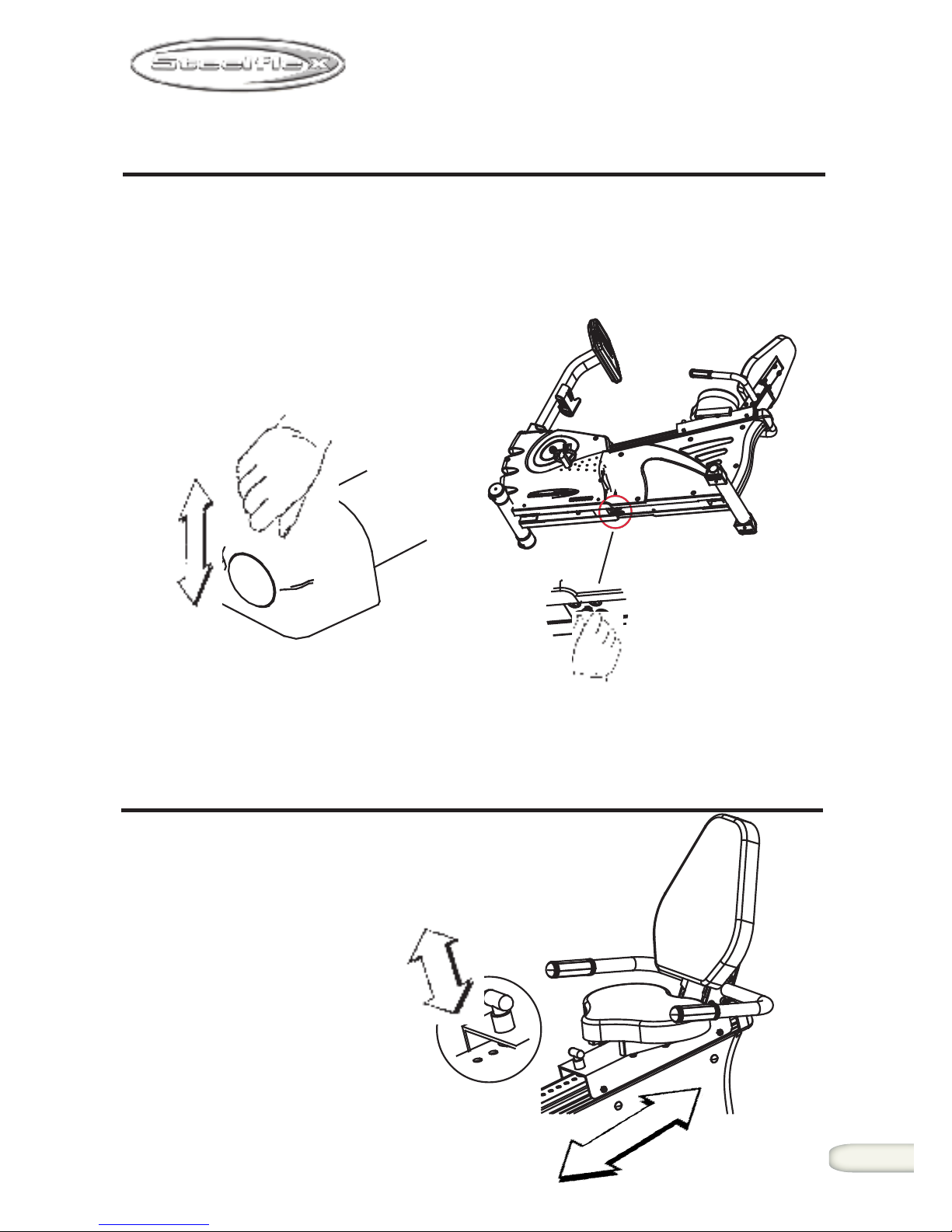

Grasp the Seat Adjustment Knob,
located at the base of the seat
post. Pull out then raise or
lower the seat post to the
desired height. Release
the knob and allow
the seat post to lock
into position.
RECUMBENT SEAT ADJUSTMENT
SEAT POSITION
While seated on the Bike, lift the Seat Lever
and slide the seat forward or back.
When the seat is positioned properly,
simply release the Seat Lever
to lock the seat into its
proper position.
6
XB-4300/4500/4900

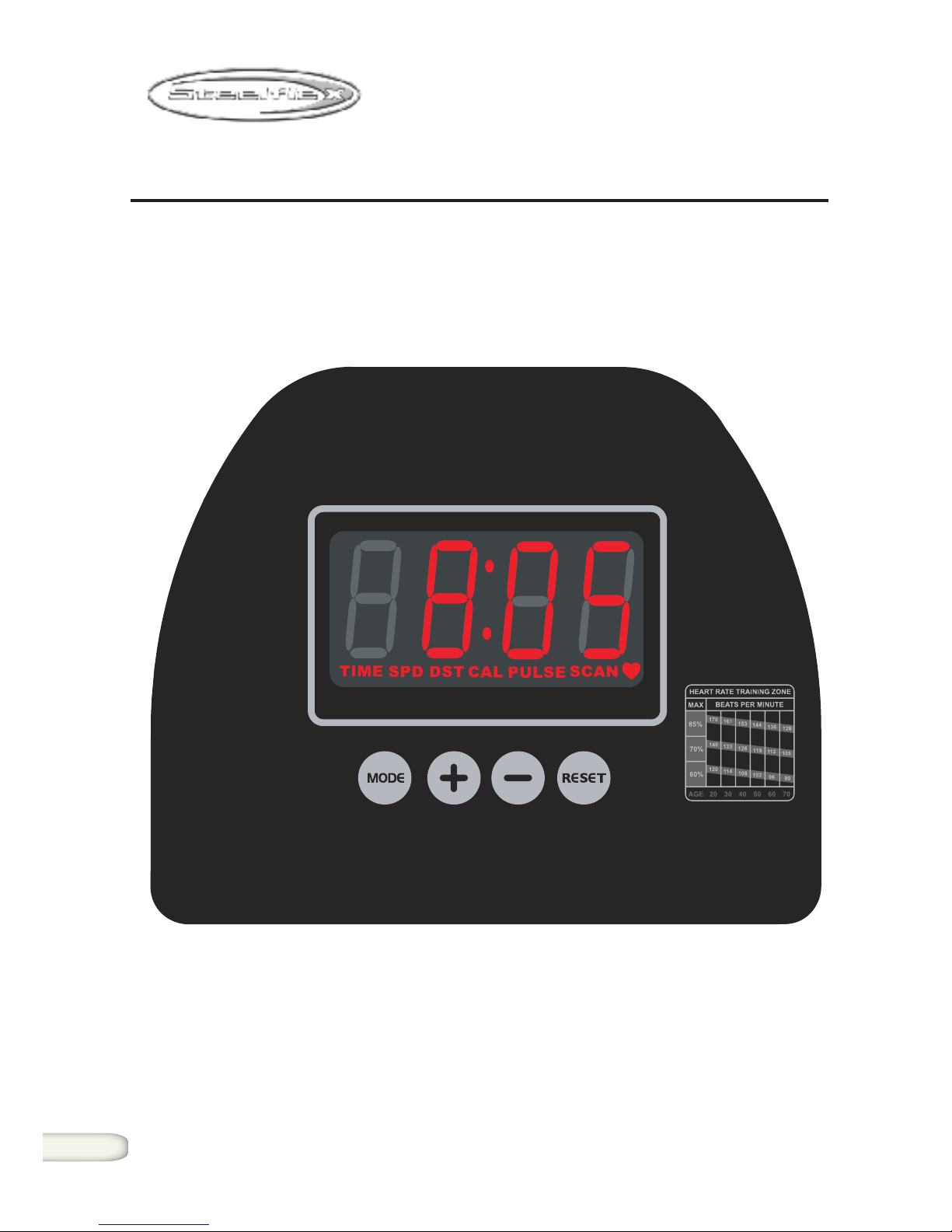

CONTROL PANEL AND WINDOW DISPLAYS
7
XB-4300/4500/4900

WINDOW DISPLAYS
Time:
Indicates elapsed time after pressing start (0-99 minutes and 59 seconds).
Can also be set to count down.
Distance:
Indicates miles traveled in.01 mile increments up to 99.9 .
Speed:
Shown as miles/Hour
Heart Rate:(Pulse)
Shown as beats per minute. You can monitor your heart rate at any time
during a workout.
Calories:
Indicates estimated accumulated calories burned, based on weight,
distance, workload and time.
NOTE:
This information will only display as long as you continue pedaling.
8
XB-4300/4500/4900

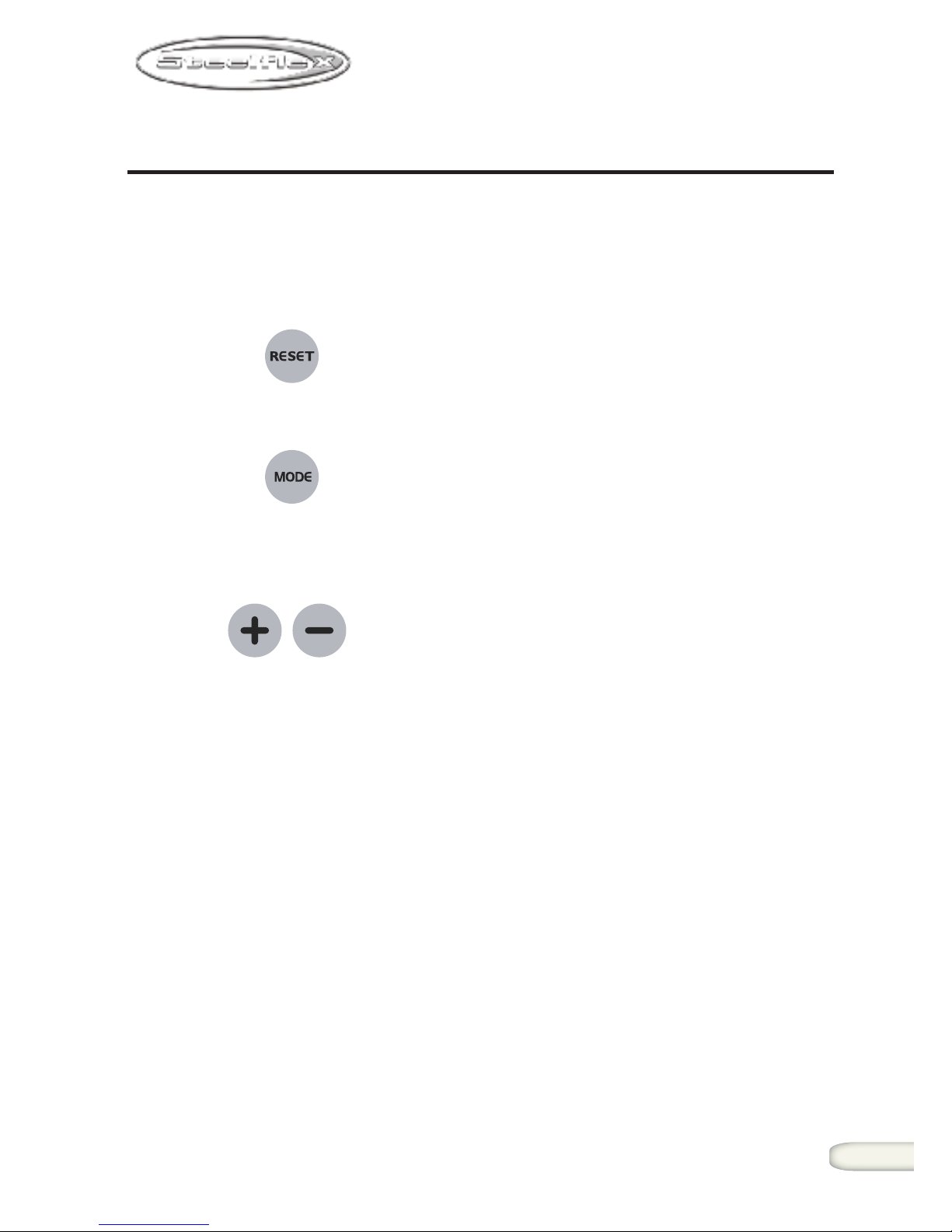

CONTROL PANEL FUNCTIONS
KEYS
used to scan time,distance,speed,calories and pulse.
Used to set distance and calories during set up.
9
Clear time and reset by holding the clear reset button
down for 3 seconds.
XB-4300/4500/4900
Used to turn console on.

QUICK REFERENCE OPERATING INSTRUCTIONS
WITH EXPRESS COMMAND KEYS
The following is a quick overview of the basic operating features of your product.
Getting started
1.Press Reset
10
XB-4300/4500/4900
This will activate the LCD display.
This will allow you to scan distance, speed,time,calories and pulse.
2.Press mode
3.Use the arrows to adjust the distance and calories to
accommodate for a better workout.
CHANGING RESISTANCE
There are two ways to increase your workload. You can pedal faster, or you can
turn the tension knob. The tension knob is located below the console. The
tension knob will adjust to one of 16 levels of resistance.

ï
TARGET HEART RATE ZONE

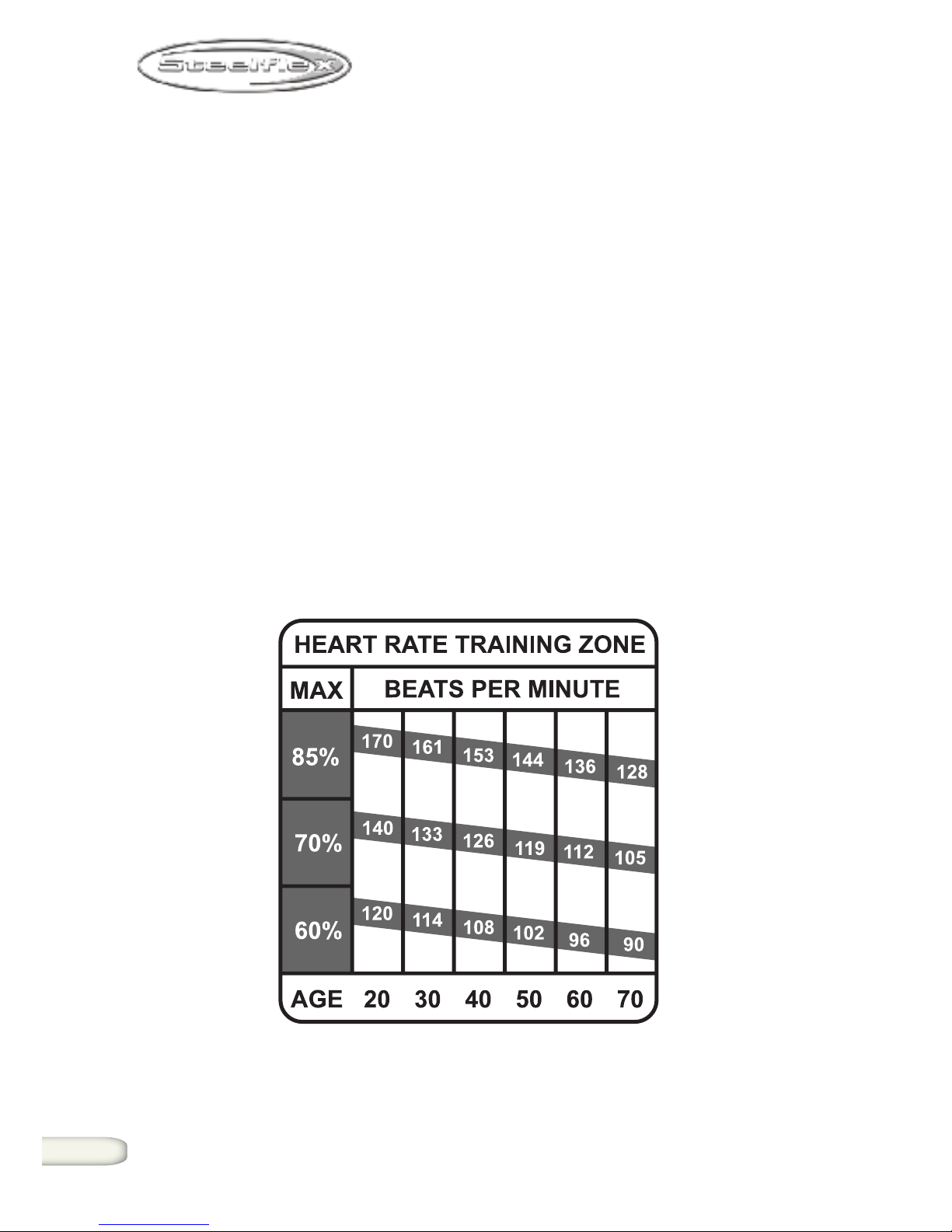

Your Target Heart Rate Zone is a percentage of your maximum heart rate. Target
Zone will vary for each individual, depending on age, current level of conditioning,
and personal fitness goals. The American College of Sports Medicine recommends
working-out at a Target Heart Rate Zone of between 60% of maximum heart rate.
See the chart below for convenient reference.
EXAMPLE:
For a 35-year old user: find AGE along the bottom of the chart, follow the AGE
column up to TARGET ZONE bar. RESULTS: 60% of maximum Heart Rate = 111
Beats per Minute, 75% of maximum Heart Rate = 139 Beats per Minute. With this
Target Zone of 111-139 Beats per Minute it is best to enter an average Target Heart
Rate of about 118 Beats per Minute into the Console.
11
XB-4300/4500/4900

ï
BENEFITS
ï Weight Loss-Helps you maintain an optimum exercise level to burn fat.
ï Efficient-Quantifies your exercise level for maximum benefit.
ï Time Saver-Makes the most of your limited workout time.
ï Motivation-Provides encouragement to achieve your fitness goals and reach for
new heights.
WARNING
Consult your physician to determine your target heart rate before using
the heart rate control mode of this product!
The above chart is to be used only as an average reference point and is
in NO WAY a recommendation of your personal abilities!
Medications may affect your heart rate. Consult your physician for specific
advice before exercising.
Do not use this product if you have an acute illness, cold or fever.
STOP EXERCISING IFANY OF THE FOLLOWING OCCURE:
ï YOU FEEL FAINT OR DIZZY
ï YOU EXCEED YOUR MAXIMUM HEART RATE AS SET BY YOUR PHYSICIAN.
！
12
XB-4300/4500/4900

ï
LIMITED HOME USE WARRANTY
Steelflex is proud to offer you the following warranty, which applies to home use
residential, non-commercial purposes only. Any other use of the device will void this
warranty.
Steelflex hereby extends the following limited warranties for the following
components of the device, for the period indicated:
FRAME- LIFETIME Steelflex warrants the frame against defects in
workmanship and materials for the life of the product, so long as it remains in the
possession of the original owner.
Braking System
Electronics & Parts -3 years. Steelflex warrants the Electronic Components
and all original Parts against defects in workmanship and materials for a period of
three years from the date of original purchase, so long as the device remains in the
possession of the original owner.
Labor-1 year. Steelflex shall cover the Labor Cost for the repair of the device
for a period of 1 year from the date of original purchase, so long as the device
remains in the possession of the original owner.
13
XB-4300/4500/4900

ï
LIMITED LIGHT COMMERCIAL WARRANTY
Up to 4 hours use per day
LIGHT COMMERCIAL USES DEFINED Steelflex warrants models
For use in light commercial facilities including: Hotels, Resorts, Police & Fire Stations,
Apartment Complexes, Corporate Fitness Centers, Hospitals, Rehabilitation and
Sports Medicine Clinics, where average use is up to five hours per day. Not
warranted for private Health Clubs, YMCA's or Schools.
FRAME, BRAKE, ELECTRONICS & PARTS - 2 years Steelflex FITNESS
warrants the frame, Magnetic Brake, Electronic components and all original Parts
against defects in workmanship and materials for a period of 2 years from the date
of original purchase, so long as the device remains in the possession of the original
owner.
LABOR - 1 year Steelflex shall cover the Labor cost for the repair of the
device for a period of 1 year from the date of original owner.
EXLUCISVE REMEDY
The exclusive remedy for any of the above warranties shall be repair of replacement
of defective Parts, or the supply of Labor to cure any defect, provided that Labor
shall be limited to two years. The local retailer shall supply all labor and the product
must be located within that retailer's service area. Products located outside the
retailer's service area will not be covered by the labor warranty
14
XB-4300/4500/4900

ï
LIMITED LIGHT COMMERCIAL WARRANTY (continued)
Up to 4 hours use per day
EXLUCIONS AND LIMITATIONS
This warranty applies only to the original owner and is not transferable. This warranty
is expressly limited to the repair of replacement of a defective. Frame, Magnetic
Brake, Electronic component, or defective Part and is the sole remedy of the
warranty. The warranty does not cover normal wear and tear, improper assembly or
maintenance, or installation or parts or accessories not originally intended or
compatible with the Fitness Product as sold. The warranty does not apply to damage
or failure due to accident, abuse, corrosion, discoloration of paint or plastic, or
neglect, or its vendors may sometimes be supplied as warranty
replacement parts and constitute fulfillment of warranty terms. Any warranty
replacement parts shall be warranted for the remainder of the original warranty term.
Expressly disclaims all other warranties, express or implied,
including but not limited to all warranties of fitness for a particular purpose or of
merchantability. This warranty gives you specific legal rights and your rights may
vary from state to state
WARRANTY REGISTRATION
Your warranty card must be completed and sent to Steelflex BEFORE A
WARRANTY CLAIM CAN BE PROCESSED.
You may also register via our website at Inside the enclosed warranty card you will
find a customer survey. Your care in completing the survey will be of value to us in
serving you in the future. Comments and suggestions are always welcome. We are
certain you will enjoy your new Steelflex Bike. Thank you for selecting a Steelflex
product.
15
XB-4300/4500/4900

Developing a Fitness Program
Warm Up:
Warming up is an extremely important phase, but unfortunately, itís often an
activity that is ignored and painful, frustrating muscle pulls or strains may
be the result. There are two goals for warm - up: warming up the muscles
of the back and the extremities ( so that you can stretch them without injury),
and slight acceleration of the heart rate so the body can move gradually
into the target heart rate.
Warm - ups should consist of 5-10 minutes of exercises that are not very
demanding: marching in place, stepping side to side and swinging your
arms walking at a pace of about 3.5mph, ect. ( your heart rate should be
between 90 - 120.
A gradual warm - up will do the following:
Produce faster more forceful muscle contractions.
Increase your metabolic rate so oxygen is delivered to the working muscles
more quickly.
Leads to efficient calorie burning by increasing your core body temperature
Prevent injuries by improving the elasticity of your muscles.
Allow you to work out comfortable longer because your energy systems are
able to exercise, preventing the buildup of lactic acid in the blood.
Improves joint range of motion.
Psychologically prepares you for higher intensities by increasing your
arousal and focus on exercise.
Warm - up: Warm - up 5 to 10 minutes before aerobic activity.
Duration: Maintain your exercise intensity for 20 to 60 minutes.
Cool Down: Gradually decrease the intensity of your workout,
then stretch to cool down during the last 5 to
10 minutes.
NOTE: If weight loss is your major goal, a minimum of 30
minutes of aerobic activity five or more times per
week is recommended.
16
XB-4300/4500/4900

FLEXIBILITY
Adequate flexibility is the ability to move your limbs and joints easily
(through a complete range of motion) the way you need to in order to meet
the callenges of daily life. Fortunately thereís a positive reinforcing cycle
between flexibility and activity. Adequate flexibility enables you to maintain
an active lifestyle, and an active lifestyle makes an important contribution
to maintaining adequate flexibility. These relationships grow stronger the
older we become.
When should I stretch?
Any time is a good time to Stretch. In the morning it can work out the kinks
in your back, at work, you can relax your neck and shoulders, and after
work stretch out your lower back. However, your should never do your
stretches before you have had a chance to warm your body up.
How should I stretch?
Perform the following stretches slowly and smoothly until you feel a slight
ìtuggingî sensation on the muscles involved. Donít stretch to the point you
feel pain, and donít bounce you could pull a muscle. Hold each stretch for
10 to 20 seconds. Exhale through the stretch, and breathe slowly. This will
keep you from bouncing.
1. Calf ( back of lower leg)
a. Straight knee start with the leg to be stretched approximately
three feet from the wall and the opposite leg on step forward.
Lean toward the wall, keeping your heels down and feet turned
in slightly.
b. Bent knee start same as above, but move approximately one
foot closer to the wall and bend the knee of the back leg to be
stretched.
c. Repeat using the other leg.
17
XB-4300/4500/4900

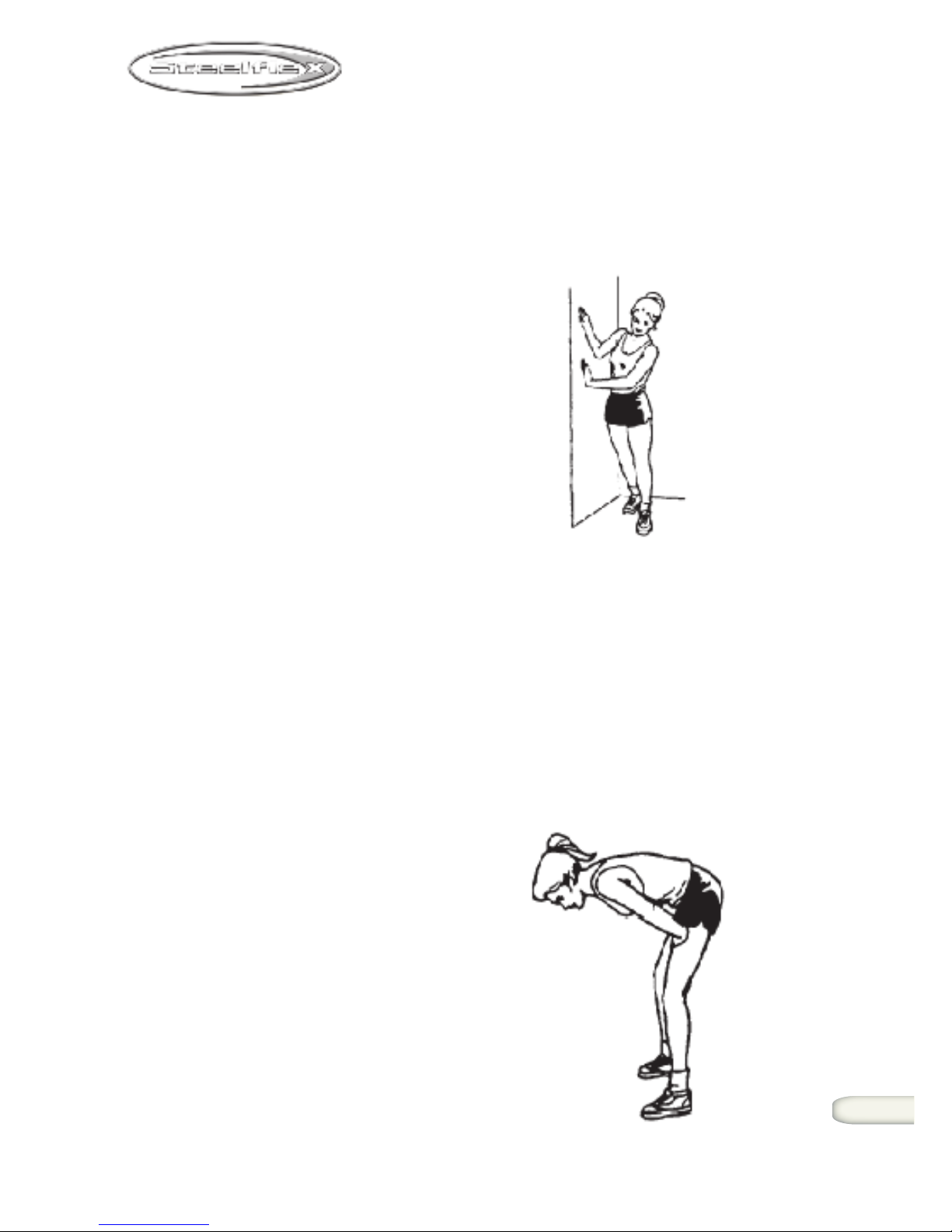

2. Iliotibial Band ( outside of hip)
3. Lower Back, Hips, Groin, and Hamstrings
a. Start with the leg to be stretched one step back and behind the
opposite foot. Move your hips sideways toward the side of your
body being stretched. Keep the upper body away from the wall
and do not bend forward.
b. Repeat using the other leg.
a. Stand with the feet about shoulder- width apart and pointed
straight ahead. If you are pretty flexible and need more of a
stretch, cross one leg in front of the other for a few stretches,
then switch legs.
b. Slowly bend forward from the hips, always keeping your knees
slightly bent.
c. Stretch only to the point where you feel a tugging in the back of
your legs.
18
XB-4300/4500/4900
