IN-WALL AND IN-CEILING
INSTALLATION MANUAL
IW15
IW16
IC16
IW26H
IW26V
IC26
September 2, 2019

2
Compliance.........................................................................................................2
Unpacking...........................................................................................................3
Inventory Mounting Kit........................................................................................3
Preinstallation.....................................................................................................4
Speaker Installation (Not IC-26 –see separate section).....................................6
IC-16 & IC-26 Dedicated Left and Right installations....................................10
......................................................................................................................10
Speaker Installation IC-26.............................................................................11
Service Information...........................................................................................14
Compliance
WEEE
The European Parliament and the Council of the European Union have issued the Waste Electrical
and Electronic Equipment Directive. The purpose of the Directive is to prevent waste of electrical and
electronic equipment and to promote reuse, recycling, and other forms of waste recovery. Steinway
Lyngdorf products and the accessories packed with them are subject to the WEEE Directive. Please
dispose of any waste materials in accordance with your local recycling regulations. Products and
equipment which must be collected for reuse, recycling, and other forms of recovery are marked with
the icon of the crossed-out waste receptacle.
FCC
Steinway Lyngdorf products and accessories comply with parts 15 and 68 of the FCC rules.
Operation is subject to the following two conditions: (1) this device may not cause harmful
interference; and (2) this device must accept any interference received, including any interference
that may cause undesired operation. Model A1/A2 amplifier and Model P200 processor contain TX
FCC ID: TYOJN5139M0.
Changes or modifications not expressly approved by the party responsible for compliance could void
the user’s authority to operate the equipment. Equipment marketed to a consumer must be capable
of complying with the necessary regulations in the configuration in which the equipment is marketed.

3
Unpacking
Note that you cannot mount any of the IW/IC series speakers without the Mounting Kit.
Carefully remove the components from the carton, and check for shipping damage. Contact
both the shipper and your Steinway Lyngdorf representative immediately if products bear any
sign of damage or if there is a discrepancy in the number of packages received. All Steinway
Lyngdorf equipment is carefully inspected before leaving our factory. Note: Keep the shipping
carton and all packing material for future use or in the unlikely event that products require
servicing. If products are shipped without the original packing, damage could occur and void
the warranty.
Inventory Mounting Kit
Check the list below to ensure that all necessary product components have been delivered.
Please report all discrepancies to your Steinway Lyngdorf representative immediately.
Backbox
Bezel-less Metal Grill
(Black cloth on frame for
IC-26)
Cut-Out Template
(Not with IC-26)
Safety Wire
(Not with IC-26)

4
Preinstallation
Weight
The speakers are heavy, and you must ensure that you are using screws, which fits the wall
type, and which can handle the weight of the backbox and speaker in the chosen position.
IW-15 3.5 kg / 7.7 lbs.
IW-16 5.7 kg / 12.6 lbs.
IC-16 9 kg / 19.8 lbs.
IW-26V 11.3 kg / 24.9 lbs.
IW-26H 12.2 kg / 26.9 lbs.
IC-26 8.8 kg / 19.4 lbs.
Speaker connection
These speakers have screw terminals: please use a Phillips head screwdriver.
Cables
Recommended minimum up to 16m / 50ft: AWG 14/2 or 2-lead 2mm2
Recommended minimum from 16m / 50ft and up: AWG 12/2 or 2-lead 3.5mm2
Recommended maximum: Double AWG 10/2 or 2-lead 5mm2
Safety wire
The safety wire is for safe over-head mounting of speakers, where the hook is attached to
the eye-bolt on the speaker and the latch is securely fixed to a point with structural integrity.

5
Cutout Hole Dimensions
Be sure there is ample clearance behind the ceiling to allow for the backbox to be properly
installed.
With all backboxes you will find the relevant cut-out template.
The backbox is expandable!
/ It must be pushed in to the minimum size for installation in a standard 2x4” stud wall but extended
for in-ceiling installations.
The maximum dimensions of the backboxes are:
Speaker:
Depth
Height
Width
Depth
Height
Width
IW-15
118 mm
318 mm
252 mm
4.7 in
12.5 in
9.9 in
IW-16
118 mm
338 mm
338 mm
4.7 in
13.3 in
13.3 in
IC-16
118 mm
622 mm
364 mm
4.7 in
24.5 in
14.3 in
IW-26V
118 mm
622 mm
364 mm
4.7 in
24.5 in
14.3 in
IW-26H
118 mm
364 mm
622 mm
4.7 in
14.3 in
24.5 in
IC-26
250 mm
600 mm
600 mm
9.84 in
23.62 in
26.62 in
The cutout hole dimensions must be with a maximum deviation of +/- 2 mm equivalent to +/- 0.08 in
The wall/ceiling must be fitted with studs and braces to secure the backbox in position.

6
Speaker Installation (Not IC-26 – see separate section)
Insert the backbox into the cutout and place it in the center of the cutout.
If using a safety wire, you need to pull it now
Secure the backbox in the ceiling/wall –the front bezel is adjustable for easy installation.
Note:
The backbox for the IC-16 needs to be mounted as deep as the adjustments allows for the
driver not to engage the grill. (118mm / 4.7in)

7
Note that screws are not included. There are pre-drilled holes in all sides of the backbox;
they are 4.5mm / 0.18in in diameter.
Fix the bezel to the backbox.
Mount the vibration dampers on the speaker

8
Loosen the screws of the 4 brackets on the backbox and slide the brackets to the sides.
Connect the speaker cable to the speaker
Position the speaker in the backbox and

9
Slide the brackets back into place for securing the speaker. Tighten the screws.
Mount the grill by pushing it gently onto the frame until it snaps into place.
This completes the installation of the speaker.

10
IC-16 & IC-26 Dedicated Left and Right installations
Please note that there are two different versions of the IC-16 and two different types of Mounting Kits
(backboxes) for the IC-26 to direct sound at the listening position.
RTF / LTR (Right Top Front & Left Top Rear)
LTF / RTR (Left Top Front / Right Top Rear)

11
Speaker Installation IC-26

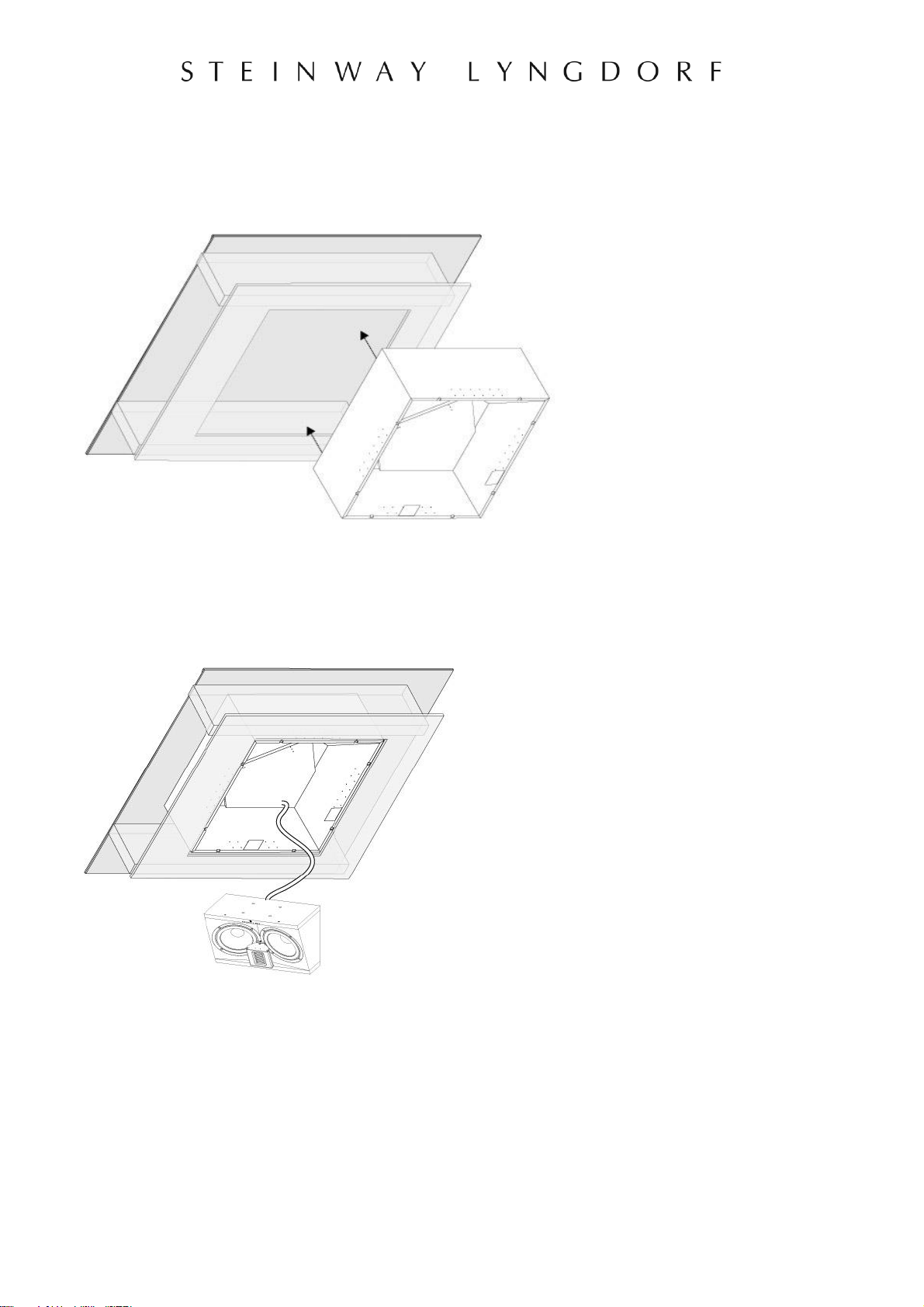

Insert the backbox into the hole and place it in the center in the cutout.
Install the backbox securely into the ceiling. Screws not included.
Pull the speaker cable through the backbox and connect it to the speaker.
Attach the safety wire and secure it to the ceiling joist. Safety wire is not included with our kit. Use a
wire of enough gauge to support the weight of the speaker and backbox.

12
Place the speaker into the backbox and angle the
speaker into it behind the two metal supports.
By using the pre-drilled holes in the backbox, the
speaker can be angled +/- 10 degrees in the box to
fine-tune its focus against the listening positions.
Floor view:

13

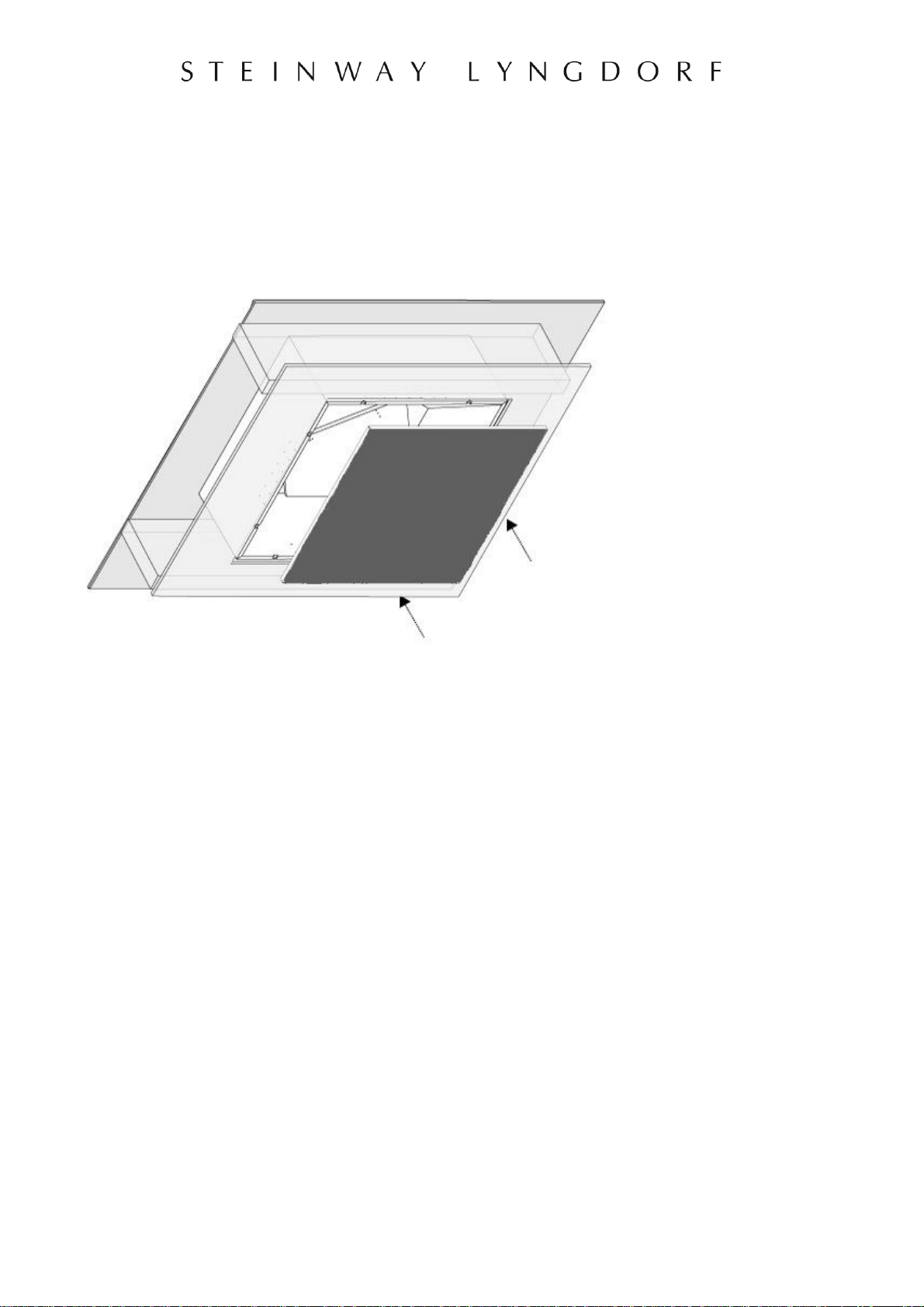

Mount the black fabric grill front by pushing it gently onto the backbox until the magnets snap into
place.
The front grille is 20mm larger than outer dimensions of the backbox, so it covers the edge cutout.
This completes the installation of the speaker.

14
