INSTALLATION GUIDE 1008097500
IP FLUSH MASTER STATION
Gooseneck Microphone
www.stentofon.com
Zenitel Norway AS
P.O. Box 4498 Nydalen
NO-0403 OSLO
Norway
STENTOFON and VINGTOR products are developed and marketed by Zenitel Norway AS. The company’s Quality Assurance System is certified to meet the requirements in NS-EN ISO 9001:2008. Zenitel Norway AS
reserves the right to modify designs and alter specifications without prior notice, in pursuance of a policy of continuous improvement. ©2010 Zenitel Norway AS.
DOC NO.
support@vingtor.com
A100K10796 April 2010
Installing the Gooseneck Microphone
The Gooseneck Microphone (part no. 1008097500) is available for the IP
Flush Master Station.

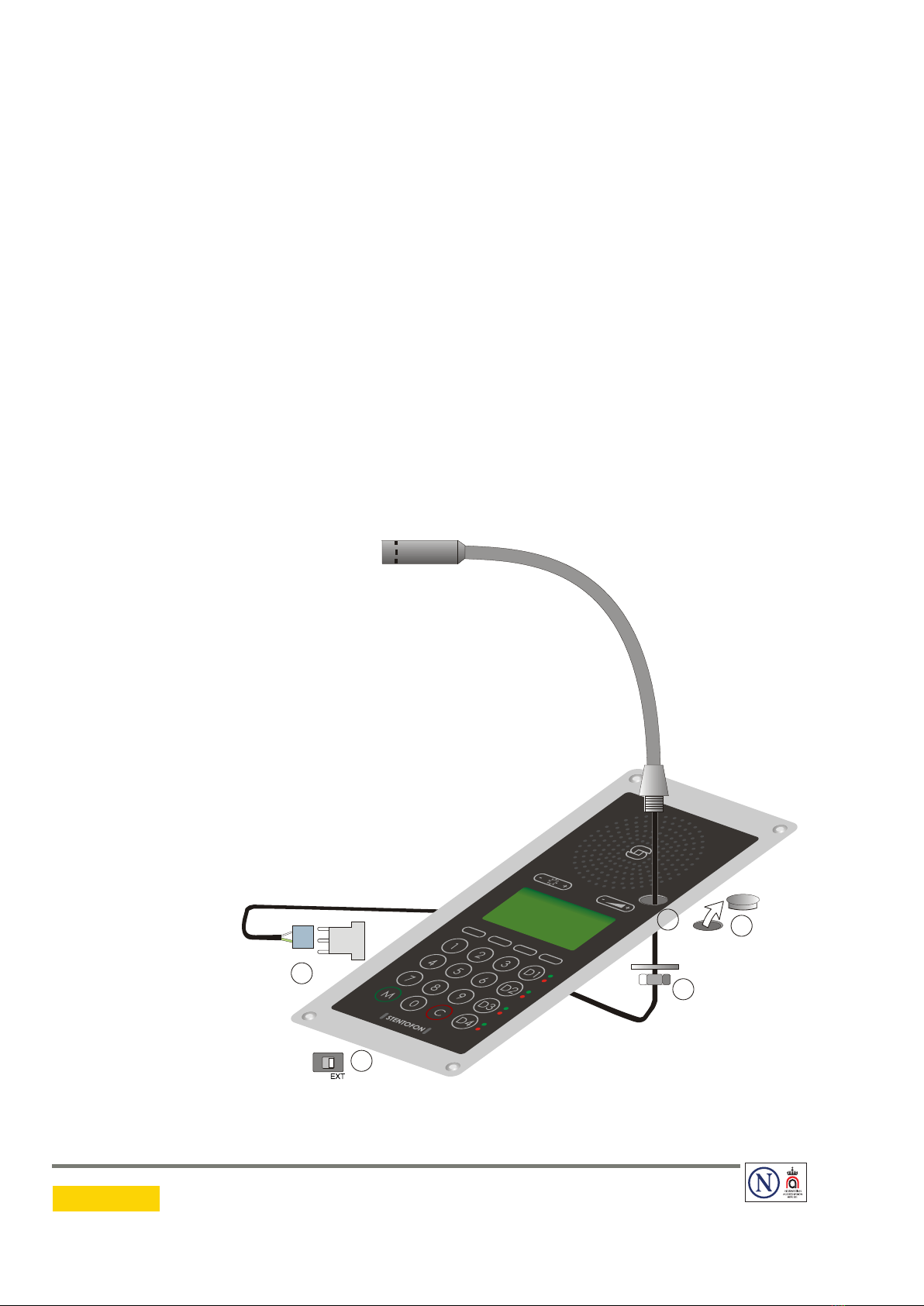

To install the Gooseneck Microphone:
Remove the cover plug from the opening for the microphone on the1.
front panel.
Thread the microphone cable through the opening, the lock washer2.
and nut.
Tighten the nut on the microphone’s threaded stud.3.
Insert the microphone’s IDC socket into the upper two pins of the4.
3-pin header (J7) located at the lower left side of the station. The
signal wire (white) should be on the top pin while the ground wire
(green) should be on the bottom pin.
Slide the S1 switch (bottom back of station) to5. EXT to activate the
external microphone function.
J7
3-pin header
INT
S1
4
3
21
5
Gooseneck Microphone
Cover Plug
Nut
IDC Socket
Slide Switch
IPFlushMasterStation
Microphone Cable
