SVW909 Sip Wifi phone User Manual
www.stephen-tele.com

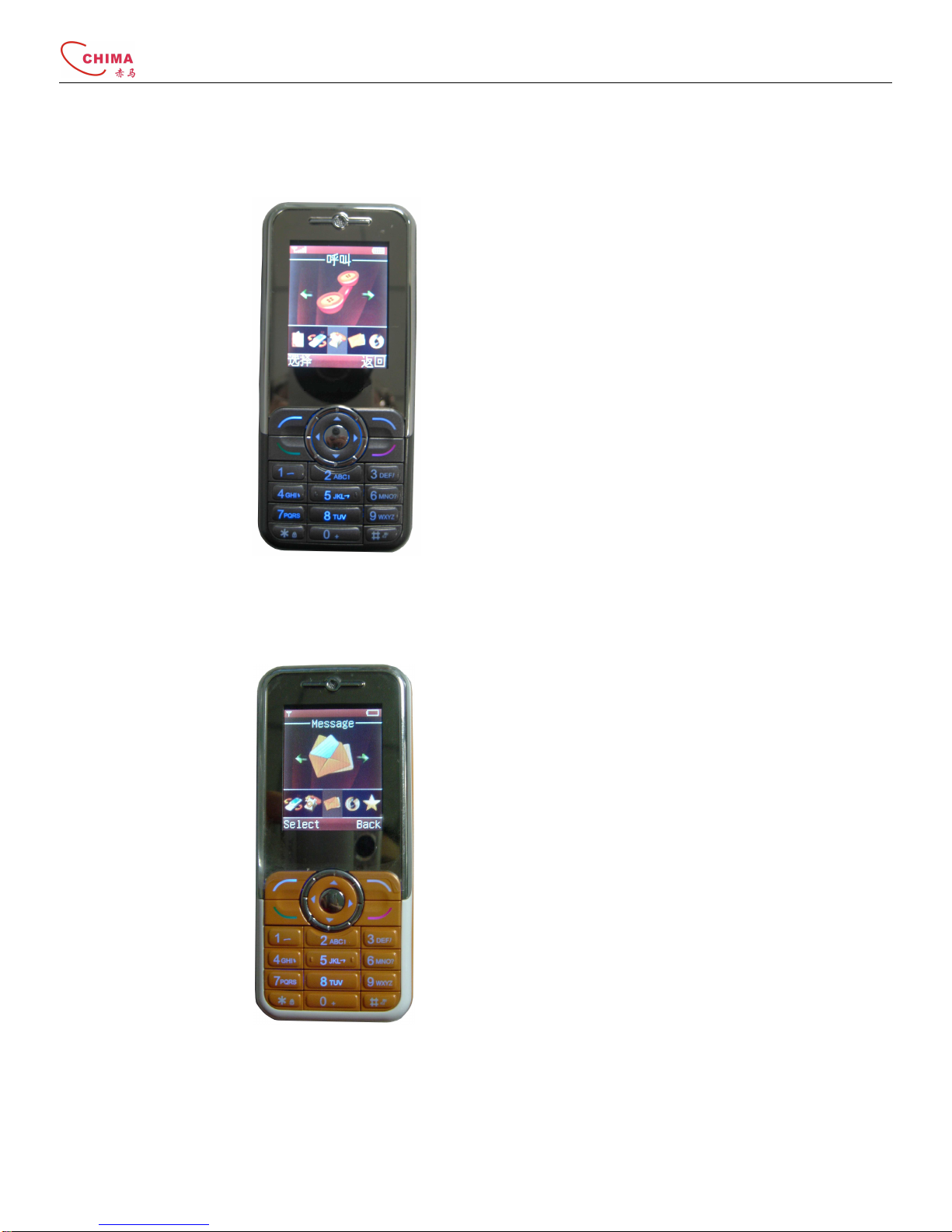

SVW909 Wifi Sip phone Hardware Overview:
----------------------------- Black olor
--------------------------- Orange olor

SVW909 Sip Wifi phone User Manual
www.stephen-tele.com
Catalog
Safety Use of the SVW909 Wifi Sip phone----------------------------------------------------------------------------------------------- 2
Start--------------------------------------------------------------------------------------------------------------------------------------------- 3
Package ontents----------------------------------------------------------------------------------------------------------------------------3
Phone Specification----------------------------------------------------------------------------------------------------------------------------3
Handset Description----------------------------------------------------------------------------------------------------------------------------4
Key Pad define and text entry---------------------------------------------------------------------------------------------------------------5
Write Text-----------------------------------------------------------------------------------------------------------------------------------------5
Fit Battery---------------------------------------------------------------------------------------------------------------------------------------5
harge Battery----------------------------------------------------------------------------------------------------------------------------------6
Power on /off-----------------------------------------------------------------------------------------------------------------------------------6
Keypad lock------------------------------------------------------------------------------------------------------------------------------------6
WLAN and VOIP Setting------------------------------------------------------------------------------------------------------------------- 7
Dial/Answer all-------------------------------------------------------------------------------------------------------------------------- 8
Menu unction--------------------------------------------------------------------------------------------------------------------------------- 9
all------------------------------------------------------------------------------------------------------------------------------------------ 9
Play-----------------------------------------------------------------------------------------------------------------------------------------------10
Utilities-------------------------------------------------------------------------------------------------------------------------------------------10
Setting---------------------------------------------------------------------------------------------------------------------------------------------10
Status Summary--------------------------------------------------------------------------------------------------------------------------------11
WLAN Scan-------------------------------------------------------------------------------------------------------------------------------------11
Basic Trouble Shooting-----------------------------------------------------------------------------------------------------------------------12

SVW909 Sip Wifi phone User Manual
www.stephen-tele.com
Safety Use of the SVW909 Wifi Sip phone:
Read these simple guidelines. Not following them may be dangerous or illegal. Read the complete user guide for
further information.
SWIT H ON SAFELY
Do not switch the phone on when wireless phone use is prohibited or when it may cause interference or danger.
ROAD SAFETY OMES FIRST
Obey all local laws. Always keep your hands free to operate the vehicle while driving. Your first consideration while
driving should be road safety.
INTERFEREN E
All wireless phones may be susceptible to interference, which could affect performance.
SWIT H OFF IN HOSPITALS
Follow any restrictions. Switch the phone off near medical equipment.
SWIT H OFF IN AIR RAFT
Follow any restrictions. Wireless devices can cause interference in aircraft.
SWIT H OFF WHEN REFUELING
Do not use the phone at a refueling point. Do not use near fuel or chemicals.
SWIT H OFF NEAR BLASTING
Follow any restrictions. Do not use the phone where blasting is in progress.
USE SENSIBLY
Use only in the normal position as explained in the product documentation. Do not touch the antenna
unnecessarily.
QUALIFIED SERVI E
Only qualified personnel may install or repair this product.
ENHAN EMENTS AND BATTERIES
Use only approved enhancements and batteries. Do not connect incompatible products.
WATER-RESISTAN E
Your phone is not water-resistant. Keep it dry.
BA K-UP OPIES
Remember to make back-up copies or keep a written record of all important information stored in your phone.
ONNE TING TO OTHER DEVI ES
When connecting to any other device, read its user guide for detailed safety instructions. Do not connect
incompatible products.

SVW909 Sip Wifi phone User Manual
www.stephen-tele.com
START
Package Contents
Wifi phone x1
Battery x1
USB line x1
Adapter x1
Quick guide x1
ertificate of approval x1
Phone Specification
Dimension 100* 45* 18 mm
Weight 100g
Battery Rechargeable battery, 3.7V, 850mAh
Adapter Input A 100-220V / output D 5V 1A
Protocol SIP v2，RF 3261/STUN、RTP
L D olor L D 1.8”, 128*160
NOTE:
The SVW909’s standby time depends on the network conditions, phone usage and surrounding area. The phone
consumes more power under the following conditions:
1. Working in areas with poor wifi signals; Working outside the service coverage area;
working under high or low temperature environment;
2. When the phone frequently searches for network signal due to location changes
3. When users talk on the phone for long periods of time (+ - 3hrs)
4. The Alarm, Backlight or Vibration function is active
5. Ring or listening volume is set to maximum value

SVW909 Sip Wifi phone User Manual
www.stephen-tele.com
Handset Description
Key function
Left soft key Select/done
Right soft key Back/clear/exit
Answer key Answer/dial
End key Reject/end/back/power on/power off
Up Up/increase
Down Down/decrease
Left Before/decrease
Right Next/increase
OK Same to the left soft key
Number key 1 Number 1 and symbols in common use“．”“－”“？”“＠”“１”
Number key 2 Number 2 and characters AB
Number key 3 Number 3 and characters DEF
Number key 4 Number 4 and characters GHI
Number key 5 Number 5 and characters JKL
Number key 6 Number 6 and characters MNO
Number key 7 Number 7 and characters PQRS
Number key 8 Number 8 and characters TUV
Number key 9 Number 9 and characters WXYZ
Number key 0 Number 0/+-*% and for blank
Symbol * Symbol * / symbols
Symbol # Symbol # /shift input

SVW909 Sip Wifi phone User Manual
www.stephen-tele.com
Key Pad define and text entry
Write Text

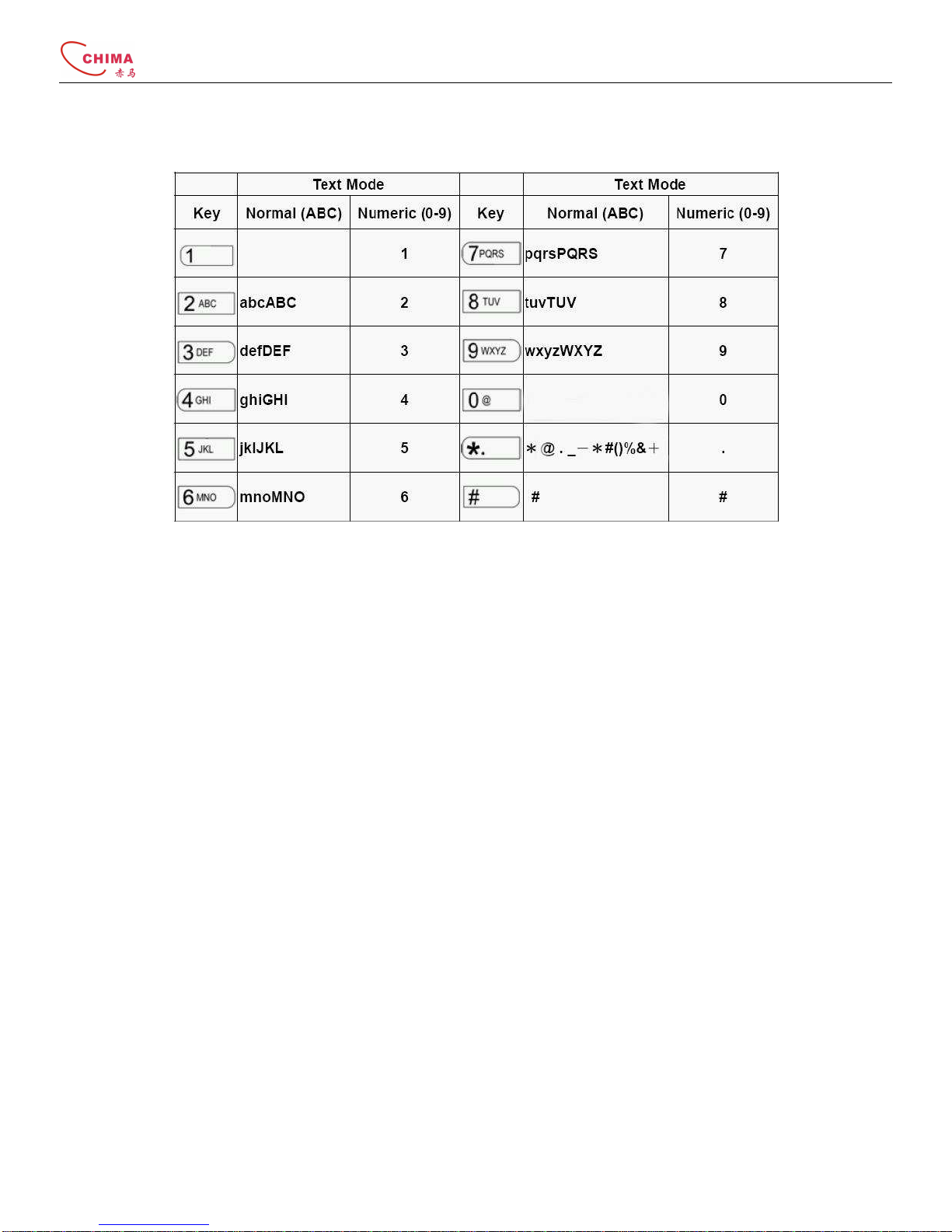

The number keys are not labeled with all the letters you can input. You may need to refer to the selected language to
check the letters that can be input with a key. The SVW909 Sip Wifi phone support English and Simplified hinese
INPUT.
English:
Press the number keys 1 to 9 continuously until the right character appear.
Press the key that character is labeled, once for the first character, twice for the second, so on and so forth.
If the letter you want is at the same key with the former letter, you can press the left or right key ,then enter the
new letter.
Press the key of number 1, you can input some interpunctions you frequently use.
Select “clear” to delete the character before the cursor appears.
it Battery
Open the battery cover, set the battery into the storehouse, then close the cover.

SVW909 Sip Wifi phone User Manual
www.stephen-tele.com
Charge Battery
1. onnect the usb line to the usb interface of P , or connect the usb line to the Power charger, and process the
circuit. After this operation, the charging status will be shown on the screen of the phone. It’s recommended that
you pull out the charger when making a call.
Power on /off
Power on
Press the End key for 2 seconds, the phone start to respond and power on. You need to setup the
phone first, if you have finished setting, the phone will search for the set WLAN automatically.
Setting needed Standby mode
Power off
Press the End key for 2 seconds, the phone will start to respond and power off.
Keypad lock
Activation: at standby mode, press * key first, and then # key
Unlock: press the * key first, and then # key

SVW909 Sip Wifi phone User Manual
www.stephen-tele.com
WLAN and VOIP Setting
This product support IEEE802.11b/g and SIP protocol, the default setting is without SIP information. In order to
configure the phone, you should obtain Sip account information from your ITSP beforehand.
Example 1 --- Wifi Network Configuration:
SSID: WIFIAP
Security type: WEP-open
Password/Text: WIFI ( or Hex key: 1016A386E)

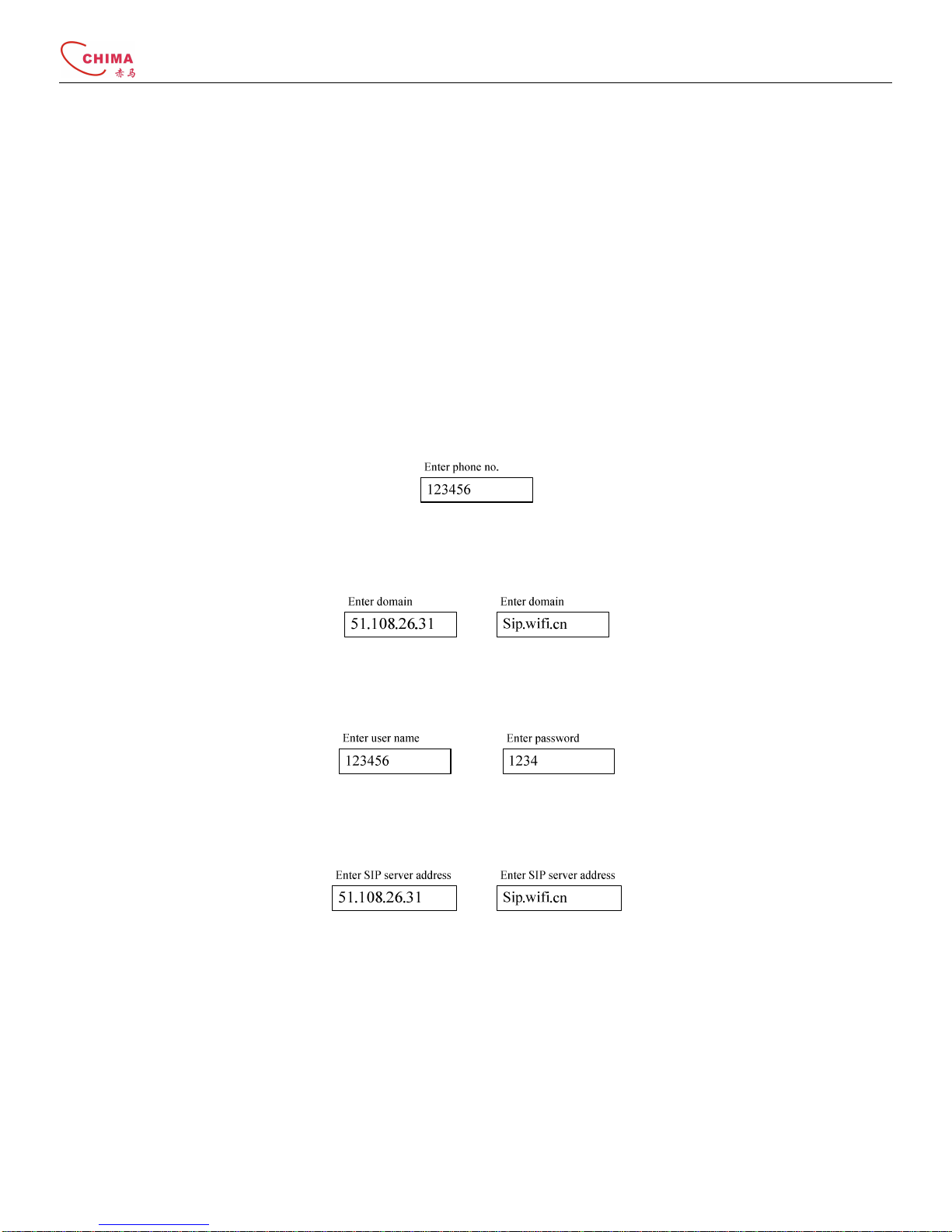

Example 2 --- Sip Account Configuration:
SIP server（domain）: 51.108.26.31 (or maybe in the form of : sip.stephen-tele.com)
User name (SIP phone number):123456
SIP phone number: 123456 (phone number could be the same to user name, depends on your server. )
Password: 1234
A: Search Available WLAN
1 At standby mode, press the right soft key or OK key to enter the main menu.
2 Select 4 setting>2 WLAN setting>2 WLAN search, press right soft key or OK key to start WLAN searching.
3 After searching, there will be a list to show you the available APs, with security type and signal strength. Select the
one with highest Signal strength (if this AP is permitted to use), press right soft key or OK key to setting.
Note: The security type of the selected AP is shown on the AP list. You may use WEP-OPEN type or any others by
following the indication
B: Connect WLAN
1. Set the SSID name first, (the default name is the one you have just selected，the name is consistent to AP
currently), press right soft key or OK key to enter change menu.
2. Select 2 security type>2 WEP-OPEN〉
〉〉
〉1 WEP Key index〉
〉〉
〉1 WEP Key 1,press right soft key or OK key and enter the
WEP-OPEN menu again. If the security type is “Open”, go to Step 4 directly.
3. Select 2 key / pass〉
〉〉
〉1 passphrase/2 hex Key, press right soft key or OK key enter the enter key（
（（
（hex）
））
）mode, key of
the SSID is the one of the AP you have just selected., then press the right soft key or OK key enter change menu
again.
or

SVW909 Sip Wifi phone User Manual
www.stephen-tele.com
4. Select 3 IP setting>1 use DHCP (If the WLAN you selected support DH P server), press right soft key or OK key to
enter change menu again. You can also select static IP, follow the indications, enter the IP address, net mask、
gateway, DNS address in turn. And back to change menu after the setup.
5. Select 4 save and use, press right soft key or OK key to enter the save and use menu.
6. Select 1 do not use, press right soft key or OK key enter WLAN Setting menu again, finish
WLAN setting.
C: SIP Server Registration
1.Wifi phone number setting
You should obtain Sip account information from your ITSP before you configure the phone.
Select 3 VOIP setting> change> VOIP identify> SIP number, press right soft key or OK key , input SIP phone number,
press right soft key or OK key and enter the VOIP change menu again.
2.SIP domain setting
Select 3 VOIP setting> change> VOIP identify> SIP domain, press right soft key or OK key ,input SIP server address,
press right soft key or OK key and enter the VOIP change menu again.
or
3.SIP server authentification
Select VOIP authentification>SIP user name/ password, then press right soft key or OK key and enter the VOIP
change menu.
and
4.SIP Server Setting
Select VOIP server> SIP server address/SIP proxy address, press right soft key or OK key and enter the VOIP change
menu.
or
Note:
1. Regularly your Sip Server will support STUN, and you don’t need to set stun in your handset to register to a Sip
server. But if your server doesn’t support STUN, you can find some open STUN resource through the internet,
and configure it to the handset.
2. The default port of the SVW909 is 5060, If you want to change it, you can add a”: “ after your sip server address,
and add the port number after the “:”

SVW909 Sip Wifi phone User Manual
www.stephen-tele.com
NOTE: Voice mail is NOT available with this edition
Dial/Answer Call
1. Enter the integrity number, or you can search the number from the phonebook;
2. Press the Answer key to call the number, you can press the side keys or right/left key to set the volume of the
speaker and mic
3. Press Answer key to answer a call, to reject a call press the End key.
Menu unction
You can press right soft key to enter the main menu at standby mode, then choose the function you want. Press left
key “back” you will back to the higher level menu. Press the End key you will back to the standby mode.
Not all menu functions or option items are described here.
Call
Phonebook
Select Menu>Call>Phonebook, You can save names and phone numbers in the phone memory. The internal contact
list can store up to 200 names.
You can also use the following options in the Phonebook menu:
Phone numbers----- classify the number and store
Special ring----- select the special ring for the entry
Edit name----- edit name for the entry
Delete entry----- delete entry from phonebook
ind name and number from phonebook

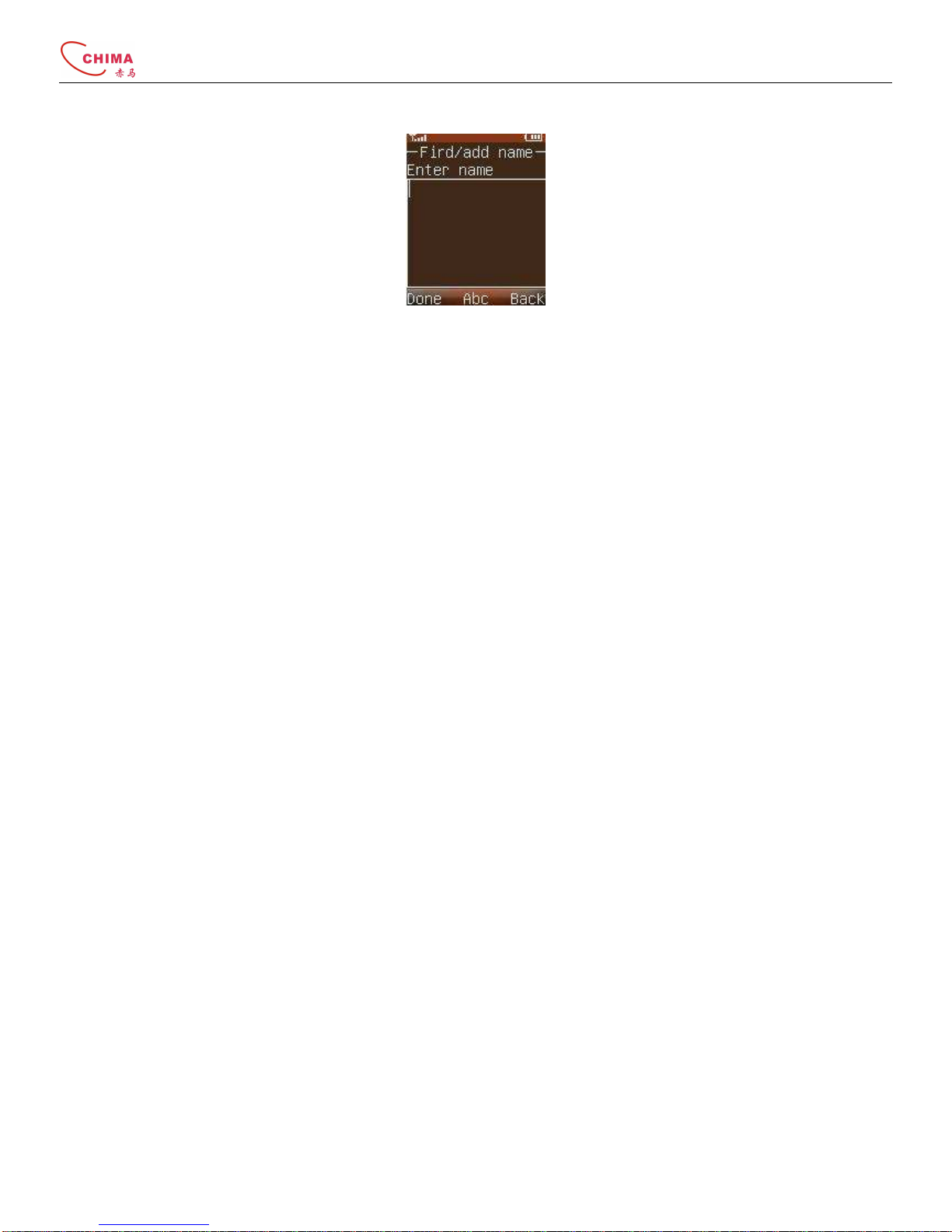

1 Scroll down in the standby mode, select Menu> all>Phonebook>Find name .
2 Enter the first letters of the name. Scroll to the name that you want.

SVW909 Sip Wifi phone User Manual
www.stephen-tele.com
You can press # to switch the input method.
Dial
Select Menu>Call >Dial, you can enter the number you want and call it then.
Recent Calls
Select Menu>Call>Recent calls, The phone stores up 10 recent Missed/Received/Dialed/ phone numbers. And it
stores up approximate talking time of all call.
Speed numbers
Select Menu>Call >Speed numbers
Message
Create
Select Menu>Message>Create, then edit a new message here and sent it out.
Inbox
Select Menu>Message>Inbox, you can check the messages you have received. The Inbox can store 20 messages at
most.
Outbox
Select Menu>Message>Outbox, you can check the messages you have sent. This inbox can store 20 messages at
most.
Drafts
Select Menu>Message>Drafts, you can check the messages you have stored up before sent. This inbox can store 20
messages at most.
Note: The phone support SMS function, but you will be able to send messages only if the Server support SMS.
Play
You can play the melody、key tones and system tones internal here.
Select Menu>Play, select the entry you want, press right soft key “select” to play.
Utilities
Stop watch

SVW909 Sip Wifi phone User Manual
www.stephen-tele.com
Select Menu>Utilities>Stop Watch, press right soft key to activate the stop watch and start to time.
Calculator
Select Menu>Utilities>Calculator, Press keys 0 to 9 to insert digits and # to insert a decimal point. Press * to
select algorithm, and right soft key to get result.
Note: This calculator has limited accuracy and is designed for simple calculations.
Calendar
Select Menu>Utilities> Calendar, press up/down/right/left key to look over.
Setting
You can change the phone settings in this menu.
Phone setting
Volume setting
Select Menu>Setting>Phone setting>Volume setting, you can set the volume of receiver, ring, keypad.
Alert/Ring
Select Menu>Setting>Phone setting> Alert/Ring, you can select special ring, or s set the phone to vibrate when
you receive a call
Speakerphone
Select Menu>Setting>Phone setting>Speakerphone, you can set it on or off.
Screen/Keys
Select Menu>Setting>Phone setting> Screen/Keys, you can set contrast, backlight, key repeat, key click volume
here.
Language
Select Menu>Setting>Phone setting> Language, to select the menu language you want (including English,
Korean and hinese) .
Telephone tones
Select Menu>Setting>Phone setting> Telephone tones, select telephone tones mode.
Edit greeting
Select Menu>Setting>Phone setting> Edit greeting, you can edit greeting information for your phone.
WLAN Setting and VOIP Setting
See page 7 for details
Security Type
Select Setting>WLAN Setting>WLAN/IP Setting>Change>Security Type, this phone support Open, WEP, WPA2,
WPA-PSK, WPS security types. hoose the different type for different WLAN.
Time/Date
Select Menu>Setting>Time/date, set the time and date of your phone here. You can also select a different
mode of the time/date format.
Upgrade Server Address

SVW909 Sip Wifi phone User Manual
www.stephen-tele.com
Select Menu>Setting> Upgrade Server Address, enter the updated server address in the blank, when you start to
upgrade, the system will connect automatically.
irmware Upgrade
Select Menu>Setting> irmware Upgrade, the system will check for the new files and updates automatically.
Erase All
Select Menu>Setting> Erase All, to reset the phone to factory settings.
Remote Access
Select Menu>Setting> Remote Access, you can enable or disable the remote access.
Status Summary
This handset provide user shortcut to check the settings , there will be a detailed list after you setup your phone.
Note: You can only check the status here, if you want change your settings, go back to the setting menu.
WLAN Scan
You can scan the WLAN quickly here.
Basic Trouble Shooting
Question Solution
Why can’t I switch on? 1. check if the battery is insert correctly.
2. check if the battery is full of power. onnect the
handset to P or the Battery charger
Why there is no signal? 1. check if you have any available AP to use.
2. check if you have the permission to use the AP.
3. check if your AP settings is correct.
Why can’t I make a call? 1. heck if your phone is registered to the server successfully.
2. heck if you have setup the WLAN correctly
3 heck if the number you dialed is available.
Why my phone doesn’t upgrade auto ? 1. The firmware is already the latest version
2. The upgrading server address is not updated.
Why my phone doesn’t roam ? 1. The phone roams only between the APs with same SSID and
password, you may check if you sets up the Same SSID and password
to your phone correctly.

SVW909 Sip Wifi phone User Manual
www.stephen-tele.com
Copyright Notice:
No part of this document may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated
into any language, in any form or by any means, electronic, mechanical, magnetic, optical, chemical, manual or
otherwise without the prior written permission of Stephen Technologies o.,Limited.
Disclaimer Notice
No license is granted, implied or otherwise, under any patent or patent rights of Stephen Technologies o.,Limited.
Stephen Technologies o.,Limited, makes no warranties, implied or otherwise, in regard to this document and to
the products described in this document. The information provided by this document is believed to be accurate and
reliable to the publication date of this document. However, Stephen Technologies o.,Limited assumes no
responsibility for any errors in this document. Furthermore, Stephen Technologies o.,Limited, assumes no
responsibility for the use or misuse of the information in this document and for any patent infringements that may
arise from the use of this document. The information and product specifications within this document are subject to
change at any time, without notice and without obligation to notify any person of such change.
STEPHEN TECHNOLOGIES CO.,LIMITED
Building NO.5, YinHu Industry Area, JinHu Road
NO.38, LuoHu District, Shenzhen, hina 518029
Tel: [phone]
Fax:[phone]
Website: www.stephen-tele.com
Technical Support Department:
Email Support: [e-mail]
[e-mail]
MSN Support: stephentechnologies.suppo[email protected]
Phone Support: [phone]
