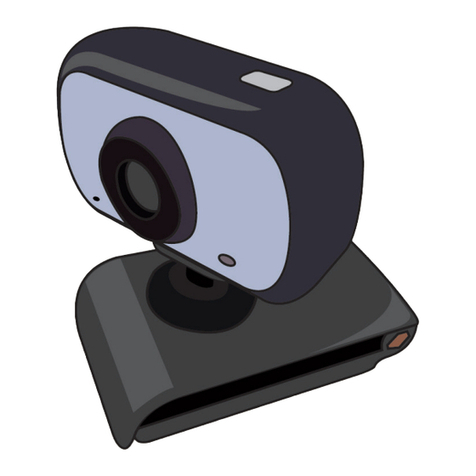

Steren COM-120 User manual

Before using your new Notebook Web Cam, please read this
instruction manual to prevent any damage. Put it away in a
safe place for future references.
IMPORTANT
Do not expose to extreme temperatures.
Clean only with a soft, dry cloth.
Do not touch the camera lens with the fingers.
Do not drop or hit the equipment, may cause damages.
PACKAGE CONTENT
1 Web Cam
1 CD installation
1 Web Cam base
1 user’s manual
MAIN FEATURES
High resolution CMOS color sensor
Resolution up to 352x288pixels
Up to 30 fps (160x120)
Image focus: 20cm to infinity
Automatic brightness and exposure adjustment
SYSTEM REQUIREMENTS
CPU with 200 MHz or higher
Internal Memory: 64 Mb or higher, 128MB recommended
200MB free hard disk space
One available USB port
CD-ROM drive
XVGA graphic card
Windows 98, Windows 2000, Windows ME, Windows XP
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
ENGLISH
ENGLISH-2
Before usin
g
y
our new Notebook Web Cam, please read this
i
nstruction manual to prevent an
y
dama
g
e. Put it awa
y
in a
s
afe
p
lace for future references
.

HOW TO INSTALL THE DRIVERS ON XP
Install the drivers before to connect the Web Cam into an
available USB port.
1.- Place the Installation CD into CD-ROM drive.
2.- When Installation program starts, click on Driver option.
3.- At Welcome window, click on Next to continue.
4.- The installation begins. It is possible that while running the
installation program, a warning window displays, just click
Continue, otherwise the process will be canceled.
ENGLISH
ENGLISH-3

5.- Press Finish to conclude the driver installation process.
6.- Plug the Web Cam into an available USB port in the
computer.
7.- The computer detects the new hardware, automatically New
Hardware wizard starts.
ENGLISH
ENGLISH-4

8.- Click on Not in this moment, then click on Next to continue.
9.- In the next window, check Install the software automatically
(recommended). Click on Next to continue.
10.- PC begins updating the system. It is possible that a warning
message about Windows logotype displays in the screen, just
click on Continue, otherwise the process will be canceled.
ENGLISH
ENGLISH-5

11.- Click on Finish. The camera is correctly configured.
To leave the initial installation window, click on X, located
on the top right side of the screen.
ENGLISH
ENGLISH-6
T
o leave the initial installation window, click on X, located
o
n the top ri
g
ht side of the screen
.

PLACING THE WEB CAM
Web Cam can be placed in two different ways, using the Web
Cam base or the clip.
If you use the base, you can place it on a desk. But if you prefer
to use the clip, then you can place it on the laptop’s LCD screen.
USING THE WEBCAM BY FIRST TIME
1.- Locates the AMPCAP.EXE file and run it (Start >> Programs
>> PC Camera >> Amcap).
2.- A real time image appears on the window, the image is sent
by the WebCam.
You can use the WebCam with most popular instant
messengers.
Capture button (located at front of the camera) allows you to
take snapshots.
SPECIFICATIONS
Input: 5V
Sensor : CMOS
Resolution : 352 x 288, 320 x 240, 160 x 120pixels
Frame rate : Up to 15 fps at 352 x 288
Up to 30 fps at 160 x 120
Focus distance: 20cm to infinity
White balance: Automatic
Exposure: Automatic
Image format: RGB
Web Cam dimensions: 55 x 31 x 25mm
Weight : 57,2g
Product design and specifications are subject to change,
without notice.
ENGLISH
ENGLISH-7
Y
ou can use the WebCam with most
p
o
p
ular instant
m
essen
g
ers
.
C
apture button
(
located at front of the camera
)
allows
y
ou to
t
ake sna
p
shots
.
P
roduct desi
g
n and specifications are sub
j
ect to chan
g
e,
w
ithout notice
.

Antes de utilizar su nueva Cámara Web lea este instructivo
para evitar cualquier mal funcionamiento. Guárdelo para
futuras referencias.
IMPORTANTE
No exponga el equipo a temperaturas extremas.
Siempre utilice un paño suave, limpio y seco para limpiar el
equipo.
Evite el contacto con el lente de la cámara.
No deje caer el equipo, podría ocasionar fallas.
CONTENIDO DEL EMPAQUE
1 Cámara Web
1 disco de instalación
1 base para cámara
1 manual de instrucciones
CARACTERÍSTICAS
Sensor de color CMOS de alta resolución
Resolución de hasta 352x288 pixeles
Hasta 30 cuadros por segundo (160x120)
Enfoque de imagen: de 20cm a infinito
Ajuste automático de brillo y exposición
REQUISITOS DE SISTEMA MÍNIMO
Velocidad de CPU de 200MHz o superior
Memoria: 64MB o superior, 128MB recomendado
Un puerto USB disponible
200MB de espacio libre en el disco duro
CD-ROM
Tarjeta de gráficos XVGA
Sistema Operativo Windows 98, 2000, ME, XP
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
ESPAÑOL
ESPAÑOL-2
A
ntes de utilizar su nueva Cámara Web lea este instructivo
p
ara evitar cual
q
uier mal funcionamiento. Guárdelo
p
ara
f
uturas referencias
.

INSTALACIÓN DE DRIVERS EN WINDOWS XP
No conecte la cámara Web en el puerto de la computadora
antes de instalar los drivers.
1.- Inserte el disco de instalación en la unidad de CD-ROM.
2.- Cuando el programa de instalación se ejecute, seleccione la
opción Driver.
3.- En la pantalla de Bienvenida, seleccione Next para continuar.
ESPAÑOL
ESPAÑOL-3
