Owner’s Manual
HEPAPro 4 Canister Vacuum
Thank you for choosing the Sterling model HEPAPro 4 Canister Vacu-
um. This commercial appliance is well constructed and should provide
you with years of professional service if you take the time to read this
manual. For your information, this vacuum was protectively packed to
prevent possible damage in transit. Should damage occur, please no-
tify the transporting carrier immediately for loss and/or claim. It is also
important to learn the steps for proper assembly, operation and main-
tenance. It will also make the product easier to use and save you even
more time and money. We suggest you keep this manual at hand for
future reference. We stand behind this product and can help anytime
with a knowledgeable and dedicated customer service sta. Please
contact us anytime at [phone] or SterlingNA.com.
SAVE THESE INSTRUCTIONS
GROUNDING INSTRUCTIONS - This appliance must be grounded. If it should malfunction or breakdown, grounding provides a
path of least resistance for electric current to reduce the risk of electric shock. This appliance is equipped with a cord having equip-
ment grounding conductor and grounding plug. The plug must be inserted into an appropriate outlet that is properly installed and
grounded in accordance with all local codes and ordinances.
WARNING: Improper connection of the equipment grounding conductor can result in a risk of electric shock. Check with a quali-
ed electrician or service person if you are in doubt as to weather the outlet is properly grounded.
Do not modify the plug provided with the appliance - if it will not t the outlet, have a proper outlet installed by a qualied electrician.

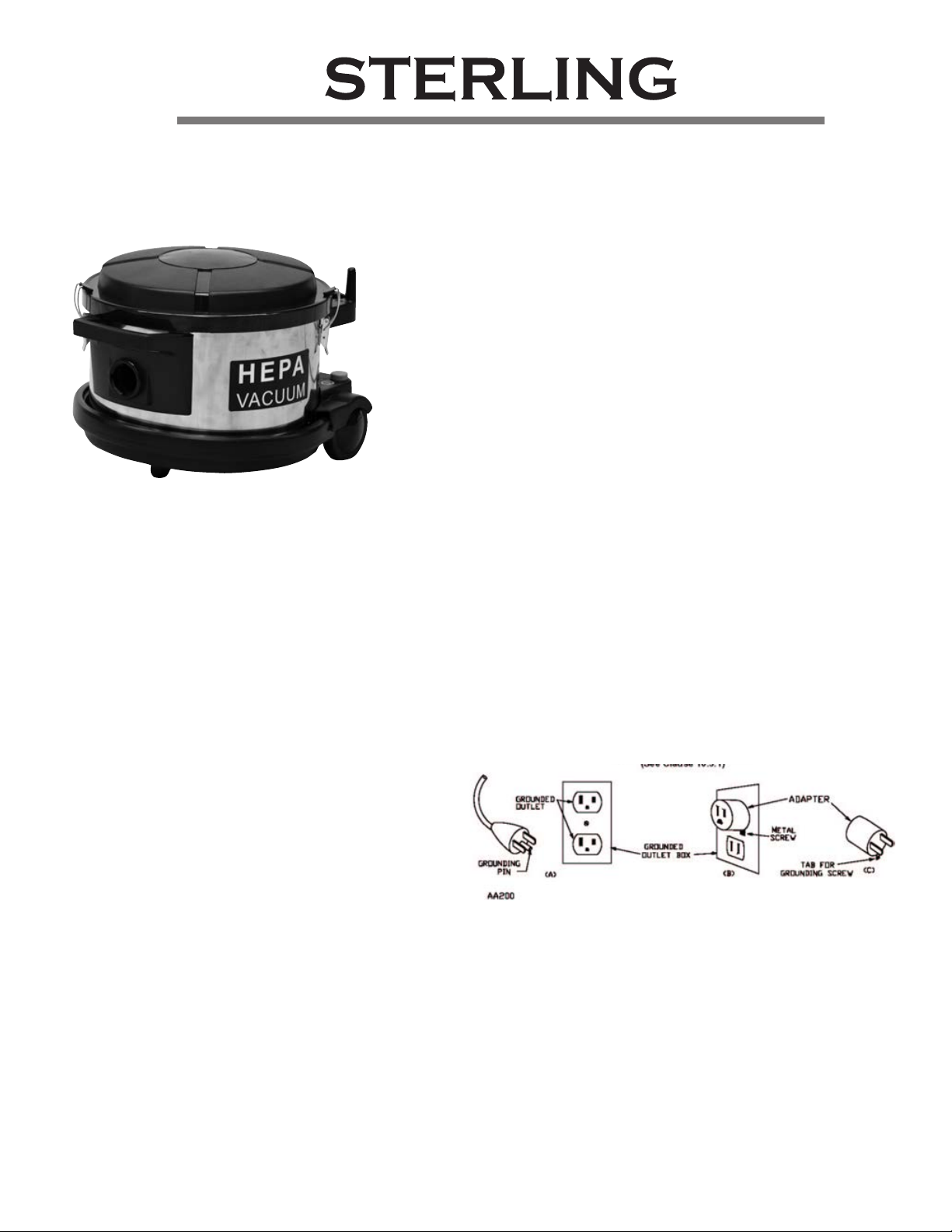

This appliance is for use on a nominal 120 - Volt circuit, and has a grounded plug that looks like the plug illustrated in sketch A be-
low. A temporary adapter that looks like the adapter illustrat-
ed in sketches B and C may be used to connect this plug to a
2-pole receptacle as shown in sketch B if a properly grounded
receptacle is not available. The temporary adapter should be
used only until a properly grounded outlet (sketch A) can be
installed by a qualied electrician. The green colored ear, lug,
or the like extending from the adapter must be connected to
a permanent ground such as a properly grounded outlet box
cover. Whenever the adapter is used, it must be held in place
by a metal screw.
NOTE: In Canada, the use of a temporary adapter is not permitted by the Canadian Electrical Code.


IMPORTANT:
This vacuum is equipped with a self-resetting thermo-protection switch to prevent overheating of the vacuum’s compo-
nents. If this switch activates and shuts down the motor during vacuuming, it is necessary to wait 15-20 minutes for the
motor to cool and for the thermo-protection switch to reset itself. Normally, the thermo-protection switch is activated
when airow is severely restricted from a full disposable bag. To avoid motor overheating, avoid excessive overlling
of the disposable bag. We recommend changing the disposable bag when it is 1/2 full. Replacing disposable bags
frequently will maximize your vacuums capabilities. It ensures greater airow, increased worker productivity and no
interruptions due to an overheated motor. Removing the disposable bag is fast and easy. Just reverse the steps on the
following page for installing the disposable bag. If the motor overheats after replacing the bag, check for an obstruction
in the vacuum hose or the hose inlet located on the tank.
WARNING:
Be certain the HEPA lter and disposable bag are installed correctly before using this vacuum. Failure to do so could
expose people in the work area to hazardous particles that could represent a serious health risk.
WARNING:
When using this vacuum to recover hazardous dust, do not attempt to open or dispose of its contents without personal
protection equipment (PPE). In addition, this procedure must be completed in a controlled & contained environment.
WARNING:
• Connecttoaproperlygroundedoutletonly.Seegroundinginstructionsonnextpage.
• Donotusevacuumtopick-upammableorcombustibleliquids.
• Donotvacuumliquidsorexposethevacuumtorainorwater.
• Checktheconditionofthepowercordbeforeeachuse.
• Whennotinuse,storethevacuuminadryspace.
• Unplugthevacuumwhenworkingonthemotororanyelectricalpart.
• Donotlubricatethemotor,itisequippedwithsealedbearings.
SAFETY PRECAUTIONS
DO NOT OVERFILL

Instructions for Use
Attaching Disposable Filter Bag:
1. Pull plastic clamps
upward and outward so
the plastic lid is loose
and can be removed.
2. Attach the opening on
the disposable lter bag
to the air inlet. Press the
collar and membrane
over the ridge located
on the air inlet.
3. Insert bag retainer clip
secure bag to air inlet.
4 Replace the plastic lid-
Take care to seat the lid
securely over the rim of
the canister and a prop-
er air-seal is achieved
between the HEPA and
the motor. Pull clamps
upward and inward to
lock-down plastic lid to
canister.
Attaching Hose & Wand:
Hose:
5. Push the hose cu
inside of the hose inlet.
6. Turn clockwise until
locked.
Note the grip handle is
equipped with an air-ow
bleed valve that allows you
to regulate airow and suc-
tion to prevent tools from
attaching itself to fabrics,
materials or surfaces.
Telescopic wand:
7. Slide catch downward
to extend length of
telescopic wand.
Extension wand:
8. Connect (slip-on) the
extension wand to the
telescopic wand for
high-reach cleaning.

Crevice tool:
To clean tight and hard-to-
reach areas.
Upholstery tool:
To clean furniture and
other fabrics.
Combination Rug/Floor
Tool:
Cleans hard and soft oors.
Useyourfoottolowerthe
brush for hard oors, or
raise to activate beater bar
for carpets.
Round dust tool:
Usehorsehairbristlesto
hand clean hard and soft
surfaces.
HEPA FILTER SYSTEM
HEPA Filter: Your vacuum is equipped with an individually tested and certied HEPA lter that is 99.97% ecient
at .3 microns or larger. The HEPA lter is located inside the plastic lid.
To remove:
Grasp the plastic lid with
one hand and pull away
one of the tabs that secure
the HEPA lter. Repeat
with other tabs until HEPA
lter is loose and can be
removed from the lid.
To replace:
Slide HEPA lter ange un-
der one tab, then press the
HEPA lter rmly so it locks
inside the plastic lid.
Other Attachments:
Motor Inlet Filter:
This lter should be in-
spected and/or replaced
if clogged with dust and
debris.
Excessive dust on the mo-
tor inlet lter will indicate a
lack of an air seal between
the motor and HEPA lter.
Center Filter Seal Gasket:
This important gasket cre-
ates an air seal between
the vacuum motor and
HEPA lter. Due to the
strength of the air seal,
the act of removing the lid
may cause the center lter
seal gasket to move from
its original position. If this
occurs, inspect the gasket
carefully. Remove any
visible dust or debris, then
carefully seat it securely
back on the base of the
motor column.

Replacement Parts

Parts Drawing
Ref. #

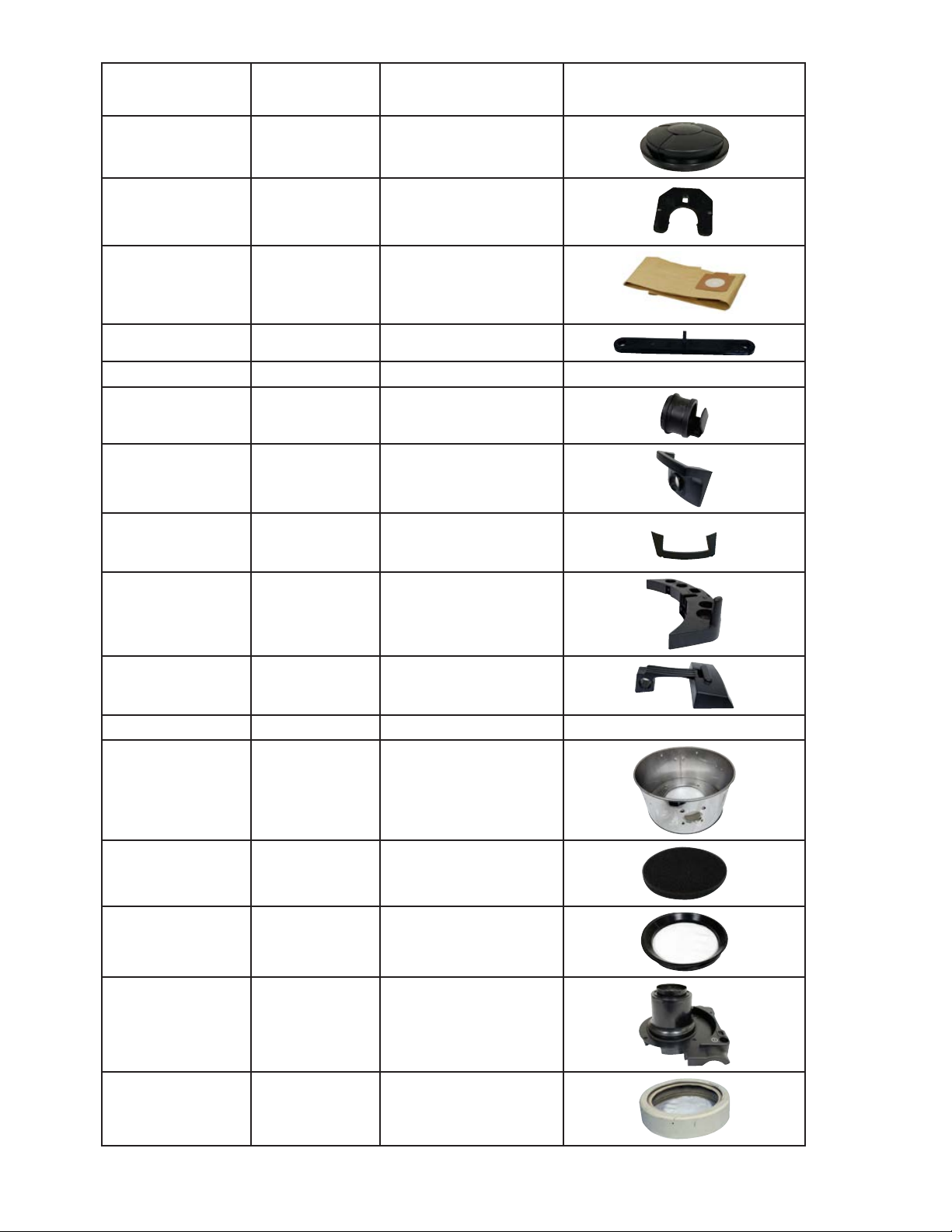

Part Number Description Image
1 124-7011-14-1 Lid Complete
6 124-7032-14 Air Input Plate
7 122-3202-14 Disposable Bag
8 124-7020-14 Filter Bag Block
9 124-7034-14 Pothook Jacket Not Available
10 124-7023-14 Bag Scoop
11 124-7016-14 Carrying Handle
12 124-7022-14 Carrying Handle Cover
13 124-7017-14 Tool Holder
14 124-7007-14 Clamp With Bracket
15 124-7035-14 Pothook Spring Not Available
16 124-7008-14 Stainless Steel Tank
17 124-7036-14 Inlet Filter
18 124-7009-14 Center Filter Seal
19 124-7015-14 Motor Shroud
20 124-7021-14 Motor Fan End Gasket

Parts Drawing
Ref. #
Part Number Description Image
21 124-7028-10 Motor
22 124-7026-14 Noise Reducing Motor
Support
23 124-7024-14 Motor Ring Not Available
24 124-7018-14 Motor Support Spring
25 124-7025-14 Motor Support Plate
26 124-7013-14 Exhaust Foam
27 124-7037-14 Speed Control Bar Not Available
28 124-7038-14 Printed Circut Board
(PCB)
Not Available
29 124-7014-14 Switch Knob
30 124-7019-14 Switch Spring
31 124-7002-14 Switch With Holder
32 124-7006-14 Motor Cover
33 124-7039-14 Thermal Protector
34 124-7004-10 Cordset 120V
35 124-7040-14 Wheel Shaft
36 124-7041-14 Big Wheel w/Jacket
38 124-7012-14 Bumper
39 124-7001-14 Caster

Parts Drawing
Ref. #
Part Number Description Image
40 124-7005-14 Bottom Cover
45 124-7027-14 Auxiliary Outlet Not Available
