Sterling DependaVac 12 User manual

DependaVac 12
(Part # 135-1350-20)
Thank you for choosing Sterling’s DependaVac 12 upright vacuum. This commercial
appliance is well constructed and should provide you with years of professional service
if you take the time to read this manual. For your information, this vacuum was pro-
tectively packed to prevent possible damage in transit. Should damage occur, please
notify the transporting carrier immediately for loss and/or claim. It is also important to
learn the steps for proper assembly, operation and maintenance. It will also make the
product easier to use and save you even more time and money. We suggest you keep
this manual at hand for future reference. We stand behind this product and can help
anytime with a knowledgeable and dedicated customer service sta. Please contact us
anytime at 844-822-7787 or SterlingNA.com
Unpackaging theVacuum - When the machine is delivered, carefully inspect the ship-
ping carton and the machine for damage. If damage is evident, save the shipping carton
so that it can be inspected. Contact Sterling Customer Service Department so a freight
claim can be led.
Machine Assembly
1. Locate Assembly Packet - A packet is included with vacuum and includes
two (2) 2-part bolts and two (2) cord hooks. Also included is an extra drive-
belt.

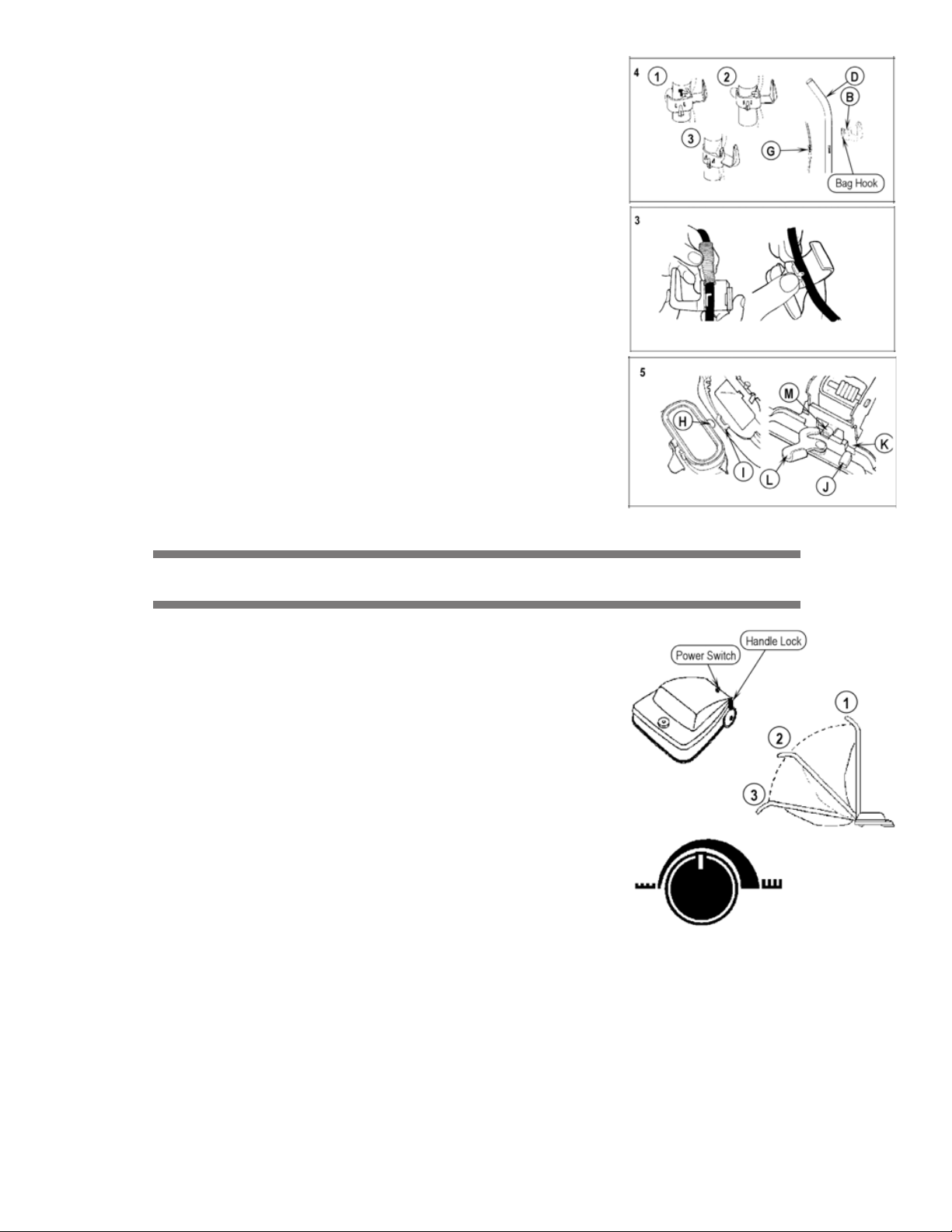

2. Attach Lower / Upper Handle - Slide the upper handle (D) and the lower
handle (E) together so the holes for the handle bolts are aligned and the
slots in the handle are positioned as shown in Figure 2. Insert a 2-part bolt
(A) in the center of the handle and fasten tightly. Position the assembled
handle (D/E) so it curves toward the operator. Push the handle into the
handle socket (F) at the rear of the cleaner. Align the holes, insert the other
2-part bolt (A) and tighten.

3. Attach Upper Cord Hook - Pull the spring (G) on the cord upward toward
the top of the handle. Insert the lower half of the spring (G) into the upper
cord hook (B). Make sure slots in handle are positioned properly (Figure 2).
Place inner tab into slot as shown in (1) and press hook around handle (2),
snapping opposite inner tab into place (3) (Figure 4).
4. Attach Lower Cord Hook - Insert the power cord into the lower cord hook
(C) (Figure 3). Snap the hook into the lower handle. Pull the cord up to tight-
en but leave enough slack near the base so the cord is not strained when
the handle is lowered. Wrap the cord around the two cord hooks. Fasten the
plug to the cord to prevent unwinding.
5. Attach Filter Bag - Position the lter bag adapter clip (H) on the bottom
of the lter bag collar and inside the bag adapter retainer (I) below the air
outlet. Push the bag collar up and forward so the locator tab (J) to the right
of the cam latch (L) slides and engages into the slot (K), then turn the cam
latch to lock the bag onto the shoulder rivet (M). To support the bag, loop
the spring (N) from the top of the bag onto the bag support, located to the
back of the upper cord hook (B) (Figure 2).
Machine Operation
6. Power Switch - The power switch is located at the left rear of machine. Use
foot to step on power switch to turn machine on or o.
7. Handle Adjustment - The handle lock is located at the left rear side of the
machine. Use foot to step on handle lock to release and move handle to
one of three positions.
8. Height Adjustment - This machine has a 6-position carpet height adjust-
ment knob. To select the proper setting, start by moving the knob to the
highest setting. Turn down one setting at a time until the machine’s sound
changes to a smooth buzzing or vibrating tone. This is the sound of the
beater bars grooming the pile. Raising the front of the machine will make it
easier to change settings.
Emptying Cloth Bag - The cloth bag should be emptied frequently for maximum performance. To empty cloth bag,
disconnect power cord from electrical wall outlet. Slide top of bag out of clamp, remove bottom by pulling back on lever
arm on bag collar. Dump contents into a waste container and shake to remove stubborn dust. Reinstall bag on machine.
NOTE: It is not necessary to remove top clamp from machine.
Replacing Disposable Paper Filter Bags (models with zipper bag) - Disconnect power cord from wall
outlet. Unzip the cloth bag and pull the plastic bag throat out of the bag’s top ll sleeve and move coil spring down on
throat. Remove full paper bag and dispose. Slide a new disposable paper lter bag on the plastic bag throat. Move coil
spring up until it stops and paper bag is secure. Zip up cloth bag.
IMPORTANT: For optimum vacuum performance, the disposable paper lter bag should be changed frequently.

The vacuum cleaner is warranteed for 1 year from the date of purchase. Parts not covered under warranty are power
cords, lters, motor brushes and blades. The warranty covers only failure due to defective parts or workmanship and will
be invalidated by improper application and abuse.
Under no circumstances should you return a failed unit to the factory. If you experience any problems with your vacuum
during the warranty period, contact the Customer Service Department.
Limited Warranty
Maintenance
Brush Roll Belt Replacement
CAUTION! Belt and pulley become hot during normal use.
The belt should be checked regularly to ensure proper cleaning. Replace belt if it appears stretched, cracked or is slipping.
Remove bottom chrome plate by turning the two cam locks on each side. Remove worn belt from drive motor pulley.
Remove brush roll from base, and slide o worn belt. Slip new belt around brush roll and reinstall into machine. Install
belt around drive pulley with low side in groove. Be sure belt is installed correctly or brush roll will turn in wrong direc-
tion. Replace chrome cover. NOTE: Be sure brush roll with oset belt drive is orientated correctly, with the shorter length
to the left. Arrows on brush roll end caps indicates the top of cap and shows installation direction. Cut away any hair or
thread wound around the brush roll or the belt pulley because the buildup could cause the belt to rotate unevenly.
Brush Strip Replacement
Remove the bottom chrome plate by turning the two cam locks on each side and remove brush roll from machine. Also
remove nuts and end caps. Slide out worn brush strips and replace. Reassemble brush roll and reinstall in machine.
NOTE: Brush strips come in dierent lengths. See arrow markings on brush roll end caps to conrm direction of brush
strips.
Fan Scroll
The clear plastic fan scroll attached to the underside of the base may be removed and cleaned. Remove the chrome plate
and brush roll belt from pulley. Remove the two screws on either side of the clear scroll, press the cam locks outward and
lift the scroll from the base. Remove any dirt and/or obstructions. Be sure the gasket is in place and the scroll is seated
properly before reattaching, then reinstall belt and chrome plate.
Carbon Motor Brush Replacement
Once a year or after 500 operating hours, have the motor carbon motor brushes replaced. Failure to service carbon mo-
tor carbon brushes will null and void warranty.

Important Safety Instructions
When using an electrical vacuum, basic safety precautions should always be followed, including the following:
READ ALL INSTRUCTIONS BEFORE USING YOUR VACUUM CLEANER
WARNING: To reduce the risk of re, electrical shock, or injury:
1. Do not leave appliance when plugged in. Unplug from outlet when not in use and before servicing.
2. Do not expose to rain. Store indoors.
3. Do not allow to be used as a toy. Close attention is necessary when used by or near children.
4. Use only as described in this manual. Use only manufacturer’s recommended attachments.
5. Do not use with damaged cord or plug. If appliance is not working as it should, has been dropped, damaged, left outdoors, or
dropped into water, contact Customer Service.
6. Do not pull or carry by cord, use as a handle, close a door on cord, or pull cord around sharp edges or corners. Do not run appli-
ances over cord. Keep cord away from heated surfaces.
7. Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.
8. Do not handle plug or appliance with wet hands.
9. Do not put any object into openings. Do not use with any opening blocked; keep free of dust, lint, hair and anything that may
reduce air ow.
10. Keep hair, loose clothing, ngers and all parts of the body away from openings and moving parts.
11. Do not pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes.
12. Do not use without dust bag and/or lters in place.
13. Turn o all controls before unplugging.
14. Use extra care when cleaning on stairs.
15. Do not use to pick up ammable or combustible liquids such as gasoline, or use in areas where they may be present.
16. This vacuum is for commercial use only.
17. Connect to a properly grounded outlet only. See grounding instructions.
SAVE THESE INSTRUCTIONS
GROUNDING INSTRUCTIONS - This appliance must be grounded. If it should malfunction or breakdown, grounding provides a
path of least resistance for electric current to reduce the risk of electric shock. This appliance is equipped with a cord having equip-
ment grounding conductor and grounding plug. The plug must be inserted into an appropriate outlet that is properly installed and
grounded in accordance with all local codes and ordinances.
WARNING: Improper connection of the equipment grounding conductor can result in a risk of electric shock. Check with a quali-
ed electrician or service person if you are in doubt as to weather the outlet is properly grounded.
Do not modify the plug provided with the appliance - if it will not t the outlet, have a proper outlet installed by a qualied electrician.
This appliance is for use on a nominal 120 - Volt circuit, and has a grounded plug that looks like the plug illustrated in sketch A be-
low. A temporary adapter that looks like the adapter illustrat-
ed in sketches B and C may be used to connect this plug to a
2-pole receptacle as shown in sketch B if a properly grounded
receptacle is not available. The temporary adapter should be
used only until a properly grounded outlet (sketch A) can be
installed by a qualied electrician. The green colored ear, lug,
or the like extending from the adapter must be connected to
a permanent ground such as a properly grounded outlet box
cover. Whenever the adapter is used, it must be held in place
by a metal screw.
NOTE: In Canada, the use of a temporary adapter is not permitted by the Canadian Electrical Code.


IMPORTANTES CONSIGNES DE SECURITE
L’utilisation d’un appareil électrique demande certaines précautions:
LIRE TOUTES LES INSTRUCTIONS AVANT DE FAIRE FONCTIONNER CET APPAREIL
AVERTISSEMENT: Pour réduire les risques d’incendie, de choc életrique ou de blessure:
1. Ne pas laisser l’appareil sans surveillance lorsqu’il est branché. De brancher lorsque l’appariel n’est pas utilisé et avant l’entretien.
2. Ne brancher qu’à une prise de courant avec mise à la terre. Voir les instructions visant la miseà la terre.
3. Ne pas permettre aux enfants de jouer avec l’appareil. Une attention particuliére est nécessaire lorsque l’appareil est utilisé par des
enfantsnou à proximité de ces derniers.
4. N’utiliser que conformément à cette notice avec les accessoires recommandês par le fabricant.
5. Ne pas utiliser si le cordon ou la che est endommagé. Retourner l’appareil à un atelier de réparation s’il ne fonctionne pas bien, s’il est
tombé ou s’il a été endommagé, oublié á l’extérieur ou immergé.
6. Ne pas tirer soulever ou trainer l’appareil par le cordon. Ne pas utiliser le cordon comeune poignée, le coincer dans l’embrasure d’une
porte ou l’appuyer contre des arêtes vives ou des coins. Ne pas faire rouler l’appareil sur le cordon. Garder le cordon á l’écart des sur-
faces chaudes.
7. Ne pas débrancher en tirant sur le cordon. Tirer plutot che.
8. Ne pas toucher la che ou l’appareil lorsque vos mains sonthumides.
9. N’insérer aucun object dans les ouvertures. Ne pas utiliserl’appareil lorsqu’une ouverture est bloquée. S’assurer que de la poussiére,
de la peluche, des cheveux ou d’autres matiéres ne réduisent pas le débit d’air.
10. Maintenir les cheveux, les vétements amples, les doigts et toutes les parties du corps a l’écart des ouvertures et des piéces mobiles.
11. Ne pas aspirer de matiéres en combustion ou qui dégagent de la fumée, comme des cigartettes, des allumettes ou des cendres
chaudes.
12. Ne pas utiliser l’appareil si le sac á poussiére ou le ltre n’est pas en place.
13. Mettre toutes les commandes á la position ARRET avant de débrancher l’appareil.
14. User de prudence lors du nettoyage des escaliers.
15. Ne pas aspirer des liquides inammables ou combustibles, comme de l’essence, et ne pas faire fonctionner dans des endroits ou peu-
vent se trouver de tels liquides.
16. Avertissement- Pour réduire les risques de choc électrique, ne pas exposer á la pluie et garder l’aspirateur á l’intérieur.
17. Appareils mis á la terre:“Ne brancher au’á une prise de courant avec mise á la terre. Vois less instructions visant la mise á la terre.
CONSERVER CES INSTRUCTIONS
INSTRUCTIONS VISANT LA MISE Á LATERRE - Cet appareil doit étre mis à la terre. En cas de défaillance ou de panne éventuelles, la mise
à la terre fournit au courant un chemin de moindre résistance qui réduit le risque de choc électrique. Cet appareil est pourvu d’un
cordon muni d’un conducteur de terre et d’une che avec broche de terre. La che doit être branchée dans une prise appropriée cor-
rectment installée et mise à la terre conformement aux réglements et ordonnances municipaux.
AVERTISSEMENT: Un conducteur de terre mal raccordé peut entrainer un risque de choc électrique. Consulter un électricien ou n
technicien d’entretien qualié si vous n’êtes pas certain que la prise est correctement mise à la terre. Ne pas modier la che fournie avec
l’appareil - si elle ne peut être insérée dans la prise, faire installer
une prise adéquate par un électricien quali é.
Cet appareil est destiné à un circuit de 120 V et est muni d’une 
che de mise à la terre semblable à celle illustrée par le croquis A
de la gure. Sassurer que l’appareil est branché à une prise de cou-
rant ayant la mê conguration que la che. Aucun adaptateur ne
devrait être utilisé avec cet appareil.
Las mise à la terre selon les croquis B et C n’est pas permise au
Canada.

