OWNER’S MANUAL
RECUMBENT BIKE

1
SAFETY INSTRUCTIONS
WARNING: Toreduce therisk ofseriousinjury,readthefollowingSafetyInstructionsbeforeusingthe
UprightBike.
1.ReadallwarningspostedontheRecumbentBike.
2.ReadthisOwner'sManualandfollowitcarefullybeforeusingtheRecumbentBike. Makesurethatitis
properlyassembledandtightenedbeforeuse.
3.Werecommendthattwopeoplebeavailableforassemblyofthisproduct.
4.KeepchildrenawayfromtheRecumbentBike. DonotallowchildrentouseorplayontheRecumbentBike.
KeepchildrenandpetsawayfromtheRecumbentBike whenitisinuse.
5.Itisrecommendedthatyouplacethisexerciseequipmentonanequipmentmat.
6.SetupandoperatetheRecumbentBikeonasolidlevelsurface.DonotpositiontheRecumbentBike on
looserugsoruneven surfaces.
7.InspecttheRecumbentBikeforwornorloosecomponentspriortouse.
8.Tighten/replaceanylooseorworncomponentspriortousingtheRecumbentBike.
9. Consultaphysicianpriortocommencinganexerciseprogram.If,atanytimeduringexercise,youfeelfaint,
dizzy,orexperiencepain,stopandconsultyourphysician.
10. Followyourphysician'srecommendationsindevelopingyourownpersonalfitnessprogram.
11. Alwayschoosetheworkoutwhichbestfitsyourphysicalstrengthandflexibilitylevel.Knowyourlimitsandtrain
withinthem.Alwaysusecommonsensewhenexercising.
12.Before usingthisproduct,pleaseconsultyourpersonalphysicianforacompletephysicalexamination.
13. DonotwearlooseordanglingclothingwhileusingtheRecumbentBike.
14. Neverexerciseinbarefeetorsocks;always wearcorrectfootwear,such asrunning,walking,orcross-training
shoes.
15. Becarefultomaintainyourbalancewhileusing,mounting,dismounting,orassemblingtheRecumbentBike,
lossofbalancemayresultinafallandseriousbodilyinjury.
16. KeepbothfeetfirmlyandsecurelyontheFootPedalswhileexercising.
17. TheRecumbentBike shouldnotbeusedbypersonsweighingover400 pounds/181kgs.
18. TheRecumbentBikeshouldbeusedbyonlyonepersonatatime.
19.Maintenance:Replace the defectivecomponentsimmediatelyand/orkeeptheequipmentoutofuseuntil
repairtheequipmentcompletely.
20. TheRecumbentBikeis well-suited tostudiouse(Class S.)
21.MakesurethatadequatespaceisavailableforaccesstoandpassagearoundtheRecumbentBike;keepat
leastadistanceof1meterfromanyobstructionobjectwhileusingthemachine.
WARNING:Beforestartinganyexerciseorconditioningprogramyoushouldconsultwithyourpersonalphysician
toseeif yourequireacompletephysicalexam.Thisisespeciallyimportantifyouareovertheageof35,have
neverexercisedbefore,arepregnant,orsufferfromanyillness.READ ANDFOLLOW THESAFETY
PRECAUTIONS. FAILURETOFOLLOWTHESE INSTRUCTIONSCANRESULTINSERIOUSBODILY

2
INJURY.
BEFORE YOU BEGIN
Thank you for choosing the self-powered Recumbent
Bike. We take great pride in producing this quality
product and hope it will provide many hours of quality
exercise to make you feel better, look better and enjoy
life to its fullest.
Yes, it's a proven fact that a regular exercise program
can improve your physical and mental health.
Too often, our busy lifestyles limit our time and
opportunity to exercise. The Recumbent Bike
provides a convenient and simple method to begin your
assault on getting your body in shape and achieving a
happier and healthier lifestyle.
Before reading further, please review the drawing
below and familiarize yourself with the parts that are
labeled. Read this manual carefully before using the
RecumbentBike.
THE FOLLOWING TOOLS ARE INCLUDED FOR ASSEMBLY:
Console
Pedal
Main Frame
Leveler
Rear Stabilizer
Accessory
Tray
Upright Post
Handlebar
Back
Cushion
Seat
Quick
Access
Key Base
Pulse
Sensor
T-HAND SOCKET
WRENCH (17mm)
SOCKET WRENCH
(13mm)
ALLEN WRENCH
(M6)
COMBINATION
WRENCH

3
HARDWARE IDENTIFICATION CHART
This chart is provided to help identify the hardware used in the assembly process. Place the washers, the end of the bolts,
or screws on the circles to check for the correct diameter. Use the small scale to check the length of the bolts and screws.
NOTICE: The length of all bolts and screws except those with flat heads is
measured from below the head to the end of the bolt or screw. Flat head bolts and
screws are measured from the top of the head to the end of the bolt or screw.
After unpacking the unit, open the hardware bag and make sure that you have all the following items. Some hardware
may be already attached to the part.
Part No. and Description
Qty
86 Lock Washer (M8)
6
87 Washer (8x38x2.0t)
4
96 Screw (M4x10mm)
97 Screw (M4x20mm)
4
3
99 Bolt (M5xp0.8x15mm)
10
100 Bolt (M5xp0.8x30mm)
2
107 Bolt (M8xp1.25x55mm)
2
112 Bolt (M8xp1.25x65mm)
4
117 Bolt (M10xp1.5x50mm)
2

4
“ASSEMBLY PARTS”
Unpack the box in a clear area. Follow the List of Assembly Parts below to check and make sure all assembly parts are
present and in good condition. Do not dispose of the packing material until the assembly process is completed. Assembly
tools and hardware kit have included for you to use when assembling the product
Console
Console Bracket
Handlebar Decoration
Cover
Upright Post Assembly
Front Decoration Cover
Pedal
Leveler
Seat Handlebar Assembly &
Accessory Tray
Upper Handlebar
Adjustment Handle
Back Cushion Frame
Seat
Front and Rear
Stabilizer
Main Frame
Back Cushion & Back
Cushion Cover

5
“ASSEMBLY INSTRUCTIONS”
Place all parts from the box in a cleared area and position them on the floor in front of you. Remove all packing
materials from your area and place them back into the box. Do not dispose of the packing materials until
assembly is completed. Read each step carefully before beginning.
STEP 1–Leveler Assembly
a. Attach 4pcs Levelers (28) to the Front Stabilizer (2) and the Rear
Stabilizer (3.)
b. Be sure to tighten the Levelers (28)securely against the Stabilizers
(2, 3) until screw lines are eliminated as the drawing 1 shown.
STEP 2–Stabilizer Assembly
a. In order to assemble the Stabilizer (2, 3)
smoothly, it is suggested to place one
Styrofoam (or any stationary object)
under one side of the Main Frame (1)
that is going to assemble the stabilizer.
b. Attach the Front Stabilizer (2) and the
Rear Stabilizer (3) onto the Main Frame (1) and secure with the
Washers (8x38x2.0t)(87), the Lock Washers (M8)(86) and the Bolts
(M8xp1.25x65mm)(112)by using the socket wrench. NOTE: If the item is not level, review the LEVELING NOTE on
Detailed Lever- drawing 1
Detailed Lever- drawing 2
Adjustment Plate
Stabilizer
Leveler (28)
Screw line
Stabilizer
Adjustment Plate
Leveler (28)
LEVELING: After placing the bike
in the intended location for use,
check the stability of the bike. If the
bike is not level, reviewing the
following direction:
Loosen the Leveler (28) to make
the Adjustment Plate become less
tight.
Adjust the Leveler (28) for leveling.
Tighten the Adjustment Plate
securely against the Stabilizer to
lock the Leveler (28) in stable
position as the drawing 2 shown.

6
the right side to level the Levelers (28).
“ASSEMBLY INSTRUCTIONS”
STEP 3 –Connection Wire Assembly
a. Plug the Middle Connection Wire (130)into the Lower Connection Wire (131). Be careful not to pinch the wires.
b. Plug the Pulse Sensor Wire 2 (134)into the Pulse Sensor Wire 3 (135). Be careful not to pinch the wires.
STEP 4 –Upright Post Assembly
a. Refer to FIG. 1, check that 2pcs Nylock Nuts (M10)(126) have pre-assembled into the front of the Main Frame (1)
(they will not be tight so that slotted bracket of the upright post will slide between the nut and the frame).
b. Insert the Upright Post (8) into the Main Frame (1) and secure with 2pcs Bolts (M10xp1.5x50mm)(117) by using the
T-HEAD SOCKET WRENCH as shown. Then fully tighten with 2pcs Nylock Nuts (M10)(126).
STEP 5 –Front Decoration Cover Assembly
Attach the Front Decorative Cover (13) onto the front of the Main Frame (1) with 2pcs Bolts (M5xp0.8x30mm)(100).
STEP 6 –Stationary Handlebar Assembly
NOTE: For shipping purpose, 4pcs Bolts (M8xp1.25x20mm)(104) and 4pcs Lock
Washers (86) are attached on the Stationary Handlebar (9).
a. Remove 4pcs Bolts (M8xp1.25x20mm)(104) and 4pcs Lock Washers (86) from
the Stationary Handlebar (9).
b. Insert the Stationary Handlebar (9) into the Upright Post (8) and secure with 4pcs
Bolts (M8xp1.25x20mm)(104) and 4pcs Lock Washers (86).
NOTE: Do not
remove the Nuts
(126) during
assembly

7
“ASSEMBLY INSTRUCTIONS”
STEP 7 –Connection Wire and Console Assembly
a. Plug the Upper Connection Wire (129)into the Middle Connection Wire (130). Be careful not to pinch the wires.
b. Plug the Pulse Sensor Wire 1 (133)into the Pulse Sensor Wire 2 (134). Be careful not to pinch the wires.
c. Place the Console (30) onto the Upright Post (8) and secure with 4pcs Bolts (M5xp0.8x15mm)(99).
STEP 8 –Console Sleeve and Decoration Cover Assembly
a. Attach the Console Sleeve (33) to the Console (30) and secure with 4pcs Bolts (M5xp0.8x15mm)(99).
b. Attach the Upper Handlebar Decoration Cover (33) and the Lower Handlebar Decoration Cover (34) to the
Upright Post Assembly (8) and secure with 3pcs Screws (M4x20mm)(97)and 2pcs Bolts (M5xp0.8x15mm)(99).

8
“ASSEMBLY INSTRUCTIONS”
STEP 9 –Back Cushion Frame
Assembly
NOTE: For shipping purpose, 4 pcs
Lock Washers (M8)(86) and 4 pcs
Bolts (M8xp1.25x20mm)(104) are
attached on the Back Cushion
Frame (6).
a. Loosen 4 pcs Lock Washers (M8)(86) and 4 pcs
Bolts (M8xp1.25x20mm)(104) at both sides of the
Back Cushion Frame (6).
b. Follow the direction of the drawing line. Insert the
Back Cushion Frame (6) onto the Back Cushion
Adjustment Bracket (5) and secure with 4 pcs Lock
Washers (M8)(86) and 4 pcs Bolts
(M8xp1.25x20mm)(104).
STEP 10 –Back Cushion & Cover
Assembly
NOTE: For shipping purpose, 4 pcs
Bolts (M8xp1.25x20mm)(104) and 4pcs
Bolts (M6xp1.0x15mm)(102) are
attached on the back of the Back
Cushion (48).
a. Remove 4 pcs Bolts (M8xp1.25x20mm)(104) and 4pcs Bolts (M6xp1.0x15mm)(102) from the back
of the Back Cushion (48).
b. Attach the Back Cushion (48) onto the Back Cushion Frame (6) and secure with 4 pcs Bolts
(M8xp1.25x20mm)(104).
c. Then attach the Back Cushion Cover (49) onto the Back Cushion (48) and secure with 4pcs Bolts (M6×p1.0×15mm)
(102).
STEP 11 –Adjustment Lever Assembly
NOTE: For shipping purpose, each Adjustment Lever has pre-assembled one pcs Nut
(M8)(122) as the illustration shown on the right.
a. Attach each one Adjusting Handle (39) to two Adjustment Levers to the proper desired
position.
b. To fully secure the Adjusting Handle (39)by rotating the Nut (M8)(122) in
counterclockwise direction until completely reach to the Adjusting Handle (39).
STEP 12 –Accessory Tray Assembly
Refer to FIG.2. Turn the Seat Handlebar (4)to have the Hand Pulse Sensor Plate downward. Attach the Accessory
Tray (40)onto the Seat Handlebar (4) and secure with 4pcs Screws (M4x10mm)(96).
NOTE: Do not damage the Pulse Sensor Wire 4 (136) during Step 12.
STEP 13 –Seat Handlebar Assembly
Follow the direction of the drawing line. Place the Seat Handlebar (4) onto the Main Frame (1) and secure with 2pcs Lock
Washers (M8)(86) and 2pcs Bolts (M8xp1.25x55mm)(107).
STEP 14 –Pulse Sensor Wire Assembly
Connect the Pulse Sensor Wire 4 (136) to the Pulse Sensor Wire 3 (135).

9
“ASSEMBLY INSTRUCTIONS”
STEP 15 –Seat Assembly
NOTE: For shipping purpose, 4 pcs Bolts (M8xp1.25x20mm)(141) are attached at the bottom of the Seat (46).
a. Loosen 4pcs Bolts (M8xp1.25x20mm)(141) at the bottom of the Seat (46).
b. Attach the Seat (46) onto the Seat Frame (7) and secure with 4pcs Bolts (M8xp1.25x20mm)(104).
STEP 15 –Pedal Assembly
Tread the Right Pedal (16) clockwise into the Right Crank located inside the Right Crank Cover. Tighten the pedal
securely. Repeat the same procedure to thread and tighten the Left Pedal (15) counter-clockwise into the Left Crank.
For the final step, make sure all the bolts and nuts are tighten securely before using the item.

10
“OPERATIONAL INSTRUCTIONS”
HOW TO ADJUST CONSOLE ANGLE
To get the best console angle, it’s suggested to use both hands to hold the upper and
lower end of the console (area A or B) and gently adjust the console angle to the proper
position
HOW TO TOW THE ITEM SAFELY
Hold the Rear Stabilizer (3) up with two hands and tow the item to
the desired place carefully
Make sure the floor is level while towing the item
BACK CUSHION ADJUSTMENT
To adjust the most suitable angle, pull the Back
Cushion Adjustment Bar upward while lying on the
cushion.
Release the Back Cushion Adjustment Bar and
hear the “click”sound to secure the desired angle of
the back cushion.
SEAT ADJUSTMENT
To adjust the most suitable position, pull the Seat
Adjustment Bar upward to move the seat forward
and backward.
Once adjusting to the most suitable position, release the Seat Adjustment Bar until hearing “click”sound.
Back Cushion
Seat Adjustment Bar
Seat
Back Cushion
Adjustment Bar

11
“CONSOLE OVERVIEW & CONSOLE BUTTON”
Console Buttons:
Button Name
Function Description
START
Press START to begin/continue your exercise.
PAUSE
Press PAUSE to pause all functions during your exercise program. All the data on the display
will pause except for PULSE readout
STOP
Press STOP to stop current profile, all the date will reset to its original setting value except for
PULSE readout
UP
Press UP to increase the level of tension during exercise
DOWN
Press DOWN to decrease the level of tension during exercise
BACK
Press BACK to return to previous page
Speaker
Speaker
MP3/CD
player Jack
Mute
Button
Headphone
Jack
The console display may vary slightly from the actual console display, the above console
overview is for reference only

12

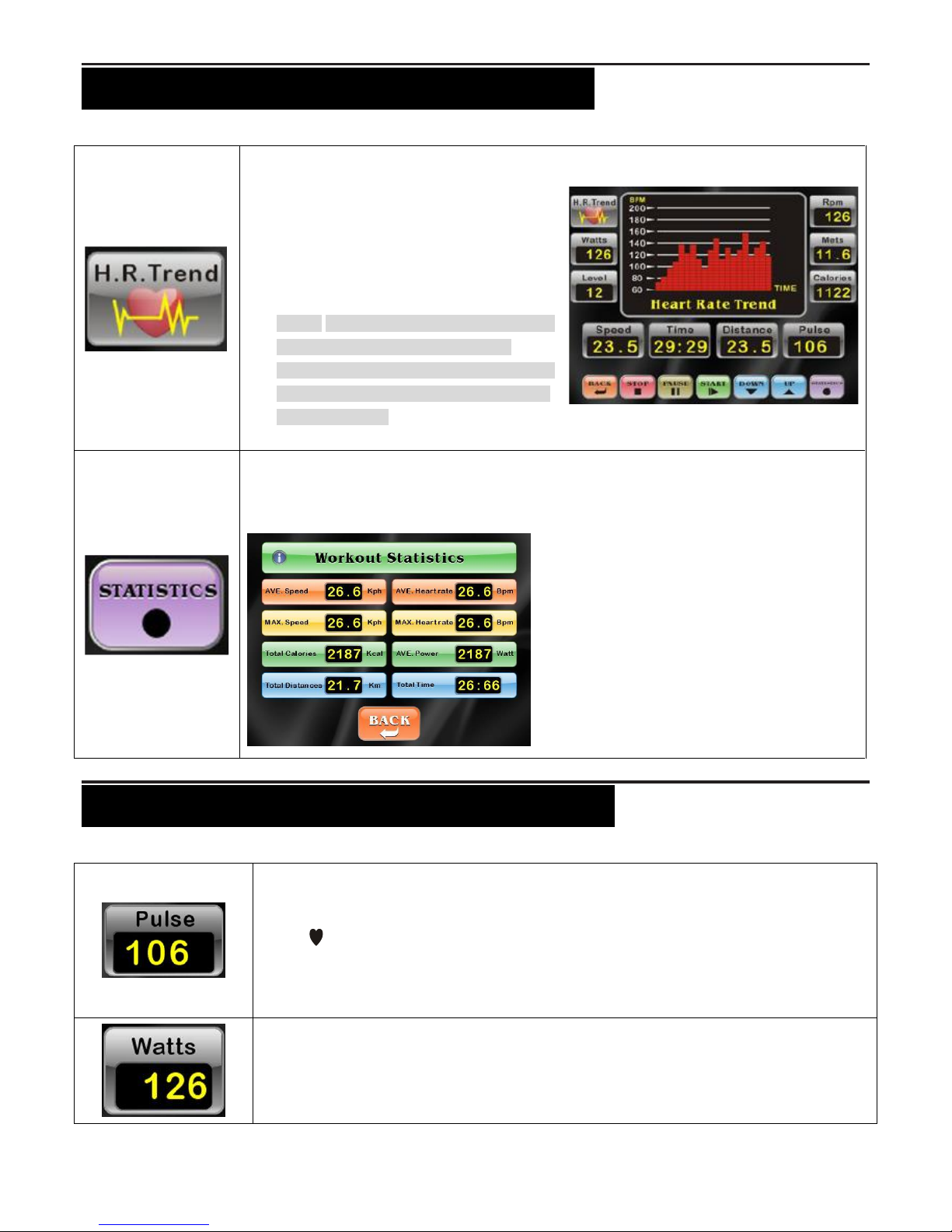

“CONSOLE INSTRUCTIONS –CONSOLE BUTTON”
Console Buttons:
H.R. Trend:
Press H.R. Trend to review your heart rate
chart.
The Heart Rate Trend is recorded
automatically in every 60 seconds if the
user’s actual heart rate is able to detect by
the console.
NOTE: Please be sure to wear a chest belt
or place both of hands on the Pulse
Sensors located on the Handlebar in order
to make sure that the pulse readout could
be able to detect.
Press H.R. Trend again to return to the workout program.
STATISTICS:
Press STATISTICS to review your workout statistics. NOTE: The button is able to press at
anytime to review the workout statistics during exercise.
“CONSOLE INSTRUCTIONS –CONSOLE FUNCTION”
Console Functions:
PULSE:
Wear chest belt or place both of hands on the Pulse Sensors located on the
Handlebar. The pulse will be displayed within several seconds after the heart symbol
“ ” is displayed.
If the hands are not correctly positioned on the sensors, and a few seconds passes
without a pulse input, the console will turn off the pulse circuit. Replace hands back on
the Pulse Sensors correctly, and the pulse readout will appear again.
WATT:
Display range: 0 ~ 999 Watt.

13
“CONSOLE INSTRUCTIONS –CONSOLE FUNCTION”
LEVEL: For this TFT console, the LEVEL HAS TWO MEANINGS, SINCERELY PLEASE TAKE
A LOOK BELOW,
For Manual, Constant Power Program, Level means “resistance/tension level”; Display
range: 1 ~ 20 resistance levels.
For FITNESS, RANDOM, ROLLING, FAT BURN, ASCENT, IRON MAN, MOUNTAIN,
WEIGHT LOSS, INTERVAL, VALLEY, Level means “Workout Difficulty Level”; Display
range: 1 ~ 20 workout difficulty levels. For example, The level of 20’s Watt range would be
heavier than the level of 8’s Watt range. The lower level of workout difficulty you select, the
workout difficulty Watt range would decrease, making more easier for user to exercise.
SPEED:
Display range: 0.0~99.9 km/h.
TIME:
Count Up: If a target time is not selected, TIME will count up from 0:00 to maximum 99:59
minutes.
Count Down: If a target time is set, (5:00 TO 99:00; 1 MINUTE INCREMENTS), the console
will count down from that selected target time to 0:00.
DISTANCE:
Display range: 0.0~99.9 km/h.
RPM:
Display range: 0~255.
CALORIES:
Display range: 0~9999.
METS:
Definition: MET or metabolic equivalent is a term commonly used to measure or express an
average person’s metabolic rate, is the amount of oxygen used by an average seated person. One
MET is the amount of energy or oxygen used to sit quietly for a minute.
1 MET= 3.5ml/kg/min (the body consumes 3.5 milliliters of oxygen a minute for each kilogram of
body weight), is the energy (oxygen) used by the body at rest, while sitting quietly or reading a
book, for example.
The harder your body works during the activity, the more oxygen is consumed and the higher the
MET level. If you are exercising at a level of 7 METS, this means that you are working about 7
times as hard as you would be at rest. You are consuming about 7 times the amount of oxygen as
you would at rest as well.
Activity that burns 3 to 6 METs is considered moderate-intensity physical activity.
Activity that burns > 6 METs is considered vigorous-intensity physical activity.

14
“CONSOLE OPERATION”
Power ON:
Pedaling over 25rpm to power on the console. The console will display the stand-by screen as below.
Power Off:
The console would automatically shut off after 60 seconds of inactivity.
Boot Screen:
Stand-by screen displays 3 seconds later will then enter into the Boot Screen as below:
On Boot Screen, there are 3 main workout options.
1. Quick Start: Starting exercise directly in Manual Program without any setting.
2. Profile: including Basic profile and Advanced profile.
3. Heart Rate Control (60%, 65%, 70%, 75%, 80% and 85%)
NOTE:
►The console would shut down any time if rechargeable batteries are run out of power.
►If pedaling over 35rpm, the item will start charging batteries.
Boot Screen

15
“CONSOLE OPERATION –QUICK START”
Quick Start:
1. Press “Quick Start”on Boot Screen.
After selecting Quick Start, following countdown pages will display sequentially.
►The countdown pages will appear before every entry of final main page.
2. Enter into final main page as below.
Press START to start workout
Press DOWN to decrease the
level of tension during exercise
Press UP to increase the level
of tension during exercise
Press STATISTICS to review your
average value of workout statistics
Press PAUSE to pause all functions during
your exercise program. All the data on the
display will pause except for PULSE
readout
Press STOP to stop current
profile, all the date will reset to its
original setting value except for
PULSE readout
Press BACK to return to
previous page
Press H.R.
Trend to
review your
heart rate
chart during
exercise.

16
“CONSOLE OPERATION –PROFILE”
Profile:
1. Press “Profile”on Boot Screen.
2. Enter into Main Profile Selecting page.
Main Profile Selecting
There are 2 workout profiles for options.
■Basic Profile: 6 different workout programs are available under Basic Profile.
■Advanced Profile: 6 different workout programs are available under Advanced Profile.
LEVEL: For this TFT console, the LEVEL HAS TWO MEANINGS, SINCERELY PLEASE TAKE ALOOK BELOW,
For Manual, Constant Power Program, Level means “resistance/tension level”; Display range: 1 ~ 20
resistance levels.
For FITNESS, RANDOM, ROLLING, FAT BURN, ASCENT, IRON MAN, MOUNTAIN, WEIGHT LOSS, INTERVAL,
VALLEY, Level means “Workout Difficulty Level”; Display range: 1 ~ 20 workout difficulty levels. For example,
The level of 20’s Watt range would be heavier than the level of 8’s Watt range. The lower level of workout difficulty
you select, the workout difficulty Watt range would decrease, making more easier for user to exercise.

17
“CONSOLE OPERATION –BASIC PROFILE”
“A”Basic Profile Instruction:
1. Press “Basic Profile”.
2. Enter into diagrams’selection page.
Options include Manual, Fitness, Random, Rolling, Fat Burn, Ascent, total in 6 diagrams. Press the desired diagram
to workout.
3. Enter into Weight page and input the value of weight; display range: 30 ~ 181 kgs.
NOTE: When enter into
Random profile, the
workout profile will
randomly create each
time
Press BACK to return to
previous page.
Press QUICK START to start
exercise immediately.
Press NEXT to enter into Weight
Page for setting your weight.
Press BACK to return to
previous page.
Press QUICK START to
start exercise immediately.
Press NEXT to enter into TIME
Page for setting the desired time.
NOTE: Display range
from 30~181kgs

18
“CONSOLE OPERATION –BASIC PROFILE”
4. Enter into Time page and select the desired value of time; display range: 5:00 ~ 99:00.
“B”Instruction Note for During Exercise:
H.R. Trend:
Press H.R. Trend to review your heart rate chart.
The Heart Rate Trend is recorded automatically in
every 60 seconds if the user’s actual heart rate is
able to be detected by the console.
NOTE: Please be sure to wear a chest belt or
place both of hands on the Pulse Sensors
located on the Handlebar in order to make sure
that the pulse readout could be able to detect.
Press H.R. Trend again to return to the workout program.
STATISTICS:
Press STATISTICS to review your average value of workout statistics. NOTE: The button is
able to press at anytime to review during exercise. Press Back to return to the workout
program.
Press BACK to return to
previous page.
Press QUICK START to
start exercise immediately.
Press NEXT to
start exercise.
NOTE: Display range
from 5:00 ~ 99:00

19
“CONSOLE OPERATION –ADVANCED PROFILE”
“A”Advanced Profile Instruction:
1. Press “Advanced Profile”.
2. Enter into diagrams’selection page.
Options include Constant Power, Iron Man, Mountain, Weight Lose, Interval, Valley, total in 6 diagrams. Press the
desired diagram to workout
Before operating CONSTANT POWER PROGRAM, review the difference between the CONSTANT POWER and the
CONSTANT RESISTANCE function:
Level Control (Constant
Resistance) in most of workout
programs
Watt Control (Constant Power) in Constant Power program
“RPM RESISTANCE --
Resistance does not change even
though the quantity of RPMs
(Rotate Per Minute) increases or
decreases under the Level
Control Mode during workout.
No matter how fast you pedal, the
resistance is fixed.
The resistance depends on the value of RPM (Rotate Per Minute.)
“RPMRESISTANCE; RPMRESISTANCE ”
In order to remain at a consistent effort level (watts) (once you set up the
desired Watt value), the computer will start monitoring the user’s pedaling
speed/RPM.
If the RPMs (Rotate Per Minute) increase (when you pedal faster), the
Resistance will decrease (becomes lighter.)
On the contrary, the Resistance increases (becomes heavier resistance) when
the value of the RPMs decreases (when you pedal slower.)
Constant Power:
program of Watt Control;
Watts display range: 30
~350 watt
