Sting Kiddy Kruisin Administrator Guide

SERVICE AND TECHNICAL SUPPORT CALL: FAMILY FUN COMPANIES [phone] WWW.FAMILYFUNCOMPANIES.COM
1

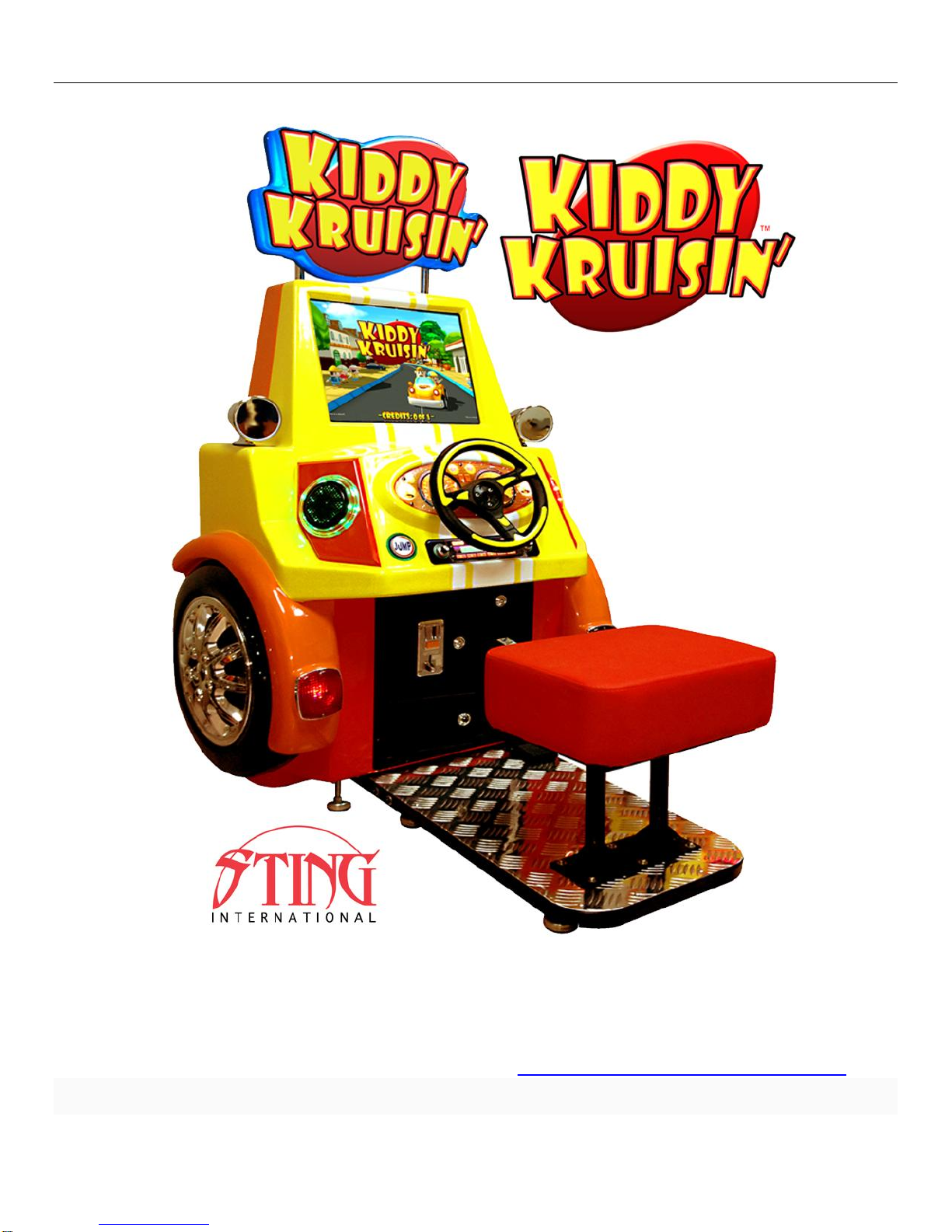

GAME OPERATION & INSTRUCTION MANUAL
FOR ALL PARTS, SERVICE, AND TECHNICAL SUPPORT
PHONE: [phone] FAX: [phone] WWW.FAMILYFUNCOMPANIES.COM
STING INTERNATIONAL, © 2013 ALL RIGHTS RESERVED

SERVICE AND TECHNICAL SUPPORT CALL: FAMILY FUN COMPANIES [phone] WWW.FAMILYFUNCOMPANIES.COM
2
“KIDDY KRUISIN UPRIGHT”
TABLE OF CONTENTS
1. GAME FEATURES .…………..……………………………………………………3
2. PLAY INSTRUCTIONS .………..………………………………………………….3
3. DIMENSIONS & TECHNICAL PARAMETERS .…..…………………………....4
4. PARTS OF THE MACHINE .……….………………………….......……………...5
5. INTEGRAL STRUCTURE OF THE GAME ..…………………….……………...7
6. INSTALLATION OF THE GAME .……….……………………………………......8
8. POWER SUPPLY ……….…….………………………………………………........9
10. HARDWARE COMPONENTS ….………………………………………...........10
11. DRIVING VIDEO GAME SOFTWARE DESCRIPTION ....………………...…11
12. WIRING DIAGRAMS …….…….…...……....……………...……………..….…17
13. PARTS LIST …….…….…...……....……………...……………...............….…18

SERVICE AND TECHNICAL SUPPORT CALL: FAMILY FUN COMPANIES [phone] WWW.FAMILYFUNCOMPANIES.COM
3
1. GAME FEATURES
1. FULL GELCOAT FIBERGLASS CABINET IS RICHLY DETAILED AND
FEATURES MANY CUSTOMIZED PARTS AND HIGHLIGHTS SUCH AS
WORKING TURN SIGNAL LAMPS, and LIGHTED DASH PANEL.
2. INTUITIVE VIDEO GAME PLAY FEATURES A 3D PC DATABASE AND FULLY
INTERACTIVE COURSE WITH CHALLENGES FOR ALLAGES.
3. GAMEPLAY PROGRAMMING, PLAY TIME, BONUS OPTIONS AND TICKET OR
DBV OPTIONS ARE EASILY ADJUSTABLE!
4. DBV OPERATION OR TICKET PAYOUT FEATURE IS OPTIONALAND
ADJUSTABLE BY THE OPERATOR IN THE GAME SET UP MENU!
2. PLAY INSTRUCTIONS
1. ENTER THE CORRECT NUMBER OF CREDITS. THE GAME WILL START
AUTOMATICALLY WHEN THE PROPER NUMBER OF CREDITS HAS BEEN
ENTERED. THE GAME SCREEN WILL DISPLAY THE INTERACTIVE GAME
PLAY.
2. USE THE “GAS PEDAL” TO ACCELERATE YOUR CAR. TRY YOUR BEST TO
COLLECT AS MANY “COINS” AS YOU CAN FOR INCREASING YOUR SCORE
DURING THE GAME.
3. PRESS “JUMP” BUTTON TO AVOID ANY ROADBLOCKS OR FOR AVOIDING
OTHER CARS. USE “JUMP” TO COLLECT HIGHER “COINS”.
4. PICK UP THE TURBO “GAS TANK” DURING YOUR DRIVE. THIS AWARDS THE
TURBO EFFECT. YOUR CAR WILL SPEED UP AUTOMATICALLY!
5. AT GAME OVER, THE GAME WILL PAY OUT TICKETS ACCORDING TO
YOUR SCORE! [ONLY IF THE GAME IS SET FOR THE “TICKET PAYOUT”
FUNCTION IN THE GAME MENU AND OPTIONS].

SERVICE AND TECHNICAL SUPPORT CALL: FAMILY FUN COMPANIES [phone] WWW.FAMILYFUNCOMPANIES.COM
4
3. DIMENSIONS & TECHNICAL PARAMETERS
(1) GAME DIMENSIONS：
OCCUPIED AREA: W85CM * D107CM * H150CM
(W33.5” * D42.1” * H59”)
MAIN CABINET ASSY: W85CM * D55CM * H150CM
(W33.5” * D21.7” * H59”)
SEAT BASE AND ASSY : W40CM * D75CM * H45CM
(W15.8” * D29.6” * H17.8”)
(2) POWER REQ: AC 110V±5%, 50/60HZ, (or, AC220V±5% 50HZ)
FOR THE SPECIFIC VOLTAGE USE, PLEASE REFER TO
THE GAME’S NAMEPLATE.
(3) MAXIMUM POWER：100W
(4) WEIGHT：150 LBS. /68KGS
(5) OPERATION TEMP：-10~+40℃, 86PA~106PA. (INDOOR ONLY)
(6) NUMBER OF PLAYERS: 1 PLAYER
59”H/ 150CM
33.5”/85CM
42.1”/107CM

SERVICE AND TECHNICAL SUPPORT CALL: FAMILY FUN COMPANIES [phone] WWW.FAMILYFUNCOMPANIES.COM
5

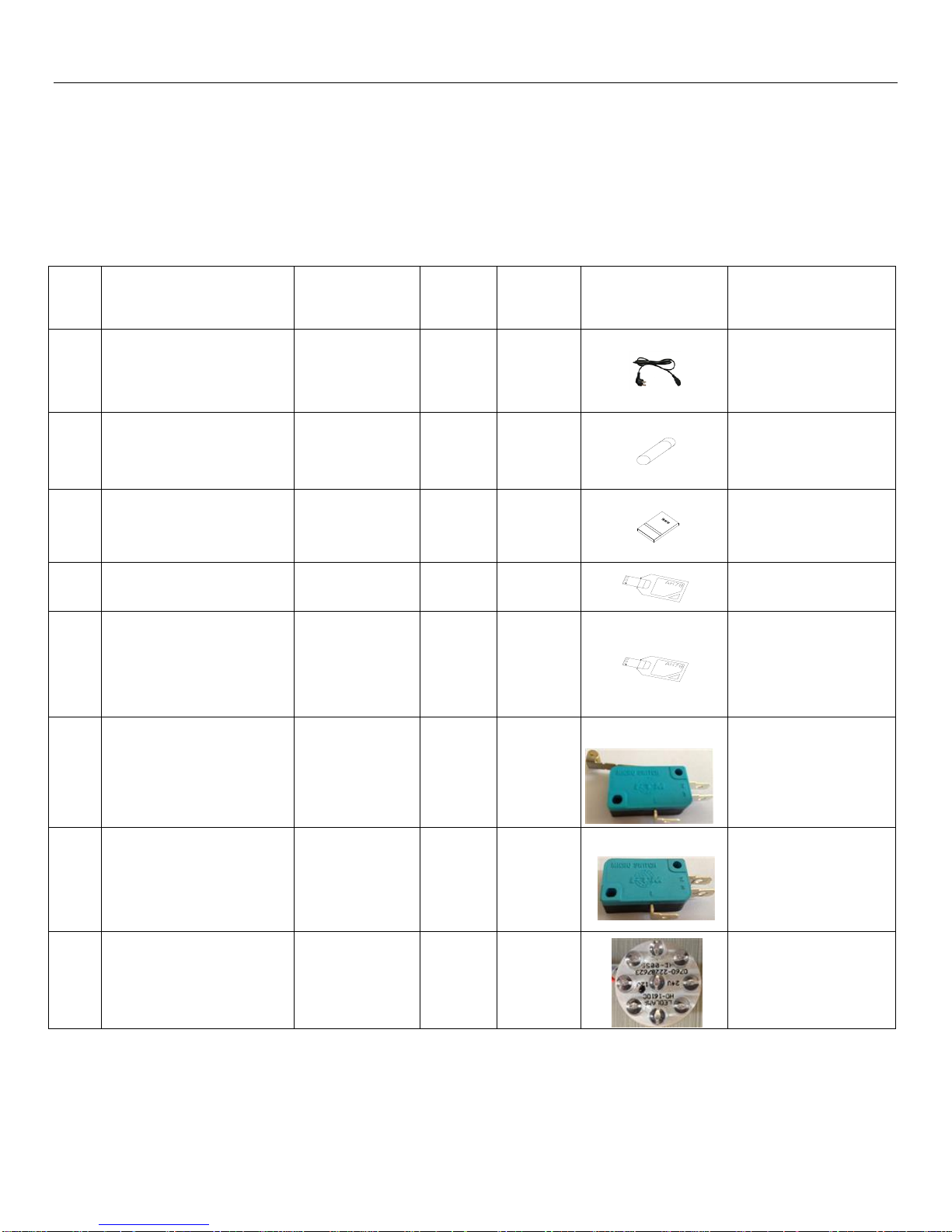

4. PARTS OF THE MACHINE
REFER TO THE CHART BELOW FOR THE MACHINE PARTS LOCATIONS AND THE CONTENTS
OF THE SPARE PARTS KIT SUPPLIED WITH THE GAME.
SPARE PARTS KIT CONTENTS:
NO
DESCRIPTION
SIZE
QTY
UNIT
REMARKS
1
AC POWER CABLE
1
PC
2
FUSE
5XΦ20MM
2
PC
10A
3
GAME MANUAL
1
PC
4
KEY FOR CASH
BOX & BACK DOOR
2
PC
3157
5
KEY FOR COIN
MECH DOOR &
TICKET DOOR
2
PC
3172
6
STEERING WHEEL
MICRO SWITCH
1
PC
7
“JUMP” BUTTON
MICRO SWITCH
1
PC
8
FRONT LAMP LED
1
PC

SERVICE AND TECHNICAL SUPPORT CALL: FAMILY FUN COMPANIES [phone] WWW.FAMILYFUNCOMPANIES.COM
6
4.1 “U”-DISC SYSTEM BACK UP [GAME SOFTWARE REINSTALL]
IN THE UNLIKELY EVENT YOUR GAME SOFTWARE SHOULD BE INTERRUPTED
AND THE GAME FAIL TO LOAD PROPERLY, THIS “U” DISC INCLUDED WITH YOUR
GAME MAY BE USED TO RESTORE THE GAME SOFTWARE OPERATING
SYSTEM.
YOUR GAME IS A PC BASED HARDWARE SYSTEM. SUDDEN POWER SURGES,
HIGH CHARGES OF STATIC ELECTRICITYAND OTHER SUCH ABNORMAL IN
RUSH OF CURRENT MAY CAUSE THIS. IT IS SIUMPLE AND FAST TO RESTORE
THE SYSTEM WITH THE FOLLOWING PROCEDURE.
This machine has included an additional “U” disc for situations caused by power surges.
Function
In the event of a sudden surge of power, the video may freeze or the game may not log in
normally. In this case, please take this U disc which is found next to the main PC and insert
into USB port on host PC. After inserting, game system software will be reinitialized
automatically. After installing, game will run normally. Please put U disc back into the storage
port for future use if necessary.

SERVICE AND TECHNICAL SUPPORT CALL: FAMILY FUN COMPANIES [phone] WWW.FAMILYFUNCOMPANIES.COM
7

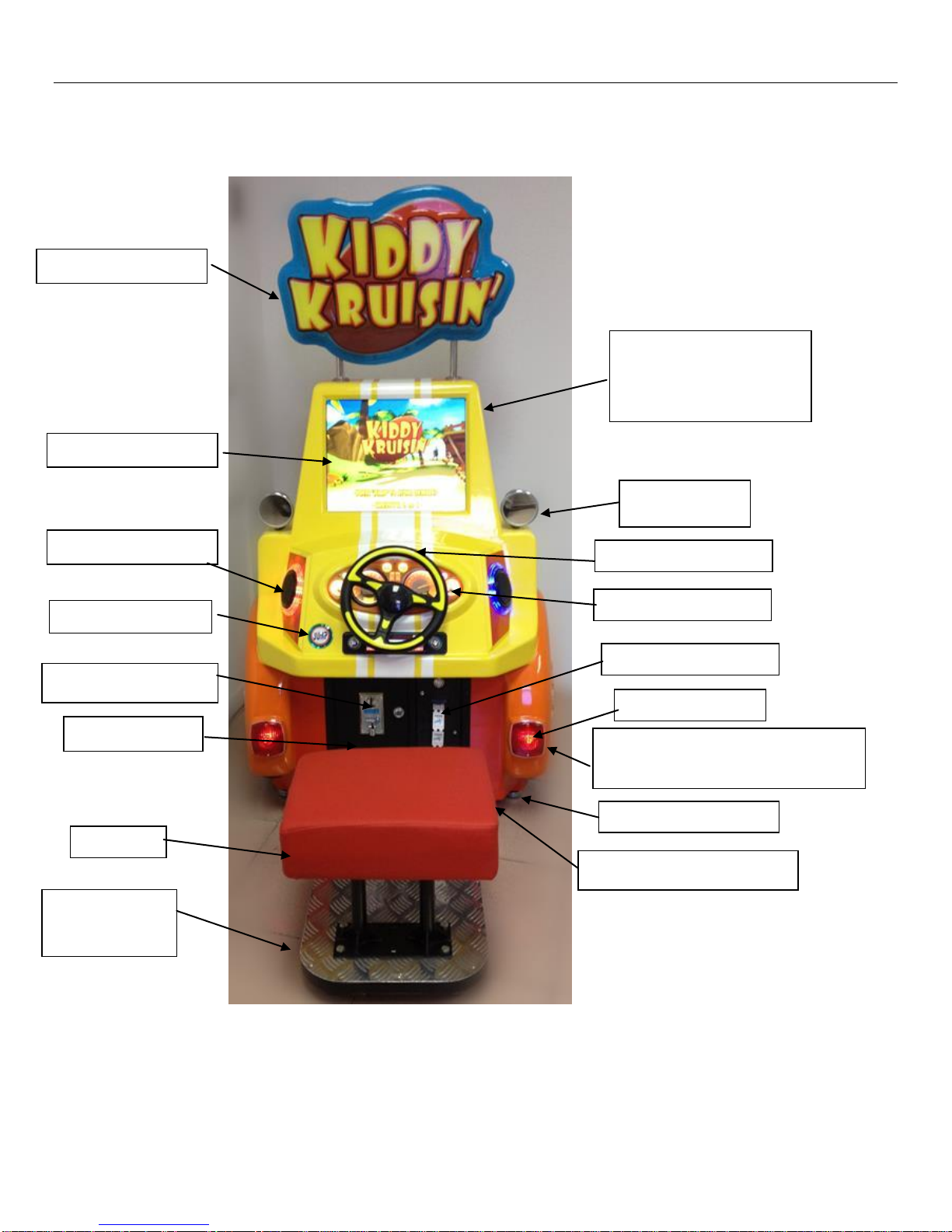

5. INTEGRAL STRUCTURE OF THE GAME
19” LCD MONITOR
STEERING WHEEL
COIN MECHANISM
CASH VAULT
ACCELERATOR PEDAL
“JUMP” BUTTON
MAIN PC & I/O
ACCESS LID
(LOCKING, BACKSIDE)
MAIN POWER SWITCH &
POWER CORD (BACK SIDE)
LIGHTING BOX
SPEAKERS (2)
MIRROR (2)
TICKET
DISPENSER
SEAT
SEAT METAL
FLOOR
FRONT LIGHT
SUPPORT FOOT
DASHBOARD

SERVICE AND TECHNICAL SUPPORT CALL: FAMILY FUN COMPANIES [phone] WWW.FAMILYFUNCOMPANIES.COM
8

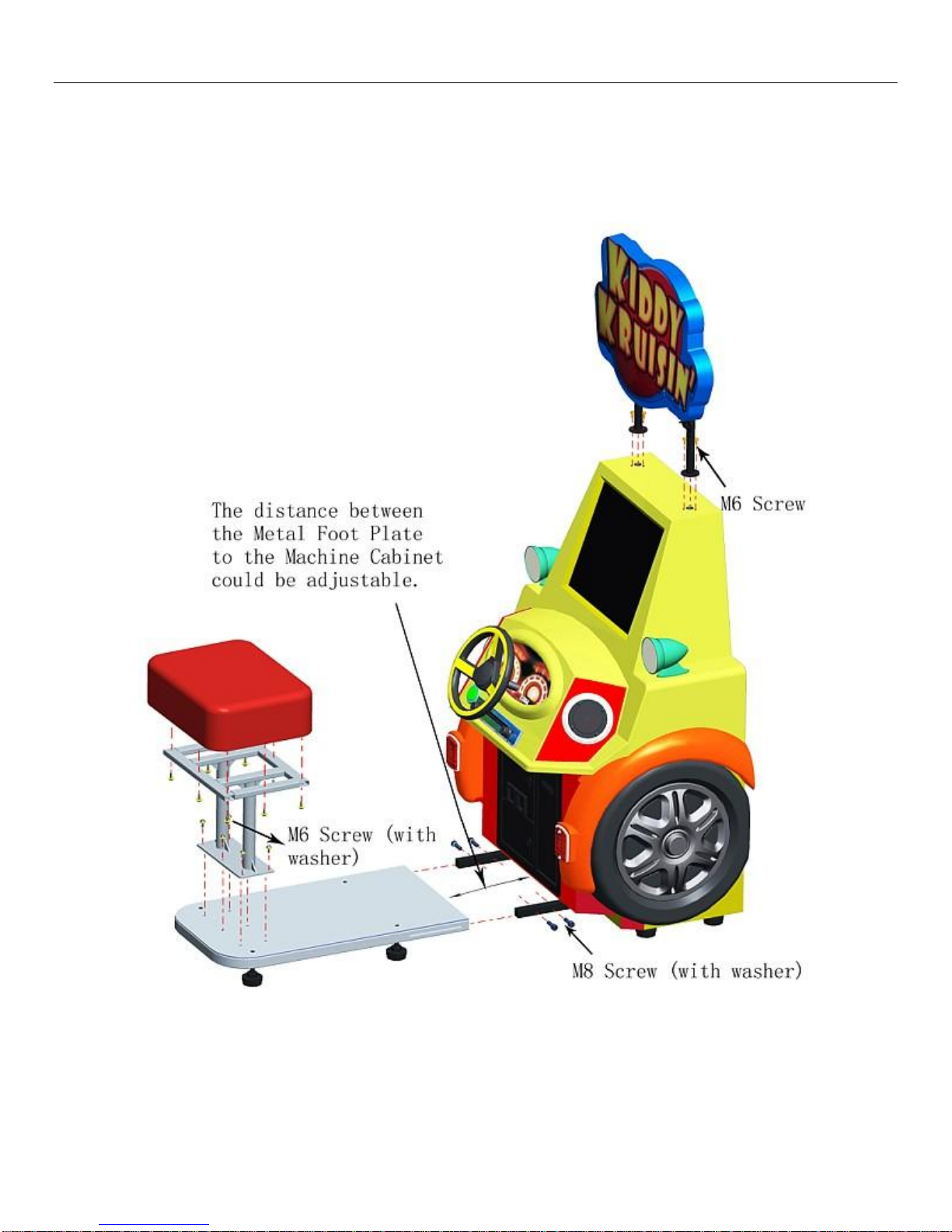

6. INSTALLATION OF THE GAME
(1) INSTALLATION GUIDANCE.
THE MACHINE MAY ONLY BE USED IN A SAFE, INDOOR ENVIRONMENT.
USE OF THE GAME OUTDOORS IS PROHIBITED.

SERVICE AND TECHNICAL SUPPORT CALL: FAMILY FUN COMPANIES [phone] WWW.FAMILYFUNCOMPANIES.COM
9
7.POWER SUPPLY
(1) POWER SUPPLY INPUT;
(2) THIS MACHINE USED FOR POWER 110V/AC 50/60Hz, (or, 220V±5% 50HZ).
FOR THE SPECIFIC VOLTAGE USE, PLEASE REFER TO THE GAME’S
NAME PLATE.
THERE IS A FUSE LOCATED IN THE FUSE HOLDER TUBE WHICH IS; 110V
10A, DIA 20MM (FOR 110V/AC VERSION) or, “220V 10A., DIA 20MM (FOR
220V/AC 50Hz VERSION).

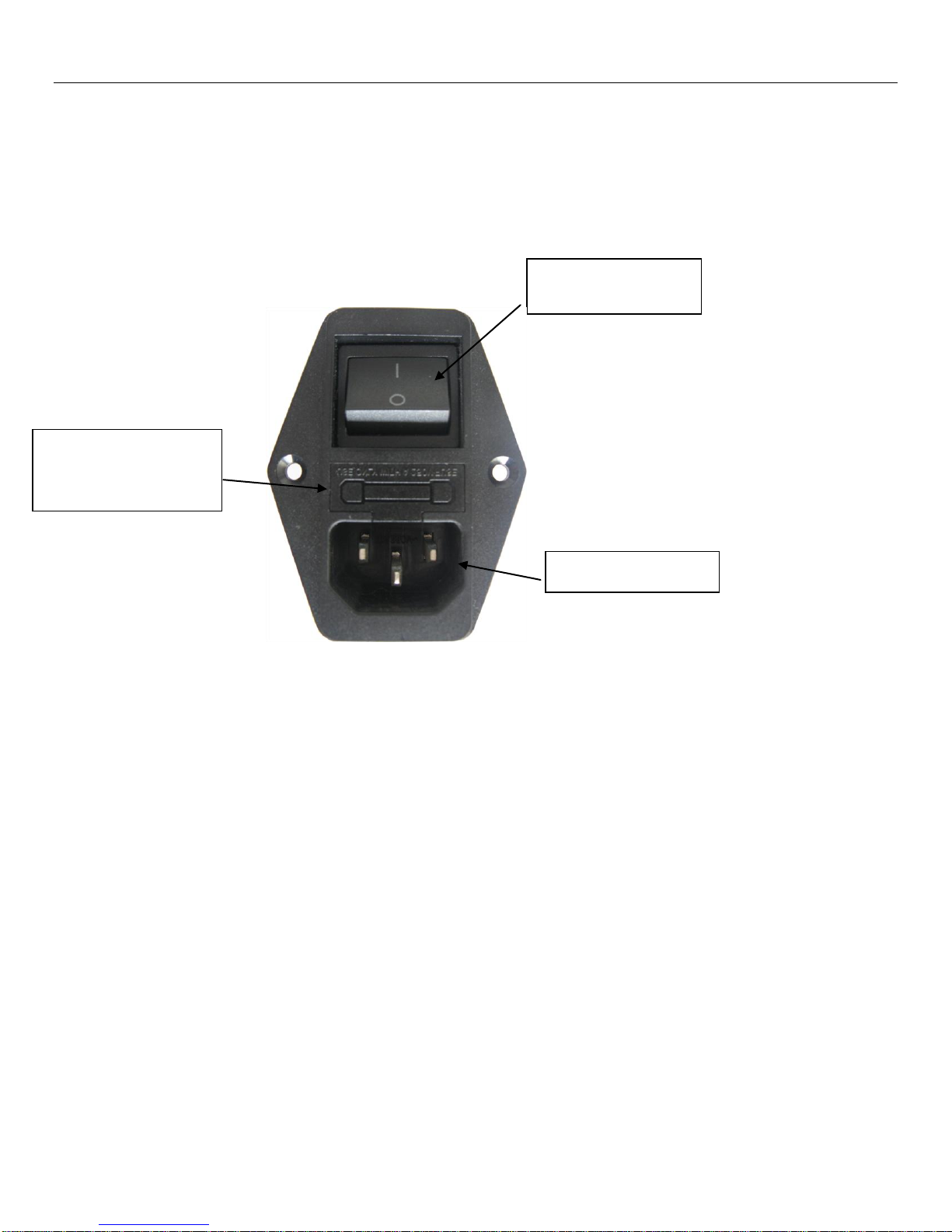

MAIN POWER
SWITCH
AC CORD INLET
FUSE HOLDER
TUBE AND COVER

SERVICE AND TECHNICAL SUPPORT CALL: FAMILY FUN COMPANIES [phone] WWW.FAMILYFUNCOMPANIES.COM
10
8. HARDWARE COMPONENTS
HOST PC
I/O BOARD
AUDIO AMPLIFIER
POWER
SUPPLY
ACADAPTOR FOR
HOST PCSUPPLY
AC ADAPTOR
FOR LCD
MONITOR

SERVICE AND TECHNICAL SUPPORT CALL: FAMILY FUN COMPANIES [phone] WWW.FAMILYFUNCOMPANIES.COM
11
9. DRIVING VIDEO GAME SOFTWARE DESCRIPTION

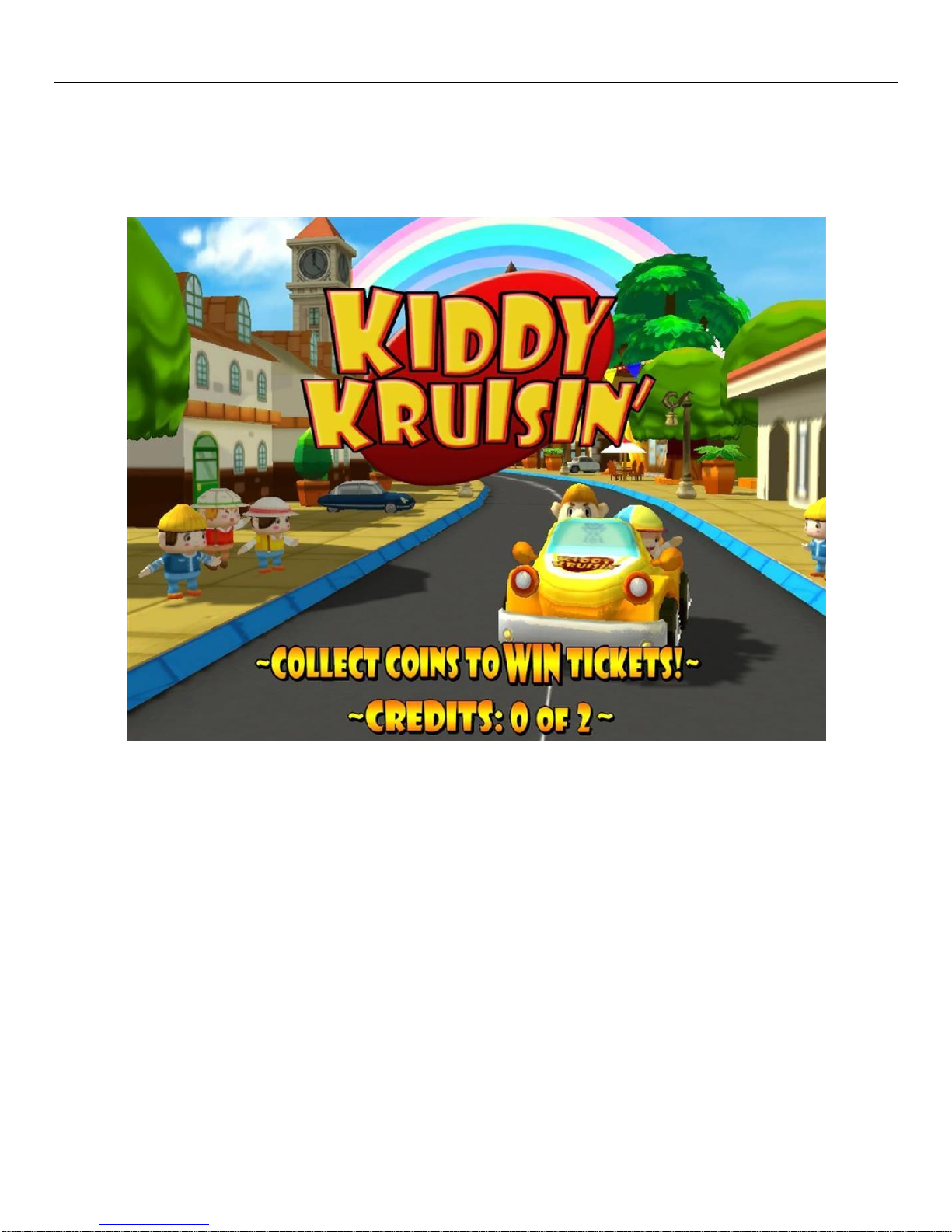

(1) GAME ATTRACT & DEMO SCREEN:

SERVICE AND TECHNICAL SUPPORT CALL: FAMILY FUN COMPANIES [phone] WWW.FAMILYFUNCOMPANIES.COM
12
COINS = 1
PT. SCORE
PLAY TIME
REMAINING
CURRENT
SCORE
GAS TANK
TURBO
REWARD
PLAYER’S
VEHICLE
BONUS (TIME
EXTENDED)
CURRENT
SPEED

SERVICE AND TECHNICAL SUPPORT CALL: FAMILY FUN COMPANIES [phone] WWW.FAMILYFUNCOMPANIES.COM
13

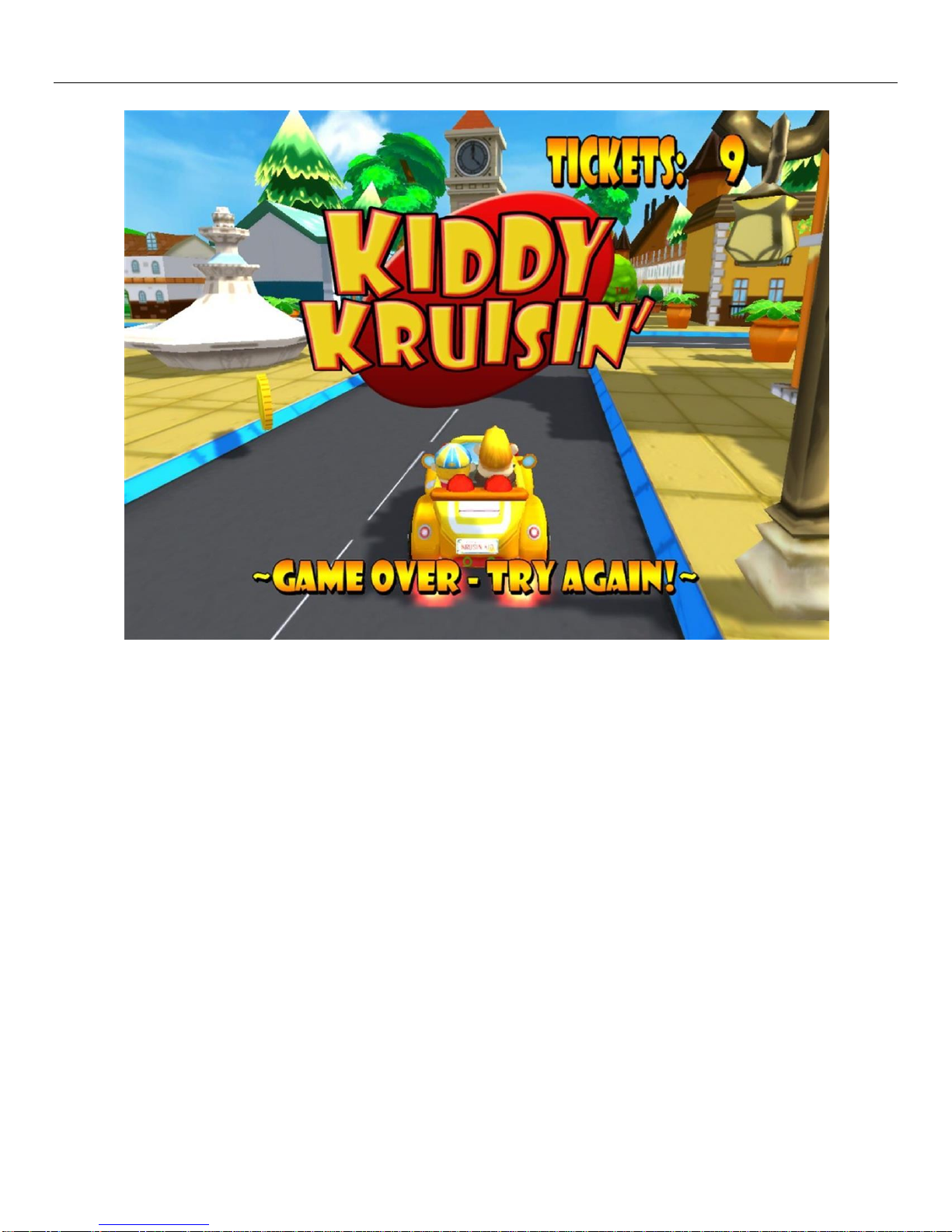

WHEN THE TICKET FUNCTION IS ENABLED AND A TICKET MECHANISM IS INSTALLED
[NO DBV], GAME SCORES ARE TOTALLED AND CONVERTED INTO TICKETAWARDS
WHICHARE DISPENSED AT THE END OF THE GAME ACCORDING TO THE DESIRED
TICKET PAYOUT SETTING WITHIN THE OPERATOR MENU AND ADJUSTMENTS.
WHEN A DBV OPTION HAS BEEN INSTALLED, THE TICKET MECHANISM FUNCTION IS
DISABLED AND ONLY THE GAME SCORE IS DISPLAYED.
(2) GAME OPERATIONS & SET UP MENU ON FOLLOWING PAGES:

SERVICE AND TECHNICAL SUPPORT CALL: FAMILY FUN COMPANIES [phone] WWW.FAMILYFUNCOMPANIES.COM
14

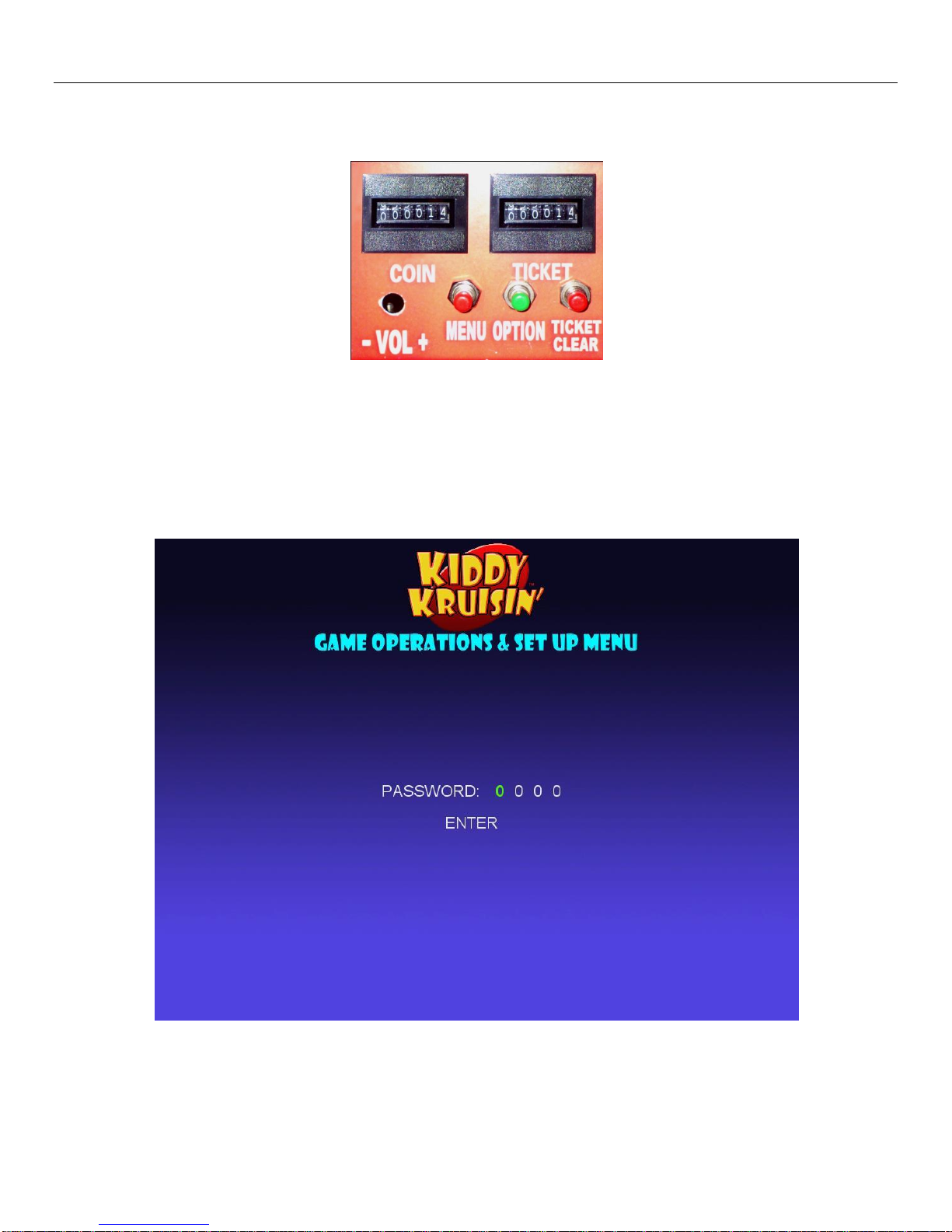

OPEN THE COIN DOOR AND YOU WILLSEE THE SETTING/METER PANELAT THE TOP OF COIN BOX;
TO ENTER THE MENU STATE ON SCREEN- PRESS: “MENU” INSIDE THE DOOR ON THIS
SETTING/METER PANEL, THEN YOU WILL SEE THE SCREEN AS BELOW. CONTINUE TO
PRESS “MENU” UNTIL YOU HIGHLIGHT THE WORD: “ENTER”. TO ENTER THE MENU STATE,
THEN PRESS “OPTION”. IN THE EVENT YOU ACCIDENTALLY CHANGE THE PASSWORD,
PLEASE ENTER THE DEFAULT PASSWORD (DEFAULT PASSWORD IS 0000).
AFTER ENTER PASSWORD, PRESS “MENU”, MOVE TO ENTER, THEN PRESS; “OPTION” TO
ENTER INTO NEXT PAGE（SEE FIGURE 2 ）
PRESSING “MENU” AGAIN AND AGAIN ADVANCES THROUGH ALL OF THE VARIOUS MENUS

SERVICE AND TECHNICAL SUPPORT CALL: FAMILY FUN COMPANIES [phone] WWW.FAMILYFUNCOMPANIES.COM
15
AVAILABLE. PRESSING “OPTION”, WHEN IN ANY GIVEN MENU, WILL HIGHLIGHT THE OPTION
DESIRED AND STEP THROUGH THE OPTIONS OF THAT MENU.
WHEN ALL OF THE MENU OPTIONSARE CHOSEN- OR AT ANY TIME- THE OPERATOR SIMPLY
CAN PRESS THE “JUMP” BUTTON ON THE CONTROL PANELAND RETURN TO NORMAL GAME
PLAY.
YOU MAY EXIT THE MENU AND RETURN TO NORMAL GAME PLAY FROM ANY
MENU SCREEN EXCEPT “TEST” BY PRESSING THE “JUMP” BUTTON.
PRESS THE “JUMP” BUTTON ON THE CONTROL PANEL AT ANY TIME TO EXIT
THE MENU EXCEPT IN THE TEST MENU!

SERVICE AND TECHNICAL SUPPORT CALL: FAMILY FUN COMPANIES [phone] WWW.FAMILYFUNCOMPANIES.COM
16

SERVICE AND TECHNICAL SUPPORT CALL: FAMILY FUN COMPANIES [phone] WWW.FAMILYFUNCOMPANIES.COM
17
10. WIRING DIAGRAM

SERVICE AND TECHNICAL SUPPORT CALL: FAMILY FUN COMPANIES [phone] WWW.FAMILYFUNCOMPANIES.COM
18

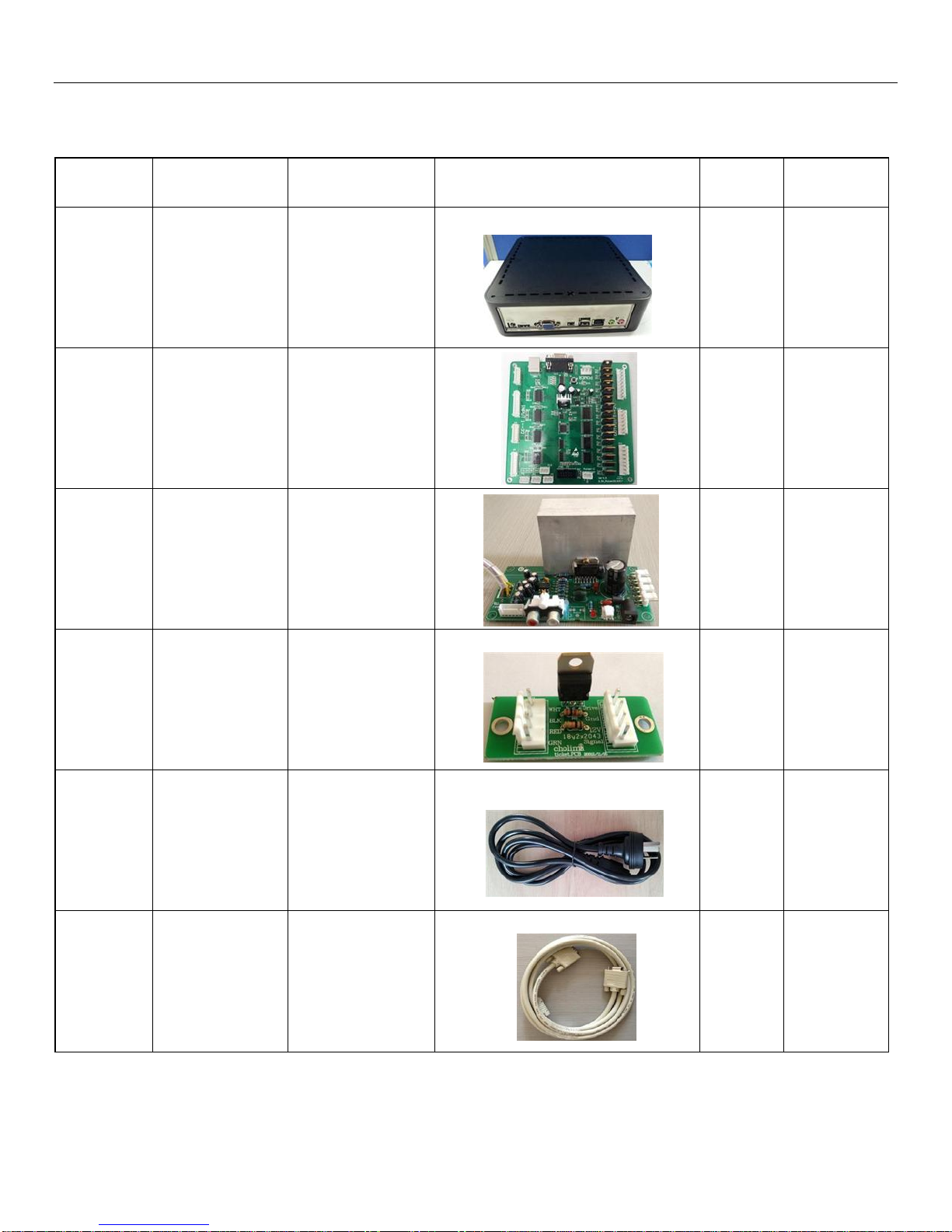

11. GAME PARTS LIST AND LOCATION
PART
NO.
PART'S
NAME
LOCATION
QTY
UNIT
KKU-001
HOST PC
INSIDE BACK
CABINET
UPPER
1
PC
KKU-002
I/O BOARD
INSIDE BACK
CABINET
UPPER
1
PC
KKU-003
AUDIO AMP
PCB
INSIDE BACK
CABINET
LOWER
1
PC
KKU-004
TICKET
DISPENSER
TRANSFER
PCB
INSIDE BACK
CABINET
LOWER
1
PC
KKU-005
POWER
CABLE
LOWER BACK
CORNER AT
AC INLET
1
PC
KKU-006
DATA CABLE
INSIDE BACK
CABINET
UPPER
1
PC

SERVICE AND TECHNICAL SUPPORT CALL: FAMILY FUN COMPANIES [phone] WWW.FAMILYFUNCOMPANIES.COM
19
KKU-007
SIGNAL
CABLE
INSIDE BACK
CABINET
UPPER
1
PC
KKU-008
SPEAKER
LAMP LED
PCB
FRONT
SPEAKER(S)
LEFT & RIGHT
2
PC
KKU-009
FRONT
FENDER
LAMP LED
FRONT LEFT
& RIGHT SIDE
OF CABINET
2
PC
KKU-010
HEADER
SIGN LED
STRIP
INSIDE THE
HEADER
GRAPHIC
MARQUEE
2
PC
KKU-011
RADIO
GRAPHIC
LED LAMP
INSIDE
BEHIND THE
FRONT RADIO
GRAPHIC
1
PC
KKU-012
19" LCD
MONITOR
FRONT
1
PC
KKU-013
MONITOR
TEMPERED
GALSS
MOUNTS IN
FRONT OF
THE LCD
MONITOR
1
PC

SERVICE AND TECHNICAL SUPPORT CALL: FAMILY FUN COMPANIES [phone] WWW.FAMILYFUNCOMPANIES.COM
20

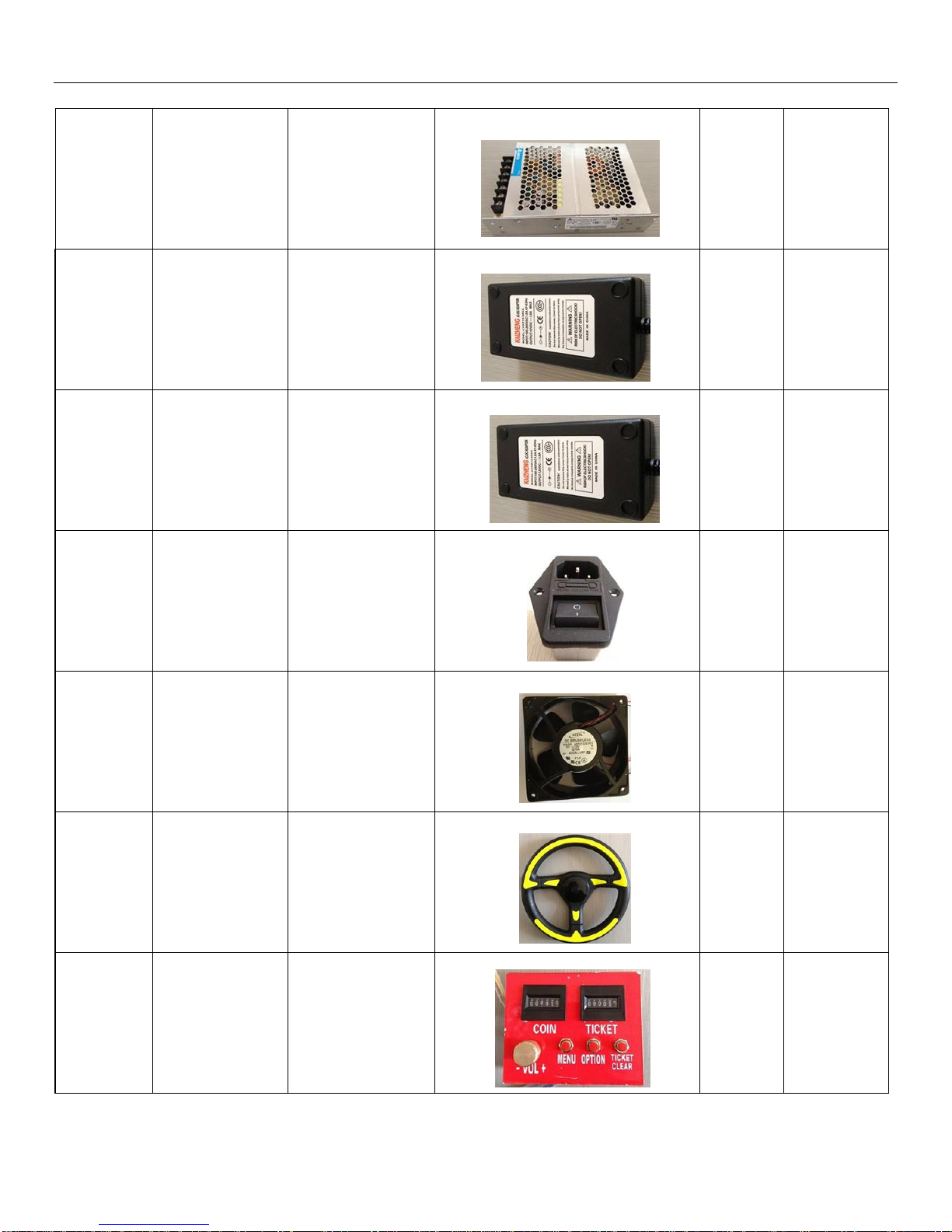

KKU-014
POWER
SUPPLY
INSIDE BACK
CABINET
UPPER
1
PC
KKU-015
AC
ADAPTOR
FOR LCD
MONITOR
INSIDE BACK
CABINET
UPPER
1
PC
KKU-016
AC
ADAPTOR
FOR HOST
PCB
INSIDEBACK
CABINET
UPPER
1
PC
KKU-017
POWER
SUPPLY
INPUT
LOWER BACK
OF CABINET
REAR
1
PC
KKU-018
FAN
INSIDE OF
THE BACK
CABINET
UPPER
1
PC
KKU-019
STEERING
WHEEL
FRONT
1
PC
KKU-020
GAME
MENU, COIN
& METER
PANEL
INSIDE
CABINET
COIN DOOR
1
SET
