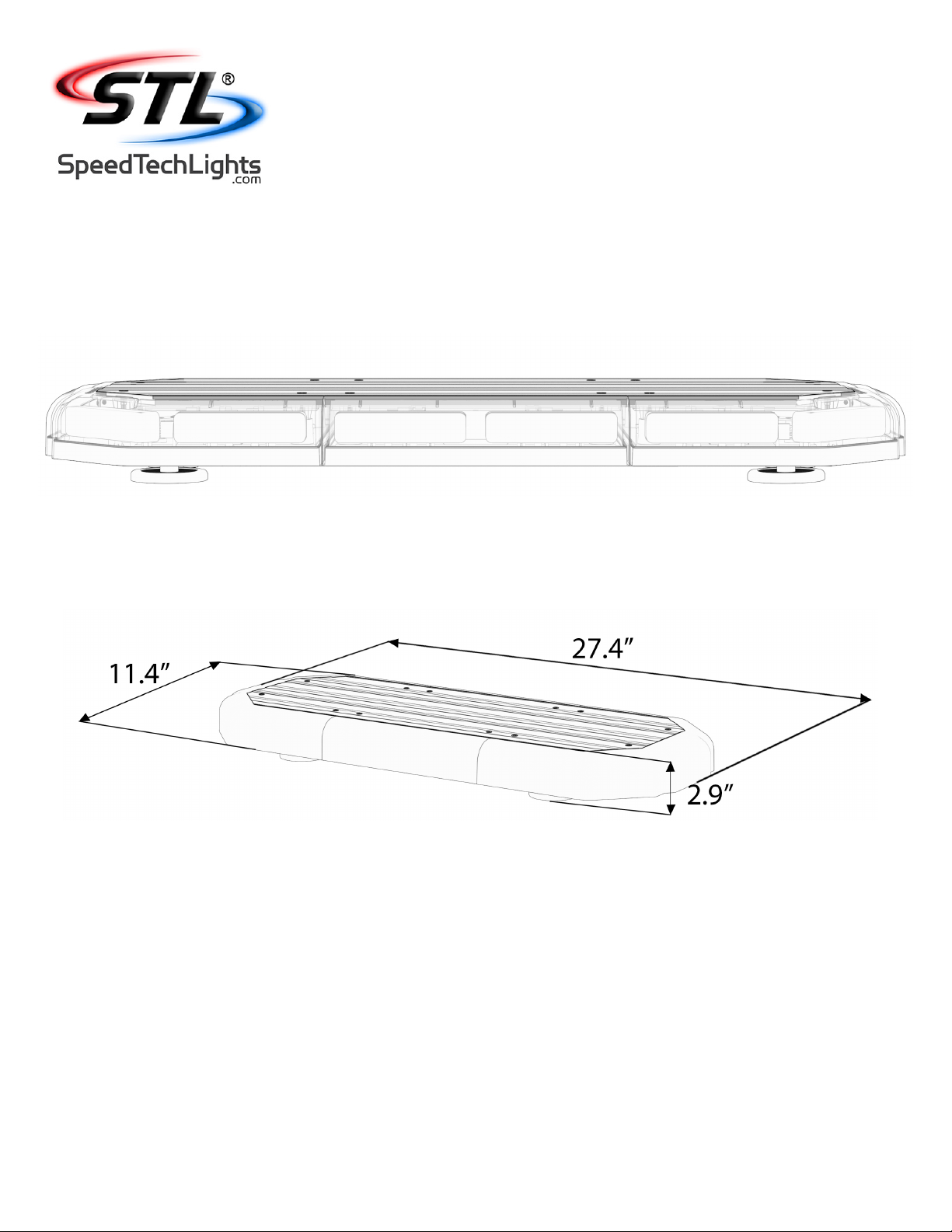

K-FORCE®27 LINEAR
MINI LIGHT BAR
M-LKFMC27
INSTRUCTION MANUAL

2SpeedTech Lights, Inc © 2021
K-FORCE®27 LINEAR
MINI LIGHT BAR
Warnings and Notices for Users and Installers
This document must be delivered to and read by the end user and installer as it serves to provide you with the required information for proper and
safe use of your STL product. Before operating this or any STL products the user and installer must read this manual all the way through. You will nd
important information in this manual that could prevent property damage and/or serious injury to the user and installer.
STL products are intended to alert pedestrians and other operators of the presence of personnel, the operation of emergency vehicles, an emergency
site, and any warning needs. This does not ensure that pedestrians or drivers will react, heed, or observe emergency warning signals. Nor does the use
of emergency signals grant or ensure you the right of way. It is your responsibility to make sure you can proceed safely before driving against tra󰀩c,
entering an intersection, responding at a high rate of speed, or walking on or around tra󰀩c lanes.
Your STL emergency vehicle devices should be tested daily to ensure the device and all its functions are operating correctly. If you experience a
malfunction contact STL’s Customer Service immediately for troubleshooting options, or a warranty or service claim. You must ensure that the projection
of the visual and audible signal is not blocked by vehicle components (i.e.: open trunks, visors, compartment doors), vehicles, other obstructions, or
people.
This is professional grade equipment and is intended for strict use by authorized personnel only. It is the user’s responsibility to understand and obey all
laws regarding emergency warning devices. You must know and be familiar with all applicable city, state, and federal laws and regulations prior to the
use of emergency vehicle warning devices.
SpeedTech Lights, Inc assumes no liability for any loss resulting from the use of this warning device. Proper installation is vital to the performance of the
warning devices and safe operation of the emergency vehicle. Since the operator is under stressful environments the equipment must be properly wired
and mounted to ensure e󰀨ectiveness and safety. Therefore controllers must be properly installed and placed within convenient reach of the operator so
eye contact with the roadway is never lost.
The e󰀨ectiveness of your STL equipment is highly dependent upon correct mounting and wiring. Improper wiring and mounting of the warning device will
reduce the output and performance of the equipment. Emergency warning devices frequently require high electrical voltages and/or currents. Properly
protect and use caution around live electrical connections. Grounding or shorting of electrical connections can cause high current arcing, which can
cause severe personal injury and/or serious vehicle damage, including re.
Electromagnetic interference can be caused by many electronic devices used in emergency vehicles. To ensure that this doesn’t happen to you, Light
Bars should be mounted a minimum of 12” - 34” from the radio antenna and do not power your equipment from the same circuit or share the same
grounding circuit with radio communication equipment. After installation, test all the vehicle’s equipment together to ensure everything operates free of
interference.
Driver and/or passenger airbags (SRS) will impact the way you mount your equipment. Any equipment installed in the deployment area of the airbags
will damage or dislodge the airbags and sensors. This will also reduce the e󰀨ectiveness of the airbags to protect the passengers and therefore these
areas must be avoided. Installers must make sure that this equipment along with any parts, hardware, wiring, power supplies, and switch boxes do not
interfere with the airbags, SRS wiring, or sensors.
All STL equipment needs to be mounted and installed according to the vehicle manufacturer’s instructions and securely attached to a part of the vehicle
of su󰀩cient strength to withstand the forces applied by the equipment. This device should be permanently mounted within the zones specied by the
vehicle manufacturer. This especially applies to equipment mounted on the exterior of the vehicle to avoid dislodging. Mounting units on the interior of
the vehicle by a method other than permanent mount is discouraged as it may become detached under aggressive driving conditions such as sudden
braking, collision, or swerving.
PROPER INSTALLATION COMBINED WITH OPERATOR TRAINING IN THE PROPER USE OF EMERGENCY WARNING DEVICES IS ESSENTIAL
TO ENSURE THE SAFETY OF EMERGENCY PERSONNEL AND THE PUBLIC.
Unpacking Your STL Product
• Unpack your unit to identify all parts including but not limited to: Light Bar, switch box, brackets, screws, bolts, wiring harness, fuses, etc.
• Some parts may be in small bags.
• Some products may be packaged inside boxes of other products.
• Some parts such as Gutter Brackets, may be in the foam protection. Double check that no parts are left within the foam protection or left in the box.

3SpeedTech Lights, Inc © 2021
K-FORCE®27 LINEAR
MINI LIGHT BAR
Important Points for Your Safety and Longevity of Your Light Bar
• Installers are required to have a good understanding of automotive electronic systems and procedures for proper installation.
• Never stare directly into the LEDs as momentary blindness and/or eye damage may occur.
• Never take any lights through a car wash. Use only water to clean the outer body/lens of your equipment.
• Never use a pressure washer to clean any STL products. Inspect and test your product daily to ensure it operates properly and is mounted
correctly.
• Never cut wires or work on a unit while the unit is still connected to a power source.
• Never install this product or route any wires through or in the deployment area of the airbag. Doing so may cause serious personal injury as it will
damage or reduce the e󰀨ectiveness of the airbag by causing the unit to become a projectile. Reference the owner’s manual for your vehicle to nd
the airbag deployment area. The User/Installer assumes all responsibility to determine proper mounting location, based on providing ultimate safety
to all passengers in the vehicle.
• If the product requires you to drill holes, the installer must ensure that the drilling process does not damage any vehicle components or other vital
parts. Check all sides of the mounting surface before beginning to drill. Make sure to deburr all drilled holes and remove any metal remnants or
shards to avoid injury and wires from becoming spliced. Grommets are to be installed in all wire passage holes.
• Grommets, cable ties, looms, and other installation hardware should be used to anchor and protect all wiring. Fuses should be properly sized and
located as close to the power take o󰀨 points as possible to protect the wiring and device. To protect against short circuits, a fuse is included by STL
for all products. DO NOT use a fuse with a higher amp rating than the initial fuse included by STL for all products.
• Insulation displacement connectors are not to be used.
• In order for STL products to operate at optimum e󰀩ciency, a secure and good electrical connection to the battery’s Ground Post must be made. The
recommended procedure requires the unit’s ground wire be connected directly to the NEGATIVE (-) battery post. DO NOT use Circuit Breaks.
• Instruction manuals should be stored in a safe place for reference if you need to reinstall the unit or perform maintenance. They can also be
found at the main site under the product listing at www.SpeedTechLights.com. If your product is no longer available on the website contact STL’s
Customer Service at 800-757-2581 for assistance.
• If your product requires the use of a control box or remote device to turn on and control your equipment, make sure it is installed in a location that
allows both the user and the vehicle to operate safely in any driving condition.
• Never activate or control your equipment in hazardous driving conditions.
• Use SXL type wire in the engine compartment where higher heat resistance is required according to SAE J-1128. All wires should be in accordance
with the minimum wire size and other recommendations made by the manufacturer and be protected from hot surfaces and moving parts.
• FAILURE TO FOLLOW THESE SAFETY PRECAUTIONS, WARNINGS, NOTICES, AND INSTRUCTIONS COULD RESULT IN DAMAGE TO THE
PRODUCT OR VEHICLE THAT WILL VOID YOUR WARRANTY AND/OR CAUSE SERIOUS INJURY TO YOU AND YOUR PASSENGER.
Pre-Installation and Testing
BENCH TEST all units prior to installation by connecting the Positive Cable (Red) and Negative Cable (Black) to a power source to ensure all the
features and parts of the Light Bar are functional.
Test Check List:
• LED diode and LED Module functionality
• Flash patterns
• Non-volatile memory
• Physical damage
If you have trouble, call Customer Service at 800-757-2581 before proceeding.
Maintenance
While STL’s Light Bars are very durable, there are some things you need to keep in mind and practice to preserve the longevity and function of your Bar.
• Never take any STL Light Bars through a car wash, such as a pressure washer, automatic car wash, brushes that will scratch your equipment or
similar car washes or equipment where chemicals, high pressure water, and materials may scratch or damage your equipment.
• Use Water (H2O) with a soft cloth to clean your Light Bar and lenses.
• Yellowing of clear lenses may occur overtime. Lenses can be purchased by calling STL Customer Service at 800-757-2581.

4SpeedTech Lights, Inc © 2021
K-FORCE®27 LINEAR
MINI LIGHT BAR
Specications
Voltage 12 VDC
Amps < 11.8
Optic Linear
LED Count 168
Cable Length 12’ Light Bar Cable, 1.5’ Cig Plug Cable, 12.5’ AUX Cable
Flash Patterns 40
Grand Control Switch Box Operation (Sold Separately)
Power Button:
• Toggle to power the Light Bar On and O󰀨.
Flash Pattern Button:
• Toggle button to cycle to the next ash pattern with each press.
• Non-Volatile memory recalls the last ash pattern selected.
• Hold for 2 seconds to toggle Steady Burn mode.
• Hold for 3 seconds to toggle Random pattern mode.
TD Button*:
• 1st press: Steady Burn Alley.
• 2nd press: Alley Power O󰀨.
AUX Button*:
• Toggle power to AUX cables On and O󰀨.
Back Plate Mount:
• Included with Grand Control Switch Box purchase.
* Warning lights do not need to be activated for these Buttons to function.
Extension Cable (Sold Separately)
• If you have an extension cable with connectors, connect the corresponding ends to one another.
Use the connector at the end of the cable to plug into the control box.
• If you have an extension cable with one connector, you will need to cut the connector o󰀨 of the main
cable harness coming out of the Light Bar. Save it as a spare part. You will solder and heat shrink
each wire within the cable harness to each wire in the extension cable harness. DO NOT cross
connect wires. Use the connector at the end of the extension cable to plug into the control box.
• If you have an extension cable with no connectors, you will need to cut in the middle of the main
cable harness coming out of the Light Bar. You will solder and heat shrink each wire within the
cable harness to each wire in the extension cable harness. DO NOT cross connect wires. Use the
reattached connector from the end of the main cable harness to plug into the control box.
• NOTE: DO NOT leave connectors, cables, solder points exposed to heat, moisture, or debris.
Wiring Diagram
Wire Color Function
Red*
Positive
Black*
Negative
Yellow
Flash Pattern
* Indicates a main power cable.
Wire Color Function
White
Positive (When bypassing Grand Control Box)
Blue
No Function
Green
Alley Steady
NOTE: All cables except Negative contact +12 VDC.
NOTE: Connect White and Red cable when bypassing Grand Control box.
AUX Wiring Diagram
Wire Color Function
Red AUX Positive
Blue AUX Negative

5SpeedTech Lights, Inc © 2021
K-FORCE®27 LINEAR
MINI LIGHT BAR
Magnet Mounts (Included)
• This unit comes included with magnetic mounting brackets pre-attached.
• Magnet brackets are adjustable along the length of the aluminum track.
• Ensure all four magnets are secured to a at surface.
Stud Mount (Sold Separately)
• Loosen the hardware securing the Magnet Mounts to the Light Bar and
remove the Magnet Mounts from the Light Bar.
• Place the main mounting bolt through the Stud Mount.
• Use the screws that were securing each Magnet Mount to the Light Bar
and attach the Stud Mount to the Light Bar.
• Fully tighten the hardware to secure the Stud Mount to the Light Bar.
• NOTE: Not all bolts used to secure Magnet Mounts will be used for
securing Stud Mounts as pictured on the right.
Headache Rack Mount (Sold Separately)
• Loosen the hardware securing the Magnet Mounts to the Light Bar and
remove the Magnet Mounts from the Light Bar.
• Use the screws that were securing each Magnet Mount to the Light
Bar and attach the Headache Rack Bracket to the Light Bar using the
two vertical cutaways on the Headache Rack Mount. This secures the
Headache Rack Mount to the Light Bar.
• The Headache Rack Mount may then be directly mounted. Or, by using the
supplied secondary piece, you may “sandwich” the back rack with 2 user
supplied nuts and bolts.

6SpeedTech Lights, Inc © 2021
K-FORCE®27 LINEAR
MINI LIGHT BAR
All rights reserved. No part of this Instruction Manual may be reproduced, distributed, transmitted, or otherwise shared in any form or by any means,
including but not limited to photocopying, recording, electronic delivery, .PDF reproduction, or any other means of reproducing all or any part hereof without
the express prior written consent of SpeedTech Lights, Inc, except for non-commercial purposes as permitted by United States copyright law. Customers
of SpeedTech Lights, Inc, may download and print this Instruction Manual for use with products sold to the customer by SpeedTech Lights, Inc. However,
no part of this Instruction Manual may be otherwise or subsequently reproduced, downloaded, disseminated, published, or transferred, in any form or by
any means, except with the prior written consent of SpeedTech Lights, Inc.
Flash Pattern List
• Slow Left/Right
• Left/Right
• Fast Left/Right
• Accelerating Left/Right
• Slow-Fast-Slow Left/Right
• Slow Alternating LED
• Alternating LED
• Fast Alternating LED
• Faster Alternating LED
• Fastest Alternating LED
• Accelerating Alternating LED
• Slow Full Bar
• Medium Full Bar
• Double Flash Full Bar
• Triple Flash Full Bar
• Faster Full Bar
• Fast Full Bar
• Accelerating Full Bar
• 1 LED Night Rider
• 1 LED Fast Night Rider
• 2 LED Night Rider
• 2 LED Fast Night Rider
• Ping Pong
• Fast Ping Pong
• Driver Steady Color 1/Passenger Flash
• Driver Steady Color 2/Passenger Flash
• Passenger Steady Color 1/Driver Flash
• Passenger Steady Color 2/Driver Flash
• Slow Left/Right Color 1 Only
• Fast Left/Right Color 1 Only
• Alternating LED Color 1 Only
• Slow Full Bar Color 1 Only
• Slow Left/Right Color 2 Only
• Fast Left/Right Color 2 Only
• Alternating LED Color 2 Only
• Slow Full Bar Color 2 Only
• Slow Left/Right to Full Bar Flash
• Fast Left/Right to Full Bar Flash
• Slow Left/Right to Alternating to Full Bar Flash
• Fast Left/Right to Alternating to Full Bar Flash
About Flash Patterns
• All STL LED products are equipped with a non-volatile memory which will recall the last ash pattern when the Light Bar is turned on.
• Set the ash pattern by pushing the Flash Pattern button on the Grand Control Box to cycle through the various patterns.
• If you are not using the Grand Control Box, follow the wiring diagram to identify the Flash Pattern wire to manually cycle through patterns.
