NANLITE Forza 60C User manual

Guangdong NanGuang Photo&Video Systems Co., Ltd
USER MANUAL
Forza 60C

1

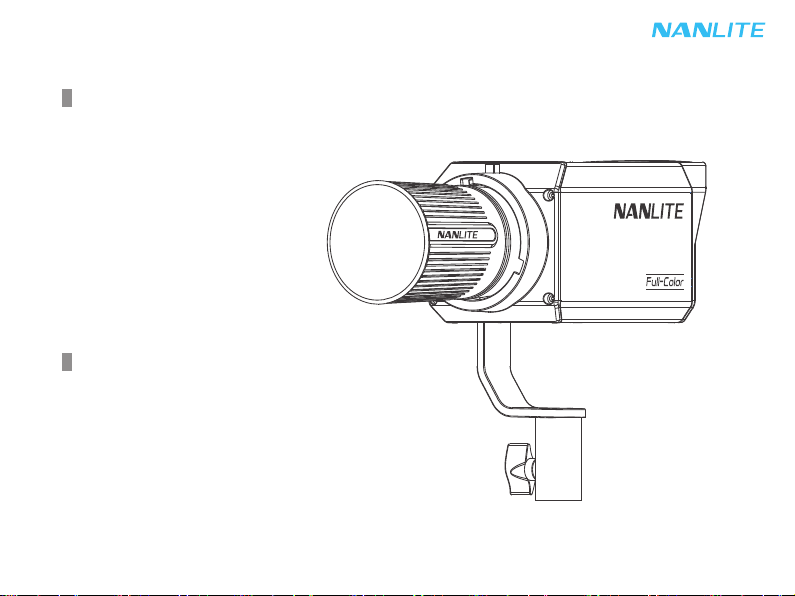

Product Diagram
Technical Data
Forza 60C
LED RGBLAC Spot Light
Rated power: 88W
Input voltage/current: DC15V/6A Max
AC100-240V 50/60Hz
Color Temperature: 1800K-20000K
CRI: Average 96
TLCI: Average 95
Forza 60C

2
Product Details
1. Angle Fixing Knob
2. L Shaped
Bracket
12. MODE
Button
3. Bracket
Fixing Knob
6. LCD
Display
7. Left Knob
8. DC Power Socket
9. Power Switch
10. DMX In/Out
11. Right
Knob
5. Reflector
4. Lock Catch
13. USB Port

3
Detailed Description
1. Angle Fixing Knob: Allows for adjusting and fixing the direction of light in tilt.
2. L Shaped Bracket: Designed for connecting the light to the light stand and adjusting the direction of light.
3. Bracket Fixing Knob: For locking the light fixture and stand, and adjusting the horizontal direction of light.
4. Lock Catch: For mounting and dismounting reflector and other accessories.
5. Reflector: For gathering light to improve the central illumination.
6. LCD Display: For displaying various function operations and data.
7. Left Knob: For adjusting the DIM and scrolling through different selections.
8. DC Power Socket: DC power input.
9. Power Switch: For switching on/off the fixture.
10. DMX In/Out: Connect to 1/2 DMX adapter cable for DMX signal input and output
(Note: 1/2 DMX adapter cable is sold separately).
11. Right Knob: For selecting various functions.
12. MODE Button: For switching between CCT/HSI/EFFECT/MENU modes.
13. USB Port: For updating the firmware.

4
Usage
1. Installation of the Reflector
①When installing the reflector, ensure its mounting points align with the slots on the light fixture. When the
mounting points and slots are aligned, push the reflector in place and rotate it in the direction shown on the light
until it clicks into place.
Note: This light is with FM mount, so please use accessories with FM mount. If the accessories with Bowens
mount are needed, please mount after installing the Bowens mount adapter.
②When removing the reflector, push and hold the lock catch and rotate until the reflector is free to be removed
from the fixture.
Lock catch

5

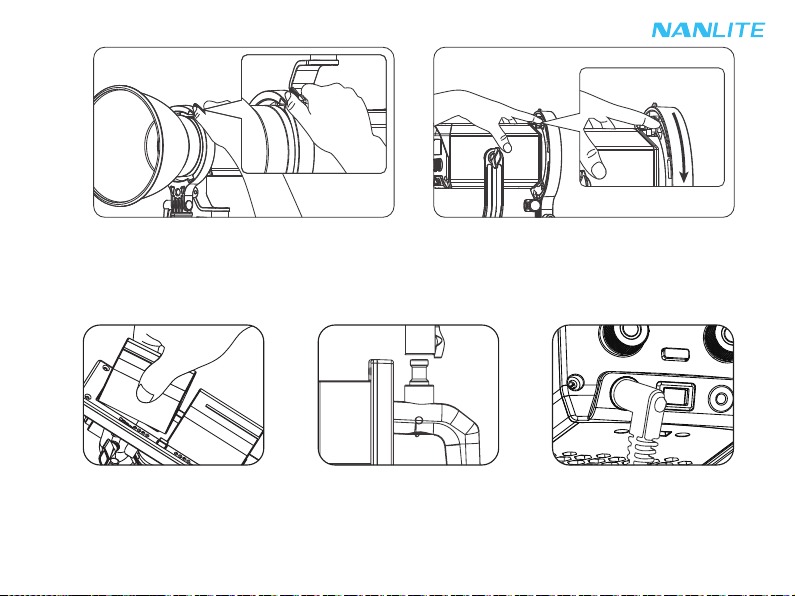

2. Installation of Bowens Mount Adapter
①When installing the adapter, ensure its mounting points align with the slots on the light fixture, rotate it according
to the direction shown on the light until the adapter is put into place.
②Mount the adapter on the light stand. ③Ensure the Bowens mount accessories align with
the slots of the Bowens mount adapter, rotate it
according to the direction shown on the adapter
until the accessories are put into place.

6
④When removing the accessory, push and hold the
release button on the adapter and rotate according
to the direction shown on the adapter until the
accessory is free to be removed from the adapter.
①Slide 2*NP-F batteries onto
the battery holder
②Mount the light onto the receiver
on the grip and lock.
③Ensure the light is switched off,
connect DC plug into the DC
power socket.
⑤When removing the adapter, push and hold the
lock catch on the fixture and rotate according to
the direction shown on the light until the adapter
is free to be removed from the light.
3. Installation of Battery Grip

7

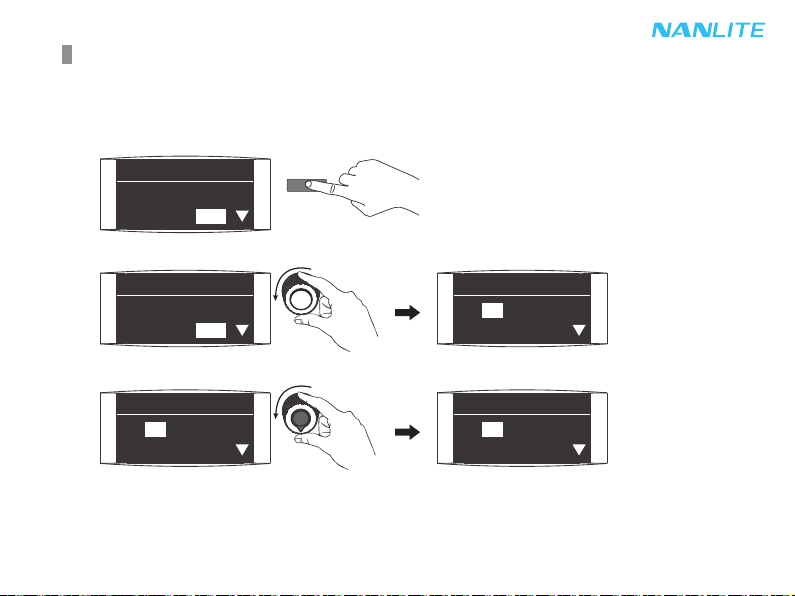

1. Address Code and DMX Mode Setting
①Address Code Setting
Remote Control
·Forza 60C supports 2.4G remote control, DMX/RDM control, and includes a built-in bluetooth module as well.
▲ Address code need to be pre-set for 2.4G remote control, DMX/RDM control solutions.
MODE
Rotate "Right knob" to CH.
Rotate "Left knob" to select address code.
Press the MODE button to enter the menu.
MENU
LANGUAGE: ENG
CH: 512
MENU
LANGUAGE: ENG
CH: 512
MENU
LANGUAGE: ENG
CH: 511
MENU
CH: 512
LANGUAGE: ENG
MENU
CH: 512
LANGUAGE: ENG

8

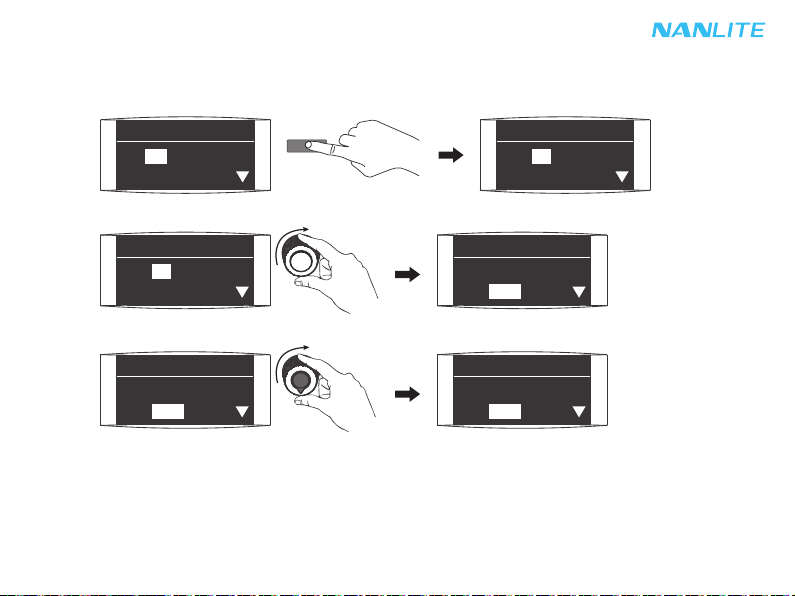

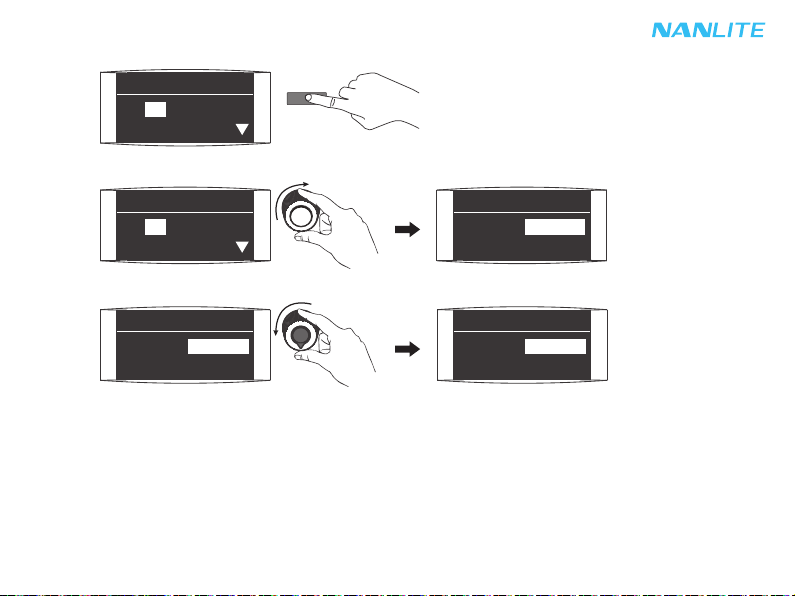

②DMX Mode Setting
MODE
Press the MODE button to enter the menu.
Rotate "Right knob" to DMX MODE.
Rotate "Left knob" to select the desired DMX mode.
MENU
LANGUAGE: ENG
CH: 512
MENU
LANGUAGE: ENG
CH: 512
MENU
DMX REDUCED CH: ON
DMX MODE: CCT & RGB 8
MENU
DMX REDUCED CH: ON
DMX MODE: CCT & RGB 8
MENU
DMX REDUCED CH: ON
DMX MODE: CCT & RGB 16

9

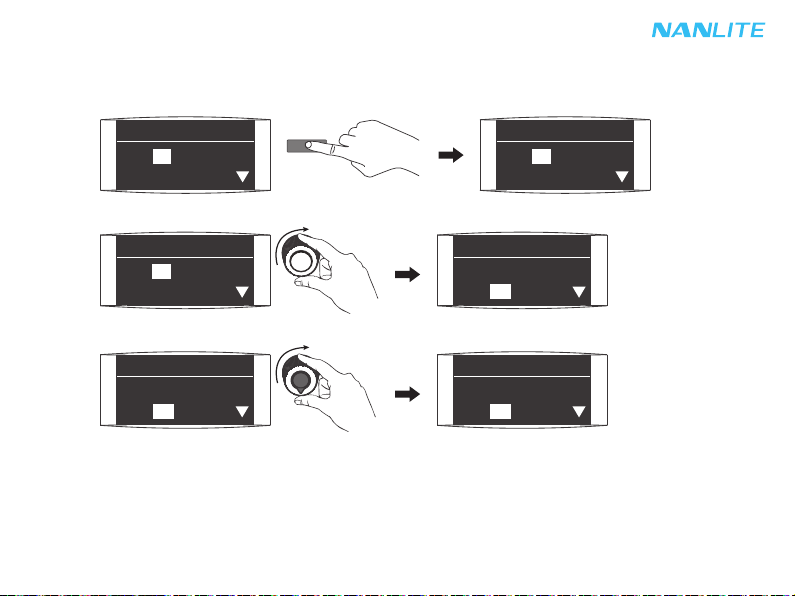

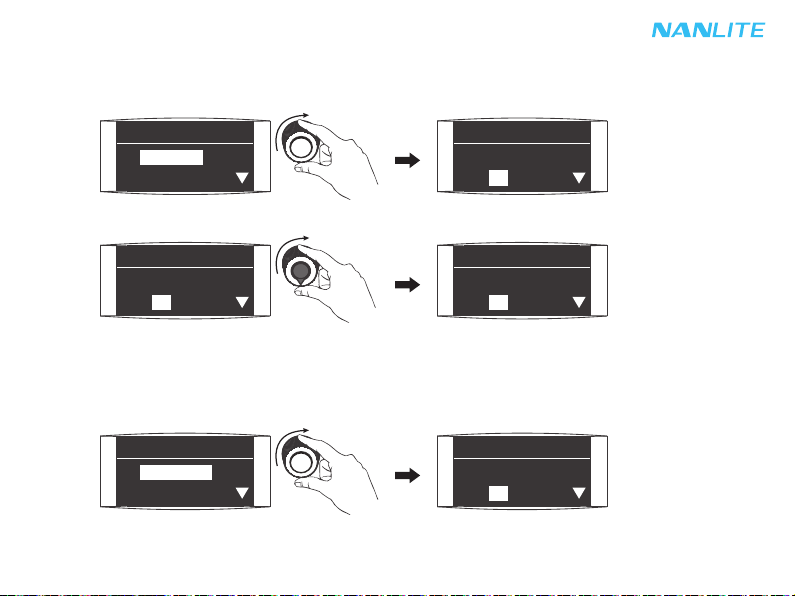

③DMX Reduced Channel Setting
MODE
Press the MODE button to enter the menu.
Rotate "Right knob" to DMX REDUCED CH.
Rotate "Left knob" to select ON or OFF.
MENU
LANGUAGE: ENG
CH: 512
MENU
LANGUAGE: ENG
CH: 512
MENU
DMX MODE: CCT & RGB 8
DMX REDUCED CH: ON
MENU
DMX MODE: CCT & RGB 8
DMX REDUCED CH: OFF
MENU
DMX MODE: CCT & RGB 8
DMX REDUCED CH: ON

10
2. DMX Control
①Connect the fixture to the DMX/RDM consoles via DMX cable as shown below:
NC
NC
NC
NC
②DMX Terminator
ln DMX control mode, the DMX output of the last light fixture should be connected with a DMX terminator
(not included). The terminator is connected with a 120Ω(OHM) resistor across Pin 2 and Pin 3 (As shown below).
This prevents interference caused by DMX signals in the transmitting process.
DMX Terminator Connection
Connect a 120Ω(OHM) resistor
across Pin 2 and Pin 3 in an XLR
plug and insert into the DMX OUT
socket on the last unit.
120Ω
1
2
3
5
4
DMX IN DMX OUT
DATA- 2
GND 1
DATA+ 3
2 DATA-
1 GND
3 DATA+
PIN 2 PIN 3

11
③Address Setting of the Light Fixtutre.
④Refer to the DMX reference guide and control the light via DMX/RDM console.
(For detailed operation please refer to the DMX/RDM console operation manual.)
Note: DMX reference guide "Forza_60C_DMX_REFERENCE_GUIDE_EN" is downloadable from
www.nanlite.com.
3. RDM Control
①Connect the light fixture to the console with RDM function by using a connection cable, the connection method is
the same as that with a DMX/RDM console.
②Control the fixture via a console with RDM function. (For specific operation methods, please refer to the RDM

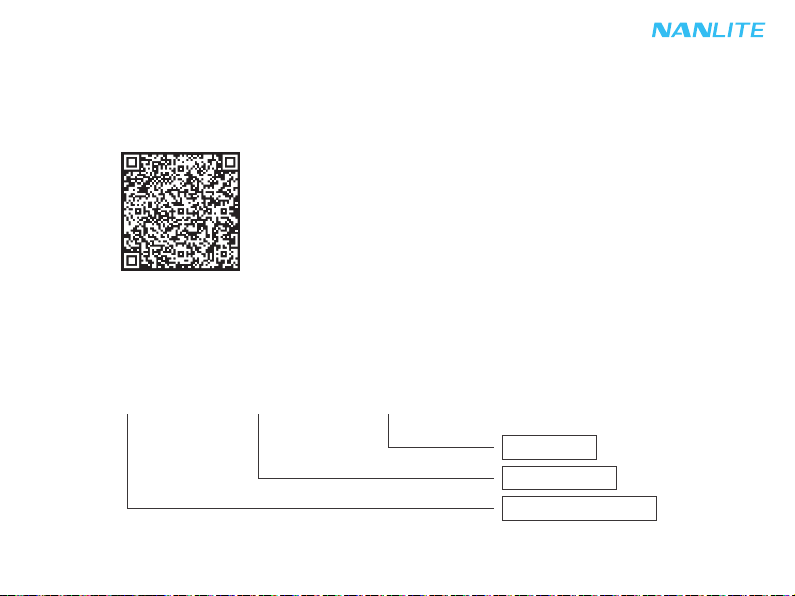

console operation manual.) Note: The UID format of the fixture is as follows:
0008 XXXX XXXX
Serial number
0207：Forza 60C
Manufacturer: Nanguang
Please scan the QR to check and download the latest DMX reference guide.

12

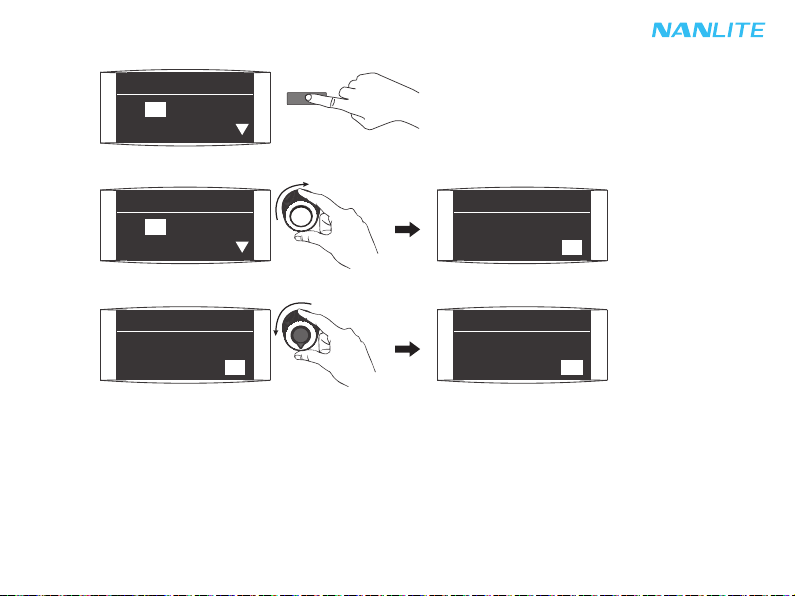

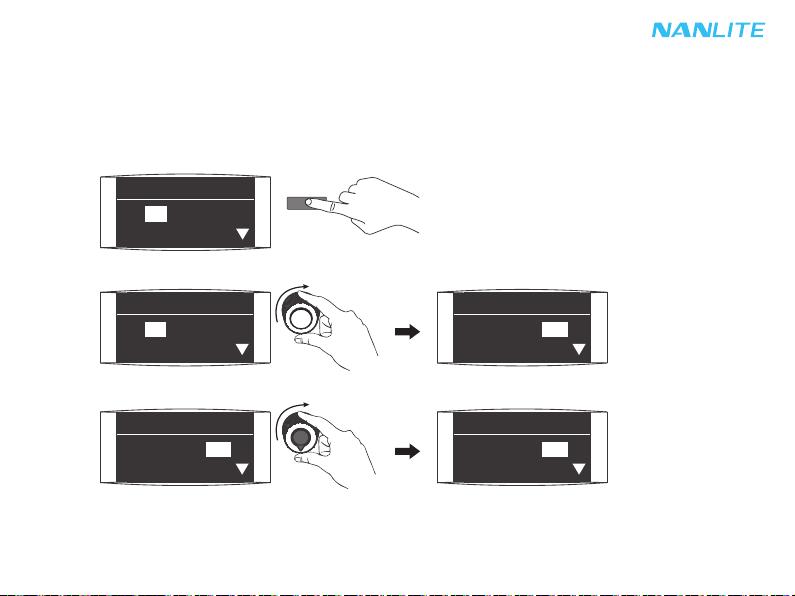

MODE
Rotate ''Right knob'' to WIRELESS PROTOCOL.
Press MODE button to enter the menu.
Rotate ''Left knob'' to select V1.0 or V2.0.
4. 2.4G Remote Control
·Set the address of the 2.4G remote controller to be consistent with the light fixture, enabling the fixture to be
remotely controlled by 2.4G remote controller or by APP via the transmitter box.
Note: ①2.4G remote controller and transmitter box are sold separately.
②The fixture supports the 2.4G wireless protocol V1.0 and V2.0. Please set fixture to V2.0 while using
WS-RC-C1 or WS-RC-C2 remote controller. Please set fixture to V1.0 while using other remote controllers.
MENU
FW UPDATE ：UPDATE
WIRELESS PR：V1.0
MENU
FW UPDATE ：UPDATE
WIRELESS PR：V2.0
MENU
FW UPDATE ：UPDATE
WIRELESS PR：V1.0
MENU
LANGUAGE: ENG
CH: 512
MENU
LANGUAGE: ENG
CH: 512

13

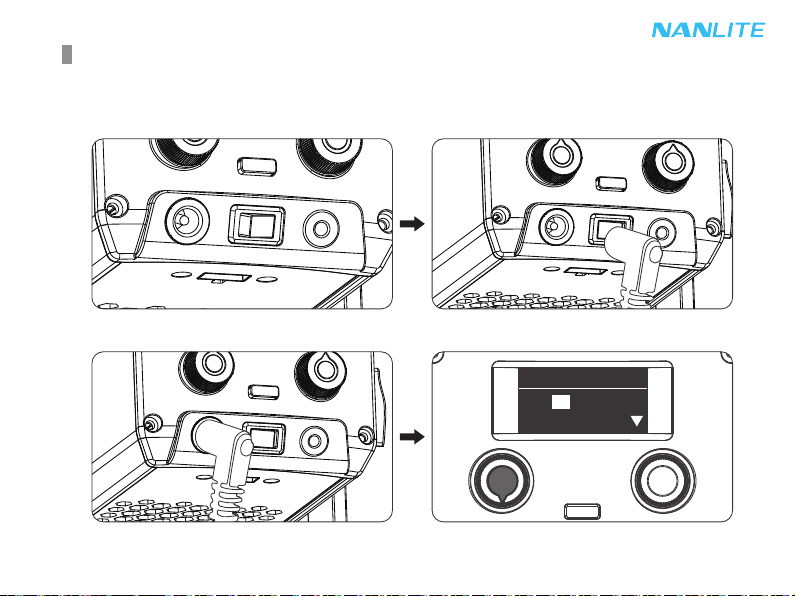

1. Connection between fixture and power adapter.
①First ensure that the power switch of the fixture is in the "off " position. Now turn on the light, the LCD screen will
display all the relevant information for the fixture.
Operating Instructions
CCT CH: 512
CCT: 05600 G/M: 0
DIM: 100%

14
2. CCT mode setting: Press MODE button to CCT mode, rotate "Right knob" to select from DIM, CCT and G/M,
rotate "Left knob" to adjust the value of DIM, CCT and G/M. DIM range: 000%…100%,
CCT range: 01800K…20000K, G/M range: -100…+100
Rotate "Right knob" to select from DIM, CCT and G/M.
Rotate "Left knob" to adjust the value of DIM, CCT and G/M.
Note: ①In other modes, the adjustable range of DIM, CCT and G/M are the same as CCT mode.
②When the fixture function is unlocked, in CCT/HSI mode, press the "Left knob" to turn off the light, the
brightness percentage on the screen is 0.0% in this case. Press again to restore the light to its previous
state, and press continuously to switch between on and off.
MODE
Press MODE button to CCT mode.
MENU
LANGUAGE: ENG
CH: 512
CCT CH: 512
CCT: 05600 G/M: 0
DIM: 100%
CCT CH: 512
CCT: 05600 G/M: 0
DIM: 100%
CCT CH: 512
DIM: 100%
CCT: 05600 G/M: 0
CCT CH: 512
DIM: 100%
CCT: 05600 G/M: 0
CCT CH: 512
DIM: 100%
CCT: 05700 G/M: 0

15

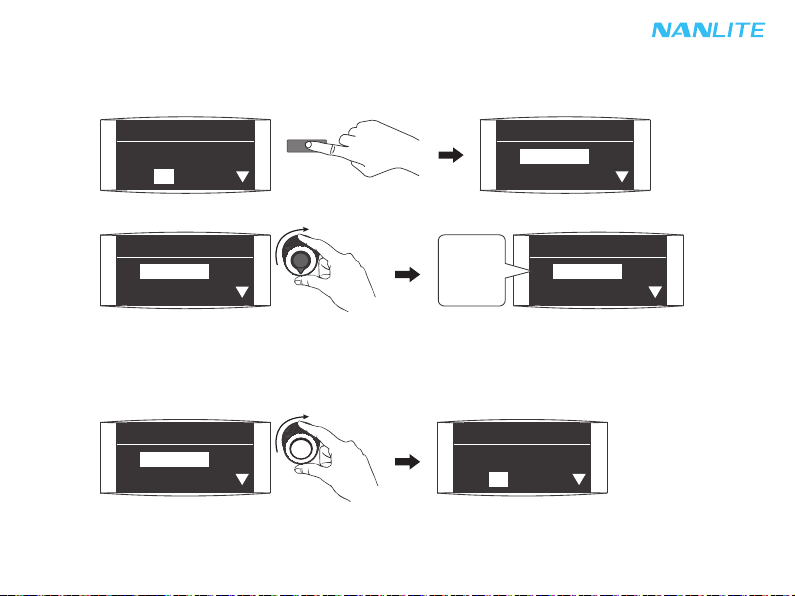

3. HSI mode setting, press MODE button to HSI mode, rotate "Right knob" to select from DIM, HUE and SAT,
rotate "Left knob" to adjust the value of DIM, HUE and SAT.DIM range: 000%…100%, HUE range: 000…360,
SAT range: 000…100.
Rotate "Right knob" to select from DIM, HUE and SAT.
Rotate "Left knob" to adjust the value of DIM, HUE and SAT.
Note: In other modes, the adjustable range of DIM, HUE and SAT are the same as HSI mode.
MODE
Press MODE button to HSI mode.
HSI CH: 512
HUE: 000 SAT: 100
DIM: 100%
CCT CH: 512
CCT: 05600 G/M: 0
DIM: 100%
HSI CH: 512
HUE: 000 SAT: 100
DIM: 100%
HSI CH: 512
DIM: 100%
HUE: 000 SAT: 100
HSI CH: 512
DIM: 100%
HUE: 000 SAT: 100
HSI CH: 512
DIM: 100%
HUE: 001 SAT: 100

16
EFFECT CH: 512
DIM: 100%
FX: HUE LOOP
EFFECT CH: 512
DIM: 100%
FX: HUE LOOP
EFFECT CH: 512
DIM: 100%
FX: HUE LOOP
①HUE LOOP
To set the HUE LOOP, rotate "Right knob" to select from DIM, HUE and SPD (range: 02S…30S), then
rotate "Left knob" to set the corresponding parameters.
Rotate "Right knob" to select from DIM, HUE and SPD.
4. Effect mode setting, press MODE buttob to EFFECT, Forza 60C has built-in effects including Hue Loop, CCT Loop,
INT Loop, CCT Flash, HUE Flash, CCT Pulse, Hue Pulse, Storm, Police Car, TV, Paparazzi, Candle/Fire, Disco,
Bad Bulb, Firework, Explosion and Welding.
Rotate "Right knob" to select the desired effect.
MODE
Press MODE button to EFFECT.
HUE LOOP
.
.
.
.
WELDING
HSI CH: 512
DIM: 100%
HUE: 000 SAT: 100
EFFECT CH: 512
DIM: 100%
FX: HUE LOOP
EFFECT CH: 512
FX: HUE LOOP
DIM: 100%

17
EFFECT CH: 512
DIM: 100%
FX: CCT LOOP

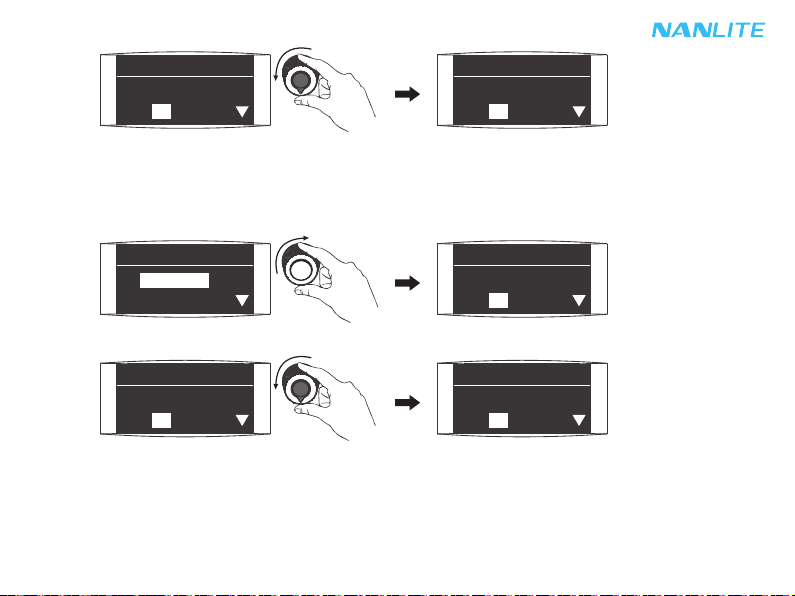

②CCT LOOP
To set the CCT LOOP, rotate "Right knob" to select from DIM, cct and SPD (SPD range: 02S…30S),
then rotate "Left knob" to set the corresponding parameters.
Rotate "Right knob" to select from DIM, cct and SPD.
Rotate "Left knob" to set the corresponding parameters.
Rotate "Left knob" to set the corresponding parameters.
EFFECT CH: 512
FX: HUE LOOP
DIM: 100%
EFFECT CH: 512
FX: HUE LOOP
DIM: 099%
EFFECT CH: 512
FX: CCT LOOP
DIM: 100%
EFFECT CH: 512
FX: CCT LOOP
DIM: 100%
EFFECT CH: 512
FX: CCT LOOP
DIM: 099%

18
EFFECT CH: 512
DIM: 100%
FX: CCT FLASH
EFFECT CH: 512
DIM: 000% - 100%
FX: INT LOOP
③INT LOOP
To set the INT LOOP, rotate "Right knob" to select from DIM, SPD (range: 02S…30S) and CLR (includes CCT
and HUE), then rotate "Left knob" to set the corresponding parameters.
Rotate "Right knob" to select from DIM, SPD and CLR.
Rotate "Left knob" to set the corresponding parameters.
④CCT FLASH
To set the CCT FLASH, rotate "Right knob" to select from DIM, CCT, G/M and INTVL (range: 0.1S…10.0S),
then rotate "Left knob" to set the corresponding parameters.
Rotate "Right knob" to select from DIM, CCT, G/M and INTVL.
EFFECT CH: 512
FX: INT LOOP
DIM: 000% - 100%
EFFECT CH: 512
FX: INT LOOP
DIM: 000% - 100%
EFFECT CH: 512
FX: INT LOOP
DIM: 001% - 100%
EFFECT CH: 512
FX: CCT FLASH
DIM: 100%

19
⑤HUE FLASH
To set the HUE FLASH, rotate "Right knob" to select from DIM, HUE, SAT and INTVL (range: 0.1S…10.0S),
then rotate "Left knob" to set the corresponding parameters.
Rotate "Right knob" to select from DIM, HUE, SAT and INTVL.
Rotate "Left knob" to set the corresponding parameters.
Rotate "Left knob" to set the corresponding parameters.
EFFECT CH: 512
FX: CCT FLASH
DIM: 100%
EFFECT CH: 512
FX: CCT FLASH
DIM: 099%
EFFECT CH: 512
DIM: 100%
FX: HUE FLASH
EFFECT CH: 512
FX: HUE FLASH
DIM: 100%
EFFECT CH: 512
FX: HUE FLASH
DIM: 100%
EFFECT CH: 512
FX: HUE FLASH
DIM: 099%
