Stocks AG i-CON 65 User manual

Original Instructions, Revision 1 August 2020
ROTOR METER 65 & 130
i-CON
Original Operating Manual and parts list
Read carefully before installation and
operation
This document must not be copied duplicated or distributed without prior consent .
All and patent rights apply
STOCKS AG LIMITED, CROMWELL ROAD, WISBECH, CAMBRIDGESHIRE, UK.
Tel: [phone] Email: [email protected] www.stocks-ag.co.uk

2
Index
Section Page No.
2 Index 2
3-1 General information 3
3-2 Technical data 3
3-3 Intended use 3
3-4 Unintended use 3
4 Contents of the EC Declaration of Conformity 4
5 Contents of the UKCA Declaration of Conformity 5
6-1 Machine identification 6
6-2 Warranty 6
7 Safety 7
8 Emergency Stop Instructions 8
9 Maintenance 9
10 Safety warning decals and safety signs 10
11-1 Clearing a blockage 11

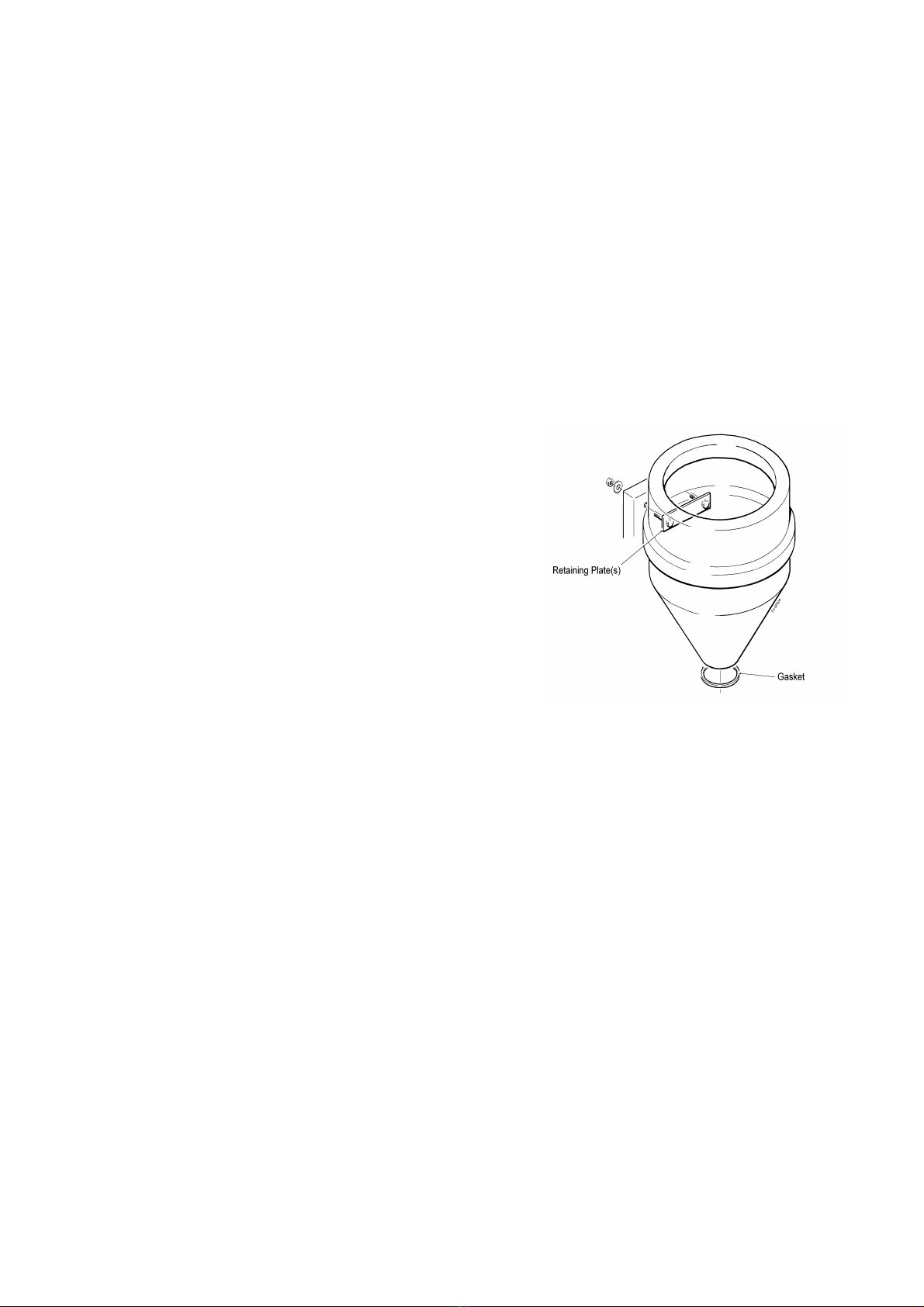

11-2 Hopper Removal 11
11-3 Storage 11
11-4 OPTIONAL Heavy Duty Waterproof Cover 11
11-5 Disposal 11

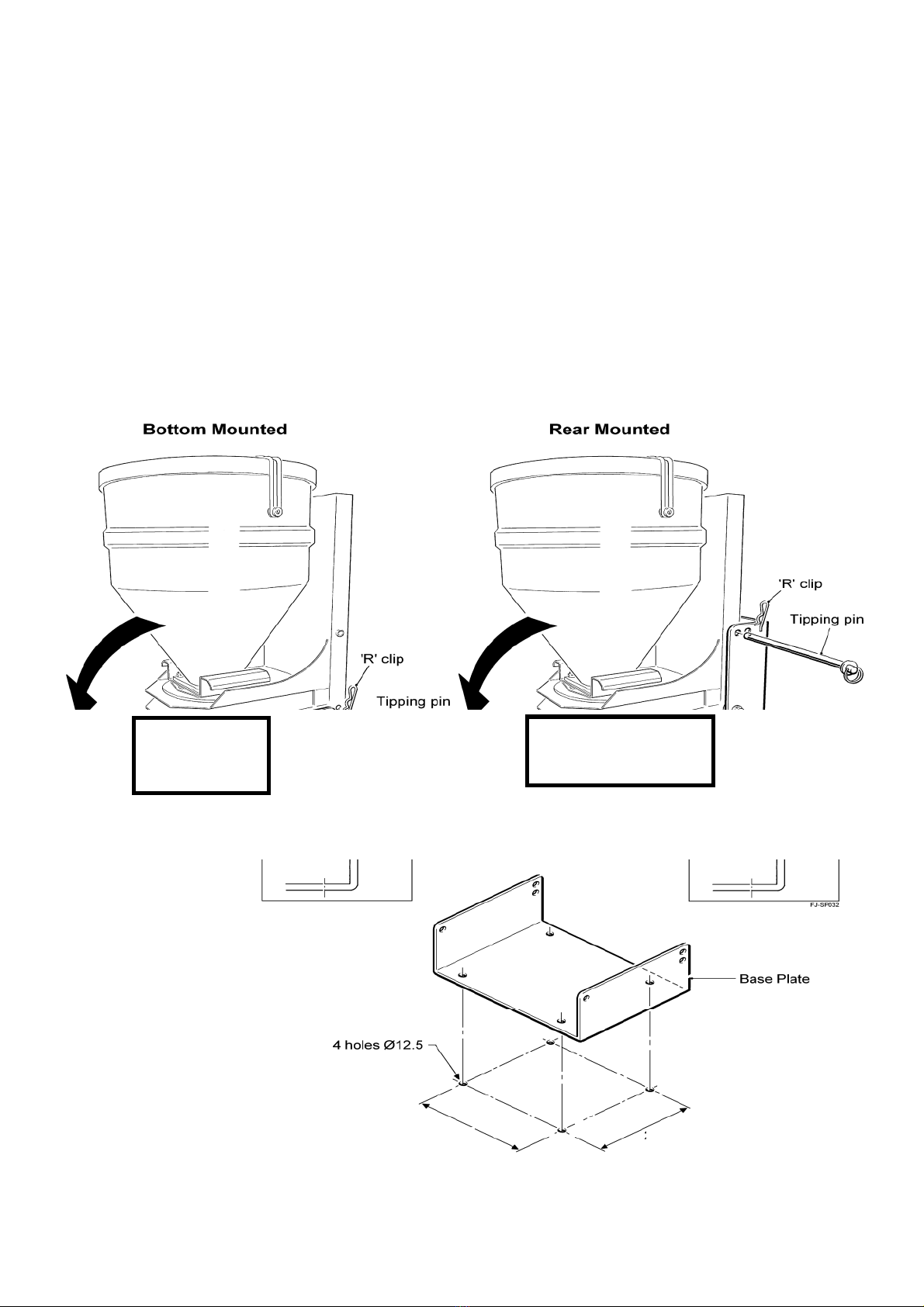

12 Machine Mounting 12
13-1 i-CON Control system 13
13-2 Wiring Diagram 13
13-3 Electrical Connections 13
14 Machine components 14
15-1 i-CON instrument functions 15
15-2 Precision farming software access OPTIONAL 15
16-1 Setting the feed rate 16
16-2 Feed roller configuration 16
16-3 Changing the feed rollers 16
17 5mm feed roller combinations 17
18 8 section feed roller combinations 18
19 i-CON Calibration (Page 1 of 2) 19
20 i-CON Calibration (Page 2 of 2) 20
21 Parts drawing 21
22 Parts list (page 1) 22
23 Parts list (page 2) 23

3
3-1 General information
Congratulations on your Rotor Metre purchase;
Please check the machine for any transport damage upon receipt and advise your supplier
of any problems immediately. Late claims regarding any damage may be rejected.
IMPORTANT
This Operating Manual forms part of the machine and must be readily available for the operator
who must read and follow the points covered before use
3-2 Technical data
Model: Rotor Meter (Gravity Fed)
65 litre machines: Net weight: 35kg Dimensions (W x D x H) 50 x 53 x 103cm (boxed 51 x 58 x 94cm)
130 litre machines: Net weight: 40kg Dimensions (W x D x H) 61 x 60 x 123cm (boxed 62 x 62 x 114cm)
Operating Voltage 12v; Power requirement 5 amps Motor outputs: 60W
Noise level: 60dB
Model: Rotor Meter (Air Fed)
65 litre machines: Net weight: 38kg Dimensions (W x D x H) 50 x 53 x 103cm (boxed 51 x 58 x 94cm)
130 litre machines: Net weight: 43kg Dimensions (W x D x H) 61 x 60 x 123cm (boxed 62 x 62 x 114cm)
Operating Voltage 12v; Power requirement 15 amps Motor outputs: 180W
Noise level: 85dB
3-3 Intended use
This machine has been designed to safely apply small seeds and granular products in the agricultural,
horticultural and amenity sector for mounting onto various parent implements such as power harrows, seed
drills, planters, and vineyard interrow equipment.
The operator alone bears the associated risk if used for unintended use.
Intended use also includes compliance with the conditions for operation, maintenance, and repairs.
The implement may only be used, maintained and repaired by persons who have relevant experience and
aware of the risks involved.
The manufacturer is not liable for any resulting damage if the machine is used for any other purpose than
the intended use also includes compliance with the conditions for operation, maintenance, and repairs pre-
scribed within this instruction manual .
This machine should not be used in the rain or during a thunderstorm.
The applicable accident prevention regulations as well as the other generally safety-related, occupational
health and road traffic regulations must also be observed.
Specifications descriptions and illustrations in this manual are accurate at the time of this publication but
may be subject to change this manual are correct at the time of printing but we reserve the right to change
and improve them. This machine is designed with safety in mind.
Maintenance and servicing in accordance with this manual will ensure safe operation and reliability of your
machine for many years
3-4 Unintended use
This machine is not designed to apply abrasive materials such as sand & grit or for applying salt products

4
E.C. DECLARATION OF CONFORMITY
Machine Type: Mounted Agricultural Implement - Pellet and Seed application broadcasters
Model(s): Fan Jet Pro All Variants & Versions
Fan Jet Pro Plus All Variants & Versions
Fan Jet Twin All Variants & Versions
Fan Jet Mini All Variants & Versions
Fan Jet Duo All Variants & Versions
Turbo Jet All Variants & Versions
Rotor Meter All Variants & Versions
Rotor Meter Air Force All Variants & Versions
Micro Meter All Variants & Versions
Maxi Meter All Variants & Versions
Serial No. ……………………………………………………………………………………………
Manufacturer: Stocks Ag Ltd
Cromwell Road
Wisbech
Cambridgeshire PE14 OSD
United Kingdom
This is to declare that the above machine conforms to the relevant Essential Health and Safety Requirements of the
Machinery Directive 2006/42/EC, implemented in the United Kingdom by Statutory Instrument 2008 No.
1597 – The Supply of Machinery (Safety) Regulations 2008 as amended.
The following standards have been applied in the design and construction of this machine:
BS EN ISO 12100: 2010 Safety of machinery – Basic concepts, general principles for design – Basic
terminology, methodology.
BS EN ISO 4254-1: 2015 Agricultural machinery – Safety - General requirements
BS EN ISO 4254-8: 2018 Agricultural machinery – Safety – Solid fertilizer distributors.
BS EN ISO 13854: 2019 Safety of machinery – Minimum gaps to avoid crushing of parts of the
human body.
BS EN ISO 13857: 2019 Safety of machinery – Safety distances to prevent hazard zones
aaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaabeing reached by the upper and lower limbs.
The manufacturer stated above holds the technical file for this machine.
Signed on behalf of Stocks Ag Ltd
Name: J Woolway
Date: 06th August 2020
Position: Managing Director
t. [phone] f. [phone] e. [email protected]

5
UKCA. DECLARATION OF CONFORMITY
Machine Type: Mounted Agricultural Implement - Pellet and Seed application broadcasters
Model(s): Fan Jet Pro All Variants & Versions
Fan Jet Pro Plus All Variants & Versions
Fan Jet Twin All Variants & Versions
Fan Jet Mini All Variants & Versions
Fan Jet Duo All Variants & Versions
Turbo Jet All Variants & Versions
Rotor Meter All Variants & Versions
Rotor Meter Air Force All Variants & Versions
Micro Meter All Variants & Versions
Maxi Meter All Variants & Versions
Serial No. ……………………………………………………………………………………………
Manufacturer: Stocks Ag Ltd
Cromwell Road
Wisbech
Cambridgeshire PE14 OSD
United Kingdom
This is to declare that the above machine conforms to the relevant Essential Health and Safety Requirements of the
Machinery Directive 2006/42/EC, implemented in the United Kingdom by Statutory Instrument 2008 No.
1597 – The Supply of Machinery (Safety) Regulations 2008 as amended.
The following standards have been applied in the design and construction of this machine:
BS EN ISO 12100: 2010 Safety of machinery – Basic concepts, general principles for design – Basic
terminology, methodology.
BS EN ISO 4254-1: 2015 Agricultural machinery – Safety - General requirements
BS EN ISO 4254-8: 2018 Agricultural machinery – Safety – Solid fertilizer distributors.
BS EN ISO 13854: 2019 Safety of machinery – Minimum gaps to avoid crushing of parts of the
human body.
BS EN ISO 13857: 2019 Safety of machinery – Safety distances to prevent hazard zones
aaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaabeing reached by the upper and lower limbs.
The manufacturer stated above holds the technical file for this machine.
Signed on behalf of Stocks Ag Ltd
Name: J Woolway
Date: 01st December 2020
Position: Managing Director
t. [phone] f. [phone] e. [e-mail]

6
6-1 Machine identification
The machine the serial number decals are mounted on the steel chassis to one side of the hopper
6-2 Warranty
We provide a 12 month warranty as of the date of invoice
(your invoice for the machine which will serve as a warranty certificate).
This warranty is applicable for cases of material or construction faults and does not include parts that are
damaged by normal or excessive wear.
Warranty expires if damage is caused by external forces, operator error, modifications, Jet washed or if
the machine has not been used for its intended use.
Contact the company whom you purchased the machine from in the event of any problems, or before at-
tempting any repair. If the base machine or the controls system are modified in any way this will void any
warranty claim.
Please see our conditions of sale for full details a copy of which available upon request
Please record the machine serial number here; S/N ……………………………….
Purchase date: ………………………………… Dealer ……………………………...
ROTOR METER
MK2MODEL
SERIAL No 217200
MANUFACTURED 2021
BY:-
STOCKS AG LIMITED
CROMWELL ROAD
WISBECH, CAMBS.
PE14 OSD, UK

7
7 Safety
Ensure care is taken when lifting the machine
Safe lifting practice to be observed when handling as the net weight is over 25kg
We advise safety shoes and protective gloves are worn when handling the machine
Assistance will be required when lifting or lowering the machine
Care to be taken to avoid crushing due to the weight of the machine.
When lifting or fitting the machine to the parent vehicle or implement ensure work is performed on level
ground or flat surface to avoid slipping, stumbling or falling.
PERSONAL PROTECTION EQUIPMENT It is the responsibility of the operator or maintenance
engineer to ensure safe handling of the machine and the appropriate personal protection
equipment is worn for the material being applied and to prevent contamination to the machine or
the environment.
WARNING Always observe all application standards and guidelines provided by the product
manufacturer as some seed dressings and granular products may be toxic !
NOTE if unsure contact your seed or product supplier for more information.
If applying slug pellets or other toxic material and the parent vehicle has a closed cab the operator must
ensure the cabin is always closed and the air filter system is in good order.
Always ensure the stability of the parent vehicle is not affected when the machine is in use.
If in doubt contact the vehicle manufacturer for more information.
After working the machine ensure that any unused product is returned safely to its original packaging
Stocks AG Ltd. does not accept any liability for the storage and use of the material being applied
If unsure contact the material supplier for more information.
WARNING Always adhere to the warning information and do not
remove any guard whilst the machine is in operation .
The machine may only be used, maintained and repaired by persons who have relevant
experience or a machinery dealer who is aware of any risks involved.
The applicable accident prevention regulations as well as the other generally safety related, occupational
health and road traffic regulations must also be observed.
The manufacturer is not liable for any damage resulting from unauthorised modifications and the use of
components and auxiliary parts
The machine must be checked regularly by the operator (before each use) for any damage loose bolts or
electrical connections, vibrations, unusual sounds, and to ensure they function correctly.
The machine must not be operated in wet weather conditions or during thunderstorms.
Observe the generally applicable safety and accident prevention regulations
Always empty the hopper of toxic materials to prevent harm to humans and animals after each use and prior to
storage.
WARNING
Always isolate the power supply if servicing or leaving the machine unattended.

8
8 Emergency stop instructions
1. Power down the control system immediately by pressing and holding down the left-hand
rubber end cap on the instrument control panel for approx. 2 seconds — then release to power off.
2. Disconnect the power supply by unplugging the power cable or removing the inline
40amp fuse.
POWER
ON /OFF

9
9 Maintenance
WARNING
Always ensure the power supply is disconnected before any maintenance work or cleaning of
this machine.
Suitable protective clothing must be worn (See page 7)
The machine must be checked regularly by the operator for any damage loose bolts or electrical connec-
tions, vibrations, unusual sounds, and to ensure they function correctly.
Before use;
1. Ensure the machine is securely mounted
2. Check the power supply
3. Ensure all feed outlets, air chamber (Air Force machines) and all feed hoses are clear of any product
4. Check the feed block is configured correctly and free running before starting work
Daily checks;
1. Check the feed motor and 12v Fan (Air Force machines) are working correctly
2. Ensure feed outlets and air chamber (Air Force machines) and all hoses are clear of product
After each use;
1. Empty hopper before removing the feed block assembly and clean the machine thoroughly ensuring
all product residue has been cleaned from the hopper feed rollers and body of the machine.
2. Store in dry conditions to protect the machine and control system from moisture
WARNING Always observe all guidelines provided by the product manufacturer with regards to
handling storage and disposal of products as some may be toxic !
DO NOT JET WASH THIS MACHINE

10
10 Safety Warning Decals
Important ; observe this safely decals on the machine
WARNING
Read and understand the Operators Manual
instructions before operating this machine
Operator errors can result in serious injury
WARNING
Do Not Jet Wash
This machine is not designed to
withstand Jet Washing !
WARNING
Danger moving parts
Risk of serious injury whilst the machine is
in operation
WARNING
Risk of injury
Keep a safe distance whilst the
machine is in operation
WARNING
Keep Clear
Maintain a safe distance from the machine
when in operation
Wear the appropriate protective personal
equipment

11
11-1 Clearing a blockage
Disconnect the main power supply
Ensure the parent machine is stationary, switched off, and parked on level ground
Ensure the main power switch on the control panel is off and unplug the power supply cable or disconnecting
the power cable from the vehicle battery.
Ensure appropriate personal protection equipment is worn for the product being applied
Ensure any product removed is put back into its original container
Care to be taken not to spill any product that could contamination the environment.
Empty the hopper of any remaining product
11-2 Hopper removal
Removing the hopper for cleaning and maintenance
Ensure the hopper is completely empty and free from any product residue Ensure appropriate personal
protection equipment is worn for the product being applied
Release the rubber lid retaining straps and remove the lid. The
hopper can then be lifted away after removing the retaining plate
(s) from within the hopper by releasing the M8 external fixing nuts
and washers.
NOTE When replacing he hopper ensure the Gasket fitted under
the base of the hoper is in good order
Replace if damaged; part number FJ017S
11-3 Storage
Disconnect the power supply by unplugging the power cable or
removing the inline fuse from the power cable if storing the
machine for long periods.
It is the responsibility of the operator to ensure the hopper is empty after each and use and cleaned
thoroughly before storage.
Store in dry conditions to protect the machine and control system from moisture
Always clean and spray electrical connectors with a moisture repellent spray when not in use for long periods.
11-4 Optional PVC Waterproof Covers
Heavy duty White PVC covers fitted with eyelets and bungie cord for easy attachment available for all
machines. Available through your local dealer
To order a 65L Waterproof PVC Covers quote part number LC65
To order a 130L Waterproof PVC Covers quote part number LC130
11-5 Disposal
Ensure that any persons handling the machine are aware that the machine may have been used to
apply toxic chemicals and so the appropriate personal protection equipment should be worn.
Ensure the hopper contents have been removed and any toxic residue removed and put back into a sealed
contained or disposed of in accordance with the manufacturers guidelines to eliminate any possible
contamination of others or the environment
Always adhere to the local disposal regulations paying particular attention to the plastics, rubber,
and electrical components.

12
Mount the machine using the Base Plate.
This has 4 holes in the base to take M12 bolts (see below) use these to attach to the parent vehicle and is
attached to the chassis by 2 bolts and spacers which act as the pivot, and a removable steel pin secured by an
‘R’ clip.
Gravity fed machines; mount the base plate at the rear of the machines to allow room for feed hoses
Air fed machines; the base plate can be base or rear mount
Ensure there is sufficient room to tip the hopper for emptying and ensure any potential trapping
points are noted taking care not to trap hands or fingers
NOTE feed hoses will need to be removed before tipping the hopper
The machine must be on level ground or flat surface before tipping the hopper to avoid the hopper
accidently tipping forward once the tipping pin has been removed.
To tip the hopper, remove the pin whilst supporting the hopper, lower gently when emptying the hopper.
12 Machine Mounting
Base
Mounting
Rear
Mounting
200mm
150mm

13
13-1 i-CON Control system
All control system components integral to the applicator unit are factory fitted.
The Instrument has a 4.3" Colour Touch Screen which has 4 basic menu keys (see page 16)
Separate power cable and head unit leads interconnect the tractor and the Seed Applicator Unit.
The following components need to be installed during fitment (packed in hopper from factory)
 i-Con Instrument; TJ117C
 Instrument cables; TJ118C and TJ242A
 Power Cables; FJ107E
 GPS Receiver; TJ255B
 Cut out Switch; TJ252
13-2 Wiring diagram
13-3 Electrical Connections
Power requirement is 12 volts with a minimum continuous 30amp supply. Ensure the power supply cable is
connected direct to the vehicle battery to ensure maximum power. Connect the positive wire (fused) to the
positive (+) terminal and negative earth connection to the negative (-) terminal
NOTE the disc should rotate in a clockwise direction when viewed from above.
WARNING Failure to connect to the vehicle battery may result in control function problems and
possible damage to the vehicle battery and charging system must be in good condition to achieve the best
results. All cables and controls are fitted with matching plugs and sockets.
WARNING any modifications to the wiring, fuse holder or control system will invalidate any warranty
claim and may effect the performance of the machine
OPTIONAL 6m Radar Cable TJ234
OPTIONAL Ground Speed Radar TJ233A
Cut Out Switch
Feed
Motor
Hopper Level
Sensor
(not used)
12v Fan
supply cable (Airforce
7m Fused
Power Cable
Junction
Box
TJ119D
6m Instrument
Cable TJ242A
i-Con
Instrument
Instrument Connector
Cable TJ118C
GPS Receiver

14 Machine components
Feed Motor
The feed motor can be turned ON or OFF, either manually via the head unit, or automatically by the
remote mounted spring finger switch which can be fitted to the linkage or the implement. The feed motor
must be switched ON via the head unit for the spring finger switch to work automatically.
Spring Finger Switch
The switch should be mounted to a suitable place on the implement or linkage of the tractor, thus
deflecting the spring, and automatically switching the feed motor off or on accordingly as the circuit is
made or broken.
Position the finger switch so that the tip of the spring comes into contact with the moving part of the
implement or linkage when lifted out of work, and remains deflected until the implement is lowered back
into work. NOTE. Ensure that there is sufficient and positive deflection on the spring to prevent accidental
switching ON or OFF if the implement moves slightly up or down in work.
The standard wiring as supplied for this switch is when the spring is at rest, the feed motor will run
normally. If required, the switch can work in the opposite mode by changing the position of the 2
wires inside the switch
so that the switch is out of work when the sprung is at rest.
To change over remove the PVC cover plate held in position with the retaining screw to access the wiring
terminals. Remove the 2 wires from terminals 13 and 14 and re-connect to terminals 21 and 22
(nearest the gland nut) then re-fit the PVC cover plate. (NOTE the area meter also stops when the feed
motor stops)
12v Fan Unit (Air Force Models only)
The disc motor can be switched on and off and the disc speed adjusted on the instrument panel
GPS Sensor
Small and compact with integrated magnetic base for ease of fitting to tractor cab or suitable mounting
position. Fitted with a 5m lead which plugs into the i-Con instrument connector cable
Hoper Level Sensor
The instrument will alarm once the product in the hopper falls below the level of the sensor
Main Power Cable
The power cable should connect directly to the vehicle battery posts to ensure adequate 12v supply to
the disc motor. The in-line is 25 amp.
This 7m power cable connects from the battery to the power input flylead on the machine. .
Instrument Lead
The 6m instrument lead connects to the junction box mounted on the machine, and runs to the i-Con
instrument panel connector lead in the tractor cab.
NOTE Extension power and instrument cables are available if required.
Please contact your local Stocks AG dealer for more information.
21
22
13
14

15
15-1 i-CON Instrument functions
Forward Speed / Area and
Operang Range (0-100%)
Indicator
Manual Pre-Start
Forward Speed or Area
display
Metering On/Off -
Metering Status
Power On/Off
HOME
Return to Main
Screen
SCROLL between Menu
Pages
SD /USB Read /
Write indicator
ESCAPE
to previous Menu page
ENTER
Confirm an opon or
value within a menu
Air Force models
Fan On/Off Status
Set Applicaon Rate
Nudge – Decrease
Nudge – Increase
Applicaon Rate
(kg/ha or Seeds/m2) and
% Nudge from Target
· Seed Application Rate (kg/ha or Seeds/m2).
· Forward Speed (km/hr).
· Minimum/Maximum Forward Speed indicator with alarms, (beyond which the programmed seed rate
cannot be maintained).
· Metering Unit Status (On/Off) and Alarm.
· Fan (or Spinner - depending on installation) Status (On/Off) and Alarm.
· Hopper contents (kg) and Low Level Alarm.
· Part and Full (Job) Totals for Area (ha), Product dispensed (kg) and hours worked.
· Grand Total for Area (ha), Product (kg) and hours worked.
Other features include,
· Simple and intuitive touchscreen Alarm codes and diagnostic displays in the event of system malfunction.
· menus for Forward Speed / Product calibration and adjustment.
· ‘Pre-start’ - ensures seed delivery begins immediately the drill enters work (user-programmable).
· Rate ‘Nudge’ – on-the-move rate adjustment in pre-set increments (user-
programmable).
NOTE a comprehensive control system user guide also supplied (packed with the i-Con instrument)
15-2 Precision farming software access
OPTIONAL
The instrument can be unlocked to activate the precision farming program as a cost option
This is something that can be requested when the machine is purchased or can be added at a later date
Please contact your local Stocks dealer for more details

16
16-1 Setting the feed rate
The feed rate is adjusted primarily by the motor speed and different feed rollers may be fitted that deliver
different rates of material per revolution. Refer to the Calibration Procedure and with the appropriate feed
rollers fitted, follow the instructions. You may have to change the feed rollers to obtain the application rate
within a sensible forward speed range which is calculated during the calibration procedure.
16-2 Feed roller configuration
1 outlet machines are fitted 11 white 5mm polyurethane 18 tooth
feed rollers and the 3 outlet machine with 15 (3 banks of 5) as
standard with maximum rates achieved by retaining all 11 or 15.
Depending on the combination of required seeding rate, implement
width and forward speed feed rollers can removed and replaced with
5mm Black Blanking spacers supplied with the machine to reduce
the feed rate.
Photo showing a feed block assembly with 6
feed 5mm rollers and 5 blacking spacers fitted
NOTE always ensure a stainless
steel shim washer is fitted to each
side of the bank or individual 5mm
white feed rollers when fitted.
They are important and needed to
reduce friction between the feed
rollers and the plastic spacers.
For higher outputs or applying large seeds or granules the
machine is also supplied with 2 larger 8 section feed rollers
and spacers to allow 1 or 2 to be fitted as required.
Photo showing a feed block assembly
with 2 larger 8 section feed rollers fitted
The feed rollers are easily changed by
removing the feed block as follows.
NOTE Empty the hopper complete-
ly before removing the feed block.
1. Undo and remove the 2 black plastic
knobs holding the feed block in place
2. Slide the complete mechanism out
3. Undo and remove the 4 socket head
screws on the end of the housing op-
posite the retaining plate and remove
the end plate
4. Slide the rollers and spacers off the
shaft, and replace with the alternative
rollers and spacers in the required
combination
5. Refit the end plates and re-fit the
Photos of a similar machine
16-3 Changing the feed rollers
When re-fitting the end plates to the feed block after changing the configuration, the end plate should be able
to fit flush with the feed block by hand, without having to pull it home with the socket head screws.
The assembled rollers and spacers should not be under compression.
NOTE. You should be able to rotate the feed shaft with your fingers – if it feels excessively tight, check the
feed roller and spacer composition or call Stocks AG for advice.
WARNING Always observe all application standards and guidelines provided by the prod-
uct manufacturer as some products may be toxic !

17
Feed rollers and spacer arrangement for 3 outlet
machines and 3 outlet operaon
1 3mm White Spacer
2 Stainless Shim Washer
3 5mm Black Spacer
4 6.5mm White Spacer
A 5mm Feed Rollers (see page 14)
4
12
A
31 2 1 2 3
A A
17 5mm feed roller combinations
1 2 3 4 52 6
Feed rollers and spacer arrangement for 3 outlet
machines and 2 outlet operaon
1 3mm White Spacer
2 Stainless Shim Washer
3 24mm Black Spacer
4 13mm White Spacer
5 5mm Black Spacer
6 6.5mm White Spacer
A 5mm Feed Rollers (see page 14)
A A
1 12
Feed rollers and spacer arrangement for 1 outlet
machines
1 24mm Black Spacer
2 Stainless Shim Washer
A 5mm Feed Rollers (see page 14)
A

18
18 8 section feed roller combinations
2 231 54 5
Feed roller and spacer arrangement for 1 outlet
machines fied with 1 feed roller
1 3mm White Spacer
2 28mm Spacer
3 5mm Black Spacer
4 Feed Roller
5 6.5mm white Spacer
Feed rollers and spacer arrangement for 1 outlet
machines fied with 2 feed rollers
1 24mm Black Spacer
2 Feed Roller “A”
3 Feed Roller “B”
1 2 13
Feed roller and spacer arrangement for 3 outlet
machines for 2 outlet operaon
1 3mm White Spacer
2 Feed Roller
35mm Black Spacer
4 28mm Spacer
5 6.5mm White Spacer
Feed roller and spacer arrangement for 3 outlet
machines for 3 outlet operaon
1 3mm White Spacer
2 Feed Roller
35mm Black Spacer
46.5mm White Spacer
15 2 43 3 2
1 2 3 32 2 5

19
19 i-CON Calibration (Page 1 of 2)
You will need a suitable container to collect the product or seed when calibrating, and an accurate set of
scales which weighs in grams
At the machine
1. Air Force Models only switch the fan OFF at the junction box
2. Position a suitable container to collect product whilst calibrating
3. Place a few kilograms of seed in the hopper
At the ICON instrument
1. Switch the head unit ON via the left hand side push
button – wait until the start-up routine has finished and
displays the main “home screen”
2. Scroll through to the Setup Menu and select the
Applicator Icon
3. Adjust the implement width accordingly - refer to the
RDS manual, page 25, section 3.3, Set Implement
Width
4. Ensure the correct application rate is
entered – select and adjust accordingly,
refer to the RDS manual, page 21, section 3.1, Setting the Application Rate
5. Ensure the feed roller setup is appropriate for the intended product or seed type, application rate and
forward speed range for application
6. The instrument calculates the calibration factor from the working width, target application rate, and the
metered weight delivered whilst calibrating. If however as a result of the calibration routine, you find that
you cannot achieve your desired field speed, displayed in the top right corner of the screen, then
re-configure the feed roll assembly and repeat the calibration procedure
7. Prime the feed rollers with product by pressing and holding briefly the prime button on the junction box
- this will ensure a higher initial calibration accuracy, empty the contents of the tray back into the hopper
8. For an Auto Calibration from the Product Setup page, touch
9. Touch and enter the quantity that you wish to dispense for calibration purposes. You can enter
the quantity in grams if preferred. The CAL factor will however, still be calculated in kg/rev
10. Touch on the screen page
11. After the key the motor runs at the calibration speed (calculated from the Simulated Forward
Speed, Width, Application Rate and current calibration factor)
12. The dispensed weight (based on the current calibration factor) is displayed
13. Weigh the product dispensed and then enter the measured weight, and press
14. A new calibration factor is then re-calculated and displayed
15. Your in field min and max speeds will be displayed as per the
image to the right hand side. If you find that you cannot achieve
your desired field speed, then re-configure the feed roller assembly
and repeat the calibration procedure (see pages 17 and 18 for
more details)
16. Touch to save the new factor, it is advised to repeat the
calibration 2 more times to ensure accuracy

20
20 i-CON Calibration (Page 2 of 2)
1. For a Manual Calibration Press and hold the Prime button on the
junction box, the larger the quantity dispersed the higher the accuracy
the final calibration factor will be, release the prime button once sufficient
product has been dispensed
1. The estimated dispensed weight (based on the current calibration fac-
tor) is displayed
2. Weigh the product dispensed and then enter the measured weight, and press
3. A new calibration factor is then re-calculated and displayed
4. Your in field min and max speeds will be displayed. If you find that you cannot achieve your desired field
speed, then re-configure the feed roller assembly and repeat the calibration procedure
(see pages 17 and 18 for more details)
5. Touch to save the new factor, it is advised to repeat calibration 2 more times to ensure accuracy
GPS Speed
The i-CON control system is automatically configured to run with GPS receiver supplied and is a simple
plug and play device. This system only works outside and if you are not receiving a GPS signal an alarm
will sound and a display appear on the main screen indicating NO GPS.
Common Calibration Mistakes
 Ensure you enter the width and required rate correctly – that the decimal point is in the correct position.
If the rate is 2.5 kg/ha, enter 2.5. (not 25 - which is 25kg/ha)
 Remember to deduct the weight of the collection container – weigh only the contents
 Ensure you work in grams – not kilograms
 Ensure you are working in the mode required – either Kilograms per Hectare or Seeds per Square Metre.
The standard default mode for the i-CON is in Kgs/Ha and you will have to reconfigure the display if you
want to display Seeds per Square Metre. You do not need to enter or change the TGW if working in
Kgs/Ha – only if working in Seeds per Square Metre - Refer to the RDS manual, Section 3, page 21,
Units and TGW
 Ensure you check the minimum and maximum speeds displayed, and that they are sensible for your field
operation. This is the speed range that the i-CON can maintain the required application rate, and de-
pends on the width of your machine, the application rate required, and the type and configuration of
feed rolls fitted
 Ensure that the speed range will work for you in the field – ensure that your target forward speed will
not be close to either the minimum or the maximum of the range, and that you have some reserve of
speed range above and below the in-field forward speed. Ideally your forward speed will be close to the
middle of the range
 If the minimum is too high, for example 4kph then the feed motor will be running too slowly if your
forward speed drops towards the minimum as you set in and lift out of work, and this could result in
missed patches (although the alarm will trigger when either the minimum or maximum speed is
reached)
 If the indicated speed range does not work for your operation, you must change the feed roller
configuration or the type of feed roll to apply more or less seed, per revolution of the feed mechanism,
as required. Once completed, recalibrate and note the new speed range.
Ready For Work
Air Force models Ensure the fan switch is switched to the ON position on the Junction box and instrument
screen
