STONEX SRT10W User manual

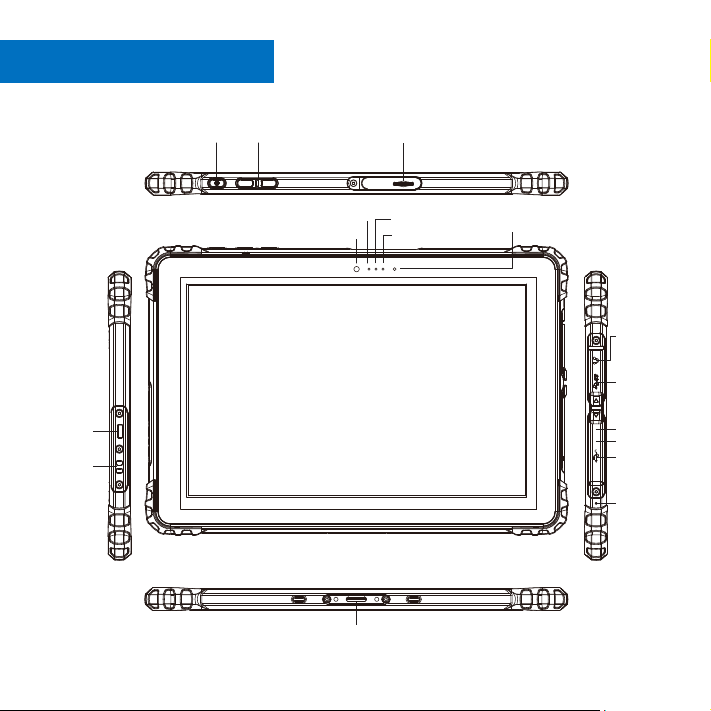

Power Volume Micro SD
Camera LED
Front Camera Power LED
Charging LED
Light Sensor
3.5mm
Headset
USB 3.0
Kensington
Lock
Hang
rope hole
HDMI
USB 2.0
DC Jack
Mic
Docking
Contact Pins

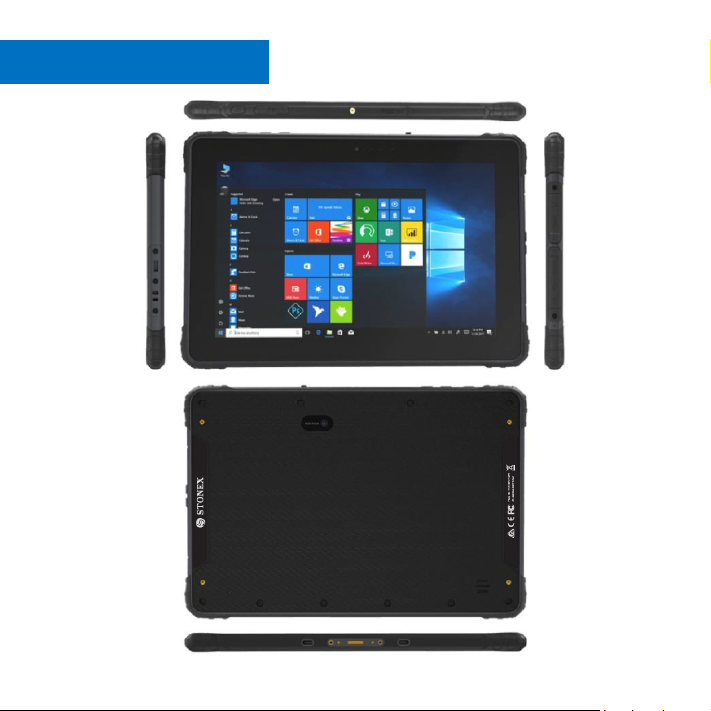

The device

Rear camera
Air vent
Speaker

Insert/Remove SD
Insert/Remove SD

Micro SD

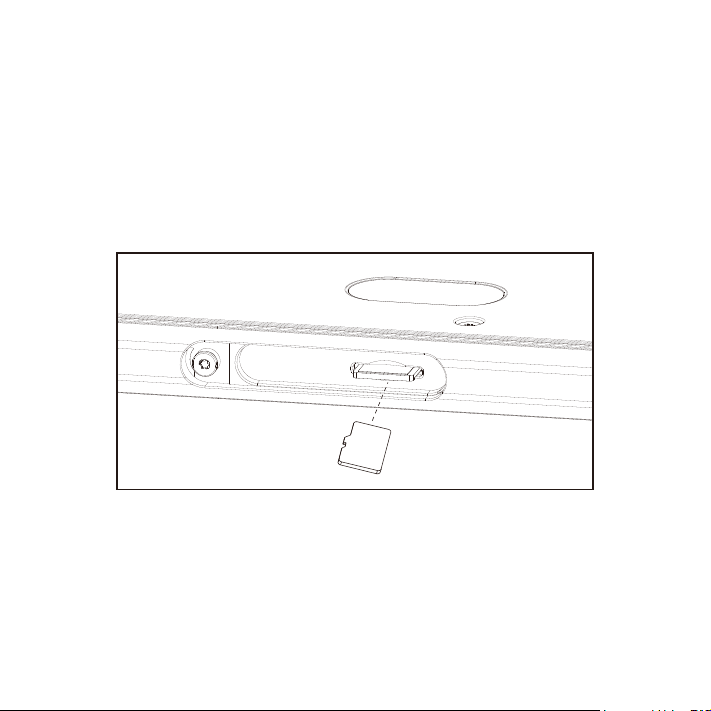

Install or remove SD card as shown below

Notice
1. Some special places, such as airports, hospitals, gas stations and other places, do not
allow the use of electronic equipment. Please comply with the rules and do not use this
product in these places.
2. For your safety and the safety of others, please do not use this product while driving
a vehicle.
3. In order to avoid potential safety problems, do not put this product near the vehicle's
airbag.
4. For your safety, please do not use this product during thunderstorms.
5. Although this product is waterproof, do not leave this product for long periods of time
in areas with water or moisture.
6. This product has an operating temperature range of -10°C~+45°C and a storage
temperature range of -40°C~+70°C. Extreme temperatures can affect the device's
performance and service life.
7. Please use an original rechargeable lithium battery. Low-quality batteries will affect
the performance and service life of the device and may even have the danger of
explosion.
8. Although the product has been tested to withstand harsh operating environments, do
use the product in an improper manner.
9. Please do not disassemble this product. In case of failure, please send to our
authorized service centers to proceed with repairs.
10. After the device has reached the end of its service life, please discard in a proper way
to avoid environmental pollution.
11. When replacing the battery or during the use of an external power supply, shut down
the device completely before removing the battery or disconnecting the external
power supply to prevent damage.
12. This product is a Class B product, which may cause radio interference. The user may
be required to take necessary preventive measures.

Battery Instructions
1. This product uses a rechargeable lithium battery as a power source. When the power is
low, please charge the battery. To maintain battery life, it is recommended to deplete
the battery's power before charging.
2. When the battery charger is not in use, please remove it from the power supply. Do
not connect the charger to the battery for more than one week. Excessive charging will
shorten the battery life.
3. Temperature affects the battery charging limit. Therefore,the battery may need to
be cooled or warmed up before charging.
4. Please use the battery for its original intended purpose to prevent sho rt- ci rcui ti ng
the battery. A short circuit will occur when a conductive material connects the
battery’s positive and negative terminals.
5. Do not use a battery that is damaged.
6. Placing the battery in extremely cold or hot places will lead to shortened battery life.
Exposing the battery to extreme temperatures may cause the device to malfunction, even
if the battery is fully charged.
7. Do not put the battery in a fire. Please discard the battery in a proper manner or take the
battery to a battery recycling station. Please dispose waste batteries in accordance with
local laws and regulations.

Notice
The SAR limit of Europe is 2.0 W/kg. Device types SRT10W has also been tested against this
SAR limit. The highest SAR value reported under this standard during product certification
when properly worn on the body is 0.075W/kg. This device was tested for typical body - worn
operations with the back of the handset kept 0 cm from the body. To maintain compliance
with RF exposure requirements, use accessories that maintain a 0 cm separation distance
between the user's body and the back of the handset. The use of belt clips, holsters and similar
accessories should not contain metallic components in its assembly. The use of accessories
that do not satisfy these requirements may not comply with RF exposure requirements and
should be avoided.
The SAR limit of FCC and ISED is 1.6 W/kg averaged over one gram of tissue.
Device types: SRTW10
(FCC ID: Y44-SRT10W and IC: 9932A-SRT10W) has also been tested against this SAR limit.
The highest SAR value reported under this standard during product certification for use on the
body is 0.353 W/kg. This device was tested for typical body-worn operations with the back of
the handset kept 0 cm from the body. To maintain compliance with FCC and ISED RF exposure
requirements, use accessories that maintain a 0 cm separation distance between the user's
body and the back of the handset. The use of belt clips, holsters and similar accessories should
not contain metallic components in its assembly. The use of accessories that do not satisfy
these requirements may not comply with FCC and ISED RF exposure requirements and should
be avoided.
Element: High sound pressure is associated with a risk of hearing damage.

Notice
This device complies with Part 15 of the FCC Rules and with RSS-210 of Industry Canada.
Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may
cause undesired operation.
NOTICE:
Changes or modifications made to this equipment not expressly approved by Stonex Srl may
void the FCC authorization to operate this equipment. NOTE: This equipment has been tested
and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC
Rules. These limits are designed to provide reasonable protection against harmful interference
in a residential installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interference will
not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which can
be determined by turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
NOTICE:
This Class [B] digital apparatus complies with Canadian ICES -003.
RF mode and power tune-up refer to appendix A.

Notice
This device is restricted to indoor use where operated in the European Community
using frequency in 5150MHz ~ 5250MHz to reduce the potential for interference.
Restriction in BE, BG, CZ, DK, DE, EE, IE, EL, ES, FR, HR, IT, CY, LV, LT, LU, HU, MT,
NL, AT, PL, PT, RO, SI, SK, FI, SE, UK.
Hereby, [Stonex Srl] declares that the radio equipment type [SRT10W] is in
compliance with Directive 2014 / 53 / EU.

Normal Mode RF Power Range (WLAN, Bluetooth)
Band
(GHz)
Mode
Range(dBm)
2.4
(2.4~2.4835)
802.11b
11.00-14.00
802.11g
11.00-14.00
802.11n(HT20)
11.00-14.00
802.11n(HT40)
11.00-14.00
Band
(GHz)
Mode
Range(dBm)
5.2
(5.15~5.25)
802.11a
7.00-11.00
802.11n(HT20)
7.00-11.00
802.11n(HT40)
7.00-11.00
802.11ac(VHT20)
7.00-11.00
802.11ac(VHT40)
7.00-11.00
802.11ac(VHT80)
7.00-11.00
Band
(GHz)
Mode
Range(dBm)
5.8
(5.725~5.825)
802.11a
8.00-12.00
802.11n(HT20)
8.00-12.00
802.11n(HT40)
8.00-12.00
802.11ac(VHT20)
8.00-12.00
802.11ac(VHT40)
8.00-12.00
802.11ac(VHT80)
8.00-12.00
Band
(GHz)
Mode
Range(dBm)
Bluetooth
GFSK
0.00-5.00
π/4-DQPSK
0.00-5.00
8-DPSK
0.00-5.00
BLE
0.00-2.00

STONEX®
Part of UniStrong
Viale dell’Industria N.53
20037 - Paderno Dugnano (MI) - Italy
