STORK TRONIC 900228.023 User manual

Order number: 900228.023 Page 1
ZB Gateway
Interface coupler TCP-IP/RS485
Order number 900228.023
As of: 11.12.2015

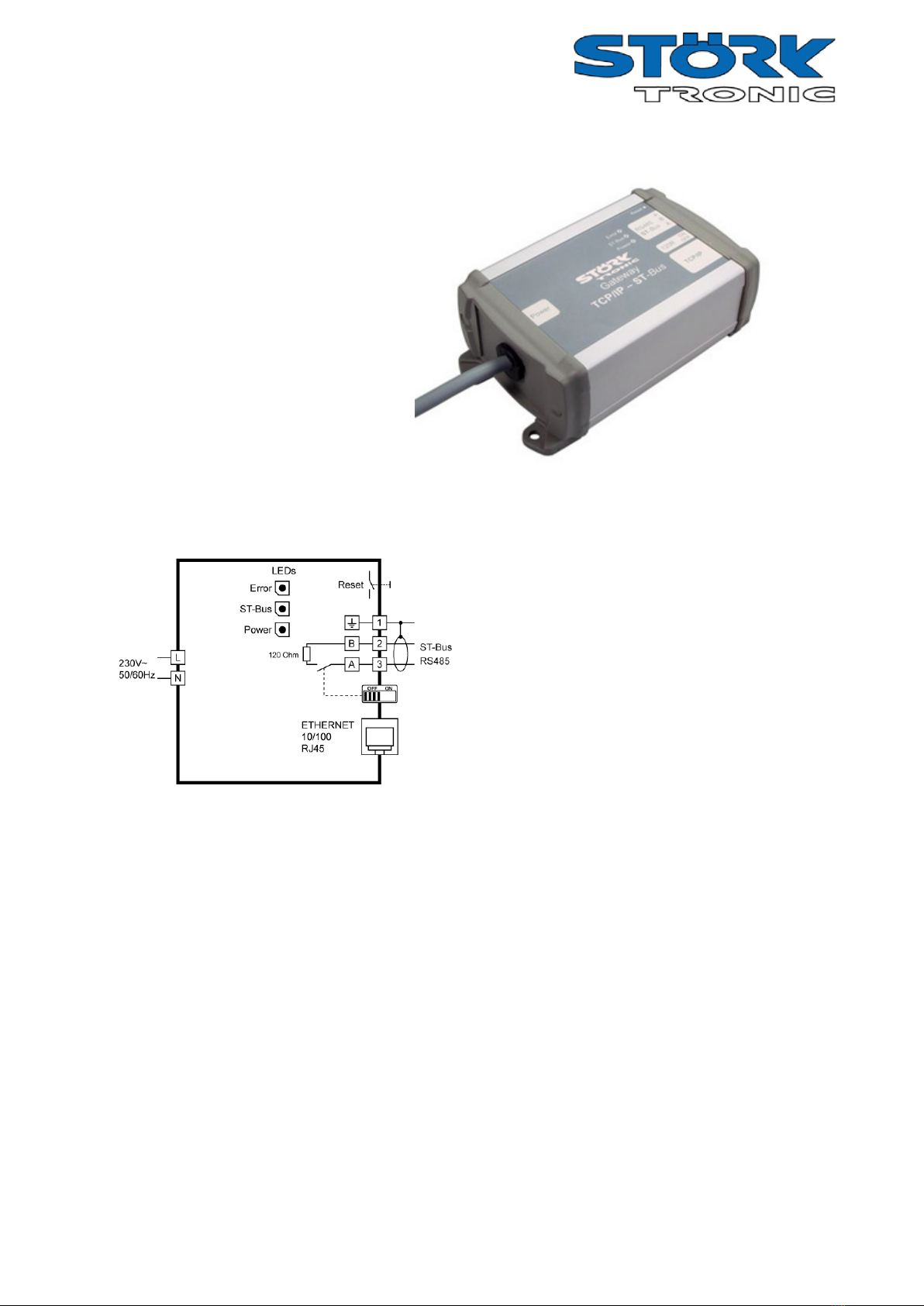

Wiring diagram
Product description
With the help of the TCP-IP/RS485 interface coupler, an RS485 interface is made available on a computer
with an Ethernet connection for communication with ST-Bus devices.
.
Dimensions: approx. 140mm x 85mm x 50mm Wall-mounted housing

Order number: 900228.023 Page 2
Using the IP Gateway:
ATTENTION:
The IP gateway requires an IP address that is not yet used in your local network. Please contact your
network administrator if you are not sure which IP addresses are used in your local network!
Please note that all IP gateways are delivered from the factory with the same IP address and therefore
cannot be connected to your local network simultaneously in an unconfigured state when using several
gateways.
If you want to operate several IP gateways, please make sure that only one IP gateway to be configured is
connected to the local network at any one time.
If the default IP address of the gateway (192.168.0.101) is not used in your local network, you can connect
the gateway to the local network using a CAT5 Ethernet cable.
If the default IP address is already assigned, connect the gateway directly to your PC for configuration.
The IP gateway does not use DHCP and must be configured with a static IP address.
You may have to change the network settings of your PC to connect to the gateway for the first time. Please
make a note of any changes or ask your network administrator for help.

Order number: 900228.023 Page 3

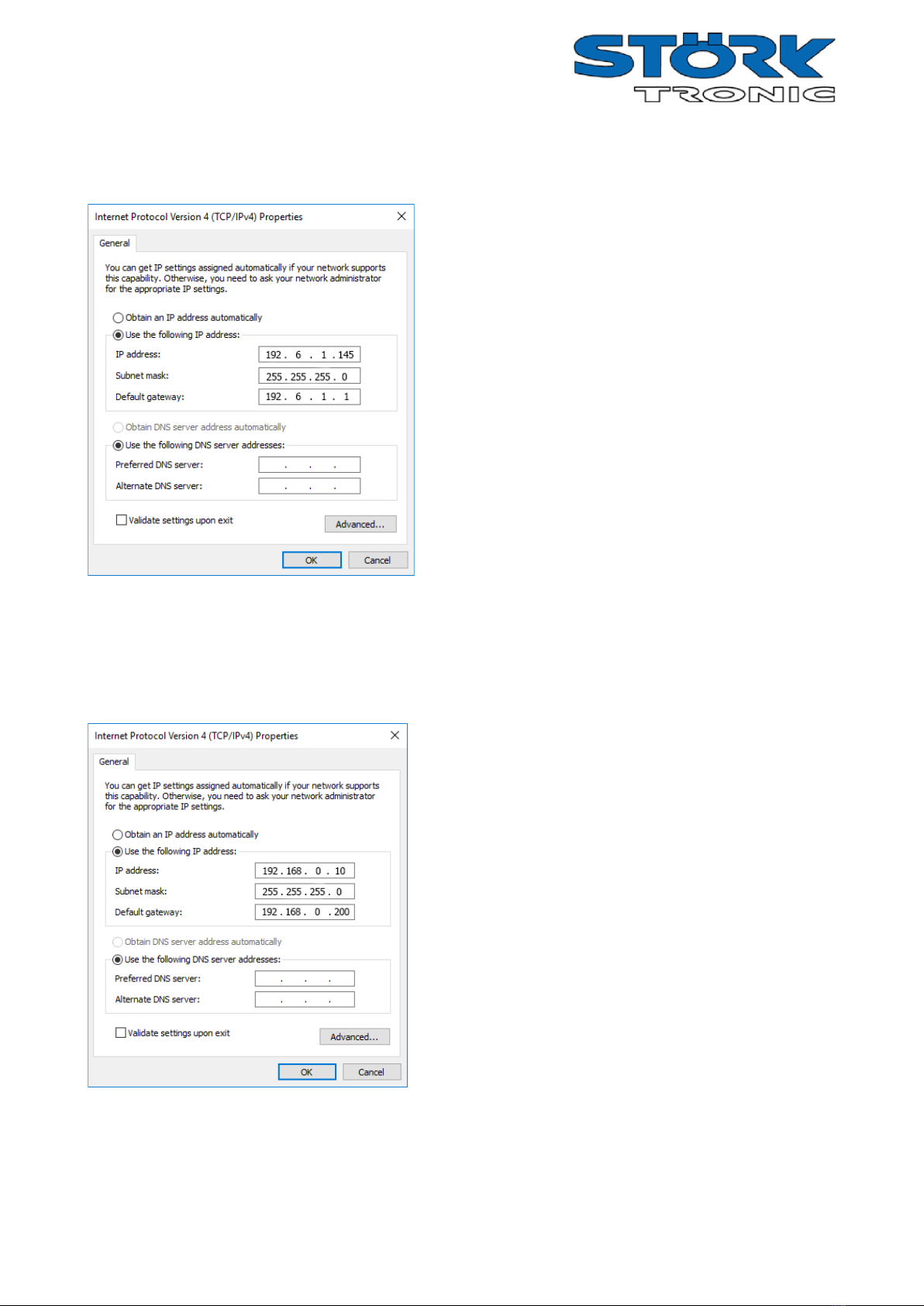

Configure local network settings
The IP gateway is by default delivered with the IP address "192.168.0.101" and the subnet mask
"255.255.255.0".
In order for the PC to connect to a new IP gateway, it must
be configured with an IP address from the same address
range.
Proceed as follows:
Open the network connection dialogue ("Start --> Control
Panel --> Network Connections").
Select the appropriate LAN connection ("LAN
Connection"). Open the properties window of this LAN
connection ("right mouse click" --> "Properties").
In the selection list, find the item "Internet Protocol
(TCP/IP)" and select "Properties".
Make a note of the original values of the properties window. You will need these values when you reconnect
the PC to your local network.
If your PC is already in the subnet "192.168.0.xxx" (the IP address is composed of 192.168.0 in the first three
entries), you can skip the following points (cancel all dialogues) and continue directly with the point
"Configure gateway".
If the PC is in another subnet (the IP address differs from
192.168.0 in the first three entries), please enter
"192.168.0.10" in the IP address field and "255.255.255.0"
in the "Subnet mask" field. Please change the default
gateway to the value "192.168.0.200".
You can only change these values if you have administrator
rights and have activated the "Use the following IP address"
dialogue.
Confirm all property windows with "OK" and possibly restart
the system.

Order number: 900228.023 Page 4

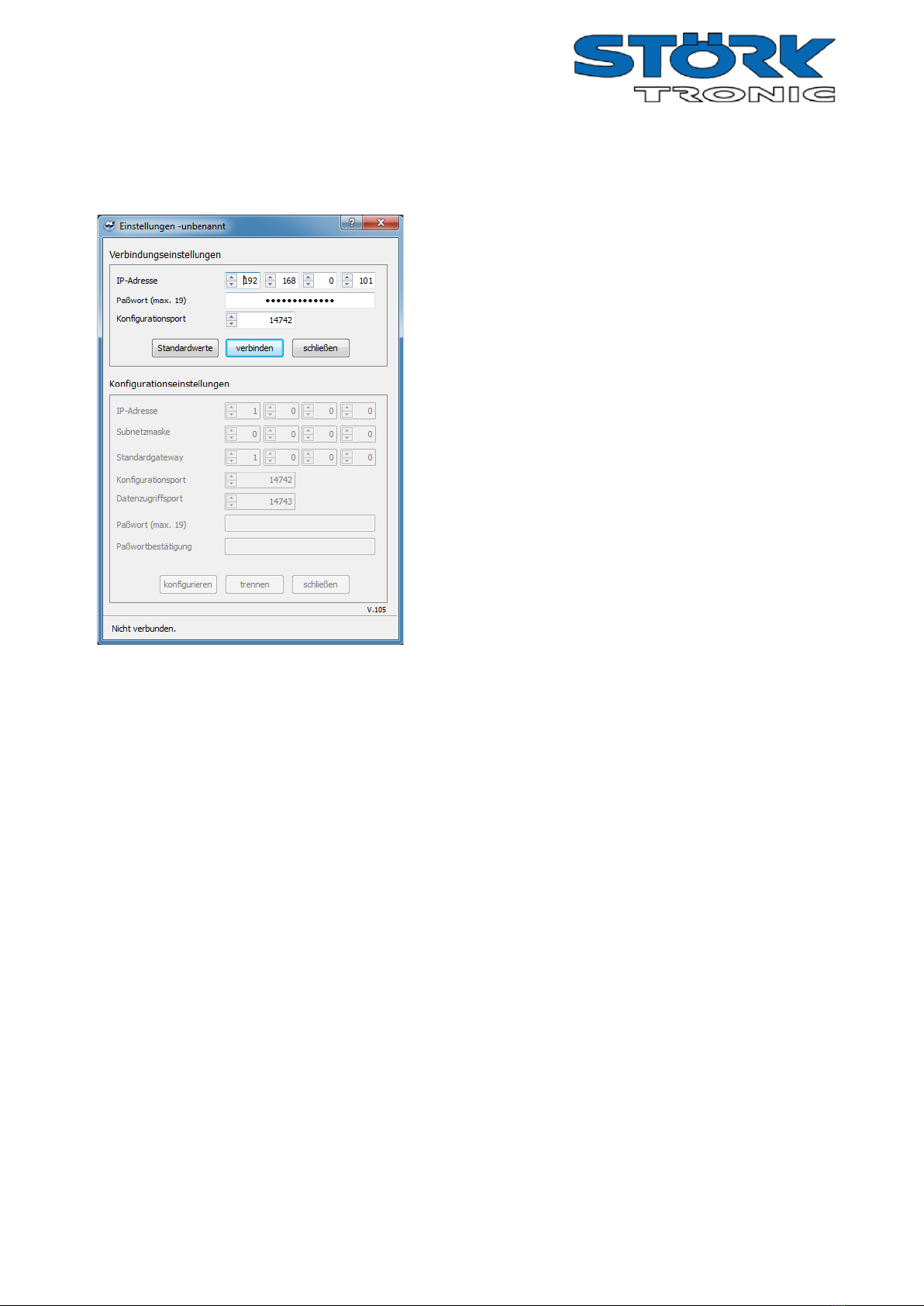

Configure gateway
After you have adjusted the local network settings of your PC, press the "Configure Gateway..." button.
The factory settings of the gateway are displayed. Please do
not change anything, just activate the "verbinden"
(“connect”) button. The current settings of the IP gateway
are displayed in the lower dialogue section.
If you receive an error message, please check the network
settings and cable connections, reconfigure any existing
firewall to allow ICMP packets and ports 14742 and 14743 to
pass through or contact your network administrator.
After you have established a successful connection to the IP
gateway, you can make the settings valid in your local
network.
For setting the locally valid network defaults, please perform
the following actions:
Enter the static IP address for the IP gateway obtained from
your network administrator as the "IP address". Proceed in
the same way with the entries "Subnet mask" and "Default
gateway".
To save the values in the IP gateway, you must enter the password and the password confirmation. In the
factory setting, the password is "administrator". Then please activate the button "configure".
You can change the password by entering a new password in the fields "Password" and "Password
confirmation" and then pressing the button "Configure". Please wait at least 10 seconds until the gateway
has reinitialised.
If you have made a mistake when entering the settings or decide to return to the original values, you can
reset the gateway to the factory settings by pressing the "RESET" button for at least 3 seconds.
.

Order number: 900228.023 Page 5
Technical data
Connections
RS485, ST-Bus, 3-pole
RJ45 Ethernet
Environmental conditions
Storage temperature -20°C...+70°C
Working temperature 0...55°C
Relative humidity max. 75% r.h., no condensation
Power supply
230V~ 50/60 Hz, power consumption 3VA
Weight
Ca. 200g
Tightness
IP42
Installation data
Table-top housing, also suitable for screwing to a wall.
Enclosure size: L 140mm x W 85mm x H 50mm
