Strait-line Sonic laser tape 50 User manual

Sonic Laser Tape 50

English

Thank you for purchasing this STRAIT-LINE® SONICThank you for purchasing this STRAIT-LINE® SONIC

Thank you for purchasing this STRAIT-LINE® SONIC

LASER TAPE.LASER TAPE.

LASER TAPE.

If you have any questions about this product or its use,If you have any questions about this product or its use,

If you have any questions about this product or its use,

please call our toll-free customer service center at 1-800-please call our toll-free customer service center at 1-800-

please call our toll-free customer service center at 1-800-

464-7946.464-7946.

464-7946.

To learn more about how STRAIT-LINE® Products canTo learn more about how STRAIT-LINE® Products can

To learn more about how STRAIT-LINE® Products can

help you with all your home-improvement or decoratinghelp you with all your home-improvement or decorating

help you with all your home-improvement or decorating

projects visit our website atprojects visit our website at

projects visit our website at www.strait-line.comwww.strait-line.com

www.strait-line.comwww.strait-line.com

www.strait-line.com..

This tool emits a laser beam, which, projects a visible spot on the target

surface when the tool is used indoors.

This is a Class IIIA (U.S. version) or IIIR (Europe version) laser tool and is

manufactured to comply with international safety rule IEC 285.

Technical SpecificationsTechnical Specifications

Technical Specifications

Recommended use Indoor

Accuracy ±0.5% or ±1 digit

Resolution:

In 1”

Ft-in 1”

Yards 0.01

CM 1

M0.01

Aperture Angle ±5˚

Power Supply 9V block battery (not included)

Battery Life 10,000 readings

Dimensions 6.5”/165mm x 2.44”/62mm x 1.41”/36mm

Weight 3.8oz / 108g (without battery)

Measurement Range:

Length 1’10” to 50’0” (0.55m to 15.20m)

Area 3.44’sq to 2500’sq (0.30m sq to 231.04m sq)

Volume 6.20’cu to 125000’cu (0.17m cu to 3511.81m cu)

Calculation Range:

Inches 22” to 999999”

Feet 1’10” to 9999’11”

Yards 0.60yds to 999999yds

Centimeters 55cm to 999999cm

Meters 0.55m to 9999.99m

Operating EnvironmentOperating Environment

Operating Environment

Temperature 32˚F to 104˚F (0˚C to 40˚C)

Still air and hard target surface for accurate measurement.

NOTE: The SLT50 always measures from the base of the toolNOTE: The SLT50 always measures from the base of the tool

NOTE: The SLT50 always measures from the base of the tool

SAFETY INSTRUCTIONSSAFETY INSTRUCTIONS

SAFETY INSTRUCTIONS

ImportantImportant

Important

Please read all instructions prior to operating Sonic Laser Tape Measure.

CautionCaution

Caution

Use of controls or performance of procedures other than those specified

herein may result in hazardous radiation exposure.

WarningsWarnings

Warnings

Use of controls or performance of procedures other than those specified

herein may result in hazardous radiation exposure. The power of the emission

of the laser beam is less than 1mW in Class II (Europe) and less than 5mW

in Class IIIA (U.S.) and Class IIIR (Europe), so the following warnings must

be followed to avoid injury:

•DO NOT stare directly at the laser beam.

•DO NOT project the laser beam directly into the eyes of others / animals.

•DO NOT set up the tool at eye level or operate the tool on or near a

reflective surface, as the laser beam could be projected into your eyes

or the eyes of others.

HOW TO USEHOW TO USE

HOW TO USE

1. With the base of the SLT50 held firmly

against the first wall or hard surface, press

the READ button to obtain the first

dimension. The first measurement will be

displayed on the top line of the display.

The W will now be flashing.

2. With the base of the SLT50 held firmly

against the second wall or hard surface,

press the READ button to obtain the

second measurement. The measurement

will be displayed on the top line of the

display; nothing will be displayed on the

bottom line. The H will now be flashing.

3. With the base of the SLT50 held firmly

against the third hard surface, press the

READ button to obtain the third

measurement. Now the third

measurement will be displayed on the top

line of the display and the volume

calculation will appear on the bottom line. The LWH icon will not be

flashing.

To review the 3 measurements, pressing the read button repeatedly will

scroll thru H, L, and W. To obtain another volume measurement, press the

C button to start the procedure over. To store the reading in memory, refer

to the section labeled “Measurement Storage”. To add measurements refer

to the section labeled “To Add Measurements”.

Measurement StorageMeasurement Storage

Measurement Storage

•The value on the display will be stored in one of five memory locations.

•For Length measurements, the top line of the display is transferred to

memory unless two or more lengths have been added. In this case, the

total from the bottom line of the display will be put into memory.

•For Area and Volume measurements, the bottom line of the display is

transferred to memory.

•The type of measurement is stored (sq for area or cu for volume) in

memory.

•The measurement will be stored in the current unit mode, but will be

recalculated if the unit mode is changed. For example if a measurement

of 16ft is stored and the units are changed to m, the memory location

will be changed to 4.9m.

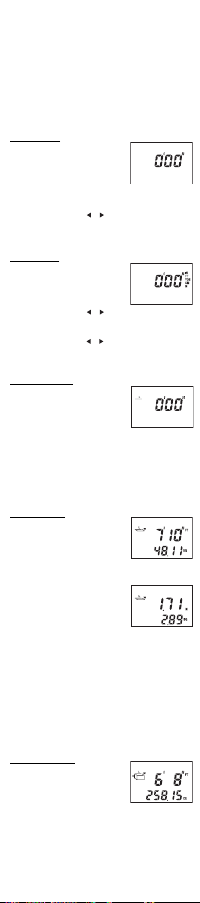

1. To store a measurement in one of the five

memory locations, press the SEL button

while the value is displayed on the screen.

The current mode will flash on the top of

the screen.

2. Press the scroll buttons ( or ) until M

is flashing.

3. Press the SEL button.

4. Select which memory location to store the value by pressing the

scroll buttons ( or ) until the desired location is flashing.

5. Press the SEL button to chose the location. The screen will return to

the previous display.

*NOTE: Memory locations cannot be cleared. When a memory*NOTE: Memory locations cannot be cleared. When a memory

*NOTE: Memory locations cannot be cleared. When a memory

location is selected, the current value will be replaced with thelocation is selected, the current value will be replaced with the

location is selected, the current value will be replaced with the

new one.new one.

new one.

Memory RetrievalMemory Retrieval

Memory Retrieval

•The values stored in one of the five memory

locations will be displayed on the screen.

•The value will be restored to the bottom line

of the display.

1. Press the SEL button. The current mode

will flash at the top of the screen.

2. Press the scroll buttons ( or ) until M

is flashing.

3. Press the SEL button.

4. Select which memory location to restore

by pressing the scroll buttons ( or ) until the desired location is

flashing. The measurement stored in each location is shown on the

screen as the locations are scrolled. The measurement will be on the

bottom line of the display.

5. Press the SEL button to return to measure mode.

To add MeasurementsTo add Measurements

To add Measurements

•Measurements currently displayed on the screen can be added without

entering them in memory.

•This is useful when measuring the square footage of a house. The area

of each room can be added to the total one at a time.

•Different units of measure cannot be added. For example an Area cannot

be added to a Volume.

1. Put the SLT50 in the desired mode and take the first measurement.

For example Area mode and measure the first room.

2. When the first measurement is displayed (on the top line for Length

measurements and bottom line for Area and Volume measurements),

press the +/= button. A + sign is displayed on the left of the screen.

The unit is ready to make the next measurement.

3. For Length mode, press the READ button once. For Area or Volume,

follow the appropriate procedure to obtain the next measurement.

While obtaining an Area or Volume during the addition process,

pressing the C key once will start that measurement over from the

beginning, but the addition will still be in progress.

4. When the measurement is obtained, press the +/= key to add the

measurement to the total. The new total is displayed on the bottom

line.

5. Press the +/= key to add another measurement.

To Add Measurements in MemoryTo Add Measurements in Memory

To Add Measurements in Memory

•The units have to be of the same type (Length,

Area, or Volume).

1. Calculate first measurement: Length,

Area, or Volume.

2. With the first measurement displayed on

the screen, press the +/= button. A + will be displayed on the left

side of the display.

3. Press SEL button. The current mode will

flash at the top of the screen.

4. Press the scroll buttons ( or ) until M

is flashing.

5. Press the SEL button. The memory location

icons are displayed with the first one flashing.

6. Press the scroll buttons ( or ) until the desired memory location is

flashing. Only memory locations that have the same type of

measurement (Length, Area, or Volume) can be used. As the locations

are scrolled, the screen will display the stored measurement. The

type of measurement is indicated on the screen by the units next

to the measurement.

7. Press SEL to choose the measurement. The measurements will be

totaled and the result displayed on the bottom line of the display.

Important NotesImportant Notes

Important Notes

Inaccurate measurement may result from the following:

•When the battery runs low (please replace the battery when the “Low

Battery” icon is displayed on the screen)

•When the measured distance is out of the specified range.

•When another ultrasonic source is nearby.

•When the unit is not perpendicular to the target.

An error message “err” will be displayed under the following conditions:

•The target surface does not provide good reflection for the ultrasonic

pulse (i.e. soft and irregular surface such as thick carpet, curtain, or

irregular wall paper).

•The distance measured is out of the specified range (less than 1’10” or

greater than 50’).

• The unit is not perpendicular to the target.

Care and HandlingCare and Handling

Care and Handling

•The SLT50 is a precision instrument, which must be handled with care.

•Avoid shock, vibrations and extreme heat.

•Avoid dust and water. If needed, use a soft cloth and glass cleaner to

clean the screen.

•Keep the laser tool dry and clean.

•Check battery regularly to avoid deterioration.

•Remove battery if the laser tool is to be stored for an extended period of

time.

WarrantyWarranty

Warranty

Each STRAIT-LINE® tool is warranted to be free from defects in material

and workmanship for a period of five years from the date of purchase.

During the warranty period, should the tool fail to operate under normal

conditions and be deemed defective by the manufacturer, the manufacturer

reserves the right to repair or replace the product.

This warranty does not apply to any damage resulting from, but not limited

to, the following: abuse, negligence, accident, water, being dropped from

more than 3 feet, any uses for which the tool is not designed, and/or if

repairs have been made or attempted by others. Disassembling the laser

tool will also void the warranty.

Return all parts of the broken tool to Strait-Line™

Huntersville, NC 28078-1801 USA, for a free repair or replacement if warranty

applies.

BEFORE RETURNING THIS PRODUCT, PLEASE CALL 1-800-464-7946.

In Australia or New Zealand, return all parts of the broken tool to Newell

Rubbermaid Pty, LTD. 44-48 Rocco Drive, Scoresby Victoria 3179, Australia,

for a free repair or replacement if warranty applies.

LCD Screen

Right Scroll Key

Clear Key

Belt Clip

Laser Pointer

Ultrasonic Sensor

Battery Door

Select Key

Addition Key

Left Scroll Key

Installing batteryInstalling battery

Installing battery

Open battery door (see diagram for location) and insert a new 9V alkaline

battery (not included). Reinstall battery door.

Turn SLT50 OnTurn SLT50 On

Turn SLT50 On

Press the READ button once. Unit will power up with the display showing

the same information as the previous shutdown.

*NOTE: Unit will automatically shut down 30 seconds after last*NOTE: Unit will automatically shut down 30 seconds after last

*NOTE: Unit will automatically shut down 30 seconds after last

inputinput

input

To Select ModeTo Select Mode

To Select Mode

•The SLT50 has six modes: Length, Area,

Volume, Units, Memory Store, and Memory

Retrieve. Icons at the top left of the display

indicate these modes.

1. Press the SEL button. The menu options

will pop up with the mode you are currently

in flashing. Choices are “Length”, “Area”, “Volume”, “Units”, “Memory

Store”, and “Memory Retrieve”.

2. Press the scroll buttons ( or ) until the desired mode is flashing.

3. Press the SEL button to accept selection.

**NOTE: At any time pressing the C button 3 times will return the**NOTE: At any time pressing the C button 3 times will return the

**NOTE: At any time pressing the C button 3 times will return the

unit to Length mode.unit to Length mode.

unit to Length mode.

To Select UnitsTo Select Units

To Select Units

•The SLT50 can be set to display the

measurements in five units indicated by icons

on the right of the display: Inches, Feet, Yards,

Centimeters, and Meters.

1. Press the SEL button.

2. Press the scroll buttons ( or ) until the Units icon (U) is flashing.

3. Press the SEL button. The unit icons on the right of the screen will all

appear with the current unit setting flashing.

4. Press the scroll buttons ( or ) until the desired units are flashing.

5. Press the SEL button to set the units. The previous measurement

that was displayed on the screen will be converted to the new units

of measure.

To Measure LengthTo Measure Length

To Measure Length

•Refer to the “To Select Mode” section to

change to LENGTH mode. Once LENGTH

mode is selected, the length (L) icon will be

on the screen flashing.

1. With the base of the SLT50 held firmly

against the first wall or hard surface, point

the SLT50 at opposite surface. The unit must be perpendicular to the

surface you are measuring to.

2. Press the READ button. You will hear a short clicking sound. The

SLT50 will display the length on the screen. The reading includes the

length of the tool.

To obtain another reading, press the READ button again. To store the

reading in memory, refer to the section labeled “Measurement Storage”. To

add measurements refer to the section labeled “To Add Measurements”.

To Measure AreaTo Measure Area

To Measure Area

•Refer to the “To Select Mode” section to

change to AREA mode. Once AREA mode is

selected the length/width (LW) icon will be

on the screen with the L flashing.

•When the SLT50 units are set to inches (IN),

the SLT50 will automatically change to FT-IN

mode and the resultant area will be displayed in square feet. This is

indicated by a FT on the right side of the screen (see Diagram).

•When the SLT50 units are set to centimeter

(CM), the SLT50 will automatically change to

Meter mode and the resultant area will be

displayed in square meters. This is indicated

by a M on the right side of the screen (see

Diagram).

1. With the base of the SLT50 held firmly against the first wall or hard

surface, press the READ button to obtain the first dimension. The

first measurement will be displayed on the top line of the display.

The W will now be flashing.

2. With the base of the SLT50 held firmly against the second wall or

hard surface, press the READ button to obtain the second

measurement. Now the second measurement will be displayed on

the top line of the display and the area calculation will appear on the

bottom line. The LW icon will not be flashing.

To review the 2 measurements, pressing the read button repeatedly will

scroll thru L and W. To obtain another area measurement, press the C

button to start the Area procedure over. To store the reading in memory,

refer to the section labeled “Measurement Storage”. To add measurements

refer to the section labeled “To Add Measurements”.

To Measure VolumeTo Measure Volume

To Measure Volume

•Refer to the “To Select Mode” section to

change to VOLUME mode. Once VOLUME

mode is selected, the length/width/height

(LWH) icon will be on the screen with the L

flashing.

•When the SLT50 units are set to inches (IN), the SLT50 will automatically

change to FT-IN mode and the resultant area will be displayed in cubic

feet. This is indicated by a FT on the right side of the screen.

•When the SLT50 units are set to centimeter (CM), the SLT50 will

automatically change to Meter mode and the resultant area will be

displayed in cubic meters. This is indicated by a M on the right side of

the screen.

DANGERDANGER

DANGER

Class IIIA Laser Product

Laser radiation emitted from tool

Max. Power Output < 5mw

Wavelength: 630-670 nm

Do Not Stare Into BeamDo Not Stare Into Beam

Do Not Stare Into Beam

AVOID DIRECT EYE EXPOSUREAVOID DIRECT EYE EXPOSURE

AVOID DIRECT EYE EXPOSURE

THIS TOOL EMITS A LASER RADIATIONTHIS TOOL EMITS A LASER RADIATION

THIS TOOL EMITS A LASER RADIATION

This caution

notice is

reminded

with a sticker

located on

the back of the

SLT50.

Cinta láser sónica 50

LLAVUM

12345

LAVUM

12345

LAVUM

12345

Spanish

Gracias por comprar este Nivel Láser STRAIT-LINE®.Gracias por comprar este Nivel Láser STRAIT-LINE®.

Gracias por comprar este Nivel Láser STRAIT-LINE®.

Si tiene alguna pregunta acerca de este producto o suSi tiene alguna pregunta acerca de este producto o su

Si tiene alguna pregunta acerca de este producto o su

uso, comuníquese con nuestra central de servicio aluso, comuníquese con nuestra central de servicio al

uso, comuníquese con nuestra central de servicio al

cliente al número gratuito 1-800-464-7946.cliente al número gratuito 1-800-464-7946.

cliente al número gratuito 1-800-464-7946.

Para conocer en mas detalle como los productos STRAIT-Para conocer en mas detalle como los productos STRAIT-

Para conocer en mas detalle como los productos STRAIT-

LINE® prueden ayudarle con sus proyectos de decoracionLINE® prueden ayudarle con sus proyectos de decoracion

LINE® prueden ayudarle con sus proyectos de decoracion

y remodelacion eu el hogar visite nuestro bágina Weby remodelacion eu el hogar visite nuestro bágina Web

y remodelacion eu el hogar visite nuestro bágina Web

www.strait-line.com.www.strait-line.com.

www.strait-line.com.

Esta herramienta emite un rayo láser, el cual proyecta un punto visible

sobre la superficie del objetivo cuando se usa bajo techo.

Esta es una herramienta láser Clase IIIA (versión EE.UU.) o Clase IIIR (versión

Europa) y su fabricación cumple con la regla de seguridad internacional IEC

285.

Especificaciones técnicasEspecificaciones técnicas

Especificaciones técnicas

Se recomienda su uso Bajo techo

Precisión ±0,5% ó ±1 dígito

Resolución:

Pulgadas 1”

Pies-pulgadas 1”

Yardas 0,01

Centímetros 1

Metros 0,01

Ángulo de apertura ±5˚

Suministro de energía Batería de 9V (no incluida)

Duración de la batería 10.000 lecturas

Dimensiones 165 mm x 62 mm x 36 mm

Peso 120 g

Rango de medición:

Longitud 0,55 m a 15,20 m

Área 0,30 m

a 231,04 m

Volumen 0,17 m

a 3511,81 m

Rango de cómputo:

Pulgadas 22” a 999999”

Pies 1’10” a 9999’11”

Yardas 0.60 yds a 999999 yds

Centímetros 55 cm a 999999 cm

Metros 0,55 m a 9999,99 m

Ambiente de operaciónAmbiente de operación

Ambiente de operación

Temperatura 0˚C a 40˚C

Para una medición exacta, se requiere que el aire esté en calma y que la

superficie del objetivo sea dura.

NOTA: La cinta láser sónica - SLT50 siempre mide desde la base deNOTA: La cinta láser sónica - SLT50 siempre mide desde la base de

NOTA: La cinta láser sónica - SLT50 siempre mide desde la base de

la herramientala herramienta

la herramienta

INSTRUCCIONES DE SEGURIDADINSTRUCCIONES DE SEGURIDAD

INSTRUCCIONES DE SEGURIDAD

ImportanteImportante

Importante

Lea todas las instrucciones antes de operar la Cinta métrica láser sónica.

PrecauciónPrecaución

Precaución

El uso de controles o la ejecución de procedimientos diferentes a los

especificados aquí pueden producir como resultado la exposición a

radiaciones peligrosas.

AdvertenciasAdvertencias

Advertencias

El uso de controles o la ejecución de procedimientos diferentes a los

especificados aquí pueden producir como resultado la exposición a

radiaciones peligrosas. La potencia de las emisiones del rayo láser es menor

de 1mW en la Clase II (Europa) y menor de 5mW en la Clase IIIA (EE.UU.)

y Clase IIIR (Europa), de tal forma que se deben respetar las siguientes

advertencias para evitar lesiones:

•NO mire directamente al rayo láser.

•NO proyecte el rayo láser directamente a los ojos de otras personas o de

animales.

•NO monte la herramienta al nivel de los ojos ni la opere sobre o cerca de

superficies reflectivas ya que el rayo láser podría proyectarse hacia sus

ojos o hacia los ojos de otras personas.

CÓMO USARCÓMO USAR

CÓMO USAR

PELIGROPELIGRO

PELIGRO

Producto de láser clase IIIA

Esta herramienta emite radiación de láser

Salida máxima de energía < 5 mw

Longitud de onda: 630 a 670 nm

No mire directamente a la luzNo mire directamente a la luz

No mire directamente a la luz

EVITE EL CONTACTO DIRECTO CON LOSEVITE EL CONTACTO DIRECTO CON LOS

EVITE EL CONTACTO DIRECTO CON LOS

OJOS. ESTA HERRAMIENTA EMITEOJOS. ESTA HERRAMIENTA EMITE

OJOS. ESTA HERRAMIENTA EMITE

RADIACIÓN DE LÁSERRADIACIÓN DE LÁSER

RADIACIÓN DE LÁSER

Este aviso de

precaución aparece

en la etiqueta

ubicada en un lado

de la unidad.

Pantalla LC D

Tecla de desplazamiento

a la derecha

Clip De la Correa

Tec la de borrado

Puntero láser

Sensor ultrasónico

Tapa de

la batería

Tec la de selección

Tecla para sumar

Tec la de

desplazamiento

a la izquierda

Instalación de la bateríaInstalación de la batería

Instalación de la batería

Abra la tapa de la batería (vea el diagrama que muestra su localización) e

inserte una batería alcalina nueva de 9 V (no incluida). Instale de nuevo la

tapa de la batería.

Encienda la cinta métrica SLT50Encienda la cinta métrica SLT50

Encienda la cinta métrica SLT50

Apriete una vez el botón READ (Leer). La unidad se encenderá mostrando

en la pantalla la misma información que tenía cuando se apagó la última

vez.

*NOTA: La unidad se apagará automáticamente después de 30*NOTA: La unidad se apagará automáticamente después de 30

*NOTA: La unidad se apagará automáticamente después de 30

segundos de la última entradasegundos de la última entrada

segundos de la última entrada

Para seleccionar el modoPara seleccionar el modo

Para seleccionar el modo

•La cinta métrica SLT50 tiene seis modos:

Length (Longitud), Area (Área), Volume

(Volumen), Units (Unidades), Memory Store

(Almacenamiento de memoria) y Memory

Retrieve (Recuperación de memoria); los

iconos de la parte superior izquierda de la

pantalla indican estos modos.

1. Apriete el botón SEL. Las opciones del menú aparecerán y el modo

actual brillará de forma intermitente. Las opciones son “Length”, “Area”,

“Volume”, “Units”, “Memory Store” y “Memory Retrieve”.

2. Apriete los botones de desplazamiento ( or ) hasta que el modo

deseado esté brillando intermitentemente.

3. Apriete el botón SEL para aceptar la opción seleccionada.

**NOTA: Apretando 3 veces el botón C en cualquier momento se**NOTA: Apretando 3 veces el botón C en cualquier momento se

**NOTA: Apretando 3 veces el botón C en cualquier momento se

regresará al modo Longitud.regresará al modo Longitud.

regresará al modo Longitud.

Para seleccionar las unidadesPara seleccionar las unidades

Para seleccionar las unidades

•Se puede graduar la cinta métrica SLT50 para

mostrar las mediciones en cinco unidades

indicadas por los iconos a la derecha de la

pantalla: pulgadas, pies, yardas, centímetros

y metros.

1. Apriete el botón SEL.

2. Apriete los botones de desplazamiento ( or ) hasta que el icono

de la unidades (U) esté brillando intermitentemente.

3. Apriete el botón SEL. Los iconos de las unidades a la derecha de la

pantalla aparecerán todos brillando intermitentemente con la

graduación actual de las unidades.

4. Apriete los botones de desplazamiento ( or ) hasta que el modo

deseado esté brillando intermitentemente.

5. Apriete el botón SEL para establecer las unidades. La medición anterior

que fue desplegada en la pantalla será convertida a las nuevas

unidades de medición.

Para medir la LongitudPara medir la Longitud

Para medir la Longitud

•Para cambiar al modo LENGTH (Longitud),

consulte la sección “Para seleccionar el modo”.

Una vez se haya seleccionado el modo

LENGTH, el icono de longitud (L) aparecerá

en la pantalla con la L brillando

intermitentemente.

1. Con la base de la cinta métrica SLT50 sostenida firmemente contra la

primera pared o superficie dura, apúntela hacia la superficie opuesta.

La unidad debe estar perpendicular a la superficie sobre la cual usted

está midiendo.

2. Apriete el botón READ. Usted escuchará un breve sonido de chasqueo.

La cinta métrica SLT50 mostrará la longitud en la pantalla. La lectura

incluye la longitud de la herramienta.

Para obtener otra lectura, apriete de nuevo el botón READ. Para almacenar

la lectura en la memoria, consulte la sección denominada “Almacenamiento

de mediciones”. Para sumar mediciones, consulte la sección denominada

“Sumar mediciones”.

Para medir el ÁreaPara medir el Área

Para medir el Área

•Para cambiar al modo AREA (Área), consulte

a sección “Para seleccionar el modo”. Una vez

se haya seleccionado el modo AREA, el icono

de longitud/ancho (LW) aparecerá en la

pantalla con la L brillando intermitentemente.

•Cuando las unidades de la cinta métrica SLT50

estén ajustadas a pulgadas (IN), la SLT50 cambiará automáticamente al

modo FT-IN y el área resultante se mostrará en pies cuadrados. Esto se

indica por medio de las letras FT al lado derecho de la pantalla (vea

diagrama).

•Cuando las unidades de la cinta métrica SLT50

estén ajustadas a centímetros (CM), la SLT50

cambiará automáticamente al modo Meter

(Metro) y el área resultante se mostrará en

metros cuadrados. Esto se indica por medio

de la letra M al lado derecho de la pantalla

(vea diagrama).

1. Con la base de la cinta métrica SLT50 sostenida firmemente contra la

primera pared o superficie dura, apriete el botón READ para obtener

la primera dimensión. La primera medición se mostrará en la línea

superior de la pantalla. La W estará ahora brillando intermitentemente.

2. Con la base de la cinta métrica SLT50 sostenida firmemente contra la

segunda pared o superficie dura, apriete el botón READ para obtener

la segunda medición. Ahora se mostrará la segunda dimensión en la

línea superior de la pantalla y el cálculo del área aparecerá en la línea

inferior. El icono LW estará ahora brillando intermitentemente.

Presionando el botón de lectura repetidamente se desplazará a través de L

y W para revisar las dos mediciones. Para obtener otra medición del Área,

apriete el botón C para volver a iniciar el procedimiento de medición de

área. Para almacenar la lectura en la memoria, consulte la sección

denominada “Almacenamiento de mediciones”. Para sumar mediciones,

consulte la sección denominada “Sumar mediciones”.

Para medir el VolumenPara medir el Volumen

Para medir el Volumen

•Para cambiar al modo VOLUME, consulte la

sección “Para seleccionar el modo”. Una vez

que se haya seleccionado el modo VOLUME,

el icono de longitud/ancho/altura (LWH)

aparecerá en la pantalla con la L brillando

intermitentemente.

LLAVUM
