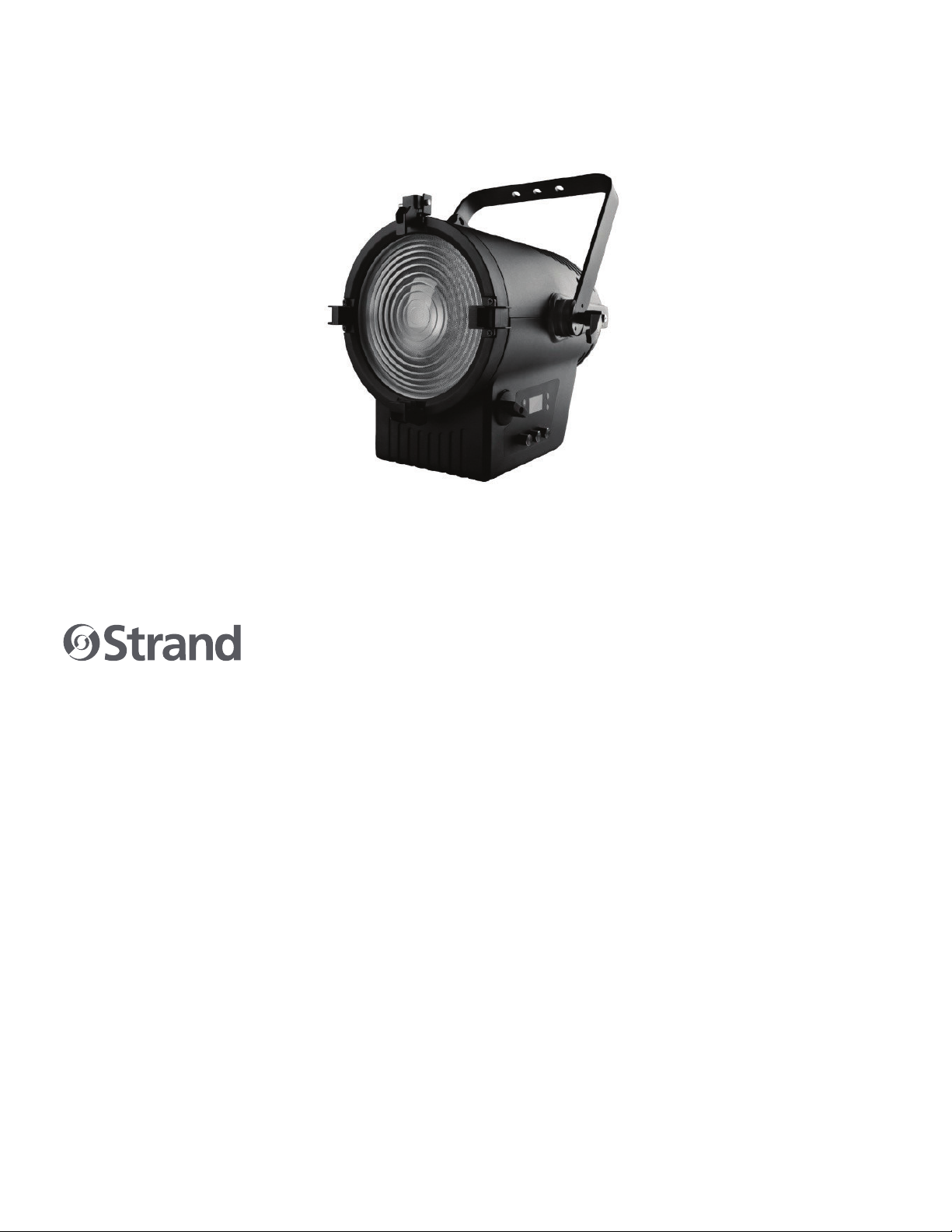

Strand CANTATA LED FRESNEL User manual

CANTATA LED FRESNEL
TUNABLE WARM WHITE
USER MANUAL

USER MANUAL
WWW.STRANDLIGHTING.COM
CANTATA LED FRESNEL TUNABLE WARM WHITE
2
FEATURES
• High output midsized LED Fresnel
• Tunable Warm White Version with Consistent High CRI
• High CRI RGBALC Color System with SmartColor Control
• Tunable white with >94 CRI
• Independent color mixing and temperature controls
• Standard-size accessory rails to support optional 8 leaf barn door or third-party accessories
• Quiet operation with variable fan control (Standard, Studio, and Whisper)
• Adjustable frequency to exceed camera frame rates
Download the product datasheet from the Strand website at www.strandlighting.com for the full technical
specifications.
COMPONENTS
The document provides installation and operation instructions for the following products:
• Strand Cantata LED Fresnel Tunable Warm White
Read all instructions before installing or using this product. Retain this manual for future reference. Additional
product information and descriptions may be found on the product specification sheet.
INCLUDED ITEMS
Each Strand Cantata LED Fresnel luminaire includes the following items:
• Strand Cantata LED Fresnel Tunable Warm White
• Quick Start Guide
1
DESCRIPTION

USER MANUAL
WWW.STRANDLIGHTING.COM
CANTATA LED FRESNEL TUNABLE WARM WHITE
3
MOUNTING
The unit should be mounted via its screw holes on the bracket. Always ensure
that the unit is firmly fixed to avoid vibration and slipping while operating. Always
ensure that the structure to which you are attaching the unit is secure and is able
to support a weight of 10 times of the unit’s weight. Always use a safety cable that
can hold up to 12 times the weight of the unit when installing the fixture.
The luminaire must be mounted by professionals.
SET UP

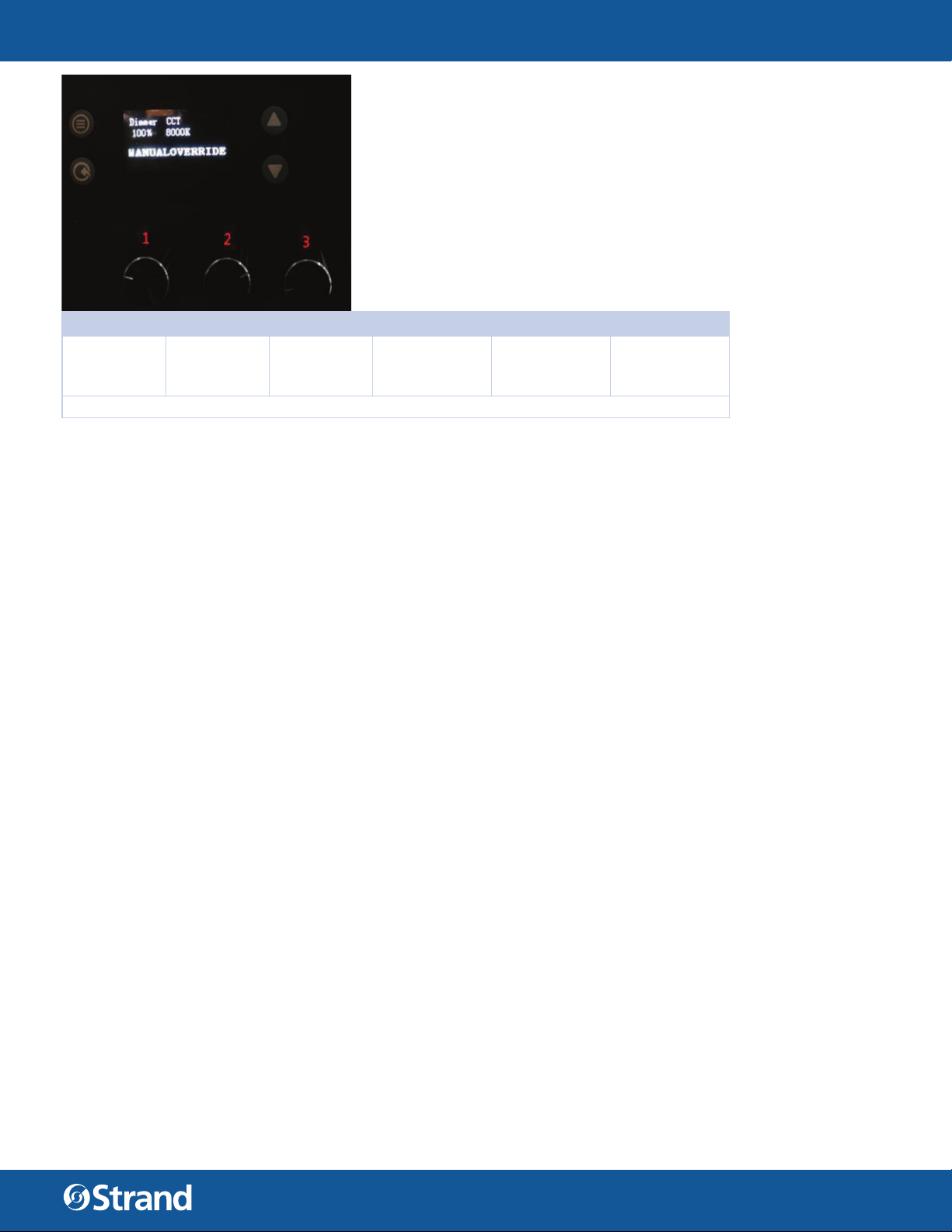

CONTROL PANEL
MAIN FUNCTIONS
To select any functions, press the MENU button until the required one is shown on the display. Select the func-
tion by the ENTER button and the display will blink. Use the DOWN and UP button to change the mode. Once
the required mode has been selected, press the ENTER button to setup or it will automatically return to the
main functions without any change after idling one minute. Back to the functions without any change press the
MENU button. The main functions are shown in TABLE 1.
2
INSTALLATION

USER MANUAL
WWW.STRANDLIGHTING.COM
CANTATA LED FRESNEL TUNABLE WARM WHITE
4
TABLE 1. MENU FUNCTIONS
LEVEL 1 LEVEL 2 LEVEL 3 LEVEL 4 LEVEL 5 LEVEL 6 DEFAULT
Address 001~512 (Default 001)
Configure
LED
LED Hours XXXXXX h
Reset LED Hour Are you sure?
Dimming Curve
Square Curve (Default)
S Curve
Linear Curve
Tungsten Fade On
Off (Default
Dim Snap On (Fast)
Off (Slow) (Default)
LED Frequency
1200Hz (Default)
2500Hz
5000Hz
10000Hz
20000Hz
25000Hz
White Balance
Red 125 - 255 Default 255
Green 125 - 255 Default 255
Blue 125 - 255 Default 255
Amber 125 - 255 Default 255
Lime 125 - 255 Default 255
Cyan 125 - 255 Default 255
Reset YES/NO
Color Cal On
Off (Default)
Disp Timeout
30 Sec (Default)
5 Min
10 Min
On
Select Signal
DMX Only
Art-Net
SACN
Set Artnet/
SACN
Set Universe 000~255 (Default 000)
Ethernet IP XXX. XXX. XXX. XXX
Ether Mask IP XXX. XXX. XXX. XXX

USER MANUAL
WWW.STRANDLIGHTING.COM
CANTATA LED FRESNEL TUNABLE WARM WHITE
5
TABLE 1. MENU FUNCTIONS
LEVEL 1 LEVEL 2 LEVEL 3 LEVEL 4 LEVEL 5 LEVEL 6 DEFAULT
DMX
Address 001~512
DMX Mode
SSCC (Default)
SQCC
SOCC
Pixel Group
Group 1 (Default)
Group 3
Group 12
Cell Direction Normal (Default)
Flipped
Data
Ch 1 - Intensity
XXX (Value)
Ch 2 - Intensity
Fine XXX (Value)
……All functions
Fixture
Serial Number Serial Number
electronic format
Status
(No Errors... or
displays a list of
errors)
Reboot Fixture Are you sure?
Version VXXX MM/D/YY HH:MM
Fixture Hours XXXXXX h
Crossload
(Software) Send
Service Diagnostics Board Check
Sensor Check
Manual Control
Red 0 - 255 (Default 0)
Green 0 - 255 (Default 0)
Blue 0 - 255 (Default 0)
Amber 0 - 255 (Default 0)
Lime 0 - 255 (Default 0)
Cyan 0 - 255 (Default 0)
Color Preset
Preset Run Select preset 1 to 20
Intensity 0 - 255
Edit Programs
Intensity* 0 - 255
Red 0 - 255
Green 0 - 255
Blue 0 - 255
Amber 0 - 255
Lime 0 - 255
Cyan 0 - 255
Store YES/NO
Clear YES/NO

USER MANUAL
WWW.STRANDLIGHTING.COM
CANTATA LED FRESNEL TUNABLE WARM WHITE
6
ADDRESS MENU
Address — DMX address setting. To select DMX Address, press the ENTER button to confirm. Use the UP/DOWN
button to adjust the address from 001 to 512, press the ENTER button to store. Press the MENU button back to
the last menu or let the unit idle one minute to exit menu mode.
CONFIGURE MENU
To select Configure, press the ENTER button to confirm, use the UP/DOWN button to select LED, Color Cal,
Disp Timeout, Select Signal and Set Artnet / SACN.
LED
To select LED, press the ENTER button to confirm. Use the UP/DOWN button to select LED
Hours, Reset LED Hour, Dimming Curve, Tungsten Fade, Dim Snap, LED Frequency and White Balance.
Press the ENTER button to store. Press the MENU button back to the last menu or let the unit idle one minute to
exit menu mode.
LED Hours —Select LED Hours, press the ENTER button to confirm, LED Hours will show on the display, press
the MENU button back to exit.
Reset LED Hours — Select Reset LED Hours, press the ENTER button to confirm, “Are you sure” will show on
the display, press the MENU button back to exit.
Dimming Curve — To select Dimming Curve, press the ENTER button to confirm. Use the UP/DOWN button to
select Square Law Curve, S Law Curve or Linear Law Curve, press the ENTER button to store. Press the MENU
button back to the last menu or let the unit idle one minute to exit menu mode.
Tungsten Fade — Select Tungsten Fade, press the ENTER button to confirm, Use the UP/DOWN button to select
ON or OFF, press the MENU button back to exit.
Dim Snap — Select Dim Snap, press the ENTER button to confirm, Use the UP/DOWN button to select ON or
OFF, press the MENU button back to exit.
LED Frequency — To select LED Frequency, press the ENTER button to confirm. Use the UP/DOWN button to
select 1200Hz, 2500Hz, 5000Hz, 10000Hz, 20000Hz , 25000Hz, press the ENTER button to store. Press the
MENU button back to the last menu or let the unit idle one minute to exit menu mode.
White Balance — To select White Balance, press the ENTER button to confirm. Use the UP/DOWN button to
select Red,Green, Blue, Amber, Lime, Cyan and RESET, press the ENTER button to store. Press the MENU button
back to the last menu or let the unit idle one minute to exit menu mode.
Color Cal
To select Color Cal, press the ENTER button to confirm. Use the UP/DOWN button to select ON or OFF, press
the MENU button back to exit.
Disp Timeout
To select Disp TImeout, press the ENTER button to confirm. Use the UP/DOWN button to select 30 Sec, 5min, 10
min or ON, press the MENU button back to exit.
Select Signal
To select Select Signal, press the ENTER button to confirm. Use the UP/DOWN button to select DMX Only, Art-
net or SACN, press the MENU button back to exit.
DMX MENU
To select DMX, press the ENTER button to confirm, use the UP/DOWN button to select Address, DMX Mode,
Pixel Group, Cell Direction or Data.
Address — To select Address, press the ENTER button to confirm. Use the UP/DOWN button to select from 001
to 512. press the ENTER button to store. Press the MENU button back to the last menu or let the unit idle one
minute to exit menu mode.
DMX Mode — To select DMX Mode, press the ENTER button to confirm. Use the UP/DOWN button to select
SSCC, SQCC or SOCC, press the ENTER button to store. Press the MENU button back to the last menu or let the
unit idle one minute to exit menu mode.
Pixel Group — To select Pixel Group, press the ENTER button to confirm. Use the UP/DOWN button to select
Group 1 or Group 4, press the ENTER button to store. Press the MENU button back to the last menu or let the
unit idle one minute to exit menu mode.
Cell Direction — To select Cell Direction, press the ENTER button to confirm. Use the UP/DOWN button to select
Normal or Flipped, press the ENTER button to store. Press the MENU button back to the last menu or let the

USER MANUAL
WWW.STRANDLIGHTING.COM
CANTATA LED FRESNEL TUNABLE WARM WHITE
7
unit idle one minute to exit menu mode.
Data — To select Data, press the ENTER button to confirm. Use the UP/DOWN button to select Ch1 – Intensity
xxx(value), Ch2 – Intensity Fine xxx(Value), …. All functions, press the ENTER button to store. Press the MENU
button back to the last menu or let the unit idle one minute to exit menu mode.
FIXTURE MENU
To select Fixture, press the ENTER button to confirm, use the UP/DOWN button to select Status, Reboot fixture,
Version, Fixture Hours, Crossload (Software) , Service.
Status
Select Status, press the ENTER button to confirm, Status will show on the display, press the MENU button back
to exit.
Reboot Fixture
Select Reboot Fixture, press the ENTER button to confirm, Are you sure? will show on the display, press the EN-
TER button to store. Press the MENU button back to the last menu or let the unit idle one minute to exit menu
mode.
Version
Select Version, press the ENTER button to confirm, Version will show on the display, press the MENU button
back to exit.
Fixture Hours
Select Fixture Hours, press the ENTER button to confirm, Fixture Hours will show on the display, press the MENU
button back to exit.
Crossload (Software)
Select Crossload (Software), press the ENTER button to confirm, Send will show on the display, press the ENTER
button to store. Press the MENU button back to the last menu or let the unit idle one minute to exit menu mode.
NOTE: Incoming DMX must be removed from the fixture or software crossload will not be activated.
Service
To select Service, press the ENTER button to confirm. Diagnostics will show, press the ENTER button to store.
Press the MENU button back to the last menu or let the unit idle one minute to exit menu mode.
Diagnostics — To select Diagnostics, press the ENTER button to confirm. Use the UP/DOWN button to select
Fan Check, Board Check ,Sensor Check, press the ENTER button to store. Press the MENU button back to the
last menu or let the unit idle one minute to exit menu mode.
MANUAL CONTROL MENU
Enter menu mode, select Manual Control, press the ENTER button to confirm, use the UP/DOWN button to se-
lect Red, Green, Blue, Amber, Lime and Cyan. Use the UP/DOWN button to adjust the value from 0 to 255, press
the ENTER button to store. Press the MENU button back to the last menu or let the unit idle one minute to exit
menu mode.
COLOR PRESET MENU
Preset Run
Enter Color Preset mode, select Preset Run, press the ENTER button to confirm, use the UP/DOWN button to
select “Select Preset” or Intensity.
Edit Programs
Enter menu mode, select Edit Programs, press the ENTER button to confirm, MODE will show up, use the UP/
DOWN button to select Intensity, Red, Green, Blue, Amber, Lime, Cyan, Store or Clear. Use the UP/DOWN button
to adjust the value from 0 to 100%, press the ENTER button to store. Press the MENU button back to the last
menu or let the unit idle one minute to exit.

USER MANUAL
WWW.STRANDLIGHTING.COM
CANTATA LED FRESNEL TUNABLE WARM WHITE
8

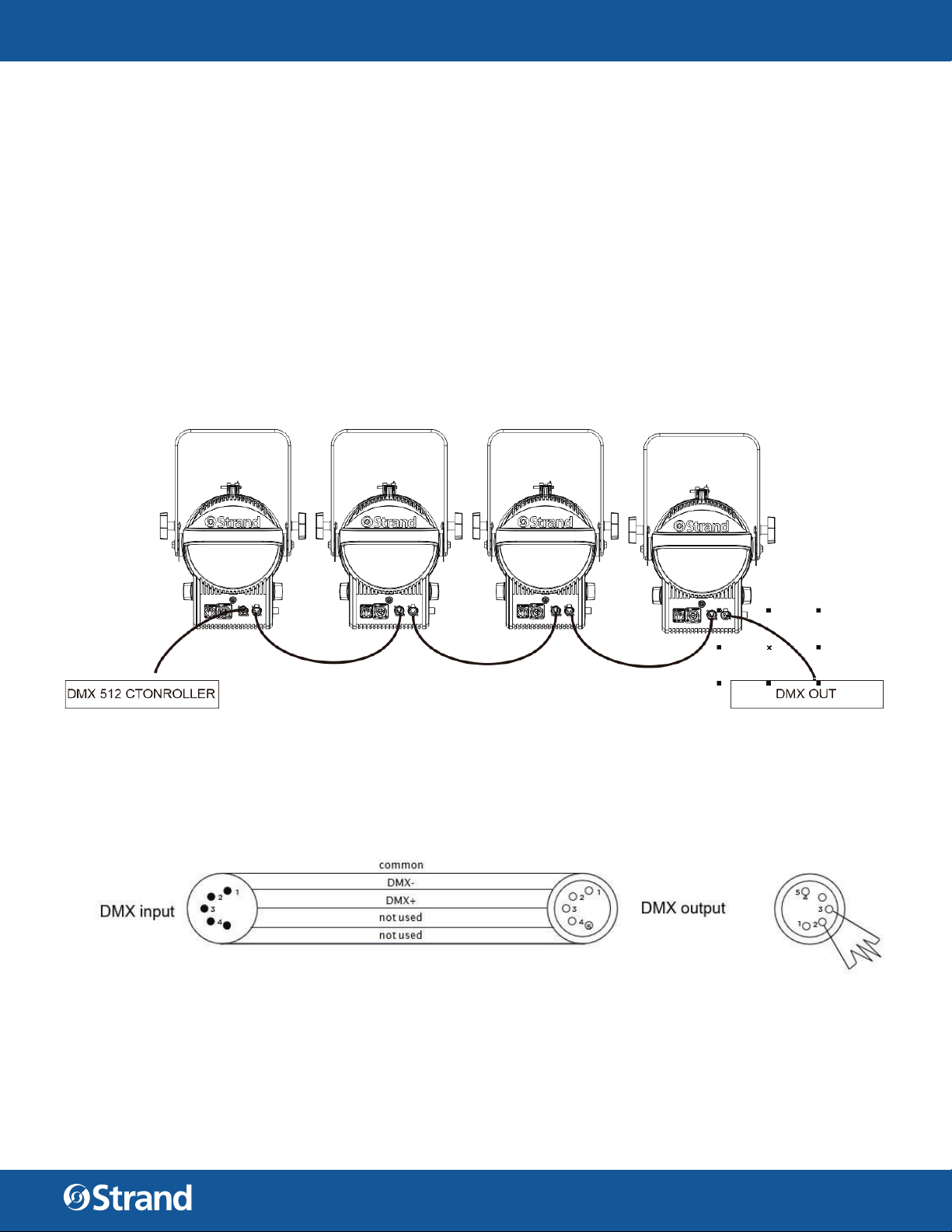

The fixture can be operated by DMX controller. The following tables assumes a DMX start address of 1. When
a dierent starting address is used, this address becomes channel 1 function and other functions follow in se-
quence.

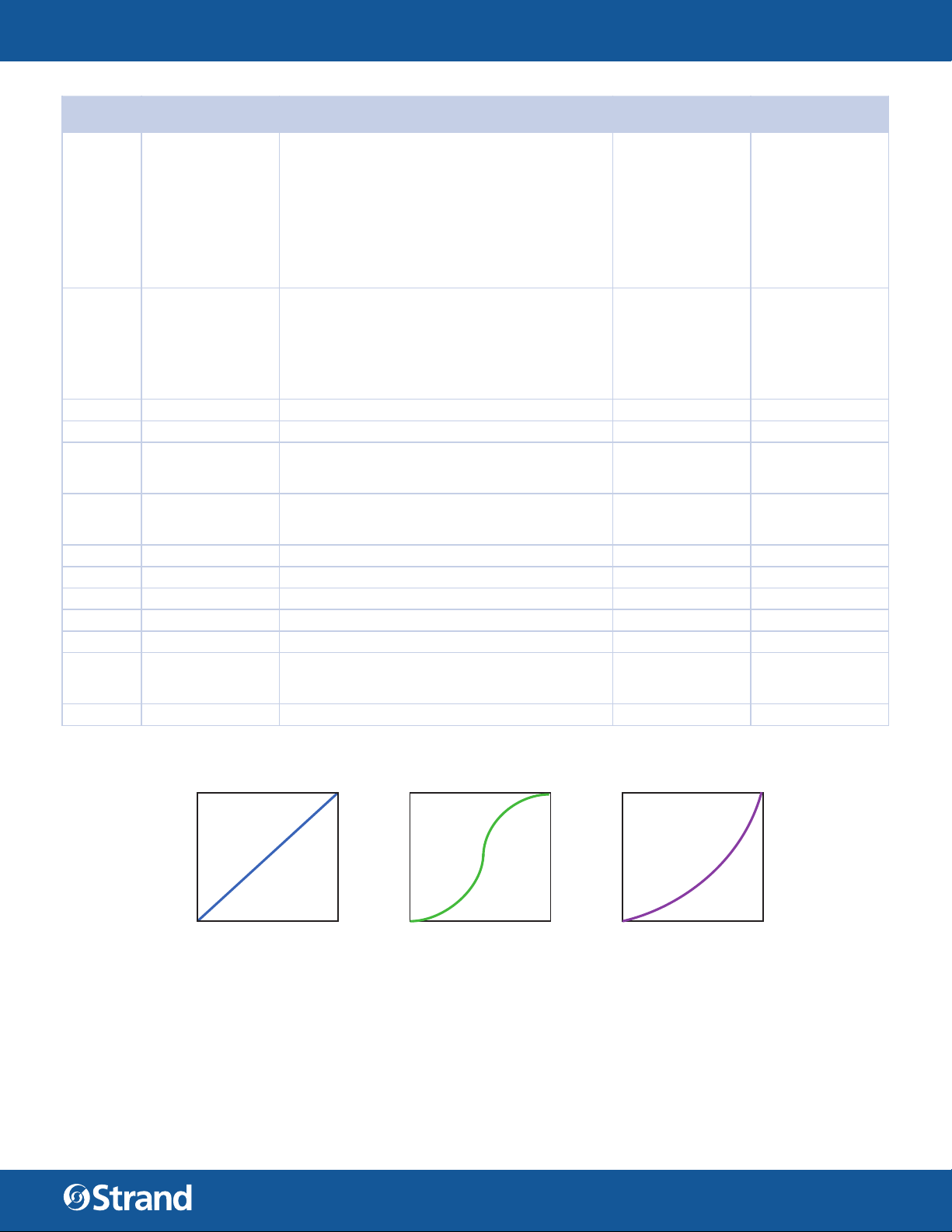

TABLE 2. 16-BIT MODE
DMX
CHANNEL PARAMETER DEFAULTS RANGE DMX DESCRIPTION
1 Intensity (High) 0 0 - 65535 16-bit Intensity (Dimmer) Control
2 Intensity (Low) 0 - 100% Output
3 Strobe 0
0 - 255 Strobe S>>>>>F
0 - 9 No Strobe Function - Shutter open
10 - 99 Strobe S>>>>>F
100 - 109 No Strobe Function - Shutter open
110 - 179 Lighting Strobe S>>>>>F
180 - 189 No Strobe Function - Shutter open
190 - 255 Random Strobe S>>>>>F
4 Fan Control 0
0 - 255 Dynamically control fan speed vs LED Output operation.
Control values as follows . . .
0-4 Automatic fan/output adjustment (Default)
05 - 255 Linear control of fan speed and LED max output*
DMX 5 =Highest Constant Fan Speed
DMX 255 = Lowest Constant Fan Speed
* Standard mode only
5 Control Channel 0
0 - 255
Control Channel used for full fixture settings, lamp controls,
and miscellaneous modes.
Set discrete value of desired effect, wait >3 seconds,
then set value to 0 (Idle).
**Function does not require 3 Second rule to active, setting
output to value will automatically activate function
0 - 5 Idle (Default)
6 - 10 Full Luminaire ReCal - Also Used to Wake fixture up from
shutdown
11 - 15 Fixture Shutdown
16 - 20 Reserved Values
21 - 25 Display - Menu ON
26 - 30 Display - Menu OFF
31 - 35 Reserved Values
36 - 40 Reserved Values
41 - 45 Dimming Curve Linear**
46 - 50 Dimming Curve S-Curve**
51 - 55 Dimming Curve Square Law (Default)**
56 - 60 Reserved
61 - 65 Dimmer Snap On**
66 - 70 Dimmer Snap Off (Default)**
71 - 75 Reserved Values
76 - 80 Reserved Values
81 - 85 Reserved Values
86 - 90 Reserved Values
91 - 95 Reserved Values
3 DMX MAPPING

USER MANUAL
WWW.STRANDLIGHTING.COM
CANTATA LED FRESNEL TUNABLE WARM WHITE
9
TABLE 2. 16-BIT MODE
DMX
CHANNEL PARAMETER DEFAULTS RANGE DMX DESCRIPTION
5Control Channel
continued 0
96 - 100 Reserved Values
101 - 105 Reserved Values
106 - 110 Reserved Values
111 - 115 Standard Mode - (Default)
116 - 120 Studio Mode - Reduced output with lower fan settings
121 - 125 Whisper Mode - Reduced output with lower fan settings
126 - 130 Reserved Values
131 - 135 Reserved Values
136 - 140 Fan On (Default)
141 - 145 Fan Auto
146 - 150 Reserved Values
151 - 155 Reserved Values
156 - 160 Reserved Values
161 - 165 Reserved Values
166 - 170 Reserved Values
171 - 175 Reset fixture to default
176 - 255 Reserved Values
6 TW LED High
0 0 - 65535
Tunable LED array 0 - 100%
7 TW LED Low 0 = 4000K
100% = 6500K
TABLE 3. 8-BIT MODE
DMX
CHANNEL PARAMETER DEFAULTS RANGE DMX DESCRIPTION
1 Intensity 0 0 - 255 8 bit Intensity (Dimmer) Control
0 - 100% Output
2 Strobe 0
0 - 255 Strobe S>>>>>F
0 - 9 No Strobe Function - Shutter open
10 - 99 Strobe S>>>>>F
100 - 109 No Strobe Function - Shutter open
110 - 179 Lighting Strobe S>>>>>F
180 - 189 No Strobe Function - Shutter open
190 - 255 Random Strobe S>>>>>F
3 Fan Control 0
0 - 255 Dynamically control fan speed vs LED Output operation.
Control values as follows . . .
0-4 Automatic fan/output adjustment (Default)
05 - 255
Linear control of fan speed and LED max output*
DMX 5 =Highest Constant Fan Speed
DMX 255 = Lowest Constant Fan Speed
* Standard mode only
4 Control Channel 0
0 - 255
Control Channel used for full fixture settings, lamp controls,
and miscellaneous modes. Set discrete value of desired effect,
wait >3 seconds, then set value to 0 (Idle). **Function does
not require 3 Second rule to active, setting utput to value will
automatically activate function
0 - 5 Idle (Default)
6 - 10 Full Luminaire ReCal - Also Used to Wake fixture up from
shutdown
11 - 15 Fixture Shutdown

USER MANUAL
WWW.STRANDLIGHTING.COM
CANTATA LED FRESNEL TUNABLE WARM WHITE
10
TABLE 3. 8-BIT MODE
DMX
CHANNEL PARAMETER DEFAULTS RANGE DMX DESCRIPTION
4Control Channel
continued 0
16 - 20 Reserved Values
21 - 25 Display - Menu ON
26 - 30 Display - Menu OFF
31 - 35 Reserved Values
36 - 40 Reserved Values
41 - 45 Dimming Curve Linear**
46 - 50 Dimming Curve S-Curve**
51 - 55 Dimming Curve Square Law (Default)**
56 - 60 Reserved
61 - 65 Dimmer Snap On**
66 - 70 Dimmer Snap Off (Default)**
71 - 75 Reserved Values
76 - 80 Reserved Values
81 - 85 Reserved Values
86 - 90 Reserved Values
91 - 95 Reserved Values
96 - 100 Reserved Values
101 - 105 Reserved Values
106 - 110 Reserved Values
111 - 115 Standard Mode - (Default)
116 - 120 Studio Mode - Reduced output with lower fan settings
121 - 125 Whisper Mode - Reduced output with lower fan settings
126 - 130 Reserved Values
131 - 135 Reserved Values
136 - 140 Fan On (Default)
141 - 145 Fan Auto
146 - 150 Reserved Values
151 - 155 Reserved Values
156 - 160 Reserved Values
161 - 165 Reserved Values
166 - 170 Reserved Values
171 - 175 Reset fixture to default
176 - 255 Reserved Values
5 TW LED 0 0 - 255
Tunable LED array 0 - 100%
0 = 4000K
100% = 6500K
TABLE 4. 2-CHANNEL MODE
DMX
CHANNEL PARAMETER DEFAULTS RANGE DMX DESCRIPTION
1 Intensity 0 0 - 255 8 bit Intensity (Dimmer) Control
0 - 100% Output
2 TW LED 0 0 - 255
Tunable LED array 0 - 100%
0 = 2700K
100% = 4500K

USER MANUAL
WWW.STRANDLIGHTING.COM
CANTATA LED FRESNEL TUNABLE WARM WHITE
11
TABLE 5. CONTROL CHANNEL
RANGE
DMX ITEMS DESCRIPTION POWER CYCLE RULES
FUNCTION
SELECTION VIA UI
0 - 255 Control Channel
Control Channel used for full fixture settings, lamp
controls, and miscellaneous modes.
Set discrete value of desired effect, wait >3
seconds, then set value to 0 (Idle).
**Function does not require 3 Second rule to
active, setting output to value will automatically
activate function
N/A N/A
0 - 5 Idle (Default) Default value used as return point to activate all
control functions N/A N/A
6 - 10 Full Luminaire
ReCal -
Recalibrates all mechanical functions and sensor
with in the fixture
Also Used to Wake fixture up from shutdown
N/A
11 - 15 Fixture Shutdown
Shuts down all fixture output and turns off all
fans - fixture is activated by power cycle or ReCal
command
If fixture is
powered down
then up fixture
will auto wake
and not startup in
Shutdown Mode
N/A
16 - 20 Reserved Values N/A N/A
21 - 25 Display - Menu ON Switches UI display backlight on remotely -
Display will Time out from on after 5 mins N/A N/A
26 - 30 Display - Menu OFF N/A N/A
31 - 35 Reserved Values N/A N/A
36 - 40 Reserved Values N/A N/A
41 - 45 Dimming Curve
Linear**
Selects Linear Dimming Curve
Also Used to Wake fixture up from shutdown
Holds setting on
power cycle Yes
46 - 50 Dimming Curve
S-Curve** Selects S-Law Dimming Curve Holds setting on power cycle Yes
51 - 55
Dimming Curve
Square Law
(Default)**
Selects Square -Law Dimming Curve Holds setting on
power cycle Yes
56 - 60 Reserved Values
61 - 65 Dimmer Snap On** Allows for fastest output changes between levels
but reduces smoothness dimming LED
Holds setting on
power cycle Yes
66 - 70 Dimmer Snap Off
(Default)**
Ensures all fades between output levels remain
smooth and flicker free limits fast instant snaps
between levels
Holds setting on
power cycle Yes
71 - 75 Reserved Values N/A N/A
76 - 80 Reserved Values N/A N/A
81 - 85 Reserved Values N/A N/A
86 - 90 Reserved Values N/A N/A
91 - 95 Reserved Values Holds setting on
power cycle Yes
96 - 100 Reserved Values Holds setting on
power cycle Yes
101 - 105 Reserved Values N/A N/A
106 - 110 Reserved Values
Boost mode – LED output boosted to >120% of
standard output fan speeds increased manage
heat level of LED (may be limited to only run for
XXhrs) NC45 – NC55
N/A N/A
111 - 115
Standard Mode -
Fixture operates at
maximum output
(Default)
Standard mode - Full LED Output + Full
Continuous Fan Spin at
top speed (loudest setting) (Fan remain at a
constant speed
and do not ramp up and down) NC40
*Fans can be switched between On & Auto levels
Holds setting on
power cycle Yes

USER MANUAL
WWW.STRANDLIGHTING.COM
CANTATA LED FRESNEL TUNABLE WARM WHITE
12
TABLE 5. CONTROL CHANNEL
RANGE
DMX ITEMS DESCRIPTION POWER CYCLE RULES
FUNCTION
SELECTION VIA UI
116 - 120
Studio Mode -
Reduced output
with lower fan
settings
Studio Mode - Fan speed reduced to appropriate
amount to reduce
dB levels >10% of full speed + LED @ max output
approximately 80%
of Standard output at appropriate level to ensure
LED work
at optimum temperature and output efficiency
(fan speed remains at a constant speed and do
not ramp up or down)
NC35
Holds setting on
power cycle Yes
121 - 125
Whisper Mode -
Reduced output
with lower fan
settings
Silent Mode – ideally Fans do not spin + output
capped at appropriate
level to ensure LED work at optimum temperature
and output
efficiency (Fan should never switch on in this
mode or change speed
if they are on) NC15 target level
Holds setting on
power cycle Yes
126 - 130 Reserved Values N/A N/A
131 - 135 Reserved Values N/A N/A
136 - 140 Fan On (Default)
Fans run at continuous speed for either standard
or studio mode in isolation to the LED operating
temperature
Holds setting on
power cycle Yes
141 - 145 Fan Auto
Fans will reduce / increase speed on demand
based on LED operating temperature for either
standard or studio mode
Holds setting on
power cycle Yes
146 - 150 Reserved Values N/A N/A
151 - 155 Reserved N/A N/A
156 - 160 Reserved N/A N/A
161 - 165 Reserved N/A N/A
166 - 170 Reserved N/A N/A
171 - 175 Reset fixture to
default
Will reset all parameters to default with the
exception of the Mx address, fixture mode and
Pixel / Zone selection
N/A
Yes - Will reset
Dmx address, Mode
and pixel group
176 - 255 Reserved N/A N/A
DMX OUTPUT
0 255
100
LIGHT OUTPUT
DMX OUTPUT
0 255
100
LIGHT OUTPUT
DMX OUTPUT
0 255
100
LIGHT OUTPUT
LINEAR S-CURVE SQUARE LAW

USER MANUAL
WWW.STRANDLIGHTING.COM
CANTATA LED FRESNEL TUNABLE WARM WHITE
13
KNOB 1 KNOB 2 KNOB 3
Full Color KNOB MODE MODE 1.DIM
0-100%
2.CCT
1800K-10000K
3.G Shift
-99% - 99%
Note: Double click Dial 1 to Dial MODE

USER MANUAL
WWW.STRANDLIGHTING.COM
CANTATA LED FRESNEL TUNABLE WARM WHITE
14
DMX512 CONNECTION
• At last unit, the DMX cable has to be terminated with a terminator. Solder a 120Ω1/4W resistor between
pin 2(DMX-) and pin 3(DMX+) into a 5-pin XLR-plug and plug it in the DMX-output of the last unit.
• Connect the unit together in a `daisy chain` by XLR plug from the output of the unit to the input of the
next unit. The cable cannot branched or split to a `Y` cable. DMX 512 is a very high-speed signal. Inad-
equate or damaged cables, soldered joints or corroded connectors can easily distort the signal and shut
down the system.
• The DMX output and input connectors are pass-through to maintain the DMX circuit, when one of the
units’ power is disconnected.
• Each lighting unit needs to have an address set to receive the data sent by the controller. The address
number is between 0-511 (usually 0 & 1 are equal to 1).
• The end of the DMX 512 system should be terminated to reduce signal errors.
• 5 pin XLR: Pin 1: GND, Pin 2: Negative signal (-), Pin 3: Positive signal (+), Pin 4/Pin 5: Not used.

USER MANUAL
WWW.STRANDLIGHTING.COM
CANTATA LED FRESNEL TUNABLE WARM WHITE
15
TROUBLESHOOTING
Following are a few common problems that may occur during operation.
The unit does not work - light and fan do not turn on
• Check the connection of power and main fuse.
• Measure the mains voltage on the main connector.
Not responding to DMX controller
• DMX LED should be on. If not, check DMX connectors, cables to see if link properly.
• If the DMX LED is on and no response to the channel, check the address settings and DMX polarity.
• If you have intermittent DMX signal problems, check the pins on connectors or on PCB of the unit or the
previous one.
• Try to use another DMX controller.
• Check if the DMX cables run near or run alongside to high voltage cables that may cause damage or
interference to DMX interface circuit.
CLEANING
The cleaning of internal must be carried out periodically to optimize light output. Cleaning frequency depends
on the environment in which the fixture operates damp, smoky or particularly dirty surrounding can cause
greater accumulation of dirt on the fixture’s optics.
• Clean with soft cloth using normal glass cleaning fluid.
• Always dry the parts carefully.
• Clean the external optics at least every 30 days.
APPENDIX A
CARE AND MAINTENANCE

USER MANUAL
WWW.STRANDLIGHTING.COM
CANTATA LED FRESNEL TUNABLE WARM WHITE
16
MODE LED OUTPUT FAN SPEED NOISE CRITERION EQUIVALENT SOUND
LEVEL DBA (@3M)
Boost Mode >100% Boosted fan speed constant NC45 50
Standard Mode Full 100% Full 100% constant NC40 45
Studio Mode 80% Appropriate speed to reduce dB
levels >10% of full speed NC35 40
Whisper Mode 60% Appropriate speed to reduce dB
levels >30% of full speed NC25 35
Silent Mode TBC Fan off NC15 25
NOISE
CRITERION
OCTAVE BAND CENTER FREQUENCY (HZ)
63 125 250 500 1000 2000 4000 8000
SOUND PRESSURE LEVELS (DB)
NC-15 47 36 29 22 17 14 12 11
NC-20 51 40 33 26 22 19 17 16
NC-25 54 44 37 31 27 24 22 21
NC-30 57 48 41 35 31 29 28 27
NC-35 60 52 45 40 36 34 33 32
NC-40 64 56 50 45 41 39 38 37
NC-45 67 60 54 49 46 44 43 42
NC-50 71 64 58 54 51 49 48 47
NC-55 74 67 62 58 56 54 53 52
NC-60 77 71 67 63 61 59 58 57
NC-65 80 75 71 68 66 64 63 62
NC-70 83 79 75 72 71 70 69 68
Fan Speed and Control
All Vari-lite and Strand lighting luminaires will be governed by the same Fan
speed v Noise levels v Maximum power output rules as details below. These
noises related to these levels will confirm to Noise Criteria levels details of
which are contained within the document.
There are 3 control parameters can be selected separately or in conjunction
when permitted to manage Fan speed v Noise levels v Maximum power output.
NOTE: Not all fixture have all modes or functions refer to DMX map and User
interface menu tree to see if you product has one of more of these functions.
Item 1 - Fan ‘v’ Output Preset Modes
These modes are selectable at either / or the fixtures DMX control channel or
via the fixture user interface screen. The section of the modes works in con-
junction with Items 3 and will also active or deactivate the Item 2.
Boost mode – LED output boosted to >120% of standard output fan speeds
increased manage heat level of LED (may be limited to only run for XXhrs).
Fixture will not exceed NC45 – NC55 sound levels in this mode
Standard mode - Full LED Output + Fan Spin at top speed (loudest setting).
Fixture will not exceed NC40 sound levels in this mode
Studio Mode - Fan speed reduced to appropriate amount to reduce dB levels
>10% of full speed + LED @ max output approximately 80% of Standard output
at appropriate level to ensure LED work at optimum temperature and output
eciency (fan speed remains at a constant speed and do not ramp up or
down) NC35
Whisper mode - Fan speed reduced to appropriate amount to reduce dB levels
to >30% of the full speed + LED Max output approximately 60% of Standard
output at appropriate level to ensure LED work at optimum temperature and
output eciency (Fan speed remains at a constant speed and do not ramp up
or down) NC25
Silent Mode – ideally Fans do not spin + output capped at appropriate level to
ensure LED work at optimum temperature and output eciency (Fan should
never switch on in this mode or change speed if they on) NC15 target level.
90
0
10
20
30
40
50
60
70
80
63 125 250 500 1000 2000 4000 8000
NC 15
NC 20
NC 25
NC 30
NC 35
NC 40
NC 45
NC 50
NC 55
NC 55
NC 55
NC 55
FREQUENCY (HZ)
SOUND PRESSURE LEVEL (dB)
ADDENDUM

USER MANUAL
WWW.STRANDLIGHTING.COM
CANTATA LED FRESNEL TUNABLE WARM WHITE
17
HOW TO OBTAIN WARRANTY SERVICE
A copy of the Strand Limited Warranty was included in the shipping package for this Strand product.
To obtain warranty service, please contact customer service at 1-214-647-7880, or entertainment.service@
signify.com and request a Return Material Authorization (RMA) for warranty service. You will need to provide
the model and serial number of the item being returned, a description of the problem or failure and the name of
the registered user or organization. If available, you should have your sales invoice to establish the date of sale
as the beginning of the warranty period. Once you obtain the RMA, pack the unit in a secure shipping container
or in its original packing box. Be sure to clearly indicate the RMA number on all packing lists, correspondence,
and shipping labels. If available, please include a copy of your invoice (as proof of purchase) in the shipping
container.
With the RMA number written legibly on or near the shipping address label, return the unit, freight prepaid, to:
Strand
Attention: Warranty Service (RMA# ________)
10911 Petal Street
Dallas, Texas 75238
USA
As stated in the warranty, it is required that the shipment be insured and FOB our service center.
IMPORTANT! When returning products to Strand for repairs (warranty or out-of--warranty) from a country
other than the USA, “Strand Lighting LLC”, must appear in the address block as the Importer of Record (IOR) on
all shipping documentation, Commercial Invoices, etc. This must be done in order to clear customs in a timely
manner and prevent returns.

AMERICAS
10911 Petal Street
Dallas, TX 75235
Tel: [phone]
Fax: [phone]
ASIA
Unit C, 14/F, Roxy Industry Centre
41-49 Kwai Cheong Road
Kwai Chung, Kwai Tsing
Hong Kong
Tel: [phone]
Fax: [phone]
Room 1201, Freetown Tower D
E 3rd Ring Rd S, 58
Chaoyang Qu
Beijing Shi, China
Tel: [phone]
Fax: [phone]
B-1-27, Dataran Cascades, No. 13A
Jalan PJU 5/1
Kota Damansara PJU 5
47810 Petaling Jaya
Selangor, Malaysia
Tel: [phone]
Fax: [phone]
EUROPE
Rondweg Zuid 85
Winterswijk 7102 JD
Netherlands
Tel: [phone]
Fax: [phone]
24 Sovereign Park
Coronation Road
Park Royal, London
NW10 7QP
United Kingdom
Tel: [phone]
OCEANIA
14H Vega Place
Rosedale
Auckland 0632
New Zealand
Tel: [phone]
CANTATA LED FRESNEL TUNABLE WARM WHITE USER MANUAL
DOCUMENT NUMBER: 64507-001
VERSION DATE: JUNE 16 2020
©2020 Signify Holding. All rights reserved.
All trademarks are owned by Signify Holding or their respective owners. The information pro-
vided herein is subject to change, without notice. Signify does not give any representation or
warranty as to the accuracy or completeness of the information included herein and shall not
be liable for any action in reliance thereon. The information presented in this document is not
intended as any commercial oer and does not form part of any quotation or contract, unless
otherwise agreed by Signify. Data subject to change.
