Strand ACCLAIM LED CYC User manual

ACCLAIM LED CYC
USER MANUAL

USER MANUAL
WWW.STRANDLIGHTING.COM
ACCLAIM LED CYC
2
INTRODUCTION
OUR GOAL
We are committed to providing you the highest quality in customer service. Our comprehensive resources are
available to help your business succeed and ensure you get the full benefit of being a Strand customer.
TECHNICAL SUPPORT
Our Service and Support team is tasked with online and field support, repair, demo, commissioning, mainte-
nance contracts, and technical training for fixtures and systems. In addition, this team plays a large role in a
Systems sales, responsible for administering final commissioning, record-keeping, and organizing services. Refer
to the back cover of this User Manual for contacts in your region or visit www.strandlighting.com/support
CUSTOMER SERVICE
Customer Service is responsible for boxed goods and spare parts quotations, order entry and fulfilment, project
delivery, lead times, and general account management. They also manage all after sales warranty fulfilment,
RGA, and repairs invoicing in tandem with our After Sales Service & Support team. Visit our website to find a
customer service agent in your region.
ADDITIONAL DOCUMENTATION
Additional product documentation, including DMX maps, software, and photometric reports, are available for
download on our website.
For more information on installing DMX512 control systems, the following publication is available for purchase
from the United States Institute for Theatre Technology (USITT), “Recommended Practice for DMX512: A Guide
for Users and Installers, 2nd edition” (ISBN: 9780955703522).
USITT Contact Information:
USITT
315 South Crouse Avenue, Suite 200
Syracuse, New York 13210-1844 USA
Phone: [phone] or [phone]
Fax: [phone] or [phone]
Website: www.usitt.org
ABOUT THIS DOCUMENT
Read all instructions before installing or using this product. Retain this User Manual for future reference.
Additional product information and descriptions may be found on the product data sheet(s) which can be
downloaded from the Strand website at www.strandlighting.com.
This User Manual provides necessary information regarding safety, installation, operation and routine mainte-
nance for Strand Leko LED Outdoor. Familiarizing yourself with this information will help you to get the most
out of your product.
WARNING: It is important to read ALL accompanying safety and installation instructions to avoid damage to
the product and potential injury to yourself or others.
DO NOT
EXPOSE
RISK GROUP
3
RISK GROUP
2
RISK GROUP
1
RISK GROUP
EXEMPT
3.7m
(12 ft) 

USER MANUAL
WWW.STRANDLIGHTING.COM
ACCLAIM LED CYC
3
SAFETY WARNINGS AND NOTICES
Read this user manual in full before attempting to install, operate or maintain the fixture to which it relates. This
user manual is intended to provide general guidance to such suitably qualified personnel. Installation and opera-
tion of the fixture are to be performed by qualified personnel only.
When using electrical equipment, basic safety precautions should always be followed including the following:
READ AND FOLLOW ALL SAFETY INSTRUCTIONS.
• For indoor, dry location use only. Do not use outdoors unless fixture is suitably IP rated.
• Use safety tether when mounting.
• Equipment should be mounted in locations and at heights where it will not be readily subjected to
tampering by unauthorized personnel.
• Not for residential use. Do not use this equipment for other than intended use.
• Note distance requirement(s) from combustible materials or illuminated objects. Do not mount near gas
or electric heaters.
• Install only in locations with adequate ventilation. Ensure sure that ventilation slots are not blocked.
• Ensure that the voltage and frequency of the power supply match the power requirements of the
fixture.
• The fixture must be earthed/grounded to the appropriate conductor.
• Do not operate fixture outside the specified ambient temperature range.
• Do not connect the fixture to any dimmer pack.
• The use of accessory equipment not recommended by the manufacturer may cause an unsafe condition
and void warranty.
• Refer service to qualified personnel. This fixture contains no user serviceable parts.
• Prior to first use, carefully inspect fixture to ensure no damage has occurred during shipping.
• Materials used in the manufacturing process can cause strong odors when the product is new. These
odors dissipate over time.
• Prior to each use, carefully inspect power cables and replace any damaged cables.
• Exterior surfaces of the luminaire will be hot during operation. Take appropriate precautions.
• Continuous use of the fixture may shorten the lifespan. Power down the fixture when not in use.
• Do not cycle power on and o repeatedly. Disconnect mains power if the fixture is not used for an
extended period.
• Clean fixtures regularly, particularly when working in a dusty environment.
• Never touch power cables or wires while the fixture is powered on.
• Avoid entangling power wires with other cables.
• In the event of a serious operating problem, immediately discontinue using the fixture.
• It is hazardous to operate luminaires without lens or shield. Shields, lenses, or ultraviolet screens shall be
changed if they have become visibly damaged to such an extent that their eectiveness is impaired, for
example, by cracks or deep scratches.
• Original packing materials can be reused for transporting the fixture.
• Do not look directly at the LED light beam while the fixture is on.
• This is a Class A product. In a domestic environment this product may cause radio interference, in which
case, the user may be required to take adequate measures.
• The light source contained in this luminaire shall only be replaced by the manufacturer or service agent
or similarly qualified person.
SAVE THESE INSTRUCTIONS.
WARNING: Refer to National Electrical Code® and local codes for cable specifications. Failure to use proper
cable can result in damage to equipment or danger to personnel. Caution Against Direct Sunlight Through Front
Lens Assembly

USER MANUAL
WWW.STRANDLIGHTING.COM
ACCLAIM LED CYC
4
CAUTION AGAINST DIRECT SUNLIGHT THROUGH FRONT LENS ASSEMBLY
The design and nature of the front lens assembly in Vari-Lite LLC luminaires is to eciently focus the light ener-
gy from the luminaire’s lamp for maximum light output.
• When the front lens assembly is exposed to direct sunlight or intense light from neighboring fixtures,
the lens will collect and intensify this light and focus it back into the fixture. Intense sunlight or beams
from other fixtures can cause damage to internal assemblies contained within the fixture.
• When fixture is not in use and direct sunlight or other intense light is present, position luminaires so
their front lens assembly it not directly exposed to the light source.
CAUTION AGAINST POWERING LUMINAIRES FROM DIMMER CIRCUITS
It is not recommended to power any Vari-Lite LLC luminaire from a dimmer - even in ‘NONDIM’ mode. Dimmer
and non-dim modules are not suitable sources of power because their output modifies the AC wave form. This
may work for a short time, but eventually results in power problems, luminaire mis-operation and/or failure.
• When using a power distribution rack, do not use dimmer or non-dim modules to power any
Vari-Lite LLC luminaire. Damage to the luminaire can occur.
• Using a dimmer or non-dim module to power your Vari-Lite LLC luminaire will void your luminaire’s
warranty.
CAUTION AGAINST THE USE OF THIRD PARTY PARTS OR ACCESSORIES
• Heat and heat distribution are important factors when operating Vari-Lite LLC luminaires. Vari-Lite LLC
luminaires are designed to dissipate heat eciently and safely. Any blockages or obstructions, such
as aftermarket baes, covers, enclosures, etc. can interrupt the luminaire’s ability to dissipate heat
properly and can damage the luminaire.
• Vari-Lite LLC cannot be responsible for issues arising from non-approved parts and accessories installed
on or used with any Vari-Lite LLC product. Customers of such products should contact the manufacturer
directly for assistance and support.
TRANSPORTING LUMINAIRES
When shipping or transporting luminaires, Vari-Lite LLC recommends that the luminaire(s) be suciently pro-
tected against any (including, but not limited to) shock, vibration, drops, jarring, exposure to the environment,
etc.
Failure to suciently protect any Vari-Lite LLC luminaire during shipping or transportation will result in damage
and void the luminaire’s warranty. Vari-Lite LLC will not be responsible for any shipping damage or breakage of
any product under any circumstances. Vari-Lite LLC will not be responsible for any third party case manufactur-
er’s cases.
NOTE: As with all automated luminaires, proper handling and suitable protective shipping cases should be
used when transporting fixtures to reduce the risk of damage.
TRANSPORTATION AND SHIPPING CASE REQUIREMENTS
Cases to transport Vari-Lite LLC luminaires should meet the following loading requirements:
• Luminaire head, yoke, and enclosure sub-assemblies shall be equally supported and constrained where
no one sub-assembly (head, yoke, or enclosure) fully supports the entire mass of the luminaire.
• The interior of the case shall be of high quality and uniform density foam. The foam shall be of the same
type and density throughout as to equally and uniformly support loading at every contact surface.
• The case shall, when laid on any of its six (6) surfaces, maintain the loading requirements outlined
above.
• All cases not meeting the aforementioned loading requirements, with wheels, shall have markings
on the exterior of the case that the unit is to be transported on it wheels only (e.g. “Case must be
transported and remain [at all times] on its wheels”).

USER MANUAL
WWW.STRANDLIGHTING.COM
ACCLAIM LED CYC
5
COMPLIANCE NOTICE
FCC DECLARATION OF CONFORMITY
This equipment has been tested and found to comply with the limits for a Class A digital device pursuant to Part
15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference when
this equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with Vari-Lite Strand system, service, and safety
guidelines, may cause harmful interference to radio communications.
As tested under this standard:
FCC 47CFR 15B clA*CEI
Issued:2009/10/01 Title 47 CFR Part 15 Subpart B Unintentional Radiators Class A
Operation of this equipment in a residential area is likely to cause harmful interference, in which case the user
will be required to correct the interference at his/her own expense.
EU DECLARATION OF CONFORMITY
We, Vari-Lite LLC., 10911 Petal Street, Dallas, Texas 75238, declare under our responsibility for the products
contained herein are in conformity with the essential requirements of the following European Directives and
harmonized standards:
Low Voltage Director (LVD), 2006/95/EC
EN 60589-2-17:1984+A1:1987+A2:1990 used in conjunction with 60598-1:2008/A11:2009
Electromagnetic Compatibility Directive (EMC), 2004//108/EC
EN 55022:2010, EN55024:2010

USER MANUAL
WWW.STRANDLIGHTING.COM
ACCLAIM LED CYC
6
HOW TO OBTAIN WARRANTY SERVICE
A copy of the Limited Warranty card was included in the shipping package for this product.
To obtain warranty service, please contact customer service at 1-214-647-7880, or entertainment.service@
signify.com and request a Return Material Authorization (RMA) for warranty service. You will need to provide the
model and serial number of the item being returned, a description of the problem or failure and the name of the
registered user or organization. If available, you should have your sales invoice to establish the date of sale as the
beginning of the warranty period. Once you obtain the RMA, pack the unit in a secure shipping container or in its
original packing box. Be sure to clearly indicate the RMA number on all packing lists, correspondence, and ship-
ping labels. If available, please include a copy of your invoice (as proof of purchase) in the shipping container.
With the RMA number written legibly on or near the shipping address label, return the unit, freight prepaid, to:
Vari-Lite LLC
Attention: Warranty Service (RMA# ________)
10911 Petal Street
Dallas, Texas 75238
USA
As stated in the warranty, it is required that the shipment be insured and FOB our service center.
IMPORTANT! When returning products to Vari-Lite Strand for repairs (warranty or out-of-warranty) from a
country other than the USA, “Vari-Lite LLC”, must appear in the address block as the Importer of Record (IOR)
on all shipping documentation, Commercial Invoices, etc. This must be done in order to clear customs in a timely
manner and prevent returns.

USER MANUAL
WWW.STRANDLIGHTING.COM
ACCLAIM LED CYC
7
FEATURES
1 DESCRIPTION
• Delivers the performance of a 500 W cyclight with a maximum
power consumption of 145 W with a smooth even field for
cycloramas up to 5m / 16ft high.
• Simple spacing system 1.2m - 4ft from cyc surface 1.4m / 4.5ft
on center spacing.
• Designed for top or floor mounting with kick stand yoke.
• Infinite color choice from the RGBL engine and color
temperatures in white.
• Homogenized fully mixed color output light, no multiple color
shadows.
• Constant color balance down to very low light levels
irrespective of intensity setting.
•True asymmetrical patented reflector technology.
• RDM controls and setup of fixture allows device settings to be
configured remotely.
• Color Calibration.
• Multiple fan/noise control modes and options.
• Fresnel, Profile Light engine and Zoomspot available
For detailed product information, please refer to the Product
Guide at www.strandlighting.com/global/products/acclaim-led-
cyc
COMPONENTS
The document provides installation and operation instructions for the following products:
• Strand Acclaim LED Cyc
Read all instructions before installing or using this product. Retain this manual for future reference. Additional
product information and descriptions may be found on the product specification sheet.
INCLUDED ITEMS
Each Strand Acclaim LED Cyc luminaire includes the following items:
• Strand Acclaim LED Cyc
• Quick Start Guide

USER MANUAL
WWW.STRANDLIGHTING.COM
ACCLAIM LED CYC
8
2 INSTALLATION

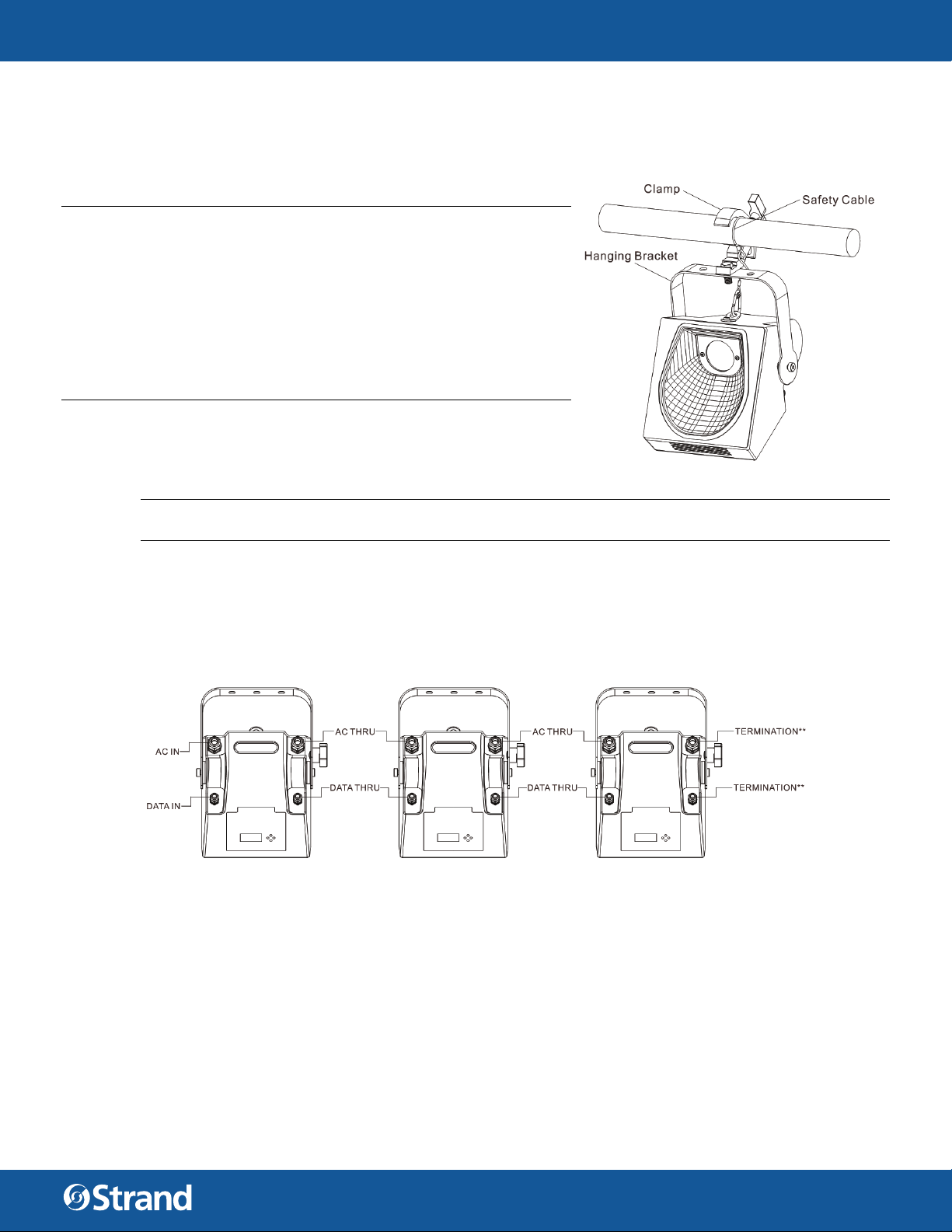

MOUNTING
The unit should be mounted via its screw holes on the bracket.
Always ensure that the unit is firmly fixed to avoid vibration
and slipping while operating. When installing the fixture, al-
ways use a safety cable that is certified to hold up to 12 times
the fixture’s own weight.
The luminaire must be installed by qualified professionals.
CONNECTING DATA AND POWER
A maximum of 32 luminaires may be connected in any one DMX
data link.
A maximum of 9 luminaires may be connected in 120V, 60Hz.
A maximum of 16 luminaires may be connected in 230V, 50Hz.
NOTE: This maximum limit applies to the luminaire “daisy chain” only. Your system or console may require
fewer luminaires on a single data link path. Consult your console documentation for more information.
To connect power and data:
Step 1. Connect data cable from console to first luminaire in chain at DATA IN connector.
Step 2. If required, connect additional data cables from DATA THRU connectors to DATA IN connectors of
remaining luminaires in link.
Step 3. At last luminaire in link, install male termination connector at DATA THRU connector. (Luminaires and
other devices on the same DMX chain may not function properly without termination.)
Step 4. Connect AC Input Cable connector to power input source.
Step 5. Dress AC input and data cables and secure them so that they will not interfere with luminaire head
and yoke movement.

USER MANUAL
WWW.STRANDLIGHTING.COM
ACCLAIM LED CYC
9
3 MENU OPERATION

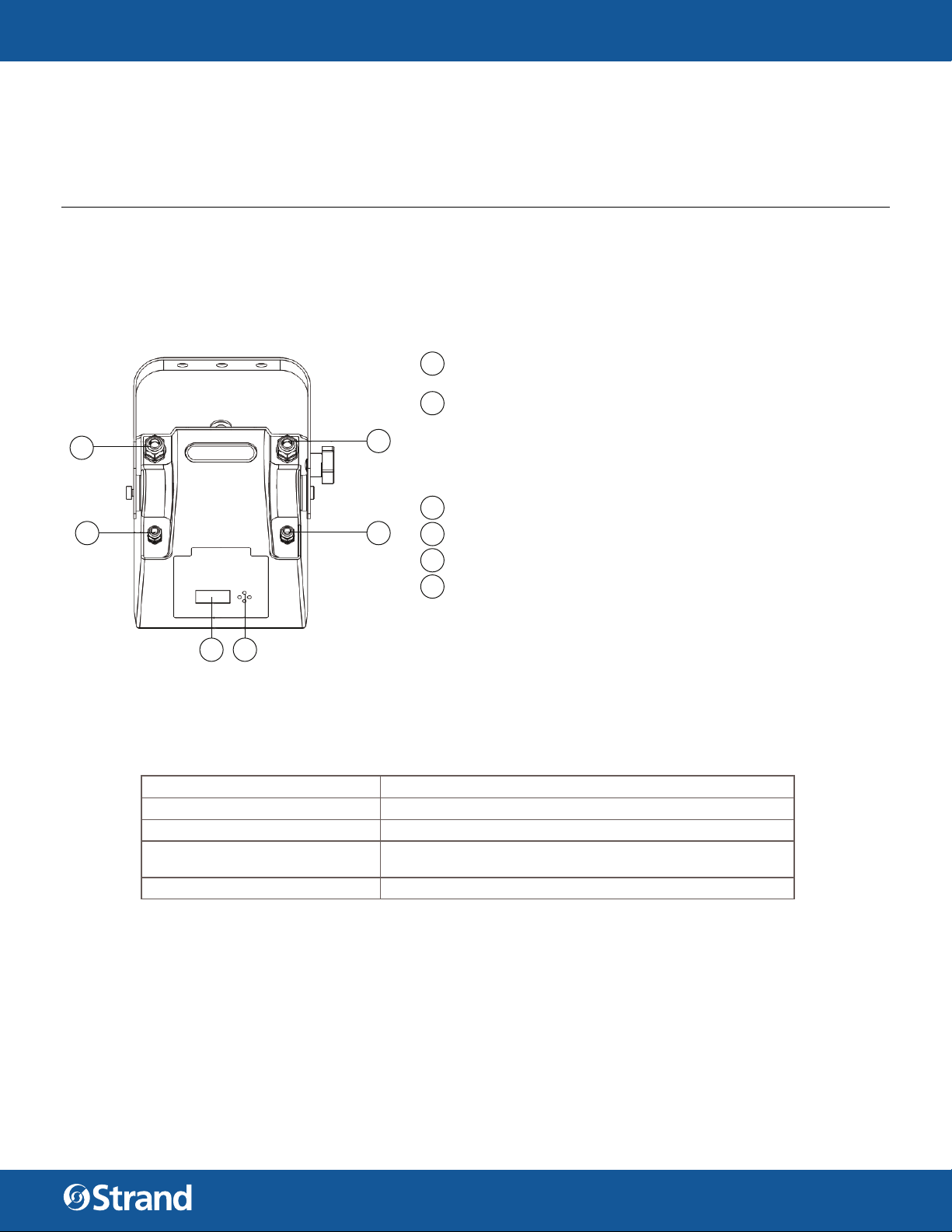

CONTROL PANEL
Press the MENU button to select any functions, until the required function is shown in the display. Select the de-
sired function by pressing ENTER, which will cause the display to blink. Use the UP and DOWN button to change
the mode. Once the required mode has been selected, press the ENTER button to accept the selection. Press
MENU to return to the previous menu or let the unit idle for one minute to exit menu mode automatically.
QUICK REFERENCE MENU KEY SHORTCUTS
MENU KEY SHORTCUTS FUNCTION
MENU+ENTER Factory Defaults
ENTER+UP Shortcut to turn the fixture on at full output
ENTER+DOWN Shortcut to toggle through the STANDARD, STUDIO and
WHISPER Mode
UP+DOWN Display Invert
LCD DISPLAY. Shows the menu and selected
function buttons.
1
2BUTTONS.
Menu. To select programming functions.
Down. To go forward in the selected functions.
Up. To go backward in the selected functions.
Enter. To confirm the selected functions.
2
5
1
POWER IN. Connects to power supply.3
DMX/RDM THRU. 5-pin XLR cable to the next unit.
4
POWER THRU. Connects to next fixture.
5
6
6
3
4DMX/RDM IN. 5-pin XLR cable to link DMX console.

USER MANUAL
WWW.STRANDLIGHTING.COM
ACCLAIM LED CYC
10
SERVICE Status (No Errors... or displays a list of errors) Give list of fixture errors
Diagnostics Fan Check Give fans speeds
Temp Give LED / Fixture temperatures
Version VXXX
Fixture Hours Gives Fixture run time hours / LED hours
Cross load (Software) Are You Sure? Send
Password (2606) White Balance Red
Green
Blue
Lime
Reset to Defaults (Reset to White Balance)
Change Model ZOOMSPOT
PLE
Fresnel
&<&
SETTINGS LED Dimming Curve Square Law (Default)
S Curve
Linear
Output Mode Standard (Default)
Studio
Whisper
Color Calibration On
Off (Default)
Fan Mode On
Auto (Default)
Refresh Rate 500Hz
1000Hz
1500Hz (Default)
2000Hz
2500Hz
3000Hz
3500Hz
4000Hz
Display On Time Auto (30s since last press) (Default)
On
Reset Defaults Are You Sure?

MANUAL CONTROL Red 0-255 (Default 0)
Green 0-255 (Default 0)
Blue 0-255 (Default 0)
Lime 0-255 (Default 0)
DMX Address 001~512
DMX Mode 8-bit (default)
16-bit
Data Ch 1 - Intensity XXX (Value)
Ch 2 - Intensity Fine XXX (Value)
……All functions
DMX Fail DMX hold
Blackout

USER MANUAL
WWW.STRANDLIGHTING.COM
ACCLAIM LED CYC
11
DMX MENU
Address
To select DMX Address, press the ENTER button to confirm. Use the UP/DOWN button to adjust the address
from 001 to 512, press the ENTER button to store. Press the MENU button back to the last menu or let the unit
idle one minute to exit menu mode.
DMX Mode
To select DMX Mode, press the ENTER button to confirm. Use the UP/DOWN button to select 8 - Bit or 16 - Bit,
press the ENTER button to store. Press the MENU button back to the last menu or let the unit idle one minute to
exit menu mode.
Data
To select Data, press the ENTER button to confirm. Use the UP/DOWN button to select Ch1 – Intensity xxx(val-
ue), Ch2 – Intensity Fine xxx(Value), …. All functions, press the ENTER button to store. Press the MENU button
back to the last menu or let the unit idle one minute to exit menu mode.
Dmx Fail
To select Dmx Fail, press the ENTER button to confirm. Use the UP/DOWN button to select DMX Hold or
Blackout, press the ENTER button to store. Press the MENU button back to the last menu or let the unit idle one
minute to exit menu mode.
MANUAL MENU
To select Manual, press the ENTER button to confirm, use the UP/DOWN button to select Red, Green, Blue and
Lime. Use the UP/DOWN button to adjust the value from 0 to 255, press the ENTER button to store. Press the
MENU button back to the last menu or let the unit idle one minute to exit menu mode.
SETTINGS MENU
To select Settings, press the ENTER button to confirm, use the UP/DOWN button to select LED, Display On Time
and Reset Defaults.
LED
To select LED, press the ENTER button to confirm. Use the UP/DOWN button to select Dimming Curve, Output
Mode, Color Calibration, Fan Mode and Refresh Rate. Press the ENTER button to store. Press the MENU button
back to the last menu or let the unit idle one minute to exit menu mode.
Dimming Curve — To select Dimming Curve, press the ENTER button to confirm. Use the UP/DOWN button to
select Square Law, S Curve or Linear, press the ENTER button to store. Press the MENU button back to the last
menu or let the unit idle one minute to exit menu mode.
Output Mode — To select Output Mode, press the ENTER button to confirm. Use the UP/DOWN button to select
Standard, Studio or Whisper, press the ENTER button to store. Press the MENU button back to the last menu or
let the unit idle one minute to exit menu mode.
Color Calibration — To select Color Calibration, press the ENTER button to confirm. Use the UP/DOWN button to
select On or O, press the ENTER button to store. Press the MENU button back to the last menu or let the unit
idle one minute to exit menu mode.
Fan Mode — To select Fan Mode, press the ENTER button to confirm. Use the UP/DOWN button to select On
or Auto, press the ENTER button to store. Press the MENU button back to the last menu or let the unit idle one
minute to exit menu mode.
Refresh Rate — To select Refresh Rate, press the ENTER button to confirm. Use the UP/DOWN button to select
500Hz, 1000Hz, 1500Hz, 2000Hz, 2500Hz, 3000Hz, 3500Hz, 4000Hz, press the ENTER button to store. Press

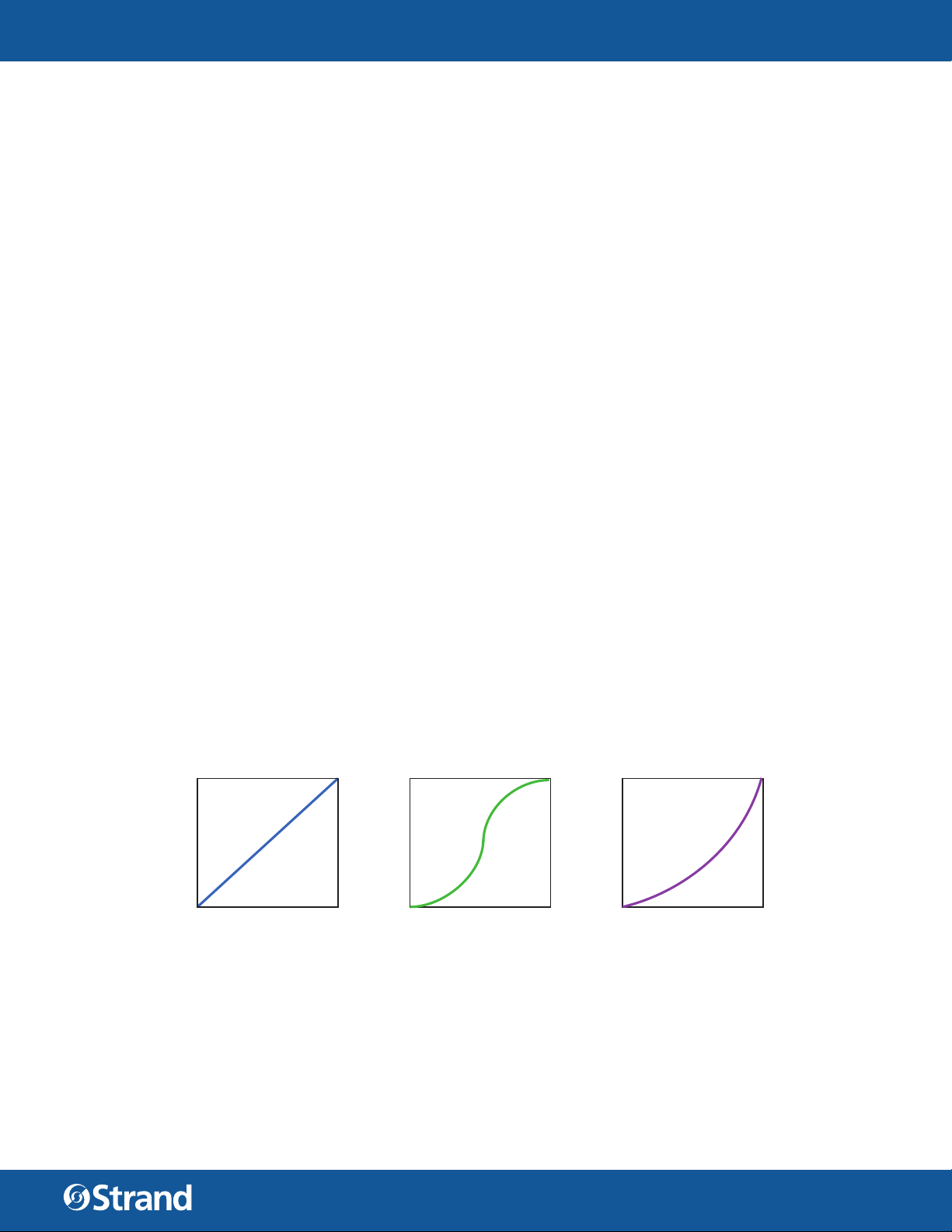

DMX OUTPUT
0 255
100
LIGHT OUTPUT
DMX OUTPUT
0 255
100
LIGHT OUTPUT
DMX OUTPUT
0 255
100
LIGHT OUTPUT
LINEAR S-CURVE SQUARE LAW

USER MANUAL
WWW.STRANDLIGHTING.COM
ACCLAIM LED CYC
12
the MENU button back to the last menu or let the unit idle one minute to exit menu mode.
Display On Time
To select Display On Time, press the ENTER button to confirm. Use the UP/DOWN button to select Auto(30
seconds since last press) or On, press the ENTER button to store. Press the MENU button back to the last menu
or let the unit idle one minute to exit menu mode.
Reset Defaults
To select Reset Defaults, press the ENTER button to confirm, Are You Sure? will show on the display, press the
EN- TER button to store. Press the MENU button back to the last menu or let the unit idle one minute to exit
menu mode.
SERVICE MENU
To select Service, press the ENTER button to confirm, use the UP/DOWN button to select Status, Diagnostics,
Version, Fixture Hours, Crossload(Software) and Password(2606).
Status
To select Status, press the ENTER button to confirm, No Errors or a list of errors will show on the display, press
the MENU button back to exit.
Diagnostics
To select Diagnostics, press the ENTER button to confirm. Use the UP/DOWN button to select Fan Check or
Temp, press the ENTER button to store. Press the MENU button back to the last menu or let the unit idle one
minute to exit menu mode.
Version
To select Version, press the ENTER button to confirm, Version will show on the display, press the MENU button
back to exit.
Fixture Hours
To select Fixture Hours, press the ENTER button to confirm, Fixture Hours will show on the display, press the
MENU button back to exit.
Crossload(Software)
Select Crossload(Software), press the ENTER button to confirm, Are You Sure? will show on the display, press
the ENTER button to store. Press the MENU button back to the last menu or let the unit idle one minute to exit
menu mode.
NOTE: Incoming DMX must be removed from the fixture or software crossload will not be activated.
Password(2606)
Select Password(2606), press the ENTER button to confirm. Use the UP/DOWN button to select White Balance
or Change Mode, press the ENTER button to store. Press the MENU button back to the last menu or let the unit
idle one minute to exit menu mode.
White Balance — To select White Balance, press the ENTER button to confirm. Use the UP/DOWN button to
select Red, Green, Blue, Lime or Reset to Defaults (Reset to White Balance), press the ENTER button to store.
Press the MENU button back to the last menu or let the unit idle one minute to exit menu mode.
Change Mode — To select Change Mode, press the ENTER button to confirm. Use the UP/DOWN button to
select ZOOMSPOTM, PLE, Fresnel or CYC, press the ENTER button to store. Press the MENU button back to the
last menu or let the unit idle one minute to exit menu mode.

USER MANUAL
WWW.STRANDLIGHTING.COM
ACCLAIM LED CYC
13
TABLE 1. 8-BIT MODE
DMX
CHANNEL PARAMETER DEFAULTS RANGE DMX DESCRIPTION
1 Intensity (High) 0 0 - 65535 16-bit Intensity (Dimmer) control
2 Strobe 0 0 Open
3 Red (High) 255 0 - 255 Red LED output level
4 Green (High) 255 0 - 255 Green LED output level
5 Blue (High) 255 0 - 255 Blue LED output level
6 Lime (High) 255 0 - 255 Lime LED output level
TABLE 2. 16-BIT MODE
DMX
CHANNEL PARAMETER DEFAULTS RANGE DMX DESCRIPTION
1 Intensity (High) 00-255 Intensity (Dimmer) control channel
2 Intensity (Low) 0-65535
3 Strobe 0 0 Open
1-255 Strobe speed Slow>>>>>>>>>>>>>>>>>>>Fast
4 Red (High) 255 0-255 Red LED output level
5 Red (Low) 65535 0-65535
6 Green (High) 255 0-255 Green LED output level
7 Green (Low) 65535 0-65535
8 Blue (High) 255 0-255 Blue LED output level
9 Blue (Low) 65535 0-65535
10 Lime (High) 255 0-255 Lime LED output level
11 Lime (Low) 65535 0-65535
COLOR PRESET
R G B L CCT TARGET CRI (RA)
255 0 16 255 2700K 85.5
255 10 52 255 3200K 83.6
255 68 89 255 4500K 85.9
255 88 141 255 5600K 85
184 157 197 242 6500K 85.9
165 223 243 247 7000K 84.6
255 255 255 255 7103K 85.6
The fixture can be operated by DMX controller. The following tables assumes a DMX start address of 1. When
a dierent starting address is used, this address becomes channel 1 function and other functions follow in se-
quence.
4 DMX MAPPING

USER MANUAL
WWW.STRANDLIGHTING.COM
ACCLAIM LED CYC
14
The following tables outline and describe all the RDM parameters IDs associated with the Acclaim LED Cyc lumi-
naire.
MODEL ID MANUFACTURER VENDOR ID MODEL DESCRIPTION PRODUCT CATEGORY
0x0314 Strand 0x736C ACCLAIM LED CYC 0x0101
5 RDM PARAMETER IDS

USER MANUAL
WWW.STRANDLIGHTING.COM
ACCLAIM LED CYC
15
GET
ALLOWED
SET
ALLOWED
RDM PARAMETER IDS VALUE COMMENT ESTA
STANDARD
REQUIRED /
IMPLEMENTED
Category - Network Management
DISC_UNIQUE_BRANCH 0x0001 ■■
DISC_MUTE 0x0002 ■■
DISC_UN_MUTE 0x0003 ■■
■PROXIED_DEVICES 0x0010 ■PROXIED_DEVICES_COUNT 0x0011 ■■ COMMS_STATUS 0x0015
Category - Status Collection
■QUEUED_MESSAGE 0x0020 ■STATUS_MESSAGES 0x0030 ■ ■STATUS_ID_DESCRIPTION 0x0031 ■
■CLEAR_STATUS_ID 0x0032
■■ SUB_DEVICE_STATUS_REPORT_THRESHOLD 0x0033
Category - RDM Information
■SUPPORTED_PARAMETERS 0x0050 ■■ ■PARAMETER_DESCRIPTION 0x0051 ■■
Category - Product Information
■DEVICE_INFO 0x0060 ■■ ■PRODUCT_DETAIL_ID_LIST 0x0070 ■DEVICE_MODEL_DESCRIPTION 0x0080 ■ ■MANUFACTURER_LABEL 0x0081 ■ ■■ DEVICE_LABEL 0x0082 ■ ■■ FACTORY_DEFAULTS 0x0090 ■ ■LANGUAGE_CAPABILITIES 0x00A0 ■■ LANGUAGE 0x00B0 ■SOFTWARE_VERSION_LABEL 0x00C0 ■■ ■BOOT_SOFTWARE_VERSION_ID 0x00C1 ■BOOT_SOFTWARE_VERSION_LABEL 0x00C2
Category - DMX512 Setup
■■ DMX_PERSONALITY 0x00E0 ■ ■DMX_PERSONALITY_DESCRIPTION 0x00E1 ■ ■■ DMX_START_ADDRESS 0x00F0 ■■ ■SLOT_INFO 0x0120 ■ ■SLOT_DESCRIPTION 0x0121 ■ ■DEFAULT_SLOT_VALUE 0x0122 ■

USER MANUAL
WWW.STRANDLIGHTING.COM
ACCLAIM LED CYC
16
GET
ALLOWED
SET
ALLOWED
RDM PARAMETER IDS VALUE COMMENT ESTA
STANDARD
REQUIRED /
IMPLEMENTED
Category – Sensors 0x02xx USE
■SENSOR_DEFINITION 0x0200 ■ ■■ SENSOR_VALUE 0x0201 Fan Speed and Temperatures ■
■RECORD_SENSORS 0x0202
Category - Dimmer Settings 0x03xx - FUTURE USE
■■ Dimmer Curve 0x0343 ■ ■Dimmer Curve Description 0x0344 ■ ■■ Modulation Frequency 0x0347 ■ ■Modulation Frequency Description 0x0348 ■
Category - Power / Lamp Settings 0x04xx
■■ DEVICE_HOURS 0x0400 ■ ■■ LAMP_HOURS 0x0401 ■■ LAMP_STRIKES 0x0402 ■■ LAMP_STATE 0x0403 ■■ LAMP_ON_MODE 0x0404 ■■ DEVICE_POWER_CYCLES 0x0405
Category - Display Settings 0x05xx
■■ DISPLAY_INVERT 0x0500 ■■ DISPLAY_LEVEL 0x0501
Category - Configuration 0x06xx
■■ PAN_INVERT 0x0600 ■■ TILT_INVERT 0x0601 ■■ PAN_TILT_SWAP 0x0602 ■■ REAL_TIME_CLOCK 0x0603
Category - Control 0x10xx
■■ IDENTIFY_DEVICE 0x1000 ■■
■RESET_DEVICE 0x1001 ■
■■ POWER_STATE 0x1010 ■■ PERFORM_SELFTEST 0x1020 All Test, Pan/Tilt, Encoder ■SELF_TEST_DESCRIPTION 0x1021
■CAPTURE PRESET 0x1030 See E1-20_2010a
■■ PRESET PLAYBACK 0x1031 Table A-7 defines

USER MANUAL
WWW.STRANDLIGHTING.COM
ACCLAIM LED CYC
17
GET
ALLOWED
SET
ALLOWED
RDM PARAMETER IDS VALUE COMMENT ESTA
STANDARD
REQUIRED /
IMPLEMENTED
ESTA Reserved Future RDM 0x7FE0-0x7FFF
Manufacturer-Specific PIDs 0x8000-0xFFDF
■■ Output Power Mode 0x8A97 Value range depends on options
(Standard, Studio, etc)
■
■■ Pan/Tilt Feedback (On/Off) 0x8AD3 ■■ Display On Time 0x8AA0 Value range depends on options ■ ■■ LED Dimmer Curve 0x8AA1 Value range depends on options ■■ Pan Tilt Movement (On/Off) 0x8AA2 ■■ Head Motor Movement (On/Off) 0x8AA3 ■■ Auto Shutdown Mode 0x8AA4 Value range depends on options ■■ LED Hours 0x8AA5 ■■ Dim Snap (On/Off) 0x8AA6 ■■ Color Snap (On/Off) 0x8AA7 ■■ Auto Fan Mode (On/Off) 0x8AA8 ■■ Gamma Shift 0x8AA9 Value range depends on options ■■ Tungsten Dimming (On/Off) 0x8AAA ■■ CTB Correction (On/Off) 0x8AAB ■■ LED Refresh Rate 0x8AAC Value range depends on options ■■ Side Hang (On/Off) 0x8AAD ■■ Focus Track (On/Off) 0x8AAE
■Control Signel select DMX only/ARtNET (On/Off) 0x8AAF ■Recalibrate Fixture (Level) 0x8AB0 different levels (all, position, color,
etc)
■■ DMX Fail (Hold, Blackout, GOTO Preset) 0x8AB1 ■■ ArtNet Universe 0x8AB2 ■■ ArtNet Net 0x8AB3 ■■ ArtNet Sub-Net 0x8AB4 ■■ ArtNet Ethernet IP 0x8AB5 ■■ ArtNet Ethernet Sub-Net Mask 0x8AB6 ■■ Manual PRESET Playback Power Up Preset 0x8AB7 ■■ Manual PRESET Playback Preset Intensity 0x8AB8 ■■ Manual PRESET Playback Priority 0x8AB9 ■■ Manual PRESET Playback Power Up? 0x8ABA ■■ LED Color Calibration (On/Off) 0x8ABB ■

USER MANUAL
WWW.STRANDLIGHTING.COM
ACCLAIM LED CYC
18
TROUBLESHOOTING
The following are a few common problems that may occur during operation.
Luminaire does not work; light and fan do not turn on.
• Check power connection and main fuse.
• Measure the mains voltage on the main connector.
Not responding to DMX controller.
• If DMX LED is not illuminated, verify that the DMX cables are properly connected.
• If the DMX LED is illuminated and there is no response, verify DMX address settings and the DMX
polarity.
• If you experience intermittent DMX signal problems, check the pins on the connectors or on the PCB.
• Test with a dierent DMX controller.
• Check if the DMX cables run near or alongside high voltage cables that may cause interference to the
DMX interface circuit.
CLEANING
Cleaning the inside of the luminaire must be carried out periodically in order to optimize the light output.Clean-
ing frequency depends on the environment in which the fixture operates. Damp, smoky or particularly dusty
surroundings can cause greater accumulation of dirt on the fixture’s optics.
• Clean with a soft cloth using glass cleaning fluid.
• Dry parts carefully.
• Clean the external optics at least every 30 days.
CARE AND MAINTENANCE
APPENDIX A

USER MANUAL
WWW.STRANDLIGHTING.COM
ACCLAIM LED CYC
19
All Vari-lite and Strand lighting luminaires are governed by the same fan
speed versus noise levels and maximum power output rules as detailed
below. The noise related to these levels conforms to noise criteria levels
detailed within the document.
There are three control parameters that can can be selected separately or
in conjunction when permitted to manage fan speed versus noise levels
and maximum power output.
NOTE: Not all fixture have all modes or functions. Refer to DMX map and/
or user interface menu tree to verify the modes and functions in your
fixture.
FAN VERSUS OUTPUT PRESET MODES
These modes are selectable at either / or the fixtures DMX control chan-
nel or via the fixture user interface screen.
Boost mode – LED output boosted to >120% of standard output fan
speeds increased manage heat level of LED (may be limited to only run
for XXhrs). Fixture will not exceed NC45 – NC55 sound levels in this mode
Standard mode - Full LED Output + Fan Spin at top speed (loudest set-
ting). Fixture will not exceed NC40 sound levels in this mode.
Studio mode - Fan speed reduced to appropriate amount to reduce
dB levels >10% of full speed + LED @ max output approximately 80%
of Standard output at appropriate level to ensure LED work at optimum
temperature and output eciency (fan speed remains at a constant speed and do not ramp up or down) NC35.
Whisper mode - Fan speed reduced to appropriate amount to reduce dB levels to >30% of the full speed + LED Max out-
put approximately 60% of Standard output at appropriate level to ensure LED work at optimum temperature and output
eciency (Fan speed remains at a constant speed and do not ramp up or down) NC25.
Silent mode – ideally Fans do not spin + output capped at appropriate level to ensure LED work at optimum temperature
and output eciency (Fan should never switch on in this mode or change speed if they on) NC15 target level.
90
0
10
20
30
40
50
60
70
80
63 125 250 500 1000 2000 4000 8000
NC 15
NC 20
NC 25
NC 30
NC 35
NC 40
NC 45
NC 50
NC 55
NC 55
NC 55
NC 55
FREQUENCY (HZ)
SOUND PRESSURE LEVEL (dB)
90
0
10
20
30
40
50
60
70
80
63 125 250 500 1000 2000 4000 8000
NC 25
NC 35
NC 40
NC 45
FREQUENCY (HZ)
SOUND PRESSURE LEVEL (dB)
Whisper mode
Studio mode
Standard mode
Example Fan Modes
MODE LED
OUTPUT FAN SPEED NOISE CRITERION
EQUIVALENT SOUND
LEVEL DBA (@3M)
Boost Mode >100% Boosted fan speed constant NC45 50
Standard Mode Full 100% Full 100% constant NC40 45
Studio Mode 80% Appropriate speed to reduce
dB levels >10% of full speed NC35 40
Whisper Mode 60% Appropriate speed to reduce
dB levels >30% of full speed NC25 35
Silent Mode TBC Fan off NC15 25
NOISE
CRITERION
OCTAVE BAND CENTER FREQUENCY (HZ)
63 125 250 500 1000 2000 4000 8000
SOUND PRESSURE LEVELS (DB)
NC-15 47 36 29 22 17 14 12 11
NC-20 51 40 33 26 22 19 17 16
NC-25 54 44 37 31 27 24 22 21
NC-30 57 48 41 35 31 29 28 27
NC-35 60 52 45 40 36 34 33 32
NC-40 64 56 50 45 41 39 38 37
NC-45 67 60 54 49 46 44 43 42
NC-50 71 64 58 54 51 49 48 47
NC-55 74 67 62 58 56 54 53 52
NC-60 77 71 67 63 61 59 58 57
NC-65 80 75 71 68 66 64 63 62
NC-70 83 79 75 72 71 70 69 68
FAN SPEED AND CONTROL
APPENDIX B
