Strand NEO COMPACT 10 User manual

1
QUICK START GUIDE
NEO COMPACT 10
CONSOLE
54104-010 NEO Compact 10 Console, 4 Universes
This document provides basic setup instructions and safety
warnings for the following product(s):
WWW.STRANDLIGHTING.COM©2020 Signify Holding. All rights reserved.
INCLUDED ITEMS
• Power supply, 12 V DC, 5 A, 5’ (1.5 m) lead
• Power input cable, EU, IEC C13, CEE 7/4, 6 ft. (1.83 m)
• Power input cable, US, IEC C13, NEMA 5-15P, 6 ft. (1.83 m)
• Power input cable, UK, IEC C13, BS-1363-1, 6 ft. (1.83 m)
• Dust cover
ABOUT THIS GUIDE
The document provides experienced users with the necessary information to get up and running very quickly.
Refer to the online user manual for complete information regarding all console operations. The manual can be
downloaded at www.strandlighting.com. Go directly to the NEO Compact 10 product page and download the
product manual or other product information.
ABOUT THE NEO COMPACT 10
The Strand NEO Compact 10 Console provides the power and flexibility of NEO lighting control software in a
form factor that is small and lightweight. This makes it perfect for use in theaters, houses of worship, and broad-
cast studios, which do not require a full NEO console, but which still require sophisticated control of multi-color
LED and moving head fixtures. It is also perfect as a back-up or secondary console where one is required.
The NEO Compact 10 Console has a built-in 0-10 button command keypad that allows for command line entry,
allowing for rapid operation of the console. It also has an internal touchscreen, which both allows the console
to be used standalone and also provides an intuitive interface for users that are not familiar with command line
entry. And, with support for an external touchscreen, the NEO Compact 10 interface can be extended to another
screen to show even more information.
Shipping with support for four universes of control (upgradeable to ten universes), and with support for 5-pin
DMX and network protocols, the NEO Compact 10 can control all the lights in a small- to medium-sized installa-
tion even as the needs of the space change over time.
NOTE: Monitors, cables and other accessories are not included and are sold separately. For available accesso-
ries, please contact you local Authorized Strand Lighting Dealer. A list of Authorized Dealers is located on the
Strand Lighting web site at www.strandlighting.com.
Refer to the product datasheet for a complete list of accessories and technical specifications.
OVERVIEW
CONSOLE LAYOUT
FIGURE 1 shows the features and controls of the NEO Compact 10. Refer to the online manual for additional
information and operation.

2
NEO COMPACT 10 CONSOLE QUICK START GUIDE
WWW.STRANDLIGHTING.COM©2020 Signify Holding. All rights reserved.

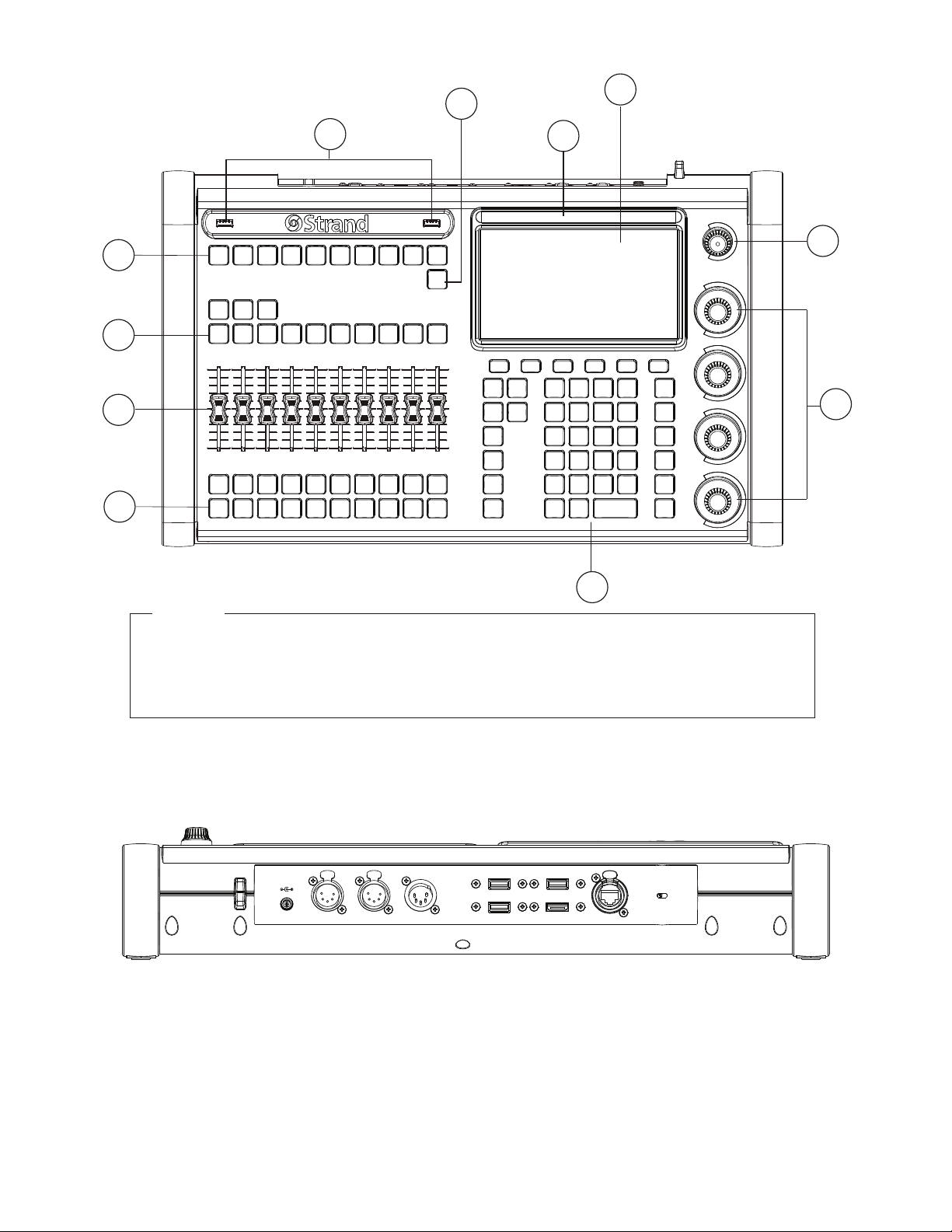

FIGURE 1. CONTROL FEATURES
CONNECTIONS
FIGURE 2 shows the connections in the rear of the NEO Compact 10. Refer to the online manual for additional
information and operation.
FIGURE 2. CONNECTIONS
Use only the supplied DC power supply and AC input cables with unit. If the supplied DC power supply and AC
input cable is ever damaged, you must replace it with an approved replacement. For assistance, please contact
an Authorized Strand Dealer or Service Center.
+12VDC
4.0 AMPS
DMX 1 DMX 2 DMX IN
USB
USB HDMI LAN
LOCK
USB
I
TOP OF UNIT
RecordCue
Group
Sub
Goto
Step
Shift
Preset
User
7
4
1
0
Pos
On
8
5
2
.
Color
Thru
9
6
3
Enter
Beam
Bksp
+
-
@
Release
Undo
Delete
Copy
Time
Tex t
Edit
Update
USER
7USER 8USER 9USER 10
USER
3USER 4USER 5USER 6
➪
Fader
USER
1
USER
2
12345678910
Display
Menu
➪

{{{{{{{{{{
J
A
E
K
F
C
USB 2.0 Ports (Showfile storage, USB sold separately)
Display On-Screen Menu
Stylus Well
7” touchscreen
Level Encoder
Attribute Encoders (4 each, RGB backlit)
0-10 Command Keypad
Configurable Action Buttons
Configurable Faders
Configurable Bump Buttons
User Definable Keys
Legend
A.
B.
C.
D.
E.
F.
G.
H.
I.
J.
K.
D
G
B
H

3
NEO COMPACT 10 CONSOLE QUICK START GUIDE
WWW.STRANDLIGHTING.COM©2020 Signify Holding. All rights reserved.
CONSOLE DIMENSIONS
FIGURE 3 shows the overall dimensions of the NEO Compact 10.
FIGURE 3. DIMENSIONS
For additional information and specifications for the NEO Compact 10, contact your local Authorized Service
Center.
GETTING STARTED
1. UNPACK CONSOLE
Unpack your NEO Compact 10 from its shipping box and insure you have all included items. If you are missing
any components, please contact your local Authorized Strand Lighting Dealer.
2. SITE REQUIREMENT
The NEO Compact 10 requires a sturdy, flat surface for installation with suitable ventilation of 3 in. (76.2 mm)
to the left and right of the console.. The site should be clean (i.e. absent of any construction dust or debris) and
dry. The console must be installed and operate in an environment that is not exposed to moisture, high humidity
or direct sunlight.
3. CONNECTING POWER
If applicable, connect external touchscreen(s) before connecting power.
To connect the power supply:
Step 1. Connect an AC input cable to the AC input connection on the power supply.
Step 2. Connect and lock the DC output of the power supply to the DC input on the console.
Step 3. Connect AC input cable to AC supply source. The console will power on automatically.
NOTE: You must connect the console to the lighting system via DMX-512 or the network before it is capable of
providing control.
4. READY TO USE
Once console is connected to power and lighting control system, it is ready for use.
• Once the software boots, you are ready to program.
• Use the DISPLAY MENU button to bring up the on-screen menu to select Live, Blind, Patch, Cue List, and
other settings functions.
• Select Patch to patch fixtures to the console.
• Once fixtures are patched, press the DISPLAY MENU to select the Live channel view to start controlling
your lights.
For more information, refer to the documentation supplied in the online manual for console operation, opera-
tional features, and programming.
486mm (19.1")
302mm (11.9")
294mm (11.6")
91mm (3.6")

4
WARNINGS AND NOTICES
When using electrical equipment, basic safety precautions should
always be followed including the following:
READ AND FOLLOW ALL SAFETY INSTRUCTIONS.
• For indoor, dry locations use only. Do not use outdoors.
• Do not mount near gas or electric heaters.
• Equipment should be mounted in locations and at heights
where it will not readily be subjected to tampering by
unauthorized personnel.
• The use of accessory equipment not recommended by the
manufacturer may cause an unsafe condition.
• Not for residential use. Do not use this equipment for other
than intended use.
• Refer service to qualified personnel.
• This product must be powered through a grounded outlet.
SAVE THESE INSTRUCTIONS.
WARNING: Caution risk of explosion if battery is replaced by an
incorrect type. Dispose of used batteries according to the instruc-
tions.
CUSTOMER SERVICE
If you have any questions regarding this product, please
contact Customer Service at [phone] or via e-mail at
[e-mail]
LIMITED WARRANTY
Every Strand product is backed by a minimum 2-year limited
warranty against manufacturing defects and workmanship.
Refer to the Strand Limited Warranty Card available at
www.strandlighting.com/global/support/warranty for more
details.
Additional Resources for DMX512
For more information on installing DMX512 control systems, the fol-
lowing publication is available for purchase from the United States
Institute for Theatre Technology (USITT), “Recommended Practice
for DMX512: A Guide for Users and Installers, 2nd edition” (ISBN:
9780955703522).
USITT
315 South Crouse Avenue, Suite 200
Syracuse, NY 13210-1844
Phone: [phone] or 1.315.463.6463
www.usitt.org
