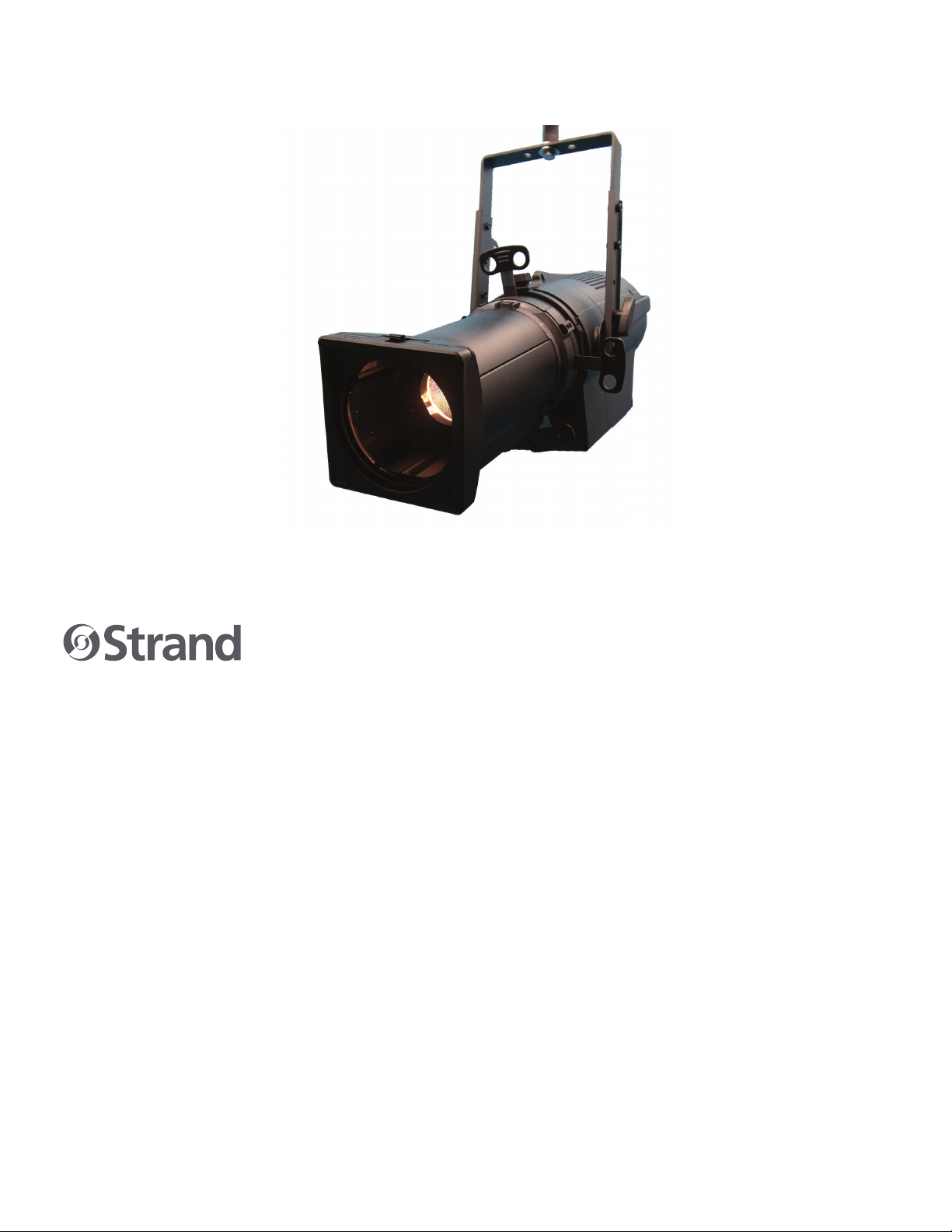

Strand LEKO LED PROFILE FULL COLOR User manual

LEKO LED PROFILE
FULL COLOR
USER MANUAL

USER MANUAL
WWW.STRANDLIGHTING.COM
LEKO LED PROFILE FULL COLOR
2
FEATURES
• High output midsized LED theatrical luminaires
• High CRI RGBALC Color System with SmartColor Control
• Tunable white with >94 CRI
• Independent color mixing and temperature controls
• Quiet operation with variable fan control
• Adjustable frequency to exceed camera frame rates
Download the product datasheet from the Strand website at www.strandlighting.com for the full technical
specifications.
COMPONENTS
The document provides installation and operation instructions for the following products:
• Strand Leko LED Profile Full Color
Read all instructions before installing or using this product. Retain this manual for future reference. Additional
product information and descriptions may be found on the product specification sheet.
INCLUDED ITEMS
Each Strand Leko LED Profile luminaire includes the following items:
• Strand Leko LED Profile Full Color
• Quick Start Guide
1
DESCRIPTION

USER MANUAL
WWW.STRANDLIGHTING.COM
LEKO LED PROFILE FULL COLOR
3
MOUNTING
The unit should be mounted via its screw holes on the bracket. Always ensure that the
unit is firmly fixed to avoid vibration and slipping while operating. Always ensure that the
structure to which you are attaching the unit is secure and is able to support a weight of
10 times of the unit’s weight. Always use a safety cable that can hold up to 12 times the
weight of the unit when installing the fixture.
The luminaire must be mounted by professionals.
SET UP

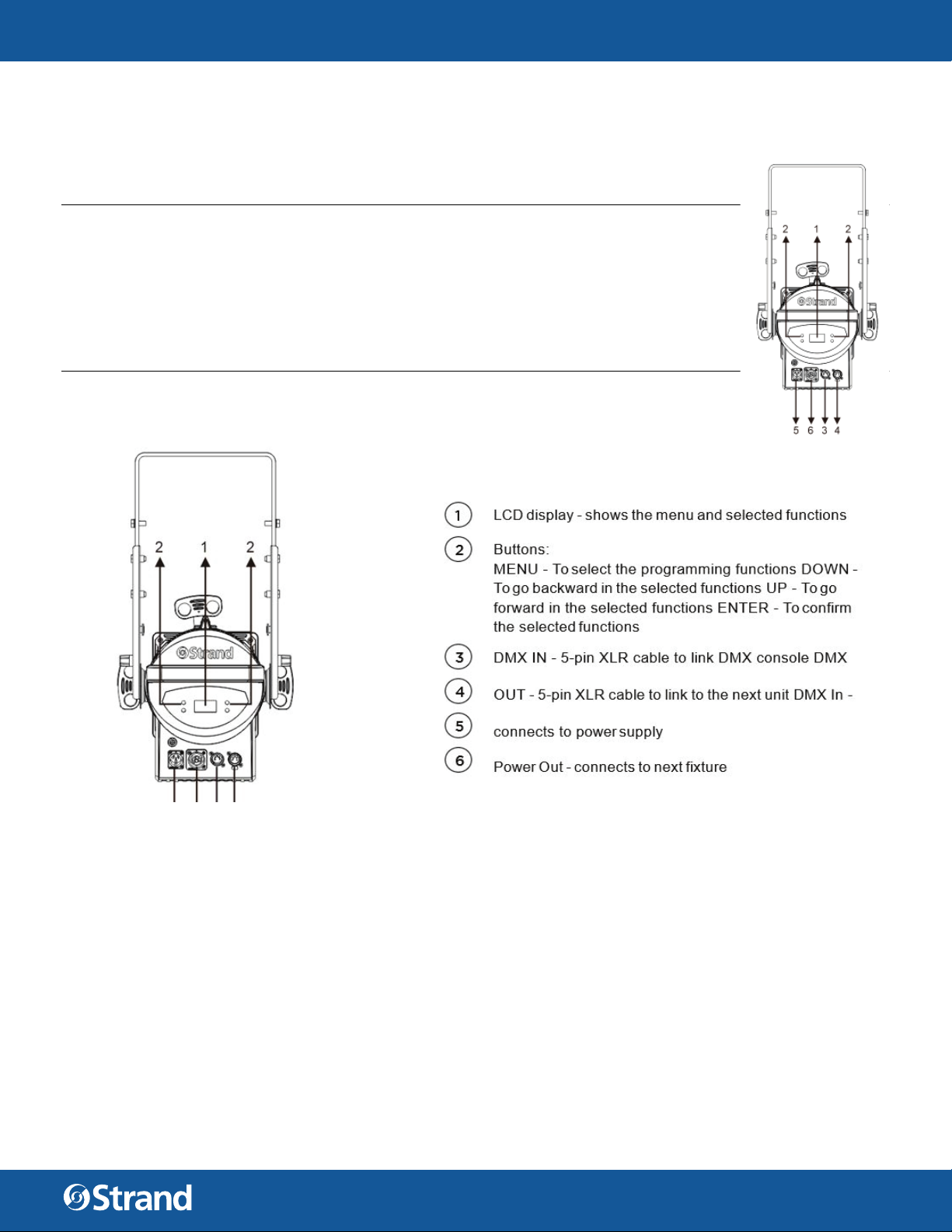

CONTROL PANEL
MAIN FUNCTIONS
To select any functions, press the MENU button until the required one is shown on the display. Select the func-
tion by the ENTER button and the display will blink. Use the DOWN and UP button to change the mode. Once
the required mode has been selected, press the ENTER button to setup or it will automatically return to the
main functions without any change after idling one minute. Back to the functions without any change press the
MENU button. The main functions are shown in TABLE 1.
2
INSTALLATION

USER MANUAL
WWW.STRANDLIGHTING.COM
LEKO LED PROFILE FULL COLOR
4
TABLE 1. MENU FUNCTIONS
LEVEL 1 LEVEL 2 LEVEL 3 LEVEL 4 LEVEL 5 LEVEL 6 DEFAULT
Address 001~512 (Default 001)
Configure
LED
LED Hours XXXXXX h
Reset LED Hour Are you sure?
Dimming Curve
Square Curve (Default)
S Curve
Linear Curve
Tungsten Fade On
Off (Default
Dim Snap On (Fast)
Off (Slow) (Default)
LED Frequency
1200Hz (Default)
2500Hz
5000Hz
10000Hz
20000Hz
25000Hz
White Balance
Red 125 - 255 Default 255
Green 125 - 255 Default 255
Blue 125 - 255 Default 255
Amber 125 - 255 Default 255
Lime 125 - 255 Default 255
Cyan 125 - 255 Default 255
Reset YES/NO
Color Cal On
Off (Default)
Disp Timeout
30 Sec (Default)
5 Min
10 Min
On
Select Signal
DMX Only
Art-Net
SACN
Set Artnet/
SACN
Set Universe 000~255 (Default 000)
Ethernet IP XXX. XXX. XXX. XXX
Ether Mask IP XXX. XXX. XXX. XXX

USER MANUAL
WWW.STRANDLIGHTING.COM
LEKO LED PROFILE FULL COLOR
5
TABLE 1. MENU FUNCTIONS
LEVEL 1 LEVEL 2 LEVEL 3 LEVEL 4 LEVEL 5 LEVEL 6 DEFAULT
DMX
Address 001~512
DMX Mode
SSCC (Default)
SQCC
SOCC
Pixel Group
Group 1 (Default)
Group 3
Group 12
Cell Direction Normal (Default)
Flipped
Data
Ch 1 - Intensity
XXX (Value)
Ch 2 - Intensity
Fine XXX (Value)
……All functions
Fixture
Serial Number Serial Number
electronic format
Status
(No Errors... or
displays a list of
errors)
Reboot Fixture Are you sure?
Version VXXX MM/D/YY HH:MM
Fixture Hours XXXXXX h
Crossload
(Software) Send
Service Diagnostics Board Check
Sensor Check
Manual Control
Red 0 - 255 (Default 0)
Green 0 - 255 (Default 0)
Blue 0 - 255 (Default 0)
Amber 0 - 255 (Default 0)
Lime 0 - 255 (Default 0)
Cyan 0 - 255 (Default 0)
Color Preset
Preset Run Select preset 1 to 20
Intensity 0 - 255
Edit Programs
Intensity* 0 - 255
Red 0 - 255
Green 0 - 255
Blue 0 - 255
Amber 0 - 255
Lime 0 - 255
Cyan 0 - 255
Store YES/NO
Clear YES/NO

USER MANUAL
WWW.STRANDLIGHTING.COM
LEKO LED PROFILE FULL COLOR
6
ADDRESS MENU
Address — DMX address setting. To select DMX Address, press the ENTER button to confirm. Use the UP/DOWN
button to adjust the address from 001 to 512, press the ENTER button to store. Press the MENU button back to
the last menu or let the unit idle one minute to exit menu mode.
CONFIGURE MENU
To select Configure, press the ENTER button to confirm, use the UP/DOWN button to select LED, Color Cal,
Disp Timeout, Select Signal and Set Artnet / SACN.
LED
To select LED, press the ENTER button to confirm. Use the UP/DOWN button to select LED
Hours, Reset LED Hour, Dimming Curve, Tungsten Fade, Dim Snap, LED Frequency and White Balance.
Press the ENTER button to store. Press the MENU button back to the last menu or let the unit idle one minute to
exit menu mode.
LED Hours —Select LED Hours, press the ENTER button to confirm, LED Hours will show on the display, press
the MENU button back to exit.
Reset LED Hours — Select Reset LED Hours, press the ENTER button to confirm, “Are you sure” will show on
the display, press the MENU button back to exit.
Dimming Curve — To select Dimming Curve, press the ENTER button to confirm. Use the UP/DOWN button to
select Square Law Curve, S Law Curve or Linear Law Curve, press the ENTER button to store. Press the MENU
button back to the last menu or let the unit idle one minute to exit menu mode.
Tungsten Fade — Select Tungsten Fade, press the ENTER button to confirm, Use the UP/DOWN button to select
ON or OFF, press the MENU button back to exit.
Dim Snap — Select Dim Snap, press the ENTER button to confirm, Use the UP/DOWN button to select ON or
OFF, press the MENU button back to exit.
LED Frequency — To select LED Frequency, press the ENTER button to confirm. Use the UP/DOWN button to
select 1200Hz, 2500Hz, 5000Hz, 10000Hz, 20000Hz , 25000Hz, press the ENTER button to store. Press the
MENU button back to the last menu or let the unit idle one minute to exit menu mode.
White Balance — To select White Balance, press the ENTER button to confirm. Use the UP/DOWN button to
select Red,Green, Blue, Amber, Lime, Cyan and RESET, press the ENTER button to store. Press the MENU button
back to the last menu or let the unit idle one minute to exit menu mode.
Color Cal
To select Color Cal, press the ENTER button to confirm. Use the UP/DOWN button to select ON or OFF, press
the MENU button back to exit.
Disp Timeout
To select Disp TImeout, press the ENTER button to confirm. Use the UP/DOWN button to select 30 Sec, 5min, 10
min or ON, press the MENU button back to exit.
Select Signal
To select Select Signal, press the ENTER button to confirm. Use the UP/DOWN button to select DMX Only, Art-
net or SACN, press the MENU button back to exit.
DMX MENU
To select DMX, press the ENTER button to confirm, use the UP/DOWN button to select Address, DMX Mode,
Pixel Group, Cell Direction or Data.
Address — To select Address, press the ENTER button to confirm. Use the UP/DOWN button to select from 001
to 512. press the ENTER button to store. Press the MENU button back to the last menu or let the unit idle one
minute to exit menu mode.
DMX Mode — To select DMX Mode, press the ENTER button to confirm. Use the UP/DOWN button to select
SSCC, SQCC or SOCC, press the ENTER button to store. Press the MENU button back to the last menu or let the
unit idle one minute to exit menu mode.
Pixel Group — To select Pixel Group, press the ENTER button to confirm. Use the UP/DOWN button to select
Group 1 or Group 4, press the ENTER button to store. Press the MENU button back to the last menu or let the
unit idle one minute to exit menu mode.
Cell Direction — To select Cell Direction, press the ENTER button to confirm. Use the UP/DOWN button to select
Normal or Flipped, press the ENTER button to store. Press the MENU button back to the last menu or let the

USER MANUAL
WWW.STRANDLIGHTING.COM
LEKO LED PROFILE FULL COLOR
7
unit idle one minute to exit menu mode.
Data — To select Data, press the ENTER button to confirm. Use the UP/DOWN button to select Ch1 – Intensity
xxx(value), Ch2 – Intensity Fine xxx(Value), …. All functions, press the ENTER button to store. Press the MENU
button back to the last menu or let the unit idle one minute to exit menu mode.
FIXTURE MENU
To select Fixture, press the ENTER button to confirm, use the UP/DOWN button to select Status, Reboot fixture,
Version, Fixture Hours, Crossload (Software) , Service.
Status
Select Status, press the ENTER button to confirm, Status will show on the display, press the MENU button back
to exit.
Reboot Fixture
Select Reboot Fixture, press the ENTER button to confirm, Are you sure? will show on the display, press the EN-
TER button to store. Press the MENU button back to the last menu or let the unit idle one minute to exit menu
mode.
Version
Select Version, press the ENTER button to confirm, Version will show on the display, press the MENU button
back to exit.
Fixture Hours
Select Fixture Hours, press the ENTER button to confirm, Fixture Hours will show on the display, press the MENU
button back to exit.
Crossload (Software)
Select Crossload (Software), press the ENTER button to confirm, Send will show on the display, press the ENTER
button to store. Press the MENU button back to the last menu or let the unit idle one minute to exit menu mode.
NOTE: Incoming DMX must be removed from the fixture or software crossload will not be activated.
Service
To select Service, press the ENTER button to confirm. Diagnostics will show, press the ENTER button to store.
Press the MENU button back to the last menu or let the unit idle one minute to exit menu mode.
Diagnostics — To select Diagnostics, press the ENTER button to confirm. Use the UP/DOWN button to select
Fan Check, Board Check ,Sensor Check, press the ENTER button to store. Press the MENU button back to the
last menu or let the unit idle one minute to exit menu mode.
MANUAL CONTROL MENU
Enter menu mode, select Manual Control, press the ENTER button to confirm, use the UP/DOWN button to se-
lect Red, Green, Blue, Amber, Lime and Cyan. Use the UP/DOWN button to adjust the value from 0 to 255, press
the ENTER button to store. Press the MENU button back to the last menu or let the unit idle one minute to exit
menu mode.
COLOR PRESET MENU
Preset Run
Enter Color Preset mode, select Preset Run, press the ENTER button to confirm, use the UP/DOWN button to
select “Select Preset” or Intensity.
Edit Programs
Enter menu mode, select Edit Programs, press the ENTER button to confirm, MODE will show up, use the UP/
DOWN button to select Intensity, Red, Green, Blue, Amber, Lime, Cyan, Store or Clear. Use the UP/DOWN button
to adjust the value from 0 to 100%, press the ENTER button to store. Press the MENU button back to the last
menu or let the unit idle one minute to exit.

USER MANUAL
WWW.STRANDLIGHTING.COM
LEKO LED PROFILE FULL COLOR
8

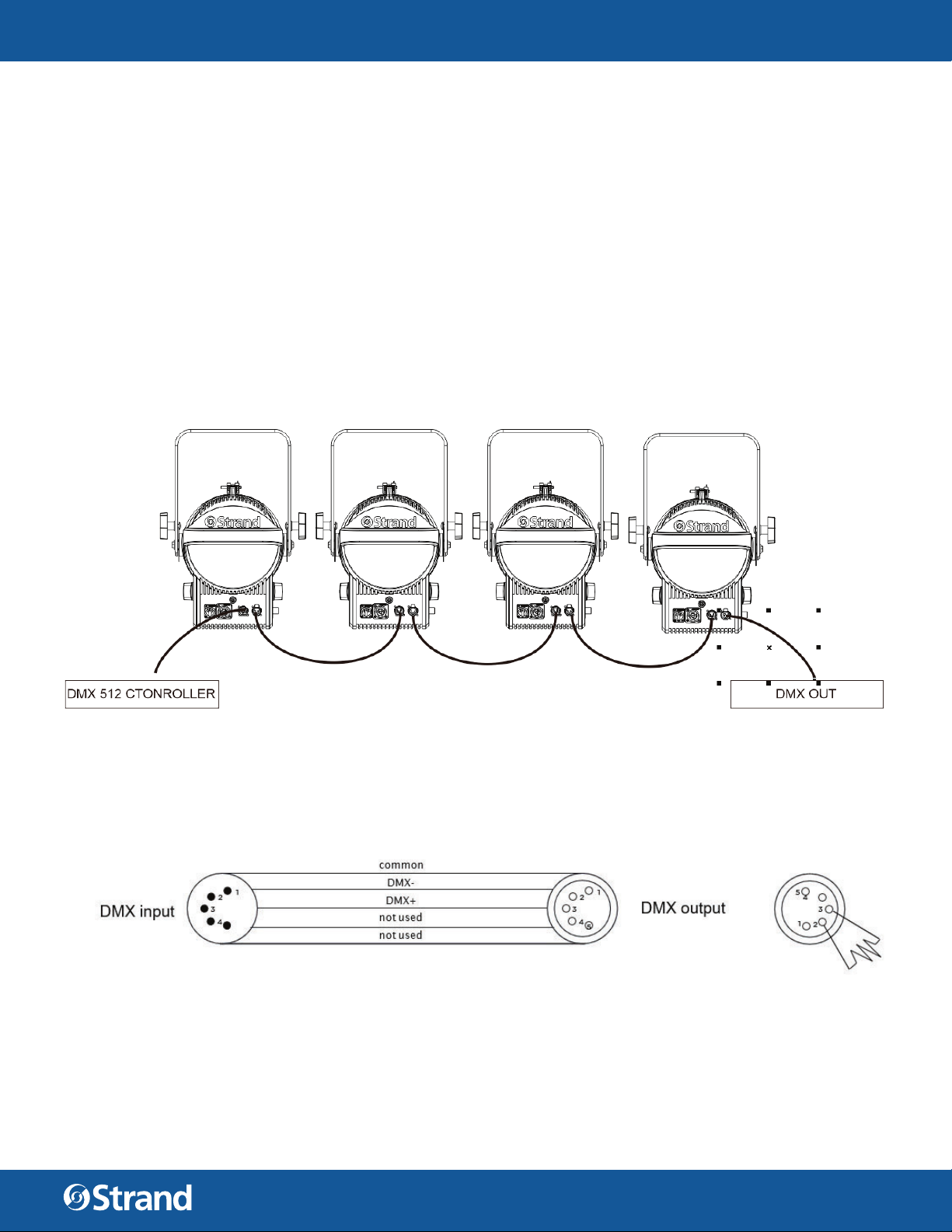

The fixture can be operated by DMX controller. The following tables assumes a DMX start address of 1. When
a dierent starting address is used, this address becomes channel 1 function and other functions follow in se-
quence.
TABLE 2. SSCC MODE
DMX
CHANNEL PARAMETER DEFAULTS RANGE DMX DESCRIPTION
1 Intensity (High) 0 0 - 65535 16bit Intensity (Dimmer) Control
2 Intensity (Low) 0 - 100% Output
3 Strobe 0 0 - 255 Strobe S>>>>>F
0 - 9 No Strobe Function - Shutter open
10 - 99 Strobe S>>>>>F
100 - 109 No Strobe Function - Shutter open
110 - 179 Lighting Strobe S>>>>>F
180 - 189 No Strobe Function - Shutter open
190 - 255 Random Strobe S>>>>>F
4 Color Preset 0 0 - 255 Calibrated color presets 01 to 33
User definable color preset 01 to 20
0 - 10 Channel OFF Color Mixing take priority
11 - 14 Moroccan Pink
15 - 18 Pink
19 - 22 Flesh Pink
23 - 26 Bright Rose
27 - 30 Follies Pink
31 - 34 Fuchsia Pink
35 - 38 Surprise Pink
39 - 42 Congo Blue
43 - 46 Blue
47 - 50 Virgin Blue
51 - 54 Midnight Maya
55 - 58 Double C.T Blue
59 - 62 Slate Blue
63 - 66 Regal Blue
67 - 70 Full C.T Blue
71 - 74 Steel Blue
75 - 78 Lighter Blue
79 - 82 Cyan
83 - 86 Marine Blue
87 - 90 Soft Green
91 - 94 Moss Green
95 - 98 Green
99 - 102 Fem Green
103 - 106 JAS Green
107 - 110 Pale Green
111 - 114 Spring Yellow
115 - 118 Yellow
3 DMX MAPPING

USER MANUAL
WWW.STRANDLIGHTING.COM
LEKO LED PROFILE FULL COLOR
9
TABLE 2. SSCC MODE
DMX
CHANNEL PARAMETER DEFAULTS RANGE DMX DESCRIPTION
119 - 122 Deep Amber
123 - 126 Chrome Orange
127 - 130 Orange
131 - 134 Magenta
135 - 138 Flame Red
139 - 142 Purple
143 - 146 User Preset 1
147 - 150 User Preset 2
151 - 154 User Preset 3
155 - 158 User Preset 4
159 - 162 User Preset 5
163 - 166 User Preset 6
167 - 170 User Preset 7
171 - 174 User Preset 8
175 - 178 User Preset 9
179 - 182 User Preset 10
183 - 186 User Preset 11
187 - 190 User Preset 12
191 - 194 User Preset 13
195 - 198 User Preset 14
199 - 202 User Preset 15
203 - 206 User Preset 16
207 - 210 User Preset 17
211 - 214 User Preset 18
215 - 218 User Preset 19
219 - 222 User Preset 20
223 - 255 Channel OFF Color Mixing take priority
5 Fan Control 0 0 - 255 Dynamically control fan speed vs LED Output operation.
Control
values as follows . . .
0-4 Automatic fan/output adjustment (Default)
05 - 255 Linear control of fan speed and LED max output*
DMX 5 =Highest Constant Fan Speed
DMX 255 = Lowest Constant Fan Speed
* Standard mode only
6 Control Chanel 0 0 - 255 Control Channel used for full fixture settings,
lamp controls, and miscellaneous modes.
Set discrete value of desired effect, wait >3 seconds,
then set value to 0 (Idle).
**Function does not require 3 Second rule to active, setting
output
to value will automatically activate function
0 - 5 Idle (Default)
6 - 10 Full Luminaire ReCal -
Also Used to Wake fixture up from shutdown
11 - 15 Fixture Shutdown
16 - 20 Reserved Values
21 - 25 Display - Menu ON

USER MANUAL
WWW.STRANDLIGHTING.COM
LEKO LED PROFILE FULL COLOR
10
TABLE 2. SSCC MODE
DMX
CHANNEL PARAMETER DEFAULTS RANGE DMX DESCRIPTION
26 - 30 Display - Menu OFF
31 - 35 Tungsten Dimming On**
36 - 40 Tungsten Dimming Off (Default)**
41 - 45 Dimming Curve Linear**
46 - 50 Dimming Curve S-Curve**
51 - 55 Dimming Curve Square Law (Default)**
56 - 60 Reserved
61 - 65 Dimmer Snap On**
66 - 70 Dimmer Snap Off (Default)**
71 - 75 Reserved Values
76 - 80 Reserved Values
81 - 85 Reserved Values
86 - 90 Reserved Values
91 - 95 Color Calibration on
96 - 100 Color Calibration off (Default)
101 - 105 Reserved Values
106 - 110 Reserved Values
111 - 115 Standard Mode - (Default)
116 - 120 Studio Mode - Reduced output with lower fan settings
121 - 125 Whisper Mode - Reduced output with lower fan settings
126 - 130 Reserved Values
131 - 135 Reserved Values
136 - 140 Fan On (Default)
141 - 145 Fan Auto
146 - 150 Reserved Values
151 - 155 Record User Color Preset**
156 - 160 Reserved
161 - 165 Reserved
166 - 170 Reserved
171 - 175 Reset fixture to default
176 - 255 Reserved
7 Cyan (High) 0 0 - 65535 Cyan Color Level Control 0 - 100% Saturation
8 Cyan (Low) 6 Color LED array auto adjust to meet Cyan / mixed color point
of full available color spectrum
9 Yellow (High) 0 0 - 65535 Yellow Color Level Control 0 - 100% Saturation
10 Yellow (Low) 6 Color LED array auto adjust to meet Yellow / mixed color
point of full available color spectrum
11 Magenta (High) 0 0 - 65535 Magenta Color Level Control 0 - 100% Saturation
12 Magenta (Low 6 Color LED array auto adjust to meet Magenta / mixed color
point of full available color spectrum
13 CTO 75
0 - 250
Variable color temperature control channel
Channel works independent of color mixing channel and will
adjust all mixed color from selected color temperature level.
Values stated below are a for guidance only channel should be
mapped in such away that channel level runs variable from 0 -
250
0 1800k
25 2700K
50 3000K

USER MANUAL
WWW.STRANDLIGHTING.COM
LEKO LED PROFILE FULL COLOR
11
TABLE 2. SSCC MODE
DMX
CHANNEL PARAMETER DEFAULTS RANGE DMX DESCRIPTION
75 3200K (Default)
100 4000K
125 4500K
150 5000K
175 5600K
200 6500K
225 8000K
250 10000K
250 - 255 Reserved Hold 10000K
14 Green Shift 100 0 - 255 TV Camera Green Shift adjustment
Channel works independent of color mixing channel and will
adjust all mixed color
from to reduce green color for camera use
0 to -100% Minus Green Levels 100% = to Lee Filter Full minus
Green 247
0-10 NO FUNCTION
11-29 FULL MINUS GREEN
30-69 —99% -> -1%
70-129 NO FUNCTION
130-189 1% -> 99%
190-255 FULL PLUS GREEN
TABLE 3. SQCC MODE
DMX
CHANNEL PARAMETER DEFAULTS RANGE DMX DESCRIPTION
1 Intensity (High) 0 0 - 65535 16bit Intensity (Dimmer) Control
2 Intensity (Low) 0 - 100% Output
3 Strobe 0 0 - 255 Strobe S>>>>>F
0 - 9 No Strobe Function - Shutter open
10 - 99 Strobe S>>>>>F
100 - 109 No Strobe Function - Shutter open
110 - 179 Lighting Strobe S>>>>>F
180 - 189 No Strobe Function - Shutter open
190 - 255 Random Strobe S>>>>>F
4 Color Preset 0 0 - 255 Calibrated color presets 01 to 33
User definable color preset 01 to 20
0 - 10 Channel OFF Color Mixing take priority
11 - 14 Moroccan Pink
15 - 18 Pink
19 - 22 Flesh Pink
23 - 26 Bright Rose
27 - 30 Follies Pink
31 - 34 Fuchsia Pink
35 - 38 Surprise Pink
39 - 42 Congo Blue
43 - 46 Blue
47 - 50 Virgin Blue
51 - 54 Midnight Maya

USER MANUAL
WWW.STRANDLIGHTING.COM
LEKO LED PROFILE FULL COLOR
12
TABLE 3. SQCC MODE
DMX
CHANNEL PARAMETER DEFAULTS RANGE DMX DESCRIPTION
55 - 58 Double C.T Blue
59 - 62 Slate Blue
63 - 66 Regal Blue
67 - 70 Full C.T Blue
71 - 74 Steel Blue
75 - 78 Lighter Blue
79 - 82 Cyan
83 - 86 Marine Blue
87 - 90 Soft Green
91 - 94 Moss Green
95 - 98 Green
99 - 102 Fem Green
103 - 106 JAS Green
107 - 110 Pale Green
111 - 114 Spring Yellow
115 - 118 Yellow
119 - 122 Deep Amber
123 - 126 Chrome Orange
127 - 130 Orange
131 - 134 Magenta
135 - 138 Flame Red
139 - 142 Purple
143 - 146 User Preset 1
147 - 150 User Preset 2
151 - 154 User Preset 3
155 - 158 User Preset 4
159 - 162 User Preset 5
163 - 166 User Preset 6
167 - 170 User Preset 7
171 - 174 User Preset 8
175 - 178 User Preset 9
179 - 182 User Preset 10
183 - 186 User Preset 11
187 - 190 User Preset 12
191 - 194 User Preset 13
195 - 198 User Preset 14
199 - 202 User Preset 15
203 - 206 User Preset 16
207 - 210 User Preset 17
211 - 214 User Preset 18
215 - 218 User Preset 19
219 - 222 User Preset 20
223 - 255 Channel OFF Color Mixing take priority

USER MANUAL
WWW.STRANDLIGHTING.COM
LEKO LED PROFILE FULL COLOR
13
TABLE 4. SOCC MODE
DMX
CHANNEL PARAMETER DEFAULTS RANGE DMX DESCRIPTION
1 Intensity (High) 0 0 - 65535 16bit Intensity (Dimmer) Control
2 Intensity (Low) 0 - 100% Output
3 Strobe 0 0 - 255 Strobe S>>>>>F
0 - 9 No Strobe Function - Shutter open
10 - 99 Strobe S>>>>>F
100 - 109 No Strobe Function - Shutter open
110 - 179 Lighting Strobe S>>>>>F
180 - 189 No Strobe Function - Shutter open
190 - 255 Random Strobe S>>>>>F
4 Color Preset 0 0 - 255 Calibrated color presets 01 to 33
User definable color preset 01 to 20
0 - 10 Channel OFF Color Mixing take priority
11 - 14 Moroccan Pink
15 - 18 Pink
19 - 22 Flesh Pink
23 - 26 Bright Rose
27 - 30 Follies Pink
31 - 34 Fuchsia Pink
35 - 38 Surprise Pink
39 - 42 Congo Blue
43 - 46 Blue
47 - 50 Virgin Blue
51 - 54 Midnight Maya
55 - 58 Double C.T Blue
59 - 62 Slate Blue
63 - 66 Regal Blue
67 - 70 Full C.T Blue
71 - 74 Steel Blue
75 - 78 Lighter Blue
79 - 82 Cyan
83 - 86 Marine Blue
87 - 90 Soft Green
91 - 94 Moss Green
95 - 98 Green
99 - 102 Fem Green
103 - 106 JAS Green
107 - 110 Pale Green
111 - 114 Spring Yellow
115 - 118 Yellow
119 - 122 Deep Amber
123 - 126 Chrome Orange
127 - 130 Orange
131 - 134 Magenta
135 - 138 Flame Red
139 - 142 Purple
143 - 146 User Preset 1
147 - 150 User Preset 2

USER MANUAL
WWW.STRANDLIGHTING.COM
LEKO LED PROFILE FULL COLOR
14
TABLE 4. SOCC MODE
DMX
CHANNEL PARAMETER DEFAULTS RANGE DMX DESCRIPTION
151 - 154 User Preset 3
155 - 158 User Preset 4
159 - 162 User Preset 5
163 - 166 User Preset 6
167 - 170 User Preset 7
171 - 174 User Preset 8
175 - 178 User Preset 9
179 - 182 User Preset 10
183 - 186 User Preset 11
187 - 190 User Preset 12
191 - 194 User Preset 13
195 - 198 User Preset 14
199 - 202 User Preset 15
203 - 206 User Preset 16
207 - 210 User Preset 17
211 - 214 User Preset 18
215 - 218 User Preset 19
219 - 222 User Preset 20
223 - 255 Channel OFF Color Mixing take priority
5 Fan Control 0 0 - 255 Dynamically control fan speed vs LED Output operation.
Control
values as follows . . .
0-4 Automatic fan/output adjustment (Default)
05 - 255 Linear control of fan speed and LED max output*
DMX 5 =Highest Constant Fan Speed
DMX 255 = Lowest Constant Fan Speed
* Standard mode only
6 Control Chanel 0 0 - 255 Control Channel used for full fixture settings,
lamp controls, and miscellaneous modes.
Set discrete value of desired effect, wait >3 seconds,
then set value to 0 (Idle).
**Function does not require 3 Second rule to active, setting
output
to value will automatically activate function
0 - 5 Idle (Default)
6 - 10 Full Luminaire ReCal -
Also Used to Wake fixture up from shutdown
11 - 15 Fixture Shutdown
16 - 20 Reserved Values
21 - 25 Display - Menu ON
26 - 30 Display - Menu OFF
31 - 35 Tungsten Dimming On**
36 - 40 Tungsten Dimming Off (Default)**
41 - 45 Dimming Curve Linear**
46 - 50 Dimming Curve S-Curve**
51 - 55 Dimming Curve Square Law (Default)**
56 - 60 Reserved
61 - 65 Dimmer Snap On**

USER MANUAL
WWW.STRANDLIGHTING.COM
LEKO LED PROFILE FULL COLOR
15
TABLE 4. SOCC MODE
DMX
CHANNEL PARAMETER DEFAULTS RANGE DMX DESCRIPTION
66 - 70 Dimmer Snap Off (Default)**
71 - 75 Reserved Values
76 - 80 Reserved Values
81 - 85 Reserved Values
86 - 90 Reserved Values
91 - 95 Color Calibration on
96 - 100 Color Calibration off (Default)
101 - 105 Reserved Values
106 - 110 Reserved Values
111 - 115 Standard Mode - (Default)
116 - 120 Studio Mode - Reduced output with lower fan settings
121 - 125 Whisper Mode - Reduced output with lower fan settings
126 - 130 Reserved Values
131 - 135 Reserved Values
136 - 140 Fan On (Default)
141 - 145 Fan Auto
146 - 150 Reserved Values
151 - 155 Record User Color Preset**
156 - 160 Reserved
161 - 165 Reserved
166 - 170 Reserved
171 - 175 Reset fixture to default
176 - 255 Reserved
7 Red (High) 0 0 - 65535 Red Color Level Control 0 - 100% Saturation
8 Red (Low
9 Green (High) 0 0 - 65535 Green Color Level Control 0 - 100% Saturation
10 Green (Low)
11 Blue (High) 0 0 - 65535 Blue Color Level Control 0 - 100% Saturation
12 Blue (Low)
13 Amber (High) 0 0 - 65535 Amber Color Level Control 0 - 100% Saturation
14 Amber (Low)
15 Lime (High) 0 0 - 65535 Lime Color Level Control 0 - 100% Saturation
16 Lime (Low)
17 Cyan (High) 0 0 - 65535 Cyan Color Level Control 0 - 100% Saturation
18 Cyan (Low)

USER MANUAL
WWW.STRANDLIGHTING.COM
LEKO LED PROFILE FULL COLOR
16
TABLE 5. COLOR PRESETS
RANGE
DMX COLOR RANGE DMX COLOR
0 - 255 Calibrated color presets 01 to 33 115 - 118 Yellow
User definable color preset 01 to 20 119 - 122 Deep Amber
0 - 10 Channel OFF Color Mixing take priority 123 - 126 Chrome Orange
11 - 14 Moroccan Pink 127 - 130 Orange
15 - 18 Pink 131 - 134 Magenta
19 - 22 Flesh Pink 135 - 138 Flame Red
23 - 26 Bright Rose 139 - 142 Purple
27 - 30 Follies Pink 143 - 146 User Preset 1
31 - 34 Fuchsia Pink 147 - 150 User Preset 2
35 - 38 Surprise Pink 151 - 154 User Preset 3
39 - 42 Congo Blue 155 - 158 User Preset 4
43 - 46 Blue 159 - 162 User Preset 5
47 - 50 Virgin Blue 163 - 166 User Preset 6
51 - 54 Midnight Maya 167 - 170 User Preset 7
55 - 58 Double C.T Blue 171 - 174 User Preset 8
59 - 62 Slate Blue 175 - 178 User Preset 9
63 - 66 Regal Blue 179 - 182 User Preset 10
67 - 70 Full C.T Blue 183 - 186 User Preset 11
71 - 74 Steel Blue 187 - 190 User Preset 12
75 - 78 Lighter Blue 191 - 194 User Preset 13
79 - 82 Cyan 195 - 198 User Preset 14
83 - 86 Marine Blue 199 - 202 User Preset 15
87 - 90 Soft Green 203 - 206 User Preset 16
91 - 94 Moss Green 207 - 210 User Preset 17
95 - 98 Green 211 - 214 User Preset 18
99 - 102 Fem Green 215 - 218 User Preset 19
103 - 106 JAS Green 219 - 222 User Preset 20
107 - 110 Pale Green 223 - 255 Channel OFF Color Mixing take priority
111 - 114 Spring Yellow
TABLE 6. GREEN SHIFT
DMX CHANNEL DEFAULT RANGE DMX FUNCTION
Green Shift 100
0 - 255
TV Camera Green Shift adjustment
Channel works independently of color mixing channel
and will adjust all mixed color from to reduce green color
for camera use 0 to -100% Minus Green Levels 100% = to
Lee Filter Full minus Green 247
0-10 NO FUNCTION
11-29 FULL MINUS GREEN
30-69 —99% -> -1%
70-129 NO FUNCTION
130-189 1% -> 99%
190-255 FULL PLUS GREEN

USER MANUAL
WWW.STRANDLIGHTING.COM
LEKO LED PROFILE FULL COLOR
17
TABLE 7. CTO CHANNEL
DMX CHANNEL DEFAULT RANGE DMX FUNCTION
CTO 75
0 - 250
Variable color temperature control channel
Channel works independent of color mixing channel
and will adjust all mixed color from selected color
temperature level. Values stated below are a for guidance
only channel should be mapped in such away that
channel level runs variable from 0 - 250
0 1800k
25 2700K
50 3000K
75 3200K (Default)
100 4000K
125 4500K
150 5000K
175 5600K
200 6500K
225 8000K
250 10000K
250 - 255 Reserved Hold 10000K
TABLE 8. CONTROL CHANNEL
RANGE
DMX ITEMS DESCRIPTION POWER CYCLE RULES
FUNCTION
SELECTION VIA UI
0 - 255 Control Channel
Control Channel used for full fixture settings,
lamp controls, and miscellaneous modes. Set
discrete value of desired effect, wait >3 seconds,
then set value to 0 (Idle). **Function does not
require 3 Second rule to active, setting output
N/A N/A
0 - 5 Idle (Default) Default value used as return point to activate all
control functions N/A N/A
6 - 10 Full Luminaire
ReCal -
Recalibrates all mechanical functions and sensor
with in the fixture. Also Used to Wake fixture up
from shutdown
N/A
11 - 15 Fixture Shutdown
Shuts down all fixture output and turns off all
fans - fixture is activated by power cycle or ReCal
command
If fixture is
powered down
then up fixture
will auto wake
and not startup in
Shutdown Mode
N/A
16 - 20 Reserved Values N/A N/A
21 - 25 Display - Menu ON Switches UI display backlight on remotely - Display
will Time out from on after 5 mins N/A N/A
26 - 30 Display - Menu OFF N/A N/A
31 - 35 Tungsten Dimming
On** Remote switches Tungsten Dimming color shift on Holds setting on power cycle Yes
36 - 40 Tungsten Dimming
Off (Default)** Remote switches Tungsten Dimming color shift off Holds setting on power cycle Yes
41 - 45 Dimming Curve
Linear**
Selects Linear Dimming Curve, Also Used to Wake
fixture up from shutdown
Holds setting on
power cycle Yes
46 - 50 Dimming Curve
S-Curve** Selects S-Law Dimming Curve Holds setting on power cycle Yes
51 - 55
Dimming Curve
Square Law
(Default)**
Selects Square -Law Dimming Curve Holds setting on
power cycle Yes
56 - 60 Reserved Values

USER MANUAL
WWW.STRANDLIGHTING.COM
LEKO LED PROFILE FULL COLOR
18
TABLE 8. CONTROL CHANNEL
RANGE
DMX ITEMS DESCRIPTION POWER CYCLE RULES
FUNCTION
SELECTION VIA UI
61 - 65 Dimmer Snap On** Allows for fastest output changes between levels
but reduces smoothness dimming LED
Holds setting on
power cycle Yes
66 - 70 Dimmer Snap Off
(Default)**
Ensures all fades between output levels remain
smooth and flicker free limits fast instant snaps
between levels
Holds setting on
power cycle Yes
71 - 75 Reserved Values N/A N/A
76 - 80 Reserved Values N/A N/A
81 - 85 Reserved Values N/A N/A
86 - 90 Reserved Values N/A N/A
91 - 95 Color Calibration
on
Turns Color calibration on for fixture to fixture
color matching on all mixed and preset colors
between fixtures limits highest output and max
saturation on some colors
Holds setting on
power cycle Yes
96 - 100 Color Calibration
off (Default)
Turns Color calibration off fixtures may not match
fixture to fixture limits fast instant snaps between
levels
Holds setting on
power cycle Yes
101 - 105 Reserved Values N/A N/A
106 - 110 Reserved Values
Boost mode – LED output boosted to >120% of
standard output fan s
speeds increased manage heat level of LED
(may be limited to only run for XXhrs) NC45 –
NC55
N/A N/A
111 - 115
Standard Mode -
Fixture operates at
maximum output
(Default)
Standard mode - Full LED Output + Full
Continuous Fan Spin at
top speed (loudest setting) (Fan remain at a
constant speed
and do not ramp up and down) NC40
*Fans can be switched between On & Auto levels
Holds setting on
power cycle Yes
116 - 120
Studio Mode -
Reduced output
with lower fan
settings
Studio Mode - Fan speed reduced to appropriate
amount to reduce dB levels >10% of full speed +
LED @ max output approximately 80%
of Standard output at appropriate level to ensure
LED work at optimum temperature and output
efficiency (fan speed remains at a constant speed
and do not ramp up or down) NC35
Holds setting on
power cycle Yes
121 - 125
Whisper Mode -
Reduced output
with lower fan
settings
Silent Mode – ideally Fans do not spin + output
capped at appropriate
level to ensure LED work at optimum temperature
and output
efficiency (Fan should never switch on in this
mode or change speed
if they are on) NC15 target level
Holds setting on
power cycle Yes
126 - 130 Reserved Values N/A N/A
131 - 135 Reserved Values N/A N/A
136 - 140 Fan On (Default) Fans run at continuous speed for either standard
or studio mode
Holds setting on
power cycle Yes
in isolation to the LED operating temperature
141 - 145 Fan Auto Fans will reduce / increase speed on demand
based on LED
Holds setting on
power cycle Yes
operating temperature for either standard or
studio mode
146 - 150 Reserved Values N/A N/A
151 - 155 Record User Color
Preset**
Takes Current Color mixing values and stores to
next available blank User color preset - if preset
listing are full preset will not record. User will need
to clear preset via fixture UI
N/A N/A
156 - 160 Reserved N/A N/A
161 - 165 Reserved N/A N/A

USER MANUAL
WWW.STRANDLIGHTING.COM
LEKO LED PROFILE FULL COLOR
19
TABLE 8. CONTROL CHANNEL
RANGE
DMX ITEMS DESCRIPTION POWER CYCLE RULES
FUNCTION
SELECTION VIA UI
166 - 170 Reserved N/A N/A
171 - 175 Reset fixture to
default
Will reset all parameters to default with the
exception of the Mx address, fixture mode and
Pixel / Zone selection
N/A Yes - Will reset
DMX address, Mode
176 - 255 Reserved N/A N/A
DMX OUTPUT
0 255
100
LIGHT OUTPUT
DMX OUTPUT
0 255
100
LIGHT OUTPUT
DMX OUTPUT
0 255
100
LIGHT OUTPUT
LINEAR S-CURVE SQUARE LAW

USER MANUAL
WWW.STRANDLIGHTING.COM
LEKO LED PROFILE FULL COLOR
20
DMX512 CONNECTION
• At last unit, the DMX cable has to be terminated with a terminator. Solder a 120Ω1/4W resistor between
pin 2(DMX-) and pin 3(DMX+) into a 5-pin XLR-plug and plug it in the DMX-output of the last unit.
• Connect the unit together in a `daisy chain` by XLR plug from the output of the unit to the input of the
next unit. The cable cannot branched or split to a `Y` cable. DMX 512 is a very high-speed signal. Inad-
equate or damaged cables, soldered joints or corroded connectors can easily distort the signal and shut
down the system.
• The DMX output and input connectors are pass-through to maintain the DMX circuit, when one of the
units’ power is disconnected.
• Each lighting unit needs to have an address set to receive the data sent by the controller. The address
number is between 0-511 (usually 0 & 1 are equal to 1).
• The end of the DMX 512 system should be terminated to reduce signal errors.
• 5 pin XLR: Pin 1: GND, Pin 2: Negative signal (-), Pin 3: Positive signal (+), Pin 4/Pin 5: Not used.
