Strand Acclaim LED PLE User manual

1

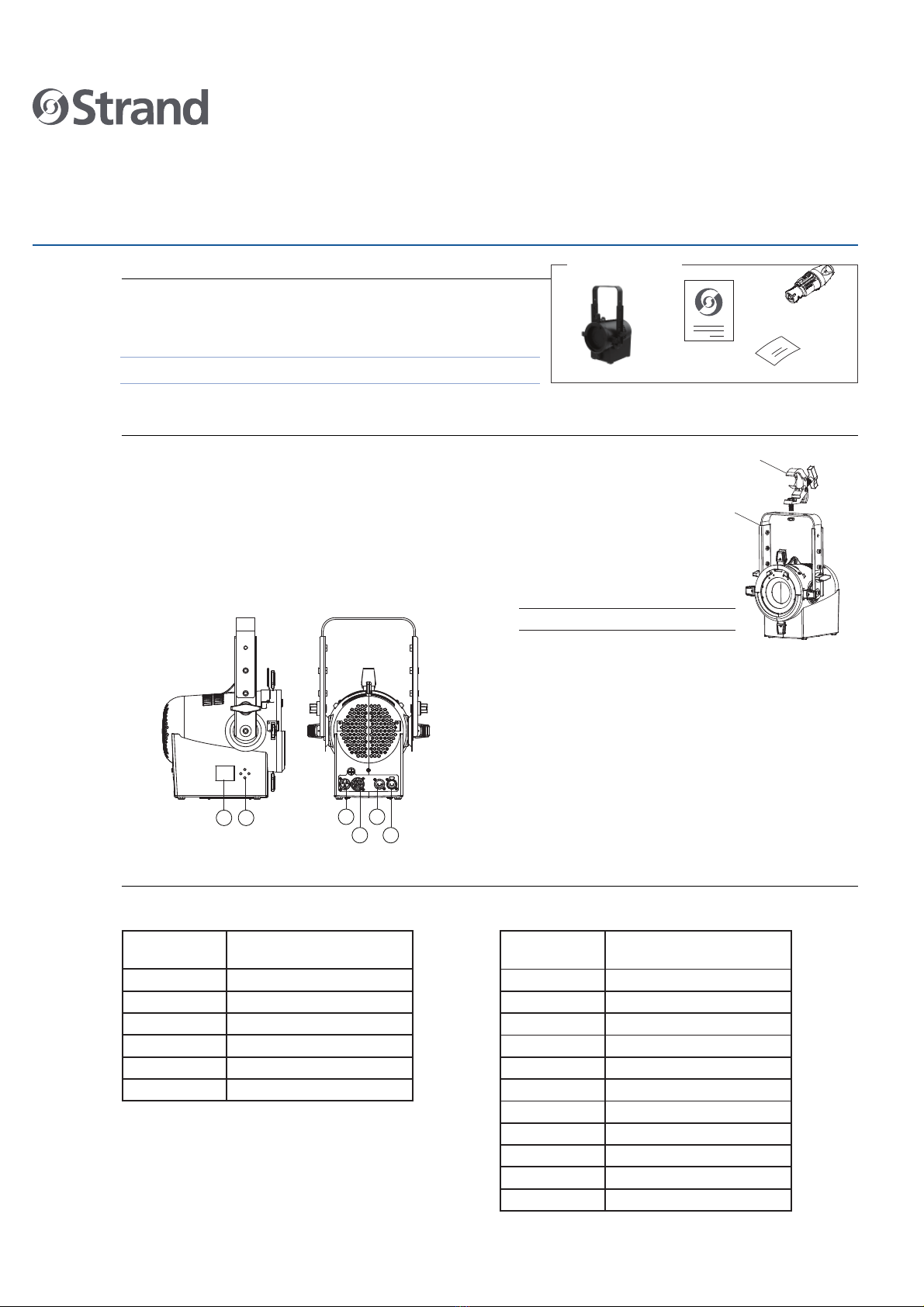

QUICK START GUIDE
ACCLAIM LED PLE
9850-000840-00
OVERVIEW
Acclaim LED PLE (black body) 64511-003 912400576889
Acclaim LED PLE (white body) 64511-103 912400576890 ACCLAIM LED PLE
INCLUDED ITEMS
This document provides basic setup instructions and safety
warnings for the following product(s):
QUICK START
GUIDE
POWER
CONNECTOR
WARRANTY
CARD
INSTALLATION AND SETUP
CLAMP
HANGING
BRACKET
12
4
3
6
5
MOUNTING
The unit should be mounted via its screw holes on the bracket. Always
ensure that the unit is firmly fixed to avoid vibration and slipping while
operating. Always ensure that the structure to which you are attaching
the unit is secure and is able to support a weight of 10 times of the unit’s
weight. Always use a safety cable that can hold up to 12 times the weight
of the unit when installing the fixture.
The luminaire must be mounted by professionals.
SET UP
QUICK REFERENCE DMX MAPS
DMX
CHANNEL PARAMETER
1 Intensity (16-bit high)
2 Intensity (16-bit low)
3 Strobe
4 Red (16-bit high)
5 Red (16-bit low)
6 Green (16-bit high)
7 Green (16-bit low)
8 Blue (16-bit high)
9 Blue (16-bit low)
10 Lime (16-bit high)
11 Lime (16-bit low)
DMX
CHANNEL PARAMETER
1 Intensity (16-bit high)
2 Strobe
3 Red (16-bit high)
4 Green (16-bit high)
5 Blue (16-bit high)
6 Lime (16-bit high)
8-BIT CHANNEL MODE 16-BIT CHANNEL MODE
1 LCD display - shows menu and selected function
2 Buttons:
MENU - to select programming functions
DOWN - to go forward in selected functions
UP - to go backward in selected functions
ENTER - to confirm the selected function
3 POWER IN - connects to power supply
4 POWER OUT - connects to next fixture
5 DMX IN - 5-pin XLR cable to link the DMX
console
6 DMX OUT - 5-pin XLR cable to link next fixture
NOTE: Lens tube sold separately

2
QUICK START GUIDE
ACCLAIM LED PLE
9850-000840-00
©2021 Signify Holding. All rights reserved.
All trademarks are owned by Signify Holding or their respective owners. The
information provided herein is subject to change, without notice. Signify does
not give any representation or warranty as to the accuracy or completeness of
the information included herein and shall not be liable for any action in reliance
thereon. The information presented in this document is not intended as any
commercial offer and does not form part of any quotation or contract, unless
ot
h
e
r
w
i
se
ag
r
eed
by
S
i
g
nif
y
. D
ata
subject
to
c
h
a
n
ge
.
CUSTOMER SERVICE
If you have any questions regarding this product,
please contact Customer Service by phone at
[phone] or by email at entertainment.
[e-mail].
2
COMPLIANCE
This equipment has been tested and found to comply with the limits
for a Class B digital device pursuant to Part 15 of FCC Rules. These
limits are designed to provide reasonable protection against harmful
interference when this equipment is operated in a commercial
environment. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with
Vari-Lite system, service, and safety guidelines, may cause harmful
interference to radio communications. Operation of this equipment in
a residential area is likely to cause harmful interference, in which case
the user will be required to correct the interference at his/ her own
expense.
DECLARATION OF CONFORMITY
We declare, under our sole responsibility, that this product complies
with the relevant clauses of the following standards and harmonized
documents:
SAFETY
CUSTOMER SERVICE
If you have any questions regarding this product, please contact
Customer Service at+1-214-647-7880 or via e-mail at entertainment.
service@signify.
LIMITED 2-YEARWARRANTY
Vari-Lite oers a two-year limited warranty on its control products
against defects in materials or workmanship from the date of delivery.
A copy of Vari-Lite two-year limited warranty containing specific terms
and conditions can be obtained from the Vari-Lite website at www.
strandlighting.com or by contacting your local Vari-Lite oce.
SAFETY WARNINGS AND NOTICES
When using electrical equipment, basic safety precautions should
always be followed including the following:
READ AND FOLLOW ALL SAFETY INSTRUCTIONS.
• For indoor, dry locations use only. Do not use outdoors.
• Equipment should be mounted in locations and at heights where
it will not readily be subjected to tampering by unauthorized
personnel.
• The use of accessory equipment not recommended by the
manufacturer may cause an unsafe condition.
• Not for residential use. Do not use this equipment for other than
intended use.
• Refer service to qualified personnel. This fixture contains no user
serviceable parts.
• Prior to first use, carefully inspect unit for damage from shipping.
• Installation and operation to be performed by qualified personnel
only.
• Use safety tether when mounting.
EN 60598-2-17;
EN 60598-1;
EN 62493;
EN 62031;
UL 1573 C22.2 No.166
EMC
EN 61000-3-2;
EN 61000-3-3;
EN 61547;
EN IEC 55015;
BS EN IEC 61000-3-2;
BS EN 61000-3-3;
BS EN 61547;
BS EN IEC 55015;
CISPR 15;
ICES-005
CFR47 FCC Part 15
Class B
• Install only in locations with adequate ventilation of at least 50cm
clearance from adjacent surfaces.
• Ensure sure that ventilation slots are not blocked.
• Ensure that the voltage and frequency of the power supply match
the power requirements of the fixture.
• The fixture must be earthed/grounded to the appropriate
conductor.
• Do not operate fixture outside the ambient temperature range of
-10–40°C.
• Do not connect the fixture to any dimmer pack.
• New fixtures may emit a chemical odor due to the manufacturing
process. This odor will dissipate over time.
• Note distance requirement(s) from combustible materials or
illuminated objects. Do not mount near gas or electric heaters.
• Prior to each use, carefully inspect power cables and replace any
damaged cables.
• Exterior surfaces of the luminaire will be hot during operation.
Take appropriate precautions.
• Continuous use of the fixture may shorten the lifespan. Power
down the fixture when not in use.
• Clean fixtures regularly, particularly when working in a dusty
environment.
• Never touch power cables or wires while the fixture is powered on.
• Avoid entangling power wires with other cables.
• In the event of a serious operating problem, immediately
discontinue using the fixture.
• Never turn on and o the unit time after time.
• The housing, lenses, and/or the ultraviolet filter must be replaced
if they are damaged.
• Disconnect mains power if the fixture is not used for a long time.
• • Original packing materials can be reused for transporting the
fixture.
• This fixture is designed for dry locations only. Exposure to rain or
moisture may damage fixture unless it is suitably IP rated.
• Do not look directly at the LED light beam while the fixture is on.
• Equipment should be mounted in locations and at heights where
it will not readily be subjected to tampering by unauthorized
personnel.
SAVE THESE INSTRUCTIONS.
WARNING: Refer to National Electrical Code® and local codes for cable
specifications. Failure to use proper cable can result in damage to
equipment or danger to personnel.
