Strand CANTATA LED FRESNEL User manual

Cantata LED FrEsnEL
FuLL CoLor
USER MANUAL

usEr ManuaL
WWW.VarI-LItE.CoM
Cantata LED FrEsnEL FuLL CoLor
2
INTRODUCTION
OUR GOAL
We are committed to providing you the highest quality in customer service. Our comprehensive resources are
available to help your business succeed and ensure you get the full benefit of being a Strand customer.
TECHNICAL SUPPORT
Our Service and Support team is tasked with online and field support, repair, demo, commissioning, mainte-
nance contracts, and technical training for fixtures and systems. In addition, this team plays a large role in a
Systems sales, responsible for administering final commissioning, record-keeping, and organizing services. Refer
to the back cover of this User Manual for contacts in your region or visit www.vari-lite.com.
CUSTOMER SERVICE
Customer Service is responsible for boxed goods and spare parts quotations, order entry and fulfilment, project
delivery, lead times, and general account management. They also manage all after sales warranty fulfilment,
RGA, and repairs invoicing in tandem with our After Sales Service & Support team. Visit our website to find a
customer service agent in your region.
ADDITIONAL DOCUMENTATION
Additional product documentation, including DMX maps, software, and photometric reports, are available for
download on our website.
For more information on installing DMX512 control systems, the following publication is available for purchase
from the United States Institute for Theatre Technology (USITT), “Recommended Practice for DMX512: A Guide
for Users and Installers, 2nd edition” (ISBN: 9780955703522).
USITT Contact Information:
USITT
315 South Crouse Avenue, Suite 200
Syracuse, New York 13210-1844 USA
Phone: [phone] or [phone]
Fax: [phone] or [phone]
Website: www.usitt.org
ABOUT THIS DOCUMENT
Read all instructions before installing or using this product. Retain this User Manual for future reference.
Additional product information and descriptions may be found on the product data sheet(s) which can be
downloaded from the Strand website at www.vari-lite.com.
This User Manual provides necessary information regarding safety, installation, operation and routine mainte-
nance for Strand Cantata LED Fresnel. Familiarizing yourself with this information will help you to get the most
out of your product.
WARNING: It is important to read ALL accompanying safety and installation instructions to avoid damage to
the product and potential injury to yourself or others.

usEr ManuaL
WWW.VarI-LItE.CoM
Cantata LED FrEsnEL FuLL CoLor
3
SAFETY WARNINGS AND NOTICES
Read this user manual in full before attempting to install, operate or maintain the fixture to which it relates. This
user manual is intended to provide general guidance to such suitably qualified personnel. Installation and opera-
tion of the fixture are to be performed by qualified personnel only.
When using electrical equipment, basic safety precautions should always be followed including the following:
READ AND FOLLOW ALL SAFETY INSTRUCTIONS.
• For indoor, dry location use only. Do not use outdoors unless fixture is suitably IP rated.
• Use safety tether when mounting.
• Equipment should be mounted in locations and at heights where it will not be readily subjected to
tampering by unauthorized personnel.
• Not for residential use. Do not use this equipment for other than intended use.
• Note distance requirement(s) from combustible materials or illuminated objects. Do not mount near gas
or electric heaters.
• Install only in locations with adequate ventilation. Ensure sure that ventilation slots are not blocked.
• Ensure that the voltage and frequency of the power supply match the power requirements of the
fixture.
• The fixture must be earthed/grounded to the appropriate conductor.
• Do not operate fixture outside the specified ambient temperature range.
• Do not connect the fixture to any dimmer pack.
• The use of accessory equipment not recommended by the manufacturer may cause an unsafe condition
and void warranty.
• Refer service to qualified personnel. This fixture contains no user serviceable parts.
• Prior to first use, carefully inspect fixture to ensure no damage has occurred during shipping.
• Materials used in the manufacturing process can cause strong odors when the product is new. These
odors dissipate over time.
• Prior to each use, carefully inspect power cables and replace any damaged cables.
• Exterior surfaces of the luminaire will be hot during operation. Take appropriate precautions.
• Continuous use of the fixture may shorten the lifespan. Power down the fixture when not in use.
• Do not cycle power on and o repeatedly. Disconnect mains power if the fixture is not used for an
extended period.
• Clean fixtures regularly, particularly when working in a dusty environment.
• Never touch power cables or wires while the fixture is powered on.
• Avoid entangling power wires with other cables.
• In the event of a serious operating problem, immediately discontinue using the fixture.
• It is hazardous to operate luminaires without lens or shield. Shields, lenses, or ultraviolet screens shall be
changed if they have become visibly damaged to such an extent that their eectiveness is impaired, for
example, by cracks or deep scratches.
• Original packing materials can be reused for transporting the fixture.
• Do not look directly at the LED light beam while the fixture is on.
• This is a Class A product. In a domestic environment this product may cause radio interference, in which
case, the user may be required to take adequate measures.
• The light source contained in this luminaire shall only be replaced by the manufacturer or service agent
or similarly qualified person.
SAVE THESE INSTRUCTIONS.
WARNING: Refer to National Electrical Code® and local codes for cable specifications. Failure to use proper
cable can result in damage to equipment or danger to personnel. Caution Against Direct Sunlight Through Front
Lens Assembly

usEr ManuaL
WWW.VarI-LItE.CoM
Cantata LED FrEsnEL FuLL CoLor
4
COMPLIANCE NOTICE
FCC DECLARATION OF CONFORMITY
This equipment has been tested and found to comply with the limits for a Class A digital device pursuant to Part
15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference when
this equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with Vari-Lite Strand system, service, and safety
guidelines, may cause harmful interference to radio communications.
As tested under this standard:
FCC 47CFR 15B clA*CEI
Issued:2009/10/01 Title 47 CFR Part 15 Subpart B Unintentional Radiators Class A
Operation of this equipment in a residential area is likely to cause harmful interference, in which case the user
will be required to correct the interference at his/her own expense.
EU DECLARATION OF CONFORMITY
We, Vari-Lite LLC., 10911 Petal Street, Dallas, Texas 75238, declare under our responsibility for the products
contained herein are in conformity with the essential requirements of the following European Directives and
harmonized standards:
Low Voltage Director (LVD), 2006/95/EC
EN 60589-2-17:1984+A1:1987+A2:1990 used in conjunction with 60598-1:2008/A11:2009
Electromagnetic Compatibility Directive (EMC), 2004//108/EC
EN 55022:2010, EN55024:2010

usEr ManuaL
WWW.VarI-LItE.CoM
Cantata LED FrEsnEL FuLL CoLor
5
HOW TO OBTAIN WARRANTY SERVICE
A copy of the Limited Warranty card was included in the shipping package for this product.
To obtain warranty service, please contact customer service at 1-214-647-7880, or entertainment.service@
signify.com and request a Return Material Authorization (RMA) for warranty service. You will need to provide the
model and serial number of the item being returned, a description of the problem or failure and the name of the
registered user or organization. If available, you should have your sales invoice to establish the date of sale as the
beginning of the warranty period. Once you obtain the RMA, pack the unit in a secure shipping container or in its
original packing box. Be sure to clearly indicate the RMA number on all packing lists, correspondence, and ship-
ping labels. If available, please include a copy of your invoice (as proof of purchase) in the shipping container.
With the RMA number written legibly on or near the shipping address label, return the unit, freight prepaid, to:
Vari-Lite LLC
Attention: Warranty Service (RMA# ________)
10911 Petal Street
Dallas, Texas 75238
USA
As stated in the warranty, it is required that the shipment be insured and FOB our service center.
IMPORTANT! When returning products to Vari-Lite Strand for repairs (warranty or out-of-warranty) from a
country other than the USA, “Vari-Lite LLC”, must appear in the address block as the Importer of Record (IOR)
on all shipping documentation, Commercial Invoices, etc. This must be done in order to clear customs in a timely
manner and prevent returns.

usEr ManuaL
WWW.VarI-LItE.CoM
Cantata LED FrEsnEL FuLL CoLor
6
FEATURES
1 DESCRIPTION
CANTATA LED FRESNEL,
FC
Date:
Type:
Firm Name:
Project:
The Strand Cantata LED Fresnel Full Color (FC) is a modern LED
theatrical Fresnel designed for midsized applications. This full color
luminaire uses an RGBALC (Red, Green, Blue, Amber, Lime & Cyan)
color mixing system for a wide mixable color spectrum, but it can be
easily controlled with traditional CYM controls using the SmartColor
Control system. The Cantata LED Fresnel is also available in tunable
cold white (4000K to 7000K) and tunable warm white (2700K to
4500K) versions, offering a consistent CRI exceeding >94 CRI across
all color temperatures. Cantata uses a manually operated zoom
system located on either side near the front of the luminaire,
providing a smooth zoom range of 10° to 55°. The locking default
standard size accessory rails located at the front of the fixture allows
for further beam shaping using the optional 8 leaf barndoor or third-
party accessories. To ensure these high-powered LED fixtures are
suitable for use in the quietest of applications, the Strand Cantata
LED utilizes SmartFan Control technology with Standard, Studio, and
Whisper modes.
• High output midsized LED theatrical luminaires - modern
fixtures with quality you can trust.
• Full Color, Warm White, and Cool White Versions with
Consistent High CRI - perfect fixture for any application.
• High CRI RGBALC Color System with SmartColor Control -
wide range of vivid color options that can be programmed
using CYM.
• Tunable white with >94 CRI - adjust color temperature without
compromising output or quality of light.
• Independent color mixing and temperature controls - match
color palette to color temperature without manual adjustment
for simpler programming.
• Standard-size accessory rails to support optional 8 leaf barn
door or third - party accessories- multiple, easily-accessible
options to get the perfect look.
• Adjustable frequency to exceed camera frame rates - camera-
friendly fixtures for IMAG, event recordings, or TV and film
applications.
• Quiet operation with variable fan control (Standard, Studio,
and Whisper) - perfect for use in quiet environments.
For detailed product information, please refer to the Product
Guide at www.strandlighting.com/global/products/cantata-led-
fresnel
CANTATA_LED_FR ESN EL
COMPONENTS
The document provides installation and operation instructions for the following products:
• Strand Cantata LED Fresnel Full Color
Read all instructions before installing or using this product. Retain this manual for future reference. Additional
product information and descriptions may be found on the product specification sheet.
INCLUDED ITEMS
Each Strand Cantata LED Fresnel luminaire includes the following items:
• Strand Cantata LED Fresnel Full Color
• Quick Start Guide

usEr ManuaL
WWW.VarI-LItE.CoM
Cantata LED FrEsnEL FuLL CoLor
7
2
INSTALLATION
MOUNTING
The unit should be mounted via its screw holes on the bracket. Always ensure that the unit is firmly fixed to
avoid vibration and slipping while operating. When installing the fixture, always use a safety cable that is certi-
fied to hold up to 12 times the fixture’s own weight.
The luminaire must be installed by qualified professionals.

usEr ManuaL
WWW.VarI-LItE.CoM
Cantata LED FrEsnEL FuLL CoLor
8

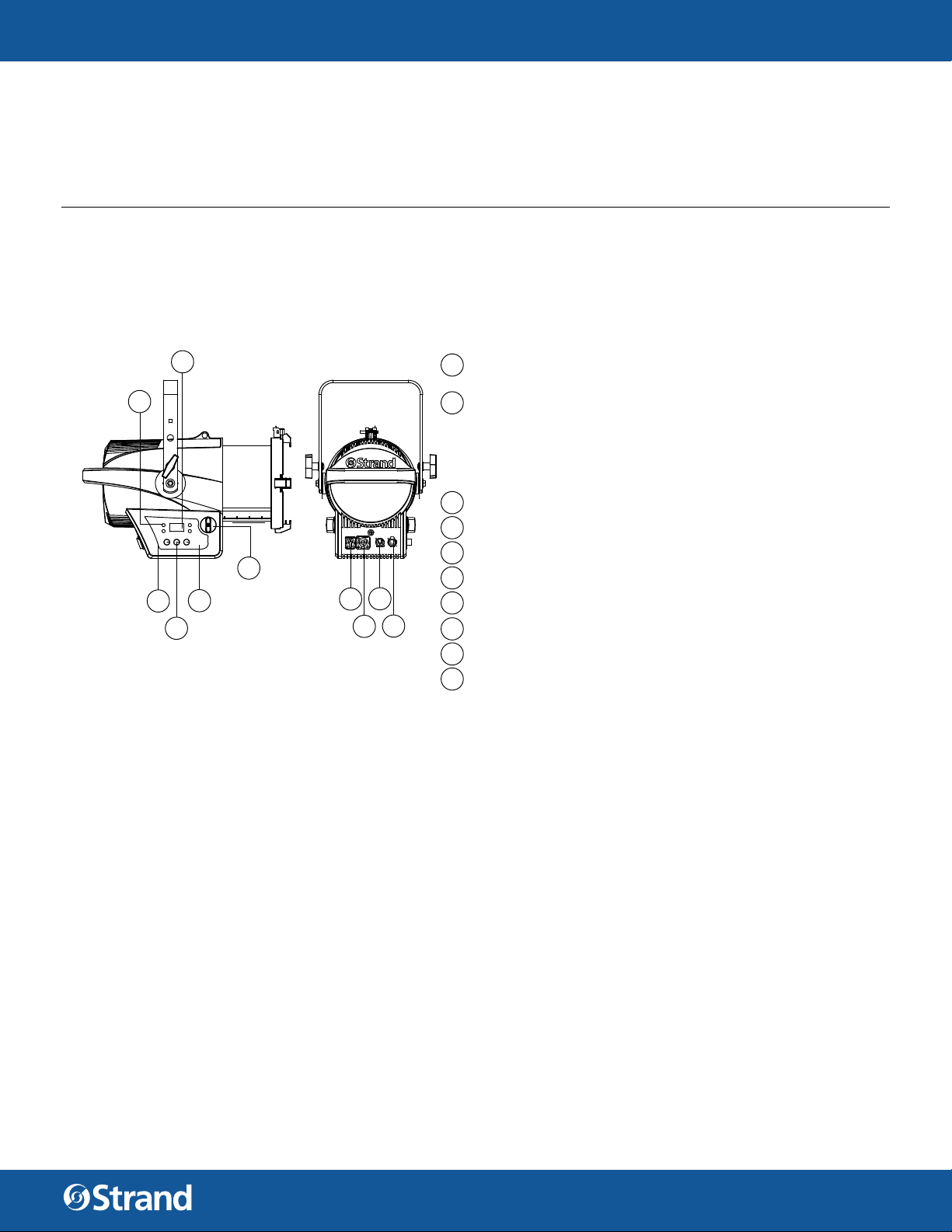

3 MENU OPERATION
CONTROL PANEL
Press the MENU button to select any functions, until the required function is shown in the display. Select the de-
sired function by pressing ENTER, which will cause the display to blink. Use the UP and DOWN button to change
the mode. Once the required mode has been selected, press the ENTER button to accept the selection. Press
MENU to return to the previous menu or let the unit idle for one minute to exit menu mode automatically.
LCD DISPLAY. Shows the menu and selected
function buttons.
1
2BUTTONS.
Menu. To select programming functions.
Down. To go backward in the selected functions.
Up. To go forward in the selected functions.
Enter. To confirm the selected functions.
2
5
1
DMX IN. 5-pin XLR cable to link DMX console.
3
DMX OUT. 5-pin XLR cable to the next unit.
4
POWER IN. Connects to power supply.
5
POWER OUT. Connects to next fixture.
6
DIM. 0-100%
7
10
6
3
4
7
8
9
CCT. 4000K to 6500K.
8
GREEN SHIFT. -99% to 99%.
9
ZOOM. Manual zoom knob.
10

usEr ManuaL
WWW.VarI-LItE.CoM
Cantata LED FrEsnEL FuLL CoLor
9
Intensity*
Red
Green
Blue
Amber
Lime
Cyan
Store
Clear
COLOR PRESET Select Preset
0-255
1 to 20
0-255
0-255
0-255
0-255
0-255
0-255
0-255
YES/NO
YES/NO
Preset Run
Intensity
Edit Programs
MANUAL CONTROL
0-255 (default 0)
0-255 (default 0)
0-255 (default 0)
0-255 (default 0)
0-255 (default 0)
0-255 (default 0)
Red
Green
Blue
Amber
Lime
Cyan
FIXTURE
UID Number RDM UID number
Status (No Errors... or displays a list of errors)
Are you sure?
Reboot Fixture
Version
XXXXXX h Fixture Hours
Send
Crossload (software)
Vxxx MM/D/YY HH:MM
Diagnostics Service
Fan Check
Board Check
Sensor Check �
White Balance Red 125-255 (255 default)
Green 125-255 (255 default)
Blue 125-255 (255 default)
Amber 125-255 (255 default)
Lime 125-255 (255 default)
Cyan 125-255 (255 default)
Reset YES/NO
Reset to Factory Defaults Are you sure? YES/NO
LED Hours XXXXXX h
S Curve
Dimming Curve Square Law (default)
Tungsten Fade On
Off (default)
Dim Snap On (fast)
Off (slow) (default)
Linear
Output Mode Standard (default)
Studio
Whisper
CONFIGURE
DMX
Address 001~512
SSCC (default)
SQCC
DMX Mode
SOCC
Hold (default)
Fade to blackout
DMX Fail
Go to preset
Ch1 - Intensity XXX (value)
Ch 2 - Intensity Fine XXX (value)
……All functions
Data
On
Off (default)
Disp Timeout
30 Sec (default)
5 Min
10 Min
On
LED
Are you sure?Reset LED Hour
Color Cal
Reset LED Hour
LED Frequency 1.2kHz (default)
2.4kHz
3.7kHz
4.9kHz
7.3kHz
9.8kHz
15kHz
20kHz
Fan Mode
On (default)
Auto
1 to XXX
ADDRESS 001~512 (default 001)

usEr ManuaL
WWW.VarI-LItE.CoM
Cantata LED FrEsnEL FuLL CoLor
10
ADDRESS MENU
Address — DMX address setting. To select DMX Address, press the ENTER button to confirm. Use the UP/DOWN
button to adjust the address from 001 to 512, press the ENTER button to store. Press the MENU button to return
back to the last menu, or let the unit idle for one minute for it to exit the menu mode automatically.
CONFIGURE MENU
To select Configure, press the ENTER button to confirm, use the UP/DOWN button to select LED, Color Cal,
Disp Timeout.
LED
To select LED, press the ENTER button to confirm. Use the UP/DOWN button to select LED
Hours, Reset LED Hour, Dimming Curve, Tungsten Fade, Dim Snap, LED Frequency and White Balance.
Press the ENTER button to store. Press the MENU button back to the last menu or let the unit idle one minute to
exit menu mode.
LED Hours —Select LED Hours, press the ENTER button to confirm, LED Hours will show on the display, press
the MENU button back to exit.
Reset LED Hours — Select Reset LED Hours, press the ENTER button to confirm, “Are you sure” will show on
the display, press the MENU button back to exit.
Dimming Curve — To select Dimming Curve, press the ENTER button to confirm. Use the UP/DOWN button to
select Square Law Curve, S Law Curve or Linear Law Curve, press the ENTER button to store. Press the MENU
button back to the last menu or let the unit idle one minute to exit menu mode.
Tungsten Fade — Select Tungsten Fade, press the ENTER button to confirm, Use the UP/DOWN button to select
ON or OFF, press the MENU button back to exit.
Dim Snap — Select Dim Snap, press the ENTER button to confirm, Use the UP/DOWN button to select ON or
OFF, press the MENU button back to exit.
LED Frequency — To select LED Frequency, press the ENTER button to confirm. Use the UP/DOWN button to
select 1200Hz, 2500Hz, 5000Hz, 10000Hz, 20000Hz , 25000Hz, press the ENTER button to store. Press the
MENU button back to the last menu or let the unit idle one minute to exit menu mode.
White Balance — To select White Balance, press the ENTER button to confirm. Use the UP/DOWN button to
select Red,Green, Blue, Amber, Lime, Cyan and RESET, press the ENTER button to store. Press the MENU button
back to the last menu or let the unit idle one minute to exit menu mode.
Color Cal
To select Color Cal, press the ENTER button to confirm. Use the UP/DOWN button to select ON or OFF, press
the MENU button back to exit.
Disp Timeout
To select Disp TImeout, press the ENTER button to confirm. Use the UP/DOWN button to select 30 Sec, 5min, 10
min or ON, press the MENU button back to exit.
DMX MENU
To select DMX, press the ENTER button to confirm, use the UP/DOWN button to select Address, DMX Mode,
Pixel Group, Cell Direction or Data.
Address — To select Address, press the ENTER button to confirm. Use the UP/DOWN button to select from 001
to 512. press the ENTER button to store. Press the MENU button back to the last menu or let the unit idle one
minute to exit menu mode.
DMX Mode — To select DMX Mode, press the ENTER button to confirm. Use the UP/DOWN button to select
SSCC, SQCC or SOCC, press the ENTER button to store. Press the MENU button back to the last menu or let the
unit idle one minute to exit menu mode.
Data — To select Data, press the ENTER button to confirm. Use the UP/DOWN button to select Ch1 – Intensity
xxx(value), Ch2 – Intensity Fine xxx(Value), …. All functions, press the ENTER button to store. Press the MENU
button back to the last menu or let the unit idle one minute to exit menu mode.
FIXTURE MENU
To select Fixture, press the ENTER button to confirm, use the UP/DOWN button to select Status, Reboot fixture,
Version, Fixture Hours, Crossload (Software) , Service.

usEr ManuaL
WWW.VarI-LItE.CoM
Cantata LED FrEsnEL FuLL CoLor
11
Status
Select Status, press the ENTER button to confirm, Status will show on the display, press the MENU button back
to exit.
Reboot Fixture
Select Reboot Fixture, press the ENTER button to confirm, Are you sure? will show on the display, press the EN-
TER button to store. Press the MENU button back to the last menu or let the unit idle one minute to exit menu
mode.
Version
Select Version, press the ENTER button to confirm, Version will show on the display, press the MENU button
back to exit.
Fixture Hours
Select Fixture Hours, press the ENTER button to confirm, Fixture Hours will show on the display, press the MENU
button back to exit.
Crossload (Software)
Select Crossload (Software), press the ENTER button to confirm, Send will show on the display, press the ENTER
button to store. Press the MENU button back to the last menu or let the unit idle one minute to exit menu mode.
NOTE: Incoming DMX must be removed from the fixture or software crossload will not be activated.
Service
To select Service, press the ENTER button to confirm. Diagnostics will show, press the ENTER button to store.
Press the MENU button back to the last menu or let the unit idle one minute to exit menu mode.
Diagnostics — To select Diagnostics, press the ENTER button to confirm. Use the UP/DOWN button to select
Fan Check, Board Check ,Sensor Check, press the ENTER button to store. Press the MENU button back to the
last menu or let the unit idle one minute to exit menu mode.
MANUAL CONTROL MENU
Enter menu mode, select Manual Control, press the ENTER button to confirm, use the UP/DOWN button to se-
lect Red, Green, Blue, Amber, Lime and Cyan. Use the UP/DOWN button to adjust the value from 0 to 255, press
the ENTER button to store. Press the MENU button back to the last menu or let the unit idle one minute to exit
menu mode.
COLOR PRESET MENU
Preset Run
Enter Color Preset mode, select Preset Run, press the ENTER button to confirm, use the UP/DOWN button to
select “Select Preset” or Intensity.
Edit Programs
Enter menu mode, select Edit Programs, press the ENTER button to confirm, MODE will show up, use the UP/
DOWN button to select Intensity, Red, Green, Blue, Amber, Lime, Cyan, Store or Clear. Use the UP/DOWN button
to adjust the value from 0 to 100%, press the ENTER button to store. Press the MENU button back to the last
menu or let the unit idle one minute to exit.

usEr ManuaL
WWW.VarI-LItE.CoM
Cantata LED FrEsnEL FuLL CoLor
12
TABLE 1. STRAND SMART COLOR CONTROL (SSCC) MODE
DMX
CHANNEL PARAMETER DEFAULTS RANGE DMX DESCRIPTION
1Intensity (High) 00 - 65535 16-bit Intensity (Dimmer) Control
2Intensity (Low) 0 - 100% Output
3Strobe 0
0 - 255 Strobe S>>>>>F
0 - 9 No Strobe Function - Shutter open
10 - 99 Strobe S>>>>>F
100 - 109 No Strobe Function - Shutter open
110 - 179 Lighting Strobe S>>>>>F
180 - 189 No Strobe Function - Shutter open
190 - 255 Random Strobe S>>>>>F
4Color Preset 0
0 - 255 Calibrated color presets 01 to 33
User definable color preset 01 to 20
0 - 10 Channel OFF Color Mixing take priority
11 - 14 Moroccan Pink
15 - 18 Pink
19 - 22 Flesh Pink
23 - 26 Bright Rose
27 - 30 Follies Pink
31 - 34 Fuchsia Pink
35 - 38 Surprise Pink
39 - 42 Congo Blue
43 - 46 Blue
47 - 50 Virgin Blue
51 - 54 Midnight Maya
55 - 58 Double C.T Blue
59 - 62 Slate Blue
63 - 66 Regal Blue
67 - 70 Full C.T Blue
71 - 74 Steel Blue
75 - 78 Lighter Blue
79 - 82 Cyan
83 - 86 Marine Blue
87 - 90 Soft Green
91 - 94 Moss Green
95 - 98 Green
99 - 102 Fem Green
The fixture can be operated by DMX controller. The following tables assumes a DMX start address of 1. When
a dierent starting address is used, this address becomes channel 1 function and other functions follow in se-
quence.
4 DMX MAPPING

usEr ManuaL
WWW.VarI-LItE.CoM
Cantata LED FrEsnEL FuLL CoLor
13
TABLE 1. STRAND SMART COLOR CONTROL (SSCC) MODE
DMX
CHANNEL PARAMETER DEFAULTS RANGE DMX DESCRIPTION
4Color Preset
continued 0
103 - 106 JAS Green
107 - 110 Pale Green
111 - 114 Spring Yellow
115 - 118 Yellow
119 - 122 Deep Amber
123 - 126 Chrome Orange
127 - 130 Orange
131 - 134 Magenta
135 - 138 Flame Red
139 - 142 Purple
143 - 146 User Preset 1
147 - 150 User Preset 2
151 - 154 User Preset 3
155 - 158 User Preset 4
159 - 162 User Preset 5
163 - 166 User Preset 6
167 - 170 User Preset 7
171 - 174 User Preset 8
175 - 178 User Preset 9
179 - 182 User Preset 10
183 - 186 User Preset 11
187 - 190 User Preset 12
191 - 194 User Preset 13
195 - 198 User Preset 14
199 - 202 User Preset 15
203 - 206 User Preset 16
207 - 210 User Preset 17
211 - 214 User Preset 18
215 - 218 User Preset 19
219 - 222 User Preset 20
223 - 255 Channel OFF Color Mixing take priority
5Fan Control 0
0 - 255 Dynamically control fan speed vs LED Output operation.
Control values as follows . . .
0-4 Automatic fan/output adjustment (Default)
05 - 255
Linear control of fan speed and LED max output*
DMX 5 =Highest Constant Fan Speed
DMX 255 = Lowest Constant Fan Speed
* Standard mode only
6Control Channel 0
0 - 255
Control Channel used for full fixture settings,
lamp controls, and miscellaneous modes.
Set discrete value of desired eect, wait >3 seconds,
then set value to 0 (Idle). **Function does not require 3
Second rule to active, setting output to value will automatically
activate function
0 - 5 Idle (Default)
6 - 10 Full Luminaire ReCal - Also Used to Wake fixture up from
shutdown
11 - 15 Fixture Shutdown
16 - 20 Reserved Values
21 - 25 Display - Menu ON

usEr ManuaL
WWW.VarI-LItE.CoM
Cantata LED FrEsnEL FuLL CoLor
14
TABLE 1. STRAND SMART COLOR CONTROL (SSCC) MODE
DMX
CHANNEL PARAMETER DEFAULTS RANGE DMX DESCRIPTION
6Control Channel
continued 0
31 - 35 Tungsten Dimming On**
36 - 40 Tungsten Dimming O (Default)**
41 - 45 Dimming Curve Linear**
46 - 50 Dimming Curve S-Curve**
51 - 55 Dimming Curve Square Law (Default)**
56 - 60 Reserved
61 - 65 Dimmer Snap On**
66 - 70 Dimmer Snap O (Default)**
71 - 75 Reserved Values
76 - 80 Reserved Values
81 - 85 Reserved Values
86 - 90 Reserved Values
91 - 95 Color Calibration on
96 - 100 Color Calibration o (Default)
101 - 105 Reserved Values
106 - 110 Reserved Values
111 - 115 Standard Mode - (Default)
116 - 120 Studio Mode - Reduced output with lower fan settings
121 - 125 Whisper Mode - Reduced output with lower fan settings
126 - 130 Reserved Values
131 - 135 Reserved Values
136 - 140 Fan On (Default)
141 - 145 Fan Auto
146 - 150 Reserved Values
151 - 155 Record User Color Preset**
156 - 160 Reserved
161 - 165 Reserved
166 - 170 Reserved
171 - 175 Reset fixture to default
176 - 255 Reserved
7Cyan (High)
00 - 65535
Cyan Color Level Control 0 - 100% Saturation
8Cyan (Low) 6 Color LED array auto adjust to meet Cyan / mixed color
point of full available color spectrum
9Yellow (High)
00 - 65535
Yellow Color Level Control 0 - 100% Saturation
10 Yellow (Low) 6 Color LED array auto adjust to meet Yellow / mixed color
point of full available color spectrum
11 Magenta (High)
00 - 65535
Magenta Color Level Control 0 - 100% Saturation
12 Magenta (Low 6 Color LED array auto adjust to meet Magenta / mixed color
point of full available color spectrum

usEr ManuaL
WWW.VarI-LItE.CoM
Cantata LED FrEsnEL FuLL CoLor
15
TABLE 2. STRAND QUICK COLOR CONTROL (SQCC) MODE
DMX
CHANNEL PARAMETER DEFAULTS RANGE DMX DESCRIPTION
1Intensity (High) 00 - 65535 16-bit Intensity (Dimmer) Control
2Intensity (Low) 0 - 100% Output
3Strobe 0
0 - 255 Strobe S>>>>>F
0 - 9 No Strobe Function - Shutter open
10 - 99 Strobe S>>>>>F
100 - 109 No Strobe Function - Shutter open
110 - 179 Lighting Strobe S>>>>>F
180 - 189 No Strobe Function - Shutter open
190 - 255 Random Strobe S>>>>>F
4Color Preset 0
0 - 255 Calibrated color presets 01 to 33
User definable color preset 01 to 20
0 - 10 Channel OFF Color Mixing take priority
11 - 14 Moroccan Pink
15 - 18 Pink
19 - 22 Flesh Pink
23 - 26 Bright Rose
27 - 30 Follies Pink
31 - 34 Fuchsia Pink
35 - 38 Surprise Pink
39 - 42 Congo Blue
43 - 46 Blue
47 - 50 Virgin Blue
51 - 54 Midnight Maya
55 - 58 Double C.T Blue
59 - 62 Slate Blue
63 - 66 Regal Blue
67 - 70 Full C.T Blue
71 - 74 Steel Blue
75 - 78 Lighter Blue
79 - 82 Cyan
83 - 86 Marine Blue
87 - 90 Soft Green
91 - 94 Moss Green
95 - 98 Green
99 - 102 Fem Green
103 - 106 JAS Green
107 - 110 Pale Green
111 - 114 Spring Yellow
115 - 118 Yellow
119 - 122 Deep Amber
123 - 126 Chrome Orange
127 - 130 Orange
131 - 134 Magenta
135 - 138 Flame Red
139 - 142 Purple
143 - 146 User Preset 1
147 - 150 User Preset 2

usEr ManuaL
WWW.VarI-LItE.CoM
Cantata LED FrEsnEL FuLL CoLor
16
TABLE 3. SOCC
DMX
CHANNEL PARAMETER DEFAULTS RANGE DMX DESCRIPTION
1Intensity (High) 00 - 65535 16bit Intensity (Dimmer) Control
2Intensity (Low) 0 - 100% Output
3Strobe 0
0 - 255 Strobe S>>>>>F
0 - 9 No Strobe Function - Shutter open
10 - 99 Strobe S>>>>>F
100 - 109 No Strobe Function - Shutter open
110 - 179 Lighting Strobe S>>>>>F
180 - 189 No Strobe Function - Shutter open
190 - 255 Random Strobe S>>>>>F
4Color Preset 0
0 - 255 Calibrated color presets 01 to 33
User definable color preset 01 to 20
0 - 10 Channel OFF Color Mixing take priority
11 - 14 Moroccan Pink
15 - 18 Pink
19 - 22 Flesh Pink
23 - 26 Bright Rose
27 - 30 Follies Pink
31 - 34 Fuchsia Pink
35 - 38 Surprise Pink
39 - 42 Congo Blue
43 - 46 Blue
47 - 50 Virgin Blue
51 - 54 Midnight Maya
55 - 58 Double C.T Blue
59 - 62 Slate Blue
63 - 66 Regal Blue
67 - 70 Full C.T Blue
71 - 74 Steel Blue
75 - 78 Lighter Blue
79 - 82 Cyan
83 - 86 Marine Blue
87 - 90 Soft Green
91 - 94 Moss Green
95 - 98 Green
99 - 102 Fem Green
103 - 106 JAS Green
107 - 110 Pale Green
111 - 114 Spring Yellow
115 - 118 Yellow
119 - 122 Deep Amber
123 - 126 Chrome Orange
127 - 130 Orange
131 - 134 Magenta
135 - 138 Flame Red
139 - 142 Purple
143 - 146 User Preset 1 Includes Intensity, Gobo and Edge Data
147 - 150 User Preset 2 Includes Intensity, Gobo and Edge Data

usEr ManuaL
WWW.VarI-LItE.CoM
Cantata LED FrEsnEL FuLL CoLor
17
TABLE 3. SOCC
DMX
CHANNEL PARAMETER DEFAULTS RANGE DMX DESCRIPTION
4Color Preset
continued 0
151 - 154 User Preset 3 Includes Intensity, Gobo and Edge Data
155 - 158 User Preset 4 Includes Intensity, Gobo and Edge Data
159 - 162 User Preset 5 Includes Intensity, Gobo and Edge Data
163 - 166 User Preset 6 Includes Intensity, Gobo and Edge Data
167 - 170 User Preset 7 Includes Intensity, Gobo and Edge Data
171 - 174 User Preset 8 Includes Intensity, Gobo and Edge Data
175 - 178 User Preset 9 Includes Intensity, Gobo and Edge Data
179 - 182 User Preset 10 Includes Intensity, Gobo and Edge Data
183 - 186 User Preset 11 Includes Intensity, Gobo and Edge Data
187 - 190 User Preset 12 Includes Intensity, Gobo and Edge Data
191 - 194 User Preset 13 Includes Intensity, Gobo and Edge Data
195 - 198 User Preset 14 Includes Intensity, Gobo and Edge Data
199 - 202 User Preset 15 Includes Intensity, Gobo and Edge Data
203 - 206 User Preset 16 Includes Intensity, Gobo and Edge Data
207 - 210 User Preset 17 Includes Intensity, Gobo and Edge Data
211 - 214 User Preset 18 Includes Intensity, Gobo and Edge Data
215 - 218 User Preset 19 Includes Intensity, Gobo and Edge Data
219 - 222 User Preset 20 Includes Intensity, Gobo and Edge Data
223 - 255 Channel OFF Color Mixing take priority
5Zoom 128 0 - 255
8 Bit Motorized Zoom control 0 - 100%
0 = 15°
100% = 30°
6Focus (High) 32767 0 - 65535 16 Bit Motorized Focus control
7Focus (Low)
8Gobo Index
(High)
32767
0 - 65535 Gobo Index / Rotation Switched mode via channel 10
9Gobo Index
(Low)
32780 - 65535 Clockwise Index / Rotation S>>>>>>>F
32754 - 32780 Stop
0 - 32754 Counter Clockwise Index / Rotation S>>>>>>>F
10 Gobo Mode 0
0 - 255 Gobo Index/ Rotation Mode Control
0 - 50 Gobo Index Mode
51 - 100 Gobo Rotation Mode
101 - 255 Reserved Values
11 Control Channel 0
0 - 255
Control Channel used for full fixture settings, lamp controls,
and miscellaneous modes. Set discrete value of desired eect,
wait >3 seconds, then set value to 0 (Idle).
**Function does not require 3 Second rule to active, setting
output to value will automatically activate function
0 - 5 Idle (Default)
6 - 10 Full Luminaire ReCal -
Also Used to Wake fixture up from shutdown
11 - 15 Fixture Shutdown
16 - 20 Reserved Values
21 - 25 Display - Menu ON
26 - 30 Display - Menu OFF
31 - 35 Tungsten Dimming On**
36 - 40 Tungsten Dimming O (Default)**
41 - 45 Dimming Curve Linear**
46 - 50 Dimming Curve S-Curve**

usEr ManuaL
WWW.VarI-LItE.CoM
Cantata LED FrEsnEL FuLL CoLor
18
TABLE 3. SOCC
DMX
CHANNEL PARAMETER DEFAULTS RANGE DMX DESCRIPTION
11 Control Channel
continued 0
51 - 55 Dimming Curve Square Curve (Default)**
56 - 60 Reserved
61 - 65 Dimmer Snap On**
66 - 70 Dimmer Snap O (Default)**
71 - 75 Reserved Values
76 - 80 Reserved Values
81 - 85 Reserved Values
86 - 90 Reserved Values
91 - 95 Reserved Values
96 - 100 Reserved Values
101 - 105 Reserved Values
106 - 110 Reserved Values
111 - 115 Reserved Values
116 - 120 Reserved Values
121 - 125 Reserved Values
126 - 130 Reserved Values
131 - 135 Reserved Values
136 - 140 Reserved Values
141 - 154 Reserved Values
146 - 150 Reserved Values
151 - 155 Record User Color Preset**
156 - 160 Reserved Values
161 - 165 Reserved Values
166 - 170 Reserved Values
171 - 175 Reset fixture to default
176 - 255 Reserved Values
12 Red (High) 00 - 65535 Red Color Level Control 0 - 100% Saturation
13 Red (Low
14 Green (High) 00 - 65535 Green Color Level Control 0 - 100% Saturation
15 Green (Low)
16 Blue (High) 00 - 65535 Blue Color Level Control 0 - 100% Saturation
17 Blue (Low)
18 Amber (High) 00 - 65535 Amber Color Level Control 0 - 100% Saturation
19 Amber (Low)
20 Lime (High) 00 - 65535 Lime Color Level Control 0 - 100% Saturation
21 Lime (Low)
22 Cyan (High) 00 - 65535 Cyan Color Level Control 0 - 100% Saturation
23 Cyan (Low)

usEr ManuaL
WWW.VarI-LItE.CoM
Cantata LED FrEsnEL FuLL CoLor
19
TABLE 3. COLOR PRESETS
RANGE
DMX COLOR RANGE DMX COLOR
0 - 255 Calibrated color presets 01 to 33 115 - 118 Yellow
User definable color preset 01 to 20 119 - 122 Deep Amber
0 - 10 Channel OFF Color Mixing take priority 123 - 126 Chrome Orange
11 - 14 Moroccan Pink 127 - 130 Orange
15 - 18 Pink 131 - 134 Magenta
19 - 22 Flesh Pink 135 - 138 Flame Red
23 - 26 Bright Rose 139 - 142 Purple
27 - 30 Follies Pink 143 - 146 User Preset 1
31 - 34 Fuchsia Pink 147 - 150 User Preset 2
35 - 38 Surprise Pink 151 - 154 User Preset 3
39 - 42 Congo Blue 155 - 158 User Preset 4
43 - 46 Blue 159 - 162 User Preset 5
47 - 50 Virgin Blue 163 - 166 User Preset 6
51 - 54 Midnight Maya 167 - 170 User Preset 7
55 - 58 Double C.T Blue 171 - 174 User Preset 8
59 - 62 Slate Blue 175 - 178 User Preset 9
63 - 66 Regal Blue 179 - 182 User Preset 10
67 - 70 Full C.T Blue 183 - 186 User Preset 11
71 - 74 Steel Blue 187 - 190 User Preset 12
75 - 78 Lighter Blue 191 - 194 User Preset 13
79 - 82 Cyan 195 - 198 User Preset 14
83 - 86 Marine Blue 199 - 202 User Preset 15
87 - 90 Soft Green 203 - 206 User Preset 16
91 - 94 Moss Green 207 - 210 User Preset 17
95 - 98 Green 211 - 214 User Preset 18
99 - 102 Fem Green 215 - 218 User Preset 19
103 - 106 JAS Green 219 - 222 User Preset 20
107 - 110 Pale Green 223 - 255 Channel OFF Color Mixing take priority
111 - 114 Spring Yellow
TABLE 4. GREEN SHIFT
DMX CHANNEL DEFAULT RANGE DMX FUNCTION
Green Shift 100
0 - 255
TV Camera Green Shift adjustment
Channel works independently of color mixing channel
and will adjust all mixed color from to reduce green color
for camera use 0 to -100% Minus Green Levels 100% = to
Lee Filter Full minus Green 247
0-10 NO FUNCTION
11-29 FULL MINUS GREEN
30-69 —99%  -1%
70-129 NO FUNCTION
130-189 1%  99%
190-255 FULL PLUS GREEN

usEr ManuaL
WWW.VarI-LItE.CoM
Cantata LED FrEsnEL FuLL CoLor
20
TABLE 5. CTO CHANNEL
DMX CHANNEL DEFAULT RANGE DMX FUNCTION
CTO 75
0 - 250
Variable color temperature control channel
Channel works independent of color mixing channel
and will adjust all mixed color from selected color
temperature level. Values stated below are a for guidance
only channel should be mapped in such away that
channel level runs variable from 0 - 250
01800k
25 2700K
50 3000K
75 3200K (Default)
100 4000K
125 4500K
150 5000K
175 5600K
200 6500K
225 8000K
250 10000K
250 - 255 Reserved Hold 10000K
TABLE 6. CONTROL CHANNEL
RANGE
DMX ITEMS DESCRIPTION POWER CYCLE RULES
FUNCTION
SELECTION VIA UI
0 - 255 Control Channel
Control Channel used for full fixture settings,
lamp controls, and miscellaneous modes. Set
discrete value of desired eect, wait >3 seconds,
then set value to 0 (Idle). **Function does not
require 3 Second rule to active, setting output
N/A N /A
0 - 5 Idle (Default) Default value used as return point to activate all
control functions N/A N /A
6 - 10 Full Luminaire
ReCal -
Recalibrates all mechanical functions and sensor
with in the fixture. Also Used to Wake fixture up
from shutdown
N/A
11 - 15 Fixture Shutdown
Shuts down all fixture output and turns o all
fans - fixture is activated by power cycle or ReCal
command
If fixture is
powered down
then up fixture
will auto wake
and not startup in
Shutdown Mode
N/A
16 - 20 Reserved Values N/A N /A
21 - 25 Display - Menu ON Switches UI display backlight on remotely - Display
will Time out from on after 5 mins N /A N /A
26 - 30 Display - Menu OFF N/A N /A
31 - 35 Tungsten Dimming
On** Remote switches Tungsten Dimming color shift on Holds setting on power cycle Yes
36 - 40 Tungsten Dimming
O (Default)** Remote switches Tungsten Dimming color shift o Holds setting on power cycle Yes
41 - 45 Dimming Curve
Linear**
Selects Linear Dimming Curve, Also Used to Wake
fixture up from shutdown
Holds setting on
power cycle Yes
46 - 50 Dimming Curve
S-Curve** Selects S-Law Dimming Curve Holds setting on power cycle Yes
51 - 55
Dimming Curve
Square Law
(Default)**
Selects Square -Law Dimming Curve Holds setting on
power cycle Yes
56 - 60 Reserved Values
