strike force TB3000E User manual

!
Owner’s(Manual(
Instructions for Installation/Set-up, Operation, Servicing, & Storage
Portable, Outdoor Use-Only, Petrol Generator
MODEL: TB3000E
MODEL: TB9000E
Can be used to power individual appliances plugged directly into the generator’s outlets, or as
a back-up connection to a building's power supply via a professionally installed SAA -approved
transfer switch and RCD circuit breaker.
WARNING(
READ and UNDERSTAND this manual completely before using the generator! Failure to properly set
up, operate, and maintain this generator could result in serious injury or death from carbon monoxide
poisoning, electric shock, fire/explosion, or burns. In particular, be aware of the following hazards:
CO POISONING
Generators give off carbon monoxide, a poisonous gas that can kill you. You CANNOT smell it, see it, or
taste it.
•ONLY run generator OUTDOORS and AWAY from building air intakes. NEVER run generator inside
any enclosed or semi-enclosed spaces, including homes, basements, garages, sheds, boxes, RVs,
boats or pick-up truck beds. These spaces can trap poisonous gases, EVEN if you run a fan or open
windows.
•Install carbon monoxide alarms inside nearby structures/buildings (battery-operated, or plug-in with
battery backup). ELECTRIC SHOCK/ELECTROCUTION
•High voltage electricity from generator can kill. DO NOT operate in wet locations. Be sure generator is
properly grounded. Use only Australian-listed, outdoor- rated grounded extension cords of proper size.
•NEVER plug the generator directly into a wall outlet. ANY connection to a building’s electrical system
must isolate the generator from utility power via an Australian -approved transfer switch installed by a
licensed electrician. Otherwise, back feed from the generator into the power grid could kill utility workers.
FIRE/EXPLOSION
•DO NOT overload generator (per rated capacity), and OPERATE ONLY in an area with adequate
cooling ventilation so engine does not overheat. Exhaust can be extremely hot. Keep muffler at least 2
meters from all combustible objects.
•All fuels are flammable. Never fuel a running or hot engine. Never pump fuel directly into generator at
gas station – use approved container to transfer fuel. Ensure there are no fuel leaks, and keep sources
of sparks and flames away.
•ALWAYS keep a fire extinguisher rated “ABC” nearby.
STOP !
CHOOSE THE RIGHT GENERATOR FOR YOUR NEEDS. See the “Power load Planning & Management”
section of this manual to determine your power load requirements and then compare to the generator’s rated
capacity.
INSPECT COMPONENTS: Closely inspect to make sure no components are missing or damaged. See the
“Unpacking & Delivery Inspection” section for instructions on whom to contact to report missing or damaged
parts.
ARRANGE FOR PROFESSIONAL INSTALLATION of a transfer switch if you will be connecting the
generator to your building’s electrical system. See the “Installation/InitialSet-Up” section for more
information about this requirement.

!
"!
Dear Valued Customer
The STRIKE FORCE generator you have purchased has been built from the finest
materials available and to the highest standard possible by qualified trades people.
Your machine is a quality manufactured product that has been workshop tested under
supervision of TQM engineers.with more than10 years experience.
On arrival in Australia, every machine is checked, filled with oil and engine conditioning
addatives. The generator is then run for 2 to 5 hours and every function is workbench
tested.
The warranty of the machines is for 3 years or 2000 hours and provided that the
machine has been maintained correctly. This warranty covers parts and labour, not
including normal ware and tare Ie, tyres, batteries or receptacles. If at the discretion of
the TQM engineers the product is found to have defective parts, then it will be repaired
or replaced providing the machine is returned to TQM Imports at the owners cost.
The warranty does not cover any personal injury or damage to the environment or
property caused by the failure of the machine.
This warranty is in lieu of any other warranty expressed or implied and TQM imports
assumes no other responsibility or liability outside that expressed within this warranty.
Yours sincerely,
Dennis Talbot
Director of TQM Imports
WWW.TQMImports.com.au
De[email protected]
[phone]
Ph: [phone]
Fax:[phone]
TQM IMPORTS
PO BOX 41 DELEGATE NSW 2633

!
#!
Any Questions, Comments, Problems, or Parts Orders
Call your place of purchase
Hazard(Signal(Word(Definitions(
! !
This is the safety alert symbol. It is used to
alert you to potential personal injury
hazards. Obey all safety messages that
follow this symbol to avoid possible injury
of death.
DANGER
DANGER (red) indicates an imminently
hazardous situation which, if not avoided,
will result in death or serious injury.
WARNING
WARNING (orange) indicates a potentially
hazardous situation which, if not avoided,
could result in death or serious injury.
CAUTION
CAUTION (yellow) indicates a potentially
hazardous situation which, if not avoided,
may result in minor of moderate injury
CAUTION
CAUTION (yellow) sued without the
safety alert symbol indicates a potentially
hazardous situation which, if not avoided,
may result in property damage.
Fig 01453

!
$!
Table(of(Contents(
(
Hazard(Signal( Word( Definitions!%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%#!
About( Your( Generator!%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%&!
Specifications!%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%'!
Safety( Label( Locations%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%((!
Machine( Component( Identification!%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%("!
Power( Load( Planning( &( Management( %%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%($!
Installation(/(Initial(SetJUp:(
!!!!(%! )*+,-./*0! 1! 234/5367! 8*9+3-:/;*! %%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%(<!
!!!!"%! =4,**/*0! :>3! =;?36! @;,A%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%(<!
!!!!#%! B3:CD+! ,9! ,! =EFGHI@J! ;6! I)8@28KL! IHMNC)=! =;?36! B;D6-3! %%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%('!
!!!!$%! B343-:/*0! ,! BD/:,O43! B/:3! %%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%"P!
!!!!&%! L6;D*A/*0! :>3! L3*36,:;6! %%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%""!
!!!!<%! I,::367! 8*9:,44,:/;*! %%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%"#!
Operation:(
!!!!(%! L3*36,4! B,Q3:7! FD439! Q;6! E+36,:/;*! %%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%"$!
!!!!"%! =63+,6/*0! Q;6! E+36,:/;*! %%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%"'!
!!!!#%! B:,6:/*0! :>3! J*0/*3! %%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%#P!
!!!!$%! M>3-./*0! L3*36,:;6! ED:+D:%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%#(!
!!!!&%! M;**3-:/*0! @;,A9! %%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%#"!
!!!!<%! B:;++/*0! :>3! J*0/*3! %%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%#"!
!!!!'%! B:;6,03! 1! JR36-/93! %%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%##!
Maintenance( &( Repair%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%#&!
Troubleshooting%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%#'!
Summary( of( Important( Safety( Information( for( Operation%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%#S!
Engine( Operation!%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%$"!
Engine( Troubleshooting%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%$S!
Engine( Specifications/Electrical( Diagram%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%$T!
TBE3000W(Engine( Specifications%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%&P!
TBE9000W(Exploded(Views!%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%&&!
Generator(control(panel(user(information(%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%<"!
TQM( warranty( registration( card%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%<#!
!
!
! !

!
&!
About Your Generator
Thank you for purchasing your Strike Force portable generator!
About Your Generator
This TB3000E model, portable generator is designed to provide up to 2800Watts of
electrical power at 50-60Hz .
This TB9000E model, portable generator is designed to provide up to 7300 watts of
electrical power at 50-60Hz .
It can supply power:
As a portable power source. You can plug appliances directly into the generator’s electrical
outlets.
You must select a generator adequately sized for your power needs. You need to
determine the power needs of all the appliances/tools you wish to power at the same time and
choose a generator rated to provide at least that power level. See the “Power Load Planning &
Management” section of this manual to determine your specific power load requirements and
then compare them to this generator’s rated capacity. You must not overload the generator.
Overloading will cause damage to the generator and attached electrical devices, and may also
result in fire.
Be sure to read about site selection and grounding requirements for running this
generator. More detailed information can be found in the “Installation & Initial Set-up, Steps
5 & 6” of this manual.
Read this Manual
WARNING
Improper use or maintenance of this generator can result in serious injury or death from
carbon monoxide poisoning, electric shock/electrocution, fire/explosion, or burns. Read this
manual completely before using the generator and follow all instructions and safety rules.
You must follow all instructions and safety precautions presented throughout this manual. A
summary of important safety information can be found at the end of the manual. Keep this
manual for reference and review.

!
<!
About Your Generator(cont’d)
Proper preparation, operation, and maintenance will result in operator safety, as well as best
performance and life of the generator. For detailed engine operation and maintenance
information, always refer to the engine Owner’s Manual furnished with the generator.
T.Q.M is constantly improving its“STRIKE FORCE” products. The specifications outlined
herein are subject to change without prior notice or obligation. The purchaser and/or user shall
assume liability for any modification and/or alterations of this equipment from original design
and manufacture.
Before using, the user shall determine the suitability of this product for its intended use and
assumes liability therein.
Contact your place of purchase for any questions about the appropriate use of this
generator or T.Q.M
Warranty Registration
Please fill in the warranty registration information and have it on hand when you call in on a
warranty claim or replacement parts.

!
'!
Specifications
Item Number TB 3000E TB 9000E
Maximum Output 2.8 Watts(W) 7.3
Watts(W)
Continuous Output 2.5 Watts(W) 6.8 Watts(W)
Voltage 240(V) 240(V)
Phase Single phase (4-wire) Single phase (4-wire)
Frequency 50(Hz) ~60(Hz) 50(Hz) ~60(Hz)
Power Factor 0.8 p.f. 0.8 p.f.
Total Harmonic Distortion less than 5% less than 5%
Engine 196cc 420cc
Engine Speed 3180RPM 3180 RPM
Fuel Type Unleaded petrol Unleaded petrol
Fuel Capacity 4 gallons (15L) 8.0 gallons (30L)
Oil Capacity 0.16 gallons(0.6L) 0.29 gallons(1.1L)
Starting Method Recoil/Electrical/remote Recoil/Electrical/remote
240 V Receptacles 15(A)outlets 15(A) outlets
1-12/8AH DC output 1-12/8AH DC output
Circuit Breakers 1-8 Amp (A) thermal 1-8 Amp (A) thermal
push to reset1- 10(A) push to reset1- 10(A)
Battery Specs 12 Volt DC 12 Volt DC
Sealed Lead Acid Sealed Lead Acid
Power Sport Battery Size Power Sport Battery Size
7 Amp hours 9 Amp hours
Terminal Style – K Terminal Style – K
Noise Level (7m) 70db 74db

!
S!
REMOTE CONTROL MANUAL
1. Active Working Status:
1) Start: Push ON button in the remote panel, the remote control receives the start signal
and check the status of generator automatically.
If the generator is working, the remote control will keep idle;
If the generator is off, the remote control will turn off the carburettor magnetic valve
(if available)and start the engine of generator;
2) Stop: Push OFF button in the remote panel, the remote control receives the stop signal
and checks the status of generator automatically.
2. Operations:
1)Pull the choke out and leave out.
2)Push “ON ”remote button to start.
3)Push “OFF ” remote button to turn off .
3. Technical Specifications
Caution
At the disturbance of same frequency, the remote distance will be shorten into 1 meter.
4. Repair and Maintenance
If the generator remains in storage for a period of time, the battery will require charging.
Content
Unit
Specification
Size of Remote Control
mm
85*55*25
Rated Working Voltage
V
12
Idle Current
MA
3.5
Max Tolerant Voltage
V
280-320
Remote Control Frequency
MHz
50-60
Max Code Qty
piece
6561
Max Remote Distance
m
<50

!
T!

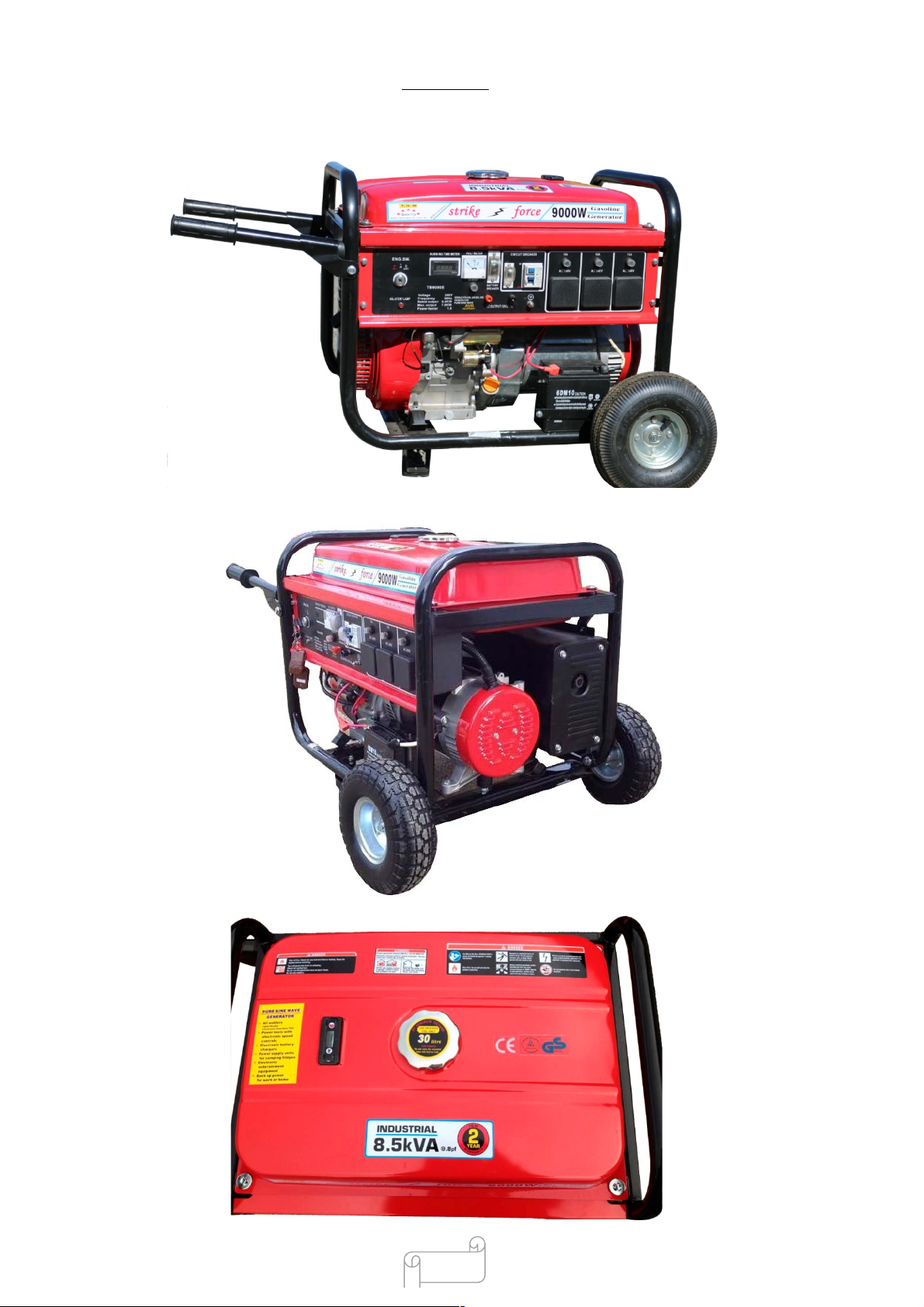

Machine Pictures
TB 3000E

!
(P!
TB9000E

!
((!

!
("!
Machine Component Identification
TB3000E
Ref.
Description
Ref.
Description
1
Control Panel
7
Petrol Tank
2
Frame
8
Petrol Cap
3
Dipstick / oil fuller
9
Carburettor
4
Handle
10
Recoil starter
5
Muffler
11
Air Cleaner
6
Battery
12
Oil Drain Plug

!
(#!
TB 9000E
Ref.
Description
Ref.
Description
1
Control Panel
7
Gas Tank
2
Frame
8
Gas Cap
3
Dipstick / oil fuller
9
Carburettor
4
Handle
10
Recoil starter
5
Muffler
11
Air Cleaner
6
Battery
12
Oil Drain Plug

!
($!
Power Load Planning & Management
WARNING
NEVER exceed the rated wattage capacity of your generator.
OVERLOADING may cause SERIOUS DAMAGE to the generator and
attached electrical devices, and may result in fire.
Your generator MUST BE SIZED PROPERLY to provide both the running and starting
wattage of the devices you will be powering. Before using your generator, determine the
running and starting wattage requirements of all the electrical devices you will be powering
simultaneously.
The sum of the running and starting wattages of the devices being powered must not exceed the
continuous output rating of your generator. (The continuous output rating of your generator is
listed in the “Specifications” section of this manual.) Note that:
•Devices without electric motors such as light bulbs, radios, and televisions have the
same running and starting wattage.
•Devices with electric motors such as refrigerators, compressors, and hand tools
typically require a starting wattage that is 3 to 5 times greater than the running
wattage.
The running and starting wattage requirements are often listed on a device’s nameplate. If
wattage is not given on the device’s nameplate, the wattage may be calculated by multiplying
the nameplate voltage by nameplate amperage, Watts = Volts X Amps.
Example conversion to watts:
240VoltsX5Amps=1200Watts
If only the running voltage is given on the nameplate for a device with an electric motor, the
starting wattage can be approximated to be three to five times the running wattage.
Estimates for the running wattage requirements for common devices are listed in Table 1
below.
Guidance for starting wattages is provided in the table’s footnotes.
Table 1 Typical Device Power Requirements( Guide Only)
Device
Running Watts
Device
Running Watts
Air conditioner (12.000
BTU)
1700 (a,b)
Jet pump
800 (a)
Battery charger (20 Amp)
500
Lawn mower
1200
Belt sander (3”)
1000
Light bulb (100 Watt)
100
Chain saw
1200
Microwave oven
700
Circular saw (6½”)
2000 (a,b)
Milk cooler
1100(a)
Coffee maker
1800 (a,b)
Oil burner on furnace
300
Compressor (1 HP)
1400 (a,b)
Oil-fired space heater (140,000
Btu)
400
Compressor (3/4 HP)
1800 (a)
Oil-fired space heater (85,000
Btu)
225
Compressor (1/2 HP)
1400 (a)
Oil-fired space heater (30,000
Btu)
150
Curling iron
700
Oven
4500
Dishwasher
1200
Paint sprayer, Airless (1/3 HP)
600(a)
Edge trimmer
500
Paint sprayer, Airless (handheld)
150
Electric nail gun
1200
Radio
200
Electric range (1 element)
1500
Refrigerator
600(a)
Electric skillet
1250
Slow cooker
200

!
(&!
Power Load Planning & Management (cont’d)
Device
Running Watts
Device
Running Watts
Furnace fan (1/3 HP)
1200 (a)
Submersible pump (1-1/2 HP)
2800 (a)
Freezer
800 (b)
Submersible pump (1 HP)
2000 (a)
Hair dryer
1200
Submersible pump (1/2 HP)
1500 (a)
Hand drill (1”)
1100
Sump pump
600 (a)
Hand drill (1/2”)
875
Table saw
2000 (a)
Hand drill (3/8”)
500
Television
500
Hand drill (1/4”)
250
Toaster
1000
Hedge trimmer
450
Vacuum cleaner
250
Home computer
150
VCR
70
Impact wrench
500
Water Heater
3000
Kettle
2400
Weed trimmer
500
(a) Hard-starting motors require 3-5 times the rated running watts.
(b) For extremely hard to start loads such as air conditioners and air compressors, consult the
equipment dealer to determine maximum wattage.
To calculate the running and starting wattage requirements for the devices you will be
powering, follow these steps:
1. Make a list of all electrical devices you will be powering at the same time with the generator.
2. List the greater of the running or starting wattage next to each device as obtained from the
devices’ nameplate or Table 1. If only the running wattage for a device with an electric
motor is known, the starting wattage can be estimated to be at least 3 times the running wattage.
3. Add the wattages for all devices on your list. This total must be lower than the continuous
output rating of your generator.
Example:
Device to be Powered
Greater of
Starting/Running Wattage
Light Bulb
75 W
Refrigerator – 18 Cu. Ft.
1600 W
Microwave
700 W
Window AC
1800 W
Sump pump (1/3 hp)
2100 W
Total
6275 W
In this example, the generator must have a continuous output of at least 6275 W in order to
power all of the devices simultaneously.
STAGGERING LOADS
You can increase the number of devices your generator can power by staggering the load on the
generator. For example, you could alternately power your refrigerator and air conditioner for
limited periods of time -- powering only one of the devices at a time and never powering both
at the same time.

!
(<!
Operation
There are a number of important steps required to set up your generator for initial use. These
steps are:
Steps for Installation / Initial Set-Up
1. Unpacking & delivery inspection.
2. Planning the power load to stay within the generator’s rated
capacity.
3. Setting up generator for the type of power generation you need:
a. portable power source, or
b. connected to a building as a back-up power source.
4. Selecting a site for using the generator.
5. Grounding.
6. Battery installation (electric start models only).
Each of these steps is discussed in detail below:
1. Unpacking & Delivery Inspection
You should inspect the generator immediately after you receive delivery.
See the “Machine Component Identification” section of this manual for a
diagram of the generator and its components.
•If you have missing components, contact place of purchase.
•If you have damaged components, contact the freight company that delivered
the unit and file a claim.
2. Planning the Power Load
Plan your power load so that you do not exceed the generator’s rated capacity.
See the “Power Load Planning & Management” section of this manual to review
how to plan and manage power loads for the generator.

!
('!
Operation
3. Set-up either as a BUILDING BACK-UP or PORTABLE Power Source
This generator TB3000E is designed to provide up to 2800 watts of electrical power. And this
generator TB9000E is designed to provide up to 7300 watts of electrical power. It can supply
electricity in two ways:
1. As a back up, standby power source for a building. For this application, you must arrange
for a licensed electrician to connect the generator to your building’s electrical system via the
installation of an approved transfer switch .The transfer switch must be installed in
accordance with building electrical code and guidelines supplied by your power company.
2. As a portable power source. You can plug appliances or tools directly into the generator’s
electrical outlets.
Specific requirements for each are given below.
Note: Regardless of whether you use your generator as a back-up power source connected
to a building or as a portable power source, you must not overload the generator.
Overloading may cause serious damage to the generator and attached electrical devices.
Using as a
Back-up
Power
Source for
a Building
Contact a licensed electrician to install an approved transfer switch. if
you want to use your generator as a back-up power source for a building
What does a transfer switch do? It:
a) Safely connects the generator to your building’s electrical system by
isolating your generator from your utility company’s power lines,
AND
b) Connects your generator to a critical subset of your building’s circuits
that are needed for emergency power needs.
If your generator will be connected to your building’s electrical system, it
MUST ALWAYS be isolated from the utility power grid with a approved
transfer switch installed by a licensed electrician in compliance with all
applicable building and electrical codes, and in accordance with guidelines
supplied by your power company.
DANGER:
A transfer switch must be installed in order to isolate your
generator from the utility power grid. If your generator is NOT
properly isolated from the utility system, serious hazards will
arise:
•When your generator is running, it’s output will back feed into
the utility power line and transformer that are normally used to
provide you with power. The transformer will step up the
current to the normal line voltage. An unsuspecting utility line
worker working on what he thinks is a deactivated line could
be electrocuted.
•If your generator is connected (running or not) when utility
power is restored, your generator will be destroyed. It could
also explode or cause fire.
In addition to isolating your generator from the utility system, the transfer
switch connects your generator to a limited set of circuits in your building
that have been chosen as critical to operate during a power outage.

!
(S!
Operation
The generator cannot power your entire home -- you must work
with the installing electrician to determine which
devices/appliances you wish to power during an outage. The
electrician can help you determine which circuits and devices can
be powered simultaneously without overloading the generator.
(See the previous section of this manual entitled “Power Load
Planning &Management” for more information on load
application and selection.)
Using as a
Portable
Power
Source
TB3000E
TB9000E
When using the generator as a portable power source, you can
plug electric devices and appliances directly into the
generator’s electrical outlets.
This generator is equipment with 1pc or 3pcs of SAA
approved water-proof outlets.
(See more technical detail about these receptacles and their
associated circuit breakers in the “Machine Component
Identification” section of this manual.)
•Make sure you plug each electrical device/appliance into
the correct generator outlet based on the device’s plug
configuration and voltage/amperage rating. Never exceed
the amperage rating of an outlet.

!
(T!
Operation
♦Extension cords may be used to power devices that are located at a distance from
the generator. However, use only Australian approved, outdoor- rated, grounded
extension cord of the proper size .Use Table 2 below to choose an adequately size
extension cord, according to the amperage of the device being used and the length
of the cord.
Table 2
Current/Power
Maximum Extension Cord Length
Amps
at240V
Load
(watts)
#10 Ga.
Cord
#12 Ga.
Cord
#14 Ga.
Cord
#16 Ga.
Cord
10
2400
250’
150’
100’
75’
20
4800
125’
75’
50’
25’
30
7200
60’
35’
25’
10’
40
9600
30’
15’
100’
*
50
12000
15’
*
*
*
WARNING:
Use of under sized extension cords can cause electric shock, fire, or
damage to connected devices.
•All extension and appliance cords must be in good condition and not worn,
bare, frayed, or otherwise damaged.
WARNING:
Use of damaged electric cords can cause electric shock or fire.
Note: If an extension cord becomes hot to the touch, it is overloaded or
damaged and must be replaced.
T.Q.M is NOT responsible for damage or injury resulting from
customer use of inadequate extension cords.

!
"P!
Operation
4. Select a Suitable Site
Before using the generator, you must select a suitable OUTDOOR location for installation
and operation. This location should meet all of the criteria listed below.
WARNING:
You must choose a suitable site for operating your generator to avoid equipment damage
and/or injury and possible death from carbon monoxide poisoning, electric shock, or fire.
Choose a site that meets all of the criteria specified.
Dry, level
surface
The generator should be positioned on a dry, firm, level surface.
Ensure that the generator sits level and will not slide or shift during operation.
If applicable, block the generator’s wheels to prevent sliding and shifting.
Outdoors
only –
dangerous
carbon
monoxide
exhaust
WARNING: Carbon monoxide poisoning hazard
The exhaust from your generator contains carbon monoxide (CO), a
poisonous gas that can kill. You cannot smell it, see it, or taste it.
Carbon monoxide exhaust is given off whether you are using petrol
natural gas, or propane as the fuel source to power the generator.
Follow the directions below for choosing a location to operate your
generator in order to avoid carbon monoxide poisoning.
The location you choose to operate the generator must be OUTDOORS
and away from all air intakes:
•Never run the generator inside any closed or semi-enclosed spaces
(even if outdoors), including homes, garages, basements, sheds, or
boxes. These spaces can trap poisonous gases, even if you run a fan or
open windows.
•Place the generator so that the exhaust fumes will not be directed
towards people or building air intakes.
•Ensure that working, battery-operated or battery back-up carbon
monoxide alarms are used in any dwelling/structure that is in close
proximity to the running generator.
•Note that this generator is NOT designed or approved for use in
vehicles or marine applications. Never run the generator inside RVs or
other vehicles, on boats, or on pick-up truck beds.
WARNING:
Never attempt to attach ductwork to the muffler system to allow for
installation inside an enclosure. This could cause hot air deflection,
heat build-up, and increased exhaust back-pressure, resulting in
possible exhaust leakage or damage to the generator.
Adequate
cooling
ventilation
The generator needs adequate, unobstructed flow of air to allow for
proper cooling of engine and generator head.
WARNING:
Heat build-up from inadequate ventilation can result in fire, posing a
serious risk to nearby persons and structures.
•!Situate so there is adequate clearance around generator to allow
for cooling airflow so that heat does not build up.
