Li-LV LFP Battery Module | USER MANUAL
2

To secure the full 10-year product warranty, be sure to install the
Stomherz Li-LV battery modules by qualified installers.
Warning: Read this entire document before installing or using Wattsonic
Li-LV LiFePO4 battery modules. Failure to do so or to follow any of the
instructions or warnings in this document can result in electrical shock,
serious injury, or death, or can damage Wattsonic Li-LV LiFePO4 battery
module, potentially rendering it inoperable.
All specifications and descriptions contained in this document are verified to be
accurate at the time of printing. However, because continuous improvement is a
g oal at Stomherz, we reserve the right to make product modifications at an y time.
The images provided in this document are for demonstration purposes only.
Depending on product version and market region, details may appear slightly
different.
PRODUCT SPECIFICATIONS
ERRORS OR OMISSIONS
To communicate any inaccuracies or omissions in this manual, please send an
email to : [email protected]
All information in this document is subject to copyright and other intellectual
property rights of Stomherz and its licensors. This material may not be modified,
reproduced or copied, in whole or in part, without the prior written permission of
and its licensors. Additional information is available upon request. The following
are trademarks or registered trademarks of Stormherz in EU and other countries
All other trademarks contained in this document are the property of their
respective owners and their use herein does not imply sponsorship or endorse-
ment of their products or services. The unauthorized use of any trademark
displayed in this document or on the product is strictly prohibited.
ELECTRONIC DEVICE: DO NOT THROW AWAY
Proper disposal of batteries is required. Refer to your local codes for disposal
requirements(ie. EC N 1013/2006 among European Union).
Li-LV LFP Battery Module | USER MANUAL
3

Li-LV LFP Battery Module | USER MANUAL
Important Safety Instructions
SAVE THESE IMPORTANT SAFETY INSTRUCTIONS. Stromherz Li-LV LiFePO4
battery module installation and repair instructions assume knowledge of high
voltage electricity and should only be performed by Stromherz Certified Installers.
Stromherz assumes no liability for injury or property damage due to repairs
attempted by unqualified individuals or a failure to properly follow these instruc-
tions. These warnings and cautions must be followed when using Stromherz .
Warning: Read this entire document before installing or using Stromherz Li-LV
battery. Failure to do so or to follow any of the instructions or warnings in this
document can result in electrical shock, serious injury, or death, or can damage
Stromherz Battery, potentially rendering it inoperable.
Warning: A battery can present a risk of electrical shock, fire, or explosion from
vented gases. Observe proper precautions.
Warning: Stromherz Li-LV Battery installation must be carried out only by Stromherz
Certified Installers, who have been trained in dealing with high voltage electricity.
Warning: Stromherz Li-LV battery is heavy and challenging to lift.
Warning: Use Stromherz Li-LV Battery only as directed.
Warning: Do not use Stromherz Li-LV Battery if it is defective, appears
cracked, broken, or otherwise damaged, or fails to operate.
Warning: Before beginning the wiring portion of the installation, first power off the
inverter and then open the AC and DC disconnect switches (if applicable for the
installation).
Warning: Do not attempt to open, disassemble, repair, tamper with, or modify
Stromherz Li-LV Battery. Stromherz Li-LV Battery is not user serviceable. LiFePO4
battery Cells in Stromherz Li-LV Battery are not replaceable. Contact the
Stromherz Authorized Reseller who sold the Stromherz Li-LV Battery for any
repairs.
Warning: Do not connect Stromherz Li-LV Battery to alternating current(AC) carrying
conductors. Stromherz Li-LV Battery must be wired to either an inverter or a DC
combiner panel that is then wired to an inverter. No other wiring configuration may be
used.
GENERAL INFORMATION
SYMBOLS IN THIS DOCUMENT
This manual uses the following symbols to highlight important information:
WARNING indicates a hazardous situation which, if notavoided, could result in
injury or death.
CAUTION indicates a hazardous situation which, if notavoided, could result in
damage to the equipment.
NOTE indicates an important step or tip that leads to best results, but is not
safety or damage related.
Warning
Caution
Note
4

Li-LV LFP Battery Module | USER MANUAL
Warning: Stromherz Li-LV Battery contains components, such as switches
and relays, that can produce arcs or sparks.
Warning: To protect Stromherz Li-LV Battery and its components from damage when
transporting, handle with care. Do not impact, pull, drag, or step on Stromherz Li-LV
Battery. Do not subject Stromherz Li-LV Battery to any strong force. To help prevent
damage, leave Stromherz Li-LV Battery in its shipping packaging until it is ready to be
installed.
Warning: Do not insert foreign objects into any part of Stromherz Li-LV Battery.
Warning: Do not expose Stromherz Li-LV Battery or its components to direct flame.
Warning: Do not install Stromherz Li-LV Battery near heating equipment.
Warning: Do not immerse Stromherz Li-LV Battery or its components in water
or other fluids.
Caution: Do not use cleaning solvents to clean Stromherz Li-LV Battery, or
expose Stromherz Li-LV Battery to flammable or harsh chemicals or vapors.
Caution: Do not use fluids, parts, or accessories other than those specified in this
manual, including use of non-genuine Stromherz Li-LV parts or accessories, or parts
or accessories not purchased directly from Stromherz or a Stromherz -certified party.
Caution: Do not place Stromherz Li-LV Battery in a storage condition for more than
one (1) month, or permit the electrical feed on the Stromherz Li-LV Battery to be
severed for more than one (1) month, without placing Stromherz Li-LV Battery into a
storage condition in accordance with Stromherz ’s storage specifications.
Caution: Do not paint any part of Stromherz Li-LV Battery, including any internal
or external components such as the exterior shell or casing.
Caution: Do not connect Stromherz Li-LV Battery directly to photovoltaic (PV) solar
wiring.
Caution: When installing Stromherz Li-LV Battery in a garage or near vehicles, keep it
out of the driving path. If possible, install the Stromherz Li-LV Battery on a side wall
and/or above the height of vehicle bumpers.
Warning: Install Stromherz Li-LV Battery at a height that prevents damage from
flooding.
Warning: Operating or storing Stromherz Li-LV Battery in temperatures outside
its specified range might cause damage to Li-LV Battery.
Warning: Do not expose the Stromherz Li-LV Battery to ambient temperatures
above 60°C (140°F) or below -30°C (-22°F).
Caution: Ensure that no water sources are above or near Stromherz Li-LV Battery,
including downspouts, sprinklers, or faucets.
ENVIRONMENTAL CONDITIONS
5

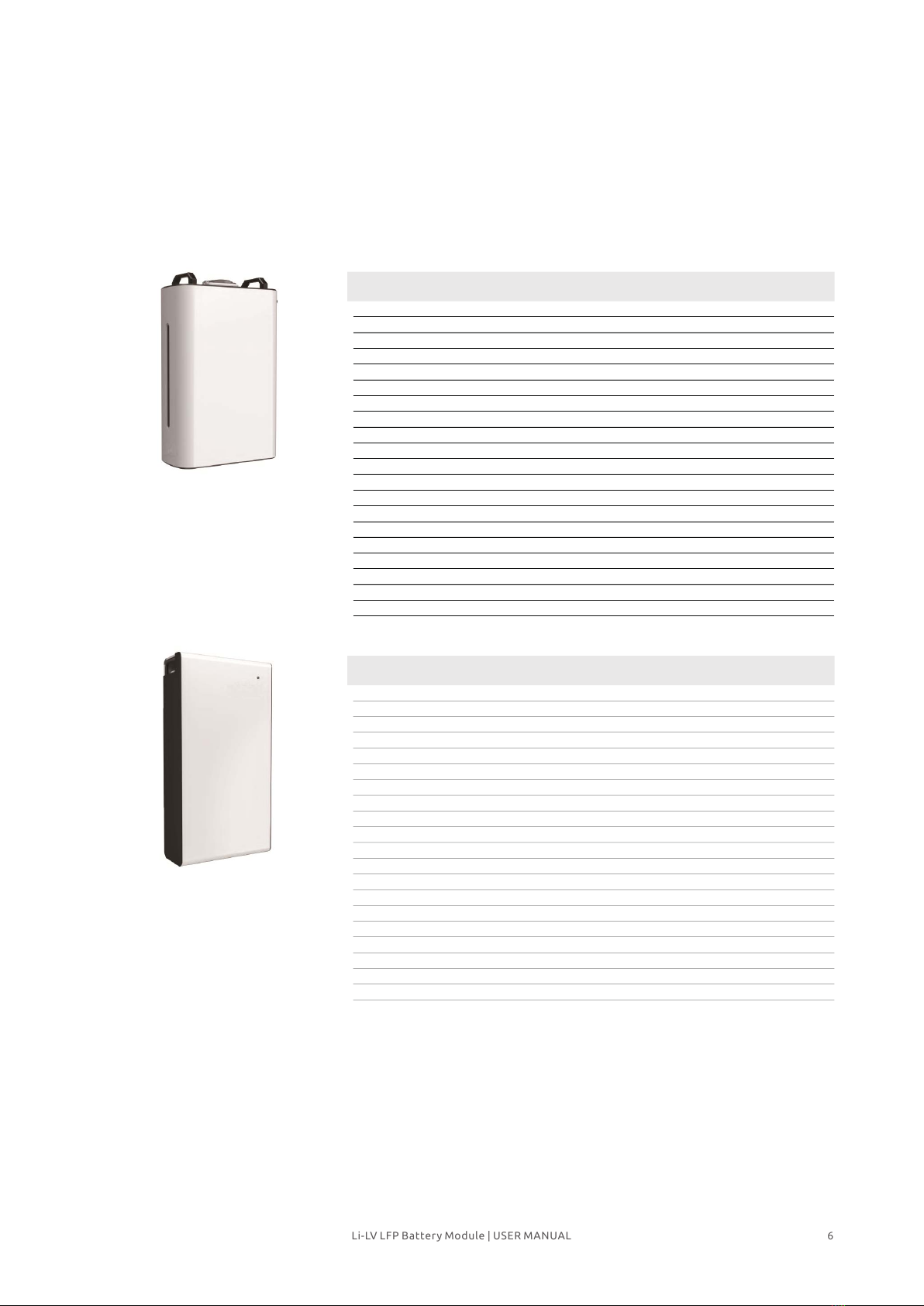

Specifications
2.5KWH FREE STAND LIFEPO4 BATTERY MODULE
Total Energy [kWh]
Useable Energy [kWh]
Nominal Voltage [V]
Nominal Capacity [Ah]
Operating Voltage Range [V]
Nominal Charge Current [A]
Nominal Discharge Current [A]
Peak Discharge Current [A]
Calender Life [Year]
Depth of Discharge [%]
Data Communication
Temperature
Enclosure Protection Rating
DC Isolator
Certificate
Scalability Range/Mode
Installation Mode
Dimensions [W*H*D]
Weight
Warranty
2.5
2.25
51.2
50
40~58.4
50
50
60
20 years @25℃, 15 years @35℃, 10 years @45℃
90
CAN/RS485
0-45℃ Charge, -20~55℃ Discharge,
-10~45℃ Stock Storage
IP 65
Integrated
Ul1642/ Ul1973/ IEC62619
Max. 5 Modules Parallel
Free Stand
152.6*483*339mm
30KG
10,000 cycles at 90% DOD, or 10 years(optional 6000 cycles)
5.0
4.5
51.2
100
40~58.4
100
100
110
90
CAN/RS485
IP 65
Integrated
/ IEC60950/ IEC60068/ CE
Max. 5 Modules Parallel
Free Stand
308*471*278mm
60KG
2.5KWH/5KWH WALL MOUNTED LIFEPO4 BATTERY MODULE
Total Energy [kWh]
Useable Energy [kWh]
Nominal Voltage [V]
Nominal Capacity [Ah]
Operating Voltage Range [V]
Nominal Charge Current [A]
Nominal Discharge Current [A]
Peak Discharge Current [A]
Calender Life [Year]
Depth of Discharge [%]
Data Communication
Temperature
Enclosure Protection Rating
DC Isolator
Certificate
Scalability Range/Mode
Installation Mode
Dimensions [W*H*D]
Weight
Warranty
2.5
2.25
51.2
50
40~58.4
50
50
60
20 years @25℃, 15 years @35℃, 10 years @45℃
90
CAN/RS485
0-45℃ Charge, -20~55 Discharge,
-10~45℃ Stock Storage
IP 65
Integrated
Ul1642/ Ul1973/ IEC62619
Max. 5 Modules Parallel
Wall Mounted
414*470*185mm
30KG
10,000 cycles at 90% DOD, or 10 years(optional 6000 cycles)
5.0
4.5
51.2
100
40~58.4
100
100
110
90
CAN/RS485
IP 65
Integrated
/ IEC60950/ IEC60068/ CE
Max. 5 Modules Parallel
Wall Mounted
414*750*185mm
60KG
Li-LV LFP Battery Module | USER MANUAL
* Compatible inverter brands: Srtomherz\Wattsonic/ SMA SunnyIsland/ Victron/ Imeon/ Voltronic/ SolaX/ GoodWe/ SofarSolar/ Solis/ Studer
* Stromherz reserves the right to modify the technical datasheet and apperance of the product in the user manual without prior advice to the users
6
2.5KWH FREE STAND
LIFEPO4 BATTERY MODULE
2.5KWH/5KWH WALL
MOUNTED LIFEPO4 BATTERY
MODULE

Li-LV LFP Battery Battery Backsheet
Battery<-->Inverter Battery<-->Inverter Rj45
Communication Cable
M6 Expansion Screws

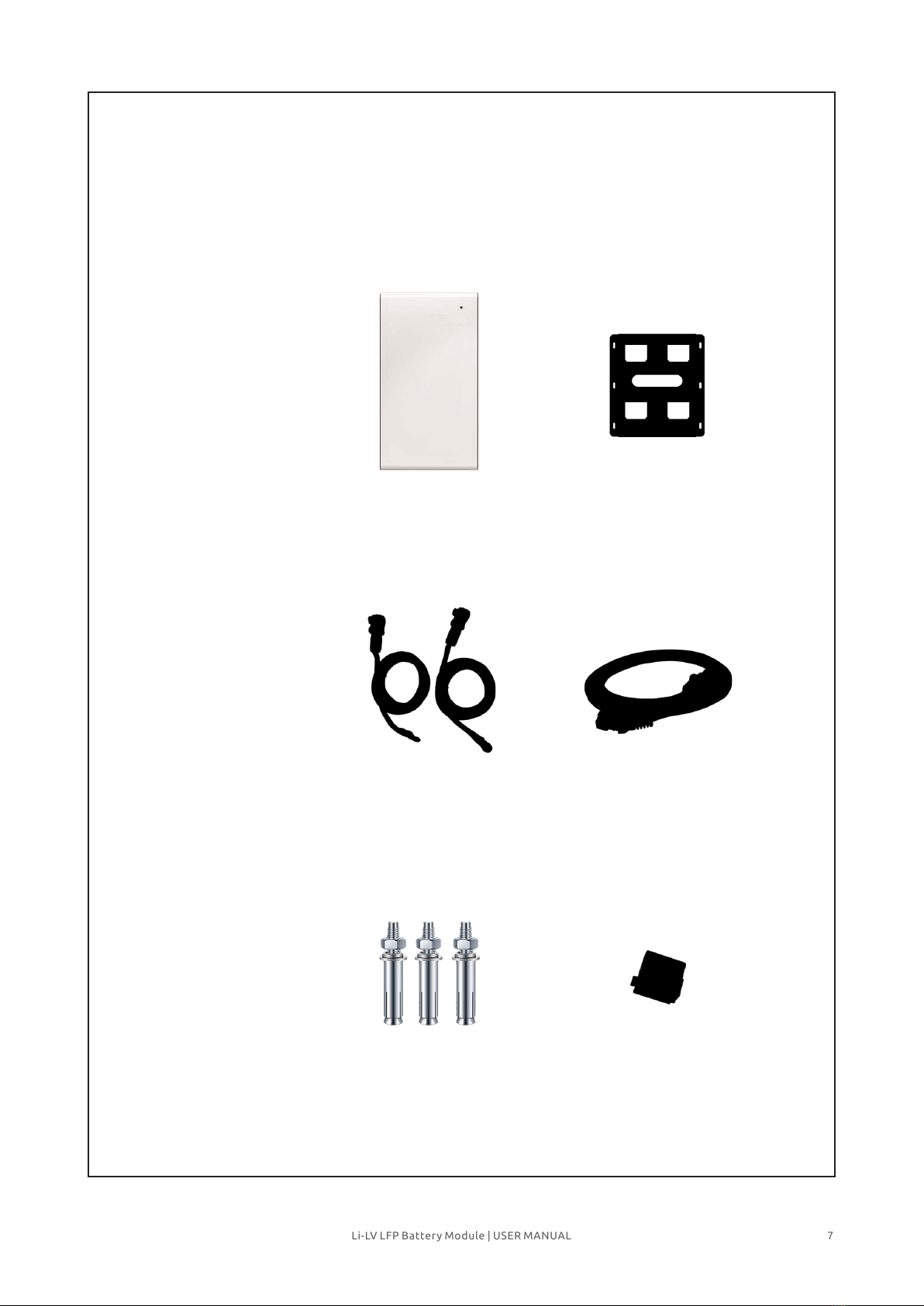

Standard Packing List
Li-LV LFP Battery Module | USER MANUAL
7
COM Resistor

Mechanical Installation
Step-1, Confirm the
exact mounting position
of battery backsheet.
Please use M6 expansion
screws to fix the battery
backsheet on the wall
according to the fixed position.
Single battery installation
Multiple battery installation
Minimum 200mm
above ground.
Backsheet spacing is
greater than 20mm.
Li-LV LFP Battery Module | USER MANUAL
8
Step-1, Confirm the
exact mounting
position of battery
backsheet.
Step-2, Hanging on the
battery module to the
mounted battery backsheet.
Please use M6 expansion
screws to fix the battery
backsheet on the wall
according to the fixed position.
Step-2, Hanging on the
battery module to the
mounted battery backsheet.

Li-LV LFP Battery Module | USER MANUAL
9
DC Combiner box
DC Combiner box
⑩ Stromherz standard parallel kits Maximum
withstand current is 100A.If you have a larger
load demand, you can choose to configure the
DC Combiner box.
Communication cable
Battery<-->Inverter Power Cables(+)
Battery<-->Inverter Power Cables( -)
Communication cables(up)
Communication cables(down) Battery
Reset Button
DC Isolator
Electric Connection
Top connection interface

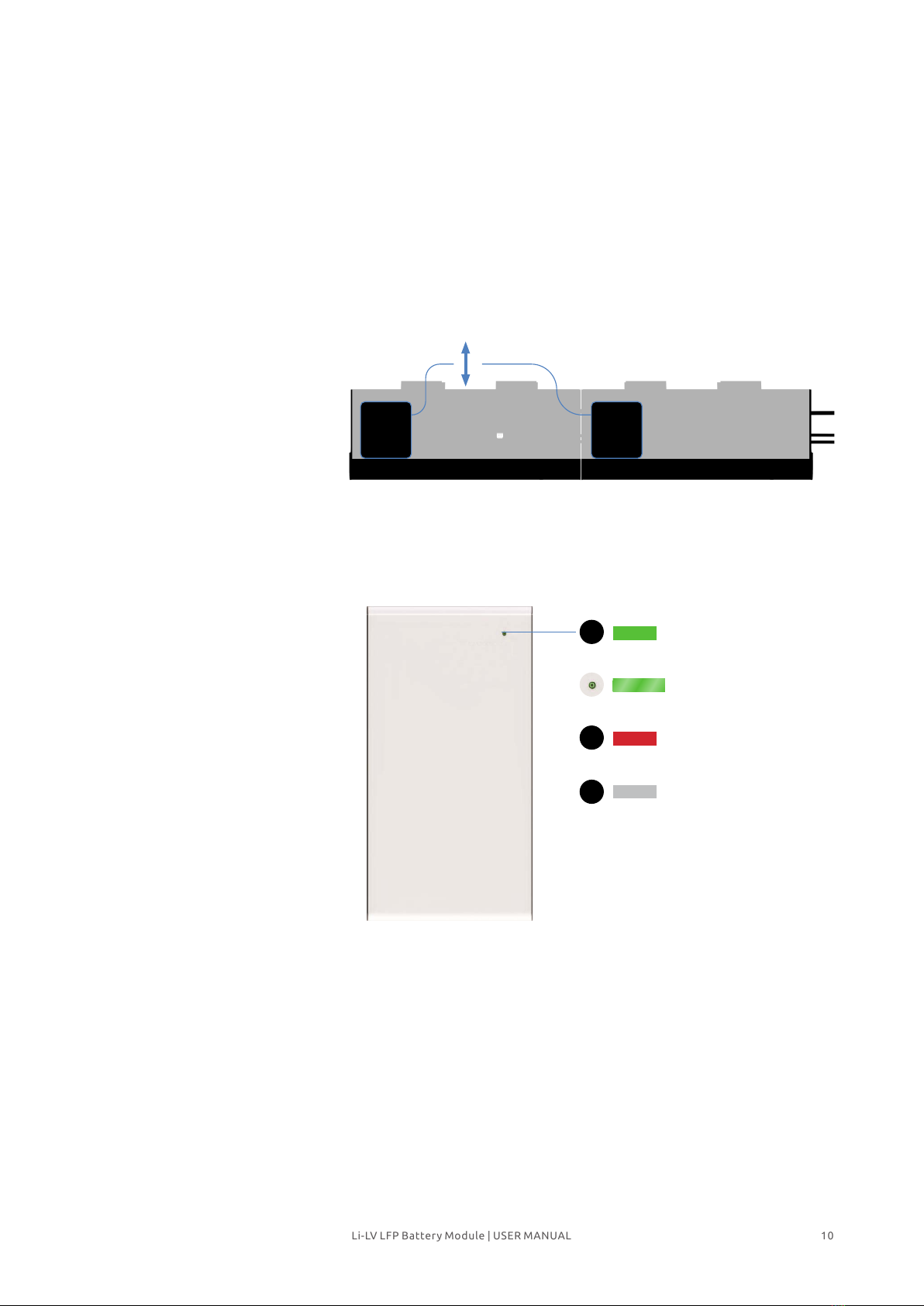

Step-3, Cables Connection and COM Resistor
Connect battery power cables and communication cables as the pictures shown
below.
Then please plug in the COM resistor to the last communication interface, which is
open.
Please noted that no matter one single battery installation or multi batteries
parallel connection, COM resistor is mandatory required to strength the CAN Bus
signal.
① ②
③ ⑤
⑩
⑥
④⑦
①
②
③
⑤
⑥
Grounding Point
⑦
⑧
COM Resistor
1.Plug in COM Resistor
2.Put on a protective cap
⑨
④
⑧⑨ ⑧

Start the Battery Array
Step-4, please pull on the DC Isolator
The indicator light is on, showing green, and the machine is on normally.
Green Normal, 30%<SOC<100%
Flashing Green
Normal, 10%<SOC<30%
Red
None
Alarm or Protection
Power Off or Sleep
Li-LV LFP Battery Module | USER MANUAL
10
ON
OFF

System Setting
During normal operation, if Li-LV LFP Battery Module are installed correctly, the
inverter and battery will start communication immediately, then begin to process
power commands. See the inverter manual for further configuration instructions.
Warning: Do not operate Li-LV LFP Battery Module unless all covers are in place.
Warning: Do not disconnect anything from or add anything to Li-LV LFP Battery
Module.
Caution: Do not try to communicate with Li-LV LFP Battery Module using third party
tools or diagnostics Li-LV LFP Battery Module and the inverter.
Caution: Do not lean on, stack anything on top of, or hang anything from Li-LV LFP
Battery Module or the conduit.
Keep the top edge of Li-LV LFP Battery Module clear of articles to maintain optimal
airflow.
To clean Li-LV LFP Battery Module, use a soft, lint-free cloth. The cloth can be
dampened with only water if needed. It should not be dripping.
Caution: Do not use cleaning solvents to clean Li-LV LFP Battery Module.
*Stromherz reserves the right to modify the technical datasheet and apperance of
the product in the user manual without prior advice to the users.
NORMAL OPERATION
LI-LV LFP BATTERY MODULE CARE
Li-LV LFP Battery Module | USER MANUAL
11
STROMHERZ SERVICE GLOBAL CONTACT
Adress: Nordex Holding LP,
272 Bath Street, Glasgow, Scotland, G2
4JR, Nordex
[email protected]
[phone]
