Strong SRT ANT 12 User manual

Active Indoor Antenna SRT ANT 12
User Manual

2
PART 1 l English
Table of Contents
1.0 Introduction 3
2.0 Package contents 3
3.0 Safety notes 4
4.0 Connecting the antenna 4
5.0 Installation of the antenna 6

3
PART 1 l English
1.0 Introduction
Thank you for purchasing the Strong SRT ANT 12 DVB-T Antenna. This antenna has been specially
designed to be used to receive digital terrestrial signals from the air. It can be connected to any Digital
Terrestrial Receiver (DVB-T), and is designed for Indoor use only.
This DVB-T Antenna is a “Active type” antenna, it has an build-in low noise amplifier that amplifies the
received signals for better performance.
We recommend you to carefully read this user manual before you install the antenna, this will help you
to get the best performance out of your antenna.
Specifications:
Frequency range: VHF 47 - 230 MHz, UHF 470 - 870 MHz
Gain: 20 dB ± 3 dB for VHF and UHF
RF Output Impedance: 75 Ohm
Power Supply - 2 powering methods: 5 V DC 40 mA via ANTENNA connector of the digital
terrestrial receiver or
9 V DC 100 mA via External 230 V AC to DC adapter
Special Features: n Built-in Low Noise Amplifier technology
n High Directionality: optimised pointing to the transmitter
and reduced pick-up of disturbing signals
2.0 Package contents
1. SRT ANT 12 – Active DVB-T Indoor Antenna
2. Standing unit – for horizontal / vertical installation mechanism
3. Coaxial Cable - 2 meter
4. Adaptor
5. User Manual

4
PART 1 l English
Main unit Stand Coaxial Cable Adaptor
3.0 Safety notes
n Use only originally supplied accessories
n Before you make any connections: disconnect your equipment from the 230 V main power
to avoid electrical shocks during installation
n Short Circuit in the coaxial cable MAY permanently damage your Digital Receiver
n Never install the Antenna outside your house or in humid rooms such as bathrooms
n Never use AC Adaptors with wrong specifications, this MAY permanently damage your
antenna or Digital Receiver. Always check voltages and polarisation of the adaptor before
connecting it

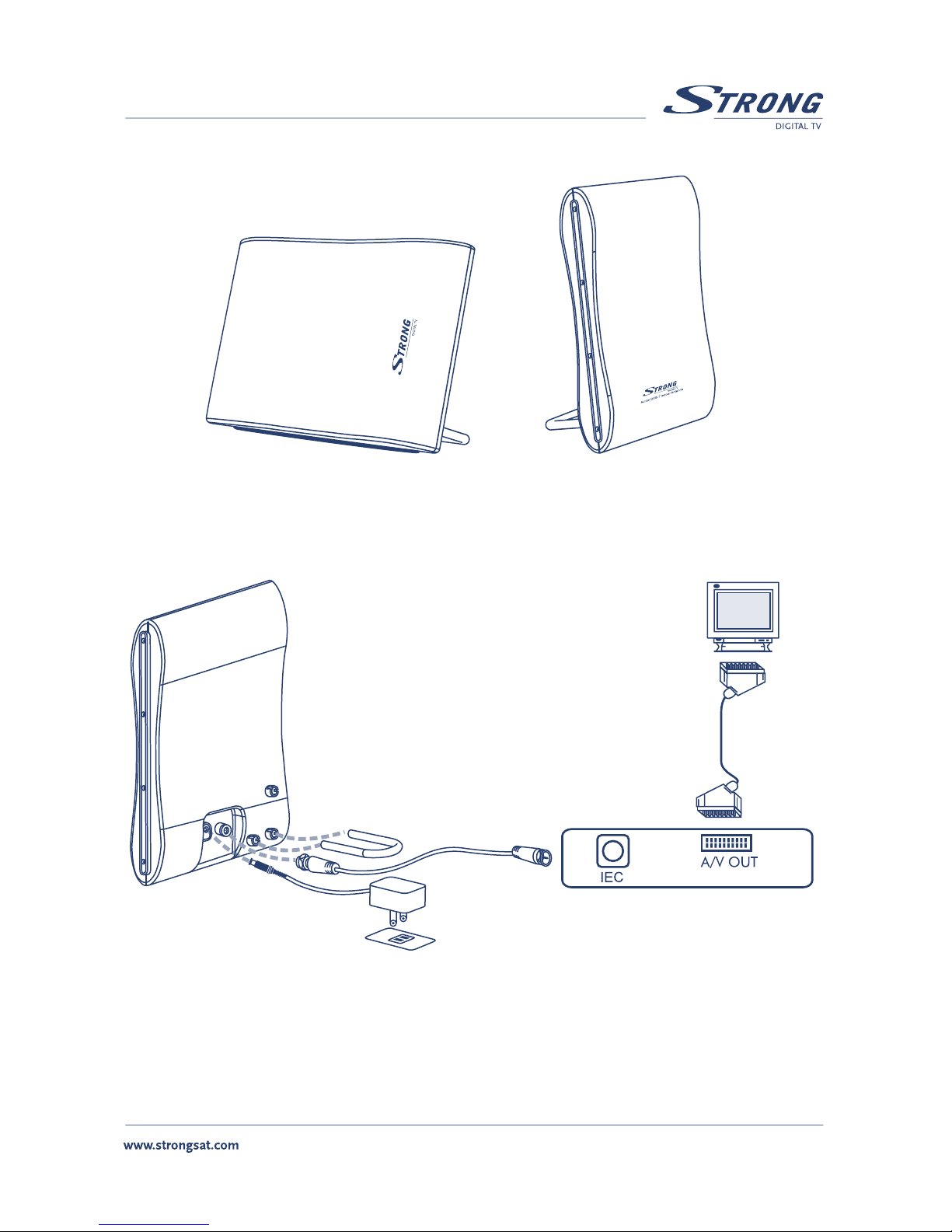

4.0 Connecting the antenna
n Check if the broadcast in your country is Horizontal or Vertical polarized
n Click the Antenna in the plastic holder as shown in the pictures
n Disconnect your Digital Receiver from the 230 V main power
n Connect the supplied coaxial cable to the antenna: carefully press the inner lead of the cable
into the Female-F connector at the back of the antenna. Turn the covering nut clockwise with
your HANDS until it is fixed
n Connect the other side of the coaxial cable to your Digital Terrestrial Receiver. Normally the
input connector on your receiver is marked as “ANT” (in) or as “RF”(in). Refer to the
User Manual of your Digital Terrestrial Receiver
n Connect your Digital Receiver to the 230 V main power

5
PART 1 l English
(H-Broadcast) antenna mounted H (V-Broadcast) antenna mounted V (Upright)
Rear View
230 V wall outlet
AC/DC Adaptor (DC in 9 V)
Standing (Vertical)
Coaxial Cable
Digital TV
Scart Cable
Digital Set Top Box (DVB-T)

6
PART 1 l English
5.0 Installation of the antenna
A. To power the antenna with Digital Terrestrial Receiver
1. Turn on your TV set and turn on your Digital Terrestrial Receiver.
2. Press the “MENU” button on the remote control of your Digital Terrestrial Receiver. Check in the
Set-Up or Installation Menu of your Receiver if the antenna power is set to “ON”. (Normally this is
indicated in the menu as ANT power, Ext Antenna power or Active antenna power).
Refer to the User Manual of your Digital Terrestrial Receiver.
3. Select in the Menu of your receiver the field that shows you the signal level indicators. (Normally you
can find the signal meter in the Channel Scan field of the menu).
4. Now optimise the signal strength by finding the best position for the antenna. Keep the antenna in
your hand and try to reach the highest possible position. Now slowly turn the antenna around it’s
axis (in the horizontal field), at the same time monitor the signal bars in the menu, once the signal
indicator shows the maximum signal, fix the antenna on that position.
5. It is important to place the antenna in such way that an acceptable signal level is assured. You can
optimise the signal strength by moving the antenna to different locations in your room, for example
place it near a window, or place it on a high placed book-shelf. The best position can be found by
trying different locations.
Note: It is recommended NOT to place the antenna near to:
n Devices that are strong source of radiation or interference such as DECT and GSM
telephones, Transmitters, Microwaves, etc.
n Devices with high power consumption such as Electrical Heater, Air conditioner,
Hairdryers, etc.
B. To power the antenna with extra power adaptor
1. Use this installation if your Digital Terrestrial Receiver does not support active antenna.
2. Connect supplied power adaptor to “DC IN” connector on the back of antenna.
3. Proceed with positioning of antenna as described above in section A (points 3, 4, 5).
Note: The antenna will not function properly if the build-in amplifier is not powered. Therefore it is
required to supply the antenna with power via the coaxial cable or via a external adapter.

7
PART 1 l English
Extension of the coaxial cable:
In some cases you may need to extend the standard supplied coaxial cable, we advise you to only do
this if you can not get a optimal signal strength within the reach of the standard cable. If you are to
extend the coaxial cable, then please note following comments:
n Use a good quality coaxial cable, 75 Ohm type only with proper shielding
n Use well shielded connectors, your dealer can advise you on this
n Make sure that both inner cable and shielding are properly connected to the connectors to
assure active antenna power supply and to avoid short circuit in the cable
If you extend the cable, please keep the cable as short as strictly needed. Extending the cable or using bad
quality cable will reduce the performance of your antenna.

Environmental Issues
Strong is committed to reducing the impact of its products on the environment.
To maximise the benefits of our design enhancements, your co-operation is required.
Electronic product recycling
Do not dispose of this product with
your domestic rubbish
At the end of its useful life, this
product contains materials which when
prcessed correctly can be recovered
and recycled. By participating in the
responsible recycling of this product
you will be reducing the requirement
for new raw materials and reducing the
amount of material that would
otherwise end up in landfill.
When you purchase a new, similar
product your retailer may offer to take
this old one off you. Alternatively,
you can take it to your local recycling
centre. Your retailer or local municipal
authority will advise you of the
collection facilities available for waste
electronically products in your area.
User of this service will be free to you.
Within the scope of the European
legislation on Waste Electrical and
Electronic Equipment (Directive
2002/96/EC valid as of August 2005)
STRONG provides a recycling system
free of charge for consumers to return-
ing products after end of life.
For more information about STRONG’s
environmental policy to you:
www.strongsat.com - select “About us”
and “Environmental Policy” from
the submenu.
