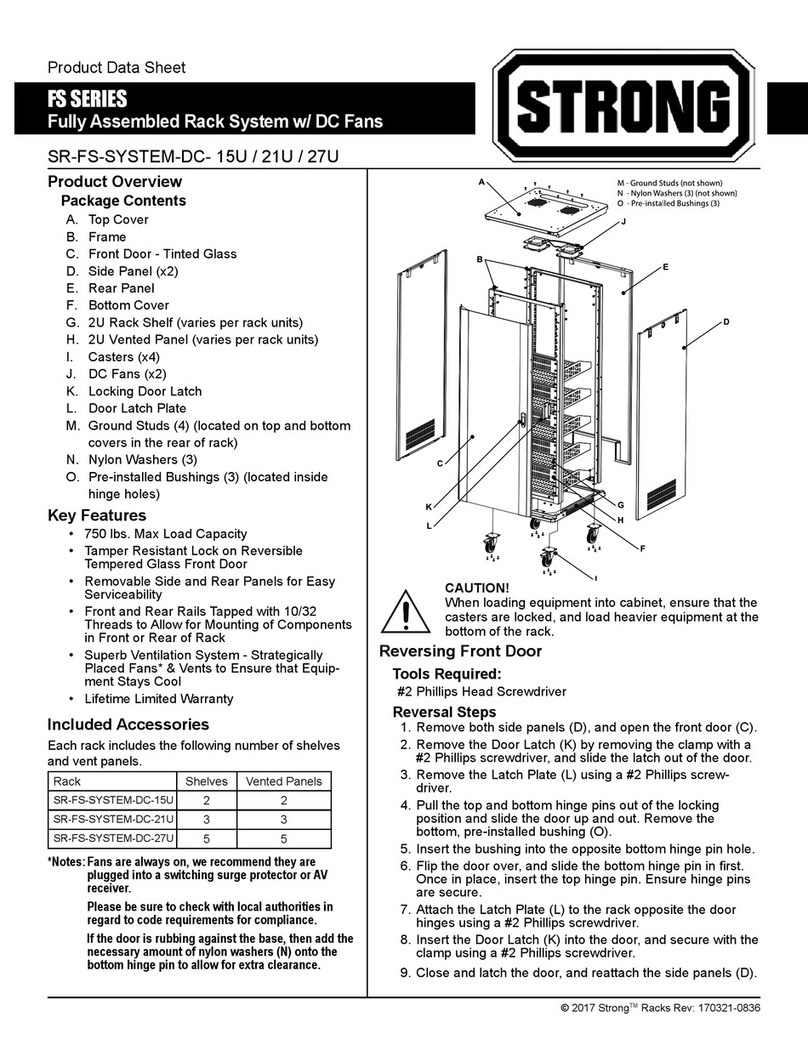

Strong FS Series Operational manual

Product Data Sheet
© 2014 StrongTM Racks Rev: 140721-1700
FS SERIES
Fully Assembled Rack System w/ Integrated Cooling
SR-FS-SYSTEM-42U
Product Overview
Package Contents
A Top Cover
B Welded Frame
C Front Door - Tinted Glass
D Side Panel (x2)
E Rear Panel
F Bottom Cover
G 2U Rack Shelf (x8)
H 2U Vented Panel (x8)
I Low-ProleFine-FloorCasters(x4)
J AC Fans (x2)
K Locking Door Latch
L Door Latch Plate
M Ground Studs (x4) (located on top and
bottom covers in the rear of rack)
N Nylon Washers (x3)
O Pre-installed Bushings (x3)
Key Features
• 1000 lbs. max load capacity
• Tamper resistant lock on reversible tempered
glass front door
• Removable side and rear panels for easy
serviceability
• Front and rear rails tapped with 10/32
threads to allow for mounting of components
in front or rear of rack
• Superb ventilation system - Strategically
placed fans* & vents to ensure that
equipment stays cool
• Lowprole,neoor,lockingcasters
• Fits through a standard doorway even with
the casters on
• Lifetime limited warranty
*Notes: Fans are always on, we recommend they
are plugged into a switching surge
protector or AV receiver.
Please be sure to check with local
authorities in regard to code
requirements for compliance.
If the door is rubbing against the base,
then add the necessary amount of nylon
washers (N) onto the bottom hinge pin
to allow for extra clearance.
CAUTION!
Whenloadingequipmentintocabinet,ensurethat
thecastersarelocked,andloadheavierequipment
at the bottom of the rack.
Reversing Front Door
Tools Required:
#2 Phillips Head Screwdriver
Reversal Steps
1. Removebothsidepanels(D),andopenthefrontdoor(C).
2. Remove the Door Latch (K) by removing the clamp with a
#2Phillipsscrewdriver,andslidethelatchoutofthedoor.
3. Remove the Latch Plate (L) using a #2 Phillips screwdriver.
4. Pull the top and bottom hinge pins out of the locking
position and slide the door up and out. Remove the
bottom,pre-installedbushing(O).
5. Insert the bushing into the opposite bottom hinge pin hole.
6. Flipthedoorover,alignthebottomhingepinoverthe
grommet,andslideintoplace.Repeatforthetophingepin.
7. Attach the Latch Plate (L) to the rack opposite the door
hinges using a #2 Phillips screwdriver.
8. InserttheDoorLatch(K)intothedoor,andsecurewiththe
clamp using a #2 Phillips screwdriver.
9. Closeandlatchthedoor,andreattachthesidepanels(D).
B
A
C
D
E
F
G
H
I
J
K
L
M - Ground Studs (not shown)
N - Nylon Washers (3) (not shown)
O - Pre-installed Bushings (3)

Product Data Sheet
© 2014 StrongTM Racks Rev: 140721-1700
FS SERIES
Fully Assembled Rack System w/ Integrated Cooling
Lifetime Limited Warranty
All StrongTM products have a Lifetime Limited Waranty. This warranty includes parts and labor repairs on all
components found to be defective in material or workmanship under normal conditions of use. This warranty
shallnotapplytoproductsthathavebeenabused,modied,ordisassembled.Productstoberepairedunderthis
warrantymustbereturnedtoSnapAVoradesignatedservicecenterwithpriornoticationandanassignedreturn
authorization number (RA).
For Technical Support: 1.866.838.5052
Lifetime
2
year
SR-FS-SYSTEM-42U
Product A-Racking Height B-Height (Overall) C-Height (With Casters) D-Width (Overall) E-Depth (Overall) F-Usable Depth G-Depth (Door Open)
SR-FS-SYSTEM-42U 42U 76.8 79.7 21.12” 23.14” 18.25” 43.2”
Dimensions
A
F
B C
E
D
G
See Detail A
Detail A
.75 in.
12.3 in.
4.7 in.
Front Side
Top
Back
