Strong SRT L 2750 User manual

(QJOLVK
- 1 -
Contents
Remote Control Buttons ......................... 2
TFT TV ...................................................... 3
Installation Of The TFT TV To The
Wall (optional) ...................................... 5
Preparation ............................................. 7
Features ............................................... 7
Panel Features .................................... 7
Safety Precautions ................................. 7
Before Switching n Your TV ................ 9
Power Connection ...............................
Connections To The RF Input Socket ..
How To Connect Other Devices ...........
Inserting Batteries In The Remote
Control Handset ...................................
Switching The TV N/ FF ...................... 9
To switch the TV on: .............................
To switch the TV off: ..............................
perating The TV .................................. 10
Initial APS (Automatic Programming
System) .............................................. 10
Operating with the buttons on the
TV set ................................................. 10
Operating With Remote Control ........ 10
picture menu ...................................... 11
When VGA Or DVI Is Connected To TV: 12
window menu..................................... 12
When VGA Or DVI Is Connected To TV: 13
audio menu ........................................ 13
options menu ..................................... 14
settings menu .................................... 15
aps menu ........................................... 15
program table ..................................... 15
programming menu ........................... 17
source select ..................................... 18
ther Features ...................................... 18
TV Status ............................................ 18
Freeze Picture .................................... 18
Sound Indicator .................................. 18
Mute Indicator ..................................... 1
AV Modes ............................................ 1
Teletext .................................................. 19
To Operate Teletext ............................ 1
To Select A Page Of Teletext ............... 1
To Select Index Page ......................... 20
To Select Teletext With A TV
Programme ........................................ 20
To Select Double Height Text ............. 20
To Reveal Concealed Information ... 20
To Stop Automatic Page Change ....... 20
To Select A Subcode Page ................. 20
To Exit Teletext .................................... 20
To Display The Time .......................... 20
Fastext ................................................ 20
Connect Peripheral Equipment ........... 21
Via The Euroconnector ...................... 21
Via Ant Input ........................................ 21
Decoder .............................................. 21
TV And Video Recorder ...................... 21
Playback NTSC .................................. 21
Copy Facility ....................................... 21
Antenna Connections ........................... 22
Search For And Store The Test Signal
Of The Video Recorder ...................... 23
Camera And Camcorder .................... 23
Connect The Decoder To The Video
Recorder ............................................ 23
Connecting Headphones .................. 23
Tips ........................................................ 23
Care Of The Screen ........................... 23
Poor Picture ........................................ 23
No Picture ........................................... 23
Sound ................................................. 24
Remote Control .................................. 24
Specifications ....................................... 24
01-ENG-2707W-1546 UK-27 INCH TFT-(CHI MEI)(YENI SW)(10 PAGE)(WO PIP)-50060371.p65 27.01.2005, 15:231

(QJOLVK
- 2 -
Remote Control Buttons
= Stand By
= Cursor Up
= Cursor Right
K = Okay / Freeze
0 - 9 = Direct Program
= Image size
SWAP = Program / Source swap
P/CH + = Programme Up
+ = Volume Up
= TV / Quit Menu
S URCE = Source select
YELLOW
BLUE
= Hold
= Update
= Index Page
= Reveal
= Expand
= Mix / Zoom-Pan
= Teletext
= Time / Subpage
RED
GREEN
= Mute
I-II = Mono/Stereo - Dual A-B
- = Volume Down
- P/CH = Programme Down
=Previous Programme
= Info (Program Table)
M = Menu

= Cursor Down

= Cursor Left
79
2.
,,,
6285&(
01-ENG-2707W-1546 UK-27 INCH TFT-(CHI MEI)(YENI SW)(10 PAGE)(WO PIP)-50060371.p65 27.01.2005, 15:232

- 3 -
(QJOLVK

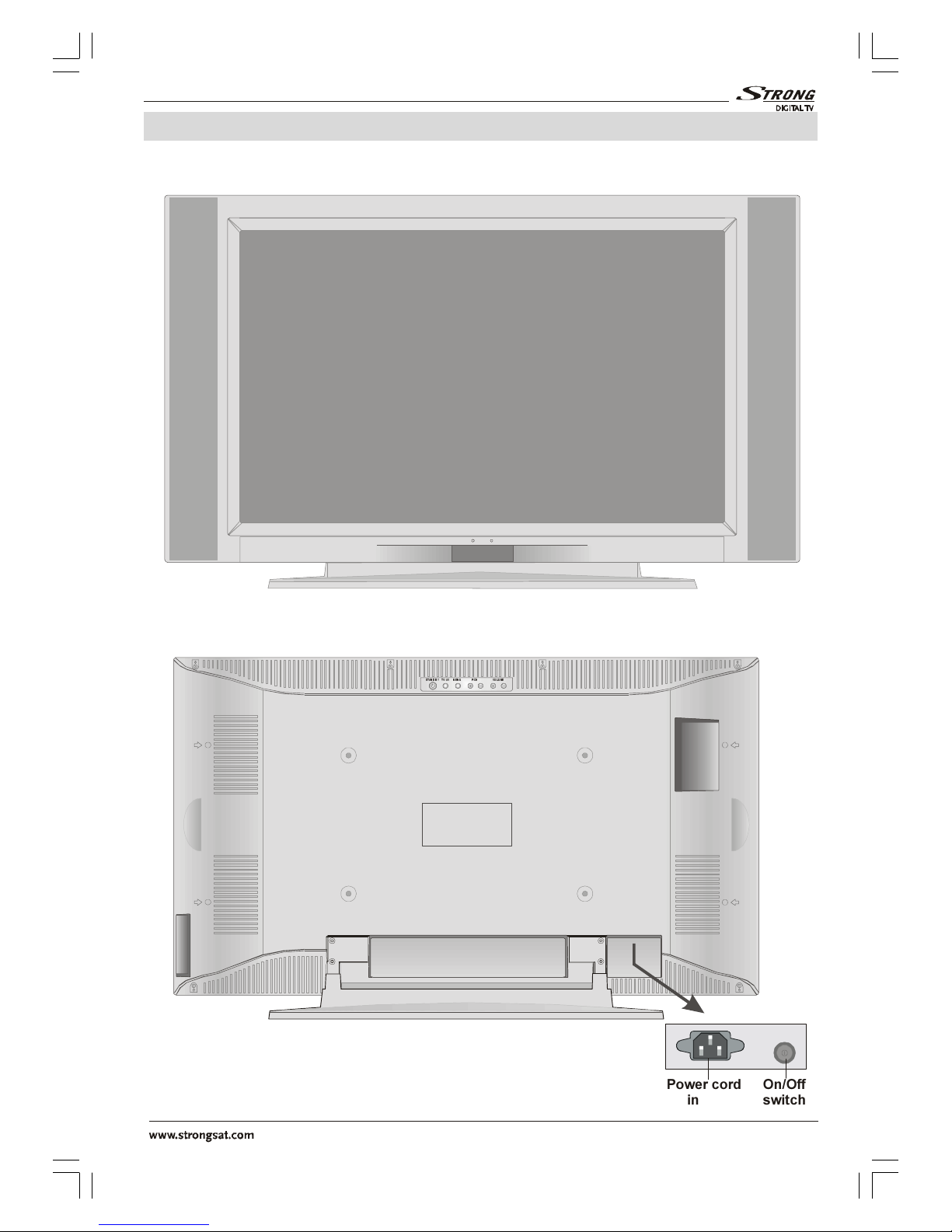

TFT TV
FRONT VIEW
REAR VIEW
67$1'%< 79$9 0(18 3&+ 92/80(
2Q2II
VZLWFK
3RZHUFRUG
LQSXW
01-ENG-2707W-1546 UK-27 INCH TFT-(CHI MEI)(YENI SW)(10 PAGE)(WO PIP)-50060371.p65 27.01.2005, 15:233

(QJOLVK

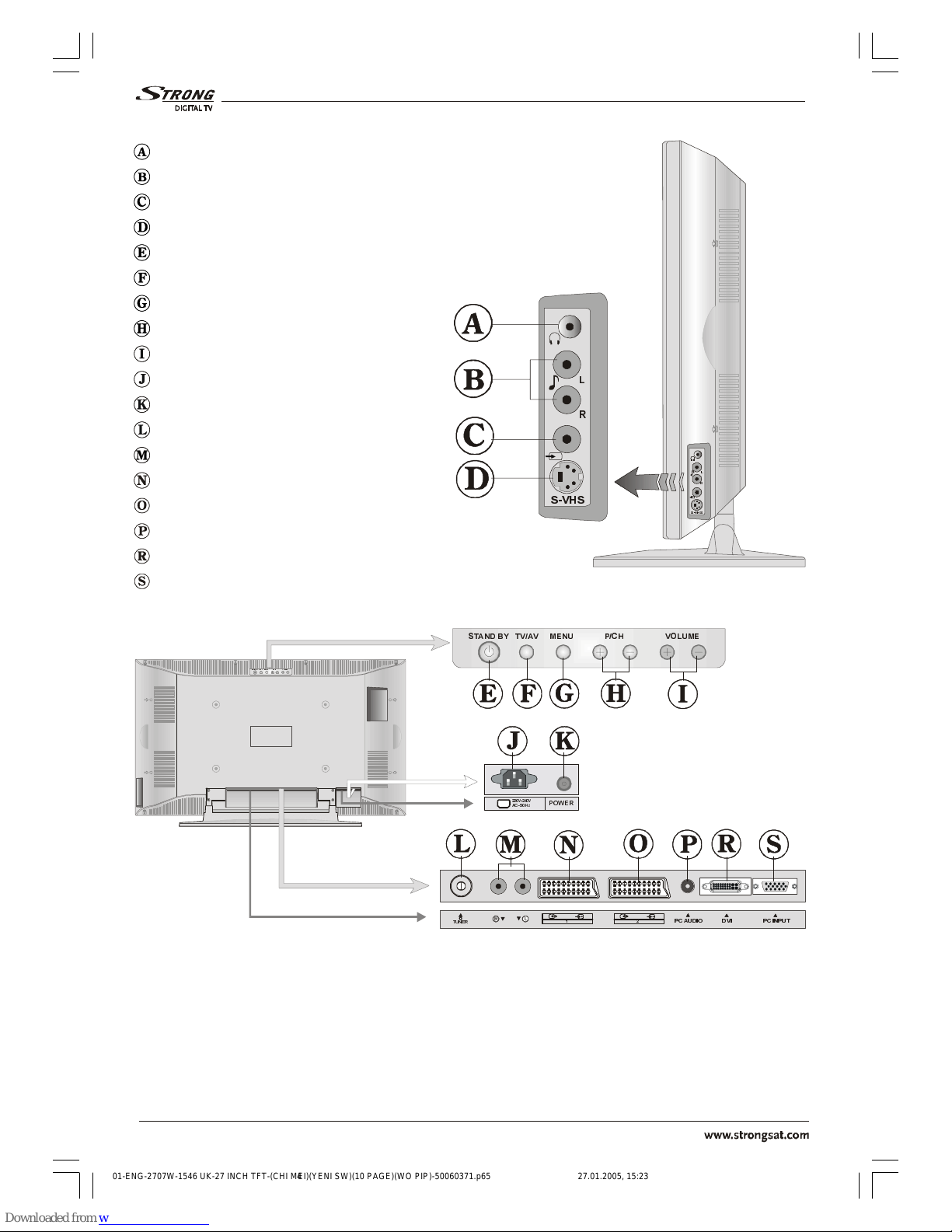

- 4 -
Headphone
Audio Input (Left, Right)
Video Input
S-VHS Input
STAND BY button
TV/AV button
MENU button
Program Up, Program Down buttons
Volume Up, Volume Down buttons
Power cord input
On/Off switch
Antenna
Audio Line Out L, R
Scart 1
Scart 2
Audio In (for VGA and DVI source)
DVI Input
VGA Input
} Full Scart
69+6
69+6
/
/
5
5
67$1'%< 79$9 0(18 3&+ 9 2/80 (
67$1'%<
781(5
'9,3&$8',2 3&,1387

79$9 0(18 3&+ 92/80(
99
$&a+]
32:(5
01-ENG-2707W-1546 UK-27 INCH TFT-(CHI MEI)(YENI SW)(10 PAGE)(WO PIP)-50060371.p65 27.01.2005, 15:234

- 5 -
(QJOLVK
Installation Of The TFT TV To The Wall (optional)

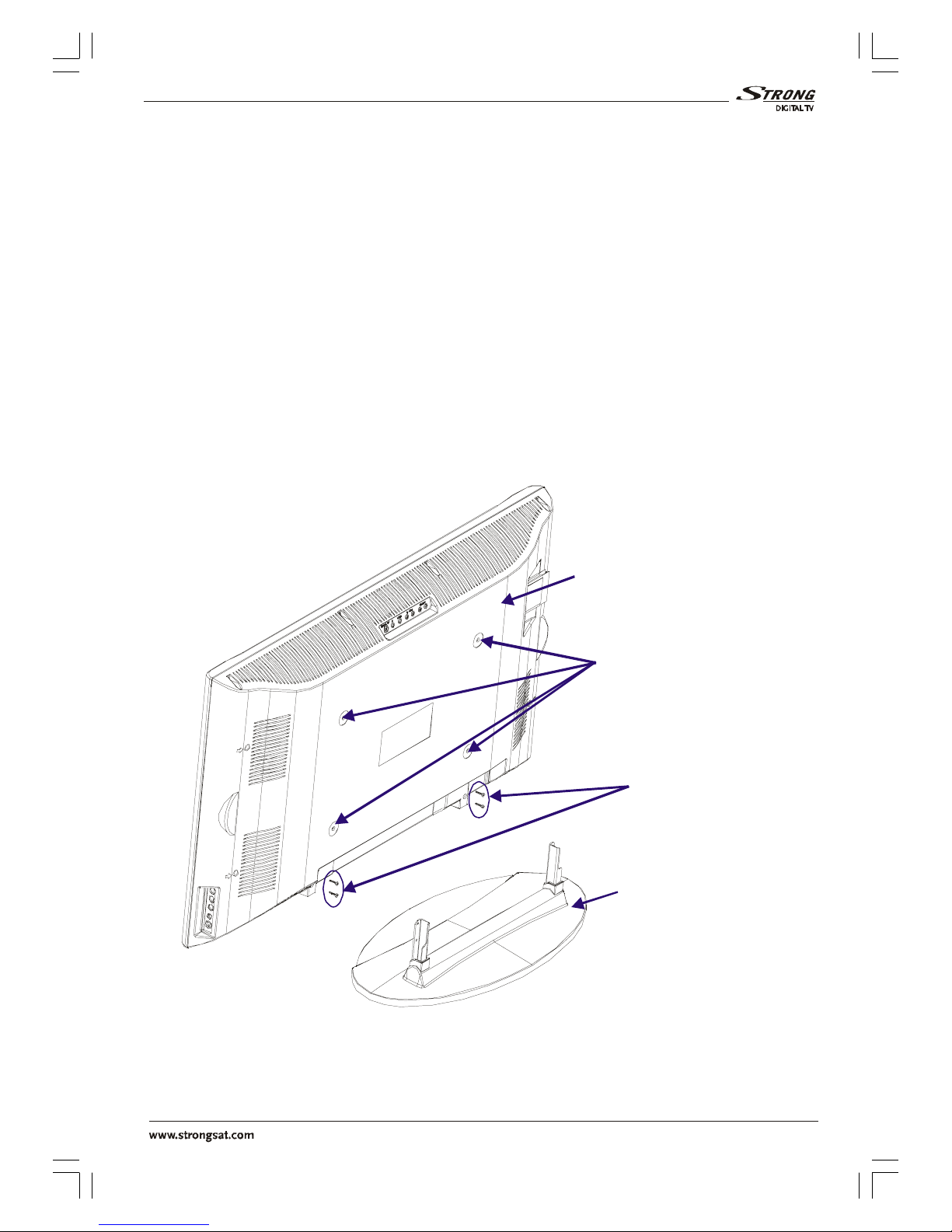

1- To install the TFT TV on the wall, first of all, foot assembly should be removed. (Figure 1).
Unscrew the 4 screws (M4 x 6) that attach the foot assembly to the TFT panel and remove
the foot assembly from the TFT panel.
2- Place the 4 plastic pins to the circular screw holes at the rear of the TFT and screw them to
the TFT panel with 4 (M6 x 20) screws.
3- Install the wall hanger as in figure 2 to the wall with 4 anchors (M7 x 30) and 4 screws (M4
x 30).
Decide the place on the wall where the TFT panel would be placed. Level and mark with a
pencil the 4 mounting points on the wall hanger. Drill pilot holes for the plastic anchors and
then fix the wall hanger with 4 screws (M4 x 30).
4- Raise the TFT panel and hang it to the holes on the wall hanger from the 4 hanging
screws at the rear of the TFT panel.
),*85(
)227$66(0%/<
7)73$1(/
6&5(:6
0;
6&5(:+2/(6
)253/$67,&3,16
01-ENG-2707W-1546 UK-27 INCH TFT-(CHI MEI)(YENI SW)(10 PAGE)(WO PIP)-50060371.p65 27.01.2005, 15:235

(QJOLVK
- 6 -
),*85(
:$//+$1*(5
3/$67,&$1&+25
0[
7)73$1(/
6&5(:
0[
:$//
6&5(:+2/(6)253/$67,&3,16
:$//+$1*(5
PP
PP
3/$67,&3,16
6&5(:6
0[
(optional)
01-ENG-2707W-1546 UK-27 INCH TFT-(CHI MEI)(YENI SW)(10 PAGE)(WO PIP)-50060371.p65 27.01.2005, 15:236

(QJOLVK
- 7 -
Preparation

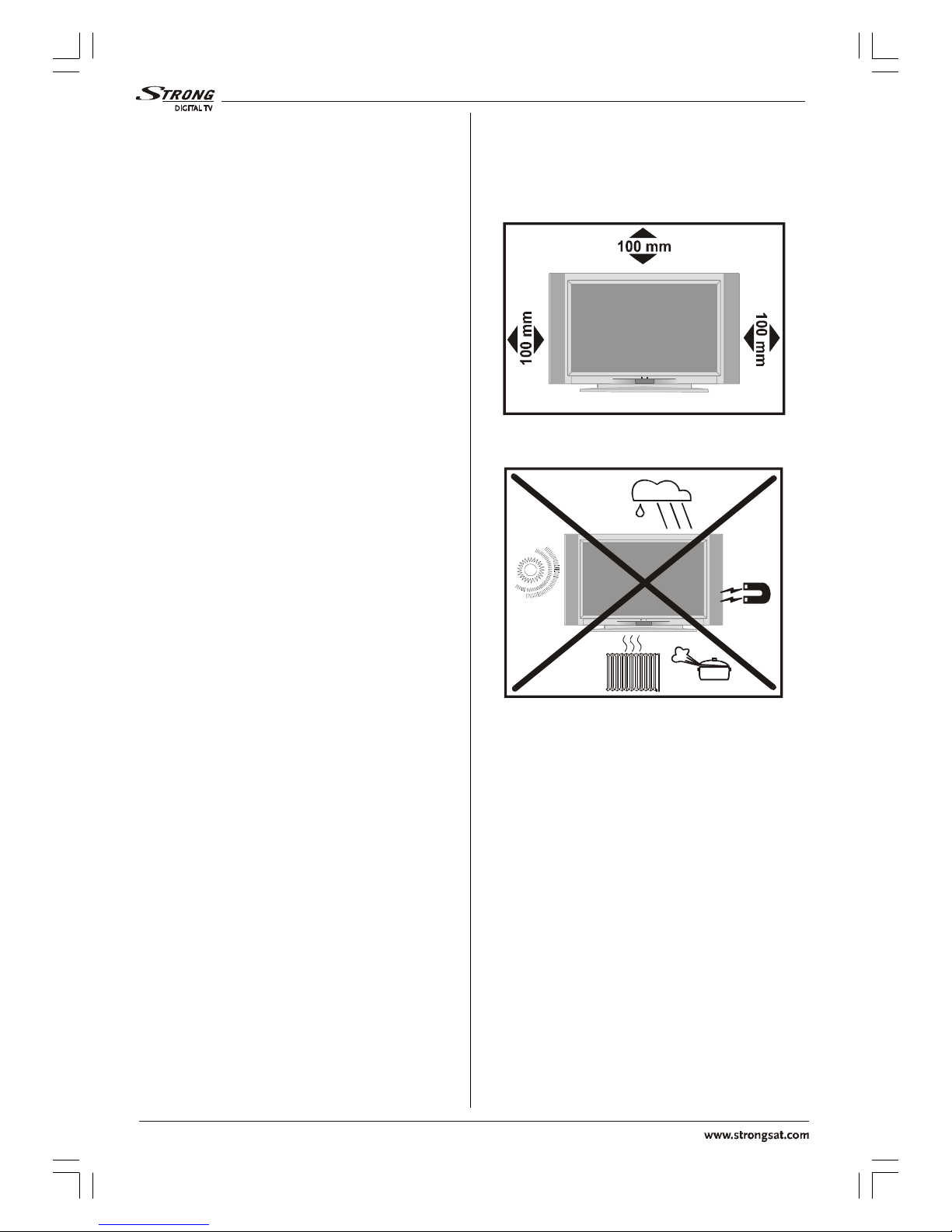

For ventilation, leave a space of at least 10
cm free all around the set. To prevent any
fault and unsafe situations, please do not
place any objects on top of the set.
Use this apparatus in tropical and/or moder-
ate climates.
Features
 It is a remote controlled color television.
 100 programmes from VHF, UHF bands or
cable channels can be preset.
 It can tune cable channels.
 Controlling the TV is very easy by its menu
driven system.
 It has 2 Euroconnector sockets for external
devices (such as video, video games, au-
dio set, etc.)
 Stereo sound system (German+Nicam).
 Full function Teletext .
Fastext (10 Pages), TOP text.
 It is possible to connect headphone.
 Direct channel access.
 A.P.S. (Automatic Programming System).
 All programmes can be named.
 Programme swapping between last
watched two programmes.
 Forward or backward automatic tuning.
 Sleep timer.
 Automatic sound mute when no transmis-
sion.
 Letterbox, 14: , fill all (16: ), normal (4:3),
Auto switch WSS (Wide Screen Signaling).
 NTSC Playback.
 Front SVHS is available.
 Front AV in is available.
 It has VGA and DVI connector for external
devices such as computer.
 AVL (Automatic Volume Limiting)
 When no valid signal is detected, after 5
minutes the TV switches itself automatically
to stand-by mode.
 PLL (Channel Search)
 PC input (Support Up to WXGA 1280 x 720)
 1 SVHS Input and 1 RCA AV Input are avail-
able.
 Headphone output.
 Stereo PC Audio Input
 Plug&Play for Windows X, ME, 2000, XP
 4H Comb Filter
 Audio Line Out
Panel Features
 High resolution, 27-inch TFT LCD display.
 WXGA resolution (1280 x 720)
 Contrast ratio (600:1 typical)
 Brightness (typical) 550 cd/m2.
 Response time (typical) 16 msec.
 Viewing angle (typical) 170° (horizontal) and
170° (vertical).
 Display color 16.7 Million.
Safety Precautions
1. Power Source
The receiver should be operated only from a
220-240V AC, 50 Hz. outlet. Ensure you se-
lect the correct voltage setting for your conve-
nience.
2. Power Cord
The power supply cord should be placed so
that it is not likely to be walked on or pinched
by items placed upon them or against it. Pay
particular attention to cord where it enters
the plug, power outlet, and the point where it
exits from the receiver.
. Moisture and Water
Do not use this equipment in a humid and
damp place (avoid the bathroom, the sink in
the kitchen, and near the washing machine).
Do not expose this equipment to rain or wa-
ter, as this may be dangerous and do not
place objects filled with liquids on top. Avoid
from dripping or splashing.
01-ENG-2707W-1546 UK-27 INCH TFT-(CHI MEI)(YENI SW)(10 PAGE)(WO PIP)-50060371.p65 27.01.2005, 15:237

(QJOLVK
- 8 -
"The LCD panel is very high technology
product with about a million thin film tran-
sistors, giving you fine picture details. c-
casionally, a few non-active pixels may ap-
pear on the screen as a fixed point of blue,
green or red. Please note that this does
not affect the performance of your prod-
uct."
D N T LEAVE Y UR TV AT STAND-BY
R PERATING WHEN Y U LEAVE Y UR
H USE
4. Cleaning
Before cleaning, unplug the receiver from
the main supply, outlet. Do not use liquid or
aerosol cleaners. Use soft and dry cloth.
5. Ventilation
The slots and openings on the receiver are
intended for ventilation and to ensure reli-
able operation. To prevent overheating,
these openings must not be blocked or cov-
ered in anyway.
6. Lightning
In case of storm and lightning or when go-
ing on holiday, disconnect the power cord
from the wall outlet.
7. Replacement Part
When replacement parts are required, be sure
the service technician has used replacement
parts which are specified by the manufacturer
or have the same specifications as the origi-
nal one. Unauthorised substitutions may re-
sult in fire, electrical shock, or other hazards.
8. Servicing
Please refer all servicing to qualified per-
sonnel. Do not remove cover as this may re-
sult in electric shock.
9. Naked Flame Sources
Do not place naked flame sources on the
apparatus.
WARNING: When the device is not in use
for a long time, disconnect from power.
Instructions for waste disposal:
 Packaging and packaging aids are recy-
clable and should principally be recycled.
Packaging materials, such as foil bag, must
be kept away from children.
 Battery, including those which is heavy
metal-free, should not be disposed of with
household waste. Please dispose of used
battery in an environmentally sound man-
ner. Find out about the legal regulations
which apply in your area.
 old cathode fluoresant lamp in L D PANEL
contains a small amount of mercury, please
follow local ordinates or regulations for dis-
posal.
01-ENG-2707W-1546 UK-27 INCH TFT-(CHI MEI)(YENI SW)(10 PAGE)(WO PIP)-50060371.p65 27.01.2005, 15:238

(QJOLVK
- -
Before Switching On Your TV
Power Connection
IMP RTANT: The TV set is designed to op-
erate on 220-240V AC, 50 Hz.
 After unpacking, allow the TV set to reach the
ambient room temperature before you con-
nect the set to the mains.

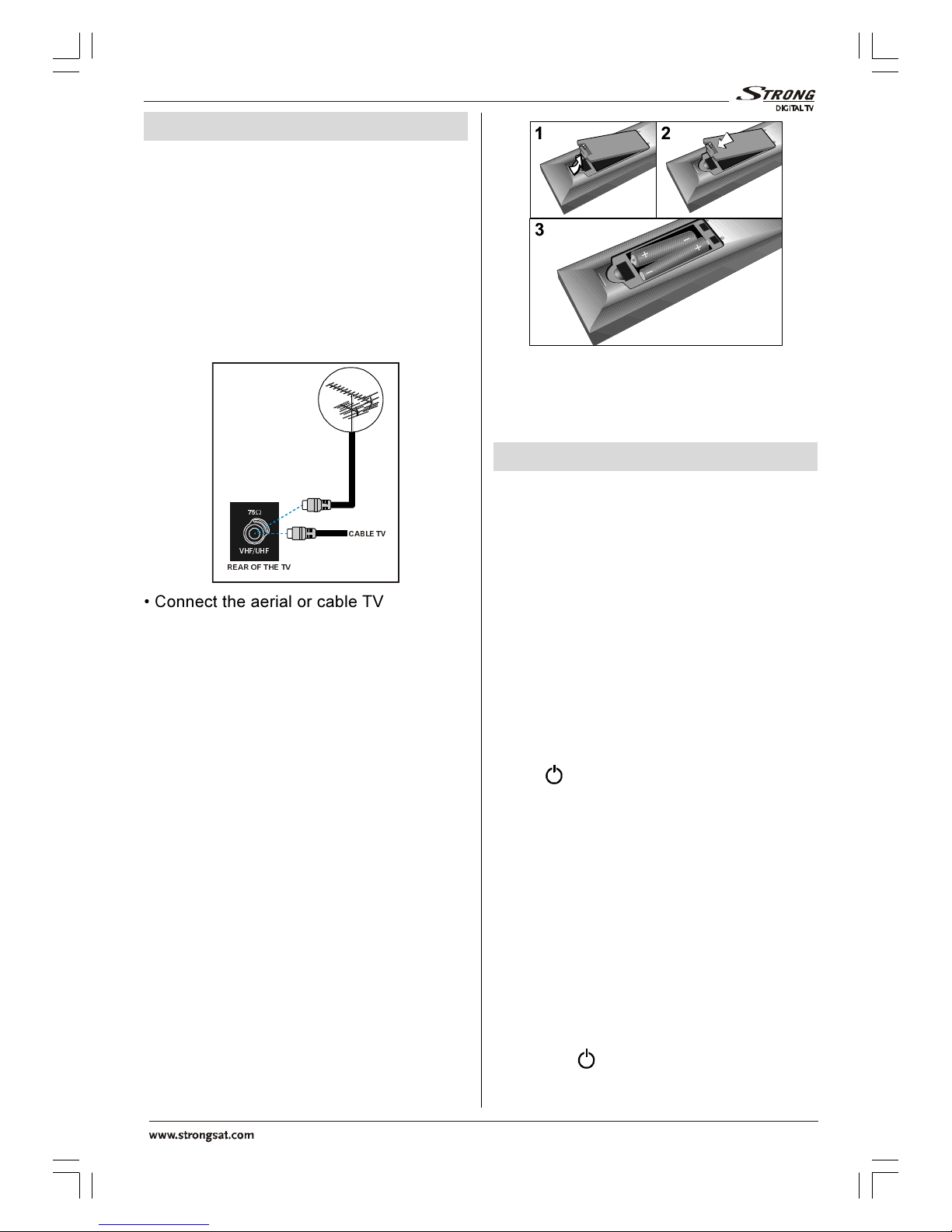

Connections To The RF Input
Socket
9+)8+)
 :
5($52)7+(79
&$%/(79
 Connect the aerial or cable TV plug to the
RF input socket located at the back of the TV
and connect the cable plug coming out from
the TV out socket located at the devices
(VCR, DVB etc.) to this socket as well.
How To Connect Other Devices
IMP RTANT: Switch off the TV before con-
necting any external device.
Sockets for external connections are at the
back and side of the TV (optional). For con-
nection of other devices via Euroconnector
refer to the manuals of the related devices.
Inserting Batteries In The Remote
Control Handset
 Place the batteries in the right directions as
seen below.
 Remove the battery cover located on the
back of the handset by gently pulling up-
wards from the indicated part.
 Insert two MN2400 AAA or equivalent type
batteries inside.
 Replace the battery cover.
NOTE: Remove batteries from remote con-
trol handset when it is not to be used for a
long period.Otherwise it can be damaged
due to any leakage of batteries.
Switching The TV ON/OFF
To switch the TV on:
Your TV will switch on in two steps:
1- Connect the power supply cord to the sys-
tem. Press On/Off switch at the rear of the
TV. Then the TV switches itself to stand-by
mode and the led becomes red located on
the front of the TV.
2- To switch on the TV from stand-by mode
either:
Press a digit button on the remote control so
that a programme number is selected,
or,
Press  , "-P/CH" or "P/CH+" button at the
top of the TV or press -P/CH or P/CH+
button on the remote control, so that last
switched off programme is selected.
By either ways the TV will switch on and the
led becomes green.
To switch the TV off:
 Press the stand-by button on the remote
control, so the TV will switch to stand-by
mode and the GREEN LED will become
RED,
or,
Press the   button located on the top of
the TV, so the TV will switch off and the
GREEN LED will become RED.
01-ENG-2707W-1546 UK-27 INCH TFT-(CHI MEI)(YENI SW)(10 PAGE)(WO PIP)-50060371.p65 27.01.2005, 15:239

(QJOLVK
- 10 -
To power down the TV completely, press
On/Off switch,
or
unplug the power cord from the mains
socket.
Operating The TV
You can operate your TV both using the re-
mote control handset and onset buttons.
Initial APS (Automatic Programming
System)
The following menu will be displayed on the
screen when you turn on your TV for the first
time. APS, searches and sorts all channels
and stores them automatically on your TV,
according to the transmission of
programme systems in your area.
LQLWLDODSV
*HUPDQ\
RN!WRHQDEOH
SOHDVHFKHFNWKHDQWHQQDFDEOH
79!WRFDQFHO
ULJKWOHIWWRFKDQJHODQJXDJH
ODQJXDJH
FRXQWU\
DXWRVHW
HQJOLVK
To cancel APS before starting, press TV
button. First of all choose language and
country by using   /   and   /   but-
tons. This, will effect the sort process in
APS. To start aps select autoset, by using
 /   buttons and press   /   or  K
button.
FKDQQHOVHDUFKLQJ
SOHDVHZDLWRU
SUHVVPHQXWRFDQFHO
After APS is finalized, the programme table
will be appeared on the screen. In the
programme table you will see the
programme numbers and names assigned
to the programmes.
If you do not accept the locations and / or the
programme names of programmes, you
can change them in aps submenu in the
settings menu. (See page 15 for Program
table explanation.)
Operating with the buttons on the
TV set
Volume setting and programme selection
can be made by using the buttons at the
control panel on the top of the TV.
Volume Setting
Press "V LUME -" button to decrease vol-
ume or "V LUME +" button to increase vol-
ume, so a volume level scale (slider) will be
displayed at the middle of the bottom on the
screen.
YROXPH
PHQXWRUHWXUQ ULJKWOHIWWRDGMXVW
Programme Selecting
Press "P/CH+" button to select the next
programme or "PCH-" button to select the
previous programme.
"P/CH+ / PCH-" and "V LUME + / V LUME -"
buttons on the TV are used as navigation but-
tons in menu.
Entering The Menu
Press "MENU" button at the control panel on
the top of the TV to enter the menu.
"P/CH+ / PCH-" and "V LUME + / V LUME -"
buttons at the control panel on the top of the
TV work as direction buttons in the menu.
AV Mode
Press "TV / AV" button at the control panel
on the top of the TV to switch your TV to AV
mode (See AV Modes in page 19).
Operating With Remote Control
The remote control handset of your TV is de-
signed to control all the functions of the
model you selected. The functions will be
described in accordance with the menu sys-
tem of your TV.
Functions of the menu system are de-
scribed in Menu System section.
01-ENG-2707W-1546 UK-27 INCH TFT-(CHI MEI)(YENI SW)(10 PAGE)(WO PIP)-50060371.p65 27.01.2005, 15:2310

(QJOLVK
- 11 -
Volume Setting
Press " +" button to increase volume.
Press "- " button to decrease volume. A
volume level scale (slider) will be displayed
at the middle of the bottom on the screen.
79
,,,
6285&(
YROXPH
PHQXWRUHWXUQ ULJKWOHIWWRDGMXVW
Programme Selecting
(Previous or next programme)
 Press - P/CH button to select the previous
programme.
 Press P/CH + button to select the next
programme.
Programme Selecting (direct access):
Press digit buttons on the remote control
handset to select programmes between 0
and . TV will switch to the selected program
after a short delay.
 For a two digit program number enter the
second digit after pressing the first digit
within 2 seconds.
Menu System
Your TV has been designed with a menu
system to provide an easy manipulation of a
multifunction system. Press the M (MENU)
button to enter the menu. M button has
two functions. The first function of it is open
and close the menu, the second function is
closing the submenu and then opening its
parent menu.
Press   /   button to select a menu title
and then   /   button to select a menu
item and   /   or  K button to enter the
menu item. To exit a menu press "M" but-
ton.
picture menu
By pressing   /   button, select the first
icon. Picture menu appears on the screen.
GRZQIRUSLFWXUHVHWWLQJVIRUFXUUHQWZLQGRZ
EULJKWQHVV
FRQWUDVW
VKDUSQHVV
FRORU
SLFWXUH




brightness
By pressing   /   button, select bright-
ness. right/left to adjust brightness is
seen on the screen. Press   button to in-
crease brightness. Press   button to de-
crease brightness. Brightness level can be
adjusted between 0 and 100.
contrast
By pressing   /   button, select con-
trast. right/left to adjust contrast is seen
on the screen. Press   button to increase
contrast. Press   button to decrease con-
trast. Contrast level can be adjusted be-
tween 0 and 100.
sharpness
By pressing   /   button, select sharp-
ness. right/left to change sharpness is
seen on the screen. Press   button to in-
crease sharpness. Press   button to de-
crease sharpness. Sharpness level can be
adjusted between 0 and 8.
color
By pressing   /   button, select color.
right/left to adjust color is seen on the
screen. Press   button to increase color.
Press   button to decrease color. Color
level can be adjusted between 0 and 100.
01-ENG-2707W-1546 UK-27 INCH TFT-(CHI MEI)(YENI SW)(10 PAGE)(WO PIP)-50060371.p65 27.01.2005, 15:2311

(QJOLVK
- 12 -
tint
This item is displayed in picture menu when
TV is in AV mode and at NTSC signal. By
pressing   /   button, select tint. "right/
left to adjust tint" is seen on the screen.
Press   button to increase tint. Press  
button to decrease tint. Tint level can be ad-
justed between 0 and 100.
GRZQIRUSLFWXUHVHWWLQJVIRUFXUUHQWZLQGRZ
EULJKWQHVV
FRQWUDVW
VKDUSQHVV
FRORU
WLQW
SLFWXUH





When TV is in AV mode; picture menu items
(brightness, contrast, sharpness and color)
may require re-adjustment.
When VGA Or DVI Is Connected To
TV:
GRZQIRUSLFWXUHVHWWLQJVIRUFXUUHQWZLQGRZ
EULJKWQHVV
FRQWUDVW
SKDVH
SLFWXUH



RSWLRQDO
brightness
By pressing   /   button, select bright-
ness. "right/left to adjust brightness" is
seen on the screen. Press   button to in-
crease brightness. Press   button to de-
crease brightness. Brightness level can be
adjusted between 0 and 100.
contrast
By pressing   /   button, select con-
trast. "right/left to adjust contrast" is seen
on the screen. Press   button to increase
contrast. Press   button to decrease con-
trast. Contrast level can be adjusted be-
tween 0 and 100.
phase (optional)
This item is not available in the picture
menu when DVI is connected to the TV.
By pressing   /   button, select phase.
"right/left to adjust phase" is seen on the
screen. Press   button to increase phase.
Press   button to decrease phase. Phase
level can be adjusted between 0 and 100.
window menu
By pressing   /   button, select the sec-
ond icon. Window menu appears on the
screen.

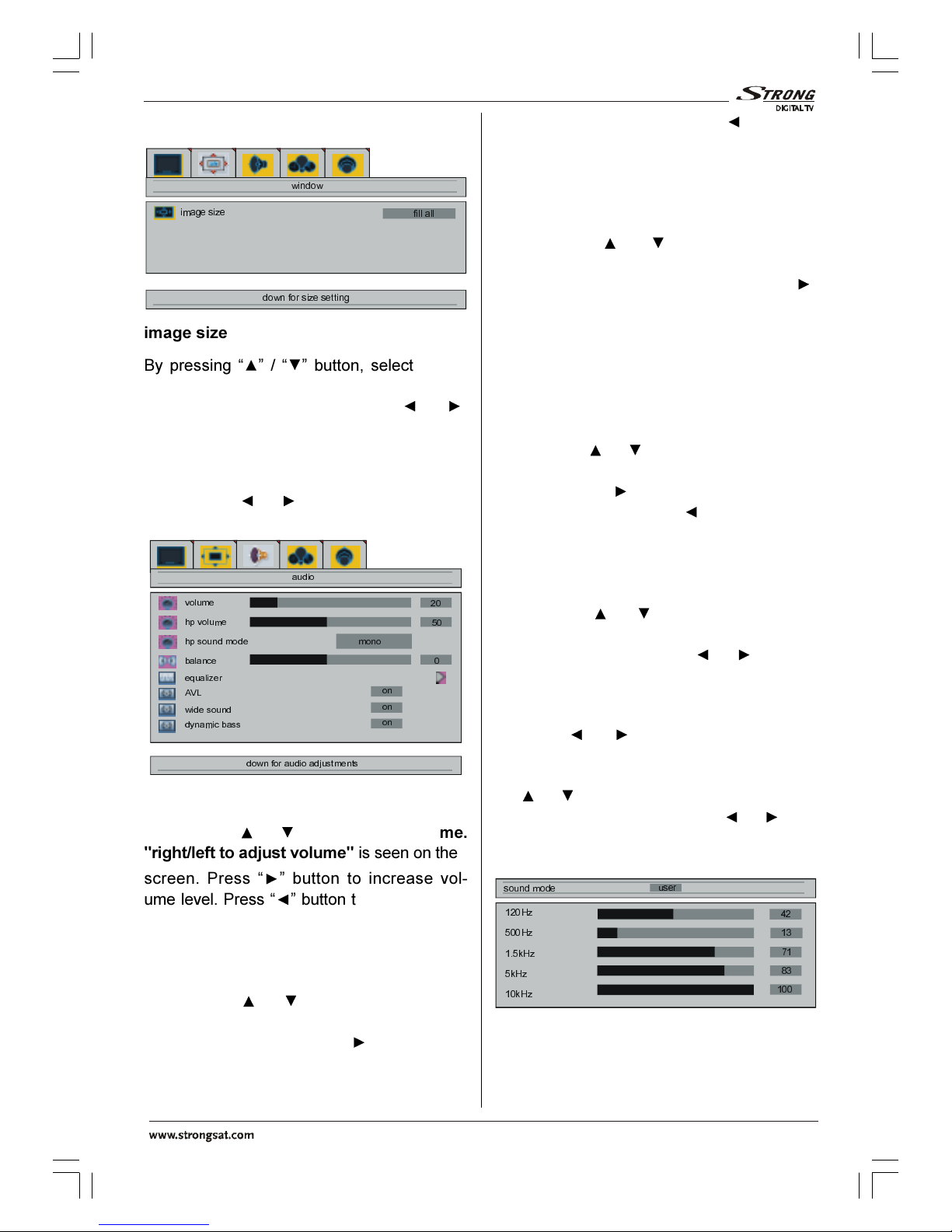

GRZQIRUVL]HVHWWLQJ
LPDJHVL]H
ZLQGRZ
ILOODOO
image size
By pressing   /   button, select image
size. "right/left to change image size" is
seen on the screen. By pressing   /  
button, you can change image size to fill all,
zoom, letterbox, subtitles, normal, 14:9 and
auto.
You can enter image size directly by press-
ing   button.
01-ENG-2707W-1546 UK-27 INCH TFT-(CHI MEI)(YENI SW)(10 PAGE)(WO PIP)-50060371.p65 27.01.2005, 15:2312

(QJOLVK
- 13 -
When VGA Or DVI Is Connected To TV:
GRZQIRUVL]HVHWWLQJ
LPDJHVL]H
ZLQGRZ
ILOODOO
image size
By pressing   /   button, select image
size. "right/left to change image size" is
seen on the screen. By pressing   /  
button, you can change image size to fill all,
fill 1:1 and fill aspect.
audio menu
By pressing   /   button, select the third
icon. Audio menu appears on the screen.
GRZQIRUDXGLRDGMXVWPHQWV
YROXPH
KSYROXPH
EDODQFH
HTXDOL]HU
DXGLR



KSVRXQGPRGH PRQR
$9/
ZLGHVRXQG
G\QDPLFEDVV
RQ
RQ
RQ
volume
By pressing   /   button, select volume.
"right/left to adjust volume" is seen on the
screen. Press   button to increase vol-
ume level. Press   button to decrease vol-
ume level. Volume level can be adjusted be-
tween 0 and 63.
hp volume
By pressing   /   button, select hp vol-
ume. "right/left to adjust hp volume" is
seen on the screen. Press   button to in-
crease hp volume level. Press   button to
decrease hp volume level. Hp volume
(headphone volume) level can be adjusted
between 0 and 100.
hp sound mode
By pressing   /   button, select hp
sound mode. "right to adjust hp sound
mode" is seen on the screen. Press  
button change hp sound mode.
Hp sound mode is used to identify sound
mode of the headphone. hp sound mode can
be set to mono, stereo, dual a or dual b ac-
cording to the transmission.
balance
By pressing   /   button, select balance.
"right/left to adjust balance" is seen on the
screen. Press   button to increase bal-
ance rightward. Press   button to de-
crease balance leftward. Balance level can
be adjusted between -50 and 50.
equalizer
By pressing   /   button, select equal-
izer. "right/left for equalizer settings" is
seen on the screen. Press   /   or  K
button to enter equalizer menu. In equalizer
menu the sound mode can be changed to
user, flat, pop, rock, jazz and classic by
pressing   /   button. Equalizer menu
settings can be changed only when sound
mode is user. Select the desired frequency
by   /   button and increase or decrease
the frequency gain by pressing   /   but-
ton.
M button to exit the equalizer menu.
+]
+]
N+]
N+]
N+]
VRXQGPRGH





XVHU
01-ENG-2707W-1546 UK-27 INCH TFT-(CHI MEI)(YENI SW)(10 PAGE)(WO PIP)-50060371.p65 27.01.2005, 15:2313

(QJOLVK
- 14 -
AVL
By pressing   /   button, select AVL.
"right/left for AVL on/off" is seen on the
screen. By pressing   /   button set to
AVL on to activate it or off to deactivate it.
wide sound
It is used to gain saloon effect to the sound.
By pressing   /   button, select wide
sound. "right/left for wide sound off/stereo/
mono" is seen on the screen. By pressing
 /   button set to wide sound on to acti-
vate it or off to deactivate it.
dynamic bass
Dynamic Bass is used to increase bass ef-
fect of the TV set.
By pressing   /   button, select dynamic
bass. "right/left for dynamic bass on/off" is
seen on the screen. By pressing   /  
button set to dynamic bass on to activate it
or off to deactivate it.
options menu
By pressing   /   button, select the
fourth icon. Options menu appears on the
screen.
GRZQIRUYDULRXVV\VWHPRSWLRQV
ODQJXDJH
RVGWLPHRXW
PHQXEDFNJURXQG
VFDUWRXW
VOHHSWLPHU
VOHHSWLPHUHPDLQLQJ
RSWLRQV
VHF VHF VHF
WUDQVOXFHQW
PLQXWHV
PLQXWHV
6FDUW
HQJOLVK
FKLOGORFN RQ
RII
language
By pressing   /   button, select lan-
guage. "right/left to change language" is
seen on the screen. By pressing   /  
button, you can select the language.
vcr
This item is displayed only when TV is in AV
mode. By pressing   /   button, select
vcr. "right/left to change vcr status" is
seen on the screen. By pressing   /  
button set vcr to on or off.
GRZQIRUYDULRXVV\VWHPRSWLRQV
ODQJXDJH
RVGWLPHRXW
PHQXEDFNJURXQG
VFDUWRXW
VOHHSWLPHU
VOHHSWLPHUHPDLQLQJ
RSWLRQV
VHF VHF VHF
WUDQVOXFHQW
PLQXWHV
PLQXWHV
6FDUW
HQJOLVK
YFU
RQ RII
FKLOGORFN RQ
RII
osd timeout
By pressing   /   button, select osd
timeout. "right/left to change osd timeout"
is seen on the screen. By pressing   /  
button, you can change osd timeout to 5
sec, 15 sec or 60 sec.
menu background
By pressing   /   button, select menu
background. "right to change menu back-
ground" is seen on the screen. You can
change menu background to translucent or
opaque by pressing   button.
child lock
You can use this feature to prevent children
turning on TV or changing programs or ad-
justments etc. without remote control.
By pressing   /   button, select child
lock. "right/left to change" is seen on the
screen. The child lock feature can be set by
 or   button to either on or off. When
off is selected, there will be no difference in
the operation of your TV. When on is se-
lected, the TV can only be controlled by the
remote control handset.
01-ENG-2707W-1546 UK-27 INCH TFT-(CHI MEI)(YENI SW)(10 PAGE)(WO PIP)-50060371.p65 27.01.2005, 15:2314

(QJOLVK
- 15 -
scart 2 out
By pressing   /   button, select scart 2
out. "right/left to select scart 2 out" is seen
on the screen. You can set scart 2 out to
Scart 1, Tuner or FAV by pressing   /  
button.
sleep timer
By pressing   /   button, select sleep
timer. "adjust sleeptimer" is seen on the
screen. You can set the sleep time to ff,
15, 30, 60, 90 or 120 minutes by pressing
 /   button. The sleep timer is used to
turn the TV off after a pre-defined period.
sleep time remaining
Selected and remaining sleep time is dis-
played at this area. Sleep time remaining
item can not be selected by   /   button.
settings menu
By pressing   /   button, select the fifth
icon. Settings menu appears on the screen.
GRZQIRUYDULRXVV\VWHPVHWWLQJV
WY WXQHU
VRXUFHVHOHFW
VHWWLQJV
tv tuner
By pressing   /   button, select tv tuner.
"<ok> to activate tuner menu" is seen on
the screen. By pressing   /   or  K
button enter the menu. tv tuner menu has
two sub-menu named as aps and pro-
gramming.
GRZQWRFKDQJHDSVRSWLRQV
DSV
SURJUDPWDEOH
FRXQWU\
DXWRVHW
*HUPDQ\
RN!WRHQDEOH
GRZQWRSURJUDPPLQJRSWLRQV
SURJUDPPLQJ
SURJUDP
ILQHWXQH
FKDQQHO
VWDQGDUG
FKDQQHOW\SH
HGLWODEHOV
VWRUHSURJUDP
PDQXDOVHDUFK
WUNL\H 


& 6
%*
aps menu
By pressing   /   button in tv tuner menu
select the second icon. aps menu appears
on the screen.
GRZQWRFKDQJHDSVRSWLRQV
DSV
SURJUDPWDEOH
FRXQWU\
DXWRVHW
*HUPDQ\
RN!WRHQDEOH
program table
By pressing   /   button, select pro-
gram table. "right/left to enter program
table" is seen on the screen. By pressing
 /   or  K button, you can enter the
following program table.
Programme table is also entered directly by
pressing   button.
&11
5$,
6$7
5$,
79
=')
5$
&
6
&




















'HOHWH ,QVHUW 1DPH
SURJUDPWDEOH
01-ENG-2707W-1546 UK-27 INCH TFT-(CHI MEI)(YENI SW)(10 PAGE)(WO PIP)-50060371.p65 27.01.2005, 15:2315

(QJOLVK
- 16 -
Moving cursor to four direction you can reach
30 programmes in the same page. By
scrolling the pages up or down by pressing
the navigation buttons you can select all the
programmes in TV mode (except the AV
mode).
In program table,   /   buttons work like
"Direction Up" and "Direction Down". By cur-
sor action, programme selection is done au-
tomatically.
Programme Number is between 01 and .
00 is not displayed on program table.
Programme Name has a name string with 5
characters. After autoset process the
Programme Names are set to "C02" or
"S07" (channel type and channel number)
or name of the tuned channel if defined.
At the bottom of the program table there is a
programme sort functions section. Each
function is activated by color button (seen
above). By Delete you can delete
programmes that you decided. Insert sec-
tion is for inserting programmes into an-
other programme spaces. Name allows
changing the programme name.
Delete:
For "Delete" process RED button is
pressed. The following warning menu
comes to screen. Pressing M button can-
cels the activated "Delete" process. Press-
ing  K button erases the selected
programme from the programme list, and
the programmes below shift one up.

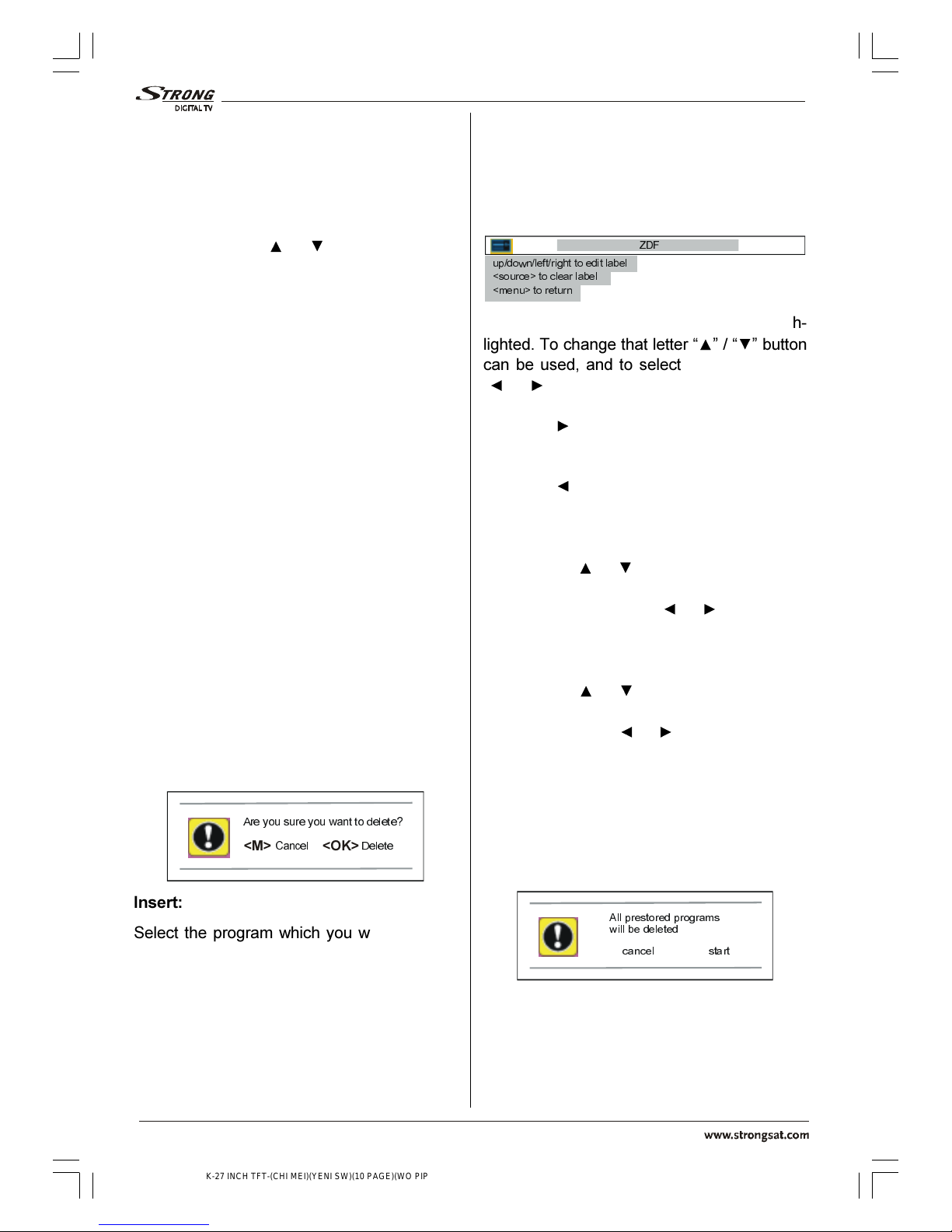

$UH\RXVXUH\RXZDQWWRGHOHWH"
&DQFHO 'HOHWH
0! 2.!
Insert:
Select the program which you want to insert
by navigation buttons. Press GREEN button.
By navigation buttons move the selected
program to the decided programme space
and press GREEN button again.
Name:
To change the name of a decided
programme, that programme is selected
and pressed to the YELLOW button. The fol-
lowing menu comes to screen.
=')
XSGRZQOHIWULJKWWRHGLWODEHO
VRXUFH!WRFOHDUODEHO
PHQX!WRUHWXUQ
The first letter of the selected name is high-
lighted. To change that letter   /   button
can be used, and to select the other letters,
 /   button can be used. If the cursor is
at the last letter of the Programme Name,
pressing   button moves the cursor at the
beginning. On the contrary, if the cursor is at
the beginning of the Programme Name,
pressing   button moves the cursor at the
end.
country
By pressing   /   button, select country.
"right/left to change country" is seen on
the screen. By pressing   /   button, you
should select the country where you are.
autoset
By pressing   /   button, select autoset.
"right/left to start aps function" is seen on
the screen. When   /   or  K button is
pressed, the following menu comes to the
screen. If you want to cancel autoset func-
tion, press M button. You return to aps
menu.
If you press M button after autoset is
started, program table appears on the
screen.
$OOSUHVWRUHGSURJUDPV
ZLOOEHGHOHWHG
FDQFHO VWDUW
0! 2.!
If  K button is pressed, autoset function
starts and the following menu comes to the
screen.
01-ENG-2707W-1546 UK-27 INCH TFT-(CHI MEI)(YENI SW)(10 PAGE)(WO PIP)-50060371.p65 27.01.2005, 15:2316

(QJOLVK
- 17 -
FKDQQHOVHDUFKLQJ
SOHDVHZDLWRU
SUHVVPHQXWRFDQFHO
After autoset is finalized, the program table
comes to the screen.
programming menu
By pressing   /   button in tv tuner
menu select the first icon. Programming
menu appears on the screen.
GRZQWRSURJUDPPLQJRSWLRQV
SURJUDPPLQJ
SURJUDP
ILQHWXQH
FKDQQHO
VWDQGDUG
FKDQQHOW\SH
HGLWODEHOV
VWRUHSURJUDP
PDQXDOVHDUFK
WUNL\H 


&
6
%*
program
By pressing   /   button, select pro-
gram. "right/left to select program" is seen
on the screen. By pressing   /   button,
you can select the program number. You
can also enter a number via digit buttons on
the remote control. There are 100 program
storage between 0 and .
fine tune
By pressing   /   button, select fine
tune. "right/left to adjust fine tuning" is
seen on the screen. By pressing   /  
button, you can adjust the tuning. The adjust
values are between -50 and +50.
channel
By pressing   /   button, select channel.
"right/left to change channel" is seen on
the screen. By pressing   /   button, you
can change the channel number. You can
also enter a number via digit buttons on the
remote control. The adjust values change
according to the standard and channel type.
standard
By pressing   /   button, select stan-
dard. "right/left to change standard" is
seen on the screen. By pressing   /  
button, you can change the standard to B/G,
D/K, I or L/L'.
channel type
By pressing   /   button, select channel
type. "right/left to change channel type" is
seen on the screen. By pressing   /  
button, you can change the channel type to C
or S.
edit labels
By pressing   /   button, select edit la-
bels. "right/left to edit labels" is seen on
the screen. By pressing   /   or  K
button, you can enter the following menu.
=')
XSGRZQOHIWULJKWWRHGLWODEHO
VRXUFH!WRFOHDUODEHO
PHQX!WRUHWXUQ
 /   or   /   buttons are used to edit
labels.
store program
By pressing   /   button, select store
program. "right/left to store program" is
seen on the screen. By pressing   /   or
K button, you can store the program and
following menu appears on the screen.
SUR
J
UDPVWRUHG
manual search
By pressing   /   button, select manual
search. "right/left to search" is seen on the
screen. By pressing   or   button, you
can start program searching and following
menu appears on the screen.
01-ENG-2707W-1546 UK-27 INCH TFT-(CHI MEI)(YENI SW)(10 PAGE)(WO PIP)-50060371.p65 27.01.2005, 15:2317

(QJOLVK
- 18 -
FKDQQHOVHDUFKLQJ
SOHDVHZDLWRU
SUHVVPHQXWRFDQFHO
source select
By pressing   /   button, select source
select in settings menu. "<ok> to activate
source selection menu" is seen on the
screen. By pressing   /   or  K button,
you can enter the source select menu.
WXQHU
6FDUW
6FDUW5*%
6FDUW
6FDUW5*%
3&
'9,
)$9
69LGHR
VRXUFHVHOHFW
ULJKWWRVHOHFWVRXUFH
In source select menu, come on one of the
sources by pressing   /   button and
select it by pressing   button. The source
types are tuner, Scart 1, Scart 1 RGB, Scart
2, Scart 2 RGB, PC, DVI, FAV and S-Video.
Other Features
TV Status
Programme Number, Programme Name
and Sound Indicator are displayed on the
upper right side of the screen. Source is
also displayed with them on the right bottom
side of the screen. They are displayed after
programme change during 3 seconds.
3
Programme Number
35

Programme Name (5 characters)
These OSDs are displayed when a new
programme is entered by digit button, by
pressing P<P button or -P/CH or P/CH+
button or TV button.
79
,,,
6285&(
Previous Programme
 Press "P<P" (Previous Programme) button
to select the last selected programme. This
button provides swapping between last two
selected programmes. For example, select
programme 8, then select programme 2.
Now, if you press "P<P" button, programme
8 will be selected. If you press the same
button again, programme 2 will be selected
and so on.
Freeze Picture
You can freeze the picture on the screen by
pressing  K button.
Sound Indicator
The alternatives of the indicator are Mono,
Stereo, Dual A and Dual B. This indicator is
displayed under the programme number in-
dicator on the screen. "I-II" button is used to
select Mono, Stereo, Dual A or Dual B.
0212
In Mono broadcast or in forced-mono (for
stereo broadcast).
67(5(2
In Stereo broadcast.
'8$/$
01-ENG-2707W-1546 UK-27 INCH TFT-(CHI MEI)(YENI SW)(10 PAGE)(WO PIP)-50060371.p65 27.01.2005, 15:2318

(QJOLVK
- 1 -
If dual broadcast detected. Dual A is se-
lected in default and also can be selected
after Dual B by Remote Control.
'8$/%
If Dual B selected by Remote Control.
Mute Indicator
It is placed in the upper left side of the
screen when enabled.
To cancel mute, there are two alternatives,
the first one is pressing " " button, thus the
volume is set to the preceding value, and the
second one is increasing/decreasing the
volume level, thus it starts from the previous
level to increase/decrease.
79
,,,
6285&(
AV Modes
By pressing the S URCE button or via
source select menu, you can switch your TV
to AV modes (except being in Teletext).
Pressing this button will consecutively
switch the TV in one of the optional AV
modes: Tuner 1, Scart 1, Scart 1 RGB,
Scart 2, Scart 2 RGB, PC, DVI, FAV and
SVideo.
While watching VCR; vcr item in options
menu should be set to on.
In order to quit the AV mode press the TV,
digit buttons or -P/CH or P/CH+ .
Telete t
Teletext is an information system that dis-
plays text on your TV screen. Using the Tele-
text information system you can view a page
of information on a subject that is available
in the list of contents (index).
On screen display is not available in text
mode.
Contrast, brightness or colour control is not
available, but volume control is available in
text mode.
To Operate Teletext
 Select a TV station on which Teletext is being
transmitted.
 Press   button. Usually the list of con-
tents (index) is displayed on the screen.
79
,,,
6285&(
To Select A Page Of Teletext
 Press the appropriate digit buttons for the
required Teletext page number.
The selected page number is displayed at
the top left corner of the screen. The Teletext
page counter searches until the selected
page number is located, so that the desired
page is displayed on the screen.
79
,,,
6285&(
 Press P/CH + button to move the Teletext
screen forward one page at a time.
 Press - P/CH button to move the Teletext
screen backward one page at a time.
01-ENG-2707W-1546 UK-27 INCH TFT-(CHI MEI)(YENI SW)(10 PAGE)(WO PIP)-50060371.p65 27.01.2005, 15:2319

(QJOLVK
- 20 -
To Select Index Page
 To select the page number of the index (gen-
erally page 100), press   button.
To Select Teletext With A TV
Programme
 Press   button. The text is now super-
imposed over the programme on the
screen.
 Press   button again to return to the
Teletext page.
To Select Double Height Text
 Press   button for the top half of the in-
formation page to be displayed in double
height text.
 Press   button again for the bottom half
of the information page to be displayed in
double height text.
 Press   button once more for the full
page of normal height text.
To Reveal Concealed
Information
 Pressing   button once will reveal an-
swers on a quiz or games page.
 Pressing   button again will conceal the
revealed answers.
To Stop Automatic Page Change
The teletext page you have selected may
contain more information than what is on the
screen; the rest of the information will be
displayed after a period of time.
 Press   button to stop the automatic
page change.
 Press   button again to allow the next
page to be displayed.
To Select A Subcode Page
Subcode pages are subsections of long
Teletext pages that can only be displayed on
the screen one section at a time.
 Select the required Teletext page.
 Press   button.
 Select the required subcode page number
by pressing four digit buttons (e.g. 0001).
 If the selected subcode page is not displayed
in a short time, press   button. TV
programme will be displayed on the screen.
 Teletext page number will be displayed on
the upper left corner of the screen when the
selected page is found.
 Press   button to display the selected
Teletext page.
To Exit Teletext
 Press   or 
79
 button. The screen
will switch to TV mode.
To Display The Time
 While watching a TV programme with Tele-
text transmission press   button. The
current time information, captured from Tele-
text will be displayed on the screen.
 Press   button again to remove the
time from the screen.
 If the programme being watched does not
have Teletext transmission, no information
will be displayed.
Fastext
Your TV supports the 10 page Teletext sys-
tem. When the page number of any of the 10
pages in memory is entered, the system will
not search for the requested page; instead it
will display the page automatically. If the re-
quested page is not in memory, the system
will search for the requested page number
and save the 10 pages including the re-
quested page into memory after finding it.
For Fastext
The subject-heading for the information may
have a particular color.
 Press an appropriate RED, GREEN, YELL W
or BLUE button in order to reach the relevant
page quickly.
01-ENG-2707W-1546 UK-27 INCH TFT-(CHI MEI)(YENI SW)(10 PAGE)(WO PIP)-50060371.p65 27.01.2005, 15:2320
