Stryker Atlas 660Z User manual

AtlasTransport Stretcher with
Model 660Z
MAINTENANCE MANUAL
For Parts or Technical Assistance
1−800−327−0770 (Option 2)

Table of Contents
Introduction
Introduction 3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Specifications 3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Warning/Caution/Note Definition 3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Set−Up Procedures 4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Symbols 5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Preventive Maintenance
Preventive Maintenance Checklist 6. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Cleaning 7. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Troubleshooting 8, 9. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Service Information
Litter Top Removal 11. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Jack Removal 12, 13. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Battery Removal 14. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Electrical Enclosure Assembly Removal 14. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
ZoomrCarriage Assembly Removal 15. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Overtravel Spring Assembly Removal 15. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Cam Arm Assembly Removal 16. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Brake Rod Removal 16. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Brake Ring Removal 16. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Release Pedal Adjustment 17. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
PCB Box Assembly Removal 18. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Load Cell Replacement 18. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
ZoomrHandle Removal 18. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Quick Reference Replacement Parts List 19. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Assembly Drawings And Parts Lists
Standard Base Assembly 21−24. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Brake Rod Assembly 25. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Cam Arm Assembly 26, 27. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Overtravel Spring Assembly 28. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
ZoomrCarriage Assembly 30−32. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Battery Assembly 33. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Base Assembly with Standard Brakes 34, 35. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Caster Assembly 36. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Base Assembly with Dual−Sided Hydraulics 37−40. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Release Pedal Assembly 41. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Table of Contents
Assembly Drawings And Parts Lists (Continued)
Head End Pump Pedal Assembly 42. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Constant Descent Jacks Assembly 43. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Base Labeling Assembly 44, 45. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Base Hood Assembly 46. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Power Cord / Cord Reel Assembly 47. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Litter Assembly 48−51. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Zoom Handle Assembly 52, 53. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Handle Grip Assembly 54−57. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Siderail to Litter Assembly 58−63. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Dual Siderail Latch Assembly 64. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Pneumatic Fowler Assembly 65, 66. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Stationary Foot Section Assembly 67. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Transfer System Assembly 68−71. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Foot End Steering Handles Assembly 72, 73. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Standard, Removable I.V. Pole Assembly 74. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2−Stage I.V. Assembly 75, 76. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
I.V. Pole Latch Assembly 77. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3−Stage I.V. Assembly 78, 79. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3rd Stage Assembly, 3−Stage I.V. Pole 80. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Defibrillator Tray Assembly 81. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Foot Board Extension/Defibrillator Tray Assembly 82. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Foot Board/Chartholder Assembly 83. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Upright Oxygen Bottle Holder Assembly 83. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
X−Ray Cassette Assembly 84, 85. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Heel Stirrup Assembly 86 −89. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
C−Spine Cassette Holder Assembly 90 −92. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
O2 Bottle Retainer Assembly 93. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Mattresses and Siderail Pads 94. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Limited Warranty
Obtaining Parts and Service 95. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Supplemental Warranty Coverage 95. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Return Authorization 96. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Freight Damage Claims 96. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Introduction
3
INTRODUCTION
This manual is designed to assist you with the maintenance of the Model 660 Atlas Stretcher. Read it thor-
oughly before using the equipment or beginning any maintenance on it.
INTENDED USE
This product is intended to be used as a general purpose patient transport and treatment stretcher.
SPECIFICATIONS
Maximum Weight Capacity 660 pounds
Overall Bed Length \ Width 84”\ 34.5”
Minimum \ Maximum Bed Height 22”\ 36”
Fowler Angle 0 to 90°
Trendelenburg \ Reverse Trendelenburg +15 to −15°
Electrical Requirements −Power Source 115 VAC, 60 Hz, 3.0 Amps
Battery Voltage 24 V, 31 Ah
Noise 61 decibels
Water Protection IPX5
Mode of Operation Continuous
Environmental Conditions for Storage and Transport −20_C −+70_C
10% −100% Relative Humidity
Atmospheric Pressure −500 −1060 hPa (14.76
inHg −31.30 inHg)
Ambient Temperature in Charge Mode Not to exceed 28_C
Stryker reserves the right to change specifications without notice.
WARNING / CAUTION / NOTE DEFINITION
The words WARNING, CAUTION and NOTE carry special meanings and should be carefully reviewed.
WARNING
Alerts the reader about a situation, which if not avoided, could result in death or serious injury. It may also
describe potential serious adverse reactions and safety hazards.
CAUTION
Alerts the reader of a potentially hazardous situation, which if not avoided, may result in minor or moderate
injury to the user or patient or damage to the equipment or other property. This includes special care neces-
sary for the safe and effective use of the device and the care necessary to avoid damage to a device that
may occur as a result of use or misuse.
NOTE
This provides special information to make maintenance easier or important instructions clearer.

Introduction
4
SET−UP PROCEDURES
It is important that the Model 660Z Stretcher is working properly before it is put into service. The following
list will help ensure that each part of the unit is checked.
SPlug the power cord into a properly grounded, hospital grade wall receptacle. The 12 volt batteries that
provide power to the drive wheel and back−up power to the unit functions will charge whenever the power
cord is plugged into the wall socket. The batteries require approximately 6 hours of charging time before
the stretcher is put into service.
WARNING
The Model 660Z Stretcher is equipped with a hospital grade plug for protection against shock hazard. It must
be plugged directly into a properly grounded three−prong receptacle. Grounding reliability can be achieved
only when a hospital grade receptacle is used.
SDepress the pedal at either end of the stretcher fully to set the four wheel brakes and verify all four casters
are locked.
SEnsure the siderails raise and lower smoothly and lock securely in the full up position.
SRun through the operation of the drive wheel to ensure it is operating properly.

Introduction
5
SYMBOLS
Warning, Refer to Service/Maintenance Manual
Alternating Current
Type B Equipment: equipment providing a particular degree of protection against elec-
tric shock, particularly regarding allowable leakage current and reliability of the protec-
tive earth connection.
Class 1 Equipment: equipment in which protection against electric shock does not rely
on BASIC INSULATION only, but which includes an additional safety precaution in that
means are provided for the connection of the EQUIPMENT to the protective earth con-
ductor in the fixed wiring of the installation in such a way that ACCESSIBLE METAL
PARTS cannot become live in the event of a failure of the BASIC INSULATION.
Internally powered.
Mode of Operation: Continuous
IPX5
Electromagnetic Interference −product conforms to IEC 60601−1−2:1993 −Class A
Dangerous Voltage Symbol
Protective Earth Terminal
Potential Equalization Symbol
~

Preventative Maintenance
6
CHECKLIST
All fasteners secure
Siderails move and latch properly
Engage brake pedal and push on the stretcher to ensure all casters lock securely
All casters secure and swiveling properly
Fowler operating and latching properly
Trendelenburg/Reverse Trendelenburg operating properly
Ground chain intact
No leaks at hydraulic connections
Hydraulic jacks holding properly
Hydraulic drop rate set properly
Hydraulic oil level sufficient
Lubricate where required
Engage drive wheel and ensure it is operating properly
Motion release switches working properly
Confirm battery powered functionality
Power cord not frayed
No cables worn or pinched
All electrical connections tight
All grounds secure to the frame
Ground impedance not more than 100 milliohms
Current leakage not more than 300 microamps
Body restraints intact and working properly
I.V. pole intact and operating properly
Oxygen bottle holder intact
No rips or cracks in mattress cover
Accessories and mounting hardware in good condition and working properly
Serial No.:
Completed By:_________________________________ Date:_____________
NOTE
Preventative maintenance should be performed at a minimum of annually. A preventative maintenance pro-
gram should be established for all Stryker Medical equipment. Preventative maintenance may need to be
performed more frequently based on the usage level of the product.

Preventative Maintenance
7
CLEANING
Failure to comply with these instructions may invalidate any/all warranties.
Hand wash all surfaces of the bed with warm water and mild detergent. Dry thoroughly. DO NOT STEAM
CLEAN, PRESSURE WASH, HOSE OFF OR ULTRASONICALLY CLEAN. Using these methods of cleaning
is not recommended and may void this product’s warranty.
In general, when used in those concentrations recommended by the manufacturer, either phenolic type or
quaternary type disinfectants can be used. Iodophor type disinfectants are not recommended for use be-
cause staining may result. The following products have been tested and have been found not to have a harm-
ful effect WHEN USED IN ACCORDANCE WITH MANUFACTURERS RECOMMENDED DILUTION.*
TRADE NAME DISINFECTANT
TYPE MANUFACTURER *MANUFACTURER’S
RECOMMENDED
DILUTION
A33 Quaternary Airwick (Professional Products Division) 2 ounces/gallon
A33 (dry) Quaternary Airwick (Professional Products Division) 1/2 ounce/gallon
Beaucoup Phenolic Huntington Laboratories 1 ounce/gallon
Blue Chip Quaternary S.C. Johnson 2 ounces/gallon
Elimstaph Quaternary Walter G. Legge 1 ounce/gallon
Franklin Phenomysan F2500 Phenolic Purex Corporation 1 1/4 ounce/gallon
Franklin Sentinel Quaternary Purex Corporation 2 ounces/gallon
Galahad Phenolic Puritan Churchill Chemical Company 1 ounce/gallon
Hi−Tor Quaternary Huntington Laboratories 1/2 ounce/gallon
LPH Phenolic Vestal Laboratories 1/2 ounce/gallon
Matar Phenolic Huntington Laboratories 1/2 ounce/gallon
Omega Quaternary Airwick (Professional Products Division) 1/2 ounce/gallon
Quanto Quaternary Huntington Laboratories 1 ounce/gallon
Sanikleen Quaternary West Chemical Products 2 ounces/ gallon
Sanimaster II Quaternary Service Master 1 ounce/gallon
Vesphene Phenolic Vestal Laboratories 1 1/4 ounce/ gallon
Quaternary Germicidal Disinfectants, used as directed, and/or Chlorine Bleach products, typically 5.25% So-
dium Hypochlorite in dilutions ranging between 1 part bleach to 100 parts water, and 2 parts bleach
to 100 parts water are not considered mild detergents. These products are corrosive in nature and
may cause damage to your stretcher if used improperly. If these types of products are used to clean
Stryker patient handling equipment, measures must be taken to insure the stretchers are rinsed with clean
water and thoroughly dried following cleaning. Failure to properly rinse and dry the stretchers will leave a cor-
rosive residue on the surface of the stretcher, possibly causing premature corrosion of critical components.
NOTE
Failure to follow the above directions when using these types of cleaners may void this product’s warranty.
REMOVAL OF IODINE COMPOUNDS
This solution may be used to remove iodine stains from mattress cover surfaces.
1. Use a solution of 1−2 tablespoons Sodium Thiosulfate in a pint of warm water to clean the stained area.
Clean as soon as possible after staining occurs. If stains are not immediately removed, allow solution to
soak or stand on the surface.
2. Rinse surfaces which have been exposed to the solution in clear water before returning bed to service.

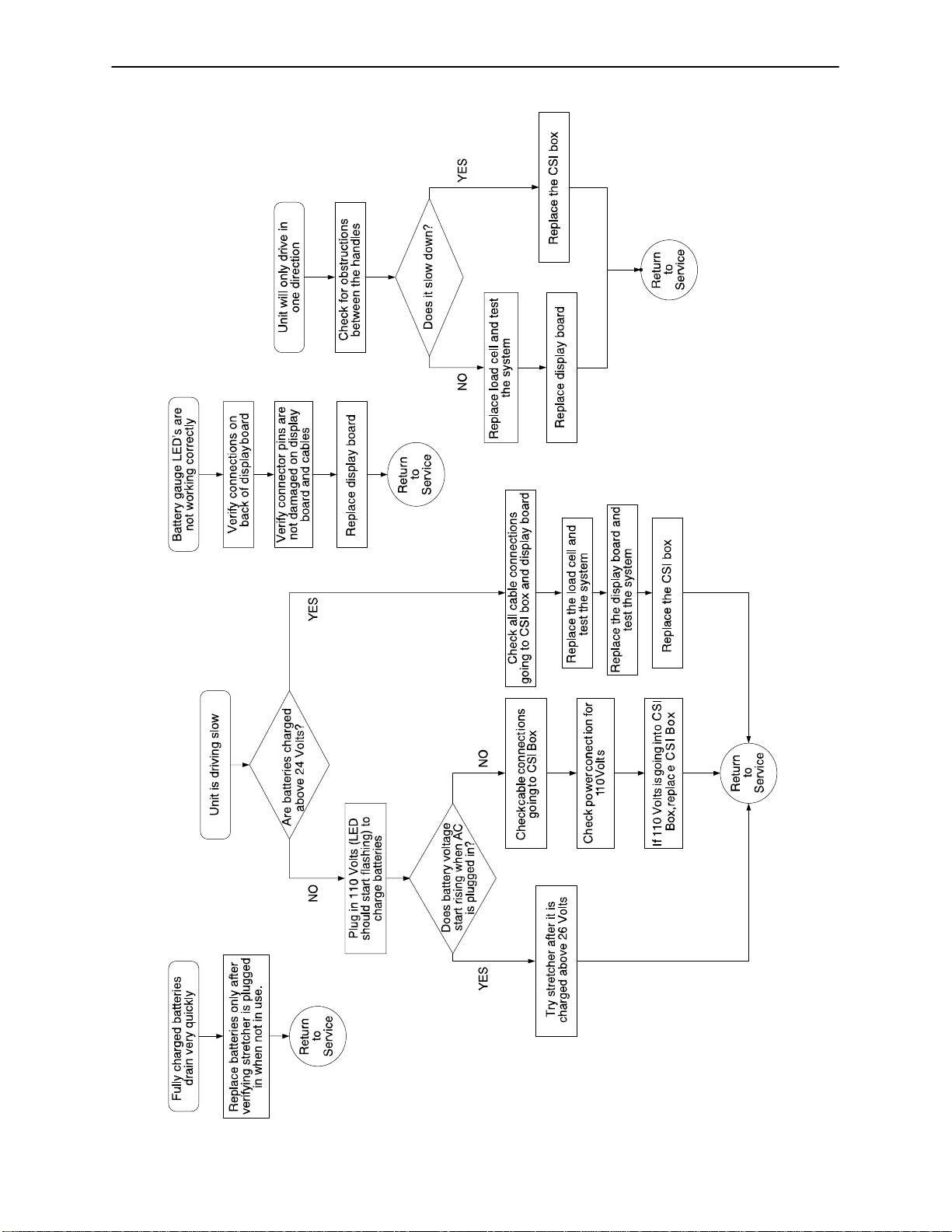

ZoomTroubleshooting Guide
8

ZoomTroubleshooting Guide
9

Notes
10

Service Information
11
WARNING
Always unplug the power cord and rotate the “ON/DRIVE −OFF/MANUAL”switch to the OFF position before
service or cleaning.
LITTER TOP REMOVAL
Required Tools:
1/2”Socket w/Extension 3/8”Drive Ratchet Standard Screwdriver
Side Cutters
1. Unplug the stretcher power cord from the wall socket.
2. Using the foot pedal, pump the litter top all the way up.
3. Lift up on the base hood at the patient, left side and unplug the communication coil cord from the electrical
box.
4. Using the side cutters, cut the 3 cable ties fastening the communication coil cord to the stretcher base
frame.
5. Remove the stretcher mattress.
6. Remove the round, black hole plugs on the litter patient surface at each end to expose the jack support
tube truss head screws.
7. Using a 1/2”socket, and a 3/8”drive ratchet, remove the truss head screws holding the jack support tubes
to the jack shafts.
8. Pull the bellows out of the plastic base hood.
9. Insert a fine−thread 7/16−20 bolt far enough into the top of the jack supports to separate the litter top from
the jack shaft.
10. With the assistance of another person, lift the litter straight up to remove it from the jack shafts and set
it aside.

Service Information
12
HEAD END JACK REMOVAL
Required Tools: 1/2”Socket w/Extension 3/8”Drive Ratchet
1. Remove the litter from the stretcher (see procedure on page 11).
2. Using a 1/2”socket with extension and a 3/8”drive ratchet, remove the two hex head screws holding the
jack base to the stretcher base frame.
3. Remove the two hex head screws holding the jack reservoir clamp to the base frame and remove the
clamps.
4. Lift straight up on the pump connecting rod and disconnect the pump piston from the connecting rod.
5. Disconnect the pump pedal swivel from the release pedal mounting plate.
6. Remove the head end release rod from the release valve assembly.
7. Using a 1/2”socket with extension and a 3/8”drive ratchet, remove the two hex head screws holding the
jack base to the stretcher base frame.
8. Lift out the jack assembly.
9. To reinstall the jack, install the bolts on the jack and reservoir clamp but do not tighten them fully.
10. Reinstall the pump connecting rod and release rod.
11. Depress the pump pedal fully (to the floor). This will properly locate the jack onto the base frame.
12. Tighten the bolts on the jack and reservoir clamp.
13. Pump up the litter and apply weight to verify the jacks hold and do not drift.
NOTE
The jack descent rate is set at the factory and adjustment is not recommended.

Service Information
13
FOOT END JACK REMOVAL
Required Tools: 1/2”Socket w/Extension 3/8”Drive Ratchet
1. Remove the litter from the stretcher (see procedure on page11).
2. Using a 1/2”socket with extension and a 3/8”drive ratchet, remove the kep nut securing the plastic battery
cover to the batteries.
3. Disconnect the battery cables.
4. Remove the batteries and set them aside.
5. Using a 1/2”socket with extension and a 3/8”drive ratchet, remove the hex head screw on each side of
the battery tray.
6. Push the battery connectors back through the battery tray.
7. Remove the battery tray and set it aside.
8. Using a 1/2”socket with extension and a 3/8”drive ratchet, remove the two hex head screws holding the
jack base to the stretcher base frame.
9. Remove the two hex head screws holding the jack reservoir clamp to the base frame and remove the
clamps.
10. Lift straight up on the pump connecting rod and disconnect the pump piston from the connecting rod.
11. Push the pump piston back through the oversized hole on the pump connecting rod.
12. Disconnect the release pedal swivel and remove the foot end release rod from the release valve.
13. Lift out the jack assembly.
14. To reinstall the jack, install the bolts on the jack and reservoir clamp but do not tighten them fully.
15. Reinstall the pump connecting rod and release rod.
16. Depress the pump pedal fully (to the floor). This will properly locate the jack onto the base frame.
17. Tighten the bolts on the jack and reservoir clamp.
18. Pump up the litter and apply weight to verify the jacks hold and do not drift.
NOTE
The jack descent rate is set at the factory and adjustment is not recommended.

Service Information
14
BATTERY REMOVAL
Required Tools:
1/2”Socket w/Extension 3/8”Drive Ratchet
CAUTION
Battery posts, terminals and related accessories contain lead and lead compounds, chemicals known to the
State of California to cause cancer and birth defects or other reproductive harm. Wash hands after han-
dling. Properly dispose of batteries when required.
Each battery weighs 25 pounds. To avoid personal injury, use caution when removing the two batteries.
1. Unplug the stretcher power cord from the wall socket.
2. Using the foot pedal, pump the litter top all the way up.
3. Remove the four Phillips head cap screws holding the Zoomrcarriage access panel to the plastic base
hood. Remove the access panel and set it aside.
4. Using a 1/2”socket with extension, and a 3/8”drive ratchet, remove the kep nut and washer securing
the battery cover to the batteries. Remove the cover and set it aside.
5. Disconnect the battery cables from the battery tray assembly.
6. Remove the batteries. Discard properly.
ELECTRICAL ENCLOSURE ASSEMBLY REMOVAL
Required Tools:
1/2”Socket w/Extension 3/8”Drive Ratchet
1. Unplug the stretcher power cord from the wall socket.
2. Using the foot pedal, pump the litter top all the way up.
3. Remove the four Phillips head cap screws holding the Zoomrcarriage access panel to the plastic base
hood. Remove the access panel and set it aside.
4. Using a 1/2”socket with extension, and a 3/8”drive ratchet, remove the kep nuts at each corner of the
enclosure assembly.
5. Cut all cable ties on cables from the enclosure assembly.
6. Disconnect all cable connectors from the enclosure assembly and push the connectors back down
through the battery tray.
7. Remove the enclosure assembly.
NOTE
The internal components of the electrical enclosure are not user serviceable. Return the entire assembly for
service (see page 96 for the return authorization procedure).

Service Information
15
ZOOMCARRIAGE ASSEMBLY REMOVAL
Required Tools:
1/2”Socket w/Extension 1/4”Drive Ratchet
1. Remove the litter from the stretcher (see procedure on page11).
2. Lift the base hood off the base frame.
3. Put the base brake/steer pedal in the neutral position.
4. Remove the 2 rue ring cotters and clevis pins from the center of the brake rod in the middle of the cam
arm assembly.
5. Put the brake/steer pedal in the steer position.
6. Remove the rue ring cotter and clevis pin at each end of the brake rod.
7. Pull the brake rods straight out away from the base at each end of the stretcher.
8. Using a1/2”socket with extension, and a 1/4”drive ratchet, remove the four hex washer head screws
holding the cam bracket assembly to the base frame and remove the cam bracket assembly.
9. Using a1/2”socket with extension, and a 3/8”drive ratchet, remove the four hex washer head cap screws
at the foot end of the stretcher holding the Zoomrcarriage assembly to the stretcher base frame.
10. Under the base frame, remove the rue ring cotter and clevis pin holding the lift fork weldment to the Zoomr
undercarriage.
11. Disconnect the motor cable.
12. Remove the Zoomrcarriage assembly.
OVERTRAVEL SPRING ASSEMBLY REMOVAL
Required Tools:
1/2”Socket w/Extension 3/8”Drive Ratchet
1. Remove the Zoomrcarriage assembly (see procedure on page15).
2. Remove the four hex head screws holding the overtravel spring assembly to the stretcher base frame.
3. Remove the overtravel spring assembly.
4. To adjust the overtravel spring, thread the nylock hex nut (reference item B on page 28) onto the threaded
shaft until it stops.

Service Information
16
CAM BRACKET ASSEMBLY REMOVAL
Required Tools:
1/2”Socket w/Extension 1/4”Drive Ratchet
1. Remove the litter from the stretcher (see procedure on page11). Lift the base hood off the base frame.
2. Put the base brake/steer pedal in the neutral position. Remove the 2 rue ring cotters and clevis pins from
the center of the brake rod in the middle of the cam arm assembly.
3. Put the brake/steer pedal in the steer position. Remove the rue ring cotter and clevis pin at each end
of the brake rod.
4. Pull the brake rods straight out away from the base at each end of the stretcher.
5. Using a1/2”socket with extension, and a 1/4”drive ratchet, remove the four hex washer head screws
holding the cam bracket assembly to the base frame and remove the cam bracket assembly.
6. Reverse steps 1−8 to reinstall the cam bracket assembly.
BRAKE ROD REMOVAL
Required Tools:
Needle Nose Pliers
1. Remove the cotter pins and clevis pins holding the brake rods to the cam arm weldment in the center of
the base.
2. Remove the cotter pins and clevis pins holding the brake rods to the brake rod drive links.
3. Remove the brake rods.
BRAKE RING REMOVAL
Required Tools:
9/16”Socket w/Extension 3/8”Drive Ratchet Needle−Nose Pliers
1. Using needle−nose pliers, unhook the extension springs from the top of the base caster tubes.
2. Remove the plastic caster covers.
3. While putting pressure on the caster carriage bolt, use a 9/16”socket and a 3/8”drive ratchet to remove
the caster nut on both sides of the stretcher.
4. Remove the casters.
5. Remove the brake rod (see procedure on page 16).
6. Remove the cotter pin from the clevis pin in the center of the brake ring weldment.
7. Remove the cotter pin from the bearing pivot support.
8. Remove the 3/4”nylock hex nut from the bearing pivot support.
9. Remove the drive link assembly.
10. Pull the brake ring down and out away from the stretcher base frame.

Service Information
17
RELEASE PEDAL ADJUSTMENT
Required Tools:
None
1. Manually disengage the release pedal swivel (item J on page 38) from the release pedal assembly.
2. To increase the release rod engagement with the release valve, turn the release pedal swivel clockwise
on the threaded release rod.
3. To decrease the release rod engagement with the release valve, turn the release pedal swivel counter-
clockwise on the threaded release rod.
NOTE
If the pedal swivel assembly is threaded too far onto the release rod, the release valve will be partially acti-
vated and the jack will drift.

Service Information
18
PCB DISPLAY BOX ASSEMBLY REMOVAL
Required Tools:
7/16”Socket w/Extension 3/8”Drive Ratchet T−40 & T−27 Torx Sockets
1/2”Wrench
1. If the unit is equipped with an IV Pole, remove the nut and bolt holding the IV pole in the socket and remove
the IV pole.
2. Lift straight up on the display cover to separate the Velcro holding it on and remove the cover.
3. Remove the two hex head cap screws holding the belly tray to the underside of the base plate and remove
the tray.
4. Remove the two hex head cap screws and the two hex washer head screws fastening the PCB box as-
sembly to the base plate.
5. Carefully lift up on the PCB box assembly to expose the load cell cable, signal coil cord and left and right
handle connections.
6. Disconnect the cables and lift out the PCB box.
LOAD CELL REPLACEMENT
Required Tools:
7/16”Socket w/Extension 3/8”Drive Ratchet T−40 & T−27 Torx Sockets
1/2”Wrench 9/16”Socket
1. Remove the PCB box assembly to gain access to the load cell (see procedure on page 18).
2. Disconnect the load cell cable at the handle PCB assembly
3. Remove the two hex head cap screws holding the load cell to the base plate.
4. Remove the external retaining ring from the handle cross bar.
5. Slide the handle cross bar from left to right.
6. Remove the load cell.
ZOOM HANDLE ASSEMBLY REMOVAL
Required Tools:
Small Phillips Screwdriver
1. Remove the three pan head screws holding the halves of the handle grip together and remove the covers.
2. Carefully pull out the light pipe assembly and disconnect the handle switch cable from the handle exten-
sion cable.
3. Remove the handle pivot pin and external retaining ring securing the handle to the handle pivot.
4. Remove the handle.

Quick Reference Replacement Parts List
19
PART NAME PART NUMBER
Battery Replacement Kit 1040−030−000. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
C−Spine Cassette Holder 1001−070−000. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Defibrillator/Equipment Tray 0926−039−000. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Enclosure Assembly 1040−035−000. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Foot Board/Chartholder 0926−040−000. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Foot Extension/Defibrillator Tray Assembly 1010−050−100. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Fowler X−Ray Cassette Tray 1711−143−000. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Head/Foot Board Assembly (2) 0946−029−100. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Heel Stirrups 1001−055−000. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Heel Stirrup Mounting Brackets 1001−055−019. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Hydraulic Jack 0753−002−001. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Hydraulic Oil, Mobil AW−32 0753−002−110. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
I.V. Pole, Standard, Removable 0390−025−000. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
I.V. Pole, 2−Stage Permanently Attached, Head End 1711−110−000. . . . . . . . . . . . . . . . . . . . . .
I.V. Pole, 2−Stage Permanently Attached, Foot End 1711−112−000. . . . . . . . . . . . . . . . . . . . . . .
I.V. Pole, 3−Stage Permanently Attached, Head End 1711−111−000. . . . . . . . . . . . . . . . . . . . . .
I.V. Pole, 3−Stage Permanently Attached, Foot End 1711−113−000. . . . . . . . . . . . . . . . . . . . . . .
Mattress, 4”Thick x 31”Wide, Enhanced Comfort 0660−030−004. . . . . . . . . . . . . . . . . . . . . . . . .
Mattress, 5”Thick x 31”Wide, Ultra Comfort 0660−040−005. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Oxygen Bottle Holder, Upright 1020−030−000. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Paint, Touch−Up, Gloss Black, Bottle w/Brush 7000−001−322. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Paint, Touch−Up, Gloss Black, Spray Can 7000−001−319. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Paint, Touch−Up, Gray, Bottle w/Brush 7000−001−320. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Paint, Touch−Up, Gray, Spray Can 7000−001−317. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Restraint Strap, Ankle 0946−043−100. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Restraint Strap, Chest 1010−058−000. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Restraint Strap, Wrist 0946−044−100. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Restraint Strap, 2 Piece 0390−019−000. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Serving/Instrument Tray 1052−129−000. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Siderail Pads, GlideawaytRails 1001−052−000. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
