Kinroad XT50QT-2 User manual

- 1 -
FOREWORD ：
Thanks for your purchasing this motorcycle.
With the help of this manual, you will learn the correct
procedures of operation and basic knowledge of maintenance
and trouble shooting of the motorcycle. It presents all
the basic knowledge of maintenance and trouble shooting
of the motorcycle. It presents all the details of the
performance of this motorcycle to you and the vehicle will
make your life more relaxed and happier.
In case any picture does not agree with the vehicle
physically, the latter shall prevail.
CAUTION．NOTE and MAIN POINTS carry special mean-
ings and should be carefully reviewed．
!CAUTION：The personal safety of the rider may be
involved，disregarding this information could result in
injury to the rider．
NOTE：These instructions point out special service
procedures or precautions that must be followed to
avoid damaging the machine．
MAIN POINTS ：This provides special information to make
maintenance easier or important instructionsclearer．
VIN AND ENGINE SERIAL NUMBER LOCATION
The VIN and/or engine serial number are used to register
the motorcycle．They are also use to assist your dealer
when ordering parts or special service information.
The VIN is stamped on the front main beam of the frame．
The engine serial number is stamped on the rear end
of the crankcase assembly
VIN. :
Engine No.:

- 2 -
CONTENTS
NOTES FOR SAFE RIDING……………………………2
LOCATION OF PARTS…………………………… …4
INSTRUMENT PANEL…………………………… ……7
USING METHODS OF SWITCHES……… ……………8
USING METHODS OF TRUNK…………………………10
ADD GASOLINE AND ENGINE OIL……………………11
CORRECT DRIVING OPERATIONS……………………12
INSPECTION BEFORE RIDING………………………20
PERIODICAL INSPECTIONS…………………………23
SIMPLE MAINTENANCE METHODS …………… … 26
SPECIFICATIONS……………………………… … 30
ELECTRICAL DIAGRAM……………………… ……31
NOTES FOR SAFE RIDING
RIDING APPAREL
1.Loose，fancy clothing can be uncomfortable and unsafe
when riding your motorcycle ． Choose good quality
motorcycle riding apparel when riding your motorcycle．
2. most motorcycle accident fatalities are due to head
injuries. ALWAYS wear a helmet, a face shield or goggles
as well as boots, gloves and protective clothing. so does
the passenger on your motorcycle.
3. the exhaust system must be very hot while you are riding,
and even remains so after the engine operation stops, so
never touch any part of the hot exhaust

- 3 -
RULES FOR SAFE DRIVE
Check must be conducted before starting the engine to
prevent mishaps and damage to components.
Only the qualified person who has passed the drive
examination with a drive license is permitted to drive the
vehicle but not anybody else without a drive license.
Full preoccupation is required during drive, paying
attention to the following points to avoid any possible hurt
to you by other motorized vehicles:
Do not drive too close to other vehicles;
Never contend for lane.
Strictly observe the local traffic rules.
As driving at overspeed is the cause of many accidents.
Do not drive at a speed that the actual situation does not
permit.
Particular care should be exercised at the level
crossing of roads, entrance and exit of parking lot or on
the automobile lane.
During drive, grasp the left handlebar by the left hand
and the throttle twist grip by the right hand, with feet on
the footrests.
MODIFICATION
any modification of the motorcycle or removal of the
original equipment may render the vehicle unsafe or illegal
P1ease obey all the national and local equipment
regulations.
DO NOT OVERLOAD
1. Do not load on the places where they are not allowed．
2.Do not put cotton or other same items near the engine
or the exhaust pipe, When the motorcycle is in the
over-loading condition, its stability, security and speed
will be affected.

- 4 -

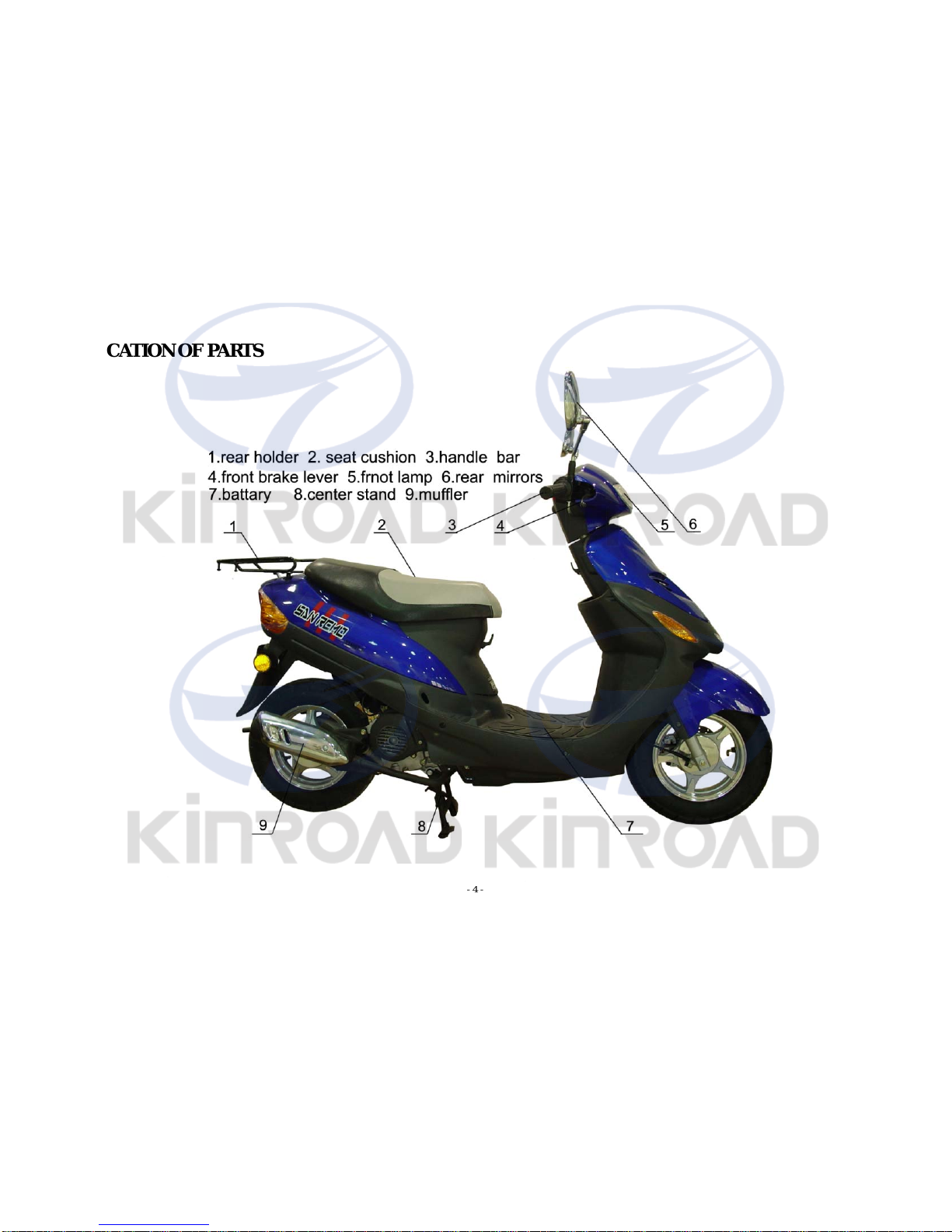

LOCATION OFPARTS

- 5 -

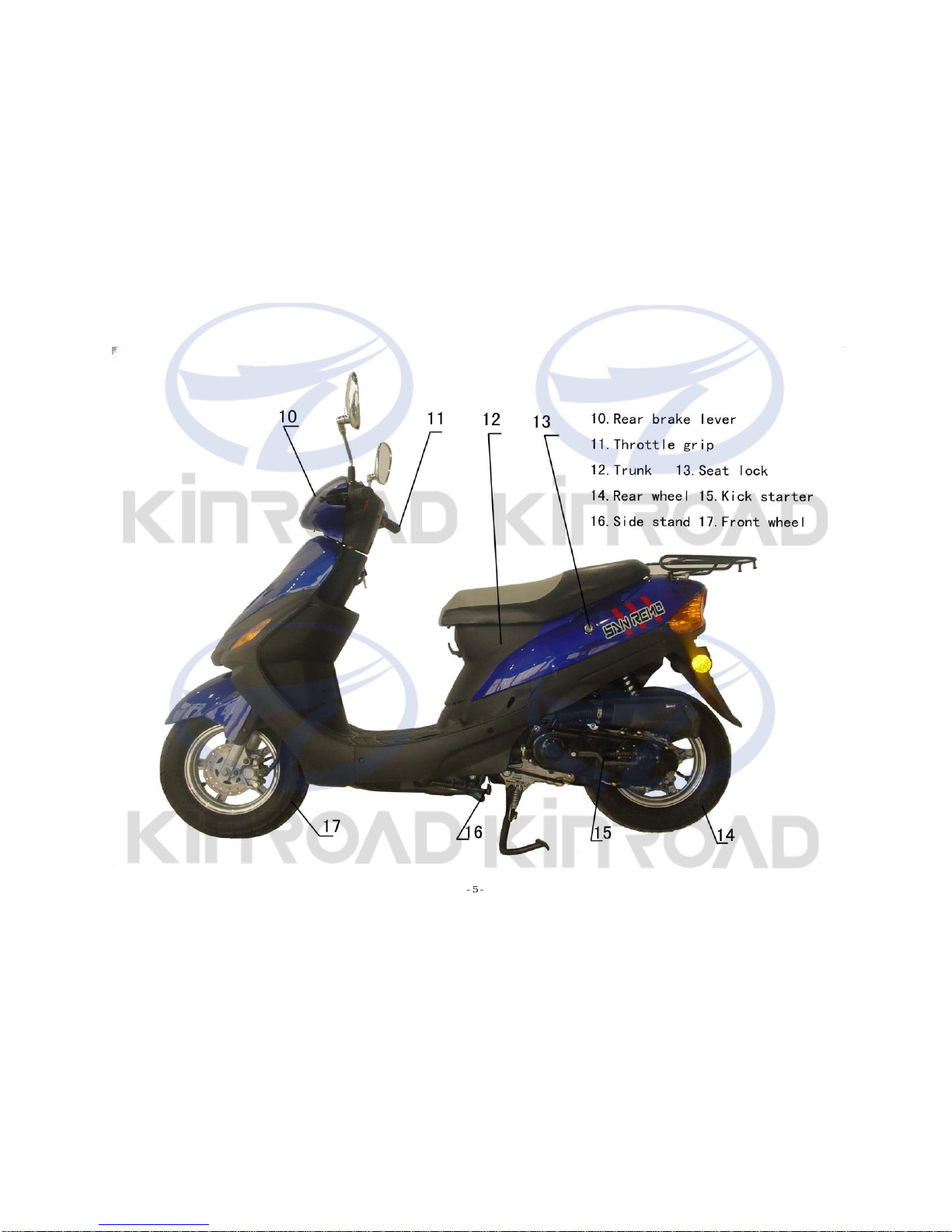

- 6 -

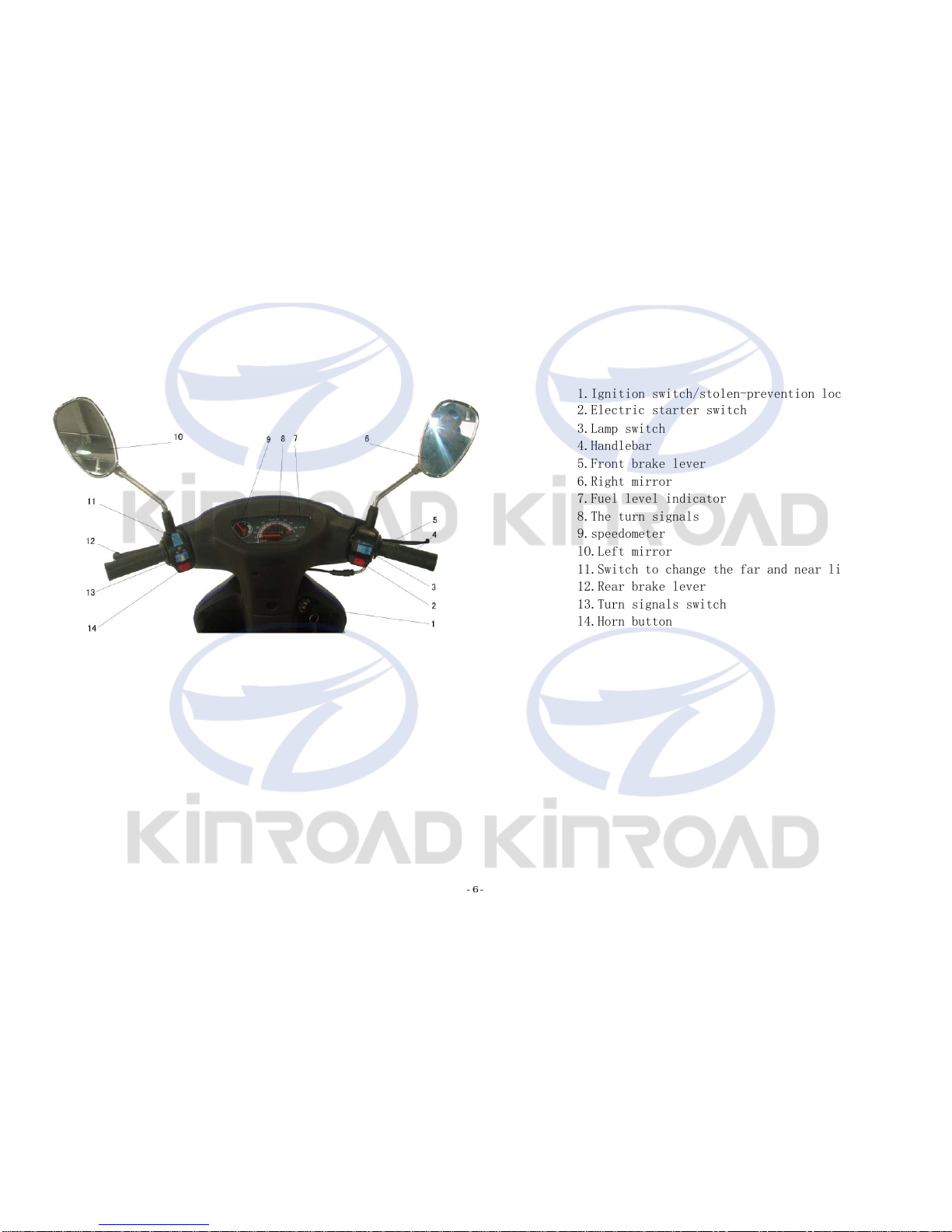

1.Ignition switch/stolen-prevention lock
2.Electric starter switch
3.Lamp switch
4.Handlebar
5.Front brake lever
6.Right mirror
7.Fuel level indicator
8.The turn signals
9.speedometer
lO.Left mirror
11.Switch to change the far and near light
12.Rear brake lever
13.Turn signals switch
l4.Horn button

- 7 -
INSTRUMENTPANEL

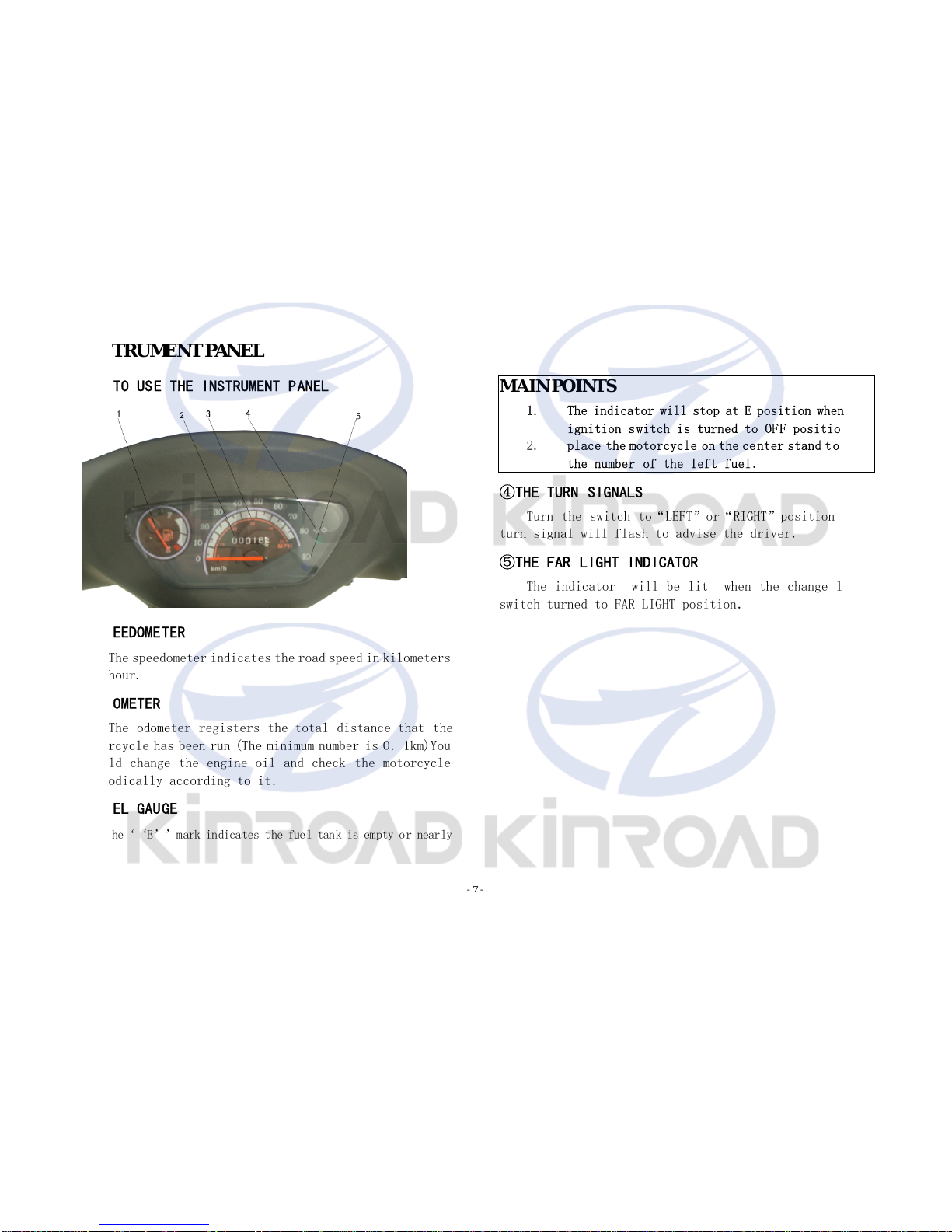

HOW TO USE THE INSTRUMENT PANEL
①SPEEDOMETER
The speedometer indicates the road speed in kilometers
per hour.
②ODOMETER
The odometer registers the total distance that the
motorcycle has been run (The minimum number is O．1km)You
should change the engine oil and check the motorcycle
periodically according to it．
③FUEL GAUGE
The‘‘E’’mark indicates the fuel tank is empty or nearly
so．
MAIN POINTS
1. The indicator will stop at E position when the
ignition switch is turned to OFF position.
2. place the motorcycle on the center stand to read
the number of the left fuel.
④THE TURN SIGNALS
Turn the switch to“LEFT”or“RIGHT”position，the
turn signal will flash to advise the driver．
⑤THE FAR LIGHT INDICATOR
The indicator will be lit when the change light
switch turned to FAR LIGHT position．

- 8 -
USING METHODSOF THE SWITCHES

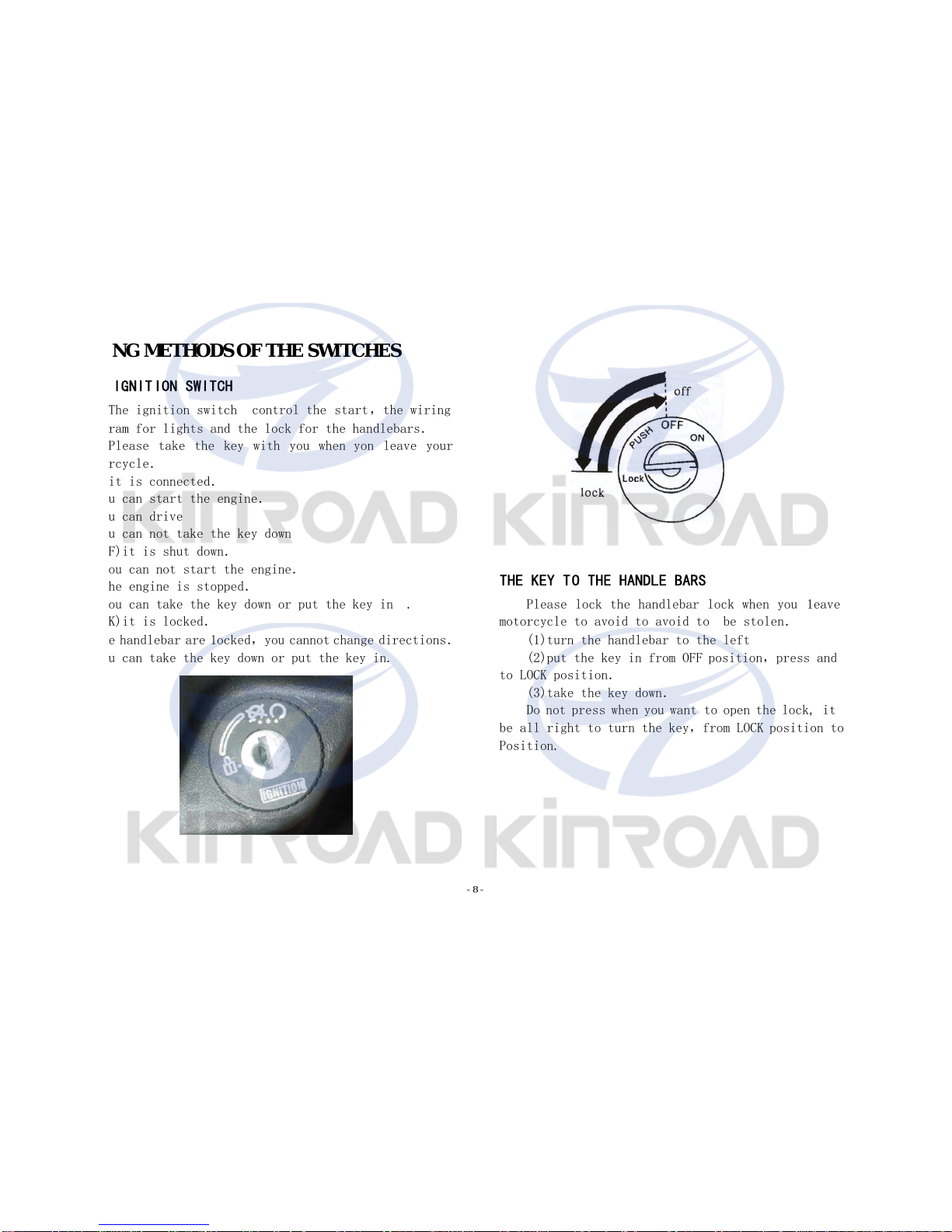

THE IGNITION SWITCH
The ignition switch control the start，the wiring
diagram for lights and the lock for the handlebars．
Please take the key with you when yon leave your
motorcycle．
(ON)it is connected．
1.You can start the engine．
2.You can drive
3.You can not take the key down
(OFF)it is shut down．
1·You can not start the engine．
2·The engine is stopped．
3·You can take the key down or put the key in .
(LOCK)it is locked．
1.The handlebar are 1ocked，you cannot change directions．
2.You can take the key down or put the key in.
THE KEY TO THE HANDLE BARS
Please lock the handlebar lock when you 1eave the
motorcycle to avoid to avoid to be stolen．
(1)turn the handlebar to the left
(2)put the key in from OFF position，press and turn
to LOCK position．
(3)take the key down．
Do not press when you want to open the lock, it will
be all right to turn the key，from LOCK position to OFF
Position.

- 9 -
MAIN POINTS
1.If it is hard to lock，you can turn the handlebar
to the right a little and then lock it.
2.Shake the handlebars left and right to be sure that
it has been locked.

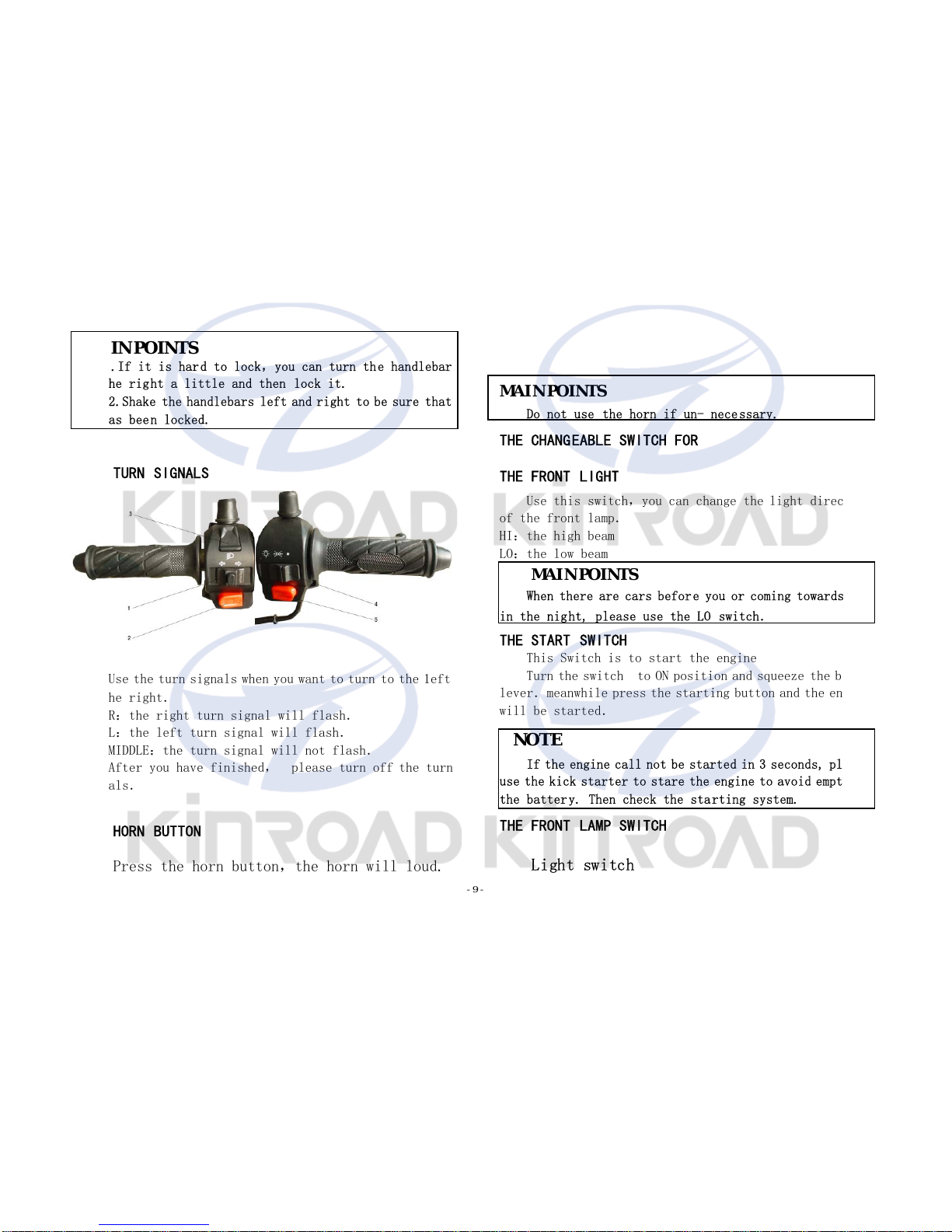

THE TURN SIGNALS
Use the turn signals when you want to turn to the 1eft
or the right．
R：the right turn signal will flash．
L：the left turn signal will flash．
MIDDLE：the turn signal will not flash．
After you have finished， please turn off the turn
signals．
THE HORN BUTTON
Press the horn button，the horn will loud.
MAI N POINTS
Do not use the horn if un- necessary.
THE CHANGEABLE SWITCH FOR
THE FRONT LIGHT
Use this switch，you can change the light direction
of the front lamp．
HI：the high beam
LO：the low beam
MAI N POINTS
When there are cars before you or coming towards you
in the night, please use the LO switch．
THE START SWITCH
This Switch is to start the engine
Turn the switch to ON position and squeeze the brake
lever．meanwhile press the starting button and the engine
will be started．
NOTE
If the engine call not be started in 3 seconds, please
use the kick starter to stare the engine to avoid emptying
the battery. Then check the starting system.
THE FRONT LAMP SWITCH
Light switch

-10 -
The front light switch has three positions,
And “●”(a white point).
When the switch is in this position, the front
head light ,tail and meter lights are all lit up.
When the switch is in this position,the tail,
betraying and meter Lights are lit up.
“●”When it is in this position. The front illuminator,
tail, betraying and meter lights are all off.

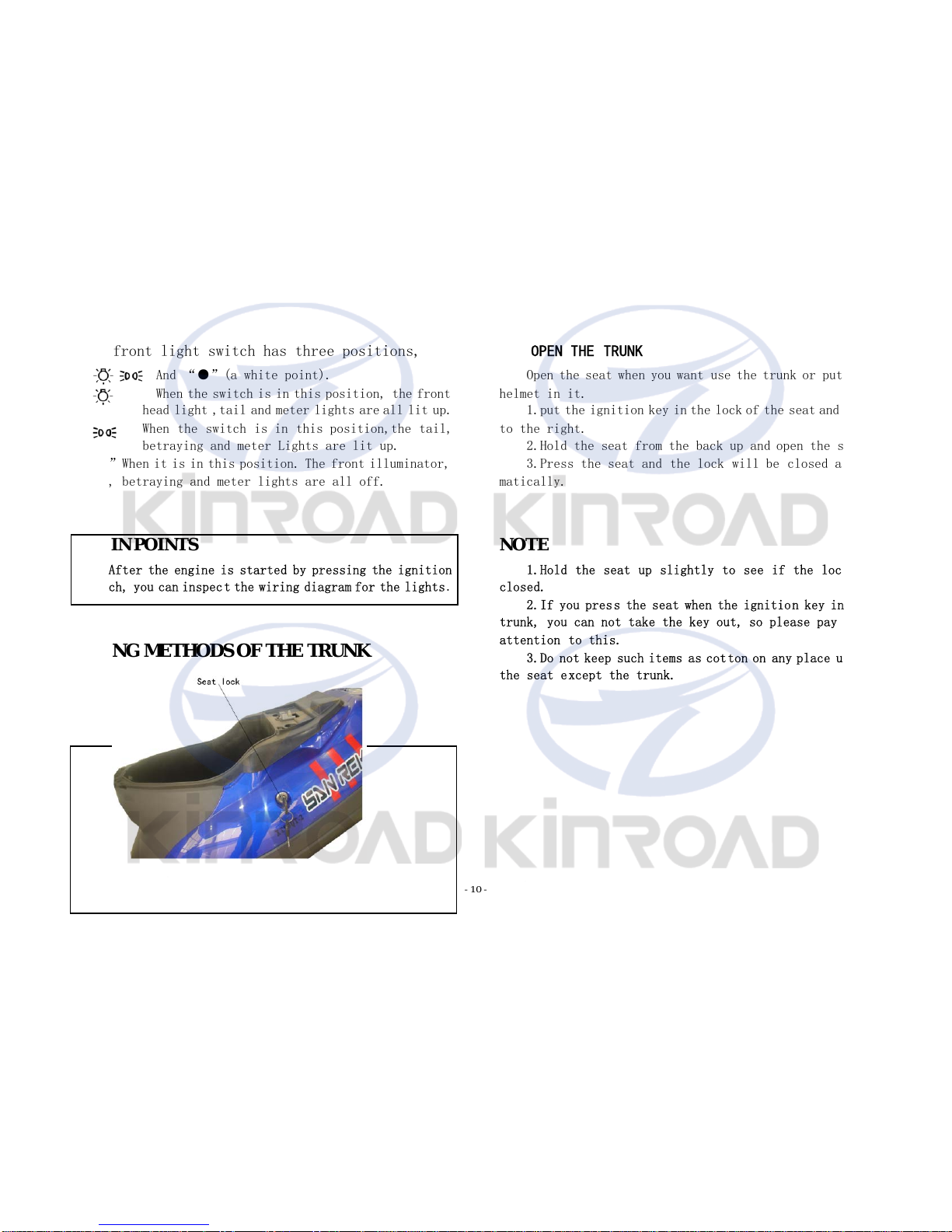

OPEN THE TRUNK
Open the seat when you want use the trunk or put the
helmet in it.
1.put the ignition key in the lock of the seat and turn
to the right.
2.Hold the seat from the back up and open the seat.
3.Press the seat and the lock will be closed auto-
matically.
MAIN POINTS
After the engine is started by pressing the ignition
switch, you can inspect the wiring diagram for the lights.
USING METHODSOF THE TRUNK
NOTE
1.Hold the seat up slightly to see if the lock is
closed.
2.If you press the seat when the ignition key in the
trunk, you can not take the key out, so please pay much
attention to this.
3.Do not keep such items as cotton on any place under
the seat except the trunk.

-11 -
MAIN POINTS
1.The trunk load capacity is 10kg．
2.Do not keep heat- Sensitive item in trunk when the
trunk may get hot．
3.Do not keep valuable and easily damaged items in the
trunk．
4.Keep the easily—flown items first in the plastic
bag then put them in the trunk.
5.Do not allow water to get inside when the washing
the motorcycle．
6.Do not clean the trunk with water.
ADDGASOLINEAND ENGINE OIL
ADD GASOLINE
There is a gasoline tank gate at the rear part of the
seat ， open it with the ignition key , take down the
cover．add unleaded gasoline with an octane rating of 90
or higher.
ENGINE OIL
There are several reasonable effects included in the
engine oil with high quality．only the high degreasing
4-strokeSAEl0W-30(SIGMA)engine oil can ensure this
requirement or even exceed it．Do not need to use other
additives ． Yon can use the HQB-10 engine oil instead
according to the condition of our marketing service．
Mucosity：The mucosity of engine oil is to be decided
according to the humidity of local climate．
CHANGE ENGINE OIL
Change the engine oil after the first 300km
riding．Afterwards，change it every 1000km，check the volume
every 500km riding and add it to the standard volume in
time．The full volume is 0.9L and the replace volume is
0.75L．
CHANGE GEAR OIL
Change the gear oil after the first 300km and every 5000km
successively or every half a year, whichever comes first.
check the capacity every 500km.pls use SAE80W90 gear oil.
The volume of the gear oil
Full volume．O.11L

-12 -

-13 -
NOTE
1. Don’t fill oil prior to the FULL level when adding
oil.
2.The engine will be easily damaged when driving
without oil.
3.Don’t mix oil with other type of oil and it will
affect the performance of the engine.
4.Wipe off the oil outside the engine.
5.Close the cover of the oil tank.
6.Don’t put cotton on the oil tank to avoid keeping
the oil back or damaging the engine.
! CAUTION
Please pay much attention to the following items when
Adding gasoline or oil to the engine.
1.Shut off the engine and turn the ignition switch to
OFF.
2.Fire is forbidden and do not add oil beside fire and
smoke.
3.Add gasoline of oil on a plat place.
4.Don’t add gasoline too much to avoid it coming out.
5.Don’t make dirt into the gasoline tank.
6.Close the cover of the oil tank.
7.Wipe off the gasoline outside the gasoline tank.
Forbid to store gasoline at home since it is very
dangerous.
CORRECT DRIVING OPERATIONS
STARTING METHOD OF THE ENGINE
BEFORE STARTING
1.You must check the volume of oil and gasoline.
2.Place the motorcycle on the center stand．
3.Start the engine at left side of the motorcycle．
[1]Turn the ignition switch to ON position Please
inspect the motorcycle according to the following
items：
1.If the ignition switch has been on ON position．
2.Inspect if the front lamp and the rear lamp lit or not．
3.If a11 the switches are functional or not．
4.If the horn is functional when pressing the horn button．
5.If the horn is un—functional ． perhaps the fuse is
broken，Please refer to page 33
After you have done the above inspections，please go to
dealer’s service station if the lights or the horn are
still un-functional．

-14 -
[2]Hold the front and rear levers
MAIN POINTS
The electric start will be un-functional if the brake
levers are not squeezed．
[3]Don’t rotate the throttle handlebar when
pressing the start button．
MAIN POINTS
1.After the engine is ignited，please release the
start button to avoid affecting the engine．
2.To avoid empty the battery，please use the kick
starter to start the engine after 3 seconds by the electric
start or and then check the starting system.
3.Please rotate the throttle handlebar 1/8-1/4round
and then start the engine again if you can not ignite the
engine 2 or 3 times. Return the throttle handlebar after
ignition.

-15 -
[4] Preheat the engine while it is cool.
！CAUTION
Don’t preheat the engine in a close room because of
the noxious gas such as co in the waste gas.
MAIN POINTS
1.If the engine is cool，warm it after it is started.
2．The engine will be difficultly started when the fuel
runs out and added again or it has been stored for a long
time . At this time do not rotate the throttle bar and start
the engine for several times． (recommend starting by the
kick starter)．After the gasoline is burnt，water will be
producted and leave in the exhaust pipe．so in the cold
areas，note the problem of water becoming ice．
When the battery is out and can not start by the electric
starter
First confirm the following items then start again.
[1]Turn the ignition switch to ON position.
[2]Hold the rear brake lever with the left hand and press
the front part of the seat with the right hand.
[3]Kick the kick starter with the right foot.

-16 -
Know well about the correct driving way.
It is good not only for security，but also for the using
life of your motorcycle．saving fuel and oil．
METHOD OF STARTING
[l]RELEASE THE CENTER STAND
After starting the engine，hold the rear brake lever
with left Hand and push the motorcycle for ward with the
right hand to release the center stand.
NOTE
Please hold the back dress holder when you release or
place the Center stand．do not hold the back part of the
seat．
[2]THE PROCEDURE TO DRIVE MOTORCYCLE
Hold the handlebars with both hands, sit on the seat
from the left．At this time.
The left foot stand on the ground squeeze the rear brake
lever．
NOTE
Don’t rotate the throttle handle bar before
starting．

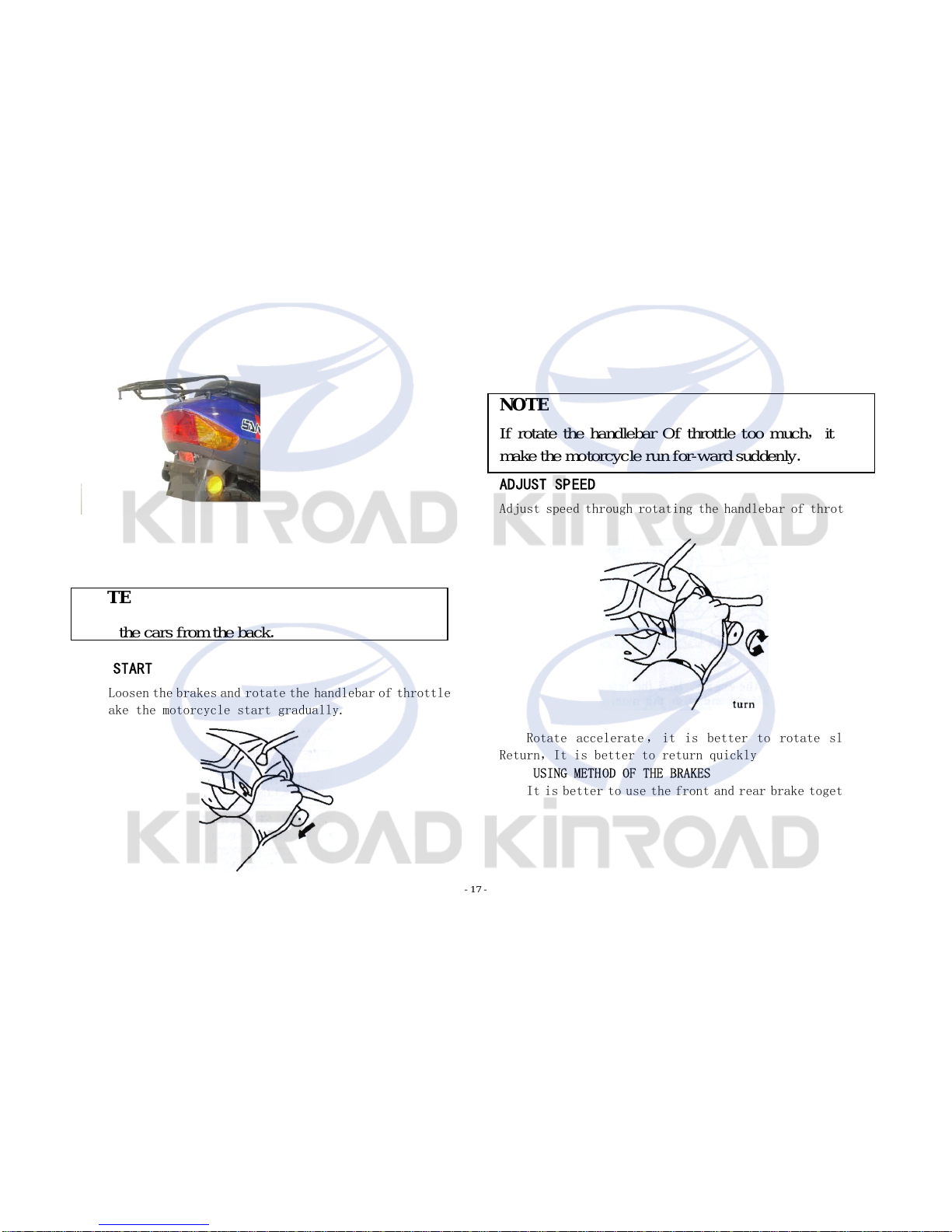

[3] OBSERVE IF THE SURROUNDING IS SAFE
Before starting, you should give on information using
the left turning signal to observe if the surroundings is
safe or not. Squeeze the rear brake at this time.

-17 -
NOTE
Note the cars from the back．
[4] START
Loosen the brakes and rotate the handlebar of throttle
to make the motorcycle start gradually.
NOTE
If rotate the handlebar Of throttle too much，it may
make the motorcycle run for-ward suddenly．
ADJUST SPEED
Adjust speed through rotating the handlebar of throttle．
Rotate accelerate ， it is better to rotate slowly
Return，It is better to return quickly
USING METHOD OF THE BRAKES
It is better to use the front and rear brake together．

-18 -
1.Squeeze the brake levers after quick returning the
throttle bar.
2.Gradually shut the motorcycle and make the speed low
is the most proper way to use the brakes．
NOTE
It is very dangerous if use only the front brake or
the rear brake．It may make the motorcycle slip．
DON’T BRAKE OR TURN SUDDENLY
It is extremely dangerous to brake or turn in a sudden,
it may make the motorcycle slip or turn over
BE EXTRA SAFETY CONSCIOUS ON BAD WEATHER DAYS
Riding on bad weather days ， especially wet ones
requires extra Caution．Braking distance double on a rainy
day．Stay off of the painted surface marks，manhole covers
and greasy appearing areas as they can be especially
slippery． Use extreme Caution at railway crossings and
on metal gratings and bridges. Whenever in doubt about road
conditions，slow down!
PAY ATTENTION TO WORKING CONDITION OF
THE BRAKES AFTER WASHING OR DRIVING IN
WATER
The function Of the brake will be affected after
washing or driving in water．Drive slowly until the brake
become normal．
CORRECT WAY TO PARK THE MOTORCYCLE
[1]give signals
First use the turn signals to inform others and then
drive to the sides of the road．

-19 -
Return the throttle and squeeze the front and rear
brake levers. At the same time, the brake indicator is lit
to inform the following drivers.
[2] Turn the ignition key to OFF position.
Shut off the turn signals and turn the ignition key to OFF
position after parking well the motorcycle.
[3] Place the motorcycle on the center stand
place the motorcycle on the center stand on the place
where does not affect traffic .
1.Ho1d the handlebar with the left hand and hold the
tail part with the right hand．
2.Press the lever of the center sand with the right
foot and take the motorcycle up with the right hand.
NOTE
Don’t park the motorcycle on the soft ground or on
a slope.
[4] Lock the turning bar
To avoid stolen. Please lock the steering and bring the key
with you when you leave.

-20 -
BREAK IN
Proper break-in is important to achieve maximum life
and performance from your motorcycle．
1.The first month or the first 1000 km drive
with in 45km／h．
2.Avoid unnecessary accelerating suddenly．
!CAUTION
Don’t a11ow to drive with single hand or both hands free，
don’t allow to 1oad goods or children on the
footrest． Obey the safe speed and remember safe driving．
Check the following items before going to service
station．
The engine can not be started?
Check the following items again：
1.If there is fuel in the engine?
2.Turn the ignition switch to ON position．
3.Press the starting button while squeezing
the brake 1evers．
Control the bars while turning the throttle．
Re-start the engine after you have confirmed the above
items．
THE START ENGINE UN-ROTATE
Press the button ， if the start engine does not
rotate．check：
1．If the ignition switch is in the ON position?
2．Press the start button mean while squeezing the front
or the rear brake ,if it is still not started.
3．Turn the ignition switch to ON position and press the
horn button, if the horn has no noise to see if the
capacity of the battery is not enough
