AQUABOOST
Installation, Operation & Maintenance
Instructions
Please leave this instruction booklet in a safe place as it contains
important guarantee, maintenance and safety information
Read this manual carefully before commencing installation.
This manual covers the following products:
Model Part No
iMatic 0304 1S-CMT/8 450 47359
iMatic 0304 2S-CMT/24 800 47360
iMatic 0504 2S-CMT/24 1200 47361
Please note images are representative only and may not portray
your model

CONTENTS
1PRODUCT OVERVIEW............................................................................................ 1
2WARNINGS ............................................................................................................ 2
3CHECKLIST .............................................................................................................4
4IMPORTANT - READ BEFORE COMMENCING INSTALLATION ..............................6
5LOCATION - GENERAL ...........................................................................................7
6KEY FEATURES....................................................................................................... 8
7INSTALLATION & CONNECTIONS.........................................................................10
8ELECTRICAL INSTALLATION & EARTHING ........................................................... 12
9COMMISSIONING & STARTING ............................................................................ 17
10 MAINTENANCE .....................................................................................................24
11 TECHNICAL SPECIFICATION ............................................................................... 26
12 TROUBLE SHOOTING .......................................................................................... 28
13 PRODUCT WARRANTY ........................................................................................33
14 DECLARATION OF CONFORMITY ........................................................................34

1
1 PRODUCT OVERVIEW
1.1 Product Description
The iMatic range is a water pressure and flow booster set with integral water
storage tank and electric motor driven centrifugal pump complete with an
automatic control system, consisting of flow switch, pressure switch, pressure
vessel and electronic control. The design of the tank incorporates an AC air gap
for fluid isolation (BS EN 1717).
1.2 Application
The Aquaboost iMatic range is designed to meet the demand of pressurised
systems in domestic applications where the existing mains water supply is
insufficient.
Inlet pressures to the tank and ambient temperatures must not exceed the
values given in the technical specifications.
1.3 Storage
If this product is not to be installed immediately on receipt, ensure that it is stored
in a dry, frost and vibration free location in its original packaging.

2
2 WARNINGS
• This pump set must not be used for any other application without
the written consent of Stuart Turner Limited.
• This appliance can be used by children aged from 8 years and
above and persons with reduced physical, sensory or mental
capabilities or lack of experience and knowledge if they have
been given supervision or instruction concerning use of the
appliance in a safe way and understand the hazards involved.
• Children shall not play with the appliance.
• This product should not be used for the supply of water to more
than one dwelling (house, apartment, flat).
• Cleaning and user maintenance shall not be made by children
without supervision.
• The motor casing can become very hot under normal operating
conditions. Care must be taken to ensure it cannot be touched
during operation.
• The electrical installation must be carried out in accordance with
the current national electrical regulations.
• The electrical installation must be undertaken by a qualified
person.
• RCDs/ELCBs are not recommended for use with variable speed
drives/motors. If an RCD is mandatory use type B RCDs.
• For single phase sets with invertor motors the earth leakage
circuit breaker must trip out when an earth fault currents with DC
content (pulsating DC) occur.
• RCD’s suitable for use with variable speed drives/motors are not
suitable forpersonnel protection.

3
• Before starting work on the electrical supply ensure power supply
is isolated.
• DO NOT allow the supply cord to contact hot surfaces, including
the motor shell, pump body or pipework. The cord should be
safely routed and secured by cable clips.
• This appliance must be earthed via the supply cord, which must
be correctly connected to the earth point located in the terminal
box.
• The supply cord and internal wiring within the terminal box are
routed and secured to ensure compliance with the electrical
standard
• EN 60335-1. It is essential that prior to any disturbance of this
internal wiring, all cable routing and securing details are carefully
noted to ensure re-assembly to the same factory pattern is
always maintained.
• If the supply cord is to be changed or is damaged, it must be
replaced with a special cord assembly available from Stuart
Turner or one of their approved repairers.
Please read installation details carefully as they are intended to ensure this product
provides long, trouble free service. Failure to install the unit in accordance with
the installation instructions will lead to invalidation of the warranty.

4
3 CHECKLIST
IMPORTANT: With the appliance removed from its packaging check for any
damage prior to installation. If any damage is found contact Stuart Turner Ltd
within 24 hours of receipt.
3.1 iMatic Single Pump Booster Set
Item Description Qty
A iMatic Single Set 1
B Instruction guide 1
Your product may vary slightly from the illustration above.
Figure 1
A
B

5

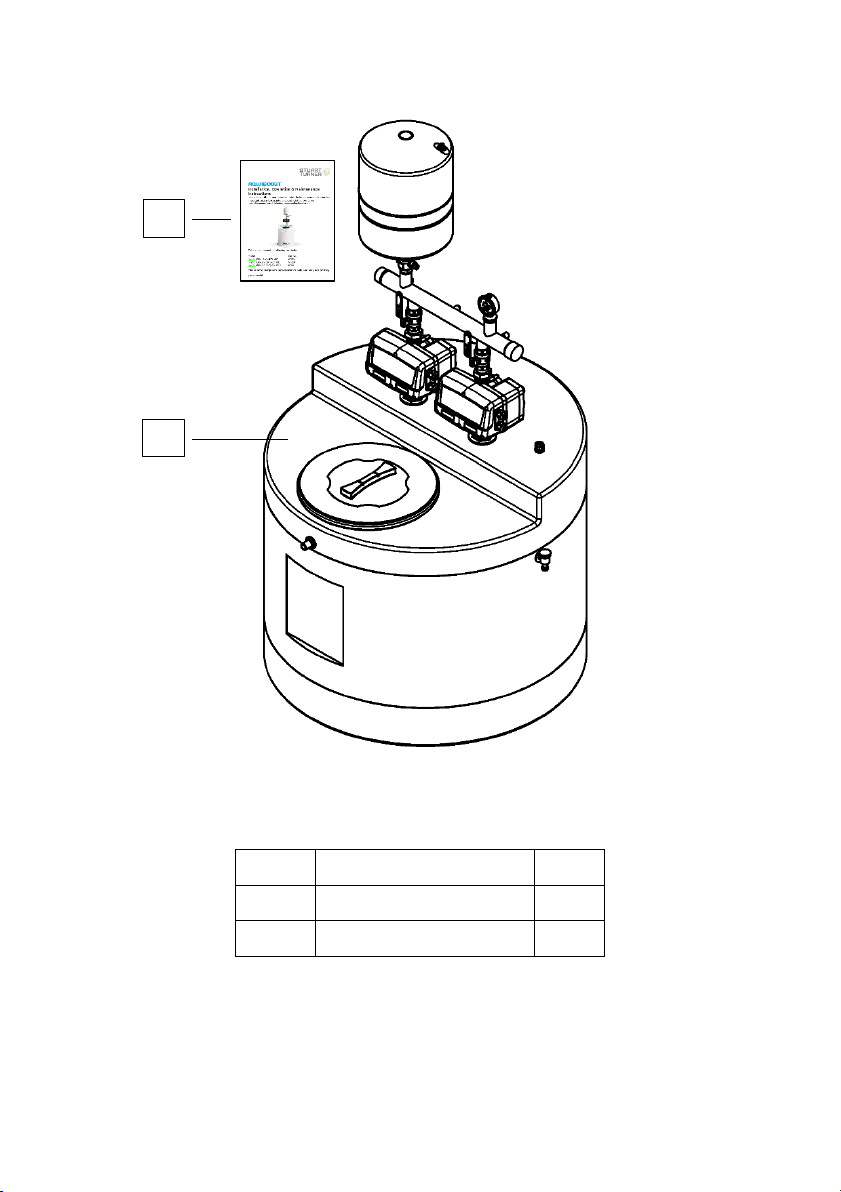

3.2 iMatic Twin Pump Booster Set
Item Description Qty
A iMatic Twin Set 1
B Instruction guide 1
Your product may vary slightly from the illustration above.
Figure 2
A
B

6
4 IMPORTANT - READ BEFORE COMMENCING INSTALLATION
4.1 Water Storage Capacity
The iMatic usable water volume can be found in the technical specification table
(Section 8); the length of time the iMatic delivers water will be dependent on the
usage and refill rates
4.2 Water Temperature
This unit is designed to pump cold water only which should not exceed the
following values:
The maximum allowable water temperature is 23 °C.
The minimum allowable water temperature is 4 °C.
4.3
Pipework - General
Do not drill holes or put fastenings into the iMatic tank, this will cause leakage.
System leaks: Ensure the system to be boosted is able to hold pressure and is leak
free before installing iMatic. Failure to do so will cause abnormal operation and
damage to the unit.
Secure pipework: Ensure pipework to and from pump is independently supported
& clipped to prevent forces being transferred to inlet and outlet branches of pump.
Do not secure pipework to the iMatic, this will cause damage and possible
leakage.
Flux: Solder joints must be completed and flux residues removed prior to iMatic
installation (flux damage will void any warranty).
Pipework design: Care should be taken in the design of pipework runsto minimize
the risk of air locks e.g. use drawn bends rather than 90o bends.
DO NOT introduce solder flux to flexible hose, tank, pump or any parts
manufactured from plastic.
DO NOT allow contact with oil or cellulose based paints, paintthinners or
strippers, acid based descalents or aggressive cleaning agents.
DO NOT feed other header or gravity tanks with iMatic. It is acceptable to feed
toilet cisterns provided the toilet fill valve operates correctly and is leak free.
4.4 Plumbing Installation Regulations
The plumbing installation must comply with the current water andbuilding
regulations.
The plumbing installation must be installed by a qualified person.
4.5 Pressure Vessel
The iMatic pressure vessel is pre-charged at the factory and must be set correctly
during installation see Section 10 for details.

7
5 LOCATION - GENERAL
• Access: For emergencies and maintenance the pump must be
easily accessible.
• Protection: The iMatic must be located in a dry, frost free area.
The iMatic must not be installed in a loft space.
• Ventilation: Ensure an adequate air flow to cool the iMatic.
Separate the iMatic from other appliances that generate heat.
• Water retention: Site the unit in a location where in the unlikely
event of a water leak, any spillage is contained or routed to avoid
electrics or areas sensitive to water damage.
• Supply inlet pressure: The water supply inlet pressure must be
lower than 7 bar; lower supply inlet pressures will reduce the tank
fill rate and reduce the time the iMatic will run at higher flow rates
before running out of stored water.
• Ambient temperature: The iMatic must be sited in a location
where the ambient temperature does not exceed 30
o
C.
• Pipework: For optimum performance outlet pipework must be 22
mm pipe. Pipework should only reduce to 15 mm when entering
terminal fittings.
• Static outlet pressure: The static outlet head must also be within
the maximum requirement of 15 metres (vertically above the
appliance).
• Isolating valves: Separate system isolating valves (non restrictive)
must be fitted to allow easy pump service. Isolating valves must
be mounted where specified to allow the system isolation and
removal of the iMatic if needed.
• Preferred iMatic location: The preferred iMatic location is on a
smooth level floor of sufficient strength to support the filled
weight of the iMatic close to the water source and a suitable
overflow position (see Section 11
- Technical Specification for
filled weight).
The iMatic must not be installed in a loft space.
It must also be considered that the noise and vibration from the
iMatic may be transmitted through the structure the iMatic is
sited on.

8
6 KEY FEATURES

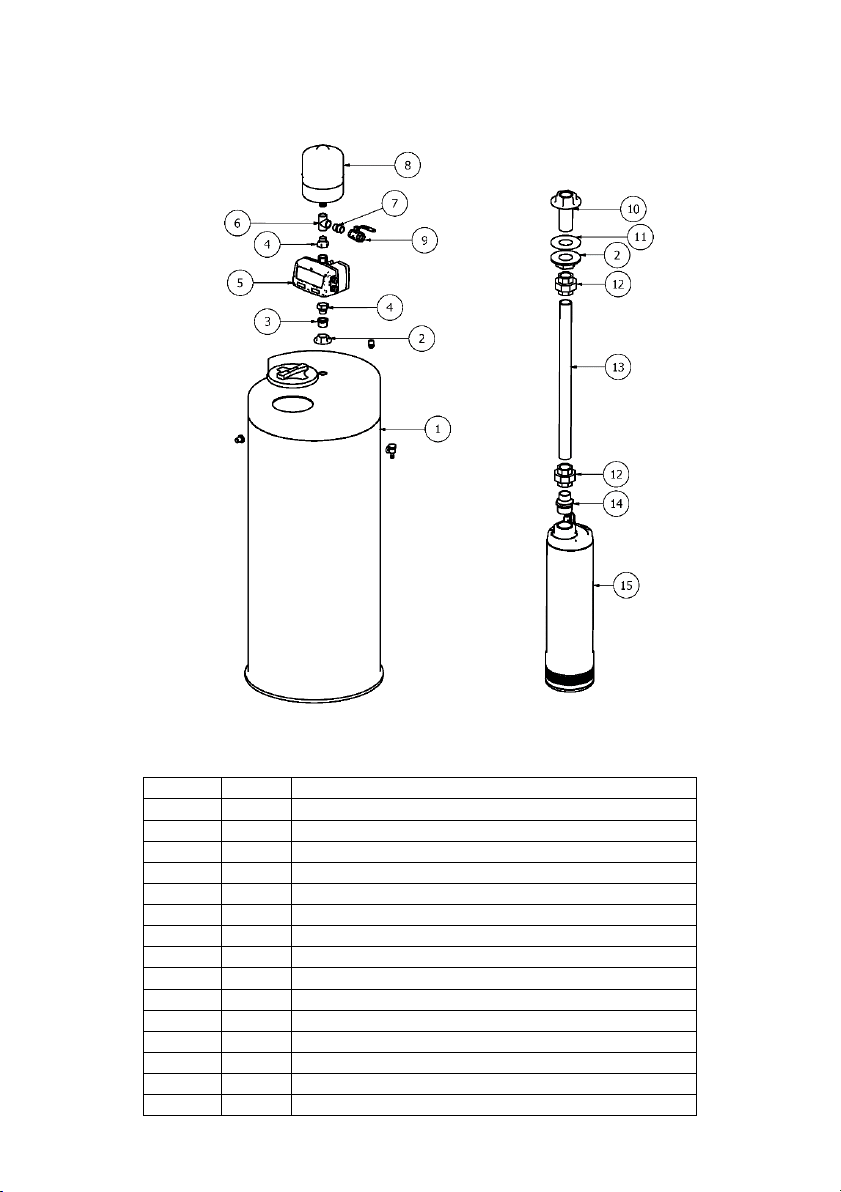

6.1 iMatic Single Pump Booster Set
ITEM
QTY
DESCRIPTION
1
1
450 Litre Tank – Fitted with Inlet and Overflow
2
1
Tank Connector Nut
3
1
Reducing Bush
4
2
M/F Union
5
1
iMatic Controller
6
1
Tee
7
1
Nipple
8
1
8 Litre Pressure Vessel
9
1
Ball Valve
10
1
Tank Connector
11
1
Tank Connector Rubber Seal
12
2
F/F Union
13
1
PVC Pipe
14
1
Reducing Nipple
15
1
Pump
Figure 3

9
6.2 iMatic Twin Pump Booster Set
ITEM
QTY
DESCRIPTION
ITEM
QTY
DESCRIPTION
1
1
800 Litre Tank – Fitted with
Inlet and Overflow
11
1
Pressure Gauge
2
2
Tank Connector Nut
12
1
Reducing Bush
3
2
Reducing Bush
13
2
Small Cap for manifold ports
4
4
M/F Union
14
1
Small Plug for manifold ports
5
2
iMatic Controller
15
1
Tank Connector
6
2
Ball Valve
16
1
Tank Connector Rubber Seal
7
1
Manifold
17
2
F/F Union
8
1
End Cap
18
1
PVC Pipe
9
1
Flow Through Isolating & Drain
Valve
19
1
Reducing Nipple
10
1
Pressure Vessel
20
1
Pump
Figure 4

10
7 INSTALLATION & CONNECTIONS
7.1 Mains Water Connection
The iMatic is to be permanently connected to the mains water supply using rigid
pipe or suitably sized and rated flexible hose to comply with current building and
plumbing regulations. The water tank fill valve has a G ½ male threaded fitting; a
suitable 90o elbow type fitting must be used. When tightening ensure the fill valve
within the tank is not rotated. If the valve is rotated it may not function correctly
with the risk of flooding.
Ensure there is a demountable joint in the pipe to allow the removal of the iMatic if
needed.
7.2 Water Outlet Pipework
1.
The pump has a G ¾ threaded connection to accept the supplied hose.
The hose is made water tight with a sealing washer on assembly, nip
tight to 4 to 5 Nm for water tight seal. (Do not overtighten). The
supplied hose must only be connected to 22 mm pipework.
Ensure the pipe is free from all score marks and deformities in the area
of the insertion depth (Figure 4) and cut the pipe square removing all
burrs and sharp edges to prevent damage to the sealing ‘O’-ring.
2. Prior to inserting the pipe into the fitting mark the insertion depth on
the wall of the pipe with a soft pencil at a distance of 33 mm from the
end to be inserted.
3. Check in the mouth of the fitting that the ‘O’-ring, nylon washer and
collet are in position.
4. Push pipe firmly into fitting, until pencil mark is level with the top of the
collet and the pipe stop resistance is felt. Pull on the pipe to check it is
secure and correctly fitted.
5. To break the joint, push pipe firmly into fitting, hold collet down and
gently remove pipe. If the system has been fitted with water care
should be taken to isolate pump and towels used to absorb spilled
water.
7.3 Connection to Overflow/Warning Pipe
The overflow fitting is designed to use G 1 ¼ (35 mm OD) plastic waste pipe.
Ensure there is a demountable joint in the pipe to allow the removal of the iMatic if
needed (Figure 8). The overflow must be free to vent to atmosphere either via a
tundish or a dedicated external pipe.

11
7.4 Unit Location
The iMatic is intended to be installed as a freestanding unit with its back to a wall.
1.
Slide the iMatic into position in front of the services leaving
approximately 20 mm gap between the iMatic and the wall behind.
2. Connect the services using isolation valves and demountable fittings
(push-fit or compression). The positioning of these fittings should allow
the iMatic to be removed without cutting pipes or draining the system.
7.5 Drinking Water Tap
It is recommended that at least one drinking water tap is connected into the un-
pumped mains water supply (typically a kitchen sink), so the water supply is
maintained in the event of a failure of the pumped supply.

12
8 ELECTRICAL INSTALLATION & EARTHING
8.1 Regulations
• The electrical installation must be carried out in accordance with
the current national electrical regulations and installed by a
qualified person.
8.2 Safety
• RCD’s/ELCB’s are not recommended for use with variable speed
drives/motors. If an RCD is mandatory use type B RCD’s.
• For single phase sets with invertor motors the earth leakage
circuit breaker must trip out when an earth fault currents with DC
content (pulsating DC) occur.
• RCD’s suitable for use with variable speed drives/motors are not
suitable for personnel protection.
• Do not touch any electrical components for at least 5 minutes
after the unit has stopped to allow any discharge to occur safely.
8.3 Before Starting Work
• Before starting work on the electrical supply ensure power supply
is isolated.
8.4 Supply Cord
• DO NOT allow the supply cord to contact hot surfaces, including
the motor shell, pump body or pipework. The cord should be
safely routed and secured by cable clips.

13
8.5 Adjacent Pipes
• Adjacent suction and delivery pipes should be fitted with earthing
clamps in accordance with current regulations (Figure 10).
8.6 Earthing
• This appliance must be earthed via the supply cord, which must
be correctly connected to the earth point located in the terminal
box.
8.7 Pipework
• Copper or metallic pipework must have supplementary earth
bonding where the continuity has been broken by flexible hoses
or plastic components.
8.8 Additional Earthing
• Certain installations may require additional earthing arrangements
such as equipotential bonding. Reference should be made to the
relevant regulations concerning this subject to ensure
compliance.
8.9 Connections
• The pump must be permanently connected to the fixed wiring of
the mains supply using the factory fitted supply cord, via a
double pole switched (with a minimum of 3 mm contact
separation) fused spur off the ring main and NOT connected to
the boiler or the immersion heater circuits.
• The electrical connection must be made adjacent to (not behind)
the iMatic to allow disconnection of the electrical supply should
the pump module need to be removed for service or
maintenance.
Figure 5

14
8.10 Wiring of Connection Unit
• WARNING: This appliance must be earthed.
• The wires in the mains lead (supply cord) are coloured in
accordance with the following code:
Green and Yellow: Earth
Blue: Neutral
Brown: Live
As the colours of the wires in the mains lead of this appliance may
not correspond with the coloured markings identifying the
terminals in your connection unit proceed as follows:
The wire which is coloured green and yellow must be connected
to the terminal in the connection unit which is marked with the
letter E or by the earth symbol: or coloured green or green
and yellow.
The wire which is coloured blue must be connected to the
terminal which is marked with the letter N or coloured black.
The wire which is coloured brown must be connected to the
terminal which is marked with the letter L or coloured red.

15

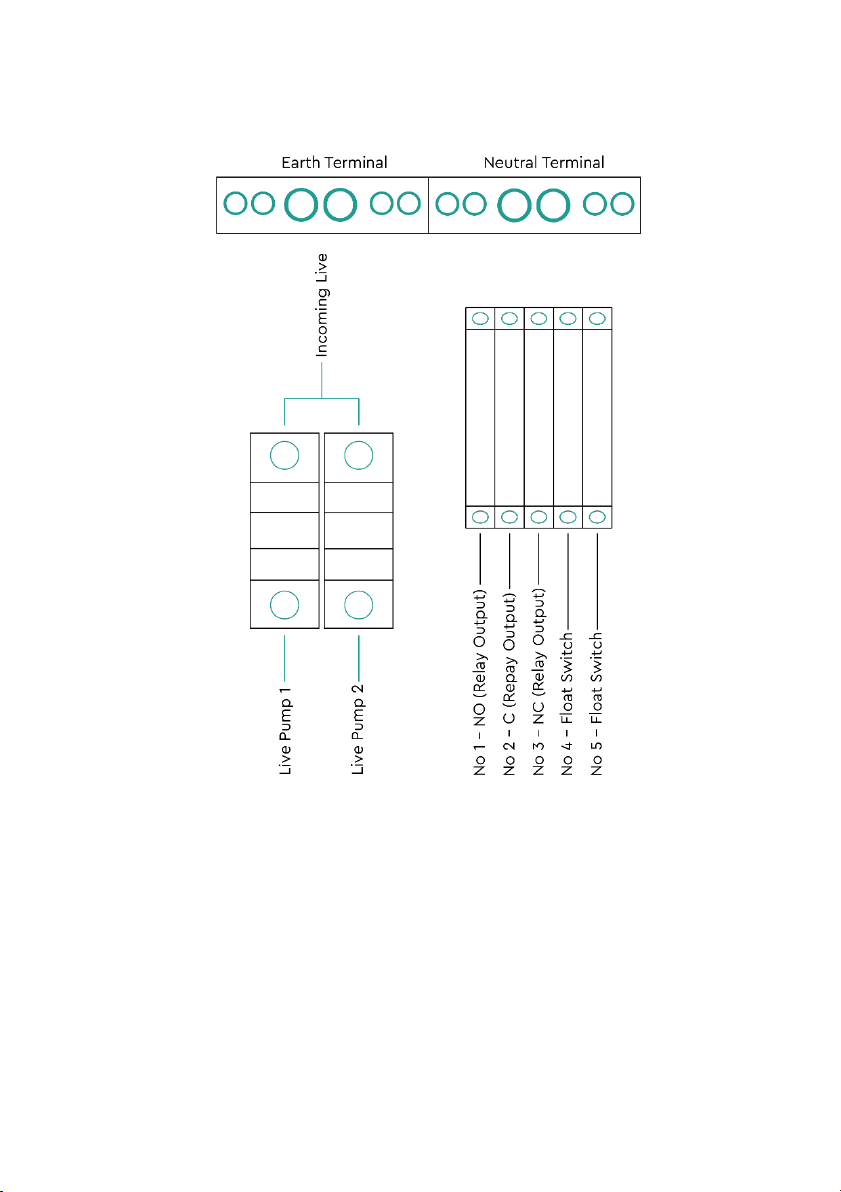

8.11 Wiring Diagrams
iMatic (Twin Controller)
Figure 6

16
8.12 Fuses
The following fuse size should be used:
Model Fuse Size (AMPS)
iMatic all models 10
8.13 Supply Cord Replacement
• The supply cord and internal wiring within the terminal box are
routed and secured to ensure compliance with the electrical
standard EN 60335-1. It is essential that prior to any disturbance
of this internal wiring, all cable routing and securing details are
carefully noted to ensure re-assembly to the same factory pattern
is always maintained.
If the supply cord is to be changed or is damaged, it must be replaced with a
special cord assembly available from Stuart Turner or one of theirapproved
repairers.
On disassembly note the cord retention and routing system. Re-assemble to the
same pattern.
For information on cable connection consult the wiring diagram and cable gland
fitting instructions.

17
9 COMMISSIONING & STARTING
9.1 Control Panel
1. LCD screen. Shows the pressure in working mode.
2. MANUAL START-STOP pushbutton.
3. Pushbutton for ENTER or EXIT menu.
4. Pushbuttons for changing programming values showed in the LCD screen
(1).
5. ENTER for saving programmed values. Every press is succeeded by a new
field of the CONFIGURATION MENU.
To quit the configuration sequence press MENU (3).
6. Led lights:
a. LINE green: Electric supply. ON when it is connected.
b. FAILURE red: Bright or intermittent depending on type of failure.
c. PUMP yellow: When it is bright means pump working. It is lit
with the pump stopped or when the device is not connected.
d. AUTOMATIC green: it is bright in AUTOMATIC mode. When it is
intermittent in MASTER&SLAVE mode it means that this device
will be auxiliary in the following cycle.
7. ON/OFF: Change from AUTOMATIC to MANUAL mode or vice versa.
Figure 7
1
2
6 7 3 4 5

18
9.2 Start Up (Single Controller)
Be sure that the pump is correctly primed.
FAILURE led light will be ON. Wait for 10 seconds while the iMatic conducts an
autotest. Once it finishes, led light FAILURE is OFF and led light LINE is ON. The
LCD screen will show message “IMATIC” and the language display of the
configuration mode.
The device is ready to be configured.
9.3 Start Up (Twin Controller)
During the configuration process it is possible to select which device is the
MASTER.
CONFIGURATION OF THE MOTOR SUPPLY (single-phase / three-phases):
The device is suppliedby default for connection to an three-phase motor. If it must
be connected to a single-phase motor the following steps should be followed:
The electrical connection will be done following the indications of the section
“ELECTRICAL CONNECTION” for single-phase motors. (see scheme fig.6).
Once the device is connected, we will press simultaneously the pushbuttons,
MENU + ENTER, to enter in the expert menu. In this menu can be modified
variables of the program (integration, acceleration and deceleration) and also to
be chosen the type of supply of the motor. It is not recommended the
modification of the variables.
Values are changed using pq and pushing ENTER to memorize changes. Use
ENTER 3 times to confirm the initial values of the program variables (integration,
acceleration and deceleration) and next, using the pushbuttons pq we will choose
single-phase or three-phase. Push ENTER to quit the expert menu. Example:
The device must be unswitched from the electric supply and wait until the LCD
will be off. Turn on the device again.
