Stuart Turner MAINSBOOST MBF Series Installation and operating instructions

Flomate MBF Pumps
Installation & Maintenance Instructions
Please leave this instruction booklet with the owner as it contains important
guarantee, maintenance and safety information
MBF 100–1–15
Pt. No. 46635
MBF 200–1–15
Pt. No. 46636
Read this manual carefully before commencing installation.
This manual covers the following products:
MBF 300–1–15
Pt. No. 46637
MAINSBOOST
CE compliant product
PATENT
APPROVED
GB 2494485 A
3

- 2 –
Cont ...

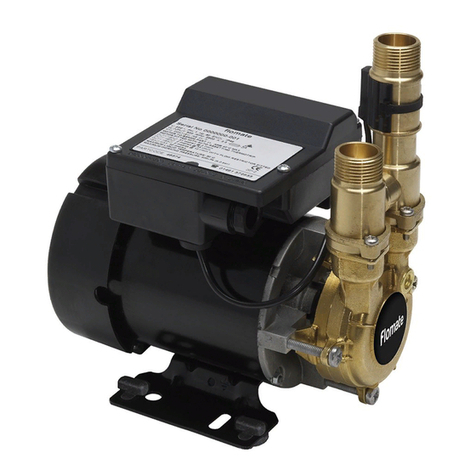

PRODUCT DESCRIPTION
Electric motor driven peripheral pump with bypass, complete with an automatic
control system consisting of flow switch, pressure vessel and electronic control.
APPLICATION
The Mainsboost Flomate pumps are a mains booster unit with an automatic control
system for domestic use, designed to assist the pressure from the mains supply, where
the mains pressure is insufficient. This unit requires a minimum unassisted supply flow
of 0.6 l/min to operate.
The pump is limited to producing a maximum flow of not greater than 12 l/min, and a
maximum pressure of 3.2 bar.
When the flow/pressure from the rising main exceeds the pump output, the patented
integral bypass will direct the water into the system as normal.
The Flomate mains booster is a patent granted design.
STORAGE
If this product is not to be installed immediately on receipt, ensure that it is stored in a
dry, frost and vibration free location in its original packaging.
CONTENTS Page
Checklist ...........................................................5
Pre-installation Assembly ..............................................7
Important Facts – read before commencing installation ......................9
Location ............................................................10
Electrical Installation ..................................................12
Priming .............................................................14
Maintenance .........................................................14
Technical Specification ................................................15
Trouble Shooting .....................................................16
Guarantee ..........................................................19

- 3 –
Cont ...
WARNINGS:
zThis pump must not be used for any other
application without the written consent of Stuart
Turner Limited.
zThe pump is not suitable for heavy commercial/
industrial applications.
zThis appliance can be used by children aged from
8 years and above and persons with reduced
physical, sensory or mental capabilities or lack of
experience and knowledge if they have been given
supervision or instruction concerning use of the
appliance in a safe way and understand the hazards
involved.
zChildren shall not play with the appliance.
zCleaning and user maintenance shall not be made by
children without supervision.
zMaximum head (closed valve) 32 metres.
zThe motor casing can become very hot under normal
operating conditions. Care must be taken to ensure it
cannot be touched during operation.
zThe electrical installation must be carried out
in accordance with the current national electrical
regulations.
zThe electrical installation must be installed by a
qualified person.
zIn the interests of electrical safety a 30 mA residual
current device (R.C.D. not supplied) should be
installed in the supply circuit. This may be part of a
consumer unit or a separate unit.
zBefore starting work on the electrical supply ensure
power supply is isolated.
zDO NOT allow the supply cord to contact hot
surfaces, including the motor shell, pump body or
pipework. The cord should be safely routed and
secured by cable clips.

- 4 –
zThis appliance must be earthed via the supply cord,
which must be correctly connected to the earth
point located in the terminal box.
zThe supply cord and internal wiring within the
terminal box are routed and secured to ensure
compliance with the electrical standard
EN 60335–1. It is essential that prior to any
disturbance of this internal wiring, all cable routing
and securing details are carefully noted to ensure
re-assembly to the same factory pattern is always
maintained.
zIf the supply cord is to be changed or is damaged, it
must be replaced with a special cord assembly
available from Stuart Turner or one of their approved
repairers.
Notes
zThis product must be installed in accordance with the
current Water Supply (Water Fittings) Regulations.
zUnder no account should the internal flow restrictor
be removed, or replaced with an alternative design.
zCare must be taken to ensure the maximum pressure
generated by the pump combined with the incoming
mains water pressure does not exceed the pumps
maximum operating pressure of 4.5 bar.
Please read installation details carefully as they are intended to ensure this product
provides long, trouble free service. Failure to install the unit in accordance with the
installation instructions will lead to invalidation of the warranty.

- 5 –
Cont ...
CHECKLIST
Fig. 1
IMPORTANT: With the pump
removed from its packaging check
for any damage prior to installation.
If any damage is found contact Stuart
Turner Ltd within 24 hours of receipt.
A
D
E
H
F
G
B
C
K
I
J
L

- 6 –
Cont ...
Your product may vary slightly from the picture on previous page.
Item Description Qty
100 Ltr 200 Ltr & 300 Ltr
Pressure vessel 1 1
Pump Assembly 11
Flexible hose – long 1 1
Flexible hose – short 2 2
Pressure vessel adaptor assembly 1 1
Sealing washers 2 2
1 Washer 3/8" 5 2
2 Threaded insert 3/8" n/a 1
3 Bolt 3/8" 1 1
Self-adhesive pipe strap 2 3
Pressure regulating valve 1 1
Pressure gauge 2 2
Valve, strainer, check valve
combined 1 1
Adapter G ¼ “ to G ½ “ 1 1
B
A
C
D
E
F
G
H
I
J
K
L

- 7 –
Cont ...
PREINSTALLATION ASSEMBLY
The Flomate MBF is delivered as sub-assemblies, and two assembly kits. All parts are
supplied in the pump transit box.
Step 1
zClear a flat working area big enough to lay the
pressure vessel on its side.
zRemove the pressure vessel (item A) from the
packing and lay the vessel on its side (use the
packing to protect it).
Warning – This may require two people
due to the size and weight of the item.
zRemove the plastic cap from the threaded
port at the bottom of the vessel. Ensure there
is no debris or paint in the thread.
zRemove the pressure vessel adaptor (item E)
from the transit box. The adaptor is supplied
with a pre-applied sealant on the thread.
Do not apply any more sealant or tape to the
thread.
zScrew the vessel adaptor into the threaded
port in the base of the pressure vessel.
Tighten to 40–50 Nm or until there is 6–8 mm
gap between the head of the adaptor and the
face of the threaded port (see Fig. 3).
zScrew one end of the long flexible hose
(item C) to the smaller threaded end of the
pressure vessel adaptor and tighten for a leak
tight seal (Do not over tighten) (see Fig. 2).
zStand the pressure vessel upright onto a flat surface near the installation location.
Warning – This may require two people due to the size and weight of the
item.
Step 2
Please refer to figures 4 & 5 for fixing set up of different vessel types.
zRemove the pump assembly (item B) from the transit box. Ensure the two rubber
feet are located in the underside of the metal base plate prior to fitting.
zRemove the retaining bolt (item G3) and washer (items G1) from the transit box.
zRemove the black plastic cap from the top of the pressure vessel and discard it to
reveal the threaded fitting.
zPlace the pump assembly on the top of the pressure vessel and retain with the
screw and washers, rotate the pump assembly to align with the flexible hose at
the base of the vessel.
zTighten the retaining screw.
Note: 200 litre and 300 litre vessels require the threaded insert (item G2) to be
tightened into the vessel, see Fig. 5.
zFit the upper end of the flexible hose to the connection on the pump and tighten
for a leak tight seal (Do not over tighten), see Fig. 6.
zImportant – Ensure the flexible hose is routed so it is not bent tightly or crushed.
Fig. 2
C
A
E
6 - 8 mm
Fig. 3

- 8 –
zRetain the long flexible hose to the side of the pressure vessel using the self-
adhesive pipe straps (item H).
zFit the short flexible hoses (item D) to the inlet and outlet of the pump using the
sealing washers (item F1), see Fig. 7.
zThe Flomate MBF is now ready to be moved into its final location and connected
to the water system.
MBF 100 litre Fixing set up
Fig. 4
MBF 200 & MBF 300 litre Fixing set up
Fig. 5
Fig. 6 Fig. 7
F1
B
A
G1
G3
C
B
AG2
G1
G3
A
B
CD
F1
B

- 9 –
Cont ...
1 IMPORTANT FACTS: READ BEFORE COMMENCING PUMP INSTALLATION
A Water temperature
The water entering the pump must be controlled as follows:
1.11 The maximum allowable water temperature is 35 oC.
1.12 The minimum allowable water temperature is 4 oC.
B Pipework – General
1.13 Secure pipework: Ensure pipework to and from pump is independently
supported & clipped to prevent forces being transferred to inlet and outlet
branches of pump.
1.14 Flux: Solder joints must be completed and flux residues removed prior to
pump installation (flux damage will void any warranty).
1.15 Pipework design: Care should be taken in the design of pipework runs to
minimize the risk of air locks e.g. use drawn bends rather than 90obends.
1.16 DO NOT introduce solder flux to flexible hoses, pump or pump parts.
1.17 DO NOT allow contact with oil or cellulose based paints, paint thinners
or strippers, acid based descalents or aggressive cleaning agents.
1.18 Water flow: An un-assisted flow rate of at least 0.6 l/min is required
through the outlets to be pumped in order to make this pump work.
C Plumbing Installation Regulations
1.19 The plumbing installation must comply with the current water and building
regulations.

- 10 –
Cont ...
2 LOCATION  GENERAL
2.11 Access: For emergencies and maintenance the pump must be
easily accessible.
2.12 Protection: The pump must be located in a dry position, frost free
and protected from freezing. Ensure the pump is in a dry position,
away from heat sources, such as radiators and heaters.
2.13 Ventilation: Ensure an adequate air flow to cool the pump.
Separate the pump from other appliances that generate heat. An
80 mm air gap must be maintained to allow free air flow through
the fan cowl and over the motor at all times.
2.14 Safety: The motor casing can become very hot under normal
operating conditions. Care must be taken to ensure it cannot be
touched during operation.
2.15 Water retention: Site the pump in a location where in the unlikely
event of a water leak, any spillage is contained or routed to avoid
electrics or areas sensitive to water damage.
2.16 Location point: The pump must be located directly after the mains water
stopcock, in-line to the connection to the system. Site on a smooth level floor
of sufficient strength to support the filled weight (see Section 6 – Technical
Specification for filled weight). Do not site the pump in the roof space, since
air locks can easily result.
2.17 Direction of flow: Ensure the water flow is in the direction of the arrow, as
marked on the flow switch reed clamp.
2.18 Vessel: Ensure the vessel is placed on flat level ground and that the vessel/
unit is safely secured so it cannot be pulled over.
The vessel must be screwed to the floor using suitable fixings via
the 4 holes in the moulded base.

- 11 –
2.19 Pipework Connections:
Isolating valves: Always install isolating valves (not supplied) to
both suction and delivery pipe to aid future maintenance.
a) A pressure regulator (set at 2.0 bar) must be fitted, to ensure the maximum
working pressure of the pump is not exceeded.
b) To meet the requirements of the Water Supply (water fittings) Regulations,
a type EC – verifiable double check valve must be fitted.
c) It is advisable to fit a bypass pipe and isolating valves. This will allow
removal of the pump for maintenance and servicing, and ensure the water
supply into the property is still available during that period (Fig. 9).
Fig. 9
Fig. 8
Mains water
stopcock
Inlet (see note
‘a’ below)
Mains
water
supply
Bypass (see
note ‘c’ below)
(Not supplied)
Typical installation
Mains Boost Extra
(in cupboard)
Double check valve
(see note ‘b’ below)
Note: Verifiable double check valve & pressure
regulator must be fitted between the supply
stopcock (valve) and pump in line order as shown.
Pressure reducing
valve
Inline strainer
Pressure gauge
(T-piece not supplied)

- 12 –
3 ELECTRICAL INSTALLATION  EARTHING
3.11 Regulations: The electrical installation must be carried out in
accordance with the current national electrical regulations and
installed by a qualified person.
3.12 Safety: In the interests of electrical safety a 30 mA residual current
device (R.C.D. not supplied) must be installed in the supply circuit.
This may be part of a consumer unit or a separate unit.
3.13 Before starting work on the electrical installation ensure the power
supply is isolated.
3.14 The motor and wiring must not be exposed to water.
3.15 The supply cable must be positioned so that it is not stepped on,
cut or damaged.
3.16 Electrical Connection:
a) The pump is provided with a factory fitted supply cord.
b) This must be permanently connected to the fixed wiring of the mains
supply.
c) Means for disconnection must be incorporated in the fixed wiring in
accordance with the wiring regulations.
d) A suitable method of connection would be via a dedicated double pole
switched, fused connection unit complying with BS 1363–4, protected with
a fuse (see technical specification section).
e) The connection unit should be mounted in an easily accessible position
and should be labelled if confusion is possible, to allow easy identification
of the flomate isolating switch.
3.17 Earthing: This appliance must be earthed via the supply cord, which must be
correctly connected to the earth point located in the terminal box.
3.18 Additional earthing: Certain installations may require additional earthing
arrangements such as equipotential bonding. Reference should be made to
the relevant regulations concerning this subject to ensure compliance.
3.19 Wiring Of Connection Unit:
WARNING: This appliance must be earthed.
The wires in the mains lead (supply cord) are coloured in accordance with the
following code:
Green and Yellow: Earth
Blue: Neutral
Brown: Live
As the colours of the wires in the mains lead of this appliance may not
correspond with the coloured markings identifying the terminals in your
connection unit proceed as follows:
zThe wire which is coloured green and yellow must be connected to the
terminal in the connection unit which is marked with the letter E or by the
earth symbol: or coloured green or green and yellow.
zThe wire which is coloured blue must be connected to the terminal which
is marked with the letter N or coloured black.
zThe wire which is coloured brown must be connected to the terminal
which is marked with the letter L or coloured red.

- 13 –
3.20 Wiring Diagram:
The supply cord and internal wiring within the terminal box are
routed and secured to ensure compliance with the electrical
standard EN 60335–1. Do not disturb the internal wiring or factory
routing and securing of all internal wiring.
Model Fuse Size (AMPS)
All Models 5
3.21 Fuse:
3.22 Supply Cord Replacement:
The supply cord and internal wiring within the terminal box are
routed and secured to ensure compliance with the electrical
standard EN 60335–1. It is essential that prior to any disturbance
of this internal wiring, all cable routing and securing details are
carefully noted to ensure re-assembly to the same factory pattern
is always maintained.
If the supply cord is to be changed or is damaged, it must be replaced with
a special cord assembly available from Stuart Turner or one of their approved
repairers.
On disassembly note the cord retention and routing system. Re-assemble to
the same pattern.
For information on cable connection consult the wiring diagram and cable
gland fitting instructions.
3.23 Cable Gland Fitting Instructions:
To enable correct assembly of the cable gland the
‘O’-ring (Fig. 11 item 1) must be placed over the
cable before the clamping insert (Fig. 11 item 2) can
be tightened.
Note: Cable diameter range:- 6.5 mm to 9.5 mm.
Fig. 11 2
1
MAIN WINDING
THERMOTRIP CAPACITOR
START WINDING
FLOWSWITCH
REED (S2)
LINK WIRE (BLUE)
BROWN
BLACK
BLUE
GREEN/YELLOW
BLUE
BROWN L
M
N
N
S1 S2 S2 S1
LE
N
FLOWSWITCH
REED (S1)
230 VAC/1PH/50Hz
SUPPLY
Fig. 10

- 14 –
Cont ...
4 PRIMING
4.11 Priming: This pump unit is self venting. Open the mains stopcock and allow
the pump to fill and vent, please note the pump chamber must be full of liquid
at all times. Seal damage will result if the pump runs dry.
4.12 Starting:
a) Ensure all outlets are closed, turn power supply ‘on’.
b) Open and close all outlets in turn associated with the pump allowing liquid
to flow from each outlet until all air is purged.
c) The pump will run on while this is being completed until the vessel is full.
d) Any tap or control valve within the system when opened and closed will
now turn the pump on & off. Check system for leaks, if clear the system is
now operating correctly
e) Carefully check pump and pipework for leaks whilst pump running and
stationary before leaving the installation unattended.
Note: It is normal for the pump to run on after all outlets have been closed.
This gives the pump chance to re-fill the vessel ready for next use.
4.13 For Further Technical Support: Phone the Stuart Turner TechAssist team
on [phone]. Our staff are trained to help and advise you over
the phone.
5 MAINTENANCE
5.11 Disconnect electrical supply before working on pump.
5.12 Turn off liquid supplies to the pump and release pressure by opening outlets
before attempting maintenance.
5.13 Should ever the need arise for the vessel to have its air charge checked or
replenished, it should be carried out as follows: –
a) Isolate pump electrically.
b) Isolate the mains water supply via the stop valve.
c) Release system water pressure by opening a system outlet (tap).
d) Check air charge at Schrader valve (Fig. 1) using a tyre pressure gauge.
e) Replenish air charge if required by injecting air into the vessel via the
Schrader valve using a car or bicycle pump, ensuring a system outlet
valve (tap) remains open during this procedure to allow the vessel to
exhaust any excess water.
f) Close all system taps, open the mains stop valve, turn on electrical
power.
Model Vessel Pressure
KpA bar psi
MBF 100–1–15 150 1.5 22
MBF 200–1–15 140 1.4 20.5
MBF 300–1–15

- 15 –
6 TECHNICAL SPECIFICATION
Stuart Turner reserve the right to amend the specification in line with its policy of
continuous development of its products.
*Note: The maximum pressure that can be applied to the pump under any
installation conditions.
6.11 Noise: The equivalent continuous A-weighted sound pressure level at a
distance of 1 metre from the pump does not exceed 70 dB(A).
Pump Model MBF 100–1–15
46635
MBF 200–1–15
46636
MBF 300–1–15
46637
General Guarantee 3 years
WRAS approval 1611375
Approvals WRAS, CE
Features Pump type Peripheral
Flexible hoses 2 2 2
Pressure vessel size 100 litre 200 litre 300 litre
Pressure vessel water capacity 50 litre 100 litre 150 litre
Upstream line-in kit 15 mm
Dry run protection ü ü ü
Materials Pressure vessel Epoxy coated steel
Membrane Butyl rubber
Pump body Brass
Impeller Brass
Mechanical seal EPDM / PTFE / Al. Oxide
Performance Maximum head (closed valve) 3.2 bar (32 metres)
Maximum flow 18 l/min 24 l/min 30 l/min
Maximum working pressure* 450 kPa (4.5 bar)
Maximum ambient air temperature 40 oC
Min / Max water temperature Min 4 oC / Max 35 oC
Flow switch sensitivity (approx) 0.6 l/min
Connections Pump connections G ¾ male
Flexible hoses Connections G ¾ female x 15 mm push-in x 200 mm long
Motor Type Induction (thermal trip/auto reset)
Duty rating Continuous (S1)
Electrical Power supply / phase / frequency 230 V a.c. / 1 / 50 Hz
Power consumption 365 Watts
Current (full load) 1.7 Amps
Fuse rating 5 Amps
Power cable (pre-wired) 1.5 metres
Physical Enclosure protection IPX4
Width 461 mm 556 mm
Depth 430 mm 532 mm
Height (excluding hoses) 1134 mm 1390 mm 1847 mm
Dry Weight (including fittings) 26.6 Kg 42.1 Kg 56.1 Kg
Filled Weight (maximum) 76.6 Kg 142.1 Kg 206.1 Kg

- 16 –
Cont ...
7 TROUBLE SHOOTING GUIDE
Symptoms Probable Cause Recommended Action
Pump will not start. No water. Check required flow of liquid is available to the fittings of
approx. 0.6 l/min.
Water supply. Check water supply from mains and all stopcocks are open.
Electrical supply. Check wiring connections.
If flow exists inline with requirements – check that all
electric switches are on.
Is the correct fuse fitted?
Check circuit breaker is set.
Reed switch is faulty and low
water demand.
Does the pump start when flow is above the following:
100 litres – 5 l/min
200 litres – 10 l/min
300 litres – 15 l/min
If yes refer to circuit test as detailed in 7.11.
Faulty reed switch/PCB Refer to circuit test as detailed in 7.11.
Internal motor thermotrip
activated.
Wait for thermotrip to auto reset and check that duty point
and run time is within specification (see Technical Section).
Pump starts when outlets
are off.
or
Pump cycles (hunts) on/off
frequently.
Leak in system Check tap washers, w/c valve washers, pipe joints.
Pump runs on when all terminal
outlets are closed.
Leak in system. Check tap washers, w/c valve washers, pipe joints.
Reed clamp out of position. Ensure reed clamp is fitted correctly in location groove
(Fig. 10).
Jammed flow switch. Remove flow switch reed clamps whilst pump is running. If
pump stops proceed to isolate the pump electrically and
hydraulically and remove brass housing that contains float.
Check for free movement.
Faulty reed switch or P.C.B. Remove flow switch reed clamps whilst pump is running.
If pump continues to run, this indicates a closed circuit in
either the flow switch reed or P.C.B. in the terminal box,
these should be checked electrically.
Pressure vessel not full of
water.
Wait for vessel to fill (approx 9 mins for 100 litre, 18.5 mins
for 200 litre and 27.5 mins for the 300 litre).
Pump will not start and poor
performance.
No water supply and faulty
upper reed swtich.
Check required flow of liquid is available to the fittings of
approx. 0.6 l/min.
Check water supply from mains and all stopcocks are open.
Refer to circuit test as detailed in 7.11.
Pump does not run on to fill
vessel
Lower reed switch is faulty. Refer to circuit test as detailed in 7.11.

- 17 –
Cont ...
7.11 Flow Switch Circuit Test:
1. First confirm visually that neither of the flow switch reed clamps have been
dislodged during handling or installation. The clamps must be fully
located within their flow switch body grooves as shown.
2. To carry out the following test you will need to obtain a magnet, a typical
fridge magnet is suitable.
3. Ensure the power supply is switched on.
4. Position the magnet directly in front of a reed clamp as shown. If pump
does not start, then slowly move the magnet up and down to a position
that exceeds the extent of the reed clamp. The pump should
instantaneously start at some point during this extent of movement. If
this does not happen, this indicates a possible fault with the reed switch
or the P.C.B which is located within the terminal box. These should be
checked electrically. Consult Stuart Turner for further instructions.
5. Repeat step 4 with the second reed clamp.
7.12 Fault Finding: The PCB is also fitted with a “power on” indicator light. This will
remain illuminated when mains power is supplied to the board.
The indicator light is located on the PCB within the terminal box.
This operation should only be carried out by a competent
person
To view the light the following procedure must be followed:-
zIsolate the mains electrical power supply from the pump.
zRemove the four screws retaining the terminal box lid (Fig. 13).
zLift the terminal box lid off.
Fig. 12
Groove
Body
Reed Clamp
Magnet
Groove

- 18 –
Cont ...
7.13 Environment Protection: Your appliance contains valuable materials which
can be recovered or recycled.
At the end of the products’ useful life, please leave it at an appropriate local
civic waste collection point.
zIMPORTANT – Ensure there is no contact with any of the internal parts of
the terminal box.
zBriefly reconnect the mains power supply to the pump – the ‘power on
light should illuminate if the pump has been correctly wired.
zIsolate the mains electrical power supply from the pump.
zRe fit the terminal box lid ensuring no cables are trapped.
zRe fit the four terminal box lid retaining screws, tighten to 0.8 Nm.
‘Power on’ light
Terminal box lid
Retaining screws x 4
Fig. 13 Wiring removed for clarity
Note: This image is
for reference only.

- 19 –
8 THE MAINSBOOST FLOMATE GUARANTEE
Congratulations on purchasing a Stuart Turner pump.
We are confident this pump will provide many years of trouble free service as all
our products are manufactured to the very highest standard.
The Mainsboost Flomate pump is guaranteed to be free from defects in materials or
workmanship for 3 years from the date of purchase.
Within the guarantee period we will repair, free of charge, any defects in the pump
resulting from faults in material or workmanship, repairing or exchanging the whole
unit as we may reasonably decide.
Not covered by this guarantee: Damage arising from incorrect installation,
improper use, unauthorised repair, normal wear and tear and defects which have a
negligible effect on the value or operation of the pump.
Reasonable evidence must be supplied that the product has been purchased within
the guarantee term prior to the date of claim (such as proof of purchase or the
pump serial number).
This guarantee is in addition to your statutory rights as a consumer. If you are
in any doubt as to these rights, please contact your local Trading Standards
Department.
In the event of a claim isolate the unit and then please telephone ‘TechAssist’.
[phone]
Proof of purchase should accompany the returned unit to avoid delay in
investigation and dealing with your claim.
You should obtain appropriate insurance cover for any loss or damage which is not
covered by Stuart Turner Ltd in this provision.
Please record here for your records.
TYPE NO. SERIAL NO. DATE PURCHASED

Stuart Turner Ltd, Henley-on-Thames, Oxfordshire RG9 2AD ENGLAND
Tel: [phone], Fax: [phone]
[e-mail] www.stuart-turner.co.uk
DECLARATION OF CONFORMITY
Machinery Directive – 2006/42/EC
BS EN 12100, BS EN 809
Low Voltage Directive – 2014/35/EU
BS EN 60335–1, BS EN 60335–2–41
EMC Directive – 2014/30/EU
BS EN 55014–1, BS EN 55014–2, BS EN 61000–3–2, BS EN 61000–3–3,
BS EN 61000–4–2, BS EN 61000–4–3, BS EN 61000–4–4, BS EN 61000–4–5, BS EN 61000–4–6,
BS EN 61000–4–11
EMF Directive – 1999/519/EC
BS EN 62233
RoHs Directive – 2011/65/EU
WEEE Directive – 2012/19/EU
IT IS HEREBY CERTIFIED THAT THE STUART ELECTRIC MOTOR DRIVEN PUMP AS SERIAL
NUMBER BELOW, COMPLIES WITH THE ESSENTIAL REQUIREMENTS OF THE ABOVE E.E.C.
DIRECTIVES.
RESPONSIBLE PERSON
AND MANUFACTURER STUART TURNER LIMITED
HENLEY-ON-THAMES, OXFORDSHIRE
RG9 2AD ENGLAND.
Signed .............................................. Technical Director
Stuart Turner are an approved company to BS EN ISO 9001:2015
Issue No. 3219/2–01 Pt. No. 20575
