Studiomaster Professional MUSE Mic LHM-100 User manual

MUSE Mic LHM - 100
Accessories Pack
Bodypack Transmitter + Lapel & Headworn Microphones
1. ................................................................................................................Introduction
2. ................................................................................................................Features
3................................................................................................................Operating Instructions
4................................................................................................................Technical Specifications
Comfortable and
lightweight design.
Unidirectional
pickup pattern.
Exceptional
vocal clarity.
Long cable for
added flexibility.
Microphones \
terminated with
3.5mm EP jack.
Power supply:
2 x 1.5V
AA batteries.
Headworn
Microphone
Body Pack
Transmitter
Lapel
Microphone
MUSE
LHM-100
BODY PACK
OFF MUSE
LHM-100
BODY PACK

• Lapel & headworn microphones terminated with
3.5mm EP jack.
• External windscreen to reduce wind and pop noise.
• Bodypack transmitter power supply: 2 x 1.5V AA
batteries.
• Ideal for presentations, live performances, singing,
speech, classrooms, houses of worship and mobile
PA applications etc.

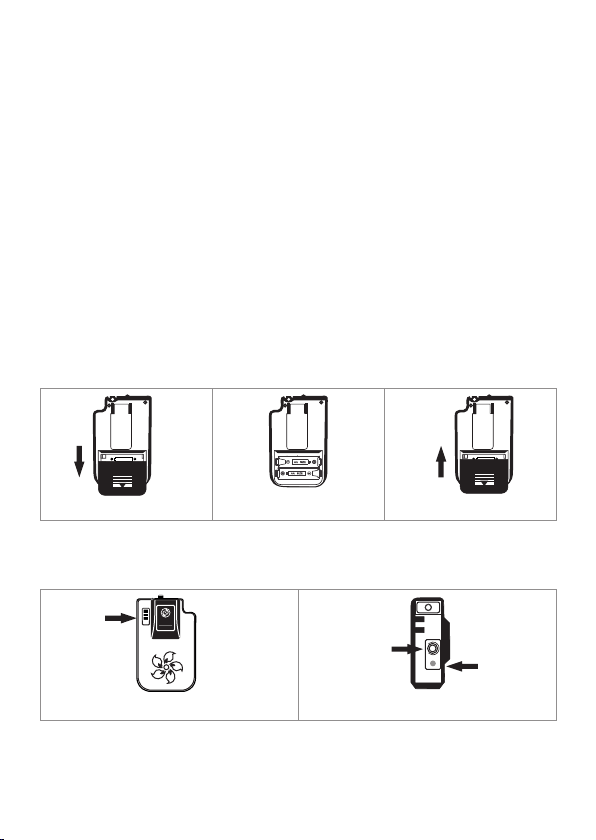

1. Slide down to open the battery cover (Fig. A).
2. Insert 2 x 1.5V AA batteries (Fig. B).
3. After inserting batteries, slide up to close the battery cover (Fig. C).
4. Use the slide switch to up to power ON or down to power OFF the transmitter (Fig. D). When the transmitter
in ON, the LED light on the top panel (Fig. E) turns Green . When the battery is low, the LED on the top
panel (Fig. E) turns Red.
5. Use the volume controller on the top panel to increase or decrease the mic output level (Fig. E).
The Muse Mic LHM-100 is a professional accessories pack featuring a compact bodypack transmitter and
rugged, lightweight and comfortable lapel and headworn microphones that provide high-quality voice pickup
ideal for presentations, live performances, singing, speech, classrooms, houses of worship and mobile
PA applications etc.
2
Fig. E
VOL LED
+-
Power
ON / OFF
LED
Volume
Controller
Fig. B Fig. C
• Multifunctional accessories pack for Muse series
loudspeakers.
• Pack includes: Bodypack Transmitter + Lapel &
Headworn Microphones.
• Comfortable and lightweight design.
• Unidirectional pickup pattern.
• Exceptional vocal clarity.
• Long cable for added flexibility.
3. Operating Instructions
Fig. D
2. Features
Transmitter:
1. Introduction
ON / OFF
Side Switch
OFF MUSE
LHM-100
BODY PACK
Fig. A

Fig. F
VOL LED
+-
Headworn and Lapel (Collar) Microphone:
1. Insert the 3.5mm male jack connector of the headworn or lapel (collar) microphone into the 3.5mm female
socket of the transmitter on the top panel (Fig. F).
Fig. G Fig. H
OFF MUSE
LHM-100
BODY PACK
2. After connecting the microphone, switch on the turn ON the bodypack transmitter and the Muse speaker
unit (refer to your loudspeaker’s instructional manual). On powering ON, both the units
(transmitter & loudspeaker) sync and connect to each other automatically.
Note: We recommend using only one microphone (either the supplied handheld unit with the loudspeaker
or the Muse MIC LHM-100 unit) at a time.
3. Increase or decrease the volume of the transmitter (top panel - Fig. E) and the Muse loudspeaker as per
your requirement.
4. Ensure that the bodypack unit is hooked on the belt/trouser in a secure manner to avoid dropping and
damaging the transmitter.
5. For best results, kindly make sure that the perforated side of the microphone is facing your mouth while
speaking or singing (Fig. G). Use the windscreen foam to reduce pops, wind, thumps and plosive sounds.
a. When using the lapel (collar) system, ensure that the microphone capsule is placed at a higher position
(upper chest level). Adjust the position (upper or lower chest level) as required (Fig. H).
b. When using the headworn system, ensure that the microphone capsule is in front of the mouth at a 20mm
(approx) distance. Adjust the position as required (Fig. I).
OFF MUSE
LHM-100
BODY PACK
3
Fig. I

4. Technical Specifications
[phone]
[phone]
[email protected]
[phone]
WhatsApp
bit.ly/SMPYT-S
studiomaster professional
Subscribe to our Channel
Lapel
--45dB ± 1dB
1.17 meter
Single Diversity
20 - 20000
≤680Ω
1.0V - 10V DC
>28dB
Model
Directivity
Sensitivity
Frequency Response (Hz)
Nominal Impedance
Operation Voltage
Signal to Noise Ratio
Cable Length
Headworn
--52dB ± 1dB
1.05 meter
Rev00/SMMuse Mic LHM - 100/Sep2020
A1/A2, Giriraj Industrial Estate, Mahakali Caves Road, Andheri (East), Mumbai - 400 093. India
Tel.: [phone]WhatsApp.: [phone] E [email protected]
W www.studiomasterprofessional.com / www.audioplus-india.com
