Su-Kam Brainy Eco Solar Home UPS 1100 User manual

Installation & Operation Manual
Model No. 1100
Patent Protected
Copyright © 2013-15 Su-Kam Power Systems Ltd. All rights reserved.
Design Registration No. 253380

01
02
03
04
05
06
ABOUT
SU-KAM
07
1
SAFETY NOTES
16
LETTER TO
CUSTOMER
08
2
IMPORTANT SAFETY
INSTRUCTIONS/
E-WASTE INFO
17
SALIENT
FEATURES
09
3
TROUBLE SHOOTING
18
DO’S &
DON’TS
10
6
TECHNICAL
SPECIFICATIONS
BRAINY ECO
19
KNOWING
YOUR UPS
11
7
15
TERMS & CONDITIONS
WARRANTY CARD
20
INSTALLATION

About Su-Kam
Su-Kam Power Systems Ltd. is India’s largest power solutions
company which has presence in 90 countries worldwide
and holds a record for being the only company in this field
to file for over 100 patents. It manufactures more than 200
products including various solar products, UPS, batteries &
customized solar solution.
Founded in 1998, Su-Kam has grown exponentially to
become an Indian MNC and a successful example of “Make
in India”, as it has offices worldwide and over 40,000 channel
partners across the globe. The first Indian power solutions
company to win the title of ‘Superbrand’, Su-Kam is counted
among one of the fastest growing companies according to
India Inc.
GLOBAL CERTIFICATIONS:
ISO 9001: 2008
ISO 14001: 2004
R&D
Recognized By
MINISTRY OF SCIENCE & TECHNOLOGY
GOVERNMENT OF INDIA
Before connecting, operating or adjusting this unit, please read this instruction booklet carefully.
Customer Care: 1800-102-4423 (Toll Free)
1
R-0-D-PKG-ML-00-00000-00027-01

Dear Customer,
Welcome to Su-Kam family.
Thank you for buying Brainy Eco Solar Home UPS to meet your power back up needs. The Brainy Eco is a power back up system
based on the advanced 3i Technology; a product developed on the lines of “Ek Nayi Soch” that involves futuristic imagination, new-
age innovation & digital intelligence.
We appreciate the time you have spent on understanding the benefits of this unique product & we are sure you have made the
right decision in buying the Su-Kam’s Brainy Eco Solar Home UPS. We anticipate that you will be comforted with this innovative
product’s promise, its unique features, advantages & multiple benefits to best suit your seamless & uninterrupted power back up
needs.
The cornerstone of Brainy Eco Solar Home UPS is Imagination, Innovation and Intelligence. The revolutionary product is our
commitment towards bringing state-of-the-art power back-up solutions for your home, establishment & office needs. Founded
on the principles of 4th Generation Micro Processor & DT-6S 6 Stage Battery Charger, Brainy Eco has without doubt the most
impeccable reputation of being an intelligent product that offers you uninterrupted power back up as well as enables you to
enhance your battery life & in turn assists in saving power consumption.
The purpose of this manual is to enable you to understand this revolutionary product, its functions, features, benefits and the
convenience that it brings. For assistance, please contact our authorized dealer or write to us at [e-mail]. You can also
visit our website www.su-kam.com for more information about our large range of power back up solutions.
More power to you
Su-Kam Power Systems Limited
2

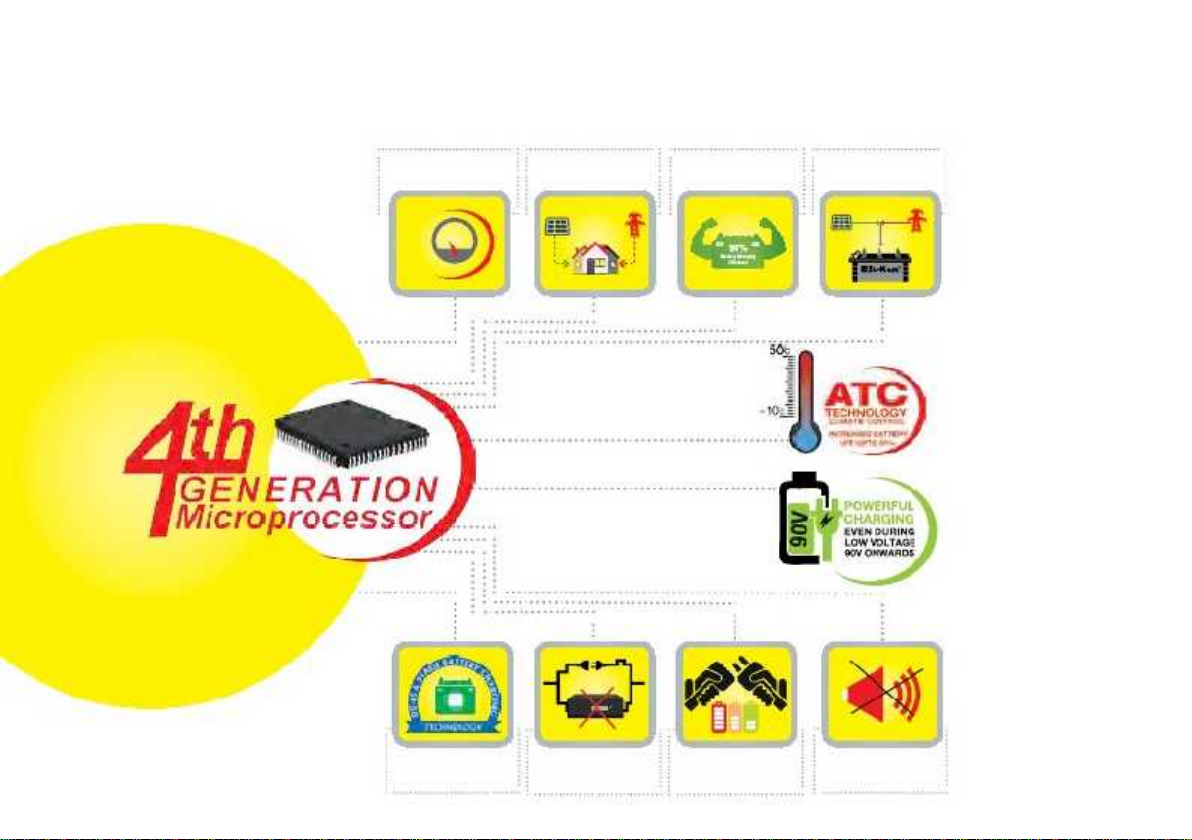

Brainy Eco runs on the 4th generation microprocessor.
The unique salient features are:
Powerful Built-In 30 Amp
Solar Charge Controller
User Settable Load
Running Priority
High Efficiency
Intelligent Battery
Charging Sharing
12A
3A
15A
30
AMP
AMP
30
12A
3A
15A
SOLAR
CHARGE
CONTROLLER
150Ah
150Ah
DT- 6S 6 Stage Battery
Charging Technology
Automatic By Pass
Low Voltage
Disconnect
Noiseless Operation
3

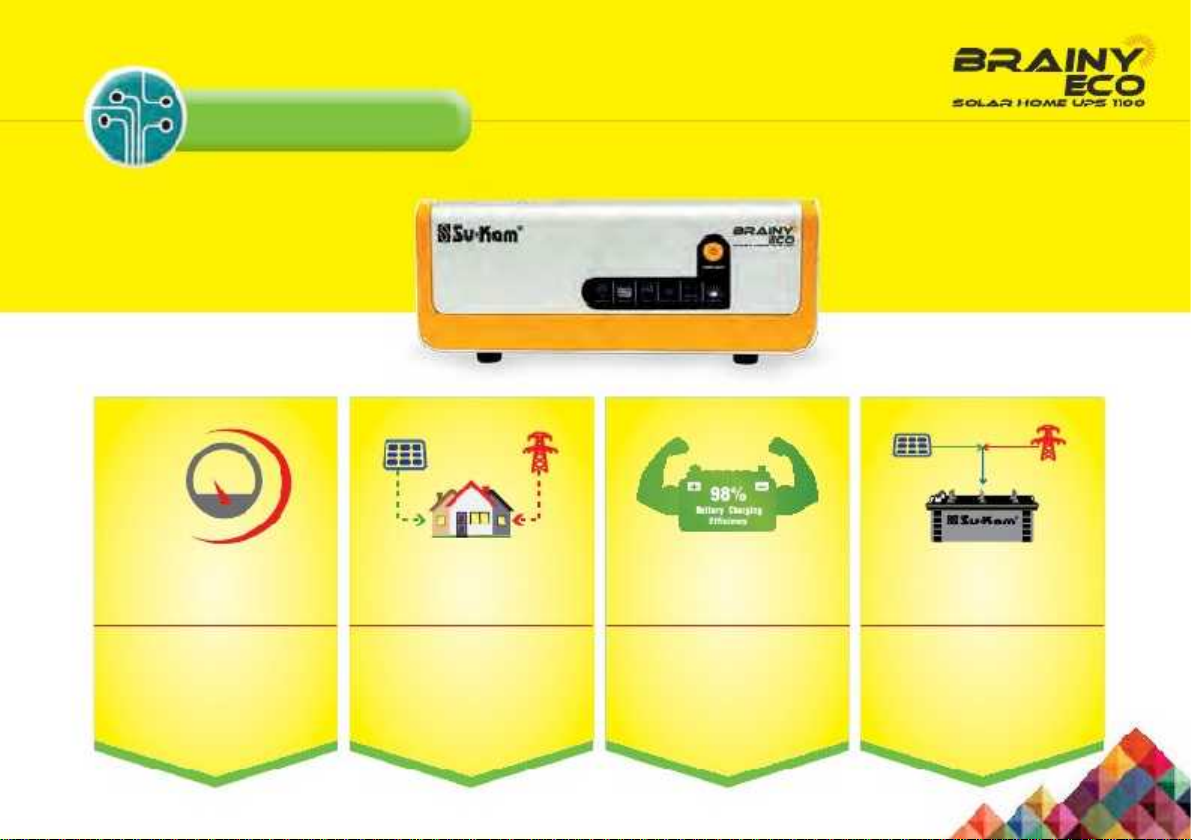

Salient Features
12A
3A
15A
30
AMP
AMP
30
12A
3A
15A
SOLAR
CHARGE
CONTROLLER
150Ah
150Ah
Powerful Built-In
30 Amp Solar
Charge Controller
It has the strength to run
Electrical Appliances and
Charge the battery
at the same time.
User Settable
Grid/Solar Priority
The user can select Grid
Priority switch in High Power
Cut conditions and Solar
priority switch in Low Power
cut conditions.
High Efficiency
Intelligent Charging
Sharing
It charges the Battery First from
Solar and then from Grid (Only
if required).
If battery needs 15A and Solar
is giving 12A, then it will take
only 3A from Grid.
Battery Charging is done
through Solar. It has 98%
battery charging efficiency.
Thus, increases the battery
life by atleast 6 months.
4

India’s 1st Solar Home
UPS with ATC (Automatic
Temperature Compensation)
Technology
Powerful charging even
during very low voltage
Charges even at 90V, thus
ideal for areas which have low
voltage problems.
DT- 6S 6 Stage
Battery Charging
Technology
Su-Kam’s 6 Stage battery
Charging Technology gives
you highest battery charging
efficiency in the industry.
It senses the outside temperature
change & accordingly adjusts the
charging of batteries.
Low Voltage
Disconnect
The customer can now easily
switch between 10.5V and 11V.
If the customer wants more
battery life, then he/she can
keep the low voltage
cut at 11V.
4th Generation
Micro Processor
The 4th generation microp-
rocessor is the most advanced
and latest technology in power
solutions. It is small in size,
efficient, has high speed processor
and has the ability to
multitask.
Automatic By Pass
If the UPS stops functioning
due to UPS fault, the automatic
by pass function automatically
reconnects all the connected
appliances to the main power
source.
5

DO S
DON'TS
Run and maintain Brainy Eco as per the instructions
given in the operation/instructions manual.
Do not try to repair your Brainy Eco on your own.
Ensure that an authorized person repairs
your Brainy Eco.
Do not sell or dispose your Brainy Eco or parts
to an unauthorized kabbadiwala/scrap dealer/
rag picker.
Call our local authorized dealer or toll-free
number to dispose your Brainy Eco.
Do not dismantle your Brainy Eco on your own.
Contact an authorized dealer in case of
installation or de-installation.
Do not get your Brainy Eco or any parts
repaired by an unauthorized person.
Do not dispose off the E-Waste in landfills.
Consult our local authorized dealer or our toll-free
number on the life span of Brainy Eco.
Do not use Brainy Eco as furniture after its use.
6

Knowing Your UPS

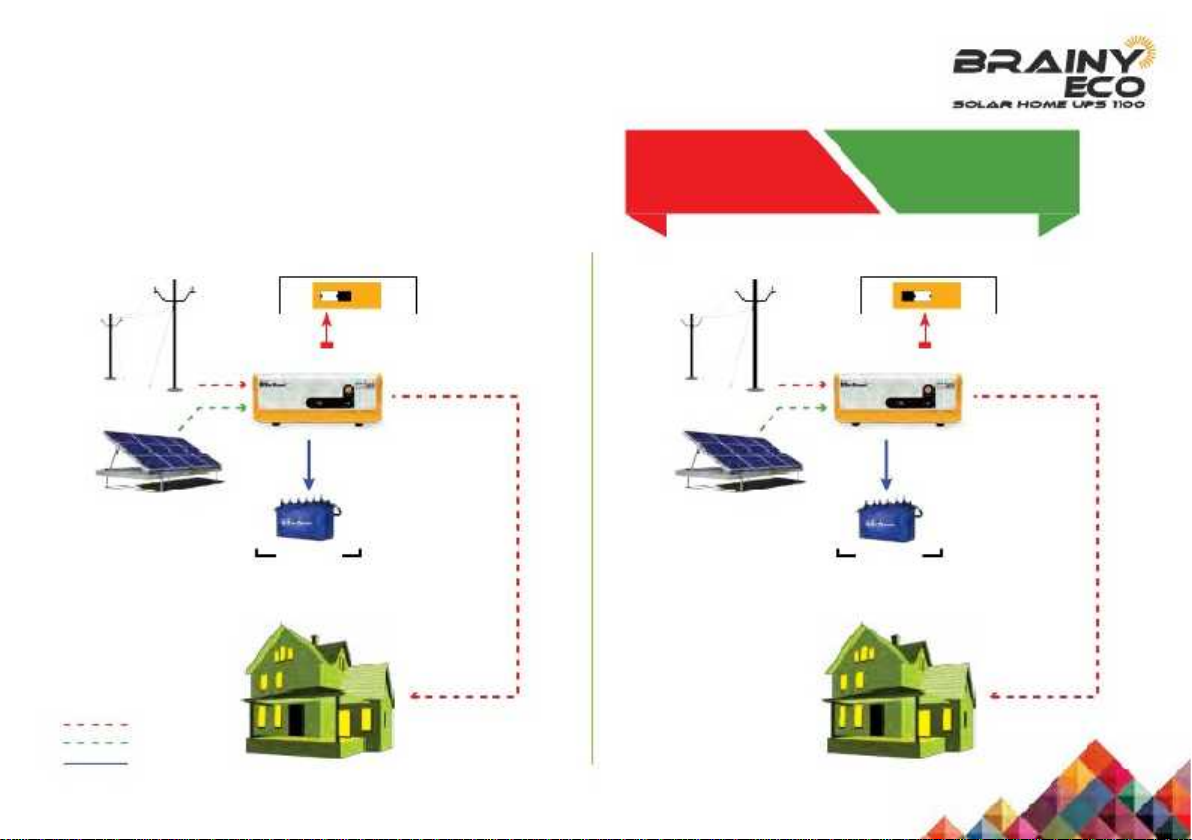

Brainy Eco Solar Home UPS is a solar hybrid system with Intelligent
Charging Sharing Feature. The battery charges through both Solar and
Grid by sharing the Charging Current.
In Charging Mode, Brainy Eco continuously monitors the state of Battery
Voltage, Solar Power Output and the Load. When the Battery Voltage
falls below a preset level, Brainy Eco transfers the load automatically
to the Grid/DG Power and also Charges the Batteries through the Grid
Charger. When the Batteries are charged to the preset level, the Grid/
DG Power Supply automatically disconnects from the system and the
load runs through Brainy Eco.
Features:
Over Current Protection
Charging Current from the Solar PV array is continuously monitored.
If the Charging Current exceeds 32 Amperes, then Charge Controller
stops further Charging. The Charge Controller restores the Charging
Process after 3.5 minutes automatically.
Solar Priority
Reverse Current Flow Protection
Brainy Eco is designed to give priority to the Solar Power and uses Grid/
DG Power only when the Solar Power/Battery Charge is Insufficient to
meet the load requirements.
Solar Charge Controller blocks any flow of Current from the battery to
Solar PV array during the night.
PV Panel Reverse Connection Protection
Powerful Built-In 30 Ampere Solar Charge Controller
The function of the In-built Solar Charge Controller is to charge the
Battery Bank till it is charged to its full capacity and prevent the battery
from getting overcharged.
Su-Kam’s 30 Ampere Built-In Charge Controller charges the battery and
runs the load at the same time. It is equipped with DT-6S 6 Stage Battery
Charging Technology .It recharges the battery faster and more efficiently
than the regular Chargers. Faster Recharging increase the performance
of the system by storing more output from the Photovoltaic Panel array.
The Charge Controller allows the maximum current generated in the PV
Panel to flow through the battery bank. It further regulates the charging
current to protect the battery bank from getting overcharged.
When PV Positive and negative wires are reversed at PV terminals then
only LED glows at the back panel.
Solar Photovoltaic Array
Panel Range- (80W-500W)
Intelligent Battery Charging Sharing
The maximum Battery Charging is done through Solar to reduce the
Power used from the Grid, thus saving Money on Electricity Bills.
If Solar can provide 10 Ampere Charging Current, then Grid Charging
Current will limit automatically at 5 Ampere. (Max. Battery Charging
Current Value is 15 Amp-Solar/Solar+ Grid/Grid)
7

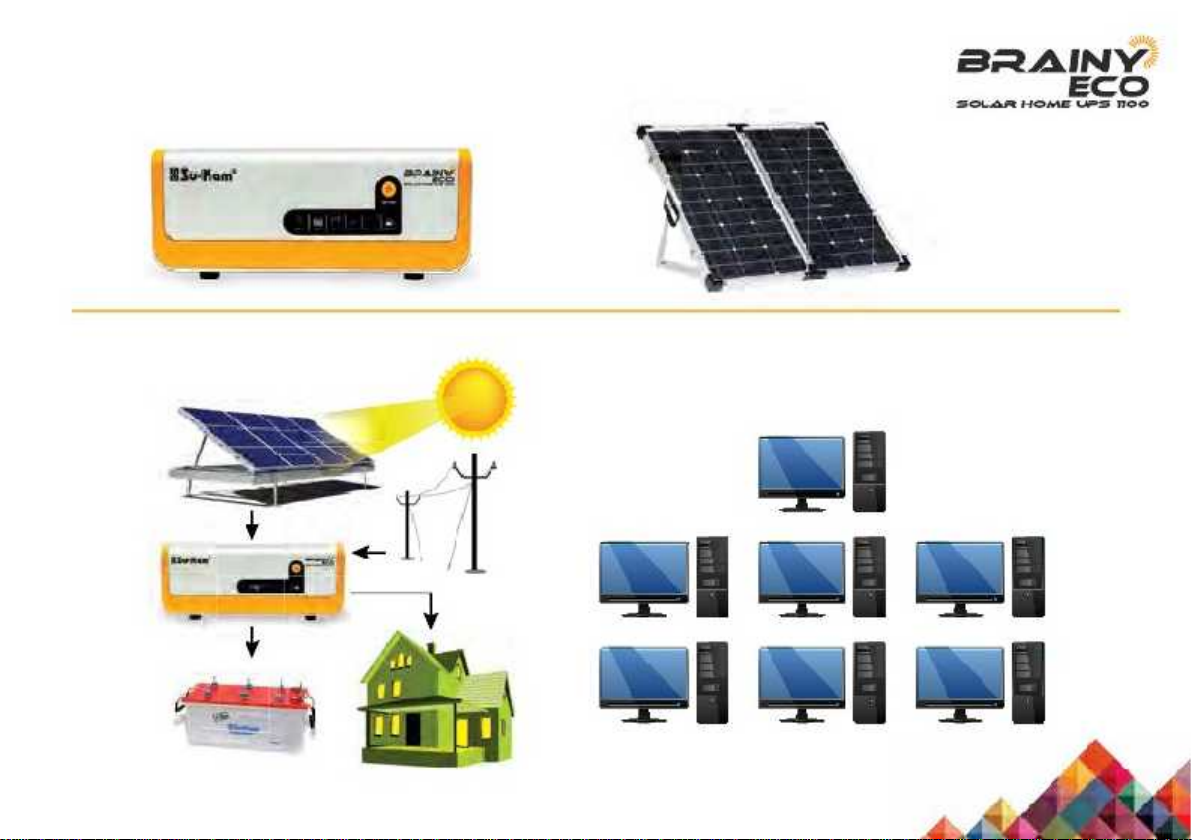

COMPLETE SYSTEM DETAILS*
1. Brainy Eco Solar Home UPS
2. Solar PV Panel
3. Battery (SMF/LA/Tubular)
4. Battery Trolley (SMF/Tubular)
5. Wire for Solar Panel (Red & Black)
1100
Optional 80W-500W
45Ah - 300Ah
As provide by Su-kam
a) 25 sq. mm upto 10 meter length
b) 35 sq. mm upto 15 meter length
*Specification subject to change without any prior Notice.
5. BATTERY LOW: This graphical symbol glows when the Battery
Voltage is Low.
6. SOLAR ON: This graphical symbol glows when the system is ON.
There are TWO colour LEDs GREEN and YELLOW.
Grid Charging
Mains ON:
Charge (Green):
Continous ON
ATC Connected - Grid
charging with 30sec Normal
blinking & 2Sec Fast
blinking Green Color LED
consecutively
ATC Not Connected - Grid
charging with Normal
blinking Green Color LED
System is ON

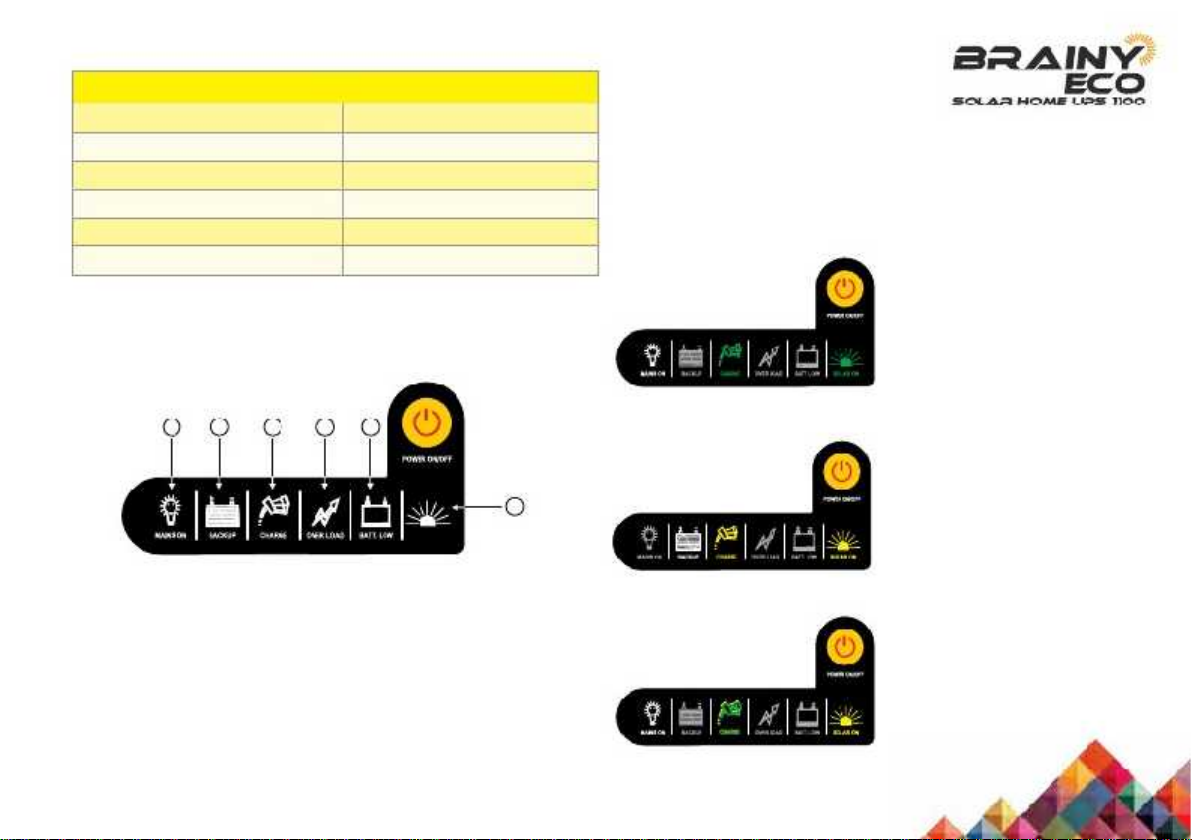

Front Panel View of Brainy-Eco
1
2
3
4
5
Solar ON (Green):
Solar Charging
Backup (White):
Charge (Yellow):
6
SOLAR ON
Solar ON (Yellow):
1. MAINS ON/MCB TRIP: This LED glows when mains available.
2. BACKUP: This LED glows when the system is on backup mode.
3. CHARGE: This graphical symbol will glow when the system is on
charging mode. There are TWO colour LEDs GREEN and YELLOW.
4. OVERLOAD/SHORT CIRCUIT: This graphical symbol, when glows
indicate that either Short circuit or overload has occurred.
Continous ON
ATC Connected - Solar
charging with 30sec Normal
blinking & 2Sec Fast
blinking Yellow + Green
color LED consecutively
ATC Not Connected - Solar
charging with Normal
blinking Yellow color LED
System is ON.
Solar Available.
Grid + Solar Charging
Mains ON:
Charge (Green+
Yellow):
Continous ON
ATC Connected - Grid +
Solar charging with 30sec
Normal blinking & 2Sec Fast
blinking both color LEDs
consecutively
ATC Not Connected - Grid +
Solar charging with Normal
blinking both color LEDs
System is ON
Solar Available
Solar ON (Yellow):
8

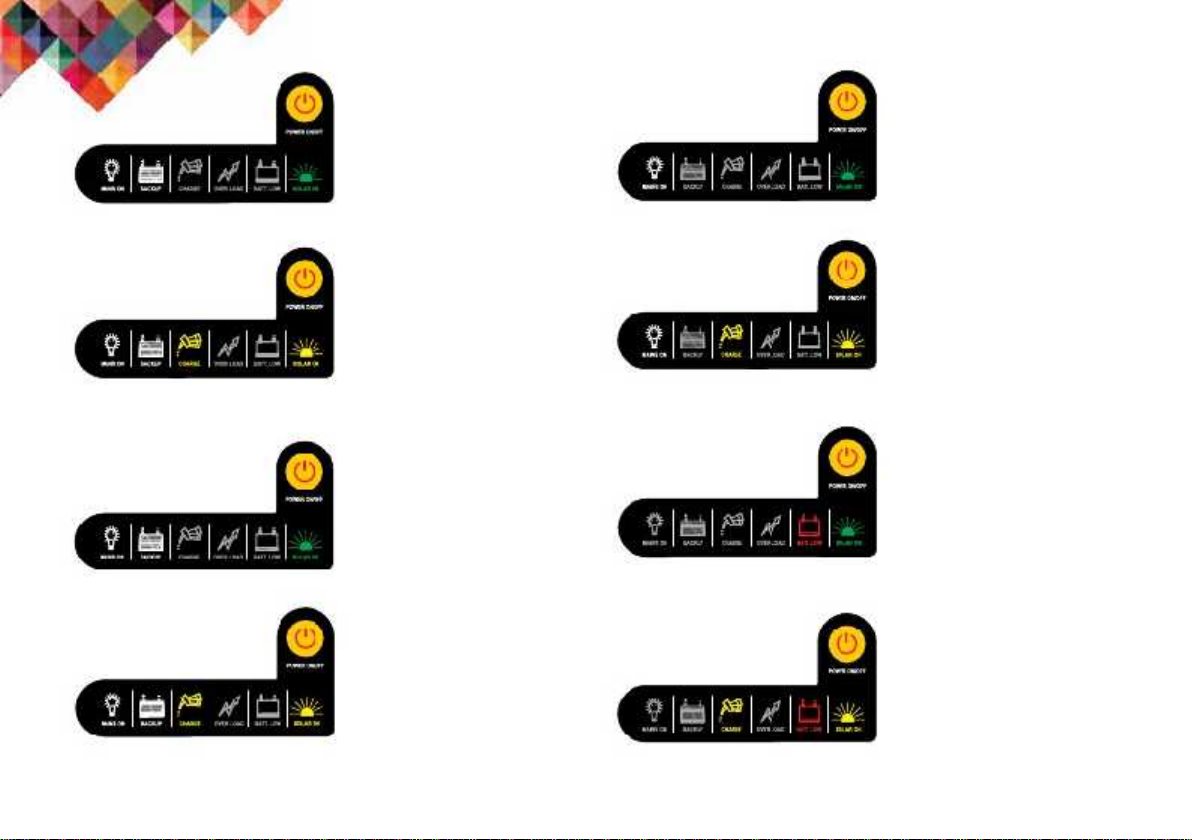

Grid high mode
Grid MCB trips
Mains ON:
Backup (White):
Solar ON (Green):
Buzzer Beep:
Fast BlinkingONContinuous
System is ON
Every 2 Sec
Mains ON:
Normal Blinking
Solar ON (Green): System is ON
Buzzer Beep:
After Trip
Grid high mode + Solar
Mains ON:
Backup (White):
Charge (Yellow):
Solar ON (Yellow):
Buzzer Beep:
Fast Blinking
Continuous ON
ATC Connected- Solar
charging with 30sec Normal
blinking & 2Sec Fast blinking
Yellow + Green color LED
consecutively
ATC Not Connected - Solar
charging with Normal blinking
Yellow color LED
System is ON
Solar Available
Every 2 Sec
Grid MCB trips + Solar
Mains ON:
Charge (Yellow):
Solar ON (Yellow):
Buzzer Beep:
Normal Blinking
ATC Connected- Solar charging
with 30sec Normal blinking &
2Sec Fast blinking Yellow +
Green color LED consecutively
ATC Not Connected - Solar
charging with Normal blinking
Yellow color LED
System is ON
Solar Available
After Trip
Grid Low mode
Low Battery
Mains ON: Slow Blinking
Backup (White):
Solar ON (Green):
Buzzer Beep:
Continuous ON
System is ON
Every 2 Sec
Battery Low (Red):Continuous ON
Solar ON (Green):
Buzzer Beep:
System is ON
After Trip
Grid Low mode + Solar
Mains ON:
Backup (White):
Charge (Yellow):
Solar ON (Yellow):
Buzzer Beep:
Slow Blinking
Continuous ON
ATC Connected- Solar charging
with 30sec Normal blinking &
2Sec Fast blinking Yellow +
Green color LED consecutively
ATC Not Connected - Solar
charging with Normal blinking
Yellow color LED
System is ON
Solar Available
Every 2 Sec
Low Battery + Solar
Charge (Yellow):
Battery Low (Red):
Solar ON (Yellow):
Buzzer Beep:
ATC Connected- Solar
charging with 30sec Normal
blinking & 2Sec Fast blinking
Yellow + Green color LED
consecutively
ATC Not Connected - Solar
charging with Normal blinking
Yellow color LED
Continuous ON
System is ON
Solar Available
After Trip
9

Mains ON:
Charge (Green):
Continuous ON
ATC Connected- Grid charged
with 30sec Continuous ON &
2Sec Fast blinking Green Color
LED consecutively
ATC Not Connected - Grid
charged Continuous ON Green
Color LED
System is ON
Battery Charged
Solar ON (Green):
PV Current High
In all Solar Modes as mentioned before.
Solar ON (Yellow):
Battery charged + Solar
Mains ON:
Charge (Yellow):
Solar ON (Yellow):
Continuous ON
ATC Connected- Grid +
Solar charged with 30sec
Continuous ON & 2Sec Fast
blinking Yellow + Green Color
LED consecutively
ATC Not Connected - Grid +
Solar charged with Continuous
ON Yellow Color LED
System is ON
Solar Available
System is ON
Solar Available & Yellow color
LED fast blinking
PV Voltage High
Overload / Short Circuit
Backup (White):
Overload (Red):
Solar ON (Green):
Buzzer Beep:
Continuous ON
Continuous ON
System is ON
After Trip
In all Solar Modes as mentioned before.
Solar ON (Yellow):
System is ON
Solar Available & Yellow color
LED slow blinking
PV Voltage Low
Overload / Short Circuit
+ Solar
Backup (White):
Charge (Yellow):
Continuous ON
ATC Connected- Grid +
Solar charged with 30sec
Continuous ON & 2Sec Fast
blinking Yellow + Green Color
LED consecutively
ATC Not Connected - Grid +
Solar charged with Continuous
ON Yellow Color LED
Continuous ON
System is ON
Solar Available
After Trip
In all Solar Modes as mentioned before.
Solar OFF:
Overload (Red):
Solar ON (Yellow):
Buzzer Beep:
It turns off when PV voltage
goes low
10

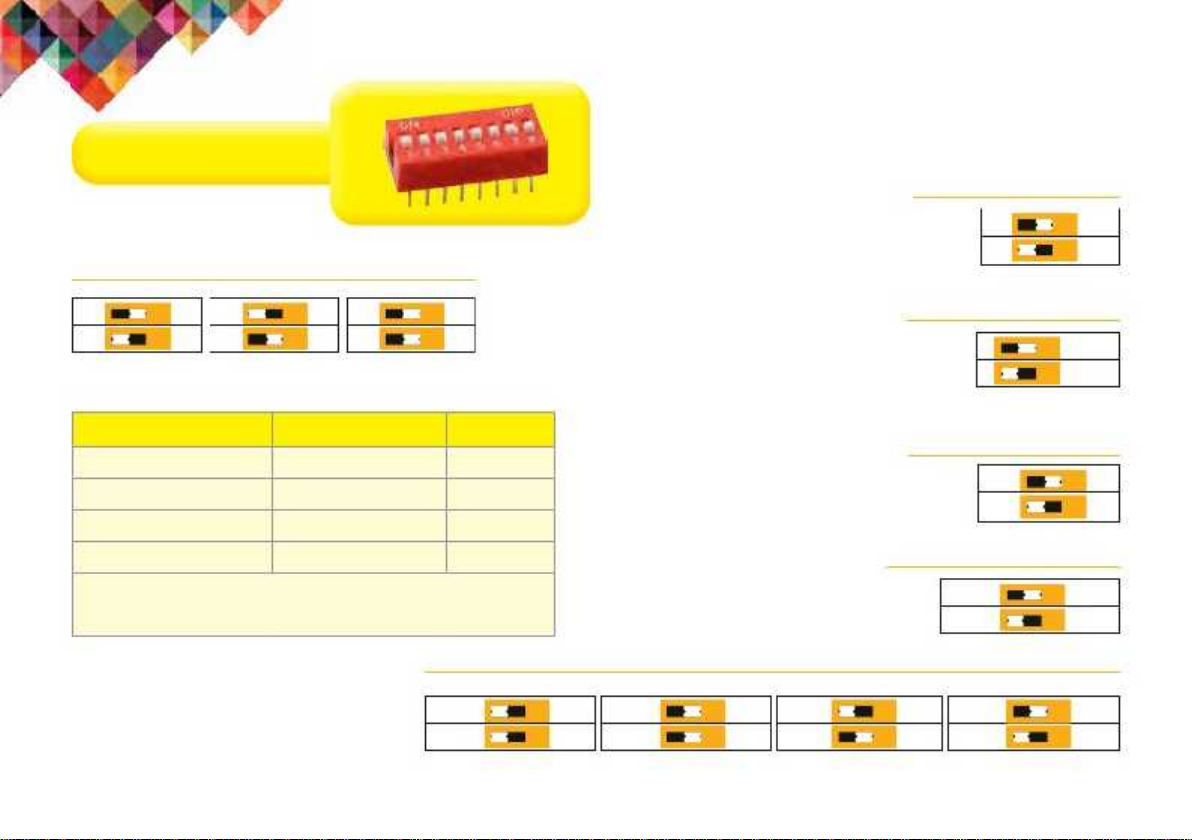

DIP Switch
LOAD SWITCH-8
Computer Load U P S
8 8
Normal Load
U PS
W U PS
W U PS
BATTERY CAPACITY & SOLAR PANEL WATTAGE-1, 2
S1
S2
S3
1 2
1 2
10A
5A
15A
15A
10A
5A
15A
15A
10A
5A
1 2
15A
15A
BATTERY TYPE SWITCH-7
Tubular Battery L A
LA Battery
LA
7 7
T U B /S M F
T U B /S M F
For battery capacity and solar panel selection, from the switch S1,
S2, S3 by checking the table below.
BATTERY(AH)
45Ah-75Ah
100Ah-135Ah
150Ah -180Ah
150Ah x 2*
PANEL(W)
80W-120W
150W-250W
300W-350W
400W-500W
SWITCH
S1
S2
S3
S3
GRID CHARGING
ENBLE/DISABLE SWITCH-6
G CD
G CD
6 6
5 5
GCE
GCD
G CE
G CE
BACKUP SWITCH-5
Low Backup 1 0 .5 V LV D
High Backup 1 0 .5 V LV D
1 1 V LV D
1 1 V LV D
CAUTION: For 300W Solar Panel connect 1 battery of 150Ah. However,
for 400W-500W Solar Panel connect 2 batteries of 150Ah/12V each in
parallel connection.
GRID/SOLAR PRIORITY SWITCH-3, 4
GRID CHARGING
GRID PRIORITY
SOLAR PRIORITY
3 4
3 4
3 4
1 2 .2 V S P
1 1 .5 V S P
G P 13V
G P 13V
1 2 .2 V S P
1 1 .5 V S P
G P 13V
G P 13V
1 2 .2 V S P
1 1 .5 V S P
G P 13V
G P 13V
1 2 .2 V S P
1 1 .5 V S P
3 4
G P 13V
G P 13V
NIGHT MODE
HIGH-POWER CUT
MEDIUM-POWER CUT
LOW - POWER CUT
11

GRID CHARGING ENABLE/
DISABLE
Grid Charging Enable
Enable or Disable the Grid
According to your needs
Save Money on Electricity Bills
by Disabling the Grid Power
and Charging the
Battery by Solar
Grid Charging Disable
Enable
ON
OFF
ON
OFF Disable
9
9
3A
0A
Grid Supply
12A
15A
(12A+3A)
Grid Supply
12A
12A
250W/12V
150AH/12V
250W/12V
150AH/12V
Battery Charging Through Solar& Grid Power
Battery Charging Through Solar Power only
Grid Power
Solar Power
Solar + Grid Power
Load Running
On Grid only
Load Running
On Grid only
12

INTELLIGENT CHARGING SHARING
0A
Grid Supply
5A
Grid Supply
15A
10A
15A
(15A+0A)
15A
(10A+5A)
250W/12V
250W/12V
150AH/12V
150AH/12V
150Ah Battery requires 15Amp. Charging Current
If Solar Panel provides 15Amp. Current, than BRAINY ECO
doesn’t take any Current from Grid to Charge the Battery.
Grid Power
Solar Power
Solar + Grid Power
150Ah Battery requires 15Amp. Charging Current
If Solar Panel provides 10Amp. Current, than BRAINY ECO takes
5Amp. Current from Grid to Charge the Battery.
*The charging sharing takes place only when the current from the solar is below 15Amp.
13

Brainy Eco 1100
+
Panel Range: 80W to 500W
Charges Battery and
Runs Load Simultaneously
Powerfull Enough to
Run 7 Computers*
7PC
300AH/12V (Recommended)
*14 Inch TFT Monitor with Model 1100, Tested under ideal conditions for 7 computers.
14

Installation
Step 1: Attach the battery
Step 2: Connect the Panel
Step 3: Connect to Input Mains
Step 4: Connect to Output
Fan
CFL
TV
Please make sure that the system
is switched off during installation.
MCB
Mains
input
Grounding
MCB
Electric
Meter
2
2
4
1
1
3
15

Safety Notes
Before proceeding further, kindly go through the safety
instructions carefully.
General Precautions:
 Before using the Solar Home UPS, read all instructions and cautionary markings on the Brainy Eco, the batteries & all
appropriate sections of this instruction manual.
 not expose Brainy Eco to rain or liquids of any type. This product is designed for interior use only.Do
 not disassemble Brainy Eco on your own; take it to the Su-Kam Service center when service or repair is required.Do
Disassembling of the product by unqualified personnel can cause electric shock or fire hazard & harm your Solar Home UPS.
 reduce risk of electric shock, disconnect all wiring before cleaning.To
 WARNING Risk of Explosive Gases
WORKING IN THE VICINITY OF A LEAD ACID BATTERY MAYBE DANGEROUS. BATTERIES GENERATE
EXPLOSIVE GASES DURING NORMAL OPERATION.
Provide ventilation to outdoors from the battery compartment.
The battery enclosure should be designed to prevent accumulation & concentration of hydrogen gas in “pockets” at the top
of the compartment. Vent the battery compartment from the highest point. A sloped lid can also be used to direct the flow to
the vent’s opening location. To reduce the risk of battery explosion, follow all the instructions given by the battery supplier or
any equipment you intend to use in the vicinity of the batteries.
 not cover Brainy Eco with any cover or cloth.Do
 not install Brainy Eco on or near any flammable material (plywood, chemicals, gasoline etc.)Do
 extra cautious when working with metal tools on and around batteries. It could short-circuit the batteries or otherBe
electrical parts, producing a spark that could cause an explosion.
16

Important Safety Instructions / E-waste info
The output side of Brainy Eco should never be connected to a generator or incoming utility power.
This condition is far worse than a short circuit. If the unit survives this condition, it will shut down until correction is made.
Note: Never disconnect the battery cables while The Solar Home UPS is delivering power or battery charger is operating. The Power
Active Switch has no effect on the charger; it turns off only the power output during backup mode.
To disconnect the batteries for service:
a) Turn-off the power switch b) Disconnect all AC power
c) Disconnect all the battery cables
Special Notices:
Do not switch-on heavy load appliances like TV, refrigerators, water pump, desert cooler etc. when Brainy Eco is running on battery
backup. This may cause rebooting of your computer.
Avoid connecting the stabilizer between utility power & Solar Home UPS. The AVR of stabilizer may cause your computer to reboot.
We recommend that you have point to point wiring for the Solar Home UPS.
Grounding Instructions:
Brainy Eco must be connected to a grounded, permanent wiring system.
As per Government of India’s E-Waste (Management and Handling)
Rules, 2011 (effective from May 1st, 2012) the product purchased by you is
to be considered as E - Waste and cannot be disposed off with your general
household waste. It should be disposed of through the company’s collection
center so as to prevent any damage to environment.
Collection Center address
Plot No. 196-E Sector-37, Udyog Vihar, Phase-VI, Gurgaon-122 001, Haryana (INDIA)
Helpline No : 1800 - 102 – 4423 (Toll Free)
[email protected] visit at: www.su-kam.com for details about collection Centers.
We request you to make a note of the
management and handling e-waste
details and support us in our endeavour
to ensure an environmental friendly
nation.
17
