Sub-Zero 500 Series User manual

Sub-Zero Refrigerator
Service Guide
A Step-by-step guide
Answers to the most common repair and service questions
for your Sub-Zero
Yale Appliance + Lighting - 2013

Overview
The most common question is, “How serviceable is it?”
Sub-Zero is a family owned company based in Wisconsin. Family owned means you care
more about the label than a multi-national would. Incredibly, every Sub-Zero is tested
before it leaves the factory.
Sub-Zero is notoriously slow in developing new products, because their development and
quality program is so methodical.
The Most ReliableAppliance Brands: Read more »
2
Yale Appliance + Lighting

Table of Contents
Troubleshooting
A few quick tips for to figure out what may be wrong with your Sub-Zero
Repairs
Step by step walkthroughs for common repair issues
Repair or Replace?
How do you know when it’s time to make that choice?
How to Buy or Get Service
Quick tips to help you consider a new Sub-Zero purchase
3
Yale Appliance + Lighting
1
2
3
4

Troubleshooting
A few quick tips to help you figure out what’s
wrong with your Sub-Zero
1
Yale Appliance + Lighting

Troubleshooting
Products
Sub-Zero 500, 600, BI and PRO series.
Troubleshooting
There are a few quick tips to figure out
what may be wrong with your Sub-Zero.
Sub-Zero is one of the few products that
will always be worth repairing 15-20 years
old.
Plus, we will give you step-by-step help on
how to repair the most common issues.
5
Yale Appliance + Lighting

Troubleshooting
Basic Refrigerator Operation
Let’s narrow it down. Basic refrigerator operation is as follows. Power on, set freezer temperature
to 0º and refrigerator to 38º.
Note that the twin compressor system operates both sides from a single power source but are
separate when it comes to operation and cooling.
Now you need to narrow down which compartment is having trouble and select the correct
problem at hand.
What’s Wrong?
•Not Cooling?
•Water Filter?
•No Power?
•No Ice or Water?
•Light Switch?
6
Yale Appliance + Lighting

Not Cooling?
Why is my Sub-Zero not cooling properly?
Models: 500, 550, 600, 611, 632, 650, 690, BI-30, BI-36, BI-42, BI-48, PRO48.
The number one reason for a no cooling situation is a clogged condenser. The symptoms would be that
both the fridge and freezer section are losing cool temperature. Also, the area between the doors
would be getting hot.
If the refrigerator isn’t cool, check to see if the light comes on when you open the door. Next, check to
see if the thermostat or display control is set properly. If both of these are OK, then check to see if the
compressors are running. Sub-Zero is one of the few manufacturers with a twin compressor system,
which means your fridge side can be not operational and your freezer side can be working fine (or vice
versa).
See if the compressor motor is running. The compressor is in a case with no visible moving parts. It is
usually located at the top of the Sub-Zero unit (except 400 and 700 series) and this is a dual
compressor system, the right compressor is the fridge section. If it’s humming or making a steady noise
and your refrigerator is not cooling properly there could be a problem with one or more various
components.
The most common is the condenser is clogged with lint, hair, debris and it needs to be cleaned. This is
a simple process and should be done every six months.
Need to replace the filter? Walk through it in our repair section: Read more »
7
Yale Appliance + Lighting

No Power?
There is a difference between thinking there is no power and the
lights and control shutting down per safety feature. All Sub-Zero
units have a safety feature if the doors are left open for a period of
time that will shut down all lights. You can power off and on or make
sure all doors are closed and it will come back around in a few
minutes.
First, check that the power is on by simply pushing “POWER” on the
display (top right corner). Then check power supply, this can be
tougher as they are plugged in behind the grill section on the top
right side. You can plug something else, like a hair dryer, into the
outlet to confirm there is power.
There is also a possibility that the circuit breaker has tripped. This
would be located in a common area of the home and will have every
electrical unit listed.
Bad light switch? See our repair section: Read more »
8
Yale Appliance + Lighting

Filter Replacement
How often should I change the Sub-Zero water filter?
You should change the filter cartridge at least once every twelve months. High sediment areas
may require more frequent filter replacements.
Replace the water filter cartridge when the filter indicator is lit or when water flow becomes
low.
Do not use with water that is microbiologically unsafe or of unknown water quality without
adequate disinfection before or after the system.
Systems certified for cyst reduction may be used on disinfected waters that may contain
filterable cysts.
This system must be installed, operated, maintained and filters replaced as required in order for
the product to perform as advertised.
Want to replace the filter? Walk through it in our repair section: Read more »
9
Yale Appliance + Lighting

No Ice or Water?
There’s No Ice or Water in my Sub-Zero
Models: 500, 550, 600, 611, 632, 650, 690, BI-30, BI-36, BI-42, BI-48, PRO48.
Why doesn’t my Sub-Zero icemaker or water dispenser get water to it?
Make sure the freezer has cooled down enough after installation. Most Sub-Zero ice makers
won’t produce ice until the temperature has reached less than 10°. On Sub-Zero BI and PRO48
series models you may not get any water if the filter is plugged with sediment.
Icemakers need about 40 psi to fill properly. Make sure the water supply valve is turned on. This
valve is usually located under the kitchen sink and has a 1/4” copper or braided line running to
the refrigerator. Turn it counter-clockwise to ensure the valve is open.
Occasionally, this fill tube may freeze. The way to check this is to remove the icemaker and look
at the tube. If it is frozen, you will probably need to replace the water fill valve. Verify that the
icemaker is plugged in and turned on. The wire or plastic arm will be in the down position if it is
on.
Need to replace the water valve? Walk through it in our repair section: Read more »
10
Yale Appliance + Lighting

Repair
Step by step walkthroughs for common repair
issues
2
Yale Appliance + Lighting

Repairing
Step-by-Step walk through repairs
Water Filter Replacement: BI-30, BI-36, BI-42, BI-48, PRO48
Step-by-step on how to replace the water filter
Condenser Cleaning: 500, 532, 550, 600, 611, 642, 632, 650, 661, 685, 690, BI-30, BI-36, BI-42,
BI-48, PRO48
Step-by-step on how to clean the refrigerator condenser
Replace the Water Valve: 500, 532, 550, 600, 611, 642, 632, 650, 661, 685, 690
Step-by-step on how to replace your Sub-Zero water valve
Replace the Light Switch: 500, 532, 550, 600, 611, 642, 632, 650, 661, 685, 690, BI-30, BI-36, BI-
42, BI-48, PRO48
Step-by-step on how to replace the Sub-Zero light switch
12
Yale Appliance + Lighting

Water Filter Replacement
Water Filter Replacement: BI-30, BI-36, BI-42, BI-48, PRO48

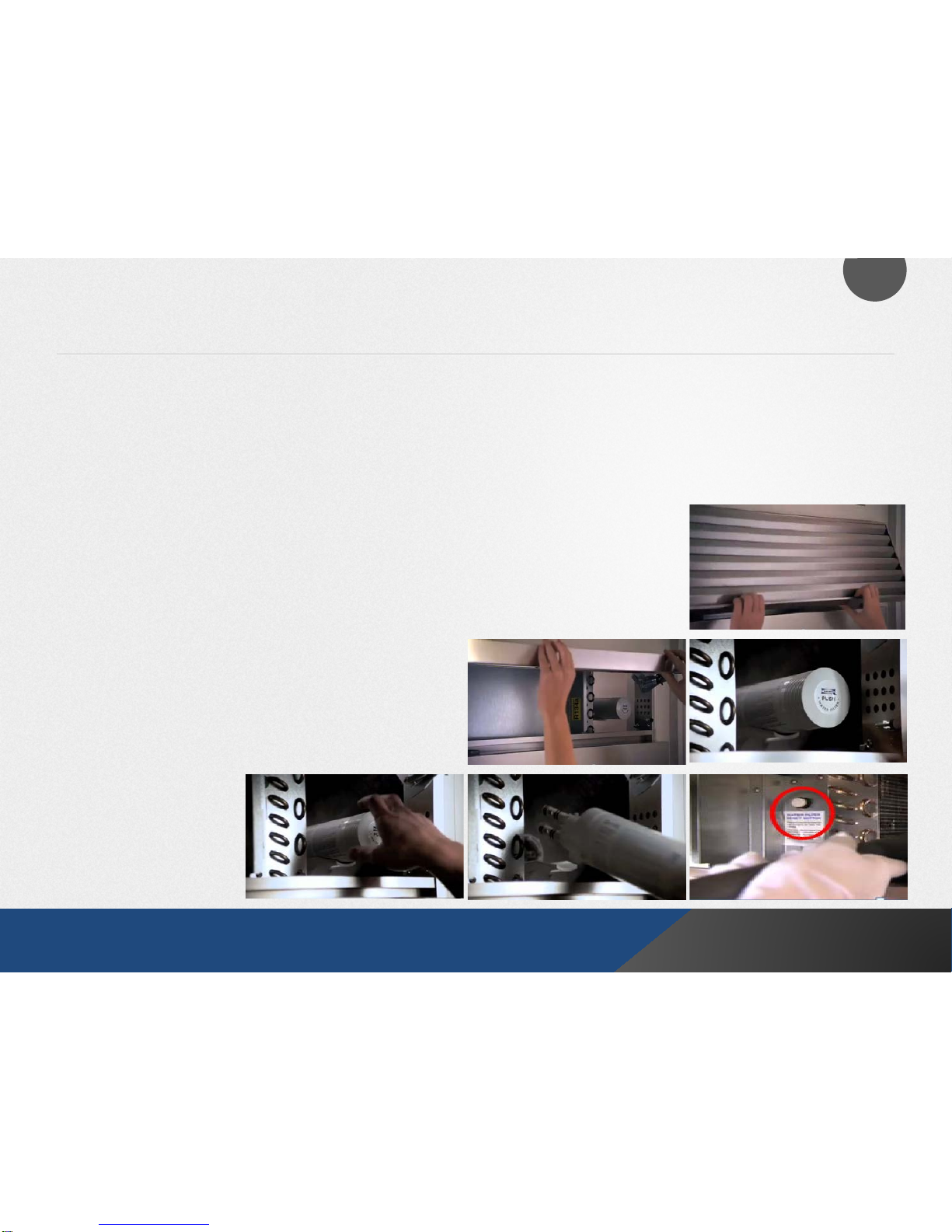

Turn power off on right side upper display. Just lift the top grill, no tools required. It will then lock
into place.
13
Yale Appliance + Lighting
Filter is located on the upper right side (as shown in picture). Sub-Zero
has simplified this as it is just on a push-retract system. Push the filter
in and then pull.
Replace with the new one. You will hear water go into the new filter.
Then you can push the filter reset button on
the left side of filter (circled in the picture).
Then simply close the grill and you are done.

Condenser Cleaning
Condenser cleaning: 500, 532, 550, 600, 611, 642, 632, 650, 661, 685, 690, BI-30, BI-36, BI-
42, BI-48, PRO48
You can use a soft coil condenser brush or soft thistle vacuum to clean the coils periodically.
Because the coils exchange heat, any dust, lint or dirt on the coils reduces the ability to exchange
heat. Most fridges have self-cleaning condensers, Sub-Zero does not. If there are pets in the
home then it’s always safe to check and keep these clean. It’s crucial to keep built-in or dual
compressor systems clean as in all Sub-Zero units.
How to Access Sub-Zero Condenser
Older units have three Philip screws under the grill that need to be removed. The fridge door
needs to be open to access these screws. On BI and PRO models the top grill will flip up like a car
hood with no tools necessary. The condenser is on the top right side and will just need to be
gently wiped out or softly vacuumed.
14
Yale Appliance + Lighting

Water Valve Replacement
Water Valve Replacement: 500, 550, 600, 611, 632, 650, 690, 700.
Recommend appliance professional for BI-30, BI-36, BI-42, BI-48, PRO48
Replacement of your water valve can be done without the removal of the unit. Shutdown
power and water source to the unit. This is generally located in a common area, possibly
under the sink or in the basement under the unit itself.
For all 500 and 600 series units, the valves are located on the bottom left. All early 700
series units have the valves on the right. You will need to remove the two to four Philip
screws under the toe-kick panel.
Use a wrench to disconnect copper or braided line from the valve. The valve will be secured
by a Philip screw then will pull out a few inches. This will allow room to disconnect electrical
connections and then the plastic coupling on the back side of valve.
The valve can then be removed and replaced with new valve. Put new valve back in reverse
order and tighten (but don’t over tighten). Turn water supply on and check for leaks.
15
Yale Appliance + Lighting

Light or Fan Switch Replacement
Light Switch Replacement: 500, 532, 550, 600, 611, 642, 632, 650, 661, 685,
690, BI-30, BI-36, BI-42, BI-48, PRO48
After factoring in trip, labor and part cost this could save you $200 on average.
First, shut down power to the unit. For the older 500, 600 and 700 series you need to start by
removing the upper grill. Remove the three Philip screws under the top frame after you open the
outer door.
Start from the top and remove the two connection wires. Use a flat head screw driver to depress
the tab on the right side of the switch (shown below).
Then bring switch down through the metal frame and replace with new switch in reverse and it will
lock back in automatically.
For BI and PRO models you just need to lift the grill rather than unscrew. The switches will more
round but will come out the same way.
16
Yale Appliance + Lighting
500, 600, 700 series
All BI and Pro models

Repair or Replace
How do you know when it’s the right time to
make that choice?
3
Yale Appliance + Lighting

Repair or Replace?
Age
What’s the age of your Sub-Zero? If it is 16+ years old be very cautious on how much you are
going to invest in servicing a unit that may only have a couple years left until the next repair or
replacement. Keep track of all service history so it is easier to calculate cost over the years. At
the same time, a new Sub-Zero will cost $7,500 - $10,000, so repair could be a good option.
Sub-Zero Cost
Sub-Zero’s have evolved over the years, from the first single compressor designs that were
thermostat controlled and not as efficient to operate. Sub-Zero products since roughly 1995 are
computer controlled and have twin compressors on select models. They are now more efficient,
preserving food much longer than other fridges in its class.
Repair Cost
Always ask for a completed job price, rather than time and materials. Time can be skewed and
the repair will be over budget. If you are heading towards 40% of the units cost in total repairs
you may want to consider replacement.
18
Yale Appliance + Lighting

How to Buy
Quick tips to help you consider a new Sub-Zero
purchase
4
Yale Appliance + Lighting

How to Buy
Sub-Zero is sold for similar prices around the country. They occasionally have rebate programs
when combined with Wolf cooking products. Delivery and especially service should be
considered when purchasing the Sub-Zero brand. They will also offer an extra year warranty
when the product is installed by a certified Sub-Zero installer (like us).
As a tech however, repair might be the better option as it now costs over $7,500 to replace a
Sub-Zero product.
For a comparison of all professional as well as integrated refrigerators of any brand, download
our Counter Depth Refrigerator Buying Guide.
