Sub-Zero IC-27R User manual

Integrated Refrigeration Installation Guide

INTEGRATED REFRIGERATION
Contents
3Integrated Refrigeration
4Opening Dimensions
5Electrical
6Plumbing
7Preparation
7Anti-Tip Bracket
9Placement
9Alignment
10 Water Line
10 Custom Panels
13 Panel Installation
15 Completion
Features and specications are subject to change at any
time without notice. Visit subzero.com/specs for the most
up-to-date information.
Important Note
To ensure this product is installed and operated as safely
and efciently as possible, take note of the following types
of highlighted information throughout this guide:
IMPORTANT NOTE highlights information that is especially
important.
CAUTION indicates a situation where minor injury or product
damage may occur if instructions are not followed.
WARNING states a hazard that may cause serious injury or
death if precautions are not followed.
IMPORTANT NOTE: Throughout this guide, dimensions in
parentheses are millimeters unless otherwise specied.
IMPORTANT NOTE: Save these instructions for the local
electrical inspector.

subzero.com | 3
Product Information
Important product information including the model and
serial number of the unit are listed on the product rating
plate. For column models, the rating plate is located inside
the middle drawer near the drawer guide opposite the hinge.
For tall and drawer models, the rating plate is located inside
the cabinet, to the left of the upper drawer. Refer to the
illustrations below.
If service is necessary, contact Sub-Zero factory certied
service and have the model and serial number of the unit.
For the name of the nearest Sub-Zero factory certied
service or for questions regarding the installation, visit the
contact & support section of our website, subzero.com or
call Sub-Zero customer care at 800-222-7820.
INTEGRATED REFRIGERATION
Tools and Materials
•Screwdrivers—standard, Phillips and Torx.
•Power drill.
•Drill bits (masonry bits required for concrete installation).
•Standard socket and wrench set.
•2' and 4' levels.
•Tubing cutter.
•3' (.9 m) of 1/4" OD copper, braided stainless steel or
PEX tubing.
•Saddle valve.
•Material to protect home, ooring and cabinetry during
installation.
Column models. Tall and drawer models.
RATING
PLATE
RATING
PLATE

4 | Sub-Zero Customer Care 800.222.7820
SITE PREPARATION
Opening Dimensions
INTEGRATED MODELS
25" (635)
OPENING
DEPTH
W
OPENING WIDTH
H
OPENING
HEIGHT
SIDE VIEW
TOP VIEW
FRONT VIEW
OPENING DIMENSIONS
COLUMN W H
IC-27R and IC-27FI 27" (686) 81" (2057)
TALL W H
700TR, 700TFI, 700TCI 27" (686) 80" (2032)
736TR, 736TFI, 736TCI 36" (914) 80" (2032)
DRAWERS W H
700BR, 700BF(I), 700BC(I) 27" (686) 341/2"(876)
The depth of each integrated model is 24" (610). Allow for
panel thickness when planning the nished opening depth.

subzero.com | 5
SITE PREPARATION
CAUTION
The outlet must be checked by a qualied electrician to
be sure that it is wired with the correct polarity. Verify
that the outlet is properly grounded.
WARNING
Do not use an extension cord, two-prong adapter or
remove the power cord ground prong.
Electrical
Installation must comply with all applicable electrical codes.
The electrical supply must be located within the shaded
area shown in the illustration and chart below. A separate
circuit, servicing only this appliance is required. A ground
fault circuit interrupter (GFCI) is not recommended and may
cause interruption of operation.
The electrical outlet must be positioned with the grounding
prong to the right of the thinner blades.
ELECTRICAL REQUIREMENTS
Electrical Supply 115 VAC, 60 Hz
Service 15 amp
Receptacle 3-prong grounding-type
13" (330)
1/4"
(6)
41/2"
(114)
LEFT SIDE
OF OPENING
FLOOR
21/2"
(64)
FRONT VIEW
171/2" (445)
41/2"
(114)
FRONT VIEW
FLOOR
1/4"
(6)
LEFT SIDE
OF OPENING
21/2"
(64)
Electrical—27" models. Electrical—36" models.

6 | Sub-Zero Customer Care 800.222.7820
Plumbing
Installation must comply with all applicable plumbing codes.
For models with an ice maker, the water supply line should
be located within the shaded area shown in the illustrations.
The water supply line should be connected to the house
supply with an easily accessible shut-off valve. Do not use
self-piercing valves. The water supply line must be ush
to the oor and not interfere with installation of the anti-tip
bracket. Do not route the water supply line in front of the
compressor tray. The tray must be slid forward for service.
An in-line lter is required when water conditions have a
high sediment content.
A reverse osmosis system can be used provided there is
constant water pressure of 20–100 psi (1.4–6.9 bar) supplied
to the unit at all times. In some cases, a reverse osmosis
water lter system may not be able to maintain the minimum
pressure consistently. A copper line is not recommended for
this application.
PLUMBING REQUIREMENTS
Water Supply 1/4" OD copper, braided
stainless steel or PEX tubing
Pressure 20–100 psi (1.4–6.9 bar)
Excess Line for Connection 36" (914)
SITE PREPARATION
3" (76)
9"
(229)
3/4"
(19)
FLOOR
21/2" (64)
FRONT VIEW
9"
(229)
6"
(152)
TOP VIEW
11/2"
(38)
21/2"(64)
BACK
WALL
11/2"(38)
Plumbing—27" models (rear). Plumbing—27" models (bottom).
131/2"
(343)
3" (76)
FRONT VIEW
3/4"
(19)
FLOOR
21/2" (64)
131/2"
(343)
TOP VIEW
6"
(152) 11/2"
(38)
BACK
WALL
21/2"(64)
11/2"(38)
Plumbing—36" models (rear). Plumbing—36" models (bottom).

subzero.com | 7
SITE PREPARATION
Preparation
Uncrate the unit and inspect for damage. Remove the wood
base and discard shipping bolts and brackets. Remove and
recycle packing materials. Do not discard the kickplate,
anti-tip bracket and hardware. Remove the kickplate by
removing the screws holding it in place.
IMPORTANT NOTE: For drawer models, the upper drawer
has a control cable that must be disconnected before
removing the drawer. Refer to the illustration below.
Anti-Tip Bracket
WARNING
To prevent the unit from tipping forward, the anti-tip
bracket must be installed.
The back of the anti-tip bracket must be installed 24" (610)
from the front of the unit (without panels).
Use all anti-tip bracket hardware as instructed for wood or
concrete oors.
IMPORTANT NOTE: For wood or concrete oor applications,
if the #12 screws do not hit a wall stud or wall plate, use the
#8 screws and #12 washers with the wall anchors.
IMPORTANT NOTE: In some installations the subooring or
nished oor may necessitate angling the screws used to
fasten the anti-tip bracket to the back wall.
ANTI-TIP HARDWARE
1 Anti-tip bracket
12 #12 x 21/2" pan head screws
43/8"–16 x 33/4" wedge anchors
12 #12 at washers
4 #8–18 x 11/4" truss head screws
4 Nylon Zip-it®wall anchors
Control cable (drawer models).

8 | Sub-Zero Customer Care 800.222.7820
SITE PREPARATION
CONCRETE WEDGE ANCHOR INSTALLATION:
1Drill a 3/8"(10) diameter hole any depth exceeding the
minimum embedment. Clean the hole or drill additional
depth to accommodate drill nes.
2Assemble the washer and nut ush with the end of
anchor to protect threads. Drive the anchor through the
material to be fastened until the washer is ush with the
surface material.
3Expand the anchor by tightening the nut 3–5 turns past
hand-tight position or to 25 foot-pounds of torque.
WARNING
Verify there are no electrical wires or plumbing in the
area which the screws could penetrate.
CAUTION
Always wear safety glasses and use other neces-
sary protective devices or apparel when installing or
working with anchors.
Anchors are not recommended for use in lightweight
masonry material such as block or brick, or for use in
new concrete which has not had sufcient time to cure.
The use of core drills is not recommended to drill holes
for the anchors.
Anti-Tip Bracket
WOOD FLOOR APPLICATION
After properly locating the anti-tip bracket in the opening,
drill pilot holes 3/16"(5) diameter maximum in the wall studs
or wall plate. Use the #12 screws and washers to secure the
brackets. Verify the screws penetrate through the ooring
material and into wall studs or wall plate a minimum of 3/4"
(19). Refer to the illustration and chart below.
CONCRETE FLOOR APPLICATION
After properly locating the anti-tip bracket in the opening,
drill pilot holes 3/16"(5) diameter maximum in the wall studs
or wall plate. Drill 3/8"(10) diameter holes into the concrete
a minimum of 11/2"(38) deep. Use the #12 screws and
washers to secure the brackets to the wall, and use the 3/8"
wedge anchors to secure the brackets to the oor. Verify the
screws penetrate wall studs or wall plate a minimum of 3/4"
(19). Refer to the illustration and chart below.
ANTI-TIP BRACKET PLACEMENT
WIDTH A
27" Models 131/2"(343)
36" Models 18" (457)
A
A
SUBFLOORING
WOOD FLOOR
WALL PLATE
FINISHED
FLOORING
A
A
SUBFLOORING
CONCRETE
FLOOR
WALL PLATE
FINISHED
FLOORING
11/2"(38)
min
Wood oor. Concrete oor.

subzero.com | 9
INSTALLATION
Placement
CAUTION
Before moving the unit into position, secure the door/
drawers closed and protect any nished ooring.
Use an appliance dolly to move the unit near the opening.
Front and rear leveling legs can be adjusted from the front
once the unit is positioned.
If the unit has been on its back or side, it must stand upright
for a minimum of 24 hours before connecting power.
Plug the power cord into the grounded outlet and roll the
unit into position. Verify the anti-tip bracket is properly
engaged.
Alignment
LEVELING
Once the unit is in position, height adjustment can be made
from the front. Using a standard screwdriver, turn front
leveling legs clockwise to raise the unit or counterclockwise
to lower. Using a Phillips drive, turn rear adjustment screws
clockwise to raise the unit or counterclockwise to lower. Use
the lowest torque setting when using a power drill (18 revo-
lutions equals 1/16"of height adjustment). Do not turn the
rear leveling legs by hand. Refer to the illustrations below.
Level the unit to the oor, not surrounding cabinetry. This
could affect the operation of the unit, such as door closing.
When the unit is properly leveled, door/drawer adjustments
are less likely to be necessary.
Secure the unit in place using the side mounting clips and
#8 x 1/2" screws provided.
WARNING
To reduce the possibility of the unit tipping forward,
the front leveling legs must be in contact with the oor.
Front adjustment. Rear adjustment.

10 | Sub-Zero Customer Care 800.222.7820
INSTALLATION
Water Line
Purge the water line prior to nal connection to the unit. This
will remove any debris that may be present in the tubing
from installing the new water line. Connect the plastic tubing
from the unit to the house water supply line with the tting
connection kit provided. Check all water line ttings for
leaks. Refer to the illustration below.
IMPORTANT NOTE: Water lines can not be exposed to
freezing temperatures.
PEX
TUBING
Water line.
Custom Panels
For integrated models, custom door panels and handle
hardware must be installed. Stainless steel panels are
available through an authorized Sub-Zero dealer. For local
dealer information, visit the nd a showroom section of our
website, subzero.com.
The thickness of the custom panel can vary. A minimum
5/8"(16) thick panel is required, but the thickness can be
increased provided it does not exceed the maximum panel
weight indicated in the chart below. The depth of each
integrated model is 24" (610). Allow for panel thickness when
planning the nished opening depth.
PANEL REQUIREMENTS
COLUMN MAX WEIGHT
27" (686) 65 lbs (29 kg)
TALL (DOOR) MAX WEIGHT
27" (686) 40 lbs (18 kg)
36" (914) 53 lbs (24 kg)
DRAWER MAX WEIGHT
27" (686) 12 lbs (5 kg)
36" (914) 16 lbs (7 kg)
PANEL THICKNESS MINIMUM
All Panels 5/8"(16)

subzero.com | 11
Custom Panels
Reveals between panels can vary, 1/8"(3) reveals are typical.
CAUTION
When using a panel thicker than 3/4"(19) with reveal less
than 1/4"(6), panel may cause damage to the unit when
door is opened to 105°. Use the built-in 90° door stop.
CAUTION
As reveals between cabinetry and the unit decrease,
severe nger pinching can occur while door is closing.
Finish all sides of custom panels. They may be visible when
the door is open.
D-style handles are recommended. Stainless steel tubular
and pro handles are available through an authorized
Sub-Zero dealer. For local dealer information, visit the nd
a showroom section of our website, subzero.com. Door
handles must be located near the edge of the panel oppo-
site the hinge and should be centered top to bottom. Drawer
handles must be located near the top edge of each panel.
DUAL INSTALLATION
When installing two units side by side in a dual installa-
tion, the opening width is the width of the two units added
together. A dual installation kit will be required for this
installation.
Dual installation kits are available through an authorized
Sub-Zero dealer. For local dealer information, visit the nd a
showroom section of our website, subzero.com. For ques-
tions regarding the installation, call Sub-Zero customer care
at 800-222-7820.
IMPORTANT NOTE: If a 27" (686) column or tall model is
installed next to a 36" (914) tall model, the decorative front
panels will align, however, the face frames will not. This is
only apparent when both doors are open. Due to a more
robust hinge on 36" (914) units, the face frame was recong-
ured to maintain a consistent overall panel height. Refer to
the illustration below.
PANEL INSTALLATION
736TCI
Face frame alignment.

12 | Sub-Zero Customer Care 800.222.7820
PANEL INSTALLATION
Custom Panels
DOOR PANEL HEIGHT
The height of the custom door panel can extend beyond the
typical panel height, provided it does not exceed the weight
limit. Refer to the illustration below.
TOE KICK CLEARANCE
The height of the toe kick area can extend beyond the
typical toe kick height, provided it does not exceed the
dimensions in the illustration below.
25" (635) TO WALL
HEIGHT
OF PANEL
INTEGRATED UNIT
(SIDE VIEW)
25/8" (67) TO 4" (102)
BASE MOLDING
MUST BE
REMOVABLE—
4" (102) MAX
HEIGHT
KICKPLATE/GRILLE
CAN BE ADJUSTED
FORWARD
KICKPLATE/GRILLE
4" (102) TO 9" (229)
FROM FLOOR
Toe kick area—side view.
INTEGRATED UNIT
(SIDE VIEW)
11/2"
(38)
25" (635) TO WALL
HINGE
DECORATIVE VALANCE
CANNOT EXTEND BEYOND
THE FRONT OF THE MOLDING
DECORATIVE VALANCE
REMOVABLE MOLDING
TYPICAL
HEIGHT
OF DOOR
PANEL
MINIMUM
HEIGHT
OVERALL
HEIGHT
1/8"(3)
1/8"(3)
DOOR
PANEL
Upper valance (column and tall models)—side view.

subzero.com | 13
PANEL INSTALLATION
DRAWER PANELS
Remove the mounting hardware attached to the front of the
unit and set aside. Place the panel face down on a pro-
tected work surface.
Position the top edge of the template ush with the top
edge of the panel. Depending on the height and thickness of
the lower drawer panel, the bracket may need to be inverted
for proper placement. Mark and drill pilot holes, then secure
brackets to panel using the #8 x 1/2" screws provided. Refer
to the illustration below.
To help with placement of drawer panels, examine the lower
L-bracket and panel to determine the slotted holes on the
bracket that will be used. Then position screws into the
lower portion of the drawer that correspond with these slots.
Leave the screws out slightly so the slotted holes will slide
under the heads.
Install the panel by engaging the tabbed bracket to the top
of the drawer, then rotate the panel until the lower bracket
is properly positioned below the drawer. The panel can be
adjusted 1/4"(6) up and down and side to side.
Once the panel is properly aligned, attach the remaining
#10 x 1/2" screws to the mounting bracket.
For drawer models, reconnect the control cable before
reinstalling the top drawer. Refer to page 7.
BACK OF PANEL
TEMPLATE FLUSH WITH
TOP OF PANEL
SIDE
EDGE GAP
WILL VARY
TABBED BRACKET
L BRACKET
Template position. Drawer panel installation.
Panel Installation
DOOR PANEL
Remove the mounting hardware attached to the front of the
unit and set aside. Place the panel face down on a pro-
tected work surface.
Place the template provided, on the door panel. Each side
of the template is right- or left-hinge specic. Verify the cor-
rect side is being used, then mark the pilot holes indicated
on the template. Remove template and drill pilot holes. Align
the bracket over the pre-drilled holes and secure with the #8
x 1/2" screws provided. With the bracket in position, drill the
remaining bracket holes and secure bracket to the panel.
Partially insert a #10 x 1/2" screw in the center of the upper
and lower mounting positions. These screws will support
the door panel during installation and adjustment. Refer to
the illustration below.
Install the panel by engaging the tabbed bracket to the
handle side of the door, then rotate the panel until the hinge
side bracket engages the positioning screws. The panel can
be adjusted 1/4"(6) up and down and side to side.
Once the door panel is properly aligned, attach the
remaining #10 x 1/2" screws to the mounting brackets and
install the magnetic caps. Refer to the illustration below.
CAPSCREW
Door panel installation.

14 | Sub-Zero Customer Care 800.222.7820
PANEL INSTALLATION
Panel Installation

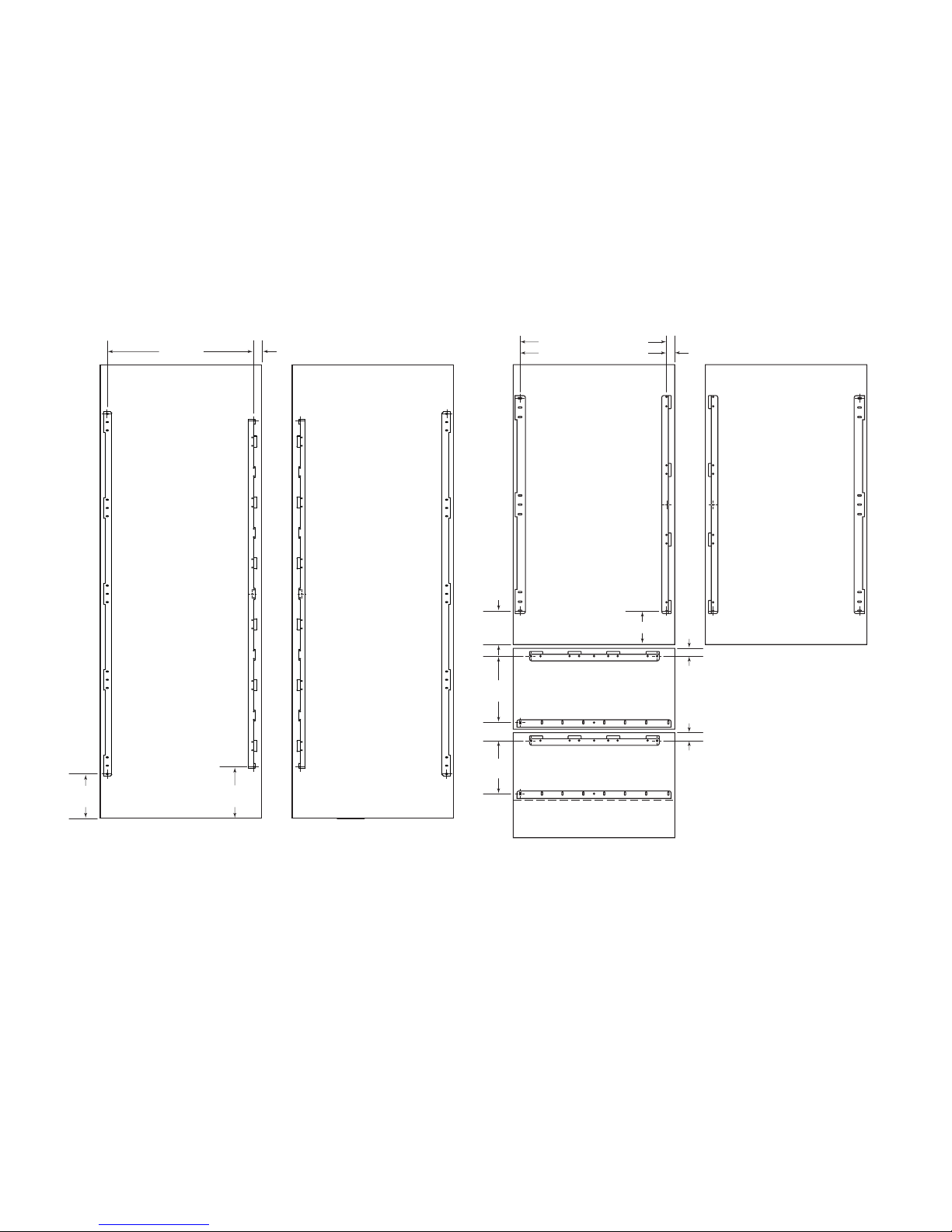

PANEL MOUNTING BRACKETS
The illustrations below show placement of panel mounting
brackets. Dimensions are based on a 4" (102) toe kick and a
1/8"(3) reveal.
53/16" (132)
55/16"
(135)
87/16"
(214)
115/16"
(287)
11/4"
(32)
11/4"
(32)
237/8" (606) FOR 27" UNITS
327/8" (835) FOR 36" UNITS
LH DOOR SWING
BACK OF PANEL
RH DOOR SWING
BACK OF PANEL
BACK OF PANEL
BACK OF PANEL
17/16" (37)
811/16"*
(221)
73/16"*
(183)
24" (610) 113/16" (46)
LH DOOR SWING
BACK OF PANEL
RH DOOR SWING
BACK OF PANEL
*Dimensions are based on a 4" (102) toe kick.
Panel mounting brackets—column. Panel mounting brackets—tall and drawer.

INSTALLATION
Sub-Zero, Sub-Zero & Design, Dual Refrigeration, Constant Care, The Living Kitchen, Great American Kitchens The Fine Art of Kitchen Design, and Ingredients are registered trade-
marks and service marks of Sub-Zero, Inc. Wolf, Wolf & Design, Wolf Gourmet, W & Design and the color red as applied to knobs are registered trademarks and service marks of Wolf
Appliance, Inc. (collectively, the “Company Marks.”) All other trademarks or registered trademarks are property of their respective owners in the United States and other countries.
KICKPLATE INSTALLATION
Install the kickplate using the screws provided. The
mounting bracket may be adjusted slightly for a ush t. The
kickplate must be removable for service. The oor cannot
interfere with removal. Refer to the illustration below.
A decorative kickplate can be added to the factory-installed
kickplate but cannot block the kickplate louvers.
Turn power on by touching POWER on the control panel.
90° DOOR STOP
The door of column and tall models opens to 105°. A 90°
door stop is built into the hinge system for installations
where the door opening must be limited.
To engage the door stop, use a standard screwdriver and
rotate the center cam of the hinge. The adjustment must be
made to both upper and lower hinges. Refer to the illustra-
tion below.
Completion
TRIM INSTALLATION
Install decorative trim strips to the top and sides of the unit.
Attach the top trim using the double-sided velcro, then snap
side trim over brackets on the sides of the unit. Refer to the
illustrations below.
MOUNTING
BRACKET
Kickplate installation. 90° door stop.
TOP TRIM
SIDE TRIM
Top trim. Side trim.
WARNING
Follow all city and state laws when storing, recycling or
discarding unused refrigerators and freezers.

2 | Atención a clientes Sub-Zero 800.222.7820
REFRIGERACIÓN INTEGRADA
Contenido
3Refrigeración integrada
4Dimensiones de abertura
5Instalación eléctrica
6Instalación de plomería
7Preparación
7Soporte antivuelco
9Colocación en posición
9Alineación
10 Línea de agua
10 Paneles personalizados
13 Instalación del panel
15 Finalización
Aviso importante
Para garantizar que este producto sea instalado y operado
de la forma más segura y eciente posible, tome nota de los
siguientes tipos de información resaltada en esta guía:
AVISO IMPORTANTE resalta la información que es
especialmente importante.
PRECAUCIÓN indica una situación en la que se pueden
sufrir heridas leves o provocar daños al producto si no se
siguen las instrucciones.
ADVERTENCIA indica un peligro que puede ocasionar lesiones
graves o la muerte si no se cumplen las precauciones.
AVISO IMPORTANTE: En toda esta guía, las dimensiones
entre paréntesis son milímetros, a menos que se especique
lo contrario.

subzero.com | 3
Información del producto
La información importante del producto, incluido el modelo
y número de serie de la unidad, se encuentran en la placa de
datos del producto. Para los modelos de columna, la placa de
datos se encuentra dentro del cajón medio del refrigerador,
cerca de la guía de cajón opuesta a la bisagra. Para los
modelos altos y los modelos con cajones, la placa de datos se
encuentra dentro del gabinete, a la izquierda del cajón superior
del refrigerador. Consulte las siguientes ilustraciones.
Si necesita servicio, póngase en contacto con el centro
de servicio autorizado de Sub-Zero y tenga a la mano el
modelo y número de serie de la unidad. Para obtener los
datos del centro de servicio autorizado de Sub-Zero más
cercano o si tiene preguntas acerca de la instalación, visite
la sección de contacto y soporte técnico en nuestra página
de Internet subzero.com o llame a la línea de atención al
cliente de Sub-Zero al 800-222-7820.
REFRIGERACIÓN INTEGRADA
Herramientas y materiales
•Destornilladores: estándar, Phillips y Torx.
•Taladro eléctrico.
•Brocas (se requieren brocas de mampostería para
instalación en concreto).
•Juego de llaves estándar y de vaso.
•Niveles 2' y 4'.
•Cortador de tubos.
•3' (.9 m) de tubería de cobre, trenzada de acero
inoxidable o PEX de 1/4" de diámetro exterior.
•Válvula de asiento.
•Material para proteger la casa, el piso y los gabinetes
durante la instalación.
Modelos de columna Modelos alto y con cajones
PLACA DE
DATOS
PLACA DE
DATOS

4 | Atención a clientes Sub-Zero 800.222.7820
PREPARACIÓN DEL SITIO
Dimensiones de abertura
MODELOS INTEGRADOS
25" (635)
PROFUNDIDAD DE
LA ABERTURA
A
ANCHURA DE ABERTURA
25" (635)
PROFUNDIDAD DE
LA ABERTURA
B
ALTURA DE
LA ABERTURA
VISTA SUPERIOR
VISTA FRONTAL
VISTA LATERAL
DIMENSIONES DE ABERTURA A B
MODELOS DE COLUMNA ANCHO ALTO
IC-27R e IC-27FI 27" (686) 81" (2.057)
MODELOS ALTOS A B
700TR, 700TFI, 700TCI 27" (686) 80" (2.032)
736TR, 736TFI, 736TCI 36" (914) 80" (2.032)
MODELOS CON CAJONES A B
700BR, 700BF(I), 700BC(I) 27" (686) 341/2"(876)
La profundidad de cada modelo integrado es 24" (610). Para
determinar la profundidad de la abertura ya con acabados,
considere el grosor del panel.

subzero.com | 5
PREPARACIÓN DEL SITIO
PRECAUCIÓN
Un electricista calicado debe revisar el tomacorriente
para asegurarse de que la conexión se haya
realizado con la polaridad correcta. Verique que el
tomacorriente esté debidamente conectado a tierra.
ADVERTENCIA
No utilice un cable de extensión, adaptador de dos
clavijas ni retire la clavija con conexión a tierra del
cable de alimentación.
Instalación eléctrica
La instalación debe cumplir con todos los códigos
eléctricos vigentes.
El suministro eléctrico debe colocarse dentro del área
sombreada que se muestra en la siguiente ilustración. Es
necesario un circuito independiente, que dé servicio únicamente
a este aparato. No es recomendable utilizar un circuito de fallos
de conexión a tierra (GFCI, por sus siglas en inglés) ya que
puede interrumpir el funcionamiento de la unidad.
El tomacorriente eléctrico debe colocarse de tal forma que
la clavija con conexión a tierra quede a la derecha de las
aspas más delgadas.
REQUISITOS ELÉCTRICOS
Suministro eléctrico 115 V CA, 60 Hz
Interruptor de circuito 15 amperes
Receptáculo Conexión a tierra de 3
clavijas
13" (330)
1/4"
(6)
41/2"
(114)
LADO IZQUIERDO
DE LA ABERTURA
SUELO
21/2"
(64)
VISTA FRONTAL
171/2" (445)
41/2"
(114)
1/4"
(6)
21/2"
(64)
LADO IZQUIERDO
DE LA ABERTURA
SUELO
VISTA FRONTAL
Instalación eléctrica—Modelos
de 27" .
Instalación eléctrica—Modelos
de 36" .

6 | Atención a clientes Sub-Zero 800.222.7820
Plomería
La instalación debe cumplir con todos los códigos de
plomería vigentes.
Para los modelos con fábrica de hielo, el suministro de agua
debe colocarse dentro del área sombreada que se muestra
en las siguientes ilustraciones. La línea del suministro de agua
debe conectarse al suministro doméstico con una válvula de
cierre de fácil acceso. Evite utilizar válvulas autoperforantes. La
línea de suministro de agua no debe sobresalir del nivel de piso
ni interferir en la instalación del soporte antivuelco. No coloque
ninguna porción de la línea de suministro de agua frente a la
charola del compresor. La charola debe deslizarse hacia el
frente cuando sea necesario dar servicio a la unidad.
Cuando el agua tiene un alto contenido de sedimentos, es
requisito instalar un ltro en la línea de agua.
Se puede utilizar un sistema de ósmosis inversa siempre y
cuando la presión del agua que llegue a la unidad se mantenga
de forma constante entre 20 a 100 psi (de 1.4 a 6.9 bares) en
todo momento. En algunos casos un sistema de ltrado
de agua por ósmosis inversa puede no tener la capacidad
de mantener consistentemente la presión mínima No es
recomendable utilizar una línea de cobre para esta aplicación.
REQUISITOS DE PLOMERÍA
Línea de suministro de agua Tubería de cobre, trenzada
de acero inoxidable o PEX de
1/4" de diámetro exterior.
Presión del agua 20 a 100 psi (1.4 a 6.9 bares)
Línea de exceso de agua para la
conexión
36" (914)
PREPARACIÓN DEL SITIO
3" (76)
9"
(229)
3/4"
(19)
SUELO
21/2" (64)
VISTA FRONTAL
9"
(229)
6"
(152)
VISTA SUPERIOR
11/2"
(38)
21/2"(64)
PARED
POSTERIOR
11/2"(38)
Instalación de plomería—
Modelos de 27" (posterior).
Instalación de plomería—
Modelos de 27" (inferior).
131/2"
(343)
3" (76)
VISTA FRONTAL
3/4"
(19)
SUELO
21/2" (64)
131/2"
(343)
VISTA SUPERIOR
6"
(152) 11/2"
(38)
PARED
POSTERIOR
21/2"(64)
11/2"(38)
Instalación de plomería—
Modelos de 36" (posterior).
Instalación de plomería—
Modelos de 36" (inferior).
