Sub-Zero UC-24C User manual

Sub-Zero Undercounter units simplify
life at home by bringing refrigeration
anywhere it’s needed. Fresh greens in
the kitchen island. Ice, soda and snacks
in the media room. Chilled mineral water
in the master suite. The combination
Model UC-24C features a wine storage
shelf and an automatic ice maker.
You can order a classic stainless steel
panel, or the unit is ready to be fitted
with your custom cabinet panel.
Model UC-24C
Undercounter Refrigerator/Freezer
Features
Can be fitted with a custom overlay or
stainless steel door front panel
Classic stainless steel door panel
with tubular handle available as sales
accessory
Easy-access electronic controls with LCD
display
Roller-glide wine storage shelf with eight
(750 ml) bottle capacity
Adjustable, spill-proof cantilever glass
shelf
Two-litre bottle storage in door
Automatic ice maker
Optional door lock available as sales
accessory
Meets strict Department of Energy
requirements
This appliance is certified by Star-K to
meet strict religious regulations in
conjunction with specific instructions
found on www.star-k.org.
Wine Storage Shelf Clear Ice Bucket
Accessories
Classic stainless steel door front panel
with tubular handle
Classic stainless steel handle for custom
panel application
Polished chrome handle for overlay
application
UL approved door lock kit
Accessories are available through your Sub-Zero
dealer. To obtain local dealer information, visit the
Showroom Locator section of our website,
subzero.com.
Interior Features
Refrigerator
Wine Storage Shelf
2 Adjustable Glass Shelves
Door Shelf
Freezer
Automatic Ice Maker
Automatic Defrost
Model Options UC-24C
Design/Finish Overlay or Classic*
*Classic stainless steel door front panel with handle available only as sales accessory.
Model UC-24C with overlay panel shown.
Installation Notes
Undercounter Model UC-24C is available in
your choice of the overlay or classic stainless
steel design application. A classic stainless
steel door front panel with tubular handle is
available as a sales accessory.
Complete installation specifications, including
panel sizes, can be found on our website,
subzero.com.
Unit dimensions may vary by ±
1
/
8
".
Specifications
Overall Width 237/8"
Overall Height 34"
Overall Depth 24"
Door Clearance 253/8"
Refrigerator Capacity 3.6 cu ft
Wine Storage Capacity 8 Bottles (750 ml)
Freezer Capacity 1.1 cu ft
Opening Width 24"
Opening Height 341/2"
Opening Depth 24"
Electrical Requirements 115 V AC, 60 Hz
15 amp dedicated circuit
Plumbing Requirements 1/4" copper line
20–100 psi
Annual Energy Usage $40*
Shipping Weight 130 lbs
*Based on 9.06 cents per kilowatt hour.
Installation Specifications
Overall Dimensions
Model UC-24C
Undercounter Refrigerator/Freezer
341/2"
(876)
ROUGH
OPENING
HEIGHT
341/4"
(870)
MINIMUM
HEIGHT
REQUIRED
24" (610)
ROUGH OPENING
WIDTH
151/2"
(394)
LOCATE ELECTRICAL
AND WATER LINE
WITHIN SHADED AREA
3" (76)
2" (51)
FRONT VIEW
ANTI-TIP BRACKET
24"
(610)
ROUGH
OPENING
DEPTH
LOCATE WATER LINE
WITHIN SHADED AREA
151/2"
(394)
1/2" (13)
2" (51)
TOP VIEW
90˚
253/8"
(645)
TOP VIEW
FRONT VIEW SIDE VIEW
(CABINET DIMENSION)
4
(102)
DOOR FRAME
(597)
1
2
23
30
(767)
DOOR
FRAME
*34
(864)
(587)
1
8
23
3
16
23 7
8
(606)
*
1/2"(13) +
_ADJUSTMENT IN LEVELING LEGS
Dimensions in parentheses are in
millimeters unless otherwise specified.

Other manuals for UC-24C

5

Other Sub-Zero Refrigerator manuals

Sub-Zero UC-24RO User manual

Sub-Zero

Sub-Zero UC-24RO User manual

Sub-Zero 200 Series User manual

Sub-Zero

Sub-Zero 200 Series User manual

Sub-Zero Built-in refrigerators User manual

Sub-Zero

Sub-Zero Built-in refrigerators User manual

Sub-Zero BI-36R User manual

Sub-Zero

Sub-Zero BI-36R User manual

Sub-Zero BI-36U User manual

Sub-Zero

Sub-Zero BI-36U User manual

Sub-Zero BI-36S Assembly instructions

Sub-Zero

Sub-Zero BI-36S Assembly instructions

Sub-Zero ICBBI-36F User manual

Sub-Zero

Sub-Zero ICBBI-36F User manual

Sub-Zero 600 Series BI-30U User manual

Sub-Zero

Sub-Zero 600 Series BI-30U User manual

Sub-Zero BI-36R Assembly instructions

Sub-Zero

Sub-Zero BI-36R Assembly instructions

Sub-Zero Wolf BI Series User manual

Sub-Zero

Sub-Zero Wolf BI Series User manual

Sub-Zero 650G User manual

Sub-Zero

Sub-Zero 650G User manual

Sub-Zero 315W Guide

Sub-Zero

Sub-Zero 315W Guide

Sub-Zero BI-48SD User manual

Sub-Zero

Sub-Zero BI-48SD User manual

Sub-Zero BI-42UFDID/O User manual

Sub-Zero

Sub-Zero BI-42UFDID/O User manual

Sub-Zero DEC3650FI/R User manual

Sub-Zero

Sub-Zero DEC3650FI/R User manual

Sub-Zero 601R-2 Operating manual

Sub-Zero

Sub-Zero 601R-2 Operating manual

Sub-Zero 700TC User manual

Sub-Zero

Sub-Zero 700TC User manual

Sub-Zero UC-24B User manual

Sub-Zero

Sub-Zero UC-24B User manual

Sub-Zero 700BCI Assembly instructions

Sub-Zero

Sub-Zero 700BCI Assembly instructions

Sub-Zero 500 Series Technical manual

Sub-Zero

Sub-Zero 500 Series Technical manual

Sub-Zero BI-36UFD User manual

Sub-Zero

Sub-Zero BI-36UFD User manual

Sub-Zero 700-3 BASE Operating manual

Sub-Zero

Sub-Zero 700-3 BASE Operating manual

Sub-Zero 700BR User manual

Sub-Zero

Sub-Zero 700BR User manual

Sub-Zero ICBBI36FSPHRH User manual

Sub-Zero

Sub-Zero ICBBI36FSPHRH User manual

Popular Refrigerator manuals by other brands

Samsung RC09EAGO Owner's instructions

Samsung

Samsung RC09EAGO Owner's instructions

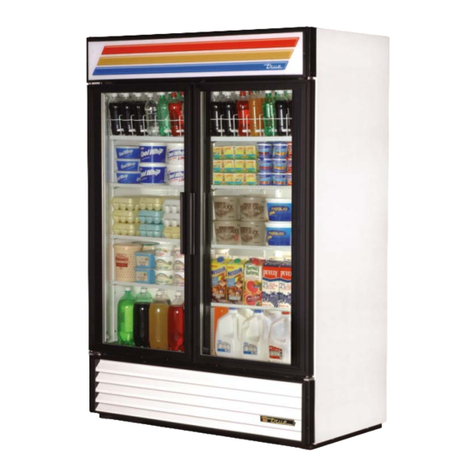

True GDM-49 Specifications

True

True GDM-49 Specifications

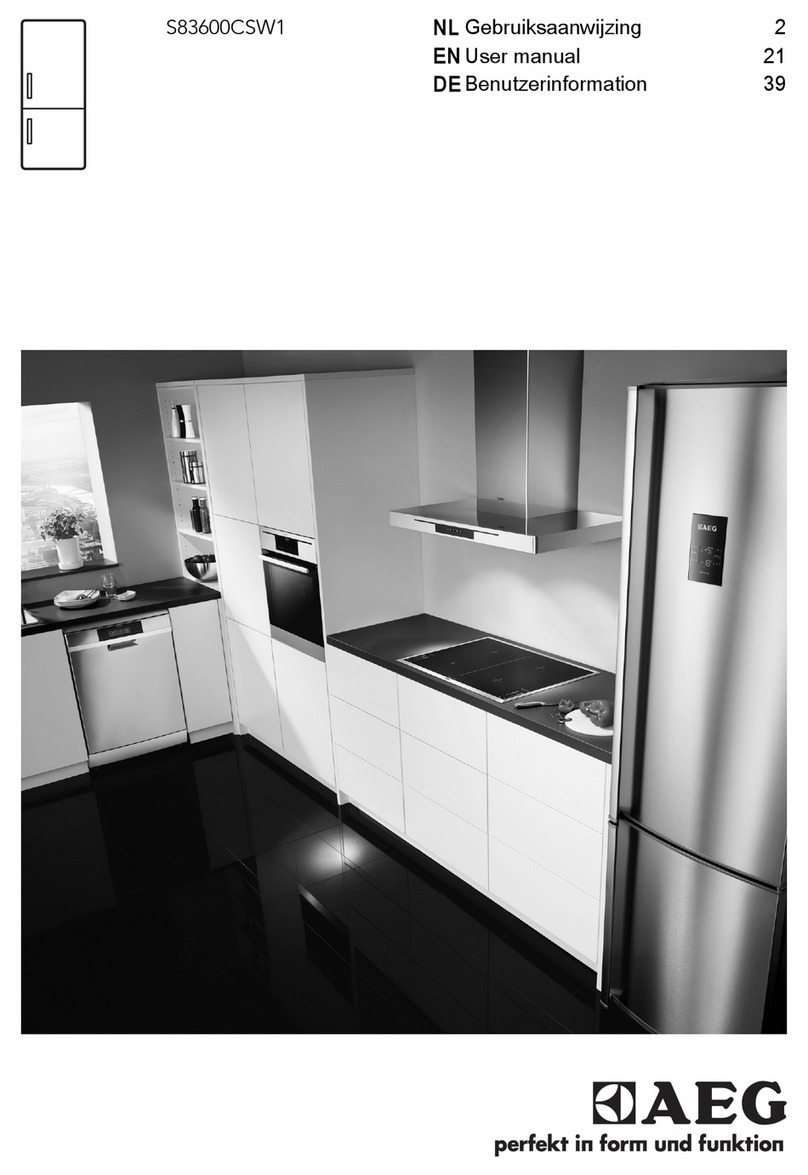

AEG S83600CSW1 user manual

AEG

AEG S83600CSW1 user manual

Gorenje RK4151ANX Detailed instructions for use

Gorenje

Gorenje RK4151ANX Detailed instructions for use

GE 22 Owner's Manual & Installation Instructions

GE

GE 22 Owner's Manual & Installation Instructions

Zanussi ZI 9454 Instruction booklet

Zanussi

Zanussi ZI 9454 Instruction booklet

KitchenAid KTRF18MT Use & care gudie

KitchenAid

KitchenAid KTRF18MT Use & care gudie

Frigidaire Gallery FGUN2642L use & care

Frigidaire

Frigidaire Gallery FGUN2642L use & care

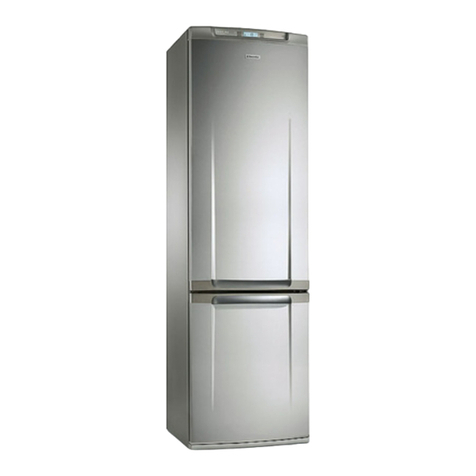

Electrolux U30414 ENB 35400 W user manual

Electrolux

Electrolux U30414 ENB 35400 W user manual

Dometic RM 8400 operating manual

Dometic

Dometic RM 8400 operating manual

arcelik 5797 NHI manual

arcelik

arcelik 5797 NHI manual

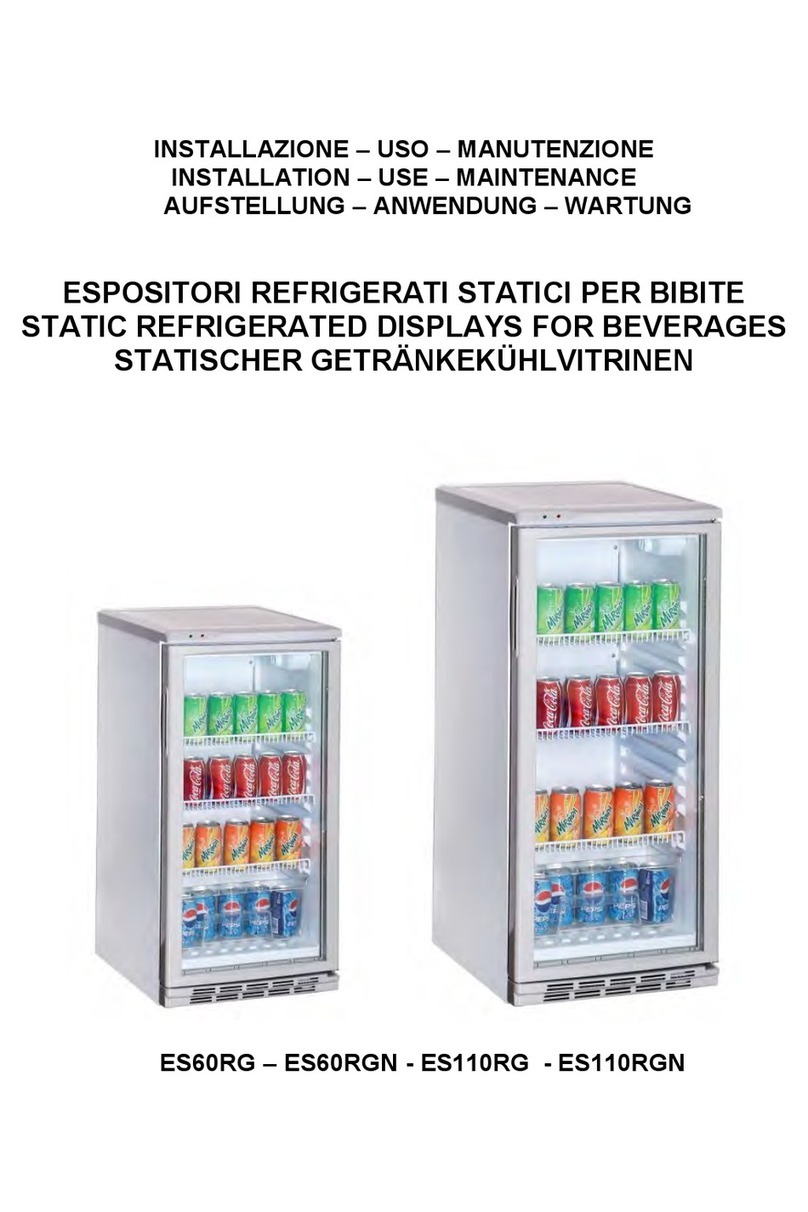

Gastrodomus ES60RG Installation - use - maintenance

Gastrodomus

Gastrodomus ES60RG Installation - use - maintenance

Defy DFS132 owner's manual

Defy

Defy DFS132 owner's manual

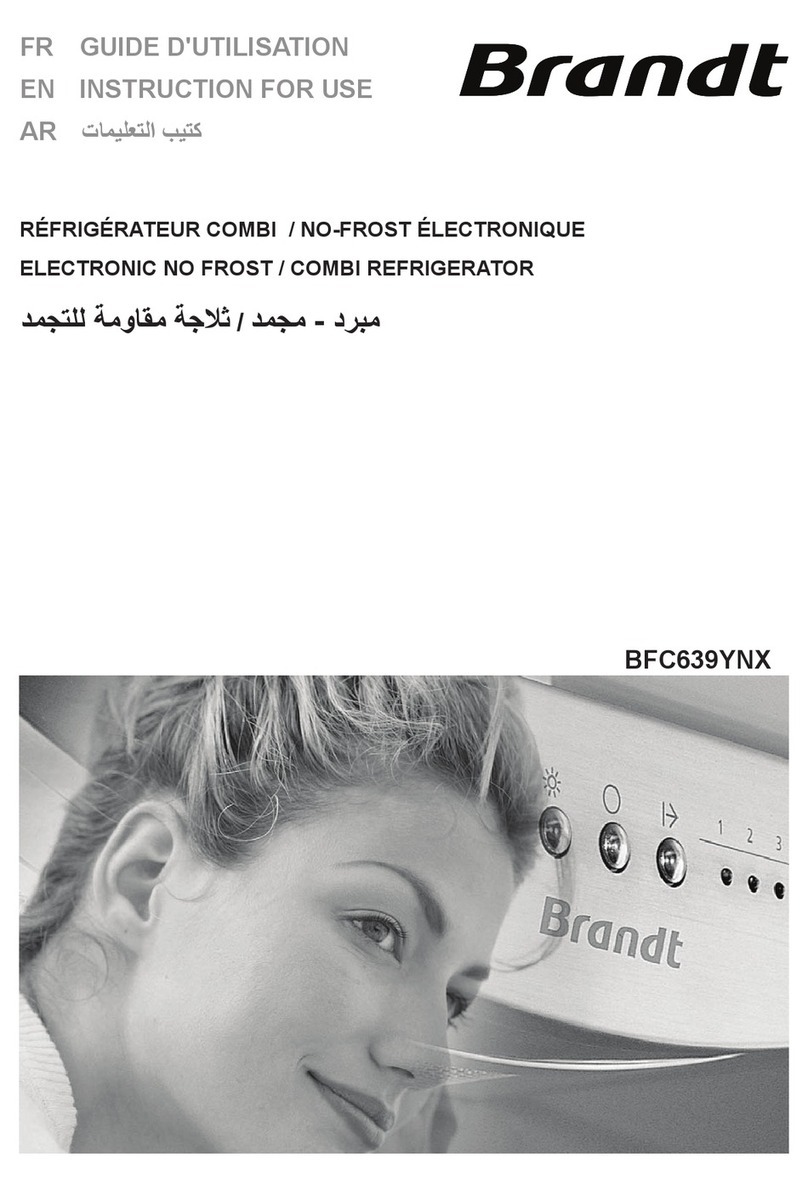

Brandt BFC639YNX Instructions for use

Brandt

Brandt BFC639YNX Instructions for use

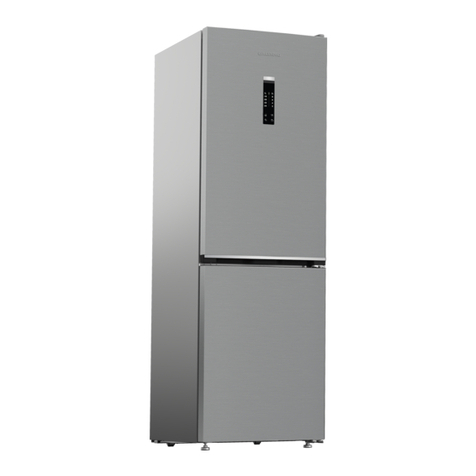

Grundig GKPN46820FX user manual

Grundig

Grundig GKPN46820FX user manual

Beko GNE480E20ZXP user manual

Beko

Beko GNE480E20ZXP user manual

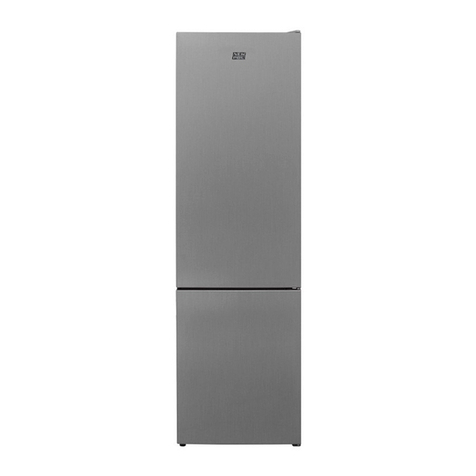

NEW POL NWCF180I user manual
